Model GE ZGU48N6DH3SS Gas Range Or Dual Fuel – Common Parts & Diagrams
GAS & BURNER PARTS
MANIFOLD ASSEMBLY
CONTROL PANEL
COOKTOP

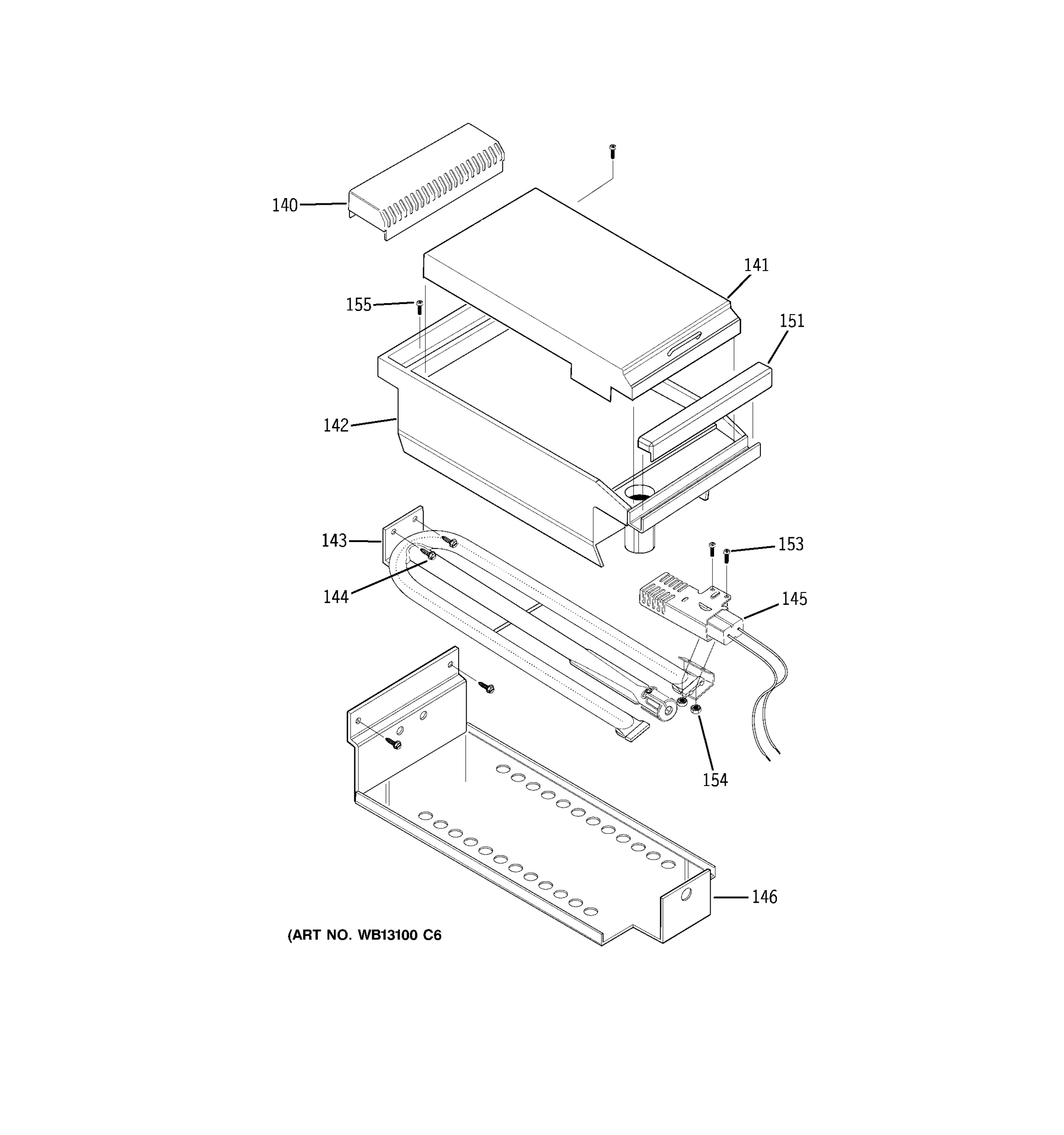

GRIDDLE ASSEMBLY
Common parts from model GE ZGU48N6DH3SS Gas Range Or Dual Fuel
1
NAT/LP CONVERSION KIT GEN WB49X10132 Contact Us For Availability
1
HIGH ALTITUDE CONVERSION GEN WB49X10130 Contact Us For Availability
64
NUT WITH RETAINER 8-32 GEN WB01X10017 Contact Us For Availability
99
IGNITOR WIRE KIT H MODEL GEN WB18X10338 Contact Us For Availability
140
COVER REAR, GRIDDLE GEN WB07X10791 Contact Us For Availability
141
COVER , GRIDDLE GEN WB07X10809 Contact Us For Availability
142
GRIDDLE ASSY GEN WB32X10050 Contact Us For Availability
143
U-BURNER W / BRKT GEN WB28X10063 Contact Us For Availability
144
SCREW, U-BURNER, MOUNT GEN WB02X11062 Contact Us For Availability
145
IGNITER GEN WB02X8605 Contact Us For Availability
146
GRIDDLE BAFFLE GEN WB49X10126 Contact Us For Availability
151
GRIDDLE FRONT TRIM GEN WB07X7395 Contact Us For Availability
153
PHILLIPS 8-32X1/2" SS GEN WB01X10274 Contact Us For Availability
154
NUT KEPT #8 GEN WB01X10275 Contact Us For Availability
155
VENTURI BOLT GEN WB01X10056 Contact Us For Availability
202
POWER CORD STRAIN RELIEF GEN WB02X11104 Contact Us For Availability
233
STATIC DRIP TRAY HANDLE GEN WB15X10168 Contact Us For Availability
236
DRIP TRAY HANDLE GEN WB15X10151 Contact Us For Availability
237
SCREW COVER HANDLE GEN WB01X10250 Contact Us For Availability
241
LANDING EDGE KIT 48" GEN WB07X10944 Contact Us For Availability
248
SIDE TRIM R/H 48" GEN WB07X10886 Contact Us For Availability
249
BACK TRIM 48" GEN WB07X10821 Contact Us For Availability
250
SIDE TRIM L/H 48" GEN WB07X10887 Contact Us For Availability
251
GRATE, WOK INSERT GEN WB31X10004 Contact Us For Availability
252
GRATE SUPPORT GEN WB02X11074 Contact Us For Availability
253
BURNER CAP (PORCELAIN) GEN WB13X10014 Contact Us For Availability
255
NUT CHAMFER GEN WB01X10321 Contact Us For Availability
257
VENTURI, CHAMFERED GEN WB38X10080 No Longer Available
264
NUT, JET HOLDER, MAIN GEN WB01X10139 Contact Us For Availability
272
TUBING, MAIN REAR GEN WB28X10064 Contact Us For Availability
274
TUBING, SIMMER REAR GEN WB28X10066 Contact Us For Availability
275
TUBING, SIMMER FRONT GEN WB28X10067 Contact Us For Availability
276
DRIP TRAY GEN WB32X10053 Contact Us For Availability
279
NUT, JET HOLDER, SIM GEN WB01X10140 Contact Us For Availability
288
KNOB, BURNER GEN WB03X10218 Contact Us For Availability
291
KNOB, GRIDDLE GEN WB03X10221 Contact Us For Availability
294
SCR 8-32X1" TX FL HD GEN WB01X10035 Contact Us For Availability
306
BURNER VALVE GEN WB21X10114 Contact Us For Availability
314
THERMOSTAT, GRIDDLE GEN WB21X10117 Contact Us For Availability
316
SINGLE THERMO VALVE-NAT GEN WB21X10123 Contact Us For Availability
317
ORIFICE NAT GRL/GRD GEN WB21X5367 Contact Us For Availability
322
TRANSFORMER 120V/230V 30 GEN WB27X10905 Contact Us For Availability
340
TERMINAL BLOCK GEN WB17X5132 Contact Us For Availability
348
PIPE CLAMP GEN WB02X11103 Contact Us For Availability
371
INDICATOR LIGHT W/LEADS GEN WB25X10012 Contact Us For Availability
373
LENS, BEZEL GEN WB25X10013 Contact Us For Availability
374
CLIP GEN WB02X11087 Contact Us For Availability
375
INSERT, BURNER GEN WB02X11090 Contact Us For Availability
376
INSERT, THERMOSTAT GEN WB02X11091 Contact Us For Availability
380
GROMMET, WHITE FLEX GEN WB02X11085 Contact Us For Availability
383
SLIDE GEN WB02X11093 Contact Us For Availability
384
BRACKET, SLIDE MOUNT GEN WB02X11094 Contact Us For Availability
385
DRIP PAN GRILLE/GRIDDLE GEN WB02X11114 Contact Us For Availability
× ![]()
