Model GE ZET857WBWW Electric Range – Common Parts & Diagrams
BLOWER
CONTROL PANEL

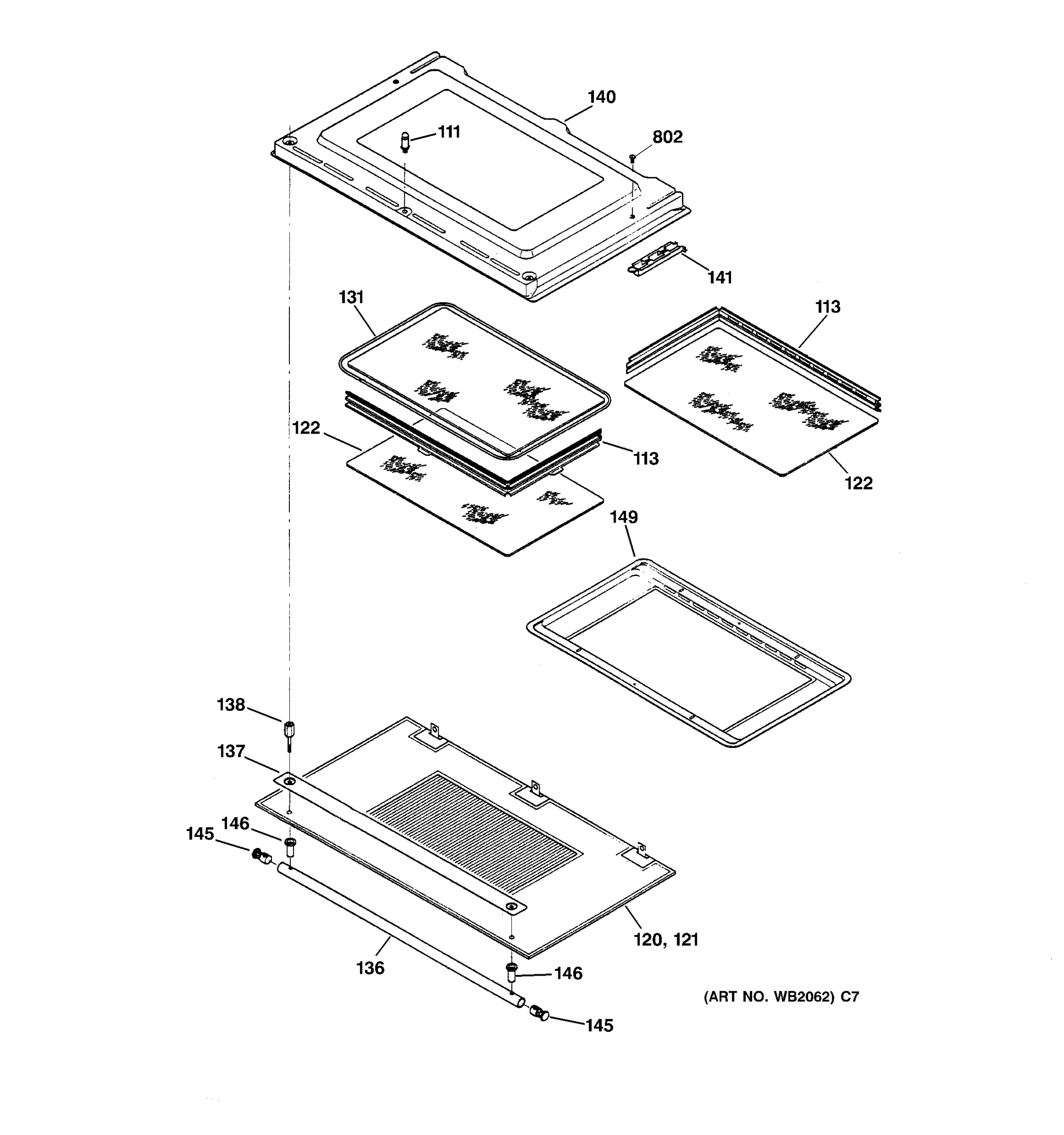

DOOR

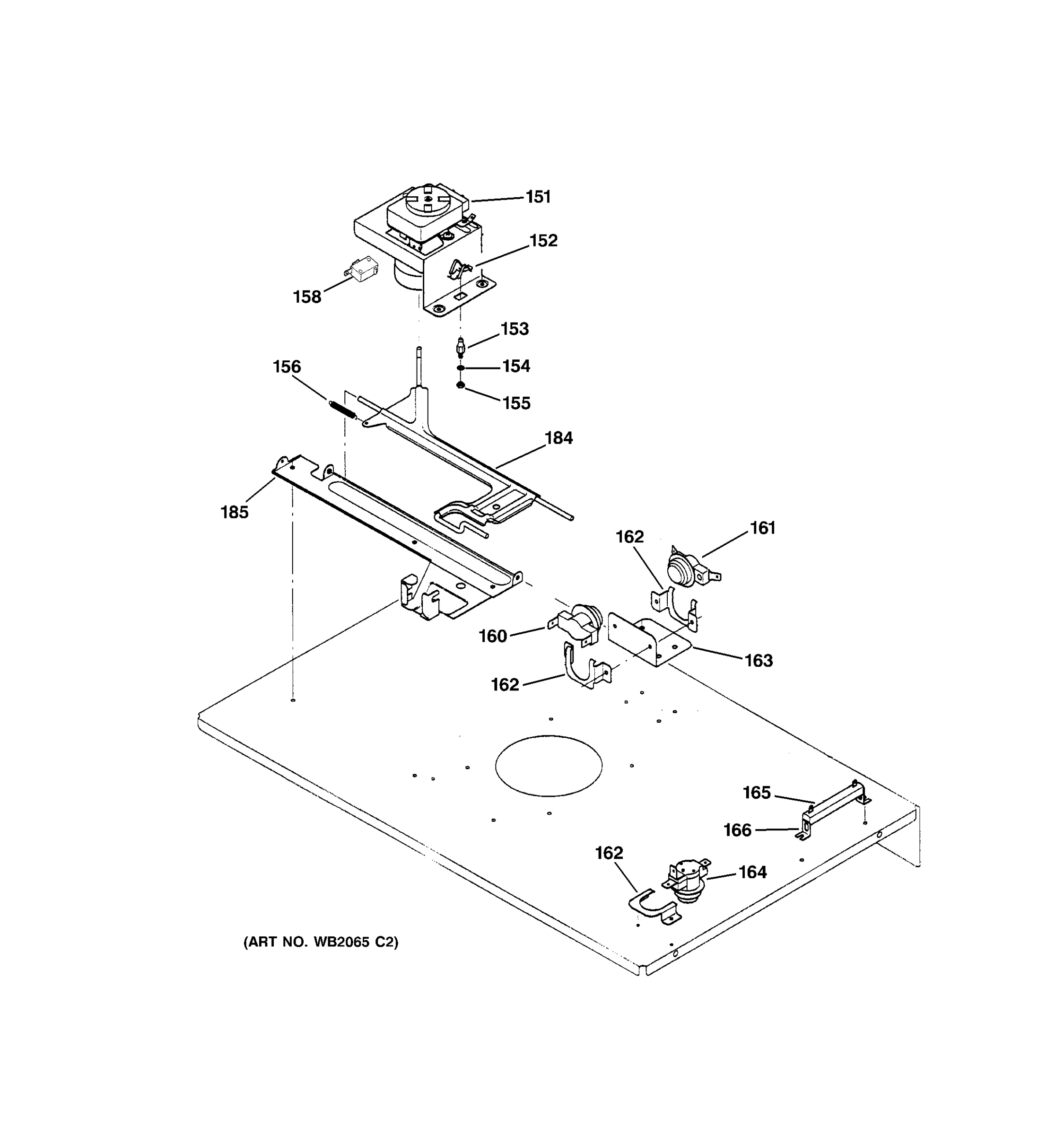

DOOR LATCH

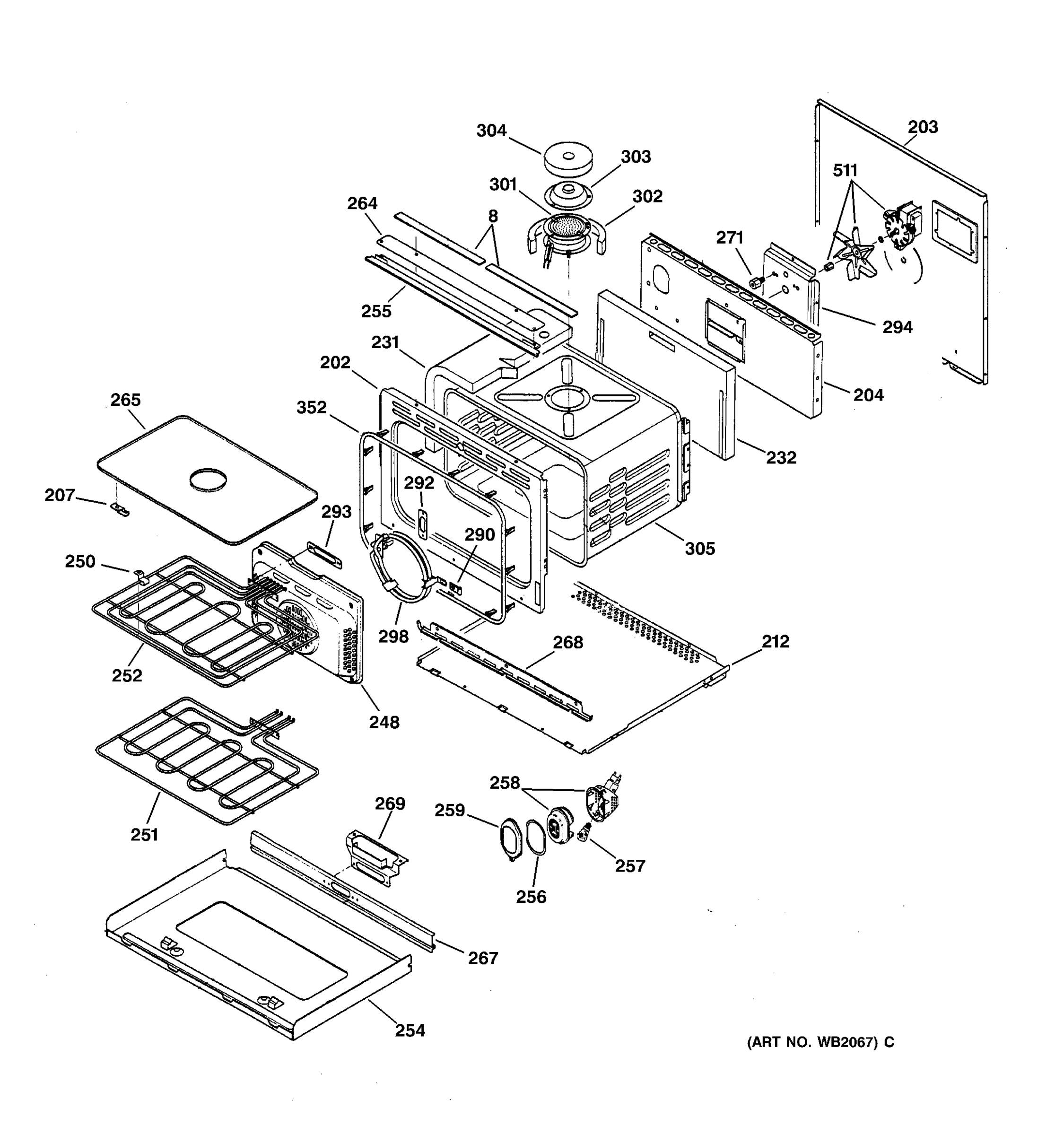

LOWER OVEN

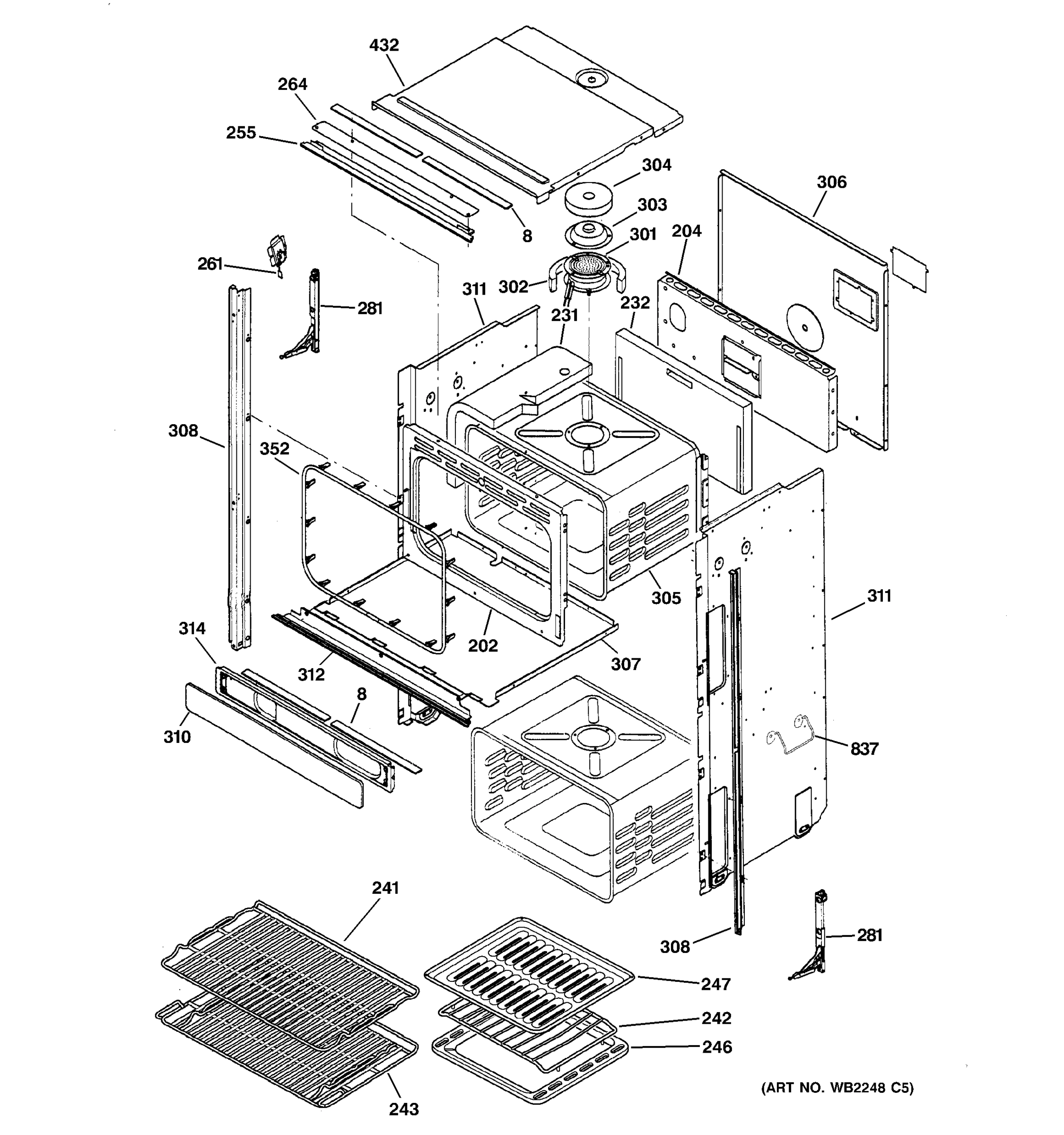

UPPER OVEN
Common parts from model GE ZET857WBWW Electric Range
4
GEN WB03X10034 GEN WB03X10034 Contact Us For Availability
6
GEN WB24X10011 GEN WB24X10011 Contact Us For Availability
8
GEN WB02X10493 GEN WB02X10493 Contact Us For Availability
16
GEN WB19X10001 GEN WB19X10001 Contact Us For Availability
19
GEN WB24X10010 GEN WB24X10010 Contact Us For Availability
38
GEN WB02X10492 GEN WB02X10492 Contact Us For Availability
111
GEN WB02X10423 GEN WB02X10423 Contact Us For Availability
113
GEN WB02X10418 GEN WB02X10418 Contact Us For Availability
120
WH EXT GLASS UPPER GEN WB36X10012 Contact Us For Availability
121
GEN WB36X10013 GEN WB36X10013 Contact Us For Availability
121
GEN WB36X10141 GEN WB36X10141 Contact Us For Availability
122
GEN WB36X10010 GEN WB36X10010 Contact Us For Availability
131
GEN WB55X10019 GEN WB55X10019 Contact Us For Availability
136
GEN WB15X10006 GEN WB15X10006 Contact Us For Availability
136
GEN WB15X10007 GEN WB15X10007 Contact Us For Availability
137
GEN WB07X10136 GEN WB07X10136 Contact Us For Availability
138
GEN WB01X10049 GEN WB01X10049 Contact Us For Availability
140
GEN WB55X10018 GEN WB55X10018 Contact Us For Availability
141
GEN WB10X10005 GEN WB10X10005 Contact Us For Availability
145
GEN WB02X10419 GEN WB02X10419 Contact Us For Availability
145
GEN WB02X10420 GEN WB02X10420 Contact Us For Availability
146
GEN WB02X10421 GEN WB02X10421 Contact Us For Availability
146
GEN WB02X10422 GEN WB02X10422 Contact Us For Availability
149
GEN WB49X10018 GEN WB49X10018 Contact Us For Availability
151
GEN WB14X10045 GEN WB14X10045 Contact Us For Availability
152
GEN WB01X10045 GEN WB01X10045 Contact Us For Availability
153
GEN WB01X10047 GEN WB01X10047 Contact Us For Availability
154
GEN WB01X10046 GEN WB01X10046 Contact Us For Availability
155
GEN WB01X10048 GEN WB01X10048 Contact Us For Availability
156
GEN WB01X10025 GEN WB01X10025 Contact Us For Availability
158
GEN WB24X10182 GEN WB24X10182 Contact Us For Availability
160
GEN WB21X10018 GEN WB21X10018 Contact Us For Availability
161
GEN WB21X10019 GEN WB21X10019 Contact Us For Availability
162
GEN WB02X10388 GEN WB02X10388 Contact Us For Availability
163
GEN WB01X10023 GEN WB01X10023 Contact Us For Availability
164
GEN WB21X10020 GEN WB21X10020 Contact Us For Availability
165
GEN WB20X10002 GEN WB20X10002 Contact Us For Availability
166
GEN WB02X10414 GEN WB02X10414 Contact Us For Availability
184
GEN WB02X10417 GEN WB02X10417 Contact Us For Availability
185
GEN WB02X10416 GEN WB02X10416 Contact Us For Availability
202
GEN WB56X10029 GEN WB56X10029 Contact Us For Availability
203
GEN WB07X10050 GEN WB07X10050 Contact Us For Availability
204
GEN WB07X10049 GEN WB07X10049 Contact Us For Availability
207
GEN WB01X10022 GEN WB01X10022 Contact Us For Availability
212
GEN WB56X10028 GEN WB56X10028 Contact Us For Availability
231
GEN WB05X10003 GEN WB05X10003 Contact Us For Availability
232
GEN WB05X10004 GEN WB05X10004 Contact Us For Availability
241
GEN WB48X10002 GEN WB48X10002 Contact Us For Availability
243
GEN WB48X10024 GEN WB48X10024 Contact Us For Availability
246
GEN WB49X10014 GEN WB49X10014 Contact Us For Availability
248
GEN WB56X10033 GEN WB56X10033 Contact Us For Availability
250
GEN WB01X10020 GEN WB01X10020 Contact Us For Availability
251
GEN WB44X10011 GEN WB44X10011 Contact Us For Availability
252
GEN WB44X10010 GEN WB44X10010 Contact Us For Availability
254
GEN WB49X10016 GEN WB49X10016 Contact Us For Availability
255
GEN WB07X10055 GEN WB07X10055 Contact Us For Availability
255
GEN WB07X10056 GEN WB07X10056 Contact Us For Availability
256
GEN WB02X10410 GEN WB02X10410 Contact Us For Availability
257
GEN WB02X10413 GEN WB02X10413 Contact Us For Availability
258
GEN WB08X10005 GEN WB08X10005 Contact Us For Availability
259
GEN WB02X10409 GEN WB02X10409 Contact Us For Availability
261
GEN WB24X10184 GEN WB24X10184 Contact Us For Availability
264
GEN WB07X10053 GEN WB07X10053 Contact Us For Availability
265
GEN WB49X10015 GEN WB49X10015 Contact Us For Availability
267
GEN WB07X10052 GEN WB07X10052 Contact Us For Availability
268
GEN WB07X10057 GEN WB07X10057 Contact Us For Availability
268
GEN WB07X10058 GEN WB07X10058 Contact Us For Availability
269
GEN WB02X10405 GEN WB02X10405 Contact Us For Availability
271
GEN WB01X10021 GEN WB01X10021 Contact Us For Availability
275
GEN WB02X10408 GEN WB02X10408 Contact Us For Availability
290
GEN WB01X10026 GEN WB01X10026 Contact Us For Availability
292
GEN WB02X10404 GEN WB02X10404 Contact Us For Availability
293
GEN WB02X10403 GEN WB02X10403 Contact Us For Availability
294
GEN WB02X10393 GEN WB02X10393 Contact Us For Availability
301
GEN WB20X10001 GEN WB20X10001 Contact Us For Availability
302
GEN WB05X10001 GEN WB05X10001 Contact Us For Availability
303
GEN WB02X10394 GEN WB02X10394 Contact Us For Availability
304
GEN WB05X10002 GEN WB05X10002 Contact Us For Availability
305
GEN WB53X10005 GEN WB53X10005 Contact Us For Availability
306
GEN WB56X10055 GEN WB56X10055 Contact Us For Availability
307
GEN WB07X10148 GEN WB07X10148 Contact Us For Availability
308
GEN WB07X10149 GEN WB07X10149 Contact Us For Availability
308
GEN WB07X10150 GEN WB07X10150 Contact Us For Availability
308
GEN WB07X10151 GEN WB07X10151 Contact Us For Availability
308
GEN WB07X10152 GEN WB07X10152 Contact Us For Availability
310
GEN WB07X10138 GEN WB07X10138 Contact Us For Availability
310
GEN WB07X10139 GEN WB07X10139 Contact Us For Availability
311
GEN WB56X10053 GEN WB56X10053 Contact Us For Availability
311
GEN WB56X10054 GEN WB56X10054 Contact Us For Availability
312
CENTER CROSS BAR BLK GEN WB07X10144 Contact Us For Availability
312
GEN WB07X10145 GEN WB07X10145 Contact Us For Availability
314
GEN WB07X10146 GEN WB07X10146 Contact Us For Availability
432
GEN WB56X10032 GEN WB56X10032 Contact Us For Availability
511
GEN WB26X10016 GEN WB26X10016 Contact Us For Availability
582
GEN WB21X10016 GEN WB21X10016 Contact Us For Availability
582
GEN WB21X10028 GEN WB21X10028 Contact Us For Availability
780
GEN WB17X10006 No Longer Available
782
GEN WB17X10003 GEN WB17X10003 Contact Us For Availability
802
GEN WB01X10238 GEN WB01X10238 Contact Us For Availability
837
GEN WB07X10059 GEN WB07X10059 Contact Us For Availability
999
GEN 31-20755 GEN 31-20755 Contact Us For Availability
999
GEN 49-8791 GEN 49-8791 Contact Us For Availability
999
GEN 49-8974 GEN 49-8974 Contact Us For Availability
× ![]()
