Model GE ZEK937WD1WW Electric Range – Common Parts & Diagrams
BODY PARTS
CONTROL PANEL

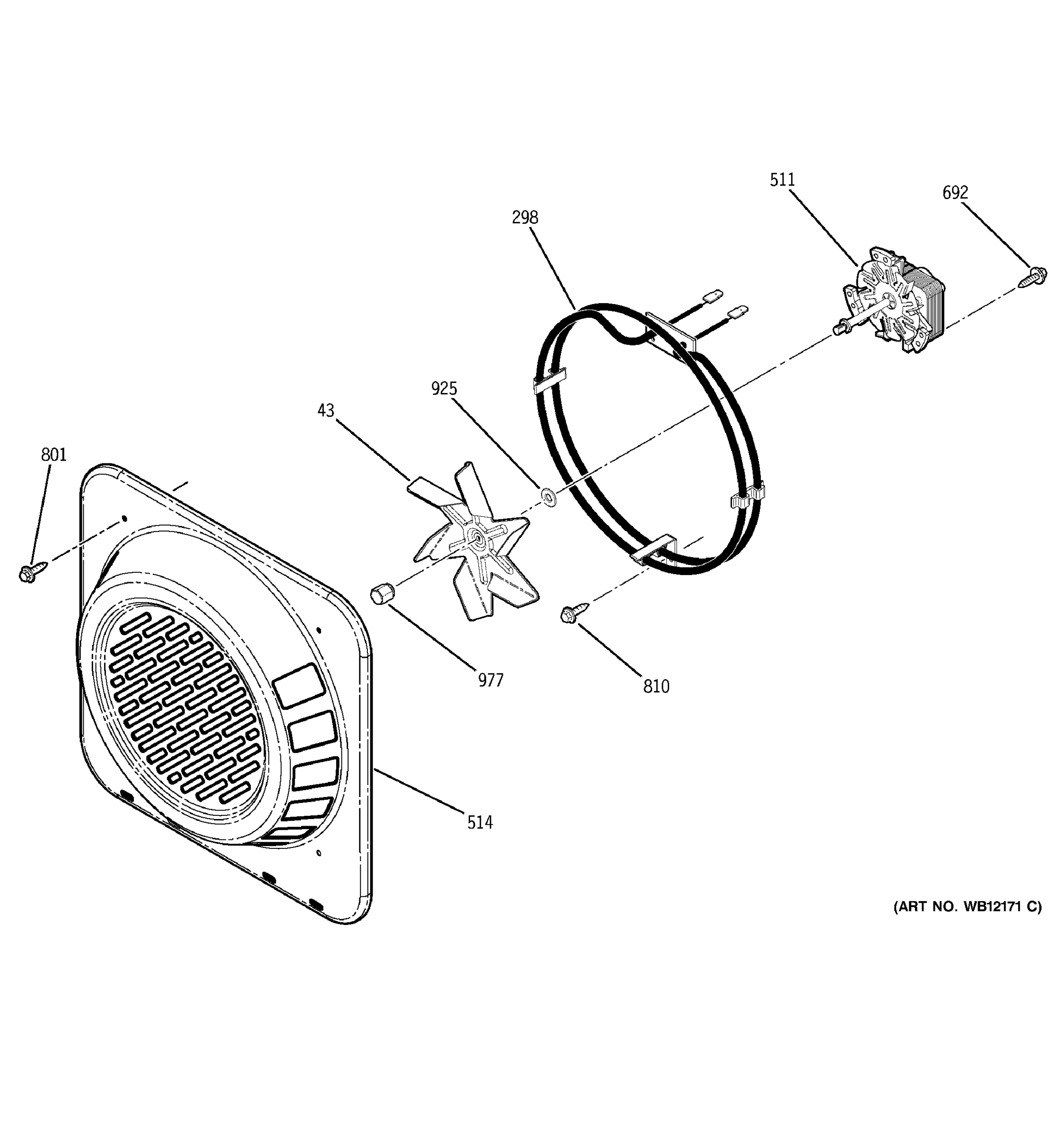

CONVECTION FAN

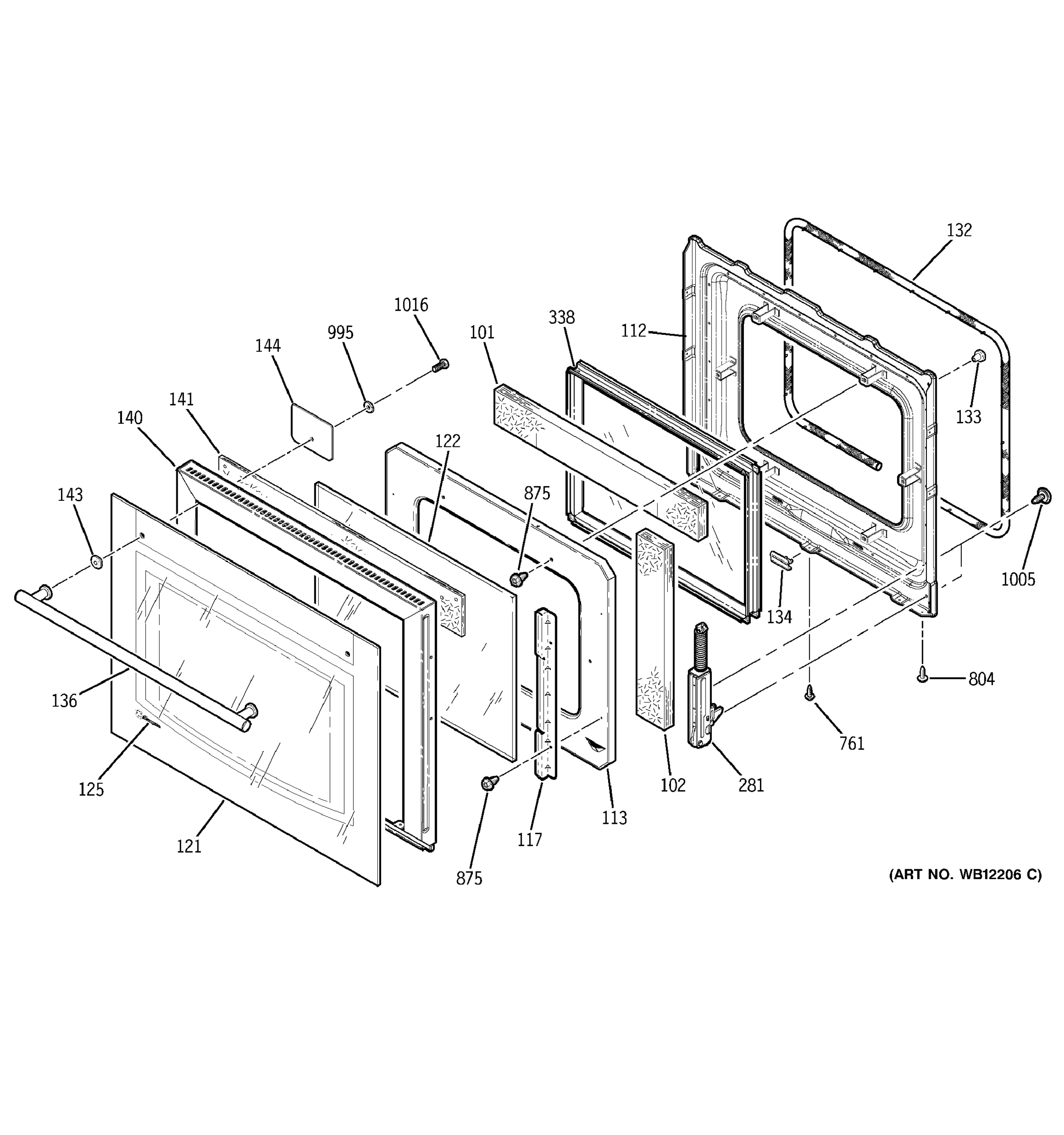

DOOR

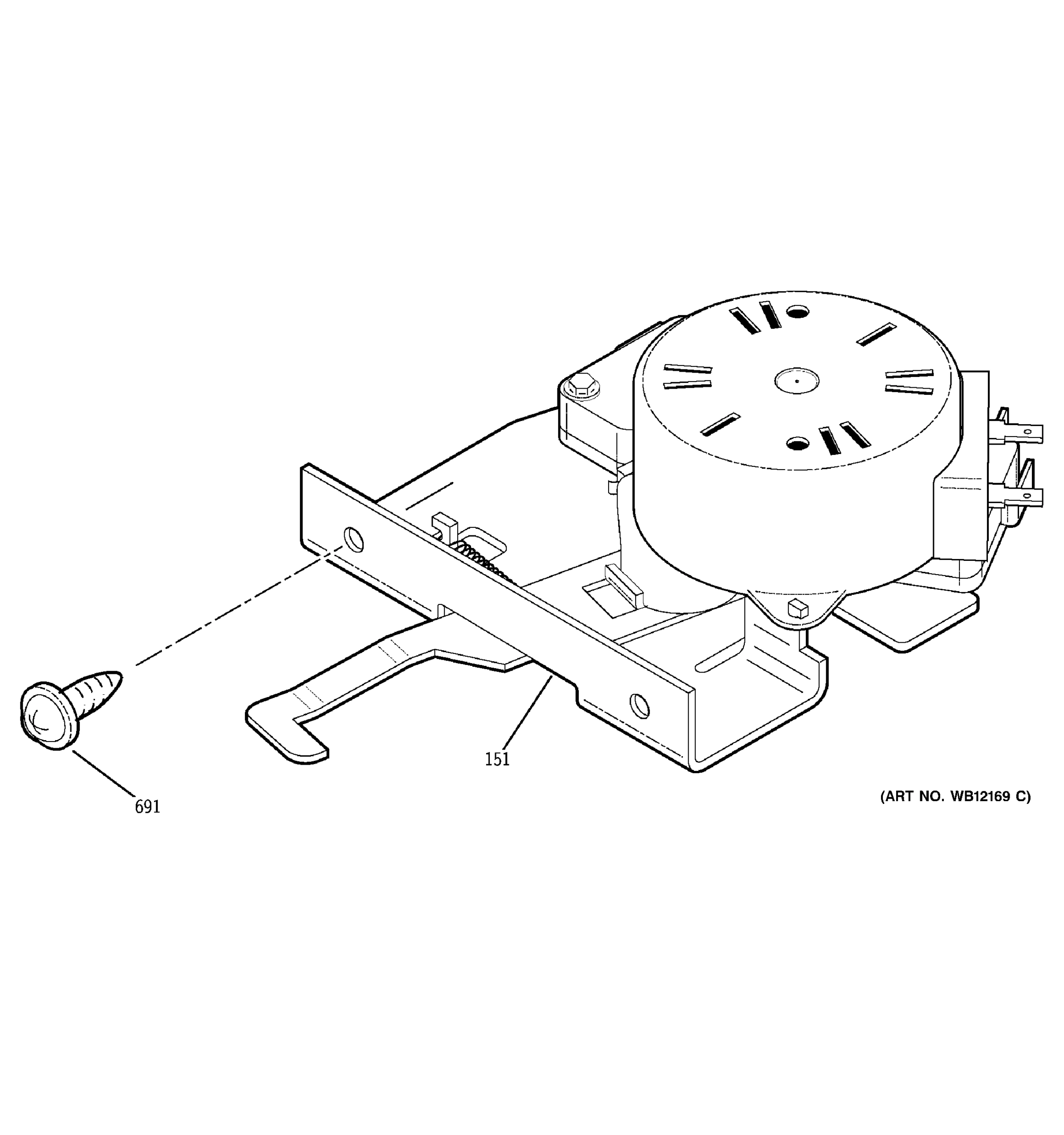

DOOR LOCK
Common parts from model GE ZEK937WD1WW Electric Range
1
GEN WB36T10417 GEN WB36T10417 Contact Us For Availability
2
GEN WB36T10415 GEN WB36T10415 Contact Us For Availability
2
GEN WB36T10416 GEN WB36T10416 Contact Us For Availability
3
GEN WB07T10224 GEN WB07T10224 Contact Us For Availability
11
GEN WB02T10112 GEN WB02T10112 Contact Us For Availability
16
GEN WB27T10339 GEN WB27T10339 Contact Us For Availability
43
GEN WB38T10017 GEN WB38T10017 Contact Us For Availability
49
GEN WB34T10043 GEN WB34T10043 Contact Us For Availability
101
GEN WB35T10062 GEN WB35T10062 Contact Us For Availability
112
GEN WB55T10088 GEN WB55T10088 Contact Us For Availability
113
GEN WB02T10126 GEN WB02T10126 Contact Us For Availability
121
GEN WB55T10105 GEN WB55T10105 Contact Us For Availability
122
GEN WB57T10185 GEN WB57T10185 Contact Us For Availability
136
GEN WB15T10054 GEN WB15T10054 Contact Us For Availability
140
GEN WB55T10101 GEN WB55T10101 Contact Us For Availability
141
GEN WB35T10068 GEN WB35T10068 Contact Us For Availability
143
GEN WB02T10130 GEN WB02T10130 Contact Us For Availability
144
GEN WB02T10128 GEN WB02T10128 Contact Us For Availability
151
GEN WB30T10069 GEN WB30T10069 Contact Us For Availability
159
LIMIT SWITCH-UPPER(VENT) GEN WB24T10059 Contact Us For Availability
210
GEN WB63T10080 GEN WB63T10080 Contact Us For Availability
216
GEN WB34K5216 GEN WB34K5216 Contact Us For Availability
216
GEN WB34T10044 GEN WB34T10044 Contact Us For Availability
219
GEN WB34T10041 GEN WB34T10041 Contact Us For Availability
219
GEN WB34T10042 GEN WB34T10042 Contact Us For Availability
227
GEN WB02T10114 GEN WB02T10114 Contact Us For Availability
241
GEN WB48T10026 GEN WB48T10026 Contact Us For Availability
253
GEN WB21T10005 GEN WB21T10005 Contact Us For Availability
258
HALOGEN LAMP ASM GEN WB25T10025 Contact Us For Availability
259
GEN WB25T10013 GEN WB25T10013 Contact Us For Availability
261
GEN WB24T10065 GEN WB24T10065 Contact Us For Availability
263
GEN WB07T10223 GEN WB07T10223 Contact Us For Availability
264
GEN WB07T10186 GEN WB07T10186 Contact Us For Availability
276
GEN WB35T10066 GEN WB35T10066 Contact Us For Availability
279
GEN WB28T10055 GEN WB28T10055 Contact Us For Availability
281
GEN WB10T10018 GEN WB10T10018 Contact Us For Availability
281
GEN WB10T10017 GEN WB10T10017 Contact Us For Availability
282
GEN WB28T10056 GEN WB28T10056 Contact Us For Availability
291
GEN WB02X9152 GEN WB02X9152 Contact Us For Availability
298
GEN WB44T10027 GEN WB44T10027 Contact Us For Availability
416
GEN WB35T10060 GEN WB35T10060 Contact Us For Availability
431
GEN WB48K10006 GEN WB48K10006 Contact Us For Availability
511
FAN MOTOR CONV. GEN WB26T10006 Contact Us For Availability
514
GEN WB26T10010 GEN WB26T10010 Contact Us For Availability
534
GEN WB26K5050 GEN WB26K5050 Contact Us For Availability
594
GEN WB08T10018 GEN WB08T10018 Contact Us For Availability
596
GEN WB08T10019 GEN WB08T10019 Contact Us For Availability
600
GEN WB18T10221 GEN WB18T10221 Contact Us For Availability
691
GEN WB01K5163 GEN WB01K5163 Contact Us For Availability
692
SCREW 8-18 AB HXW 3/4 GEN WZ04X0416 Contact Us For Availability
862
GEN WB01X1178 GEN WB01X1178 Contact Us For Availability
925
GEN WB01T10010 GEN WB01T10010 Contact Us For Availability
926
GROUND WASHER GEN WB01X1260 Contact Us For Availability
995
GEN WB01T10060 GEN WB01T10060 Contact Us For Availability
999
GEN 31-10473 GEN 31-10473 Contact Us For Availability
999
GEN 31-10483 GEN 31-10483 Contact Us For Availability
999
GEN 31-13883 GEN 31-13883 Contact Us For Availability
999
GEN 49-80085-1 GEN 49-80085-1 Contact Us For Availability
1016
GEN WB01T10059 GEN WB01T10059 Contact Us For Availability
1017
GEN WB01T10062 GEN WB01T10062 Contact Us For Availability
× ![]()
