Model GE ZDP48N4GD2SS Electric Range – Common Parts & Diagrams

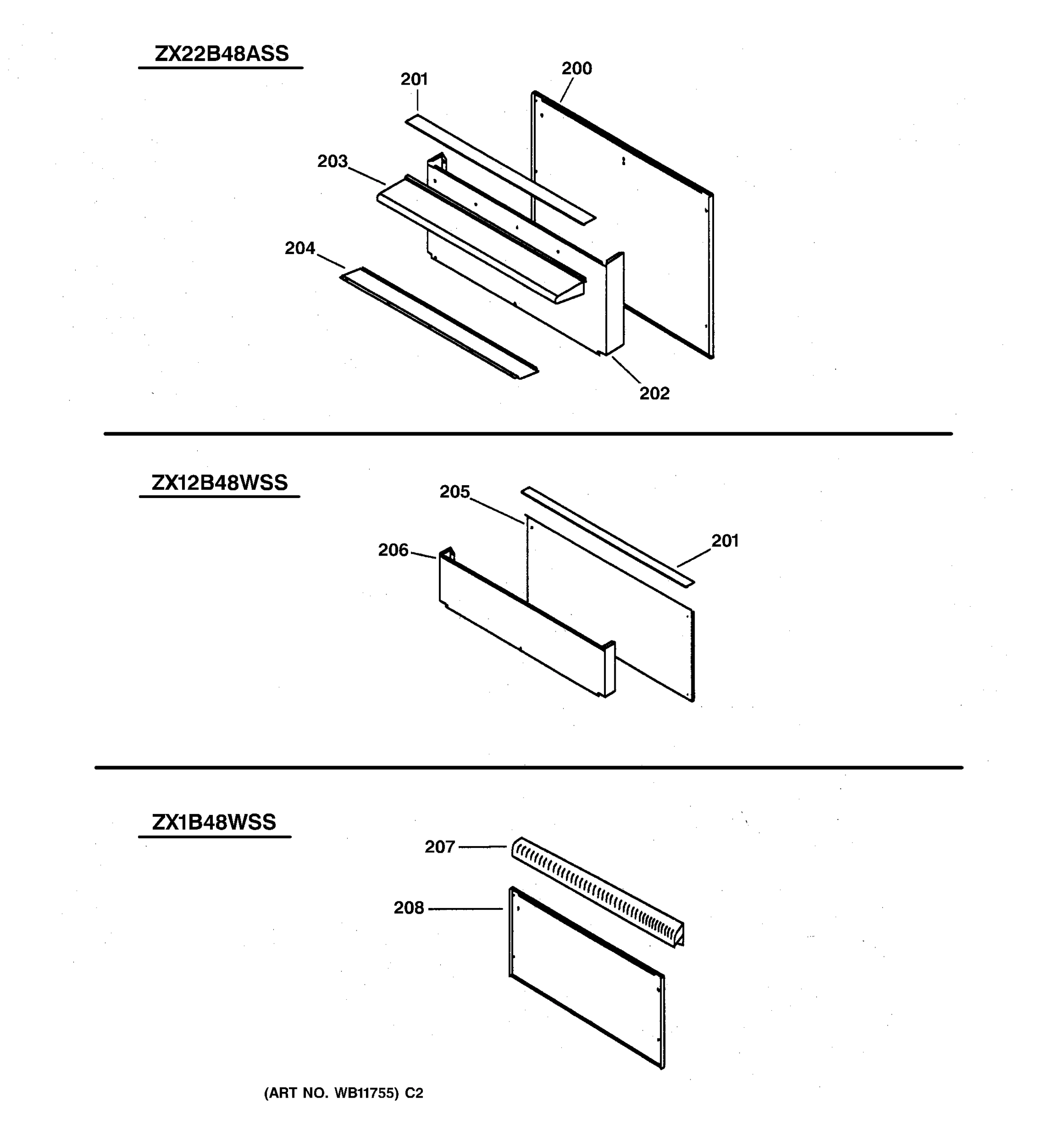

ACCESSORY BACKGUARD ASSEMBLY

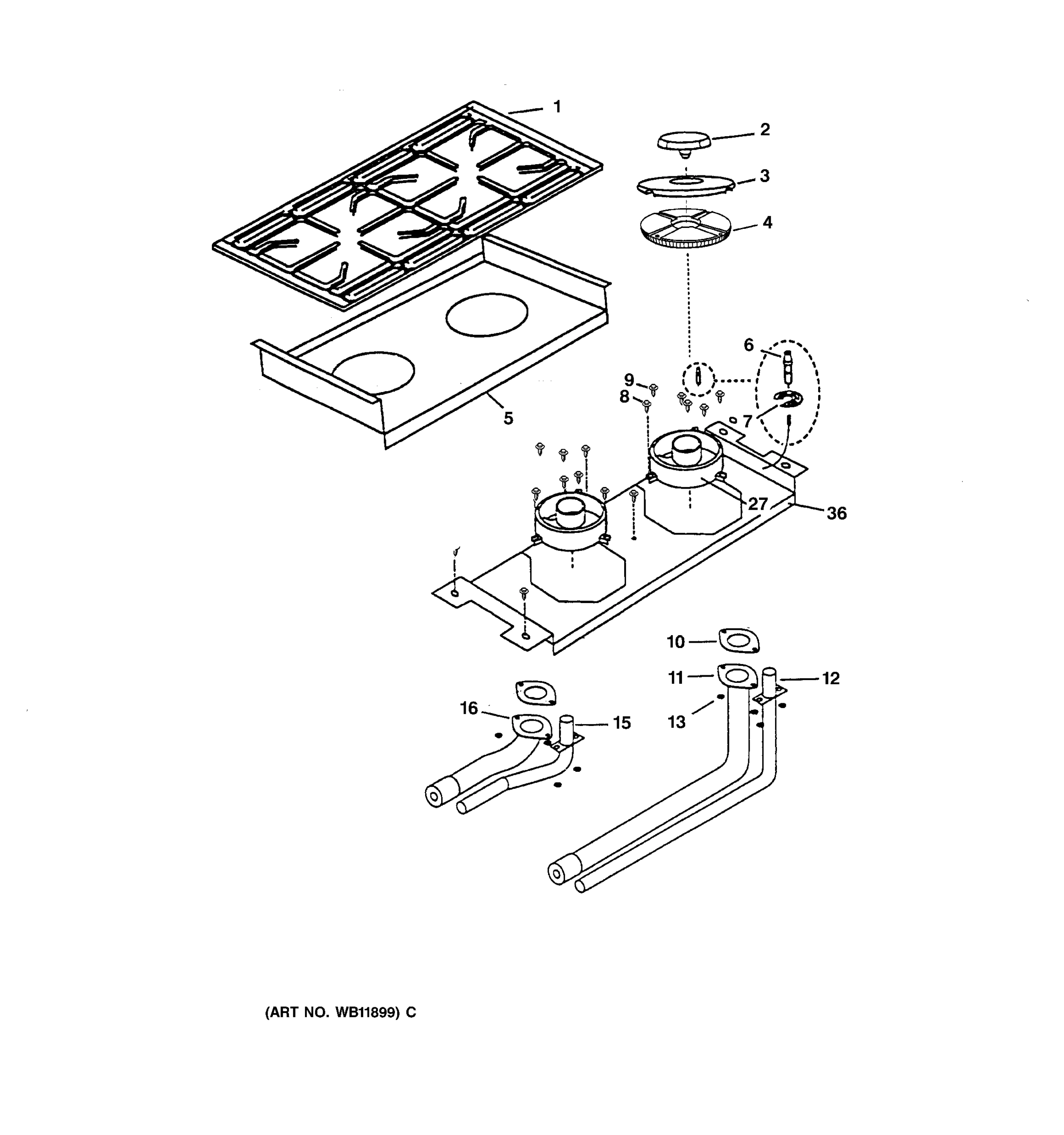

BURNER ASSEMBLY

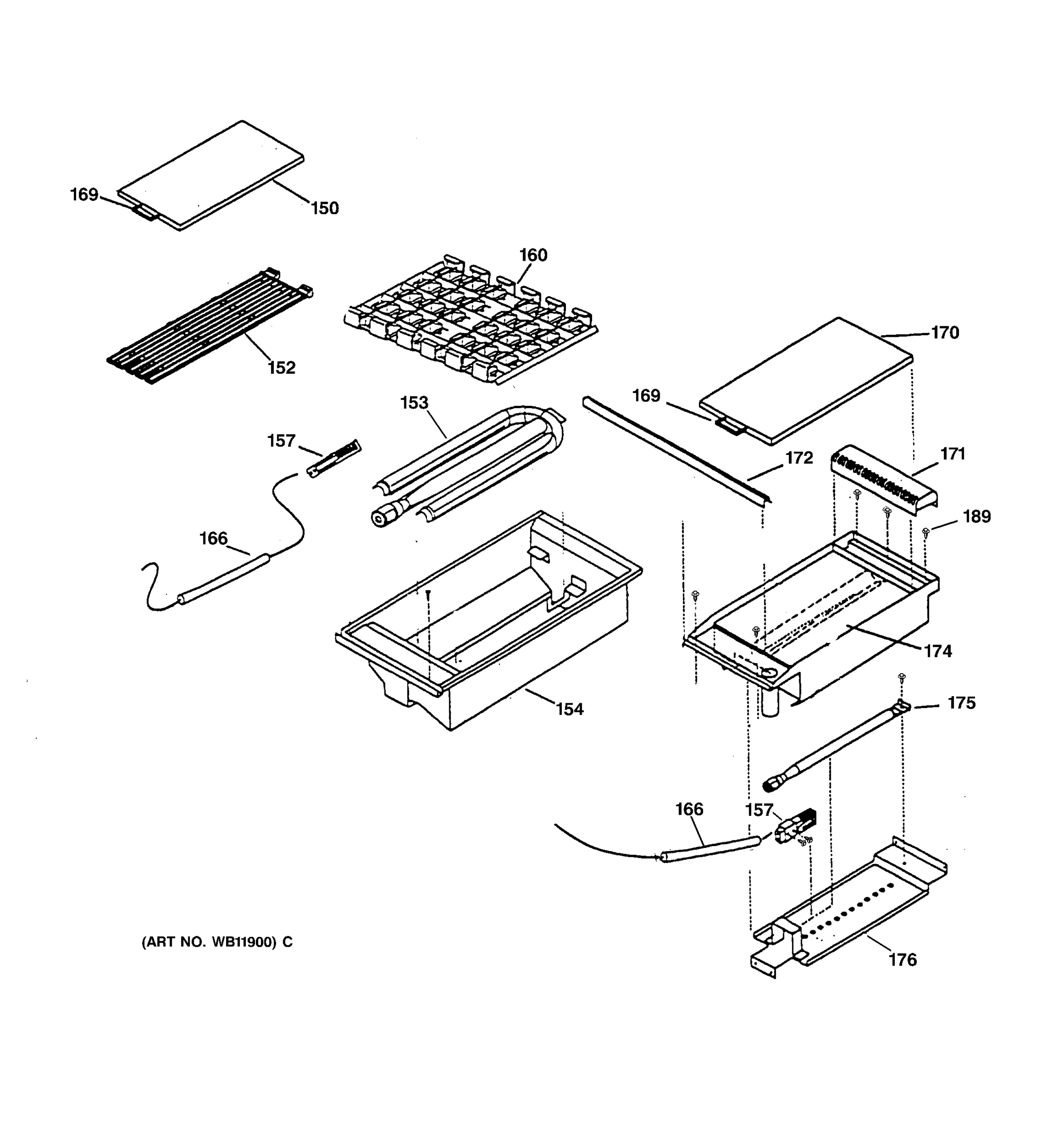

GRILL & GRIDDLE ASSEMBLY

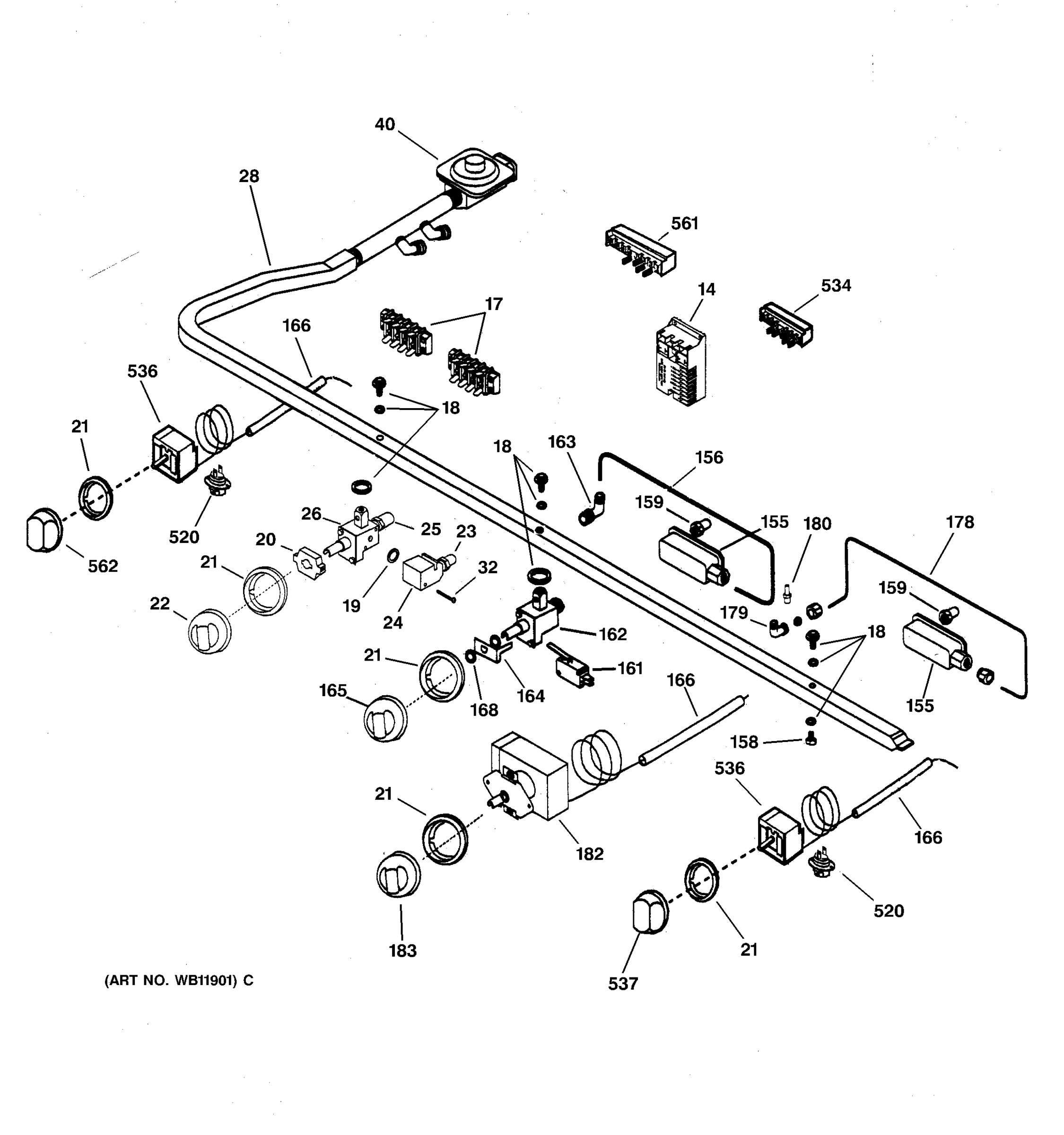

MANIFOLD & CONTROLS

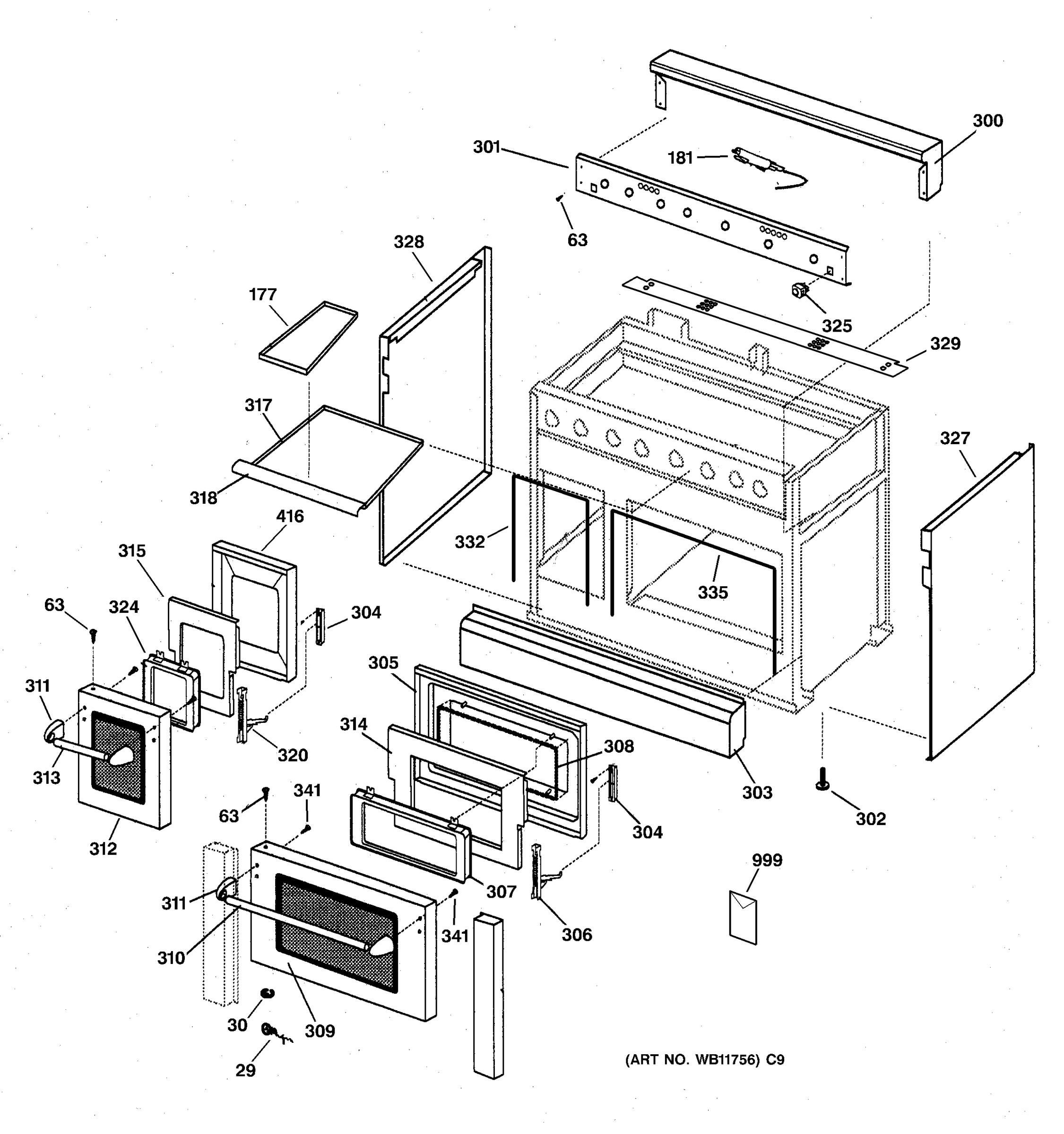

OUTER BODY

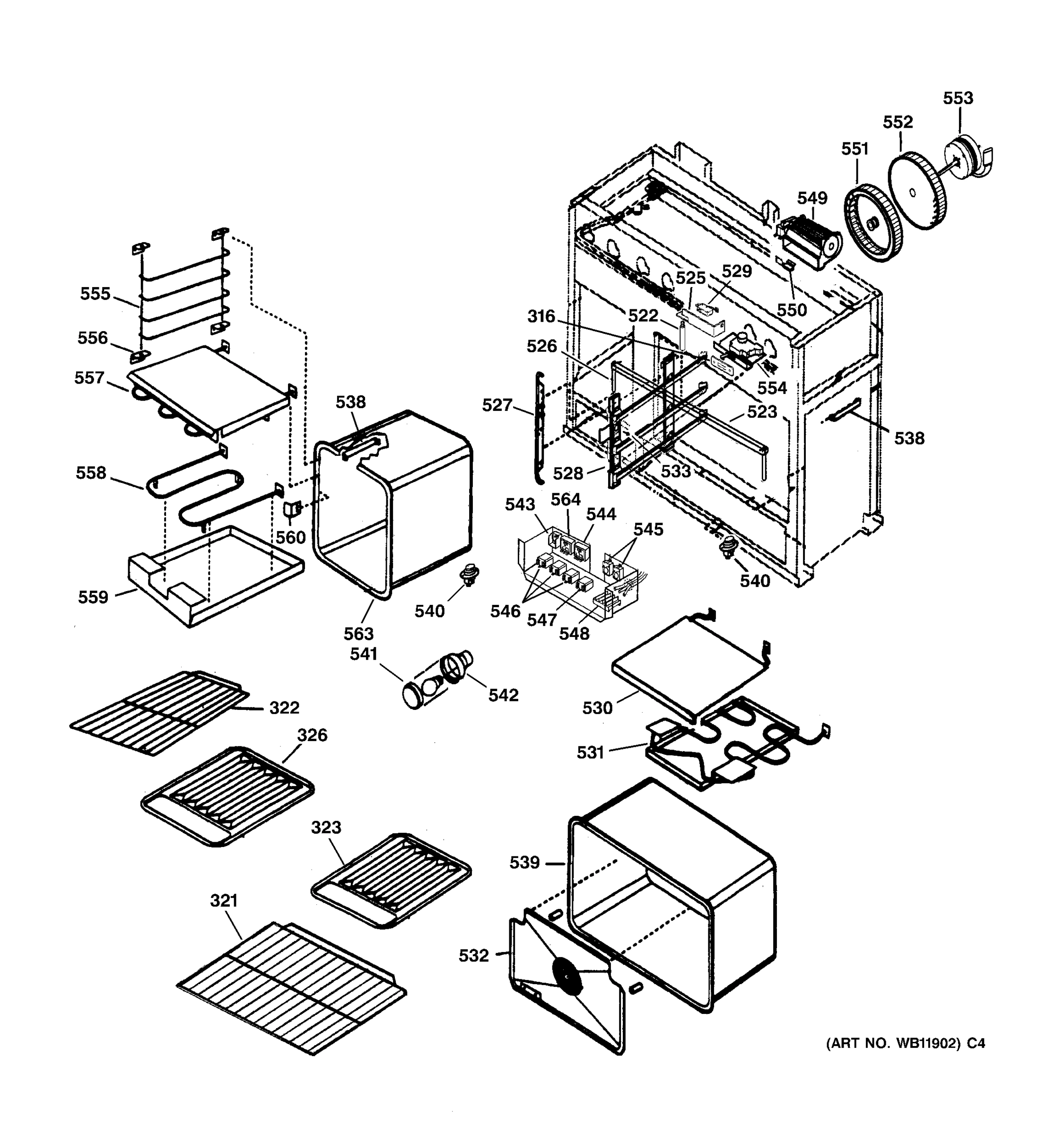

OVEN ASSEMBLY
Common parts from model GE ZDP48N4GD2SS Electric Range
5
GEN WB32X5112 GEN WB32X5112 Contact Us For Availability
9
GEN WB01X10056 GEN WB01X10056 Contact Us For Availability
15
GEN WB38X10018 GEN WB38X10018 Contact Us For Availability
17
GEN WB17X5132 GEN WB17X5132 Contact Us For Availability
20
SPARK SWITCH/SIMMER BURN GEN WB24X5367 Contact Us For Availability
23
GEN WB21X10040 GEN WB21X10040 Contact Us For Availability
25
GEN WB21X5371 GEN WB21X5371 Contact Us For Availability
25
ORIFICE LP MAIN GEN WB21X5366 Contact Us For Availability
26
GEN WB21X5354 GEN WB21X5354 Contact Us For Availability
27
GEN WB28X10018 GEN WB28X10018 Contact Us For Availability
29
GEN WB02X10349 GEN WB02X10349 Contact Us For Availability
40
GEN WB21X10027 GEN WB21X10027 Contact Us For Availability
63
GEN WB01X10035 GEN WB01X10035 Contact Us For Availability
153
BURNER "U" SHAPED GEN WB28X5052 Contact Us For Availability
155
THERMAL VALVE` GEN WB21X5355 Contact Us For Availability
156
GEN WB02X8613 GEN WB02X8613 Contact Us For Availability
158
GEN WB02X8609 GEN WB02X8609 Contact Us For Availability
159
ORIFICE NAT GRL/ GRD GEN WB21X5367 Contact Us For Availability
159
ORIFICE LP GRL/ GRD GEN WB21X5368 Contact Us For Availability
160
GEN WB49X5595 GEN WB49X5595 Contact Us For Availability
161
GEN WB24X5363 GEN WB24X5363 Contact Us For Availability
162
SIMMER VALVE-STANDARD GEN WB21X5357 Contact Us For Availability
163
GEN WB02X8614 GEN WB02X8614 Contact Us For Availability
164
GEN WB02X8615 GEN WB02X8615 Contact Us For Availability
165
GEN WB03X5867 GEN WB03X5867 Contact Us For Availability
166
GEN WB02X8611 GEN WB02X8611 Contact Us For Availability
168
SPEED CLIP CAM SWITCH GEN WB02X8616 Contact Us For Availability
169
GEN WB15X5233 GEN WB15X5233 Contact Us For Availability
177
GEN WB32X5114 GEN WB32X5114 Contact Us For Availability
178
GEN WB02X8606 GEN WB02X8606 Contact Us For Availability
179
GEN WB02X8607 GEN WB02X8607 Contact Us For Availability
180
GEN WB02X8608 GEN WB02X8608 Contact Us For Availability
181
INDICATOR LITE ASM GEN WB02X8610 Contact Us For Availability
182
GEN WB21X5356 GEN WB21X5356 Contact Us For Availability
183
GEN WB03X5866 GEN WB03X5866 Contact Us For Availability
300
GEN WB07X7364 GEN WB07X7364 Contact Us For Availability
301
GEN WB07X7366 GEN WB07X7366 Contact Us For Availability
302
GEN WB02X8594 GEN WB02X8594 Contact Us For Availability
303
GEN WB56X7095 GEN WB56X7095 Contact Us For Availability
304
GEN WB10X5225 GEN WB10X5225 Contact Us For Availability
305
GEN WB55X5418 GEN WB55X5418 Contact Us For Availability
306
GEN WB10X5226 GEN WB10X5226 Contact Us For Availability
307
WINDOW PACK-27 GEN WB36X5801 Contact Us For Availability
308
WINDOW GASKET-27 GEN WB02X8597 Contact Us For Availability
309
GEN WB56X7097 GEN WB56X7097 Contact Us For Availability
310
27" OVEN DOOR HANDLE GEN WB15X5228 Contact Us For Availability
311
GEN WB07X7372 GEN WB07X7372 Contact Us For Availability
312
GEN WB56X7098 GEN WB56X7098 Contact Us For Availability
313
GEN WB15X5229 GEN WB15X5229 Contact Us For Availability
314
GEN WB55X5420 GEN WB55X5420 Contact Us For Availability
315
GEN WB55X5419 GEN WB55X5419 Contact Us For Availability
316
GEN WB02X10879 GEN WB02X10879 Contact Us For Availability
317
GEN WB32X5111 GEN WB32X5111 Contact Us For Availability
318
GEN WB15X5230 GEN WB15X5230 Contact Us For Availability
318
GEN WB15X5231 GEN WB15X5231 Contact Us For Availability
320
GEN WB10X5227 GEN WB10X5227 Contact Us For Availability
321
GEN WB48X5114 GEN WB48X5114 Contact Us For Availability
322
GEN WB48X5115 GEN WB48X5115 Contact Us For Availability
323
GEN WB49X5596 GEN WB49X5596 Contact Us For Availability
324
GEN WB36X5804 GEN WB36X5804 Contact Us For Availability
325
GEN WB24X5362 GEN WB24X5362 Contact Us For Availability
327
GEN WB56X10025 GEN WB56X10025 Contact Us For Availability
328
GEN WB56X10026 GEN WB56X10026 Contact Us For Availability
329
GEN WB06X10170 GEN WB06X10170 Contact Us For Availability
332
GEN WB02X10654 GEN WB02X10654 Contact Us For Availability
335
GASKET OVEN DOOR 27" GEN WB02X10527 Contact Us For Availability
341
GEN WB01X10059 GEN WB01X10059 Contact Us For Availability
416
GEN WB55X5421 GEN WB55X5421 Contact Us For Availability
520
GEN WB21X5369 GEN WB21X5369 Contact Us For Availability
522
GEN WB02X10525 GEN WB02X10525 Contact Us For Availability
523
GEN WB02X10671 GEN WB02X10671 Contact Us For Availability
525
GEN WB02X8617 GEN WB02X8617 Contact Us For Availability
526
PUSH ROD INTERLOCK GEN WB02X8618 Contact Us For Availability
527
GEN WB02X8620 GEN WB02X8620 Contact Us For Availability
527
GEN WB02X8621 GEN WB02X8621 Contact Us For Availability
528
GEN WB36X5802 GEN WB36X5802 Contact Us For Availability
528
GEN WB36X5803 GEN WB36X5803 Contact Us For Availability
529
MICROSWITCH INTERLOCK GEN WB24X5366 Contact Us For Availability
530
BROIL ELEMENT 27" GEN WB44X5107 Contact Us For Availability
531
BAKE ELEMENT& SUPT 27" GEN WB44X5108 Contact Us For Availability
532
GEN WB02X8624 GEN WB02X8624 Contact Us For Availability
533
THUMB SCREW-RACK SUPPORT GEN WB01X5976 Contact Us For Availability
534
5 PUSH-BUTTON SWITCH GEN WB24X5364 Contact Us For Availability
536
GEN WB21X5358 GEN WB21X5358 Contact Us For Availability
537
GEN WB03X5868 GEN WB03X5868 Contact Us For Availability
538
GEN WB02X8625 GEN WB02X8625 Contact Us For Availability
539
GEN WB53X5166 GEN WB53X5166 Contact Us For Availability
540
GEN WB21X5359 GEN WB21X5359 Contact Us For Availability
541
GEN WB02X8626 GEN WB02X8626 Contact Us For Availability
542
GEN WB08X5125 GEN WB08X5125 Contact Us For Availability
543
50% PULSER - TIMER GEN WB19X5313 Contact Us For Availability
544
27" OVEN TIMER-CLEAN GEN WB21X5361 Contact Us For Availability
545
GEN WB21X5362 GEN WB21X5362 Contact Us For Availability
546
GEN WB21X5363 GEN WB21X5363 Contact Us For Availability
547
GEN WB21X5364 GEN WB21X5364 Contact Us For Availability
548
GEN WB17X5134 GEN WB17X5134 Contact Us For Availability
549
MOTOR BLOWER ASM GEN WB26X5123 Contact Us For Availability
550
GEN WB02X8627 GEN WB02X8627 Contact Us For Availability
551
WHEEL BLOWER CONVECT. GEN WB02X8628 Contact Us For Availability
552
WHEEL COOLING RCVR GEN WB02X8629 Contact Us For Availability
553
MOTOR CONVECTION GEN WB26X5124 Contact Us For Availability
555
GEN WB02X8630 GEN WB02X8630 Contact Us For Availability
556
GEN WB02X8631 GEN WB02X8631 Contact Us For Availability
557
GEN WB44X5109 GEN WB44X5109 Contact Us For Availability
558
GEN WB44X5110 GEN WB44X5110 Contact Us For Availability
559
GEN WB49X5594 GEN WB49X5594 Contact Us For Availability
560
GEN WB01X5978 GEN WB01X5978 Contact Us For Availability
561
GEN WB24X5365 GEN WB24X5365 Contact Us For Availability
562
GEN WB03X5869 GEN WB03X5869 Contact Us For Availability
563
GEN WB53X5167 GEN WB53X5167 Contact Us For Availability
564
GEN WB21X5360 GEN WB21X5360 Contact Us For Availability
999
GEN 31-20421 GEN 31-20421 Contact Us For Availability
999
GEN 49-80074-1 GEN 49-80074-1 Contact Us For Availability
999
GEN 49-8786 GEN 49-8786 Contact Us For Availability
× ![]()
