Model GE ZDP48L6DH5SS – Common Parts & Diagrams

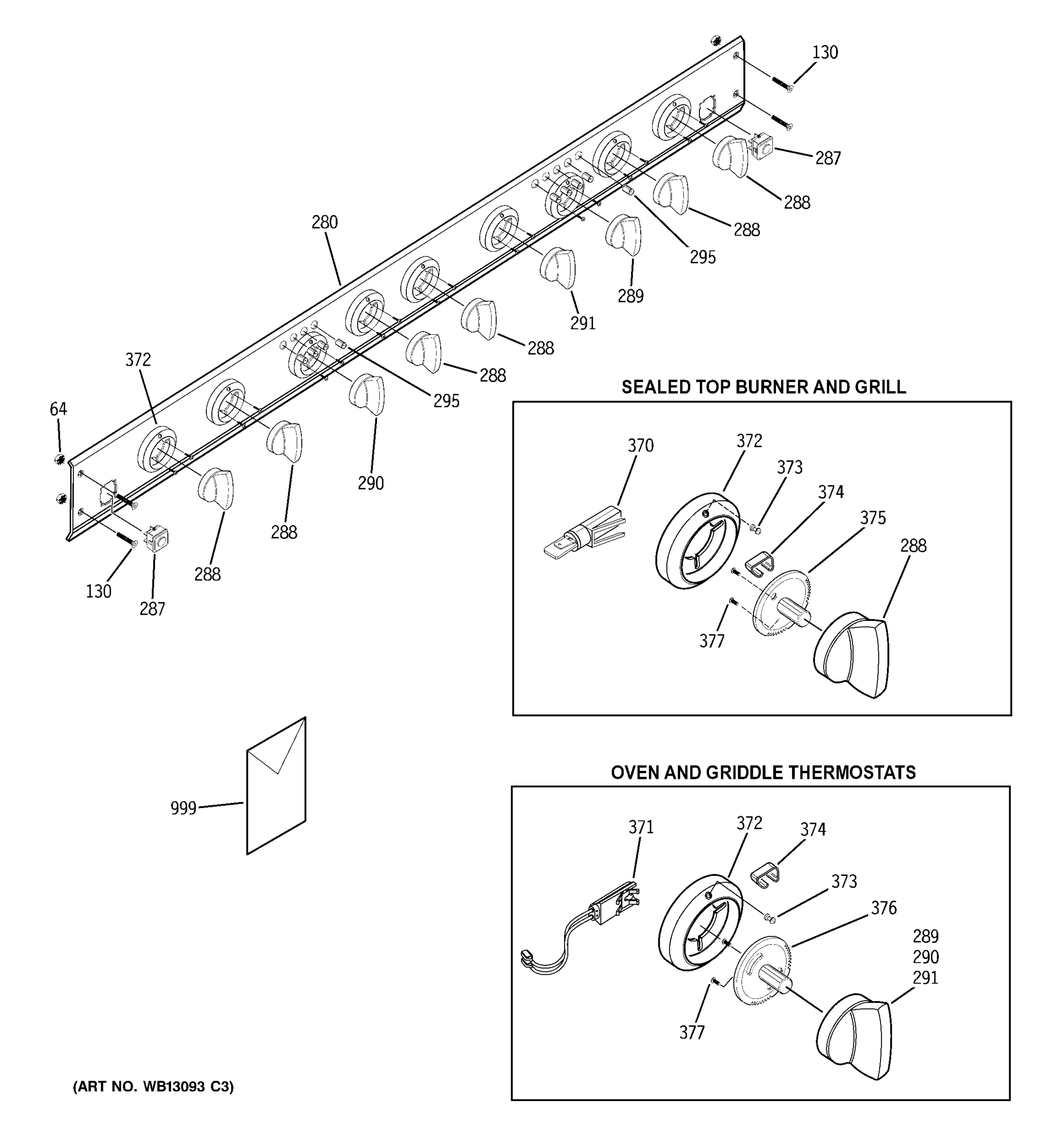

CONTROL PANEL

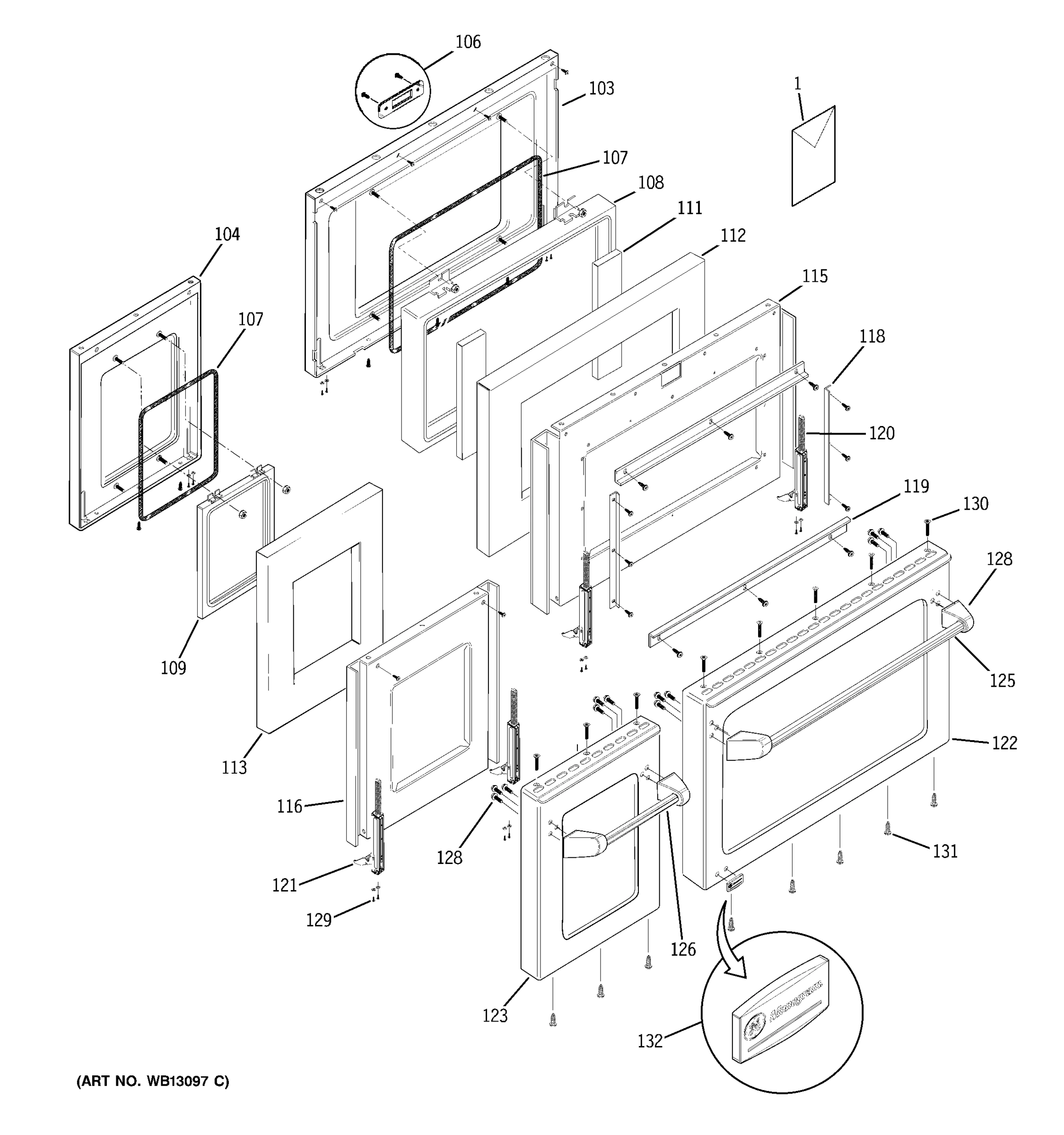

DOOR

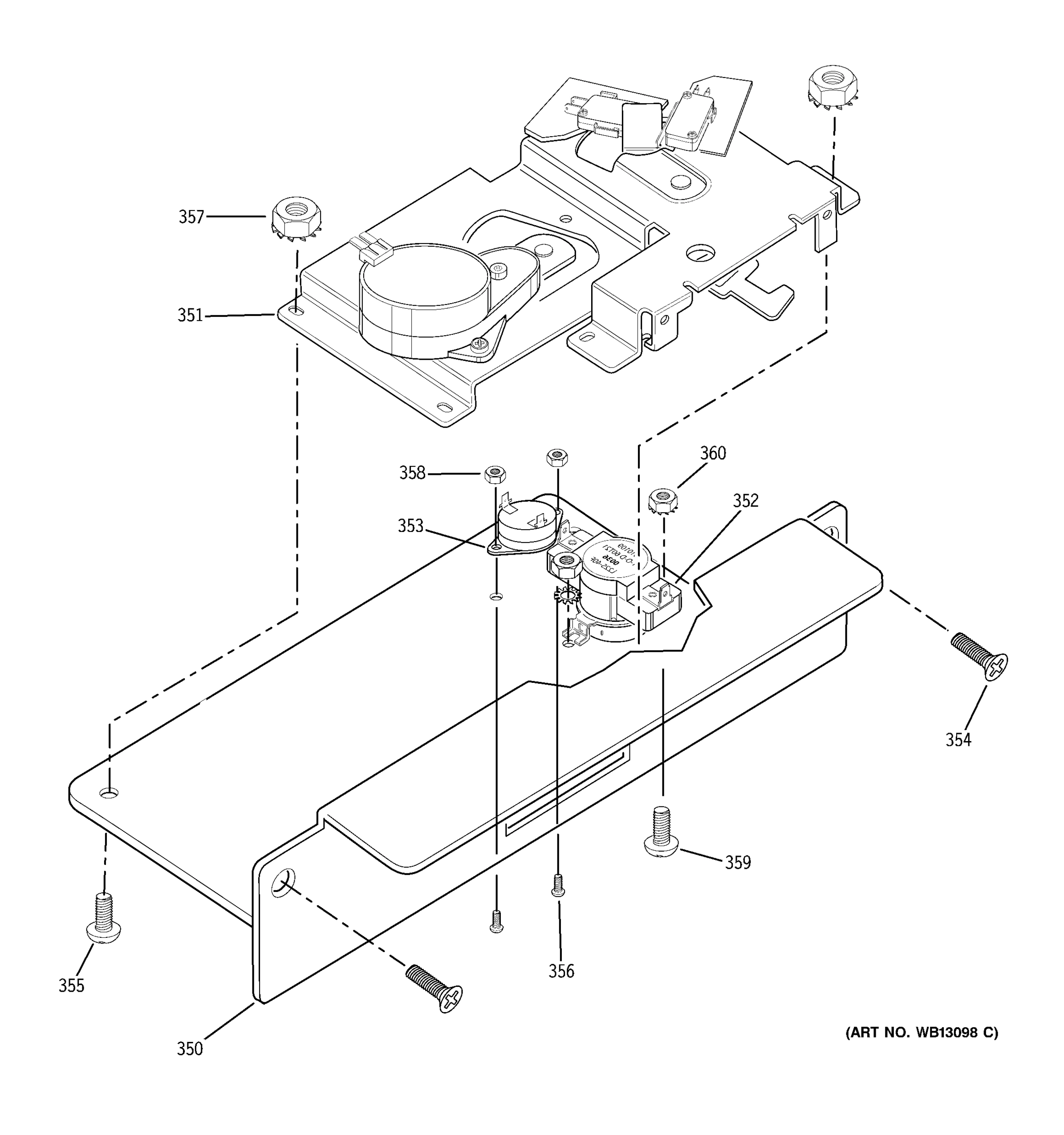

DOOR LATCH

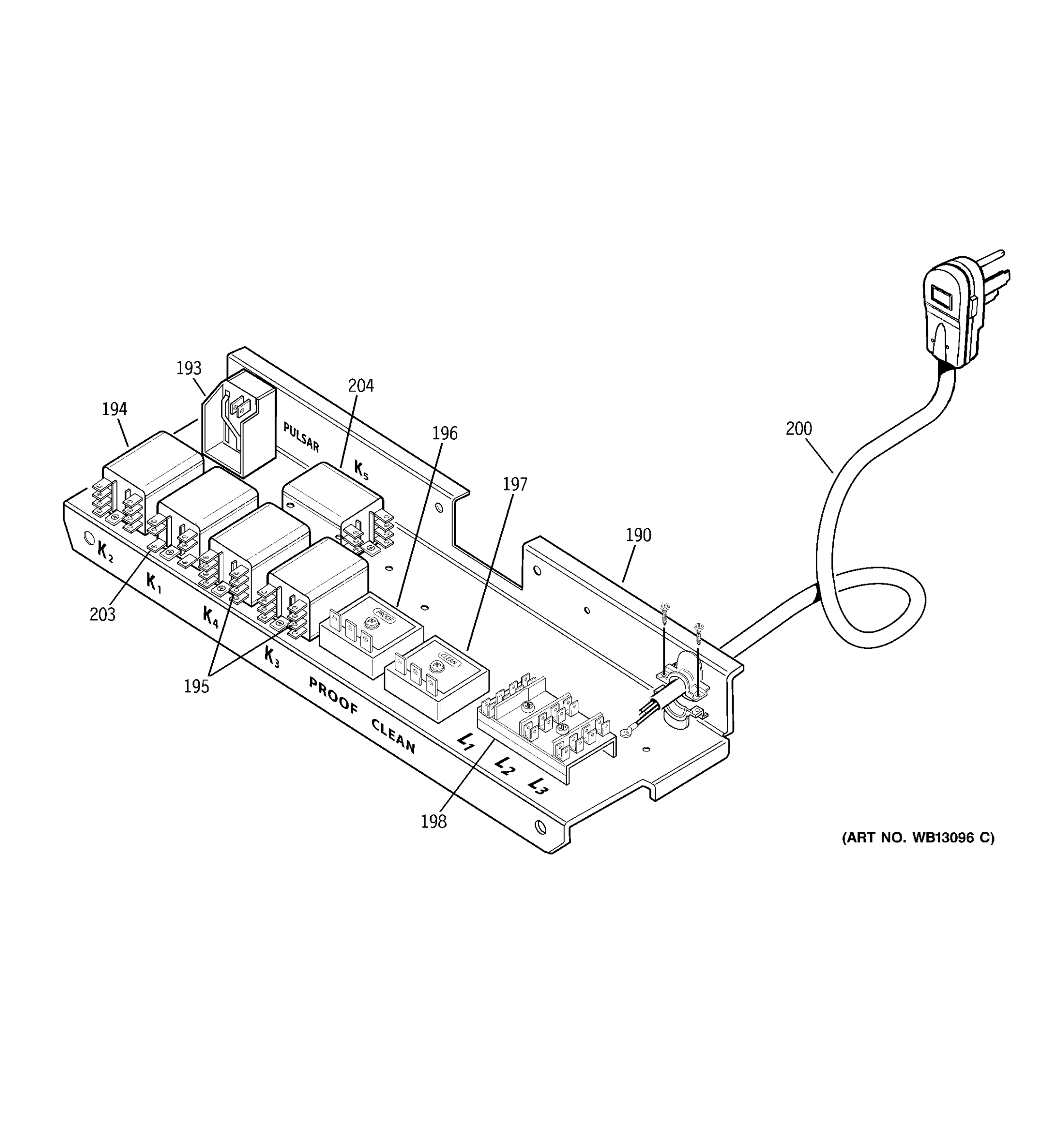

ELECTRICAL ASSEMBLY

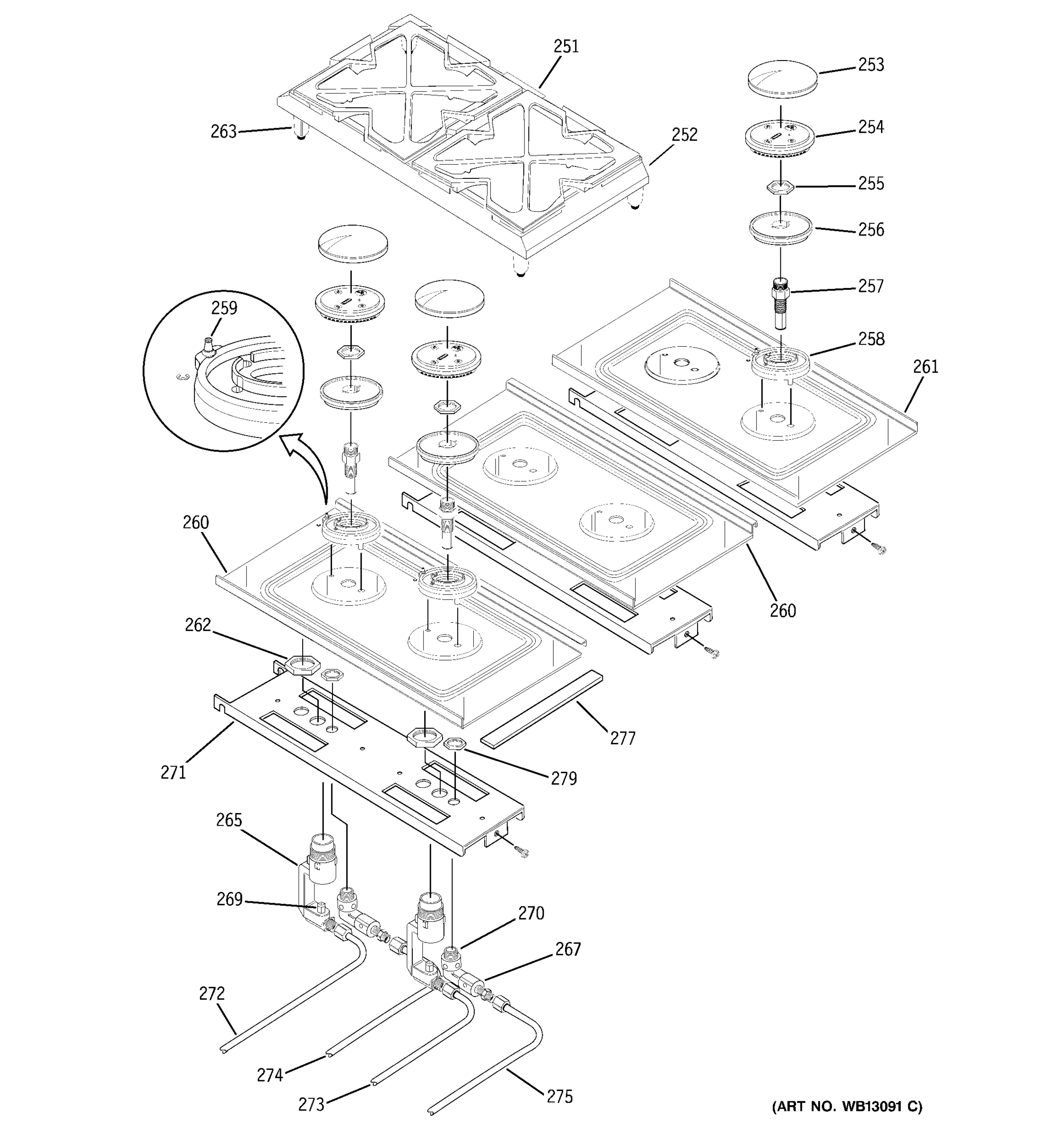

GAS & BURNER PARTS

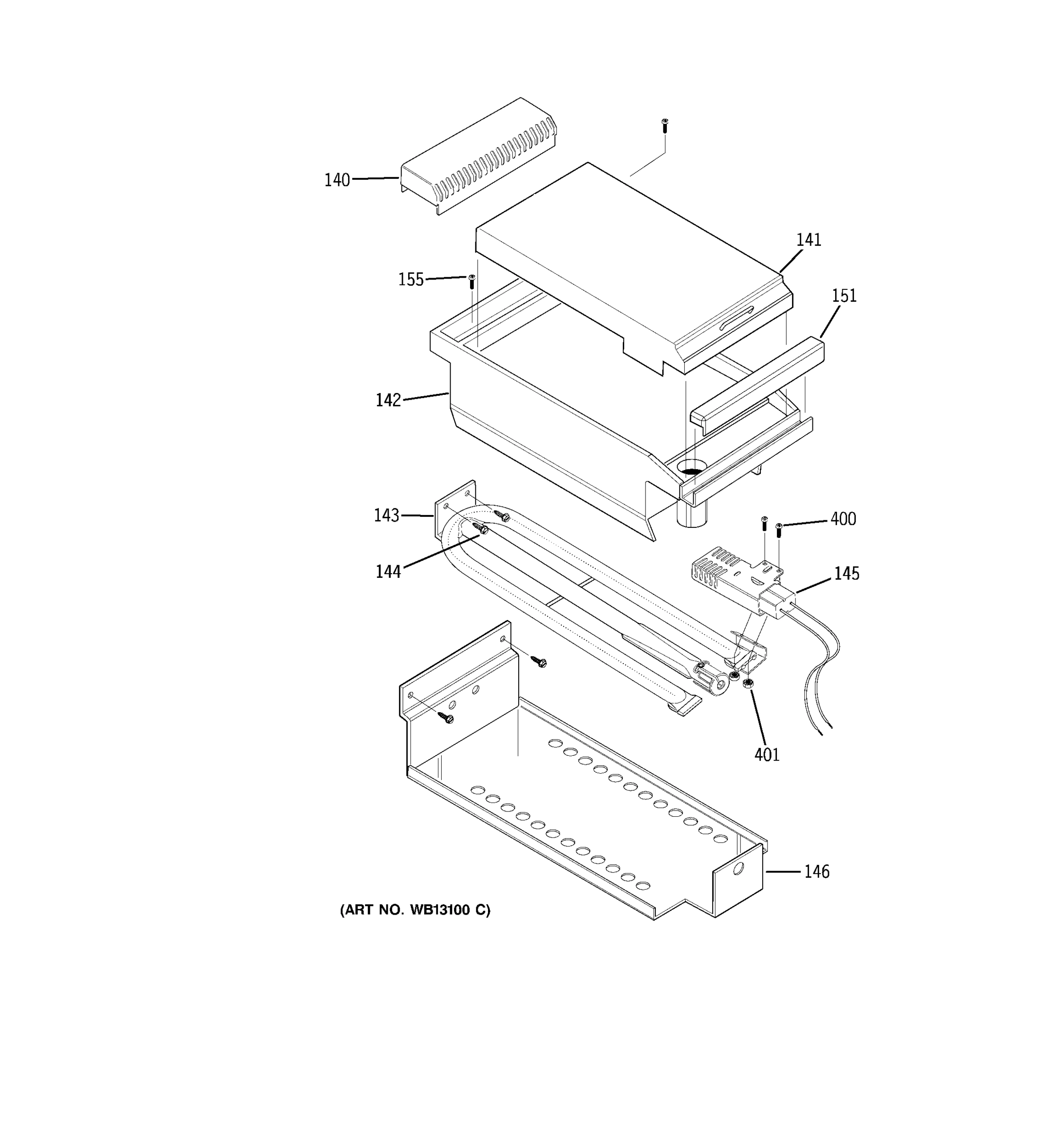

GRIDDLE ASSEMBLY

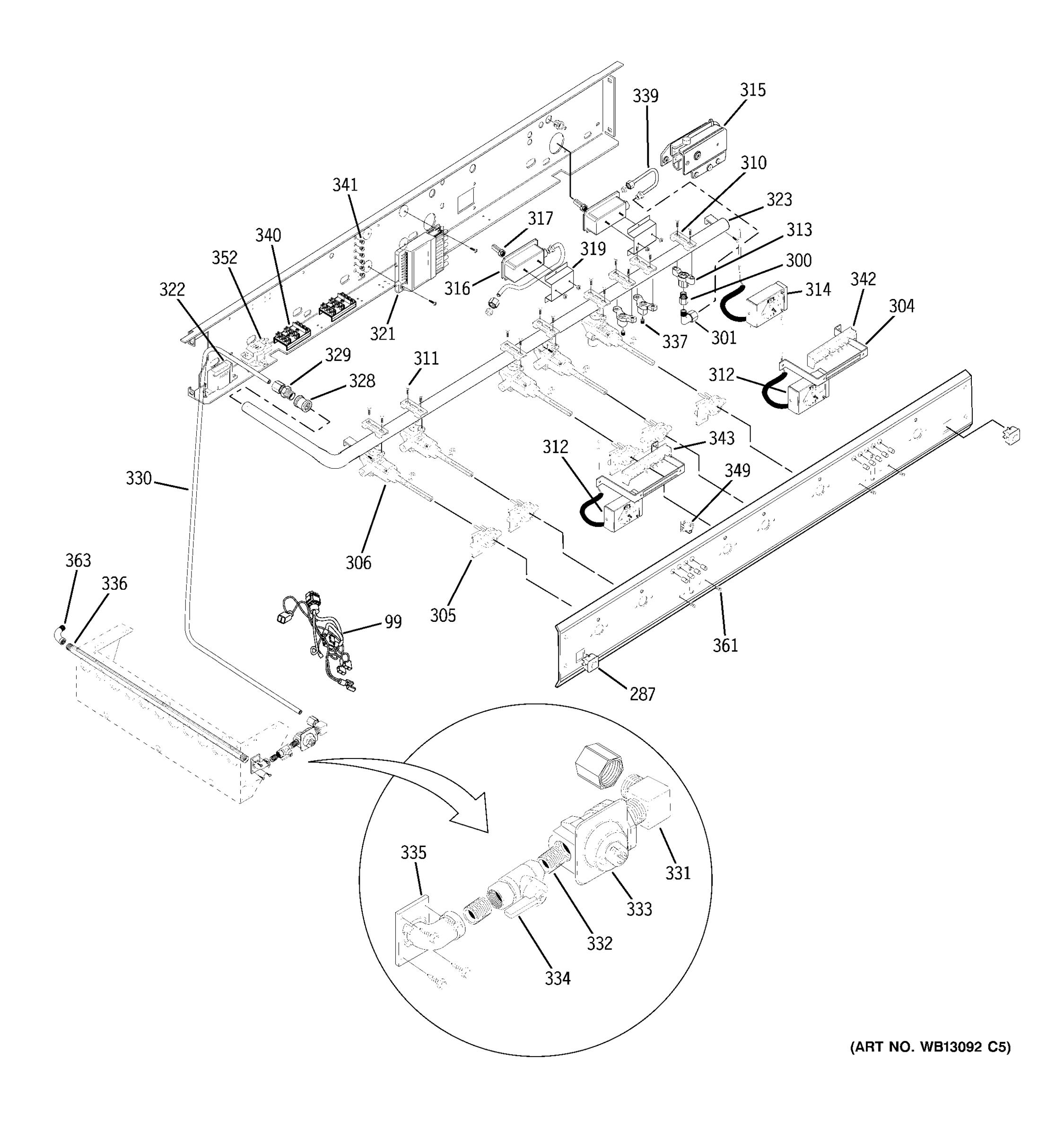

MANIFOLD ASSEMBLY
OVEN ASSEMBLY

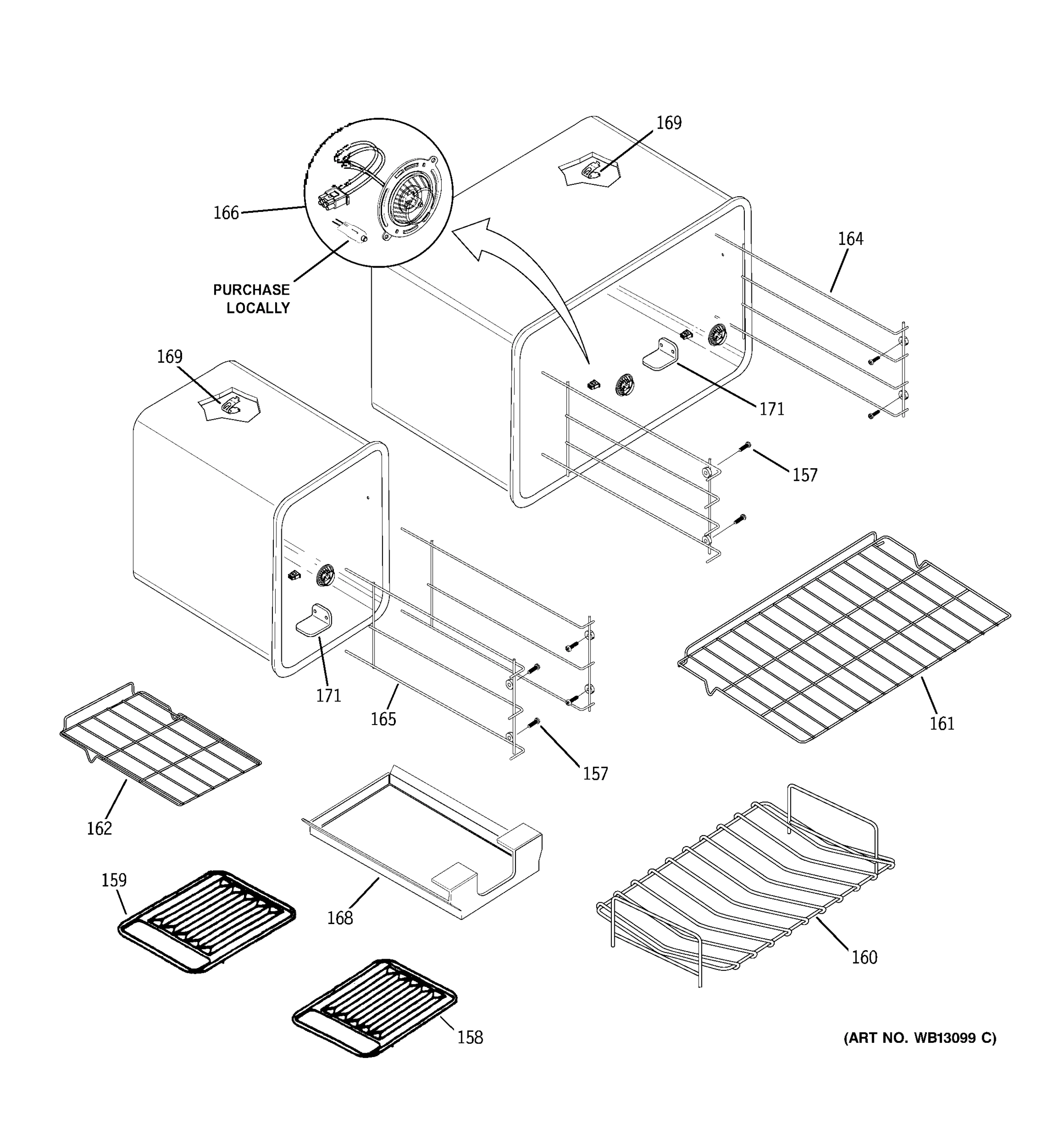

RACKS & GLIDES

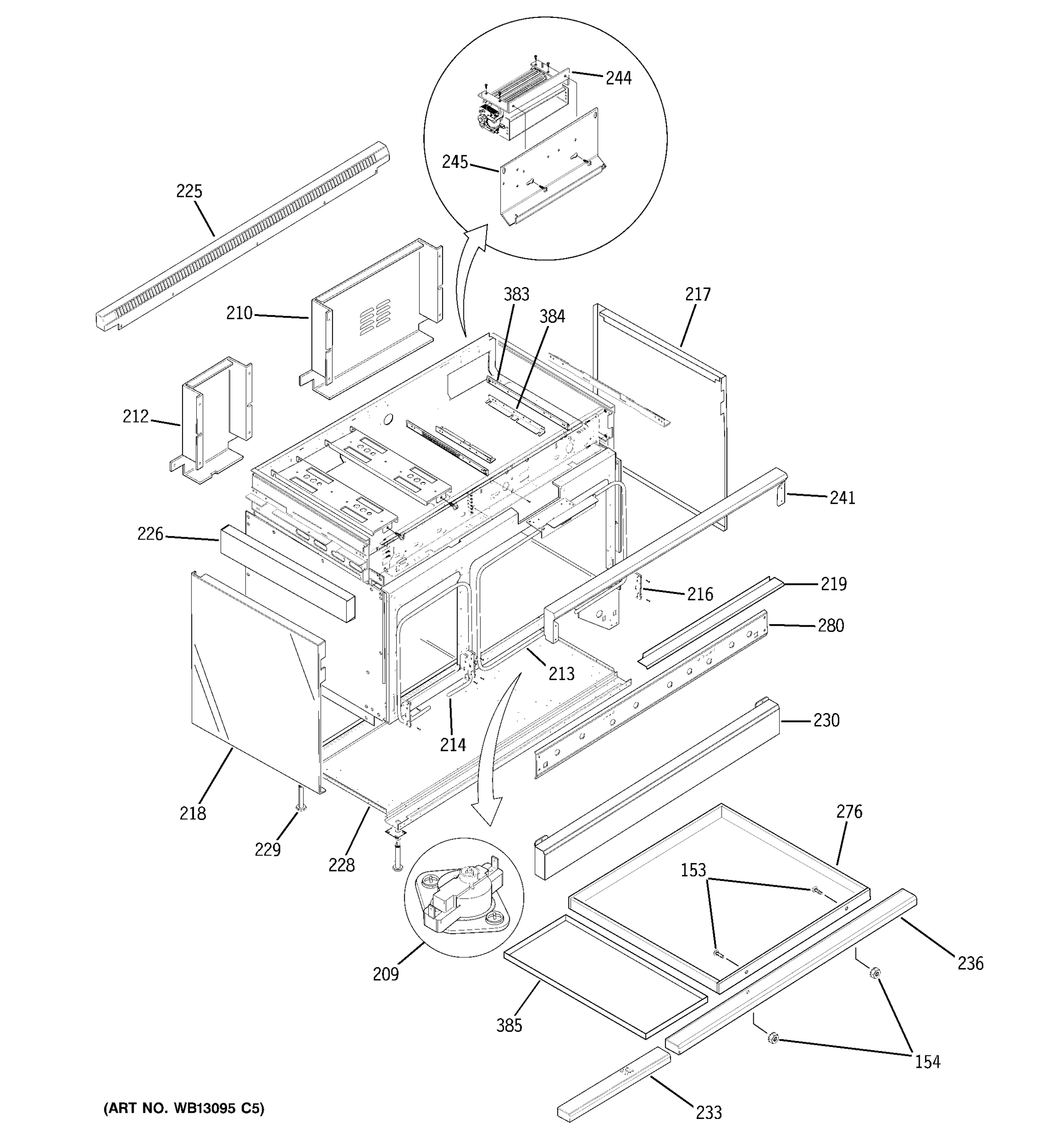

STRUCTURE
Common parts from model GE ZDP48L6DH5SS
1
GEN WB49X10132 GEN WB49X10132 Contact Us For Availability
1
GEN WB49X10130 GEN WB49X10130 Contact Us For Availability
64
GEN WB01X10017 GEN WB01X10017 Contact Us For Availability
99
GEN WB18X10338 GEN WB18X10338 Contact Us For Availability
108
WINDOW PACK-27 GEN WB36X5801 Contact Us For Availability
109
GEN WB36X5804 GEN WB36X5804 Contact Us For Availability
122
GEN WB56X10505 GEN WB56X10505 Contact Us For Availability
129
GEN WB01X10259 GEN WB01X10259 Contact Us For Availability
130
GEN WB01X10035 GEN WB01X10035 Contact Us For Availability
141
GEN WB07X10809 GEN WB07X10809 Contact Us For Availability
144
GEN WB02X11062 GEN WB02X11062 Contact Us For Availability
145
IGNITER, BRKT & HDWE GEN WB02X8605 Contact Us For Availability
146
GEN WB49X10126 GEN WB49X10126 Contact Us For Availability
151
GEN WB07X7395 GEN WB07X7395 Contact Us For Availability
153
GEN WB01X10274 GEN WB01X10274 Contact Us For Availability
154
GEN WB01X10275 GEN WB01X10275 Contact Us For Availability
155
GEN WB01X10056 GEN WB01X10056 Contact Us For Availability
157
GEN WB01X5972 GEN WB01X5972 Contact Us For Availability
159
GEN WB49X5596 GEN WB49X5596 Contact Us For Availability
160
GEN WB48X10040 GEN WB48X10040 Contact Us For Availability
161
GEN WB48X10041 GEN WB48X10041 Contact Us For Availability
162
GEN WB48X10042 GEN WB48X10042 Contact Us For Availability
164
GEN WB02X11063 GEN WB02X11063 Contact Us For Availability
165
GEN WB02X11064 GEN WB02X11064 Contact Us For Availability
168
GEN WB49X5594 GEN WB49X5594 Contact Us For Availability
169
GEN WB02X11113 GEN WB02X11113 Contact Us For Availability
170
GEN WB02X11266 GEN WB02X11266 Contact Us For Availability
171
GEN WB39X10010 GEN WB39X10010 Contact Us For Availability
173
GEN WB44X10033 GEN WB44X10033 Contact Us For Availability
174
GEN WB44X10034 GEN WB44X10034 Contact Us For Availability
176
GEN WB21X10032 GEN WB21X10032 Contact Us For Availability
177
GEN WB44X10035 GEN WB44X10035 Contact Us For Availability
178
GEN WB44X10036 GEN WB44X10036 Contact Us For Availability
180
GEN WB44X10039 GEN WB44X10039 Contact Us For Availability
181
GEN WB44X10038 GEN WB44X10038 Contact Us For Availability
184
GEN WB02X11067 GEN WB02X11067 Contact Us For Availability
185
GEN WB02X11068 GEN WB02X11068 Contact Us For Availability
187
GEN WB26X10196 GEN WB26X10196 Contact Us For Availability
188
GEN WB27X10782 GEN WB27X10782 Contact Us For Availability
189
GEN WB01X10150 GEN WB01X10150 Contact Us For Availability
194
GEN WB21X5363 GEN WB21X5363 Contact Us For Availability
195
GEN WB21X5364 GEN WB21X5364 Contact Us For Availability
196
GEN WB21X5360 GEN WB21X5360 Contact Us For Availability
197
27" OVEN TIMER-CLEAN GEN WB21X5361 Contact Us For Availability
198
GEN WB17X5134 GEN WB17X5134 Contact Us For Availability
209
GEN WB21X10111 GEN WB21X10111 Contact Us For Availability
210
GEN WB02X11070 GEN WB02X11070 Contact Us For Availability
212
BACK COVER 12" GEN WB02X11071 Contact Us For Availability
213
GEN WB02X11072 GEN WB02X11072 Contact Us For Availability
214
GEN WB02X11073 GEN WB02X11073 Contact Us For Availability
216
GEN WB10X10058 GEN WB10X10058 Contact Us For Availability
217
GEN WB56X10507 GEN WB56X10507 Contact Us For Availability
218
GEN WB56X10508 GEN WB56X10508 Contact Us For Availability
219
GEN WB63X10057 GEN WB63X10057 Contact Us For Availability
225
GEN WB07X10817 GEN WB07X10817 Contact Us For Availability
226
GEN WB35X10005 GEN WB35X10005 Contact Us For Availability
228
GEN WB01X10317 GEN WB01X10317 Contact Us For Availability
229
GEN WB02X8594 GEN WB02X8594 Contact Us For Availability
230
KICK PANEL 48 GEN WB56X10570 Contact Us For Availability
233
GEN WB15X10168 GEN WB15X10168 Contact Us For Availability
236
GEN WB15X10169 GEN WB15X10169 Contact Us For Availability
241
GEN WB07X10944 GEN WB07X10944 Contact Us For Availability
245
GEN WB02X11075 GEN WB02X11075 Contact Us For Availability
251
GEN WB31X10004 GEN WB31X10004 Contact Us For Availability
252
GEN WB02X11074 GEN WB02X11074 Contact Us For Availability
253
GEN WB13X10014 No Longer Available
255
GEN WB01X10321 GEN WB01X10321 Contact Us For Availability
262
GEN WB01X10139 GEN WB01X10139 Contact Us For Availability
267
GEN WB16X10021 GEN WB16X10021 Contact Us For Availability
272
GEN WB28X10064 GEN WB28X10064 Contact Us For Availability
274
GEN WB28X10066 GEN WB28X10066 Contact Us For Availability
275
GEN WB28X10067 GEN WB28X10067 Contact Us For Availability
276
DRIP TRAY GEN WB32X10053 Contact Us For Availability
279
GEN WB01X10140 GEN WB01X10140 Contact Us For Availability
280
GEN WB56X10521 GEN WB56X10521 Contact Us For Availability
287
HALOGEN SWITCH GEN WB24X5362 Contact Us For Availability
288
GEN WB03X10218 GEN WB03X10218 Contact Us For Availability
289
GEN WB03X10219 GEN WB03X10219 Contact Us For Availability
290
GEN WB03X10220 GEN WB03X10220 Contact Us For Availability
291
GEN WB03X10221 GEN WB03X10221 Contact Us For Availability
300
GEN WB02X11078 GEN WB02X11078 Contact Us For Availability
301
GEN WB02X8607 GEN WB02X8607 Contact Us For Availability
304
GEN WB02X11080 GEN WB02X11080 Contact Us For Availability
306
GEN WB21X10121 GEN WB21X10121 Contact Us For Availability
310
GEN WB02X10789 GEN WB02X10789 Contact Us For Availability
311
GEN WB01X10147 GEN WB01X10147 Contact Us For Availability
313
GEN WB02X11081 GEN WB02X11081 Contact Us For Availability
314
GEN WB21X10117 GEN WB21X10117 Contact Us For Availability
315
GEN WB21X10033 GEN WB21X10033 Contact Us For Availability
316
GEN WB21X10125 GEN WB21X10125 Contact Us For Availability
317
GEN WB21X5368 GEN WB21X5368 Contact Us For Availability
319
GEN WB02X11082 GEN WB02X11082 Contact Us For Availability
323
GEN WB28X10077 GEN WB28X10077 Contact Us For Availability
328
GEN WB02X11088 GEN WB02X11088 Contact Us For Availability
329
GEN WB02X11089 GEN WB02X11089 Contact Us For Availability
330
GEN WB28X10092 GEN WB28X10092 Contact Us For Availability
331
GEN WB02X11092 GEN WB02X11092 Contact Us For Availability
332
GEN WB02X10456 GEN WB02X10456 Contact Us For Availability
333
GEN WB21X10027 GEN WB21X10027 Contact Us For Availability
334
GEN WB19X10022 GEN WB19X10022 Contact Us For Availability
335
GEN WB02X11083 GEN WB02X11083 Contact Us For Availability
336
GEN WB28X10069 GEN WB28X10069 Contact Us For Availability
337
GEN WB01X10092 GEN WB01X10092 Contact Us For Availability
339
GEN WB28X10104 GEN WB28X10104 Contact Us For Availability
340
GEN WB17X5132 GEN WB17X5132 Contact Us For Availability
341
GEN WB02X11106 GEN WB02X11106 Contact Us For Availability
342
GEN WB24X10133 GEN WB24X10133 Contact Us For Availability
343
GEN WB24X10134 GEN WB24X10134 Contact Us For Availability
349
GEN WB21X5369 GEN WB21X5369 Contact Us For Availability
352
GEN WB27X10784 GEN WB27X10784 Contact Us For Availability
353
GEN WB27X10785 GEN WB27X10785 Contact Us For Availability
361
GEN WB25X10015 GEN WB25X10015 Contact Us For Availability
363
GEN WB02X10779 GEN WB02X10779 Contact Us For Availability
371
GEN WB25X10012 GEN WB25X10012 Contact Us For Availability
373
GEN WB25X10013 GEN WB25X10013 Contact Us For Availability
374
GEN WB02X11087 GEN WB02X11087 Contact Us For Availability
375
GEN WB02X11090 GEN WB02X11090 Contact Us For Availability
376
GEN WB02X11091 GEN WB02X11091 Contact Us For Availability
383
GEN WB02X11093 GEN WB02X11093 Contact Us For Availability
384
GEN WB02X11094 GEN WB02X11094 Contact Us For Availability
385
GEN WB02X11114 GEN WB02X11114 Contact Us For Availability
400
BOLT,IGNITER GEN WB01X10260 Contact Us For Availability
401
GEN WB01X10057 GEN WB01X10057 Contact Us For Availability
× ![]()
