Model GE ZDP48L6DH4SS Gas Range Or Dual Fuel – Common Parts & Diagrams

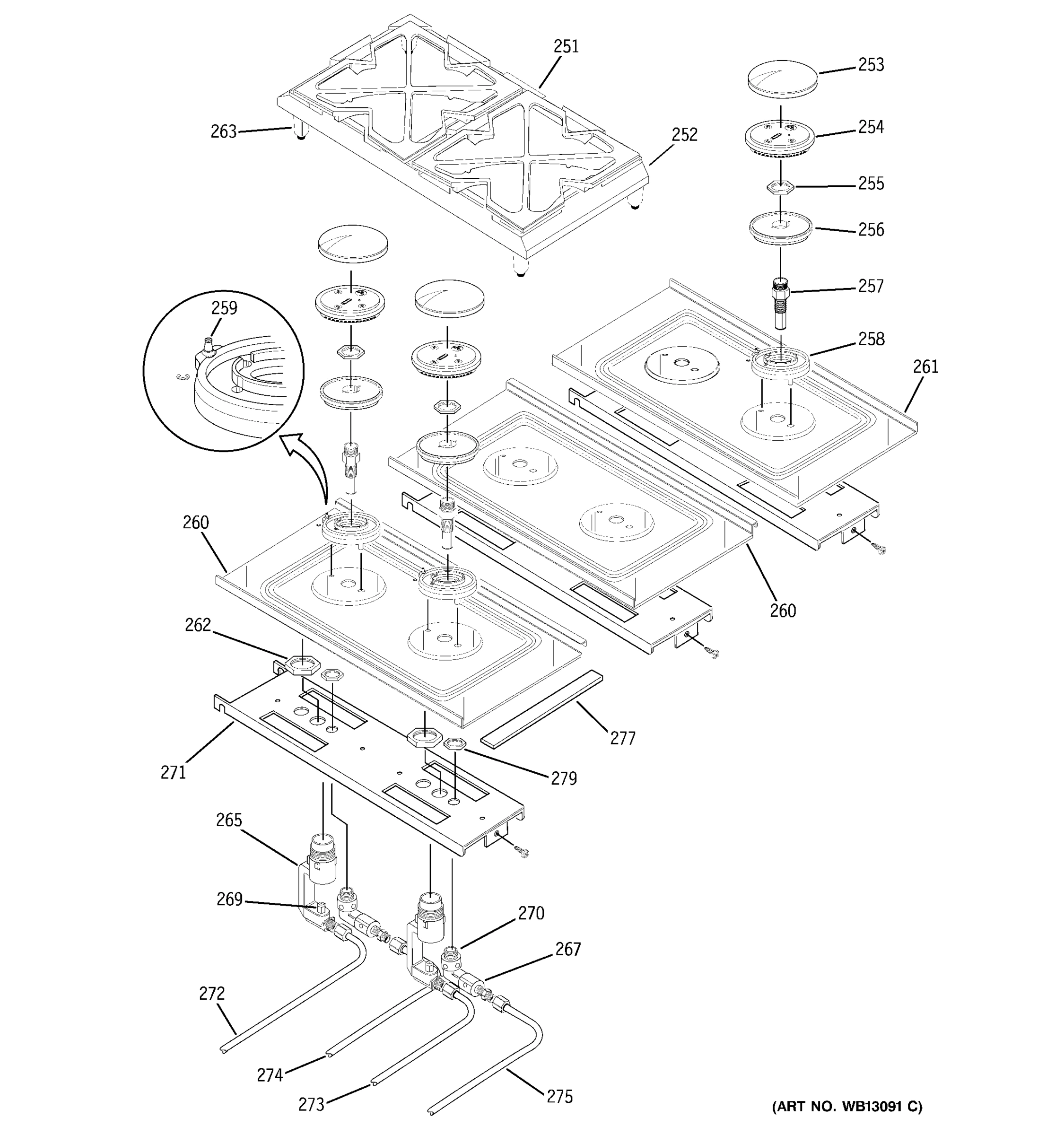

GAS & BURNER PARTS

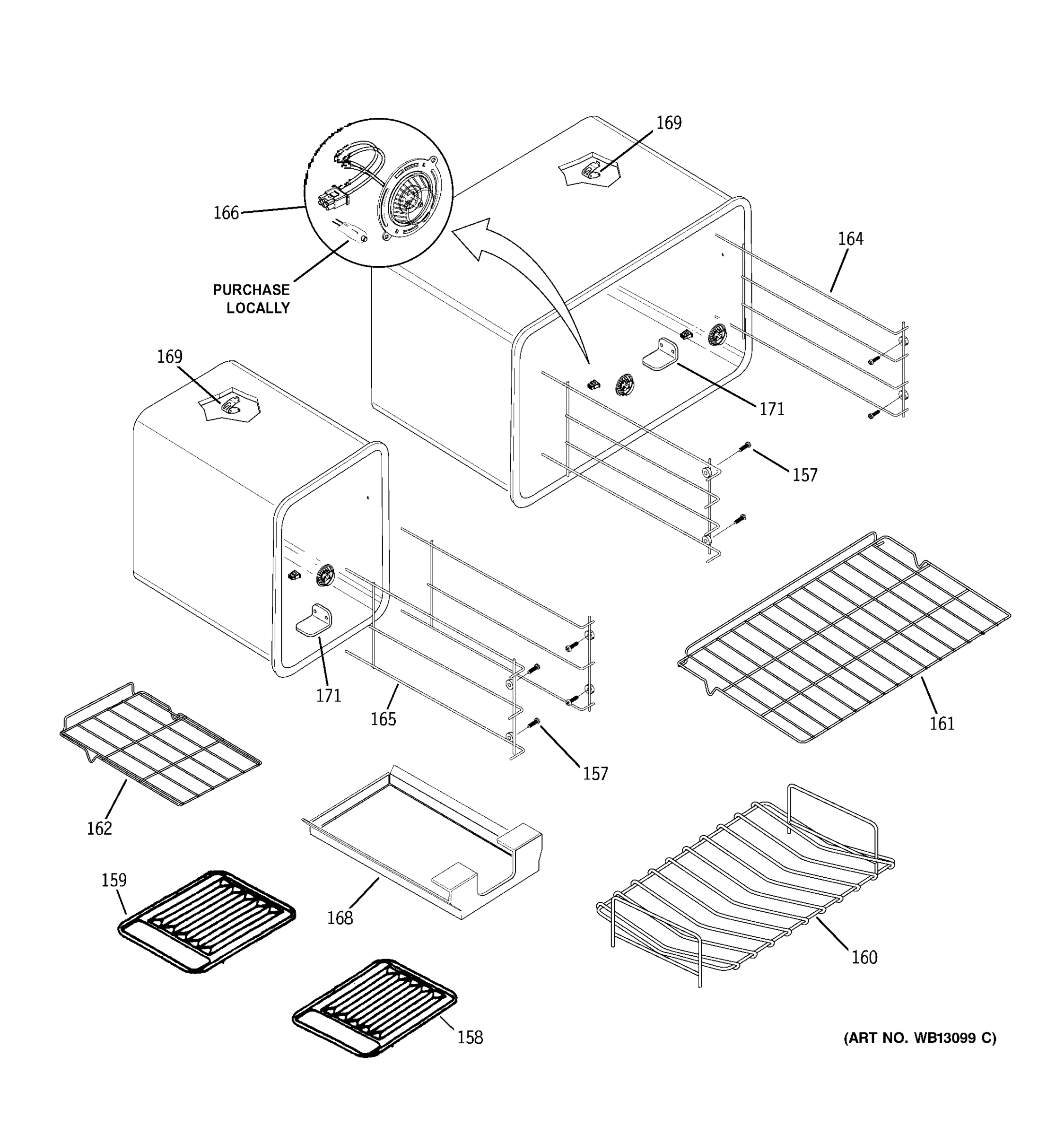

RACKS & GLIDES

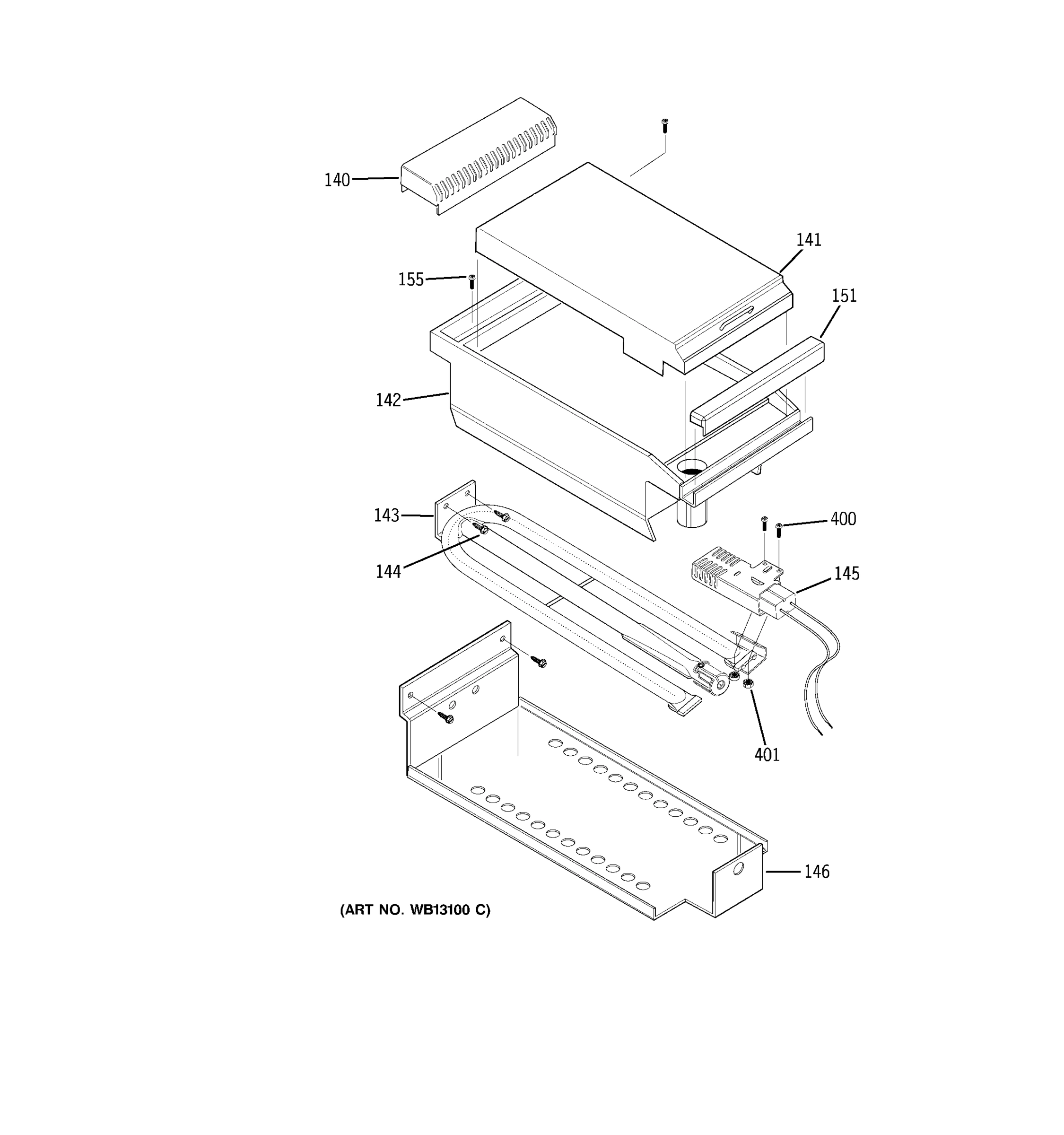

GRIDDLE ASSEMBLY

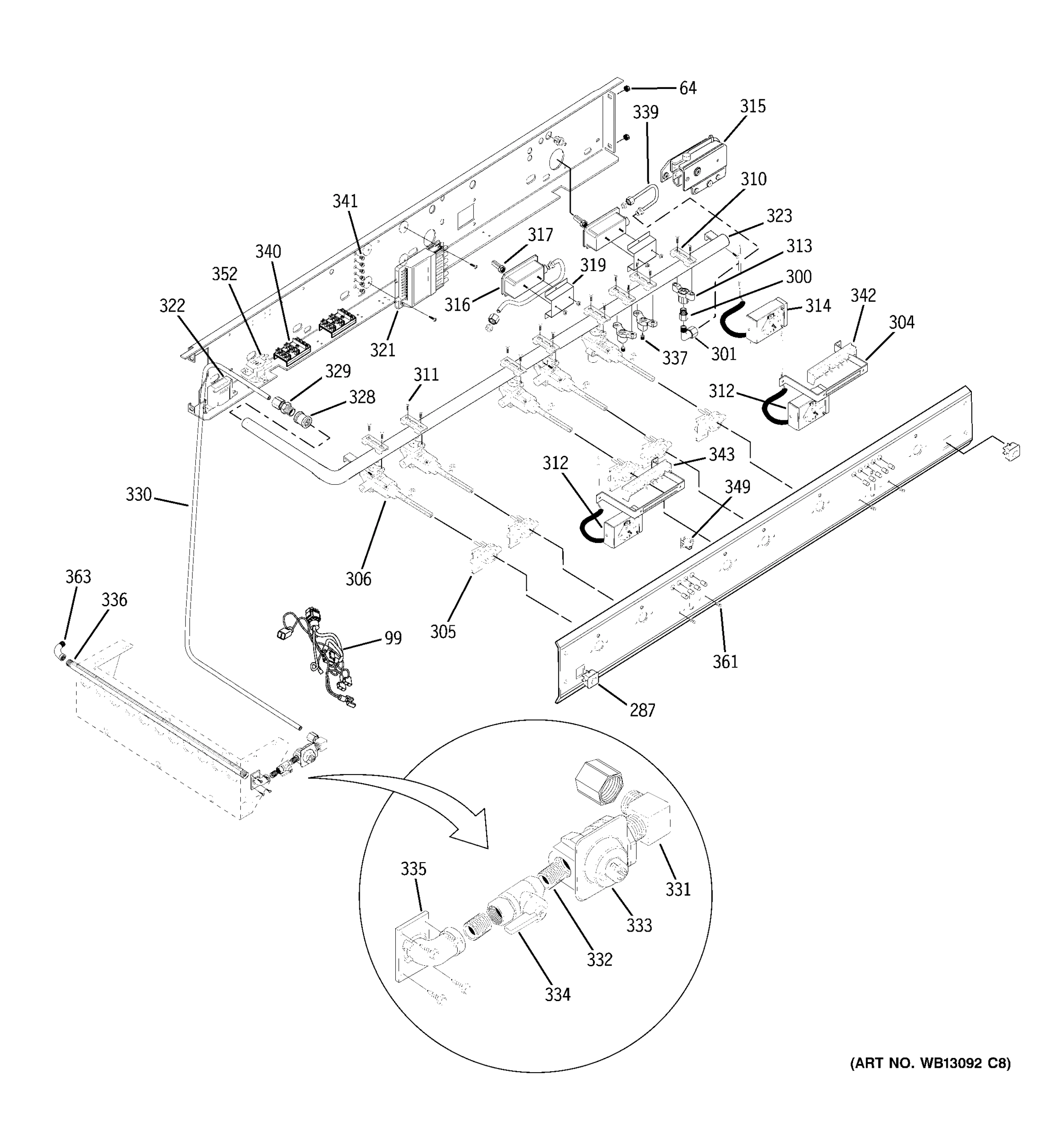

MANIFOLD ASSEMBLY

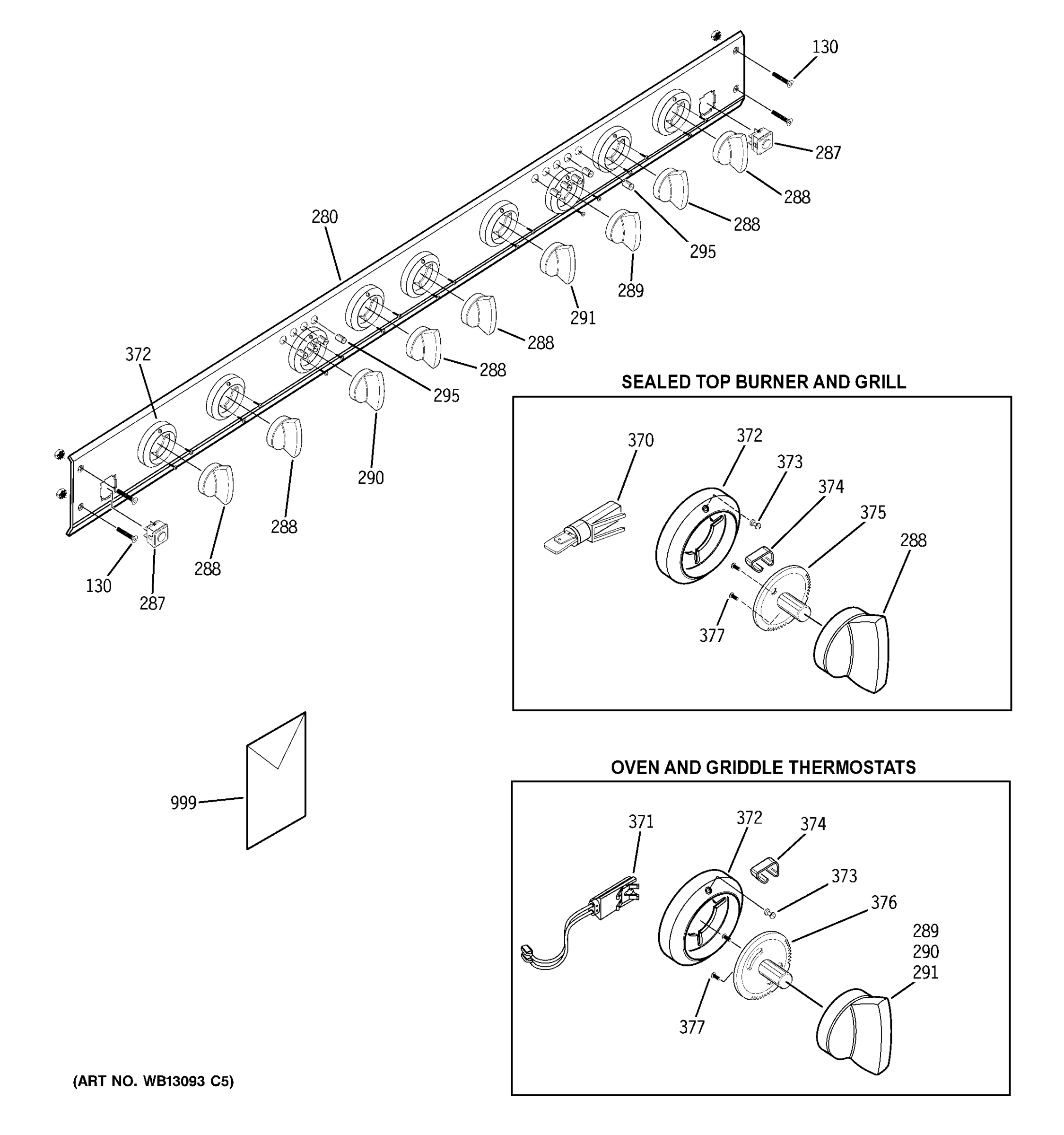

CONTROL PANEL

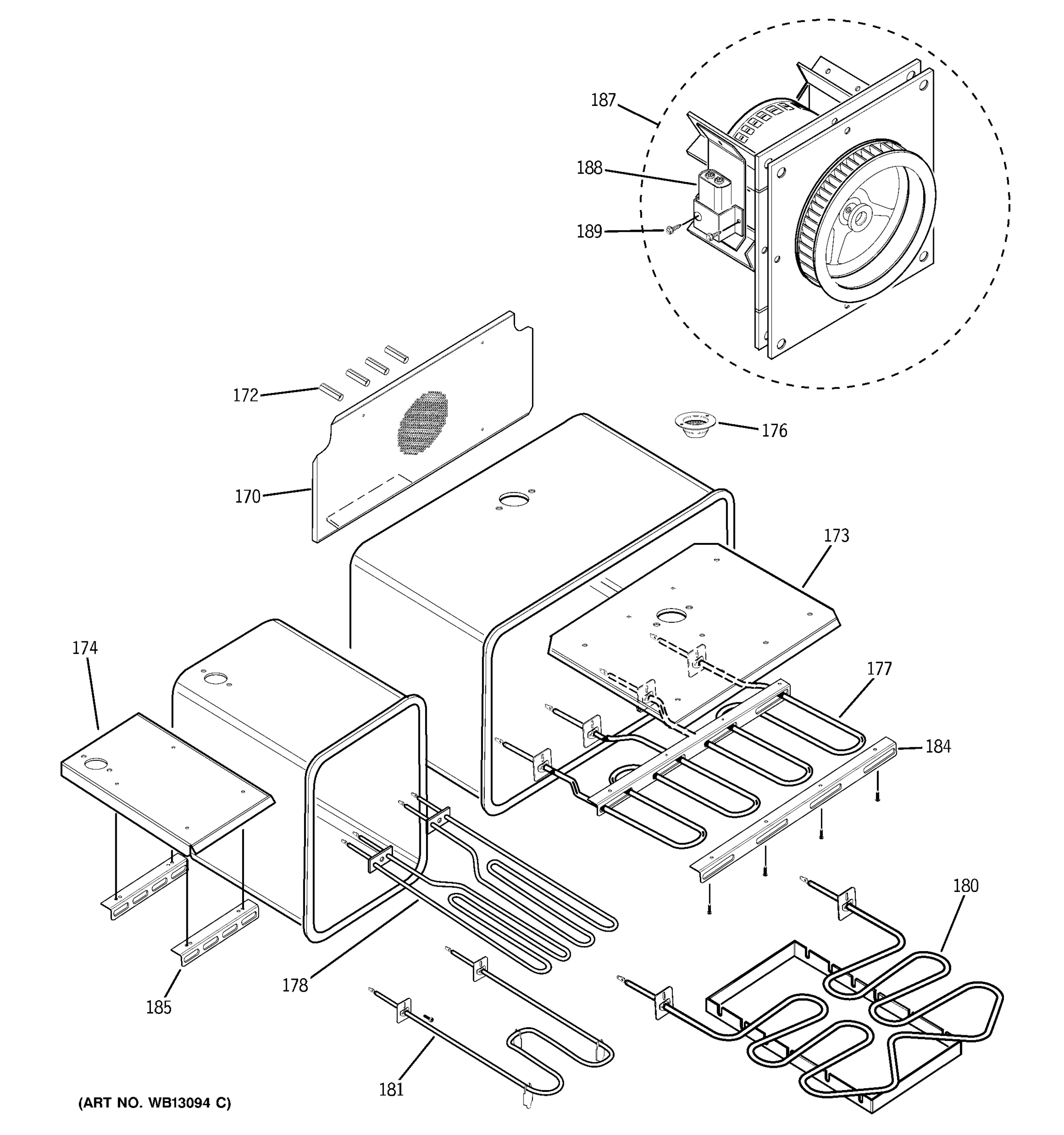

OVEN ASSEMBLY

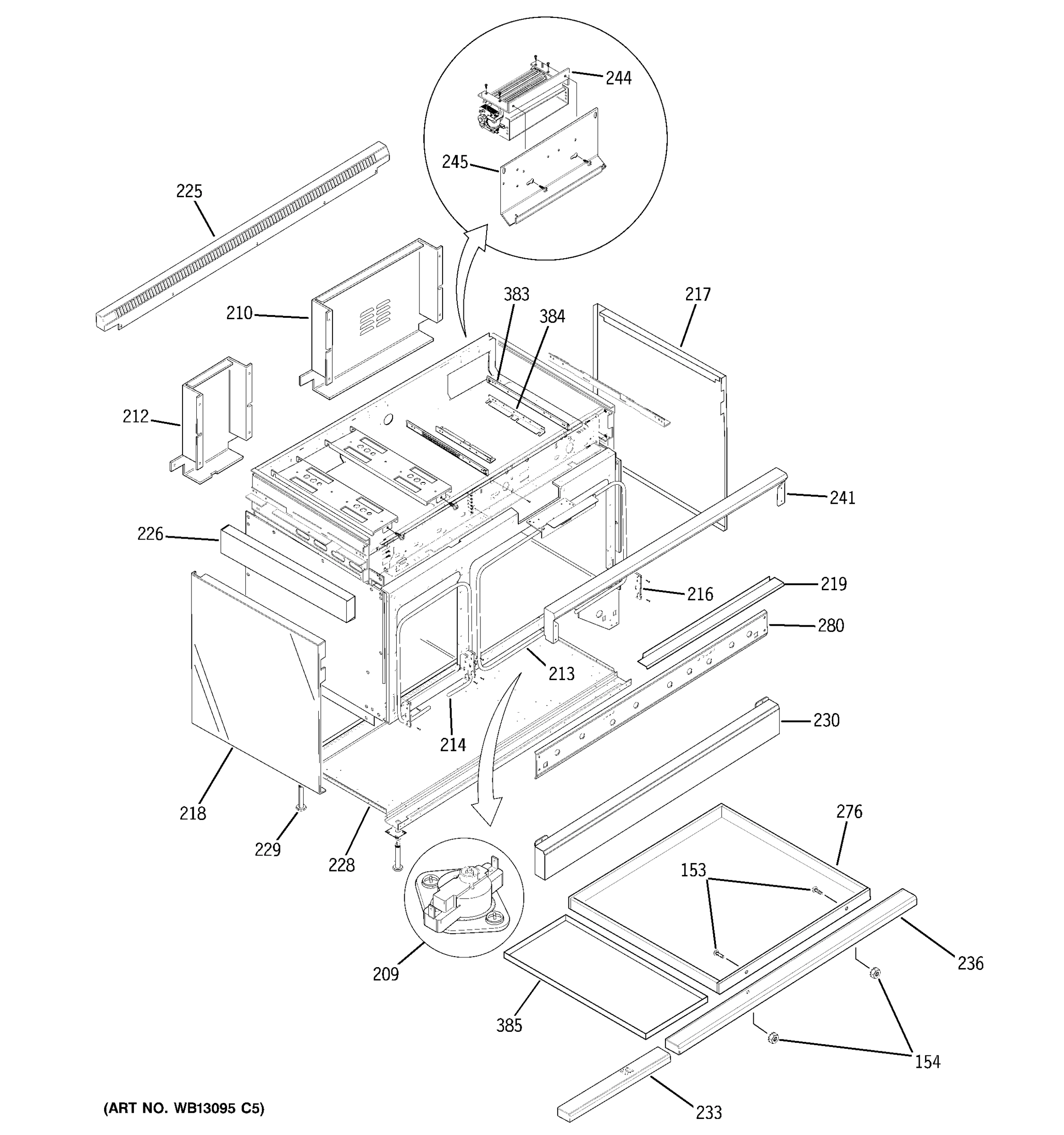

STRUCTURE

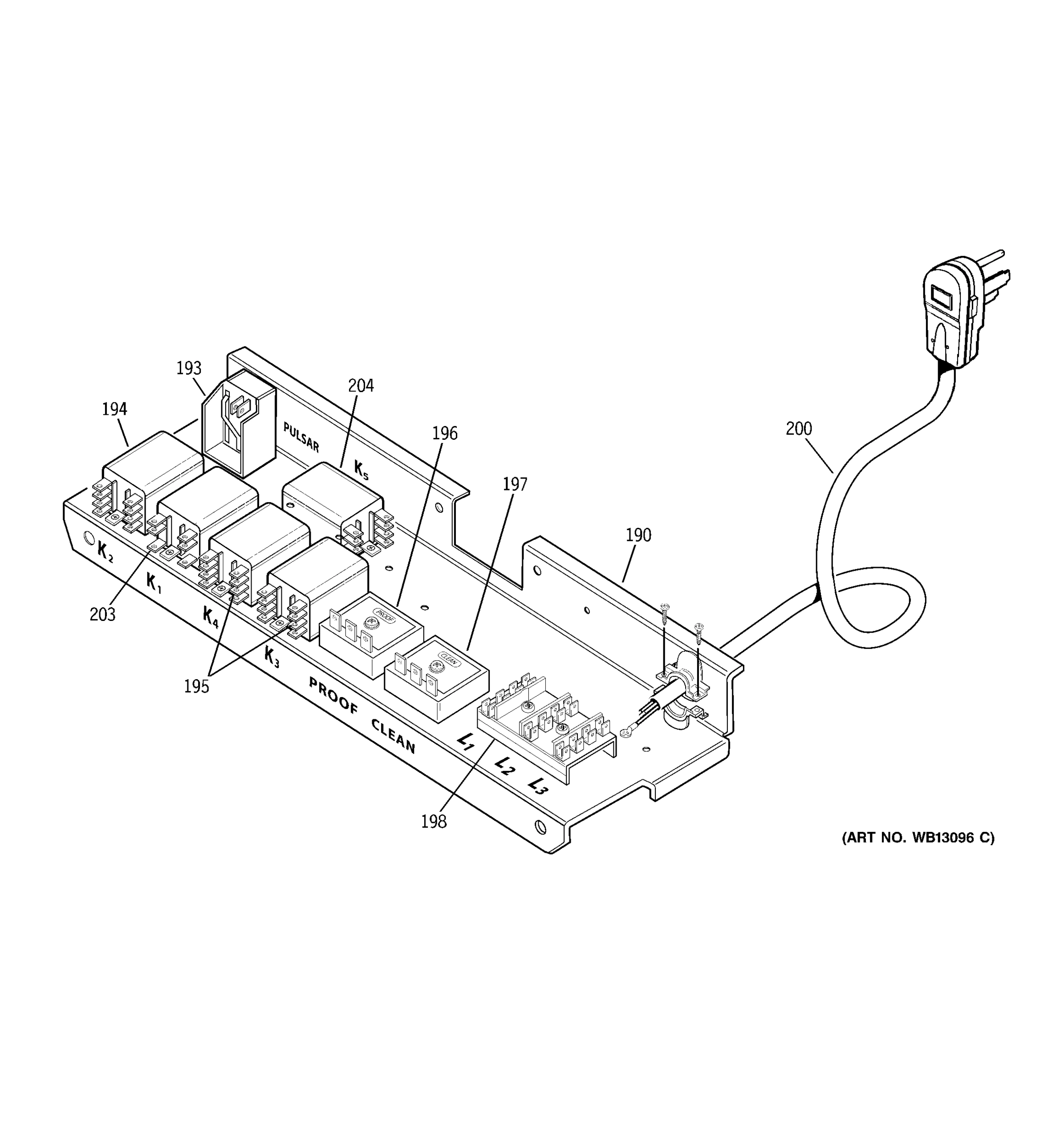

ELECTRICAL ASSEMBLY

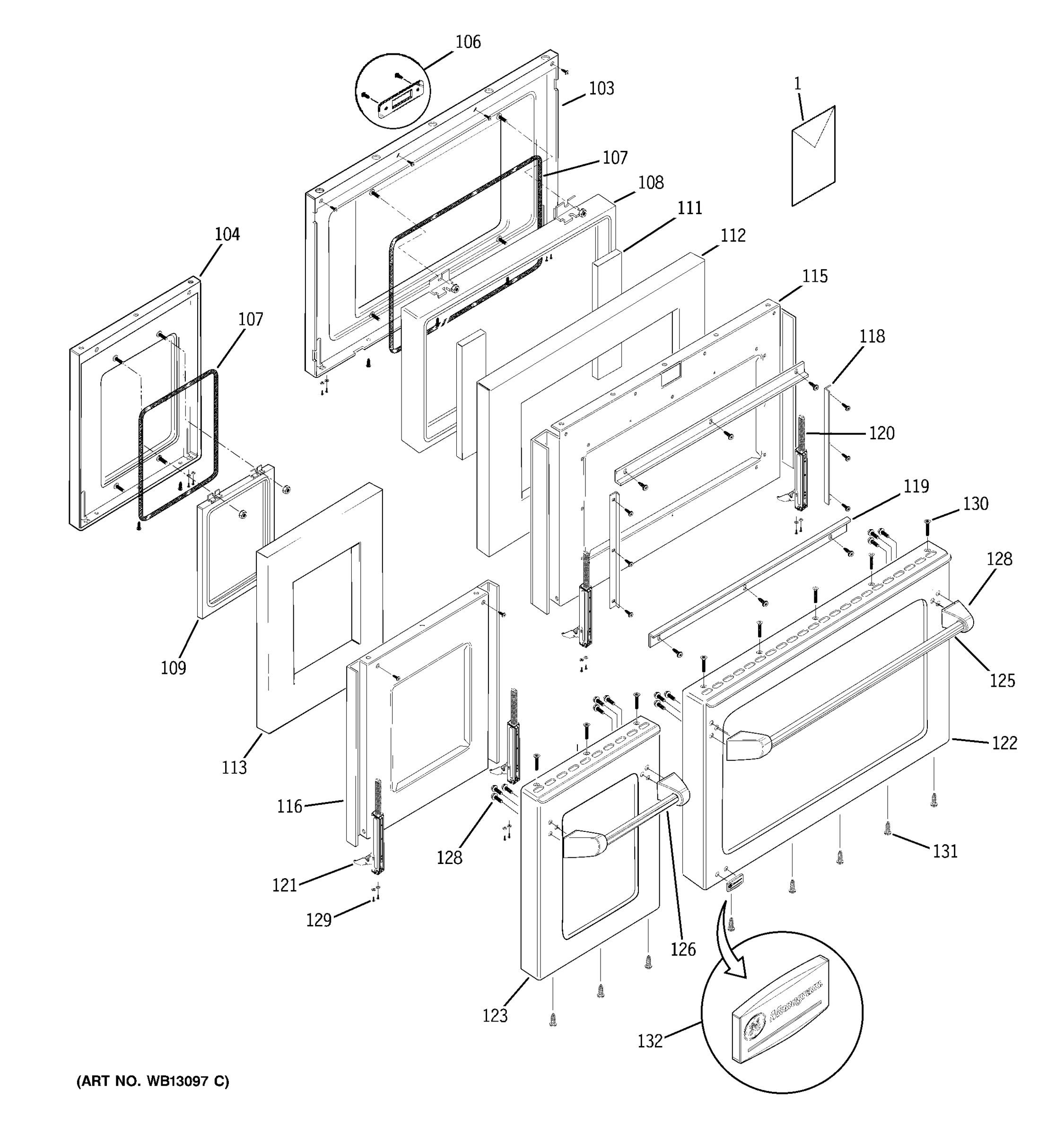

DOOR

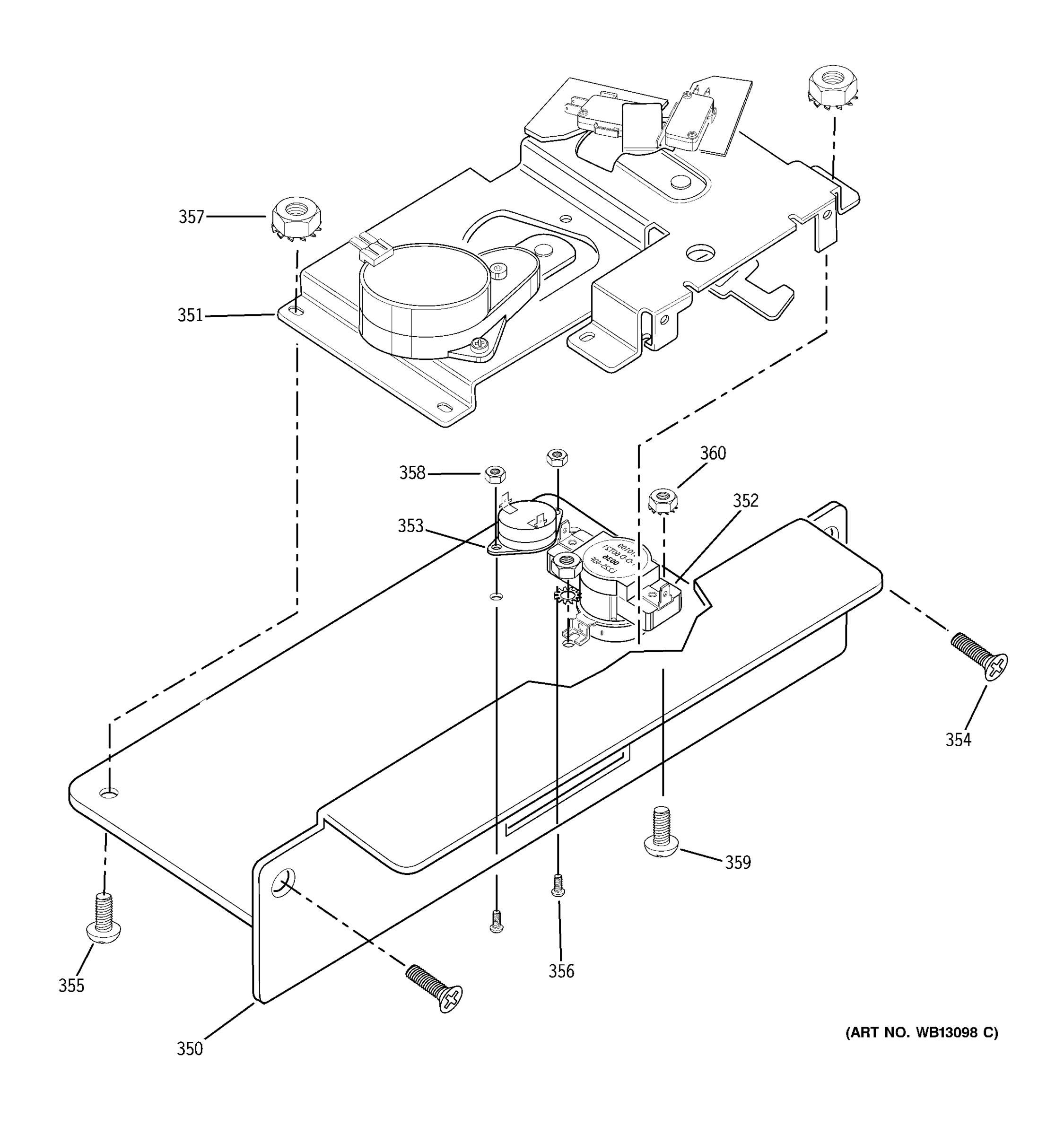

DOOR LATCH
Common parts from model GE ZDP48L6DH4SS Gas Range Or Dual Fuel
1
NAT/LP CONVERSION KIT GEN WB49X10132 Contact Us For Availability
1
HIGH ALTITUDE CONVERSION GEN WB49X10130 Contact Us For Availability
64
NUT WITH RETAINER 8-32 GEN WB01X10017 Contact Us For Availability
99
IGNITOR WIRE KIT H MODEL GEN WB18X10338 Contact Us For Availability
103
DOOR LINER 27" GEN WB55X10718 Contact Us For Availability
104
DOOR LINER 12" GEN WB55X10719 Contact Us For Availability
106
LATCH PLATE W/ SCREWS GEN WB02X11055 Contact Us For Availability
107
WINDOW GASKET 12/24/27'' GEN WB02X8597 Contact Us For Availability
108
WINDOW PACK-27 GEN WB36X5801 Contact Us For Availability
109
WINDOW PACK 12" GEN WB36X5804 Contact Us For Availability
111
INSULATION CUT GEN WB02X11056 Contact Us For Availability
112
INSULATION 27" GEN WB02X11057 Contact Us For Availability
113
INSULATION 12" GEN WB02X11058 Contact Us For Availability
115
INSULATION RETAINER 27" GEN WB55X10720 Contact Us For Availability
116
INSULATION RETAINER 12" GEN WB55X10721 Contact Us For Availability
118
COMPRESSION BRKT SIDE GEN WB02X11059 Contact Us For Availability
119
COMPRESSION BRKT T/BOT GEN WB02X11060 Contact Us For Availability
120
HINGE DOOR 27" GEN WB10X10056 Contact Us For Availability
121
HINGE DOOR 12" GEN WB10X10057 Contact Us For Availability
122
DOOR SKIN ASM W/GLASS27" GEN WB56X10505 Contact Us For Availability
123
DOOR SKIN ASM W/GLASS12" GEN WB56X10506 Contact Us For Availability
125
DOOR HANDLE, TUB 27" GEN WB15X10148 Contact Us For Availability
126
DOOR HANDLE, TUB 12" GEN WB15X10149 Contact Us For Availability
128
END CAP, HANDLE GEN WB07X10790 Contact Us For Availability
129
DOOR FASTENER KIT GEN WB01X10259 Contact Us For Availability
130
SCR 8-32X1" TX FL HD GEN WB01X10035 Contact Us For Availability
131
SCREW, SMS, 10-24 X 1/2 GEN WB01X10141 Contact Us For Availability
132
LOGO GE, W/ CLIPS GEN WB02X11061 Contact Us For Availability
141
COVER , GRIDDLE GEN WB07X10809 Contact Us For Availability
153
PHILLIPS 8-32X1/2" SS GEN WB01X10274 Contact Us For Availability
154
NUT KEPT #8 GEN WB01X10275 Contact Us For Availability
155
VENTURI BOLT GEN WB01X10056 Contact Us For Availability
170
CONVECTION BAFFLE GEN WB02X11069 Contact Us For Availability
172
CONVECTION BAFFLE SPACER GEN WB02X11066 Contact Us For Availability
173
REFLECTOR BROIL 27" GEN WB44X10033 Contact Us For Availability
174
REFLECTOR BROIL 12" GEN WB44X10034 Contact Us For Availability
176
CATALYST GEN WB21X10032 Contact Us For Availability
177
BROIL ELEMENT GEN WB44X10035 Contact Us For Availability
178
BROIL ELEMENT 1,800 W GEN WB44X10036 Contact Us For Availability
180
BAKE ELEMENT W/BRACKET GEN WB44X10039 Contact Us For Availability
181
BAKE ELEMENT GEN WB44X10038 Contact Us For Availability
184
ELEMENT BRACKET F/R GEN WB02X11067 Contact Us For Availability
185
ELEMENT BRACKET 12" F/R GEN WB02X11068 Contact Us For Availability
187
CONVECTION MOTOR ASSY GEN WB26X10152 Contact Us For Availability
188
CAPACITOR GEN WB27X10782 Contact Us For Availability
189
SCREW, 10-24 X 1/2 GEN WB01X10150 Contact Us For Availability
190
CONTROL MOUNT GEN WB02X11086 Contact Us For Availability
193
PULSAR 4.3A GEN WB19X10021 Contact Us For Availability
194
FLANGE MOUNT RELAY DPDT GEN WB21X5363 Contact Us For Availability
195
FLANGE MOUNT RELAY TPDT GEN WB21X5364 Contact Us For Availability
196
12" OVEN TIMER - PROOF GEN WB21X5360 Contact Us For Availability
197
27" OVEN TIMER-CLEAN GEN WB21X5361 Contact Us For Availability
198
TERMINAL BLOCK GEN WB17X5134 Contact Us For Availability
200
POWER CORD GEN WB18X5158 Contact Us For Availability
203
CLEAN RELAY 3PDT K1 GEN WB21X10110 Contact Us For Availability
204
FLANGE MOUNT RELAY SPDT GEN WB21X10109 Contact Us For Availability
209
HI-TEMP CUT-OUT GEN WB21X10111 Contact Us For Availability
210
BACK COVER 27" GEN WB02X11070 Contact Us For Availability
212
BACK COVER 12" GEN WB02X11071 Contact Us For Availability
213
DOOR GASKET 27" GEN WB02X11072 Contact Us For Availability
214
DOOR GASKET 12" GEN WB02X11073 Contact Us For Availability
216
RECEPTACLE HINGE GEN WB10X10058 Contact Us For Availability
217
SIDE BODY PANEL R/H GEN WB56X10507 Contact Us For Availability
218
SIDE BODY PANEL L/H GEN WB56X10508 Contact Us For Availability
219
LOWER HEAT SHIELD ZDP48 GEN WB63X10057 Contact Us For Availability
225
ISLAND TRIM WELDMENT GEN WB07X10817 Contact Us For Availability
226
INSUL SIDE UPPER R/H L/H GEN WB35X10005 Contact Us For Availability
228
BASE PLATE LEVELING LEG GEN WB01X10317 Contact Us For Availability
229
LEVELING LEG GEN WB02X8594 Contact Us For Availability
230
KICK PANEL 48 GEN WB56X10570 Contact Us For Availability
233
STATIC DRIP TRAY HANDLE GEN WB15X10168 Contact Us For Availability
236
DRIP TRAY HANDLE ZDP48 GEN WB15X10169 Contact Us For Availability
241
LANDING EDGE KIT 48" GEN WB07X10944 Contact Us For Availability
244
BLOWER MOTOR GEN WB26X10153 Contact Us For Availability
245
BLOWER FACE PLATE GEN WB02X11075 Contact Us For Availability
251
GRATE, WOK INSERT GEN WB31X10004 Contact Us For Availability
252
GRATE SUPPORT GEN WB02X11074 Contact Us For Availability
253
BURNER CAP (PORCELAIN) GEN WB13X10014 Contact Us For Availability
255
NUT CHAMFER GEN WB01X10321 Contact Us For Availability
257
VENTURI, CHAMFERED GEN WB38X10080 Contact Us For Availability
262
NUT, JET HOLDER, MAIN GEN WB01X10139 Contact Us For Availability
267
JET HOLDER, SIMMER (LP) GEN WB16X10021 Contact Us For Availability
272
TUBING, MAIN REAR GEN WB28X10064 Contact Us For Availability
274
TUBING, SIMMER REAR GEN WB28X10066 Contact Us For Availability
275
TUBING, SIMMER FRONT GEN WB28X10067 Contact Us For Availability
276
DRIP TRAY GEN WB32X10053 Contact Us For Availability
279
NUT, JET HOLDER, SIM GEN WB01X10140 Contact Us For Availability
280
FRONT PANEL GEN WB56X10521 Contact Us For Availability
287
HALOGEN SWITCH GEN WB24X5362 Contact Us For Availability
288
KNOB, BURNER GEN WB03X10218 Contact Us For Availability
289
KNOB, THERMOSTAT (CLEAN) GEN WB03X10219 Contact Us For Availability
290
KNOB, THERMOSTAT, 12" GEN WB03X10220 Contact Us For Availability
291
KNOB, GRIDDLE GEN WB03X10221 Contact Us For Availability
295
PUSH BUTTON CAP GEN WB03X10222 Contact Us For Availability
314
THERMOSTAT, GRIDDLE GEN WB21X10117 Contact Us For Availability
315
THERMOSTAT DOOR LOCK GEN WB21X10033 Contact Us For Availability
322
TRANSFORMER 120V/230V 30 GEN WB27X10905 Contact Us For Availability
340
TERMINAL BLOCK GEN WB17X5132 Contact Us For Availability
341
GROMMET, IGNITER WIRE GEN WB02X11106 Contact Us For Availability
342
5 PUSH BUTTON SWITCH GEN WB24X10133 Contact Us For Availability
343
4 PUSH BUTTON SWITCH GEN WB24X10134 Contact Us For Availability
349
T'STAT BLOWER GEN WB21X5369 Contact Us For Availability
350
MOTOR LATCH PLATE GEN WB02X11084 Contact Us For Availability
351
LATCH DOOR GEN WB10X10025 Contact Us For Availability
352
THERMOSTAT , FAN (SFT) GEN WB27X10784 Contact Us For Availability
353
THERMOSTAT,BLOWER (BLT) GEN WB27X10785 Contact Us For Availability
354
VENTURI BOLT GEN WB01X5973 Contact Us For Availability
355
SCREW GEN WB01X10261 Contact Us For Availability
356
SCREW GEN WB01X10262 Contact Us For Availability
357
NUT GEN WB01X10263 Contact Us For Availability
358
NUT GEN WB01X10264 Contact Us For Availability
359
SCREW GEN WB01X10265 Contact Us For Availability
360
NUT, #6-32 KEPS GEN WB01X10137 Contact Us For Availability
361
LENS, REDLIGHT HEAT/LOCK GEN WB25X10015 Contact Us For Availability
363
ELBOW, 1/2" NPT GEN WB02X10779 Contact Us For Availability
370
PILOT LIGHT (220V) GEN WB25X10014 Contact Us For Availability
371
INDICATOR LIGHT W/LEADS GEN WB25X10012 Contact Us For Availability
372
BEZEL GEN WB07X10795 Contact Us For Availability
373
LENS, BEZEL GEN WB25X10013 Contact Us For Availability
374
CLIP GEN WB02X11087 Contact Us For Availability
375
INSERT, BURNER GEN WB02X11090 Contact Us For Availability
376
INSERT, THERMOSTAT GEN WB02X11091 Contact Us For Availability
383
SLIDE GEN WB02X11093 Contact Us For Availability
384
BRACKET, SLIDE MOUNT GEN WB02X11094 Contact Us For Availability
385
DRIP PAN GRILLE/GRIDDLE GEN WB02X11114 Contact Us For Availability
999
MINI-MANUAL GEN 3120794 Contact Us For Availability
999
USE & CARE GEN 4980219 Contact Us For Availability
999
INSTALLATION INSTRUCTION GEN 4980222 Contact Us For Availability
× ![]()
