Model GE ZDP36N4DD1SS Gas Range Or Dual Fuel – Common Parts & Diagrams

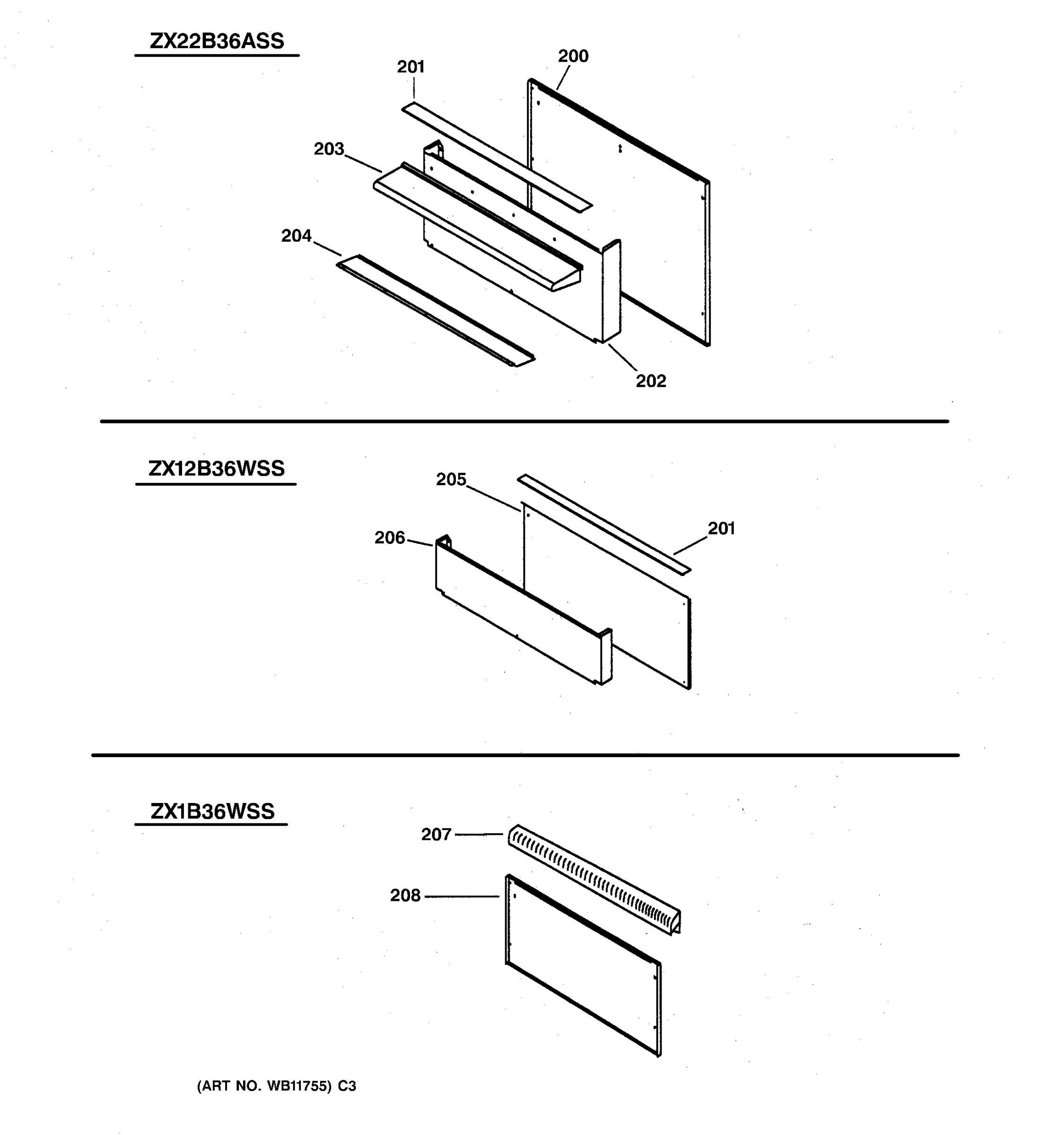

ACCESSORY BACKGUARD ASSEMBLY

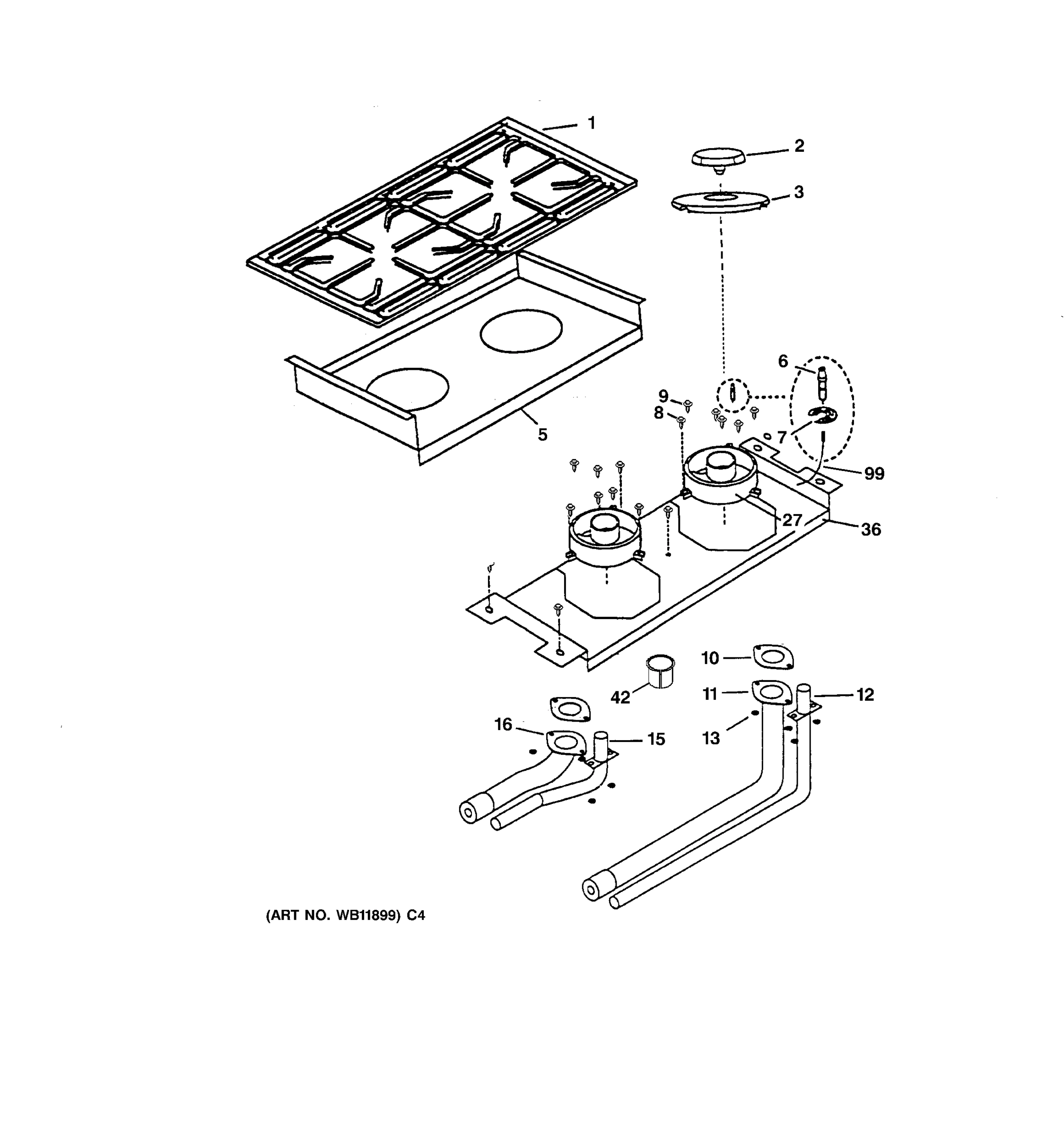

BURNER ASSEMBLY

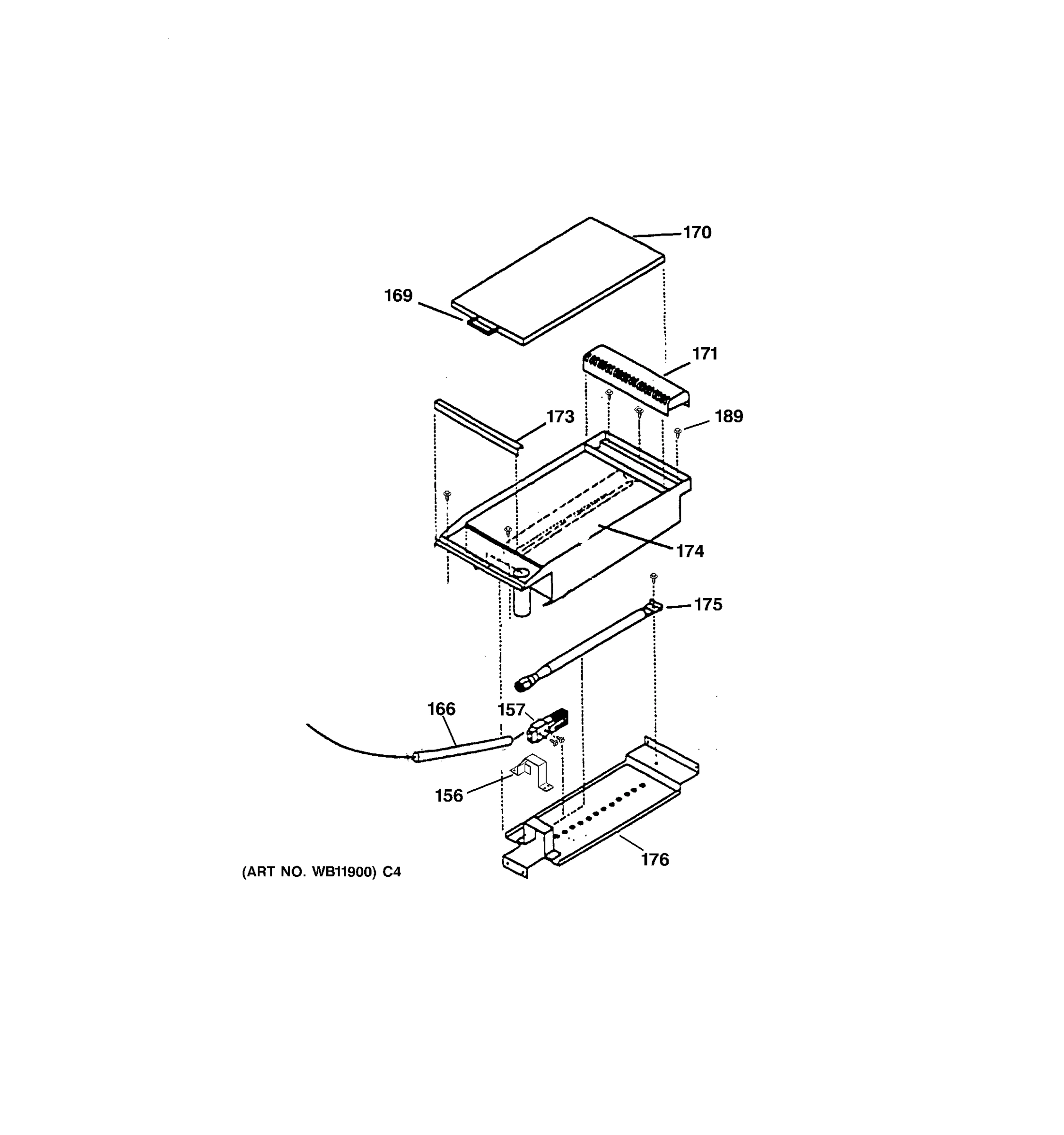

GRIDDLE ASSEMBLY

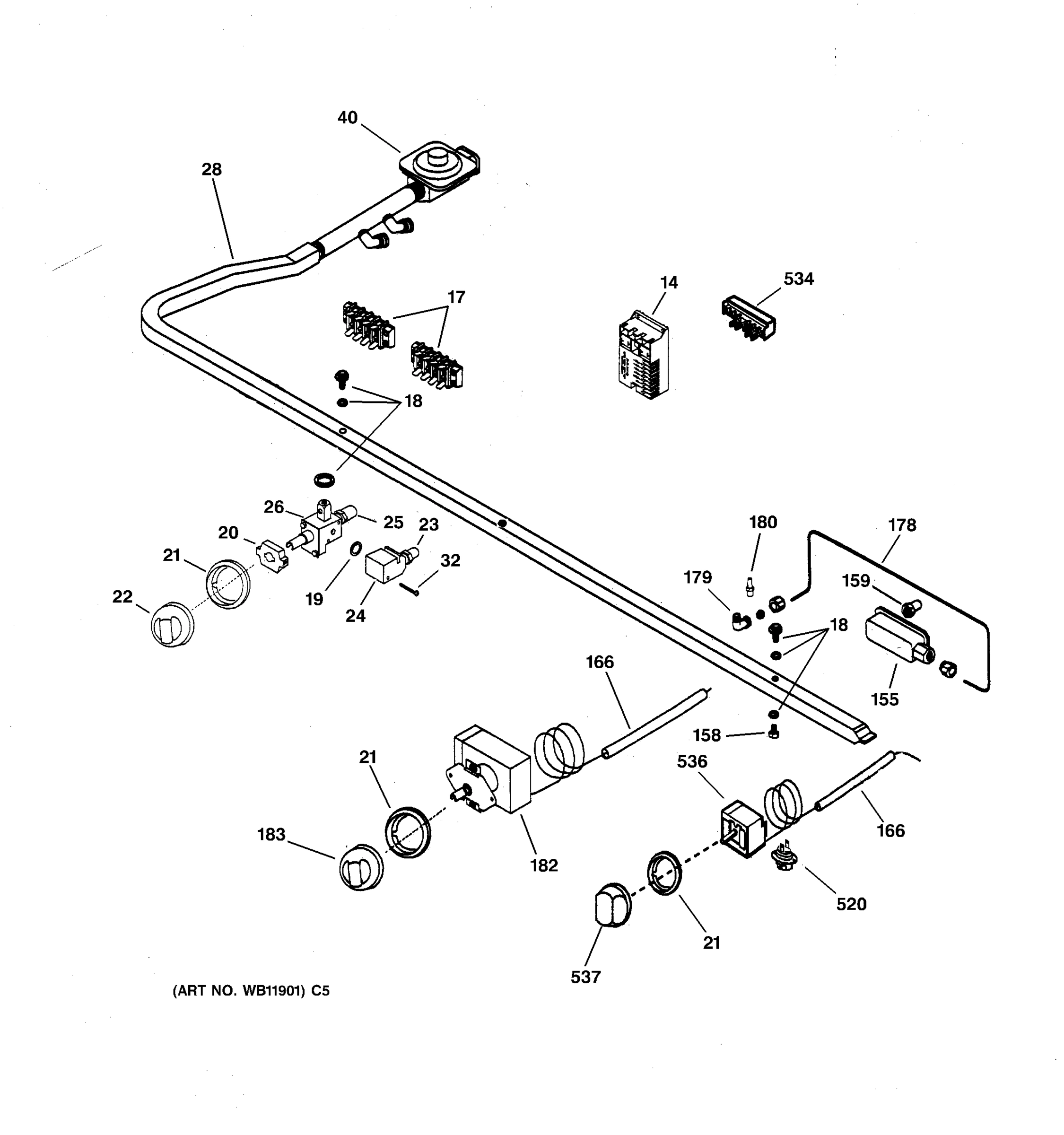

MANIFOLD & CONTROLS

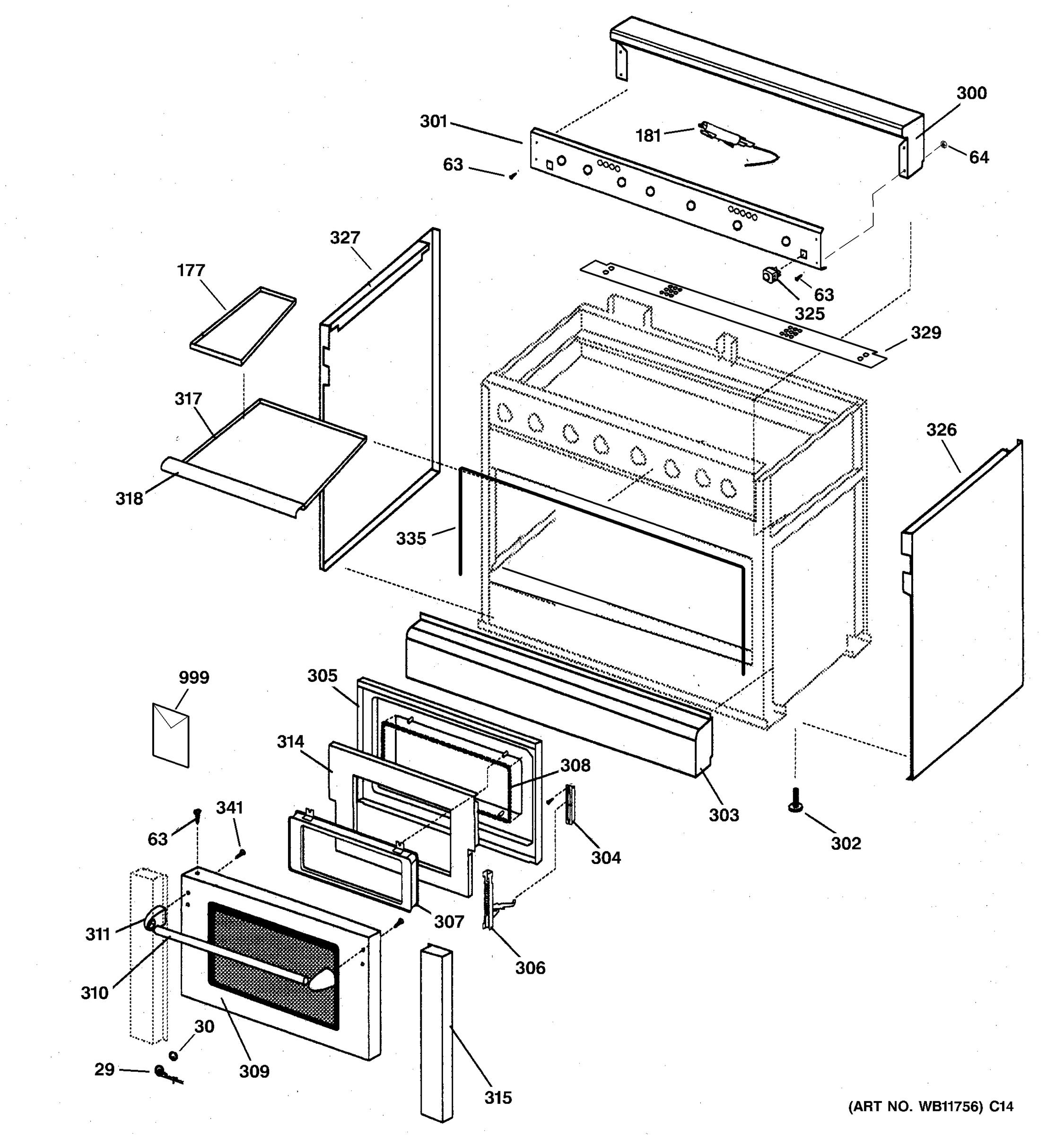

OUTER BODY

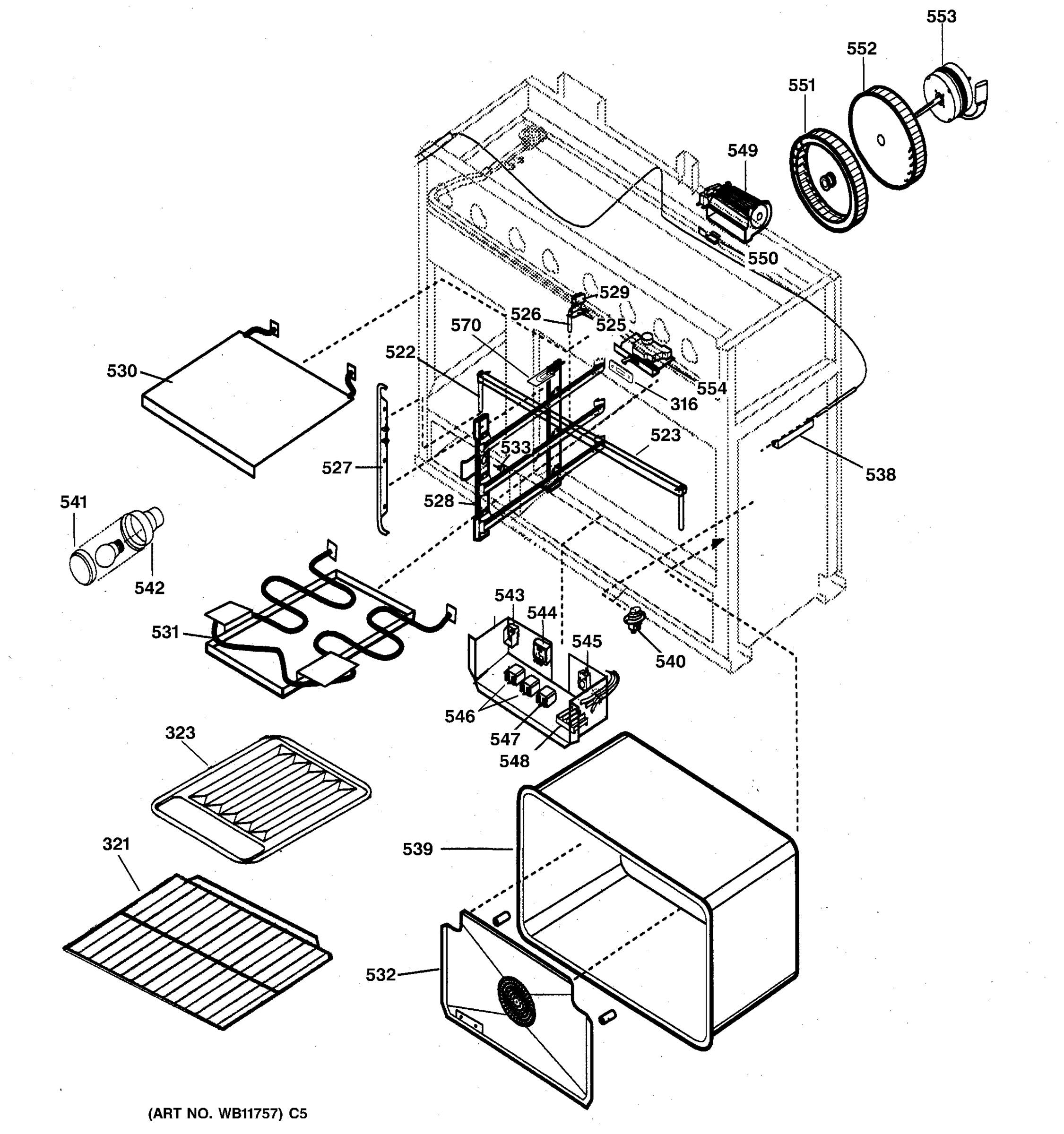

OVEN ASSEMBLY
Common parts from model GE ZDP36N4DD1SS Gas Range Or Dual Fuel
2
GEN WB32X10010 GEN WB32X10010 Contact Us For Availability
5
GEN WB32X5112 GEN WB32X5112 Contact Us For Availability
9
GEN WB01X10056 GEN WB01X10056 Contact Us For Availability
15
GEN WB38X10018 GEN WB38X10018 Contact Us For Availability
17
GEN WB17X5132 GEN WB17X5132 Contact Us For Availability
19
GEN WB02X8603 GEN WB02X8603 Contact Us For Availability
20
SPARK SWITCH/ SIMMER BUR GEN WB24X5367 Contact Us For Availability
21
BEZEL GEN WB07X7391 Contact Us For Availability
22
SIMMER BURNER KNOB GEN WB03X5865 Contact Us For Availability
23
GEN WB21X10041 GEN WB21X10041 Contact Us For Availability
24
GEN WB17X5133 GEN WB17X5133 Contact Us For Availability
25
GEN WB21X5371 GEN WB21X5371 Contact Us For Availability
26
GEN WB21X5354 GEN WB21X5354 Contact Us For Availability
27
GEN WB28X10018 GEN WB28X10018 Contact Us For Availability
28
GEN WB02X10350 GEN WB02X10350 Contact Us For Availability
29
GEN WB02X10349 GEN WB02X10349 Contact Us For Availability
32
GEN WB01X10103 GEN WB01X10103 Contact Us For Availability
40
GEN WB21X10027 GEN WB21X10027 Contact Us For Availability
63
SCR 8-32X1' TXFL HD GEN WB01X10035 Contact Us For Availability
64
GEN WB01X10017 GEN WB01X10017 Contact Us For Availability
155
GEN WB21X5355 GEN WB21X5355 Contact Us For Availability
158
GEN WB02X8609 GEN WB02X8609 Contact Us For Availability
159
GEN WB21X5367 GEN WB21X5367 Contact Us For Availability
166
GEN WB02X8611 GEN WB02X8611 Contact Us For Availability
169
GEN WB15X5233 GEN WB15X5233 Contact Us For Availability
177
GEN WB32X5114 GEN WB32X5114 Contact Us For Availability
178
GEN WB02X8606 GEN WB02X8606 Contact Us For Availability
179
GEN WB02X8607 GEN WB02X8607 Contact Us For Availability
180
GEN WB02X8608 GEN WB02X8608 Contact Us For Availability
181
INDICATOR LITE ASM GEN WB02X8610 Contact Us For Availability
182
GEN WB21X5356 GEN WB21X5356 Contact Us For Availability
183
GEN WB03X5866 GEN WB03X5866 Contact Us For Availability
300
GEN WB07X7365 GEN WB07X7365 Contact Us For Availability
301
GEN WB07X7370 GEN WB07X7370 Contact Us For Availability
302
GEN WB02X8594 GEN WB02X8594 Contact Us For Availability
303
GEN WB56X7096 GEN WB56X7096 Contact Us For Availability
304
GEN WB10X5225 GEN WB10X5225 Contact Us For Availability
305
GEN WB55X5418 GEN WB55X5418 Contact Us For Availability
306
GEN WB10X5226 GEN WB10X5226 Contact Us For Availability
307
GEN WB36X5801 GEN WB36X5801 Contact Us For Availability
308
GEN WB02X8597 GEN WB02X8597 Contact Us For Availability
309
GEN WB56X7097 GEN WB56X7097 Contact Us For Availability
310
GEN WB15X5228 GEN WB15X5228 Contact Us For Availability
311
GEN WB07X7372 GEN WB07X7372 Contact Us For Availability
314
GEN WB55X5420 GEN WB55X5420 Contact Us For Availability
315
GEN WB56X7099 GEN WB56X7099 Contact Us For Availability
315
GEN WB56X7100 GEN WB56X7100 Contact Us For Availability
316
GEN WB02X10879 GEN WB02X10879 Contact Us For Availability
317
GEN WB32X5113 GEN WB32X5113 Contact Us For Availability
318
GEN WB15X5232 GEN WB15X5232 Contact Us For Availability
321
GEN WB48X5114 GEN WB48X5114 Contact Us For Availability
323
GEN WB49X5596 GEN WB49X5596 Contact Us For Availability
325
LIGHT SWITCH GEN WB24X5362 Contact Us For Availability
326
GEN WB56X10023 GEN WB56X10023 Contact Us For Availability
327
GEN WB56X10024 GEN WB56X10024 Contact Us For Availability
329
GEN WB06X10509 GEN WB06X10509 Contact Us For Availability
335
GASKET OVEN DOOR 27" GEN WB02X10527 Contact Us For Availability
341
GEN WB01X10059 GEN WB01X10059 Contact Us For Availability
520
GEN WB21X5369 GEN WB21X5369 Contact Us For Availability
522
GEN WB02X10525 GEN WB02X10525 Contact Us For Availability
523
GEN WB02X10671 GEN WB02X10671 Contact Us For Availability
525
GEN WB02X8617 GEN WB02X8617 Contact Us For Availability
526
GEN WB02X8618 GEN WB02X8618 Contact Us For Availability
527
EDGE GUARD WELD ASM L/H GEN WB02X8620 Contact Us For Availability
527
GEN WB02X8621 GEN WB02X8621 Contact Us For Availability
528
GEN WB36X5802 GEN WB36X5802 Contact Us For Availability
528
GEN WB36X5803 GEN WB36X5803 Contact Us For Availability
529
GEN WB24X5366 GEN WB24X5366 Contact Us For Availability
530
GEN WB44X5107 GEN WB44X5107 Contact Us For Availability
531
GEN WB44X5108 GEN WB44X5108 Contact Us For Availability
532
GEN WB02X8624 GEN WB02X8624 Contact Us For Availability
533
GEN WB01X5976 GEN WB01X5976 Contact Us For Availability
534
GEN WB24X5364 GEN WB24X5364 Contact Us For Availability
536
GEN WB21X5358 GEN WB21X5358 Contact Us For Availability
537
GEN WB03X5868 GEN WB03X5868 Contact Us For Availability
538
GEN WB02X8625 GEN WB02X8625 Contact Us For Availability
539
GEN WB53X5166 GEN WB53X5166 Contact Us For Availability
540
GEN WB21X5359 GEN WB21X5359 Contact Us For Availability
541
GEN WB02X8626 GEN WB02X8626 Contact Us For Availability
542
GEN WB08X5125 GEN WB08X5125 Contact Us For Availability
543
GEN WB19X5313 GEN WB19X5313 Contact Us For Availability
544
GEN WB21X5361 GEN WB21X5361 Contact Us For Availability
545
GEN WB21X5362 GEN WB21X5362 Contact Us For Availability
546
GEN WB21X5363 GEN WB21X5363 Contact Us For Availability
547
GEN WB21X5364 GEN WB21X5364 Contact Us For Availability
548
GEN WB17X5134 GEN WB17X5134 Contact Us For Availability
549
GEN WB26X5123 GEN WB26X5123 Contact Us For Availability
550
GEN WB02X8627 GEN WB02X8627 Contact Us For Availability
551
GEN WB02X8628 GEN WB02X8628 Contact Us For Availability
552
GEN WB02X8629 GEN WB02X8629 Contact Us For Availability
553
GEN WB26X5124 GEN WB26X5124 Contact Us For Availability
570
BRKT INTERLOCK RH GEN WB02X10916 Contact Us For Availability
570
GEN WB02X10917 GEN WB02X10917 Contact Us For Availability
999
GEN 31-20422 GEN 31-20422 Contact Us For Availability
999
GEN 49-80074 GEN 49-80074 Contact Us For Availability
999
GEN 49-8786 GEN 49-8786 Contact Us For Availability
× ![]()
