Model GE ZDIS15SSHALH – Common Parts & Diagrams
CABINET, LINER & DOOR PARTS
EVAPORATOR, ICE CUTTER GRID & WATER PARTS

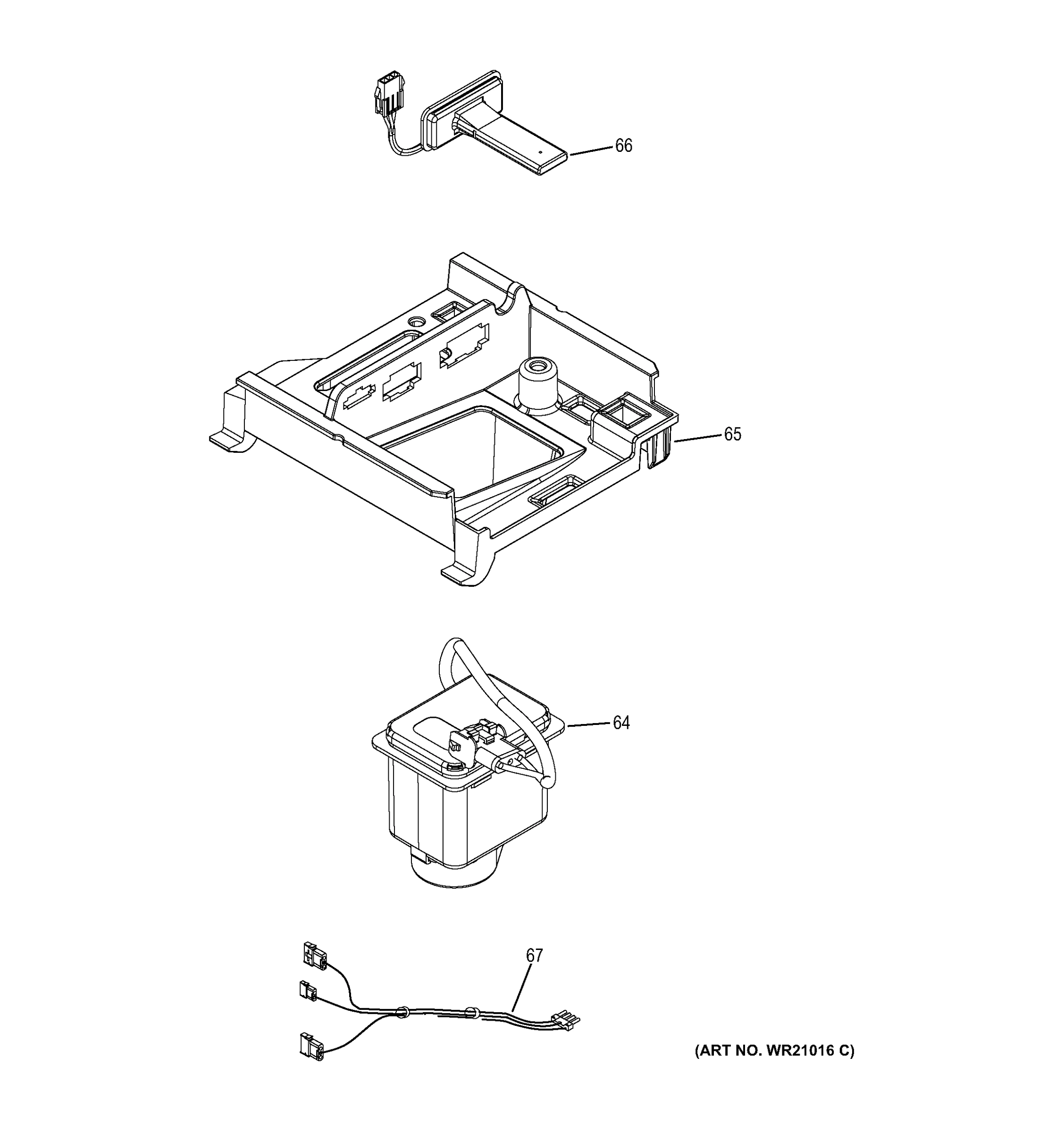

PUMP PARTS

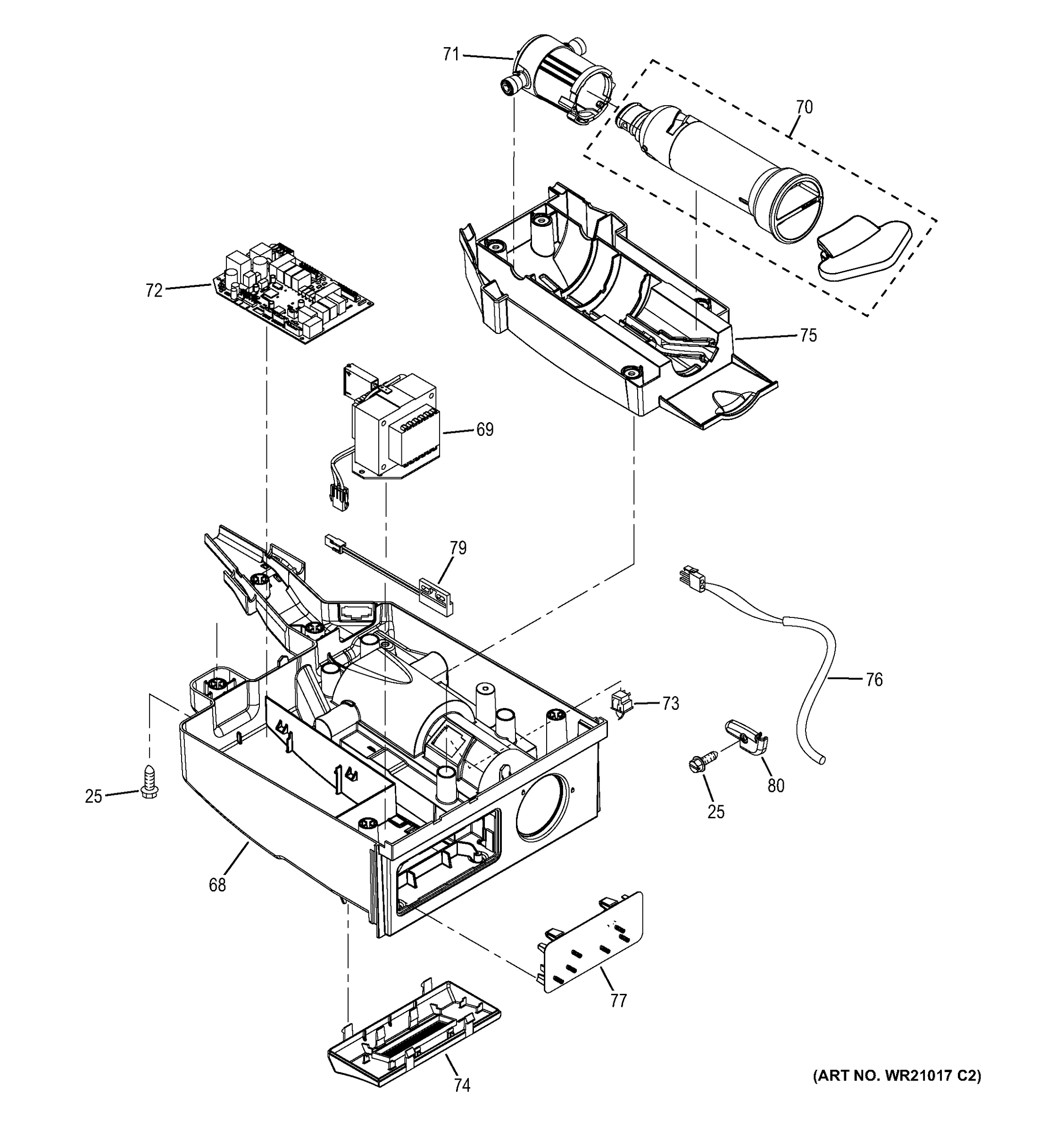

CONTROL PANEL PARTS

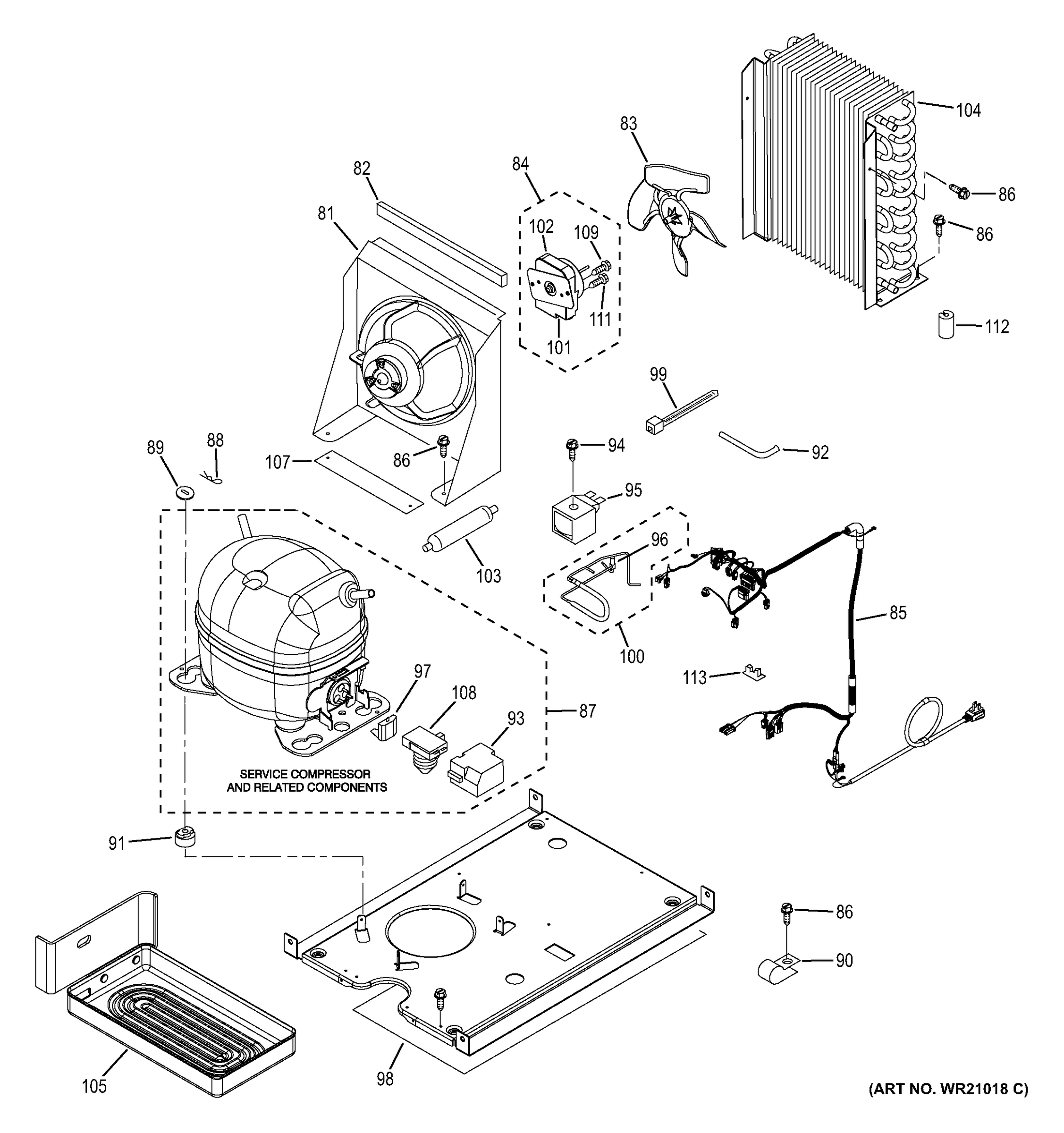

MACHINE COMPARTMENT
Common parts from model GE ZDIS15SSHALH
18
COVER, UNIT GEN WR02X20564 Contact Us For Availability
19
SCREW (BLACK) GEN WR01X20587 Contact Us For Availability
20
FILLER, TOP ENDCAP (BLAC GEN WR13X20568 Contact Us For Availability
21
PAD, FOAM GEN WR14X20578 Contact Us For Availability
22
NUT LEG LEVELER GEN WR01X10800 Contact Us For Availability
23
TUBE DRAIN GEN WR17X12379 Contact Us For Availability
24
SCOOP GEN WR01X20585 Contact Us For Availability
26
FILL TUBE CLAMP GEN WR01X10763 Contact Us For Availability
27
DOOR WRAP SS LH GEN WR78X23424 Contact Us For Availability
28
HINGE, BOTTOM (BLACK) GEN WR13X20570 Contact Us For Availability
30
SCREW GROUND GEN WR01X10802 Contact Us For Availability
31
HANDLE, ICEMAKER STAINLE GEN WR12X23425 Contact Us For Availability
32
SCREW 6-32 X 3/4 GEN WR01X10136 Contact Us For Availability
33
SCREW (BLACK) GEN WR01X20588 Contact Us For Availability
37
PANEL, TOP (BLACK) GEN WR74X20579 Contact Us For Availability
40
SCREW (BLACK) GEN WR01X20586 Contact Us For Availability
42
VALVE, WATER GEN WR57X20608 Contact Us For Availability
44
SCREW GEN WR01X10810 Contact Us For Availability
47
PUMP, RESERVOIR DRAIN GEN WR57X20582 Contact Us For Availability
50
ASSEMBLY, PLUG TUBE GEN WR02X20547 Contact Us For Availability
53
TUBE, WATER SLIDE GEN WR02X20605 Contact Us For Availability
54
TUBE, RESERVOIR OVERFLOW GEN WR02X20604 Contact Us For Availability
57
ASSEMBLY, GRID GEN WR13X20545 Contact Us For Availability
59
RESERVOIR, WATER GEN WR57X20584 Contact Us For Availability
61
CAP, DRAIN GEN WR02X20554 Contact Us For Availability
62
NUT PUSH-IN GEN WR01X10801 Contact Us For Availability
64
PUMP, RECIRCULATING GEN WR57X20581 Contact Us For Availability
66
SENSOR, WATER GEN WR02X20589 Contact Us For Availability
67
ASSEMBLY, PUMP WIRE GEN WR55X20548 Contact Us For Availability
70
CARTRIDGE, FILTER GEN IMWF Contact Us For Availability
71
ASSEMBLY, WATER FILTER H GEN WR57X20549 Contact Us For Availability
74
ASSEMBLY, DIAMOND LED GEN WR29X20544 Contact Us For Availability
76
THERMISTOR, BIN GEN WR09X20598 Contact Us For Availability
77
ASSEMBLY, CONTROL GEN WR01X20543 Contact Us For Availability
80
CLAMP, THERMISTOR GEN WR02X20556 Contact Us For Availability
82
PAD FOAM GEN WR14X10250 Contact Us For Availability
83
BLADE-COND FAN, PLASTIC GEN WR60X10218 Contact Us For Availability
86
SCREW 8-18 X 1/2 GEN WR01X10814 Contact Us For Availability
87
COMPRESSOR GEN WR87X20558 Contact Us For Availability
88
CLIP MOUNTING GEN WR01X10815 Contact Us For Availability
89
SHIM -4 GEN WR02X12737 Contact Us For Availability
90
CLAMP (POWER CORD) GEN WR02X12720 Contact Us For Availability
91
GROMMET, COMPRESSOR GEN WR02X20569 Contact Us For Availability
92
TUBE, PROCESS GEN WR02X20601 Contact Us For Availability
94
SCREW GEN WR01X10816 Contact Us For Availability
95
COIL, SOLENOID GEN WR62X20557 Contact Us For Availability
96
BODY, SOLENOID VALVE GEN WR57X20551 Contact Us For Availability
98
SHIELD, HEAT GEN WR02X20590 Contact Us For Availability
99
STRAP GEN WR02X12739 Contact Us For Availability
101
MOUNTING PLATE, CONDENSE GEN WR60X20575 Contact Us For Availability
102
MOTOR, FAN GEN WR60X20574 Contact Us For Availability
107
PAD FOAM -2 GEN WR14X10251 Contact Us For Availability
108
RELAY, STARTING GEN WR09X20583 Contact Us For Availability
109
SCREW GEN WR01X10818 Contact Us For Availability
112
GROMMET CONDENSER GEN WR02X12727 Contact Us For Availability
113
CLIP-WIRING GEN WR02X12741 Contact Us For Availability
115
STOP, BOTTOM DOOR (BLACK GEN WR13X20593 Contact Us For Availability
116
SHIM, TOP HINGE GEN WR13X20592 Contact Us For Availability
118
SCREW HANDLE GEN WR01X10820 Contact Us For Availability
× ![]()
