Model GE ZBD7005G00II Dishwasher – Common Parts & Diagrams

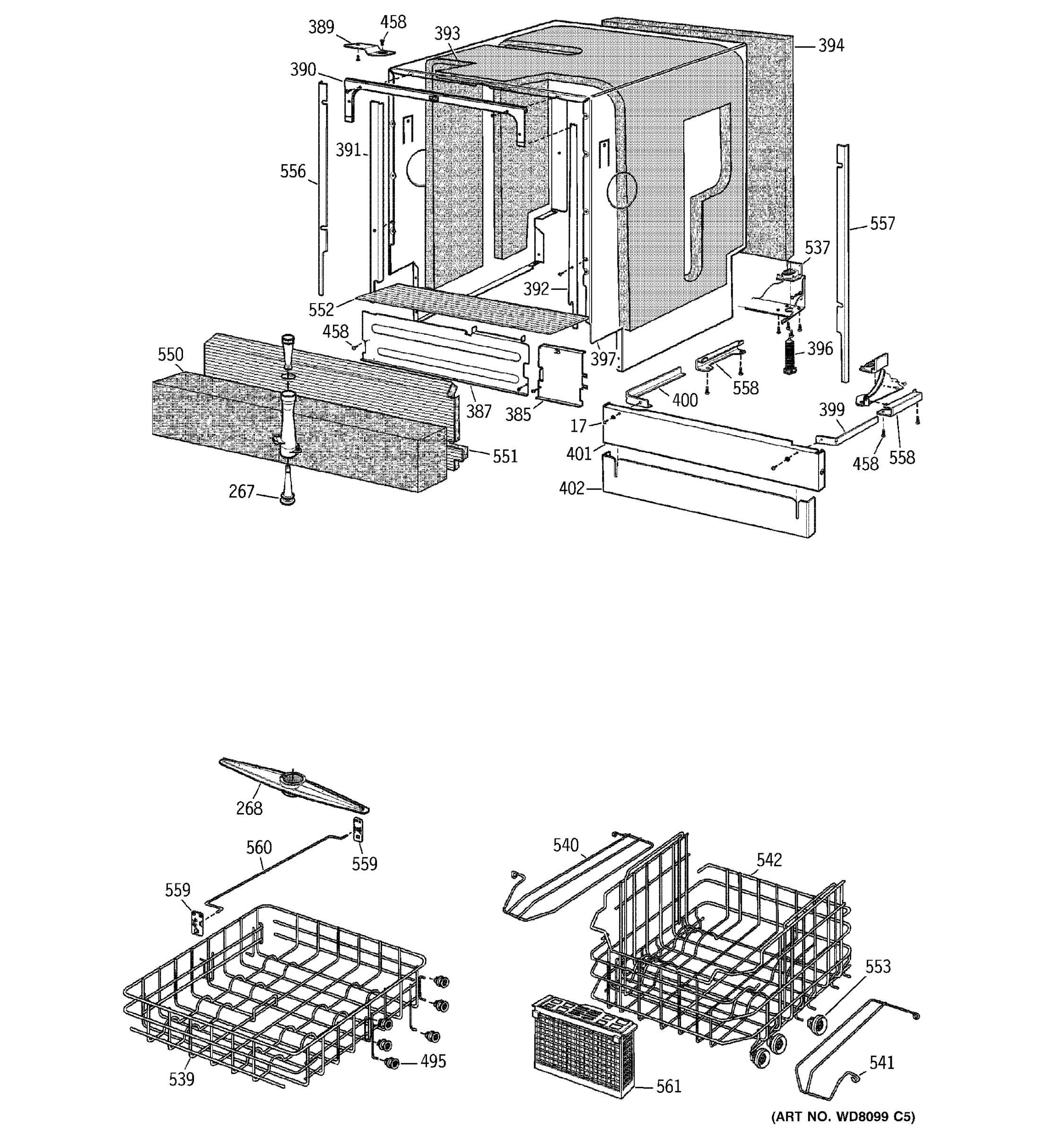

BASKET & WRAP ASSEMBLY

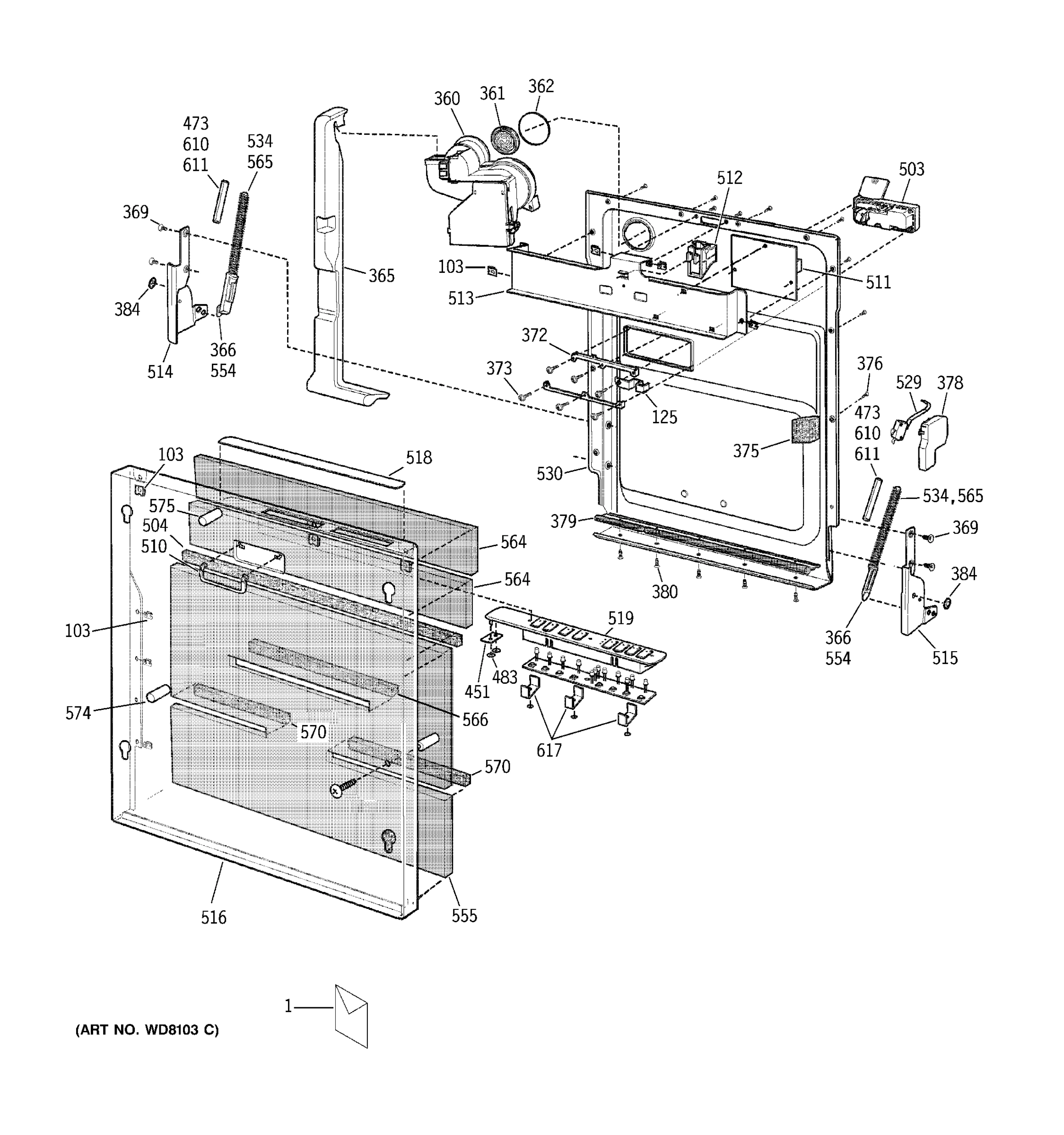

DOOR ASSEMBLY

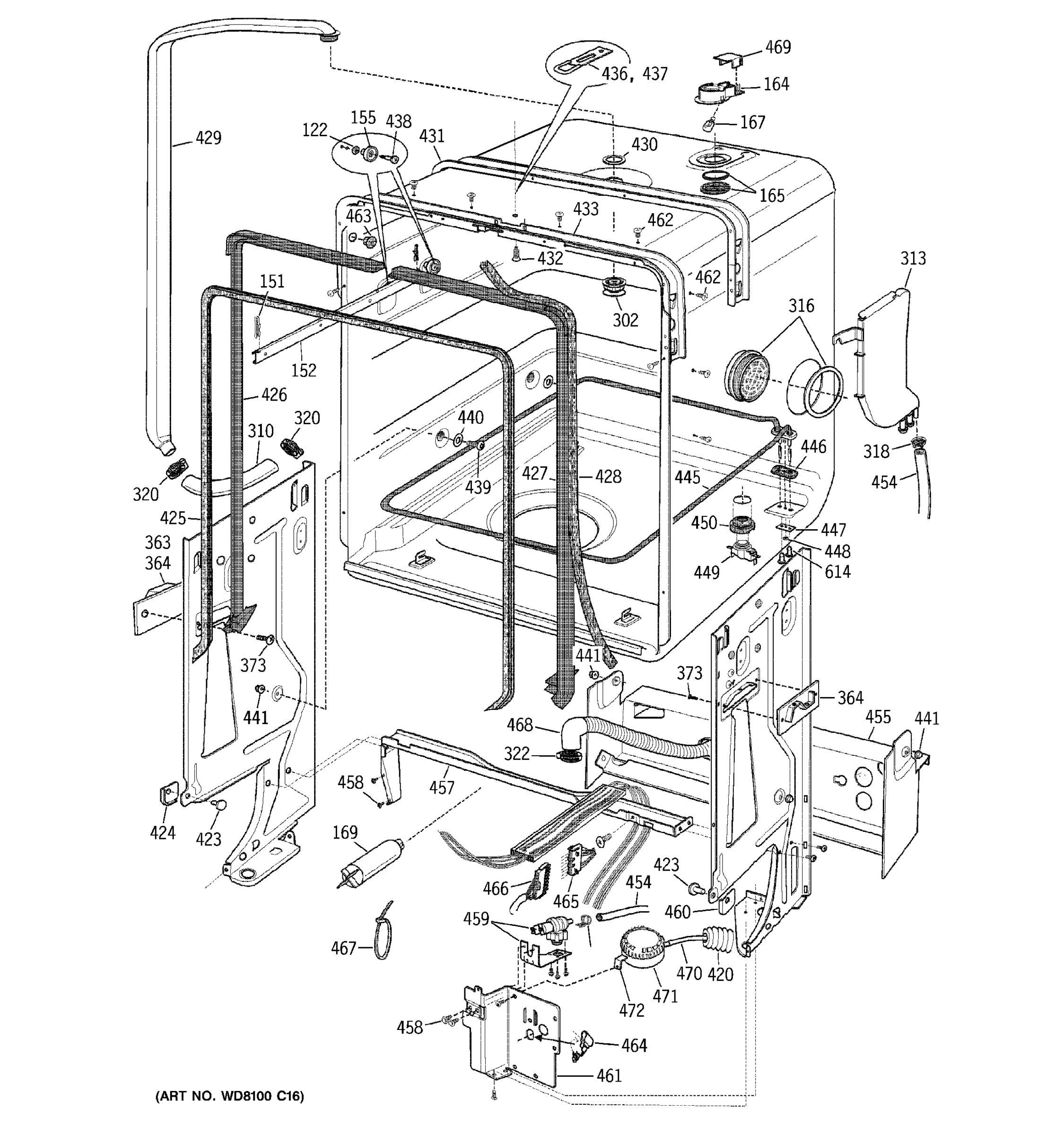

LINER ASSEMBLY

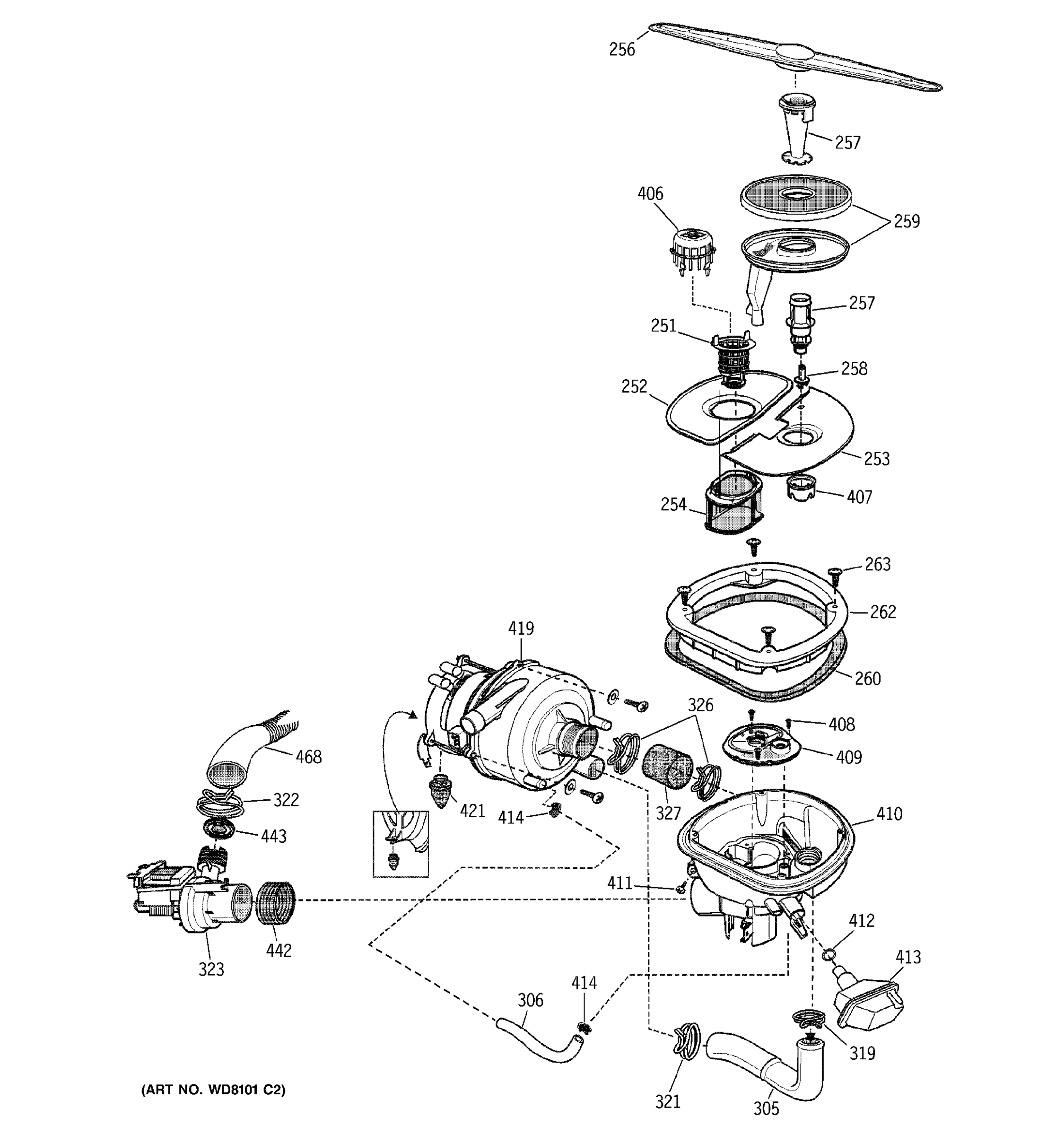

SUMP ASSEMBLY
Common parts from model GE ZBD7005G00II Dishwasher
1
GEN 31-30376 GEN 31-30376 Contact Us For Availability
1
GEN 49-5905 GEN 49-5905 Contact Us For Availability
1
GEN 49-5913 GEN 49-5913 Contact Us For Availability
103
GEN WD02X10030 GEN WD02X10030 Contact Us For Availability
122
GEN WD01X10034 GEN WD01X10034 Contact Us For Availability
125
GEN WD01X10060 GEN WD01X10060 Contact Us For Availability
151
GEN WD01X10037 GEN WD01X10037 Contact Us For Availability
152
GEN WD01X10038 GEN WD01X10038 Contact Us For Availability
155
GEN WD12X10031 GEN WD12X10031 Contact Us For Availability
164
GEN WD12X10035 GEN WD12X10035 Contact Us For Availability
165
GEN WD12X10036 GEN WD12X10036 Contact Us For Availability
167
GEN WD21X10055 GEN WD21X10055 Contact Us For Availability
169
GEN WD21X10048 GEN WD21X10048 Contact Us For Availability
251
GEN WD18X10007 GEN WD18X10007 Contact Us For Availability
252
GEN WD18X10002 GEN WD18X10002 Contact Us For Availability
253
GEN WD18X10003 GEN WD18X10003 Contact Us For Availability
254
GEN WD18X10004 GEN WD18X10004 Contact Us For Availability
256
GEN WD22X10010 GEN WD22X10010 Contact Us For Availability
257
LOWER VENTURI ASSEMBLY GEN WD22X10011 Contact Us For Availability
258
GEN WD22X10012 GEN WD22X10012 Contact Us For Availability
259
GEN WD22X10013 GEN WD22X10013 Contact Us For Availability
260
GEN WD19X10016 GEN WD19X10016 Contact Us For Availability
262
GEN WD17X10001 GEN WD17X10001 Contact Us For Availability
263
GEN WD02X10040 GEN WD02X10040 Contact Us For Availability
302
GEN WD08X10013 GEN WD08X10013 Contact Us For Availability
305
GEN WD24X10008 GEN WD24X10008 Contact Us For Availability
306
GEN WD24X10009 GEN WD24X10009 Contact Us For Availability
310
GEN WD24X10013 GEN WD24X10013 Contact Us For Availability
313
GEN WD01X10263 GEN WD01X10263 Contact Us For Availability
316
GEN WD02X10041 GEN WD02X10041 Contact Us For Availability
318
GEN WD01X10051 GEN WD01X10051 Contact Us For Availability
320
GEN WD01X10054 GEN WD01X10054 Contact Us For Availability
321
GEN WD01X10055 GEN WD01X10055 Contact Us For Availability
322
GEN WD01X10056 GEN WD01X10056 Contact Us For Availability
323
GEN WD19X10018 GEN WD19X10018 Contact Us For Availability
326
GEN WD01X10059 GEN WD01X10059 Contact Us For Availability
327
GEN WD19X10019 GEN WD19X10019 Contact Us For Availability
360
GEN WD18X10012 GEN WD18X10012 Contact Us For Availability
361
GEN WD24X10022 GEN WD24X10022 Contact Us For Availability
362
GEN WD01X10131 GEN WD01X10131 Contact Us For Availability
363
RETAINER,SPRING SUPP LH GEN WD17X10002 Contact Us For Availability
364
RETAINER,SPRING SUPP RH GEN WD17X10003 Contact Us For Availability
365
GEN WD24X10021 GEN WD24X10021 Contact Us For Availability
366
GEN WD01X10132 GEN WD01X10132 Contact Us For Availability
369
GEN WD02X10070 GEN WD02X10070 Contact Us For Availability
372
GEN WD28X10088 GEN WD28X10088 Contact Us For Availability
373
GEN WD02X10071 GEN WD02X10071 Contact Us For Availability
375
GEN WD27X10090 GEN WD27X10090 Contact Us For Availability
376
GEN WD02X10072 GEN WD02X10072 Contact Us For Availability
378
COVER, LIGHT SWITCH GEN WD21X10136 Contact Us For Availability
379
GEN WD27X10091 GEN WD27X10091 Contact Us For Availability
380
GEN WD02X10073 GEN WD02X10073 Contact Us For Availability
384
GEN WD27X10094 GEN WD27X10094 Contact Us For Availability
396
GEN WD01X10115 GEN WD01X10115 Contact Us For Availability
397
GEN WD34X10614 GEN WD34X10614 Contact Us For Availability
399
GEN WD28X10090 GEN WD28X10090 Contact Us For Availability
400
GEN WD28X10091 GEN WD28X10091 Contact Us For Availability
401
PANEL,K/PLATE,ADJ.TOP BL GEN WD34X10615 Contact Us For Availability
402
PANEL,K/PLATE,ADJ.BTM BL GEN WD34X10616 Contact Us For Availability
406
GEN WD18X10022 GEN WD18X10022 Contact Us For Availability
407
GEN WD01X10134 GEN WD01X10134 Contact Us For Availability
408
GEN WD02X10074 GEN WD02X10074 Contact Us For Availability
409
GEN WD18X10020 GEN WD18X10020 Contact Us For Availability
410
GEN WD18X10021 GEN WD18X10021 Contact Us For Availability
411
GEN WD02X10075 GEN WD02X10075 Contact Us For Availability
412
GEN WD01X10116 GEN WD01X10116 Contact Us For Availability
413
GEN WD28X10092 GEN WD28X10092 Contact Us For Availability
414
GEN WD01X10117 GEN WD01X10117 Contact Us For Availability
419
WASH PUMP ASSY. GEN WD19X10033 Contact Us For Availability
420
GEN WD18X10015 GEN WD18X10015 Contact Us For Availability
421
GEN WD26X10017 GEN WD26X10017 Contact Us For Availability
423
GEN WD01X10118 GEN WD01X10118 Contact Us For Availability
424
GEN WD01X10119 GEN WD01X10119 Contact Us For Availability
425
GEN WD01X10120 GEN WD01X10120 Contact Us For Availability
426
GEN WD01X10121 GEN WD01X10121 Contact Us For Availability
427
GEN WD01X10122 GEN WD01X10122 Contact Us For Availability
428
GEN WD01X10123 GEN WD01X10123 Contact Us For Availability
429
GEN WD18X10016 GEN WD18X10016 Contact Us For Availability
430
GEN WD08X10029 GEN WD08X10029 Contact Us For Availability
431
SUPPORT, CHANNEL LINER R GEN WD01X10197 Contact Us For Availability
432
GEN WD02X10076 GEN WD02X10076 Contact Us For Availability
433
SUPPORT, CHANNEL LINER F GEN WD01X10196 Contact Us For Availability
436
GEN WD13X10014 GEN WD13X10014 Contact Us For Availability
437
GEN WD13X10013 GEN WD13X10013 Contact Us For Availability
438
GEN WD01X10142 GEN WD01X10142 Contact Us For Availability
439
GEN WD02X10077 GEN WD02X10077 Contact Us For Availability
440
GEN WD02X10078 GEN WD02X10078 Contact Us For Availability
441
GEN WD02X10079 GEN WD02X10079 Contact Us For Availability
442
GEN WD01X10124 GEN WD01X10124 Contact Us For Availability
443
GEN WD15X10005 GEN WD15X10005 Contact Us For Availability
445
GEN WD30X10005 GEN WD30X10005 Contact Us For Availability
446
GEN WD01X10125 GEN WD01X10125 Contact Us For Availability
447
GEN WD30X10006 GEN WD30X10006 Contact Us For Availability
448
GEN WD02X10080 GEN WD02X10080 Contact Us For Availability
449
GEN WD05X10006 GEN WD05X10006 Contact Us For Availability
450
GEN WD01X10126 GEN WD01X10126 Contact Us For Availability
451
PLATE, HOUSING BACKING GEN WD01X10164 Contact Us For Availability
454
GEN WD18X10017 GEN WD18X10017 Contact Us For Availability
455
GEN WD27X10097 GEN WD27X10097 Contact Us For Availability
457
GEN WD34X10589 GEN WD34X10589 Contact Us For Availability
458
GEN WD02X10081 GEN WD02X10081 Contact Us For Availability
460
GEN WD01X10136 GEN WD01X10136 Contact Us For Availability
461
GEN WD27X10098 GEN WD27X10098 Contact Us For Availability
462
GEN WD02X10082 GEN WD02X10082 Contact Us For Availability
463
GEN WD01X10137 GEN WD01X10137 Contact Us For Availability
464
GEN WD01X10127 GEN WD01X10127 Contact Us For Availability
465
GEN WD21X10127 GEN WD21X10127 Contact Us For Availability
466
GEN WD21X10128 GEN WD21X10128 Contact Us For Availability
467
GEN WD01X10128 GEN WD01X10128 Contact Us For Availability
468
GEN WD18X10018 GEN WD18X10018 Contact Us For Availability
469
COVER, HOUSING, LIGHT GEN WD01X10149 Contact Us For Availability
470
GEN WD18X10019 GEN WD18X10019 Contact Us For Availability
471
GEN WD21X10129 GEN WD21X10129 Contact Us For Availability
472
GEN WD21X10130 GEN WD21X10130 Contact Us For Availability
473
SLEEVE, SPRING, SHORT GEN WD01X10163 Contact Us For Availability
495
GEN WD12X10071 GEN WD12X10071 Contact Us For Availability
503
DISPENSER ASSY. GEN WD28X10100 Contact Us For Availability
504
BAFFLE, DOOR, OUTER GEN WD27X10112 Contact Us For Availability
510
GEN WD09X10037 GEN WD09X10037 Contact Us For Availability
511
GEN WD21X10149 GEN WD21X10149 Contact Us For Availability
512
SWITCH, O/CENTRE LATCH GEN WD21X10147 Contact Us For Availability
513
GEN WD34X10832 GEN WD34X10832 Contact Us For Availability
514
HINGE, DOOR LH. GEN WD14X10014 Contact Us For Availability
515
HINGE, DOOR RH. GEN WD14X10015 Contact Us For Availability
516
PANEL, DOOR (OUTER)(BLK) GEN WD27X10117 Contact Us For Availability
518
GEN WD27X10124 GEN WD27X10124 Contact Us For Availability
519
HOUSING, LED DISPLAY GEN WD27X10120 Contact Us For Availability
529
SWITCH, LIGHT GEN WD21X10148 Contact Us For Availability
530
PANEL, DOOR (INNER) GEN WD27X10118 Contact Us For Availability
534
SPRING,HINGE,FRONT(GRN) GEN WD01X10165 Contact Us For Availability
537
GEN WD01X10141 GEN WD01X10141 Contact Us For Availability
539
GEN WD28X10095 GEN WD28X10095 Contact Us For Availability
540
GEN WD28X10098 GEN WD28X10098 Contact Us For Availability
541
GEN WD28X10099 GEN WD28X10099 Contact Us For Availability
542
GEN WD28X10096 GEN WD28X10096 Contact Us For Availability
550
GEN WD30X10008 GEN WD30X10008 Contact Us For Availability
551
PANEL & INSULATION ASSY GEN WD30X10009 Contact Us For Availability
552
GEN WD34X10608 GEN WD34X10608 Contact Us For Availability
553
GEN WD12X10072 GEN WD12X10072 Contact Us For Availability
554
SUPPORT, SPRING, REAR GEN WD01X10167 Contact Us For Availability
555
INSULATION, DOOR LOWER GEN WD30X10016 Contact Us For Availability
556
GEN WD34X10592 GEN WD34X10592 Contact Us For Availability
557
GEN WD34X10593 GEN WD34X10593 Contact Us For Availability
558
GEN WD28X10093 GEN WD28X10093 Contact Us For Availability
559
GEN WD01X10159 GEN WD01X10159 Contact Us For Availability
560
GEN WD01X10160 GEN WD01X10160 Contact Us For Availability
561
GEN WD28X10097 GEN WD28X10097 Contact Us For Availability
564
GEN WD30X10010 GEN WD30X10010 Contact Us For Availability
565
SPRING,HINGE,REAR(BLUE) GEN WD01X10166 Contact Us For Availability
566
BAFFLE, DOOR, LONG GEN WD27X10121 Contact Us For Availability
570
BAFFLE. DOOR, SHORT GEN WD27X10122 Contact Us For Availability
574
SPACER, DOOR (LONG) GEN WD01X10168 Contact Us For Availability
575
SPACER, DOOR (SHORT) GEN WD01X10169 Contact Us For Availability
610
GEN WD03X10017 GEN WD03X10017 Contact Us For Availability
611
GEN WD03X10018 GEN WD03X10018 Contact Us For Availability
614
GEN WD01X10195 GEN WD01X10195 Contact Us For Availability
617
GEN WD01X10198 GEN WD01X10198 Contact Us For Availability
× ![]()
