Model GE ZBD7000G03II Dishwasher – Common Parts & Diagrams

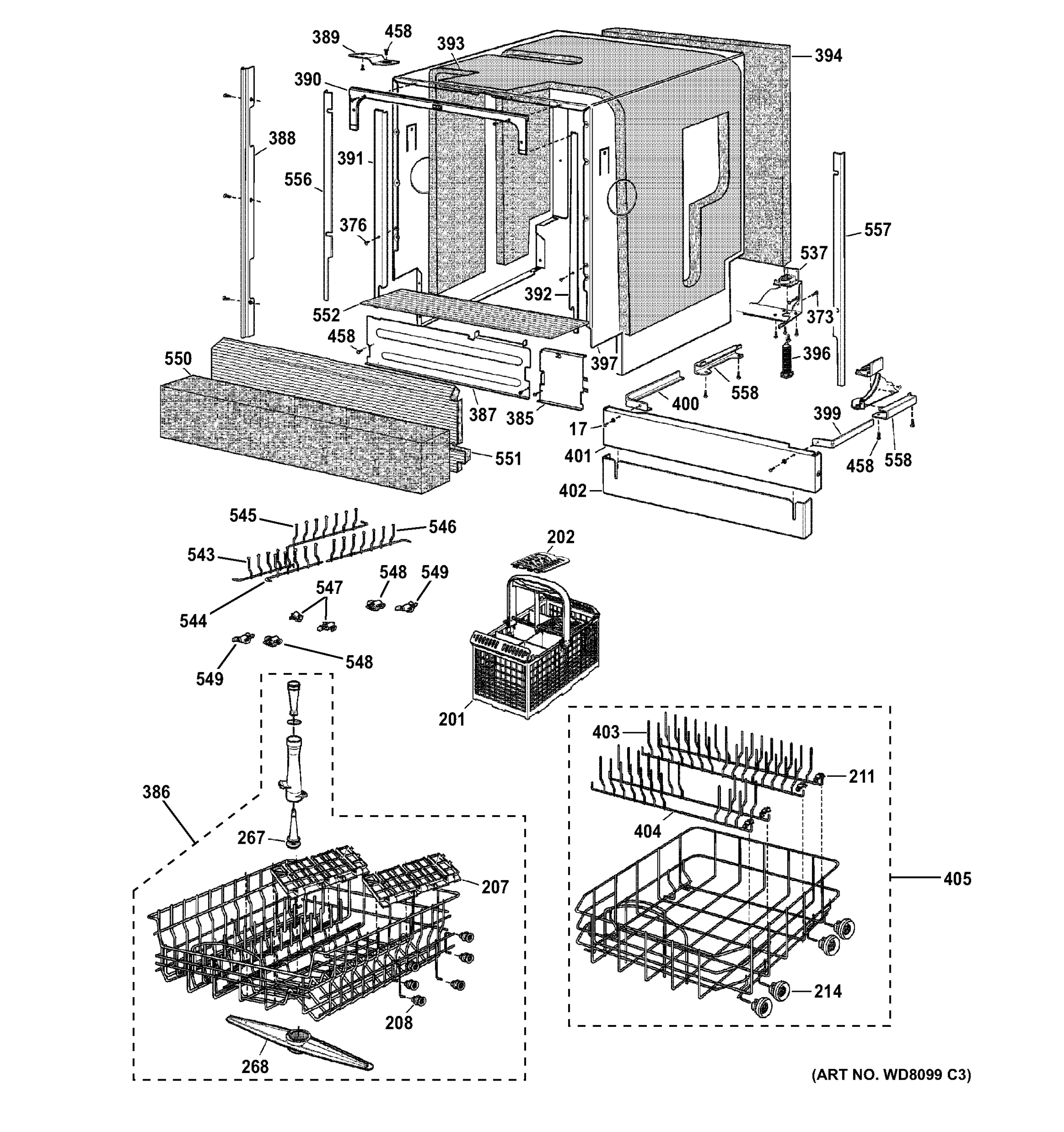

BASKET & WRAP ASSEMBLY

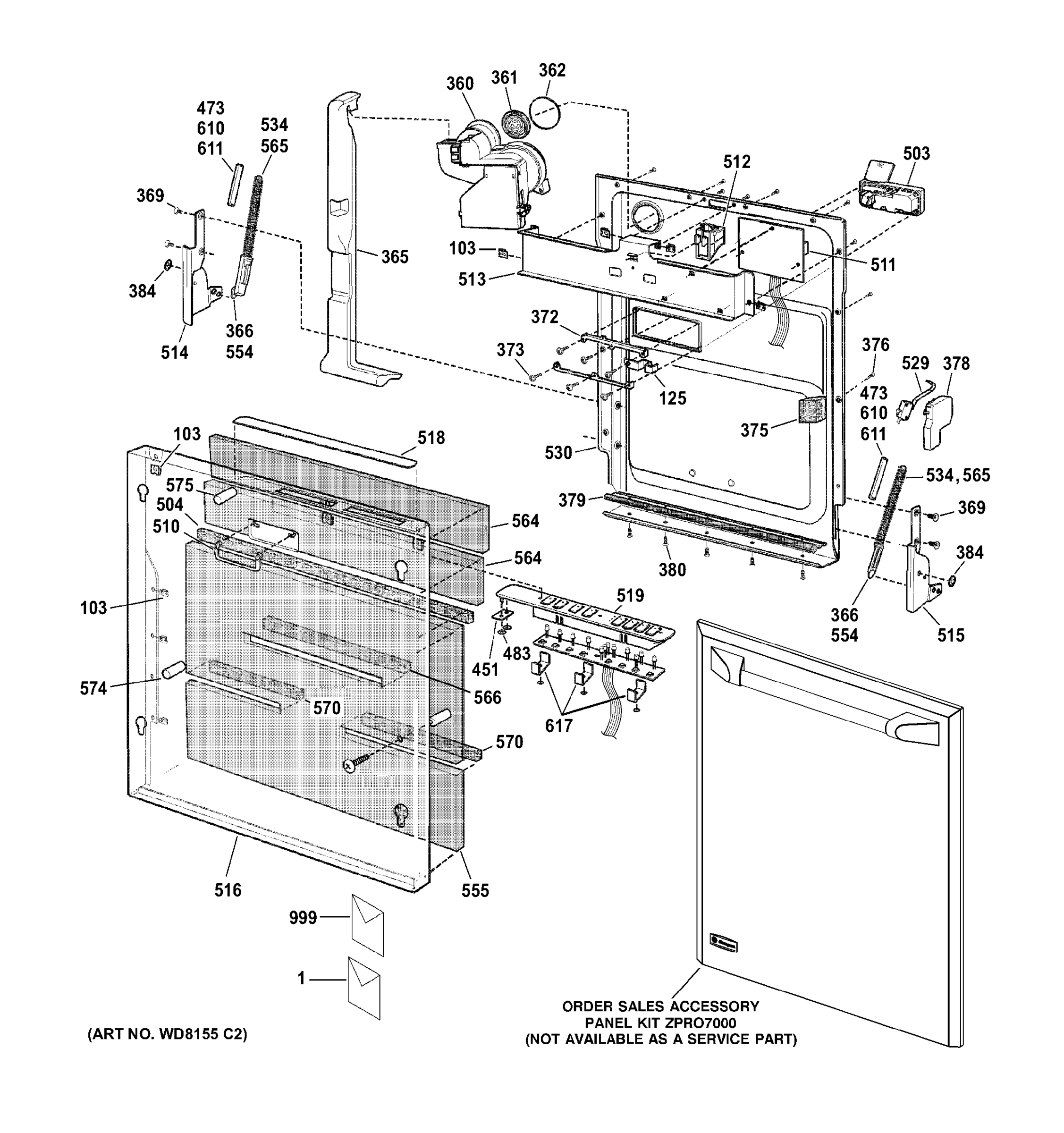

ESCUTCHEON & DOOR ASSEMBLY
LINER ASSEMBLY
SUMP ASSEMBLY
Common parts from model GE ZBD7000G03II Dishwasher
1
GEN 31-30376 GEN 31-30376 Contact Us For Availability
1
49-5904-2 GEN 49-5904 Contact Us For Availability
1
49-5905-2 GEN 49-5905 Contact Us For Availability
103
GEN WD02X10030 GEN WD02X10030 Contact Us For Availability
122
GEN WD01X10034 GEN WD01X10034 Contact Us For Availability
125
GEN WD01X10060 GEN WD01X10060 Contact Us For Availability
151
GEN WD01X10037 GEN WD01X10037 Contact Us For Availability
152
GEN WD01X10038 GEN WD01X10038 Contact Us For Availability
155
GEN WD12X10031 GEN WD12X10031 Contact Us For Availability
164
LIGHT BODY LENS & GASKET GEN WD12X10035 Contact Us For Availability
165
GEN WD12X10036 GEN WD12X10036 Contact Us For Availability
167
LAMP - 15W/120V T7 GEN WD21X10055 Contact Us For Availability
169
GEN WD21X10207 GEN WD21X10207 Contact Us For Availability
201
CUTLERY BASKET ASSY GEN WD28X10026 Contact Us For Availability
208
GEN WD12X10032 GEN WD12X10032 Contact Us For Availability
251
GLASS TRAP ASSY GEN WD18X10007 Contact Us For Availability
252
GEN WD18X10002 GEN WD18X10002 Contact Us For Availability
253
GEN WD18X10003 GEN WD18X10003 Contact Us For Availability
254
GEN WD18X10004 GEN WD18X10004 Contact Us For Availability
256
GEN WD22X10010 GEN WD22X10010 Contact Us For Availability
257
LOWER VENTURI ASSY GEN WD22X10011 Contact Us For Availability
258
GEN WD22X10012 GEN WD22X10012 Contact Us For Availability
259
GEN WD22X10013 GEN WD22X10013 Contact Us For Availability
260
GEN WD19X10016 GEN WD19X10016 Contact Us For Availability
262
GEN WD17X10001 GEN WD17X10001 Contact Us For Availability
263
GEN WD02X10040 GEN WD02X10040 Contact Us For Availability
302
GEN WD08X10013 GEN WD08X10013 Contact Us For Availability
305
GEN WD24X10032 GEN WD24X10032 Contact Us For Availability
306
HOSE OUTLET T/SENSOR GEN WD18X10013 Contact Us For Availability
310
GEN WD24X10033 GEN WD24X10033 Contact Us For Availability
313
GEN WD01X10263 GEN WD01X10263 Contact Us For Availability
316
GEN WD02X10041 GEN WD02X10041 Contact Us For Availability
318
CLAMP (0 592" (14 8MM) GEN WD01X10051 Contact Us For Availability
320
CLAMP 1 15" DIA GEN WD01X10054 Contact Us For Availability
321
CLAMP (1 25" (31 3MM) GEN WD01X10055 Contact Us For Availability
322
CLAMP (1 5" (37 2MM) GEN WD01X10056 Contact Us For Availability
323
GEN WD19X10018 GEN WD19X10018 Contact Us For Availability
326
CLAMP (1 8" (44 4MM) GEN WD01X10059 Contact Us For Availability
327
GEN WD19X10019 GEN WD19X10019 Contact Us For Availability
360
FAN & HOUSING ASSY GEN WD18X10012 Contact Us For Availability
361
GRILLE TURBO VENT GEN WD24X10022 Contact Us For Availability
362
SEAL TURBO VENT GEN WD01X10131 Contact Us For Availability
363
GEN WD17X10002 GEN WD17X10002 Contact Us For Availability
364
GEN WD17X10003 GEN WD17X10003 Contact Us For Availability
365
DUCT CONDENSATE GEN WD24X10021 Contact Us For Availability
366
SUPPORT SPRING GEN WD01X10132 Contact Us For Availability
369
SCREW M5 X 12MM GEN WD02X10070 Contact Us For Availability
372
BRACKET DISPENSER GEN WD28X10088 Contact Us For Availability
373
SCREW HI-LO 7-19 X 1/2" GEN WD02X10071 Contact Us For Availability
375
BAFFLE DOOR( INNER) GEN WD27X10090 Contact Us For Availability
376
SCREW 8 X 11MM GEN WD02X10072 Contact Us For Availability
378
GEN WD21X10136 GEN WD21X10136 Contact Us For Availability
379
SEAL DOOR (BOTTOM) GEN WD27X10091 Contact Us For Availability
380
SCREW 6 X 3/8" GEN WD02X10073 Contact Us For Availability
384
CLIP DOOR PIVOT GEN WD27X10094 Contact Us For Availability
392
TRIM CABINET RH GEN WD34X10586 Contact Us For Availability
393
INSULATION ACOUSTIC GEN WD30X10003 Contact Us For Availability
394
INSULATION REAR GEN WD30X10004 Contact Us For Availability
396
LEG LEVELING GEN WD01X10115 Contact Us For Availability
397
PANEL WRAP (BLACK) GEN WD34X10614 Contact Us For Availability
399
BRACKET KICK PLATE (RH) GEN WD28X10090 Contact Us For Availability
400
BRACKET KICK PLATE (LH) GEN WD28X10091 Contact Us For Availability
401
PANEL K/PLATE ADJ TOP BL GEN WD34X10615 Contact Us For Availability
402
PANEL K/PLATE ADJ BTM GEN WD34X10616 Contact Us For Availability
403
INSERT BASKET REAR GEN WD28X10084 Contact Us For Availability
404
INSERT BASKET FRONT GEN WD28X10085 Contact Us For Availability
405
BASKET LOWER GEN WD28X10086 Contact Us For Availability
406
COVER FILTER DRAIN CUP GEN WD18X10022 Contact Us For Availability
407
GEN WD01X10134 GEN WD01X10134 Contact Us For Availability
408
SCREW SUMP PLATE GEN WD02X10074 Contact Us For Availability
409
GEN WD18X10020 GEN WD18X10020 Contact Us For Availability
410
HOUSING SUMP GEN WD18X10021 Contact Us For Availability
411
SCREW DRAIN PUMP GEN WD02X10075 Contact Us For Availability
412
SEAL "O" RING GEN WD01X10116 Contact Us For Availability
413
DOME ASSY AIR GEN WD28X10092 Contact Us For Availability
414
CLAMP HOSE (14 8MM) GEN WD01X10117 Contact Us For Availability
416
SWITCH TURBIDITY SENSOR GEN WD21X10125 Contact Us For Availability
417
GEN WD21X10126 GEN WD21X10126 Contact Us For Availability
418
HOSE INLET T/SENSOR GEN WD18X10014 Contact Us For Availability
419
GEN WD19X10037 GEN WD19X10037 Contact Us For Availability
420
TUBE ANTI KINKING GEN WD18X10015 Contact Us For Availability
421
DAMPER MOTOR MOUNTING GEN WD26X10017 Contact Us For Availability
423
STUD DOOR HINGE PIVOT GEN WD01X10118 Contact Us For Availability
424
GEN WD01X10119 GEN WD01X10119 Contact Us For Availability
425
GEN WD01X10120 GEN WD01X10120 Contact Us For Availability
426
RETAINER-DOOR SEAL (LH) GEN WD01X10121 Contact Us For Availability
427
RETAINER-DOOR SEAL (RH) GEN WD01X10122 Contact Us For Availability
428
GEN WD01X10123 GEN WD01X10123 Contact Us For Availability
429
DELIVERY TUBE TOP SPRAY GEN WD18X10016 Contact Us For Availability
430
GASKET SPRAY NOZZLE GEN WD08X10029 Contact Us For Availability
431
SUPPORT CHANNEL LINER GEN WD01X10197 Contact Us For Availability
432
SCREW DOOR LATCH GEN WD02X10076 Contact Us For Availability
433
SUPPORT CHANNEL LINER GEN WD01X10196 Contact Us For Availability
436
GEN WD13X10014 GEN WD13X10014 Contact Us For Availability
437
RETAINER DOOR LATCH GEN WD13X10013 Contact Us For Availability
438
AXLE RAIL ROLLER GEN WD01X10142 Contact Us For Availability
439
SCREW M5 X 12 MM GEN WD02X10077 Contact Us For Availability
440
GEN WD02X10078 GEN WD02X10078 Contact Us For Availability
441
GEN WD02X10079 GEN WD02X10079 Contact Us For Availability
442
GEN WD01X10124 GEN WD01X10124 Contact Us For Availability
443
VALVE NON RETURN GEN WD15X10005 Contact Us For Availability
445
GEN WD30X10005 GEN WD30X10005 Contact Us For Availability
446
SEAL ELEMENT GEN WD01X10125 Contact Us For Availability
447
PLATE ELEMENT GEN WD30X10006 Contact Us For Availability
448
NUT M6 ZN HEX GEN WD02X10080 Contact Us For Availability
449
GEN WD05X10006 GEN WD05X10006 Contact Us For Availability
450
SEAL THERMOSTAT GEN WD01X10126 Contact Us For Availability
451
GEN WD01X10164 GEN WD01X10164 Contact Us For Availability
454
GEN WD18X10017 GEN WD18X10017 Contact Us For Availability
455
PANEL SUPPORT REAR GEN WD27X10097 Contact Us For Availability
457
PANEL SUPPORT FRONT GEN WD34X10589 Contact Us For Availability
458
SCREW M4 X 10MM PAN HD GEN WD02X10081 Contact Us For Availability
460
GEN WD01X10136 GEN WD01X10136 Contact Us For Availability
461
GEN WD27X10098 GEN WD27X10098 Contact Us For Availability
462
SCREW 6 X 5/16" GEN WD02X10082 Contact Us For Availability
463
GEN WD01X10137 GEN WD01X10137 Contact Us For Availability
464
CLAMP SERVICE CORD GEN WD01X10127 Contact Us For Availability
465
HARNESS BASE GEN WD21X10127 Contact Us For Availability
466
HARNESS DOOR GEN WD21X10128 Contact Us For Availability
467
GEN WD01X10128 GEN WD01X10128 Contact Us For Availability
468
GEN WD18X10018 GEN WD18X10018 Contact Us For Availability
469
GEN WD01X10149 GEN WD01X10149 Contact Us For Availability
470
TUBE PRESSURE SWITCH GEN WD18X10019 Contact Us For Availability
471
SWITCH PRESSURE GEN WD21X10129 Contact Us For Availability
472
BRACKET PRESSURE SWITCH GEN WD21X10130 Contact Us For Availability
473
GEN WD01X10163 GEN WD01X10163 Contact Us For Availability
503
GEN WD28X10100 GEN WD28X10100 Contact Us For Availability
504
GEN WD27X10112 GEN WD27X10112 Contact Us For Availability
510
GEN WD09X10037 GEN WD09X10037 Contact Us For Availability
511
GEN WD21X10146 GEN WD21X10146 Contact Us For Availability
512
GEN WD21X10147 GEN WD21X10147 Contact Us For Availability
513
GEN WD34X10832 GEN WD34X10832 Contact Us For Availability
514
GEN WD14X10014 GEN WD14X10014 Contact Us For Availability
515
GEN WD14X10015 GEN WD14X10015 Contact Us For Availability
516
GEN WD27X10117 GEN WD27X10117 Contact Us For Availability
518
GEN WD27X10119 GEN WD27X10119 Contact Us For Availability
519
GEN WD27X10120 GEN WD27X10120 Contact Us For Availability
529
GEN WD21X10148 GEN WD21X10148 Contact Us For Availability
530
GEN WD27X10118 GEN WD27X10118 Contact Us For Availability
533
CLAMP HOSE (21 2MM) GEN WD01X10129 Contact Us For Availability
534
GEN WD01X10165 GEN WD01X10165 Contact Us For Availability
537
SUPPORT LEG LEVELING GEN WD01X10141 Contact Us For Availability
543
GEN WD30X10012 GEN WD30X10012 Contact Us For Availability
544
GEN WD30X10013 GEN WD30X10013 Contact Us For Availability
545
GEN WD30X10014 GEN WD30X10014 Contact Us For Availability
546
GEN WD30X10015 GEN WD30X10015 Contact Us For Availability
547
GEN WD01X10151 GEN WD01X10151 Contact Us For Availability
548
GEN WD01X10152 GEN WD01X10152 Contact Us For Availability
549
GEN WD01X10153 GEN WD01X10153 Contact Us For Availability
550
INSULATION KICK PLATE GEN WD30X10008 Contact Us For Availability
551
PANEL & INSULATION ASSY GEN WD30X10009 Contact Us For Availability
552
GEN WD34X10608 GEN WD34X10608 Contact Us For Availability
554
GEN WD01X10167 GEN WD01X10167 Contact Us For Availability
555
GEN WD30X10016 GEN WD30X10016 Contact Us For Availability
556
TRIM CABINET LH ADJ GEN WD34X10592 Contact Us For Availability
557
TRIM CABINET RH ADJ GEN WD34X10593 Contact Us For Availability
558
GEN WD28X10093 GEN WD28X10093 Contact Us For Availability
564
INSULATION DOOR UPPER GEN WD30X10010 Contact Us For Availability
565
GEN WD01X10166 GEN WD01X10166 Contact Us For Availability
566
GEN WD27X10121 GEN WD27X10121 Contact Us For Availability
570
GEN WD27X10122 GEN WD27X10122 Contact Us For Availability
574
GEN WD01X10168 GEN WD01X10168 Contact Us For Availability
575
GEN WD01X10169 GEN WD01X10169 Contact Us For Availability
610
GEN WD03X10017 GEN WD03X10017 Contact Us For Availability
611
GEN WD03X10018 GEN WD03X10018 Contact Us For Availability
617
GEN WD01X10198 GEN WD01X10198 Contact Us For Availability
999
GEN WD35X10028 GEN WD35X10028 Contact Us For Availability
× ![]()
