Model Whirlpool YWOS52ES4MZ02 – Common Parts & Diagrams
OVEN PARTS
CONTROL PANEL PARTS

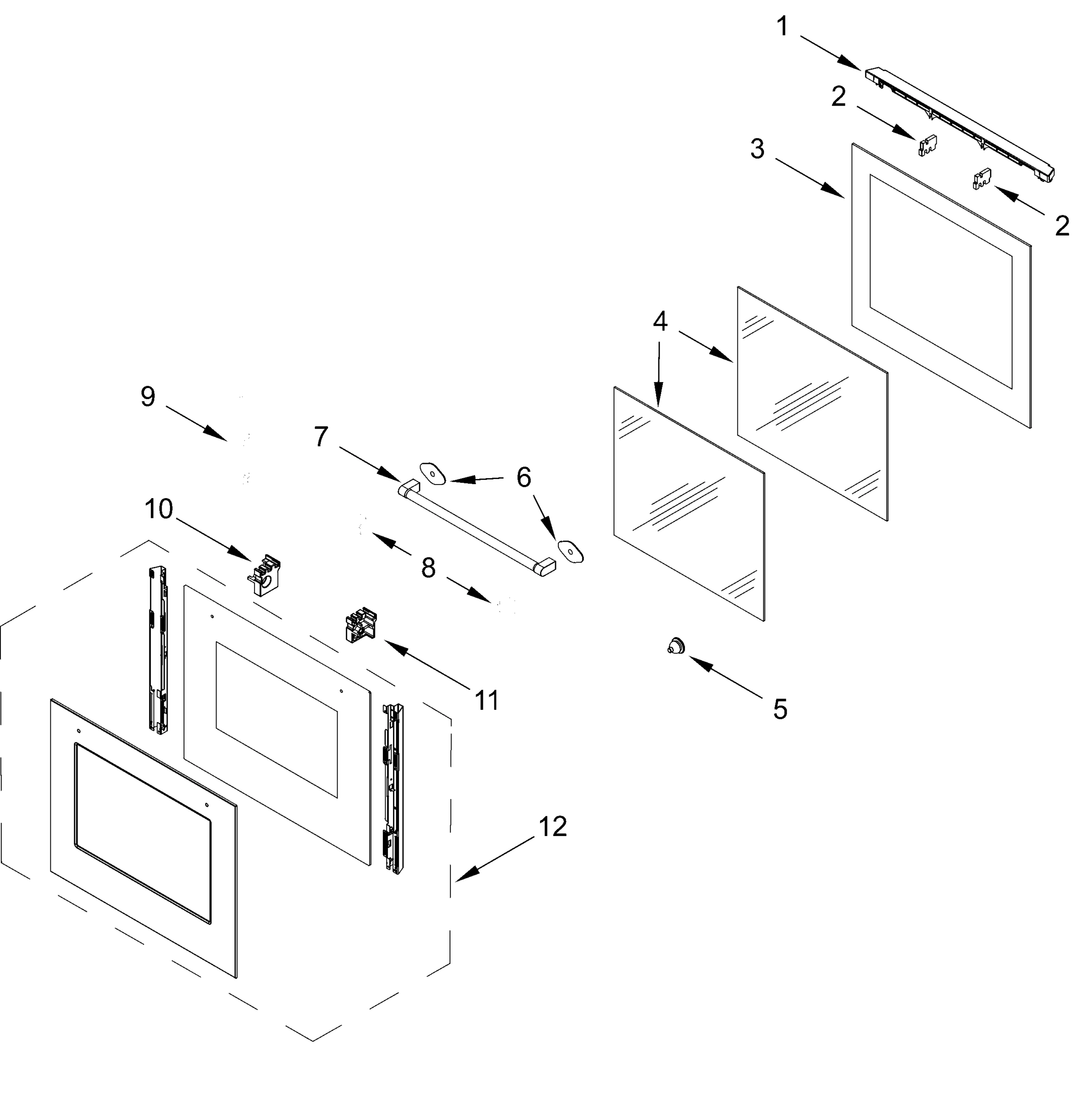

OVEN DOOR PARTS

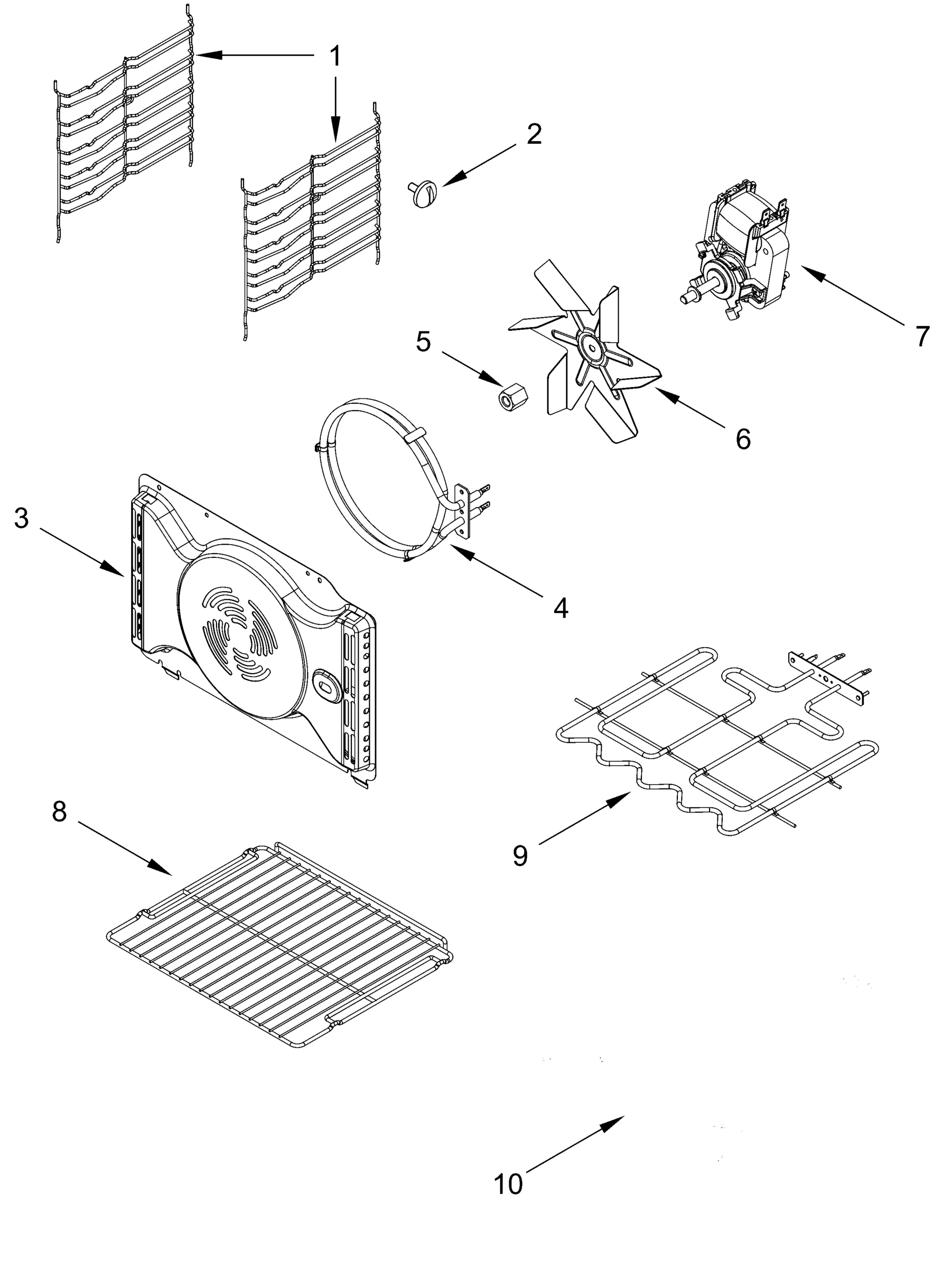

INTERNAL OVEN PARTS
Common parts from model Whirlpool YWOS52ES4MZ02
Use and Care Guide WPL W11508845 Contact Us For Availability
Sheet,Tech WPL W11568131 Contact Us For Availability
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI7C4B781E09F4C135E8A56A812FBF5A4D Contact Us For Availability
Harness, Main WPL W11594182 Contact Us For Availability
Kit, Power Cord (No Plug) WPL W11348047 Contact Us For Availability
1
Literature Parts WPL ARI4741983F61CAC445F12C0C1FD1B613C1 Contact Us For Availability
1
Control Panel Assembly (Black) WPL W11760610 Contact Us For Availability
1
Vent, Door Trim Top WPL W10518369 Contact Us For Availability
2
Latch, Door WPL W11347847 Contact Us For Availability
2
Harness, Touch Display WPL W11348035 Contact Us For Availability
2
Spacer, Door Trim Top WPL W10518307 Contact Us For Availability
2
Screw, Grid WPL W10519022 Contact Us For Availability
3
Cap WPL W11509867 Contact Us For Availability
3
Cover, Control WPL W11348132 Contact Us For Availability
4
Washer, Teflon WPL W11594218 Contact Us For Availability
4
Wiring, Right Control WPL W11348036 Contact Us For Availability
4
Element, Convection WPL W11347860 Contact Us For Availability
5
User Interface WPL W11760613 Contact Us For Availability
5
Spacer, Oven Door Glass WPL W10519004 Contact Us For Availability
6
Filter, Line Noise WPL W10549523 Contact Us For Availability
6
Wiring, Left Control WPL W11348033 Contact Us For Availability
6
Spacer, Door Handle WPL W10831792 Contact Us For Availability
7
Bumper WPL W10578780 Contact Us For Availability
7
Handle, Door (Stainless) WPL W11594163 Contact Us For Availability
8
Kit, Oven Screws WPL W10519818 Contact Us For Availability
8
Blower, Cooling Fan WPL W11347859 Contact Us For Availability
8
. Support, Oven Door Glass WPL 481010387617 Contact Us For Availability
8
Rack, Oven WPL W11681229 Contact Us For Availability
9
Receiver, Hinge WPL W11509869 Contact Us For Availability
9
Element, Upper Grill WPL W11347861 Contact Us For Availability
10
Gasket, Door WPL W10518387 Contact Us For Availability
10
Gasket, Blower Motor WPL W10519009 Contact Us For Availability
10
Support, Oven Glass WPL W11509863 Contact Us For Availability
10
Element, Lower WPL W11348032 Contact Us For Availability
11
Lamp, Halogen 25 Watt (with Gasket) WPL W11348087 Contact Us For Availability
11
Support, Oven Door Glass WPL W10518384 Contact Us For Availability
12
Trim, Lower (Stainless) WPL W10517979 Contact Us For Availability
13
Foot, Level Oven WPL W10545973 Contact Us For Availability
14
Liner, Oven (Not Serviceable) WPL ARIF1DCB018B2324CAD9D04009CD738647B Contact Us For Availability
× ![]()
