Model Huebsch YU170N Dryer – Common Parts & Diagrams

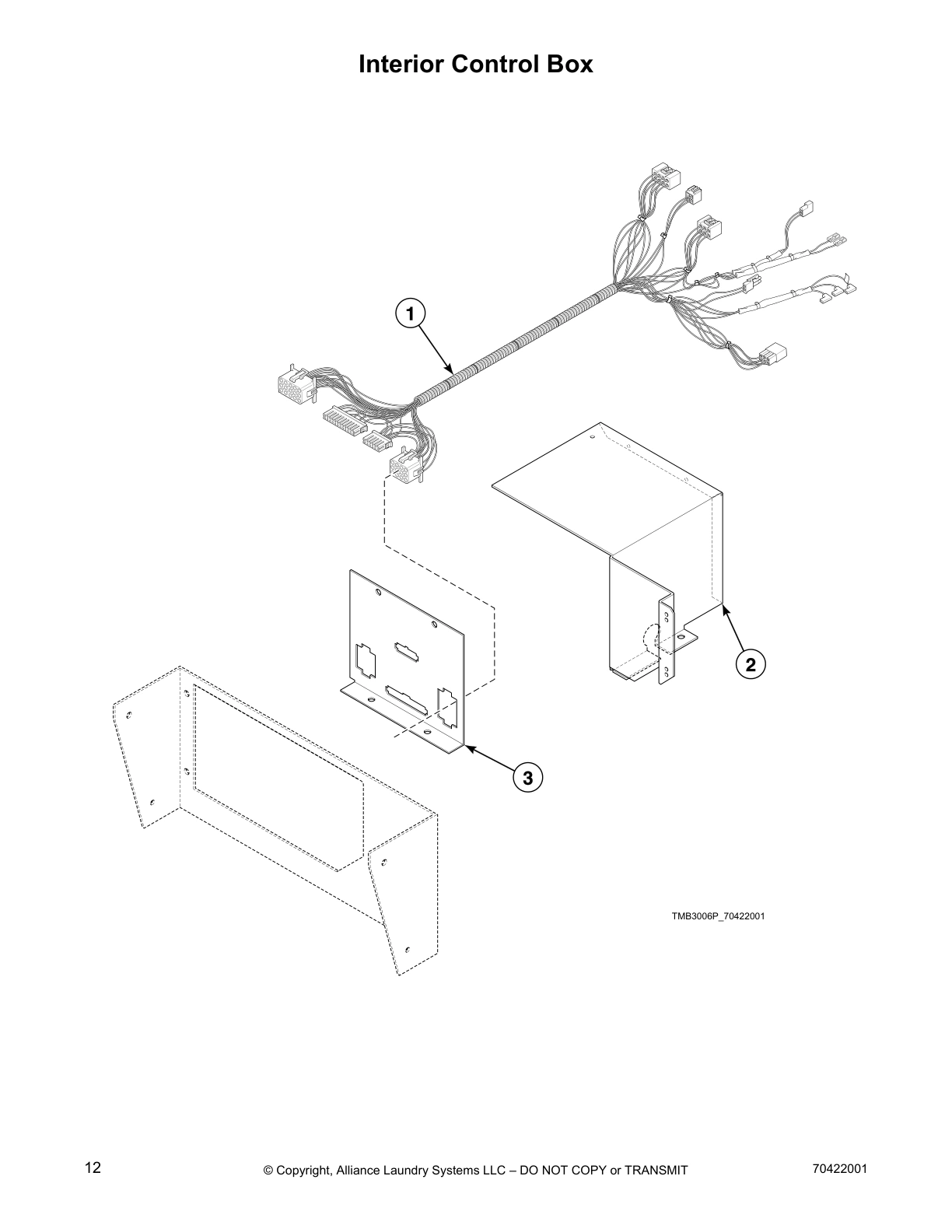

Interior Control Box

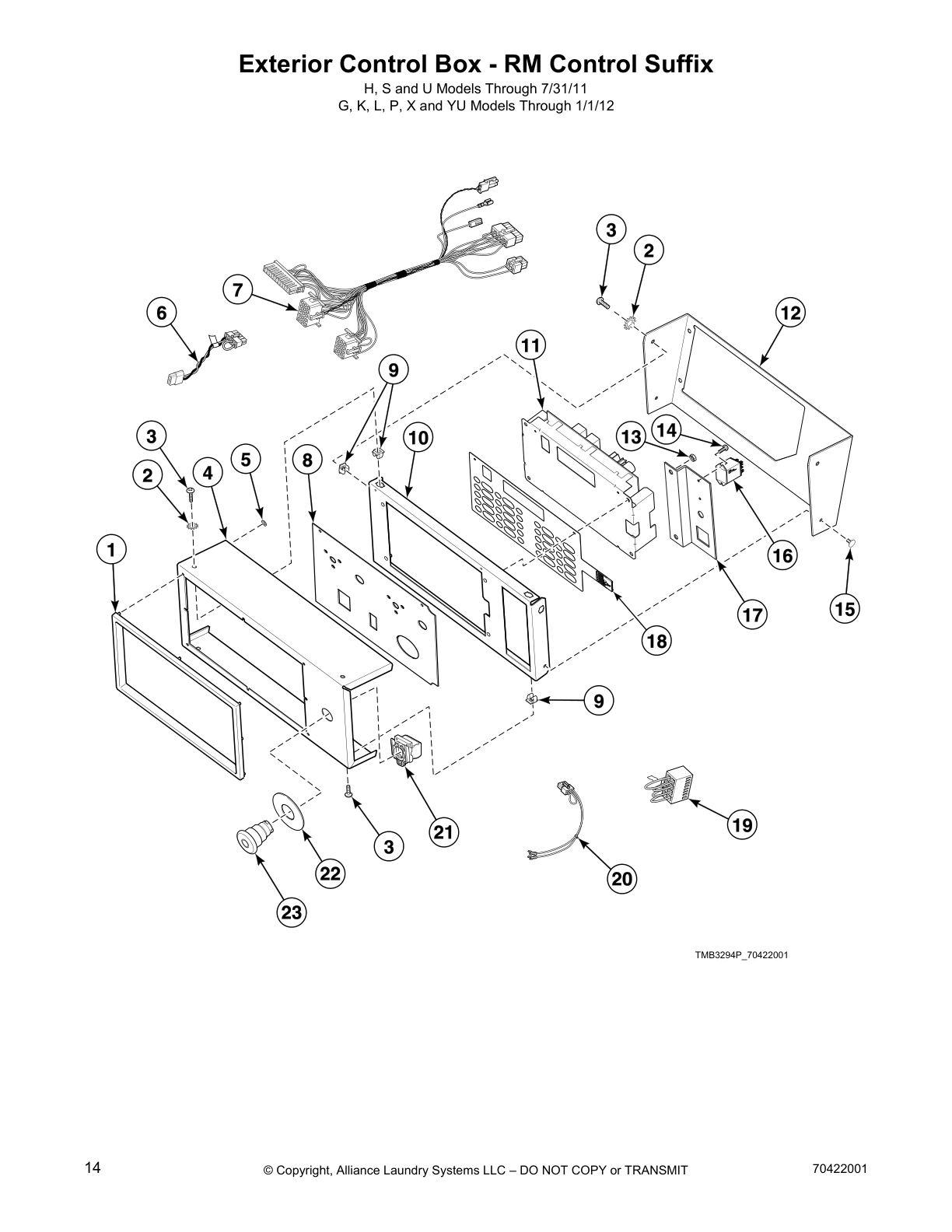

Exterior Control Box - RM Control Suffix

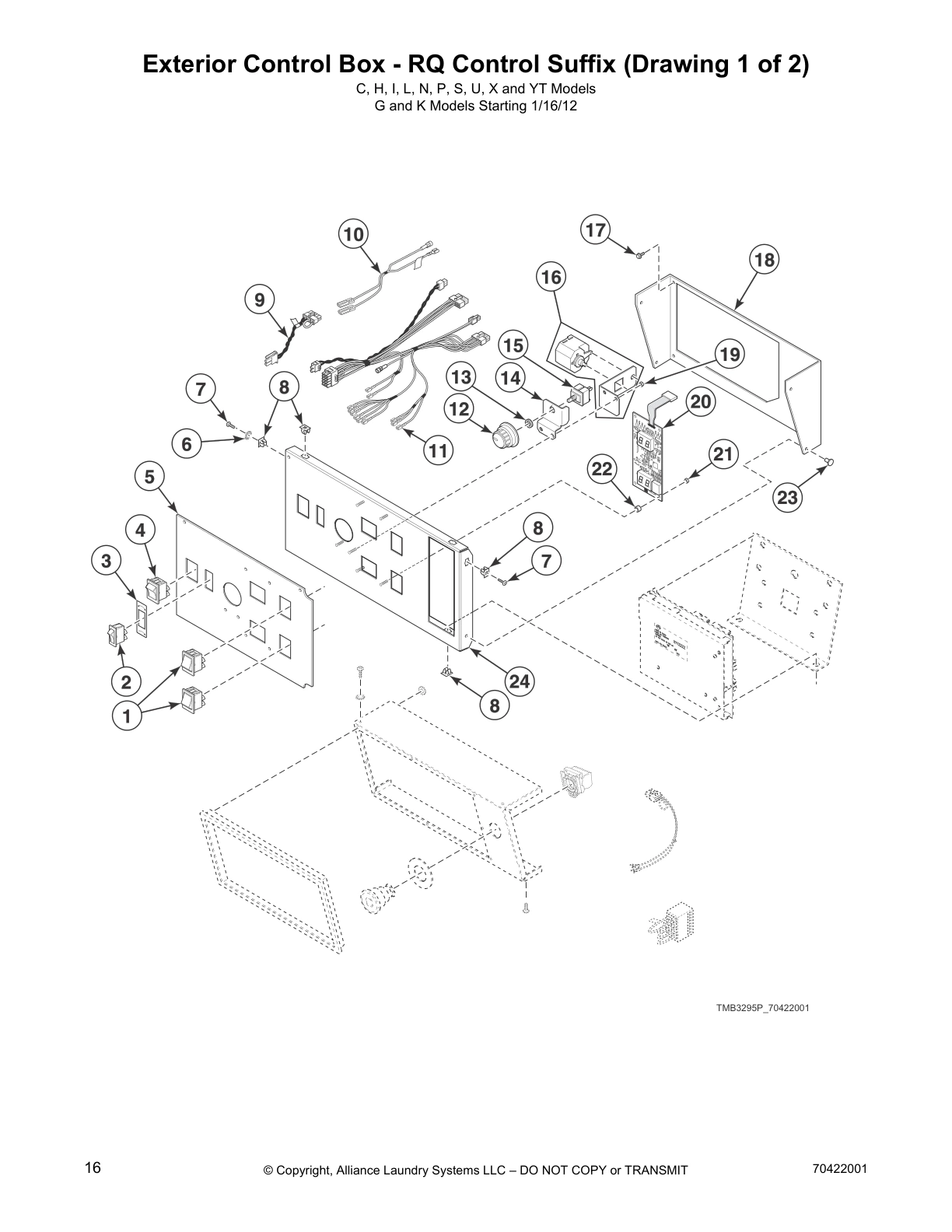

Exterior Control Box - RQ Control Suffix (Drawing 1 of 2)

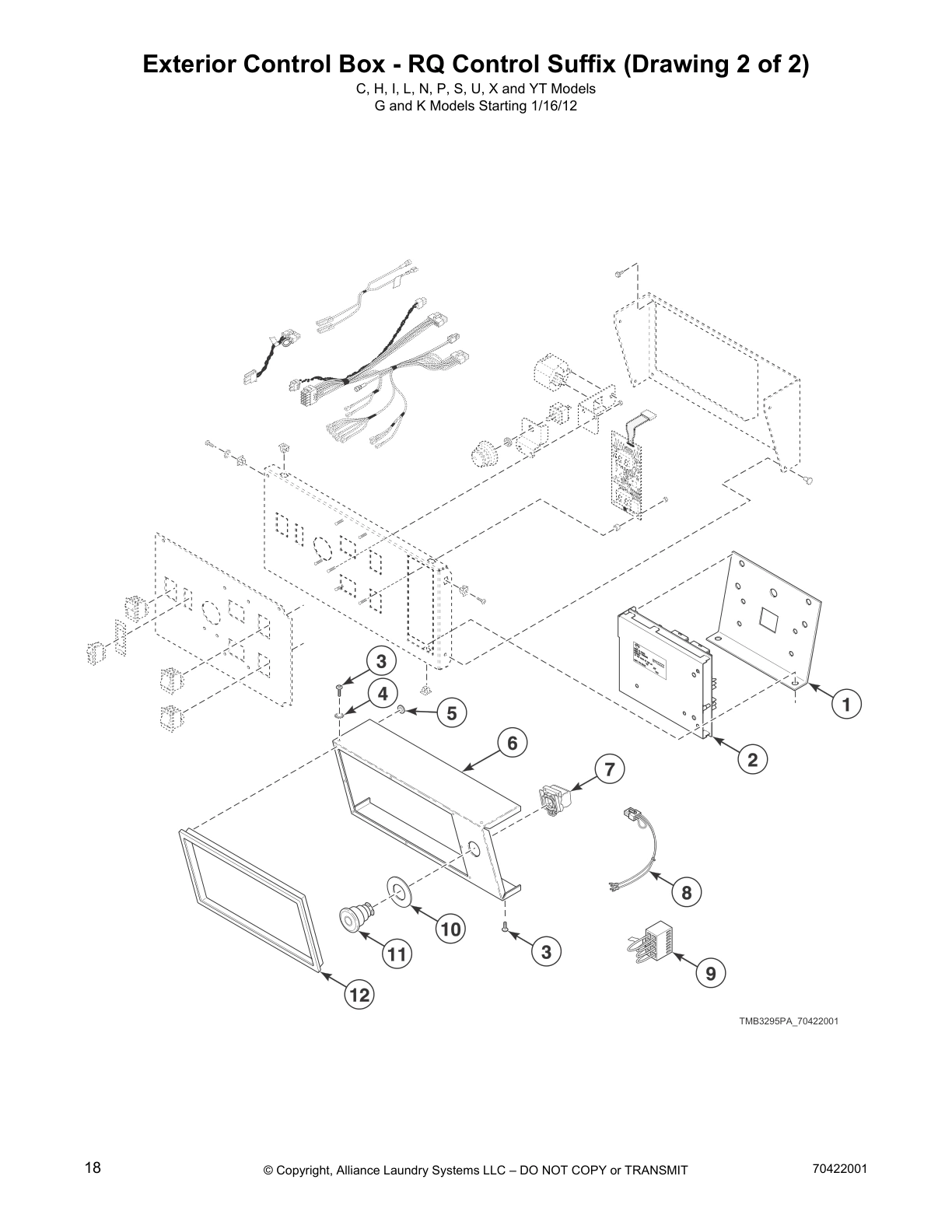

Exterior Control Box - RQ Control Suffix (Drawing 2 of 2)

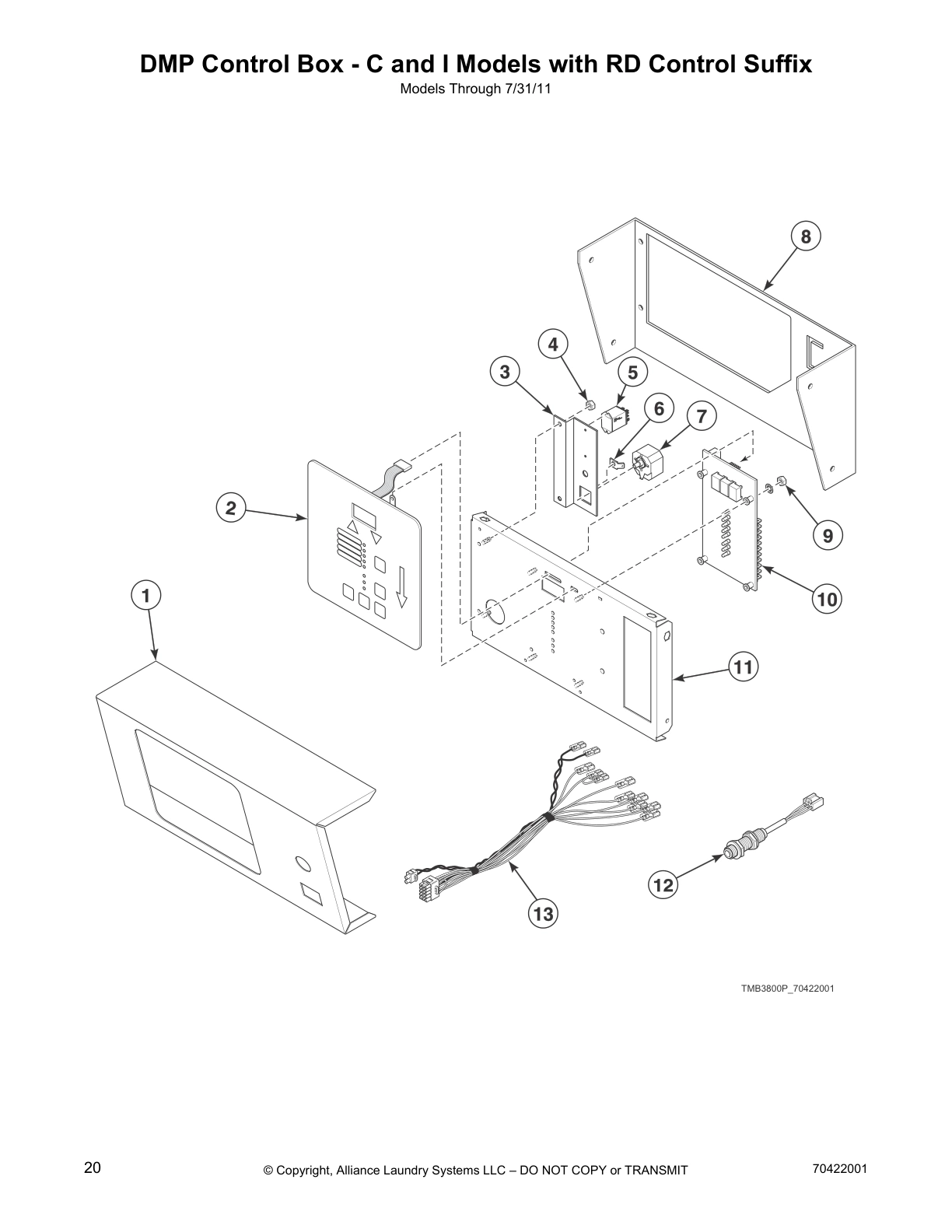

DMP Control Box - C and I Models with RD Control Suffix

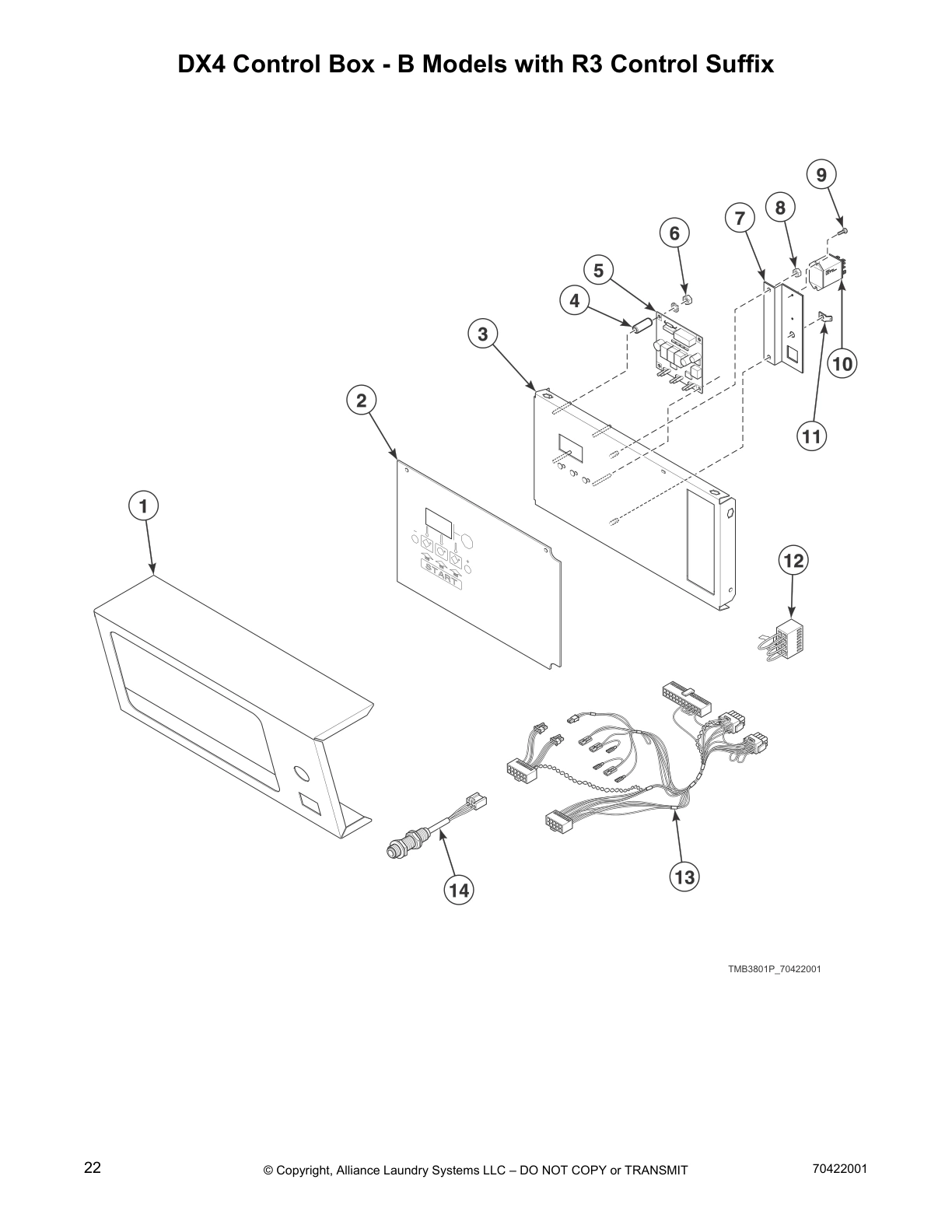

DX4 Control Box - B Models with R3 Control Suffix

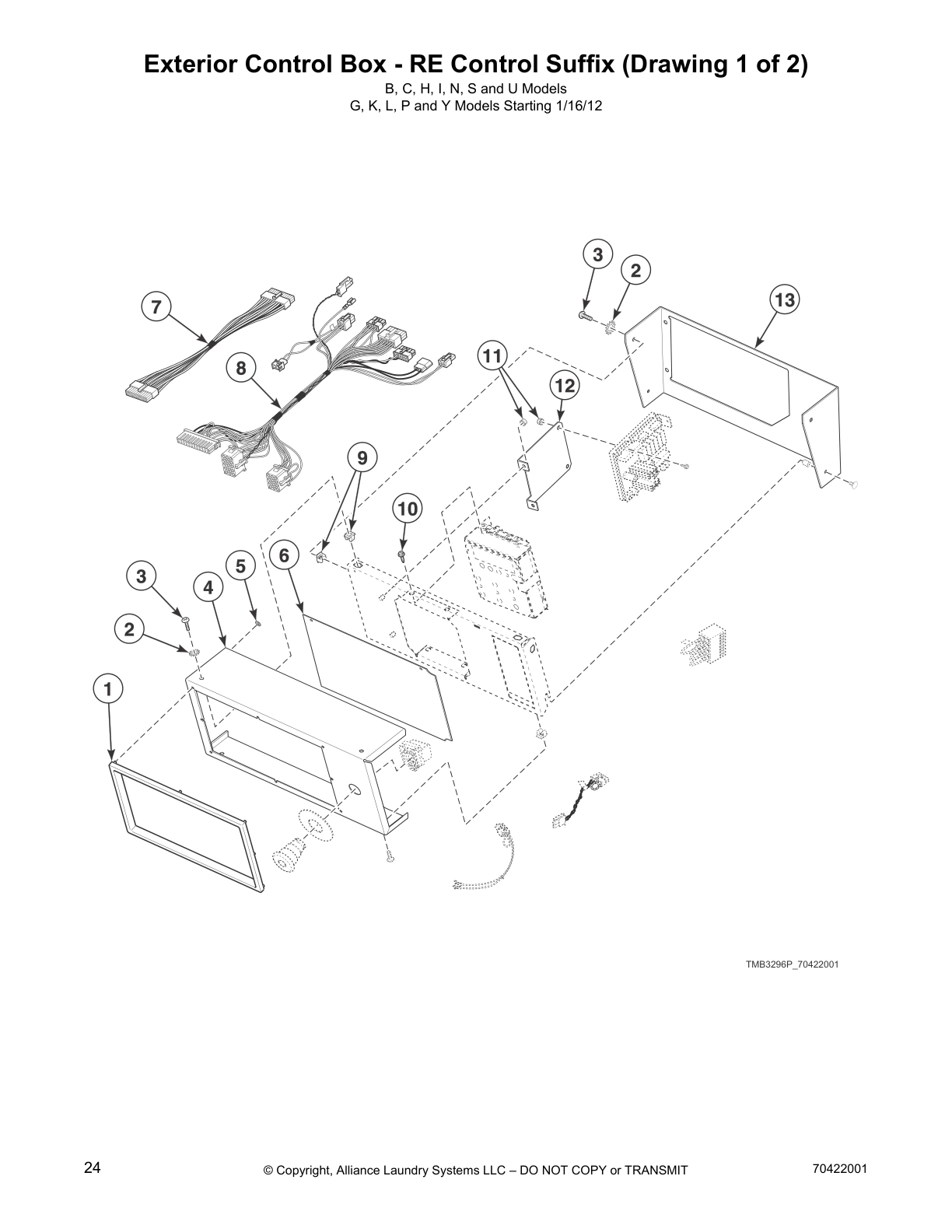

Exterior Control Box - RE Control Suffix (Drawing 1 of 2)

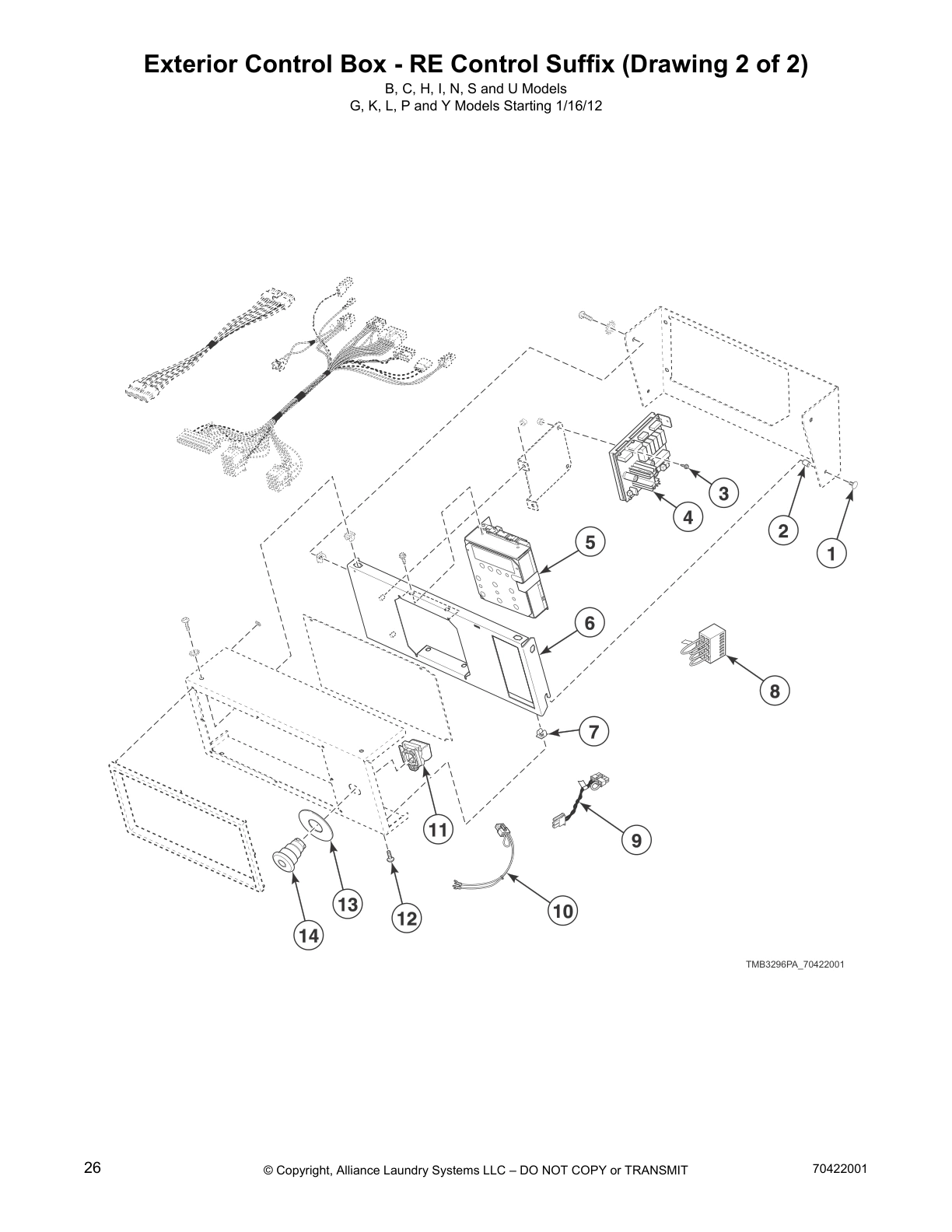

Exterior Control Box - RE Control Suffix (Drawing 2 of 2)

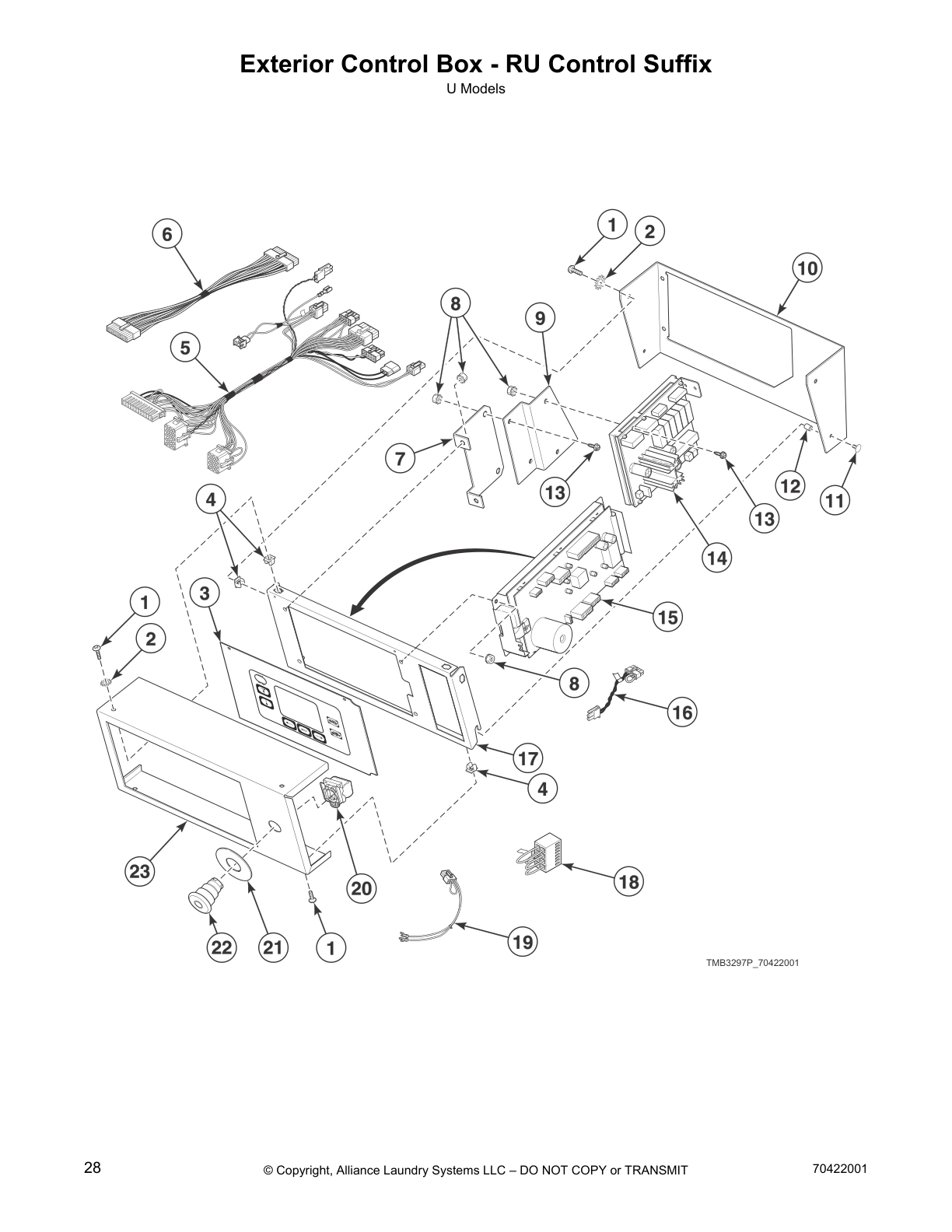

Exterior Control Box - RU Control Suffix

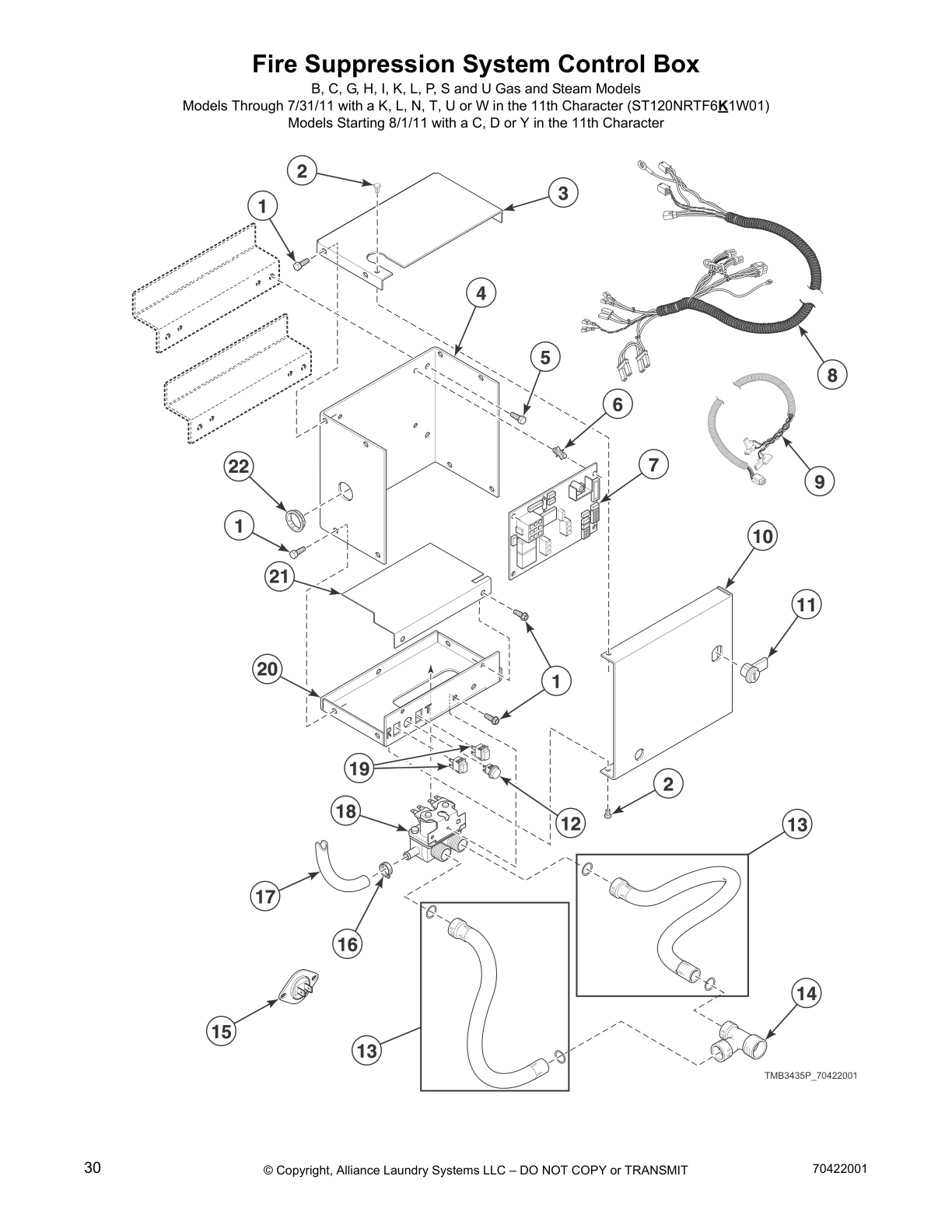

Fire Suppression System Control Box

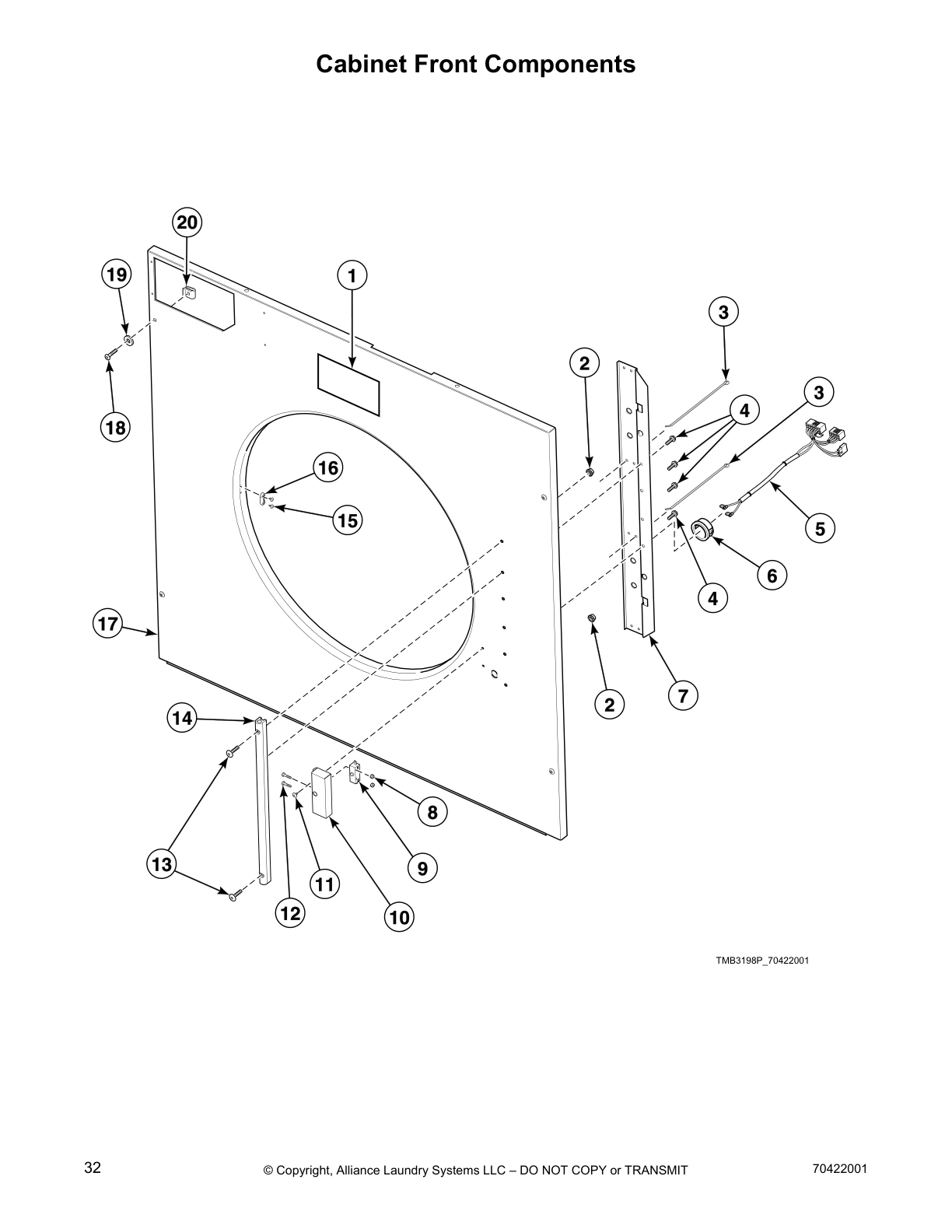

Cabinet Front Components

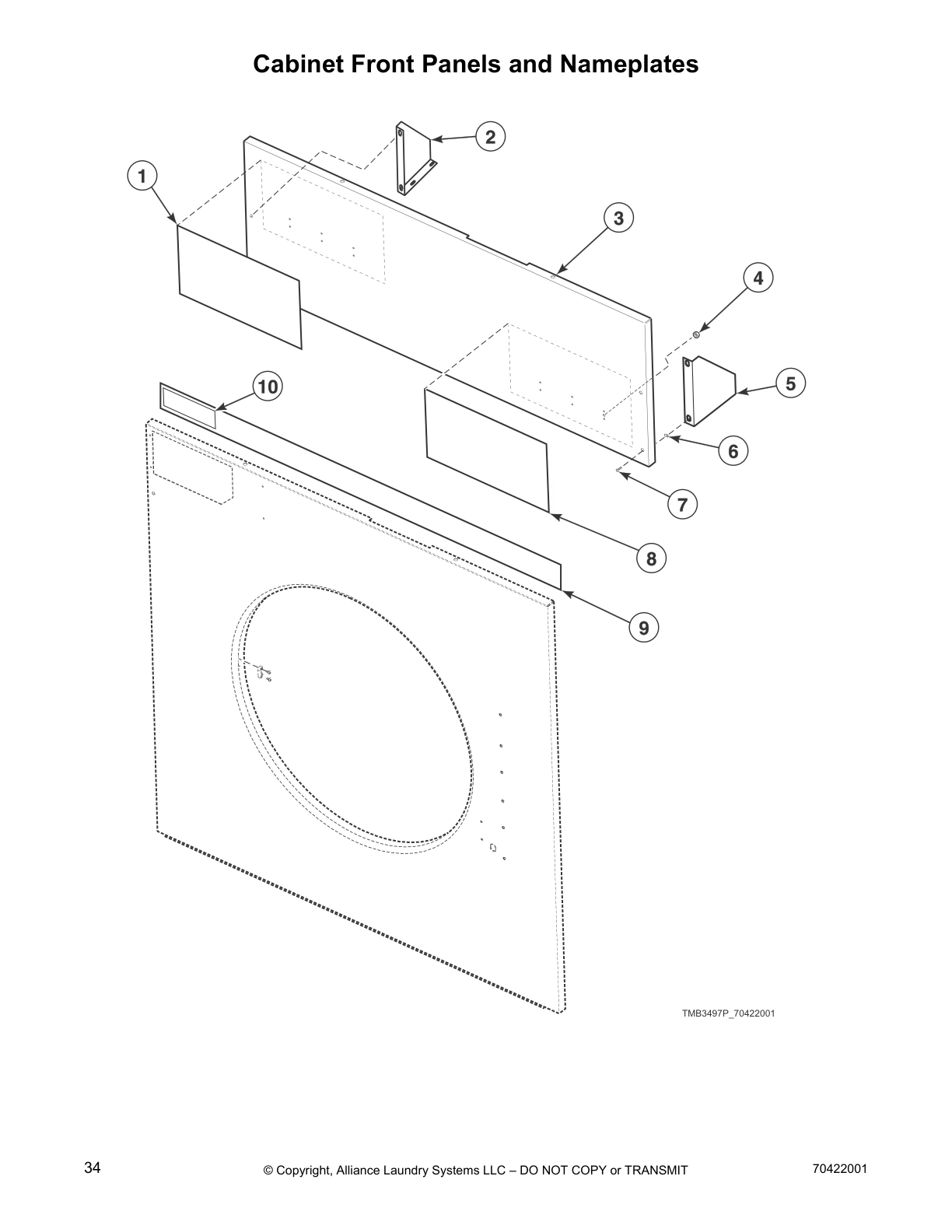

Cabinet Front Panels and Nameplates

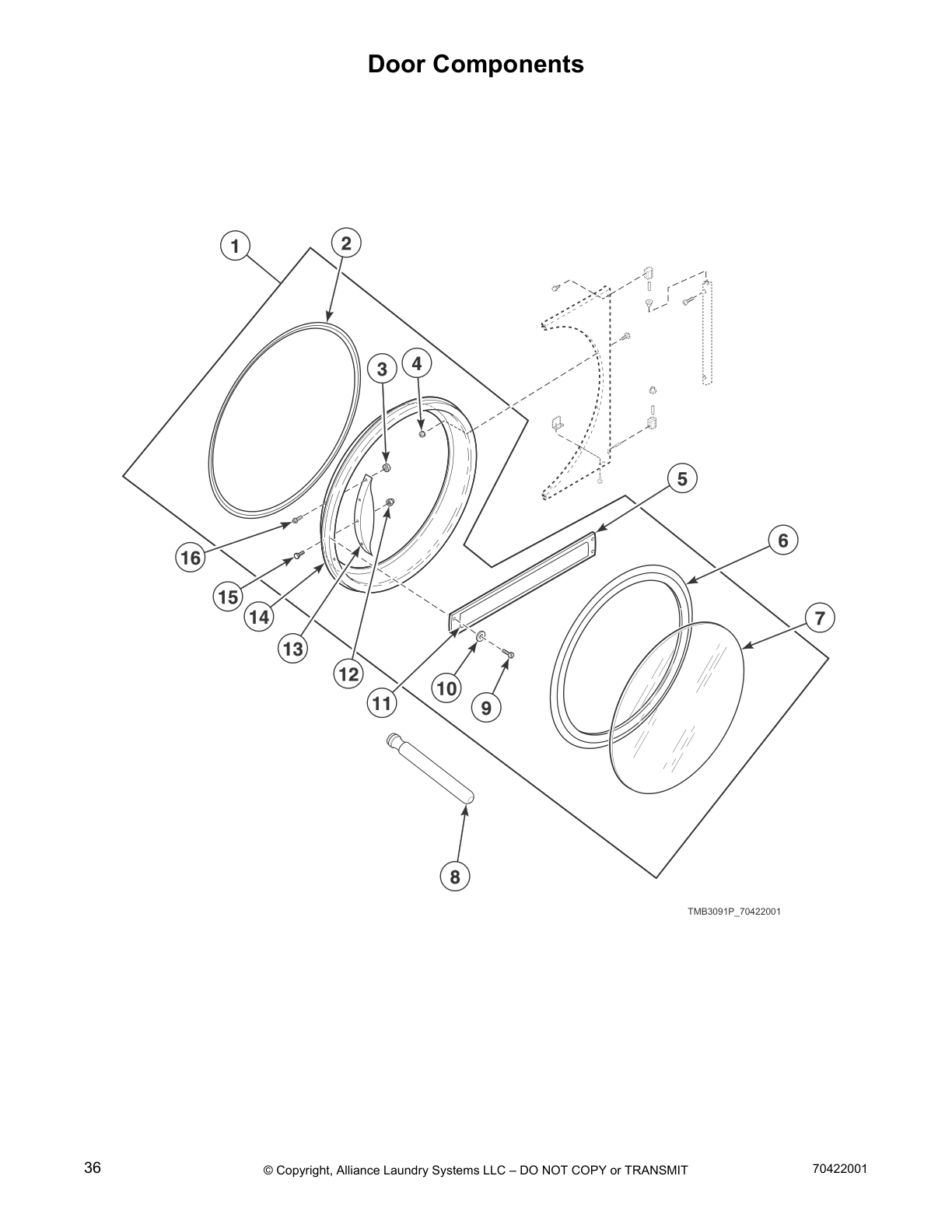

Door Components

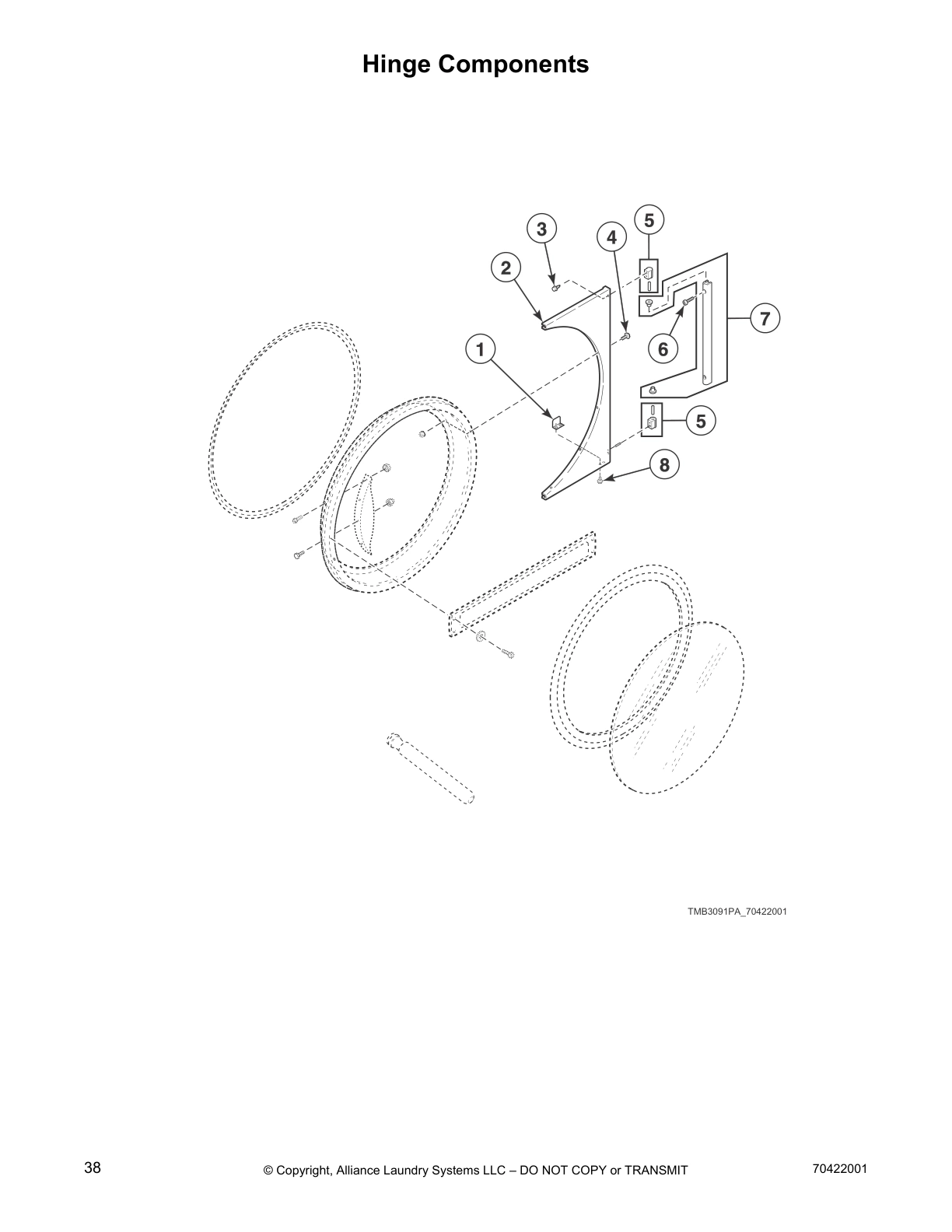

Hinge Components
Lint Panel Components

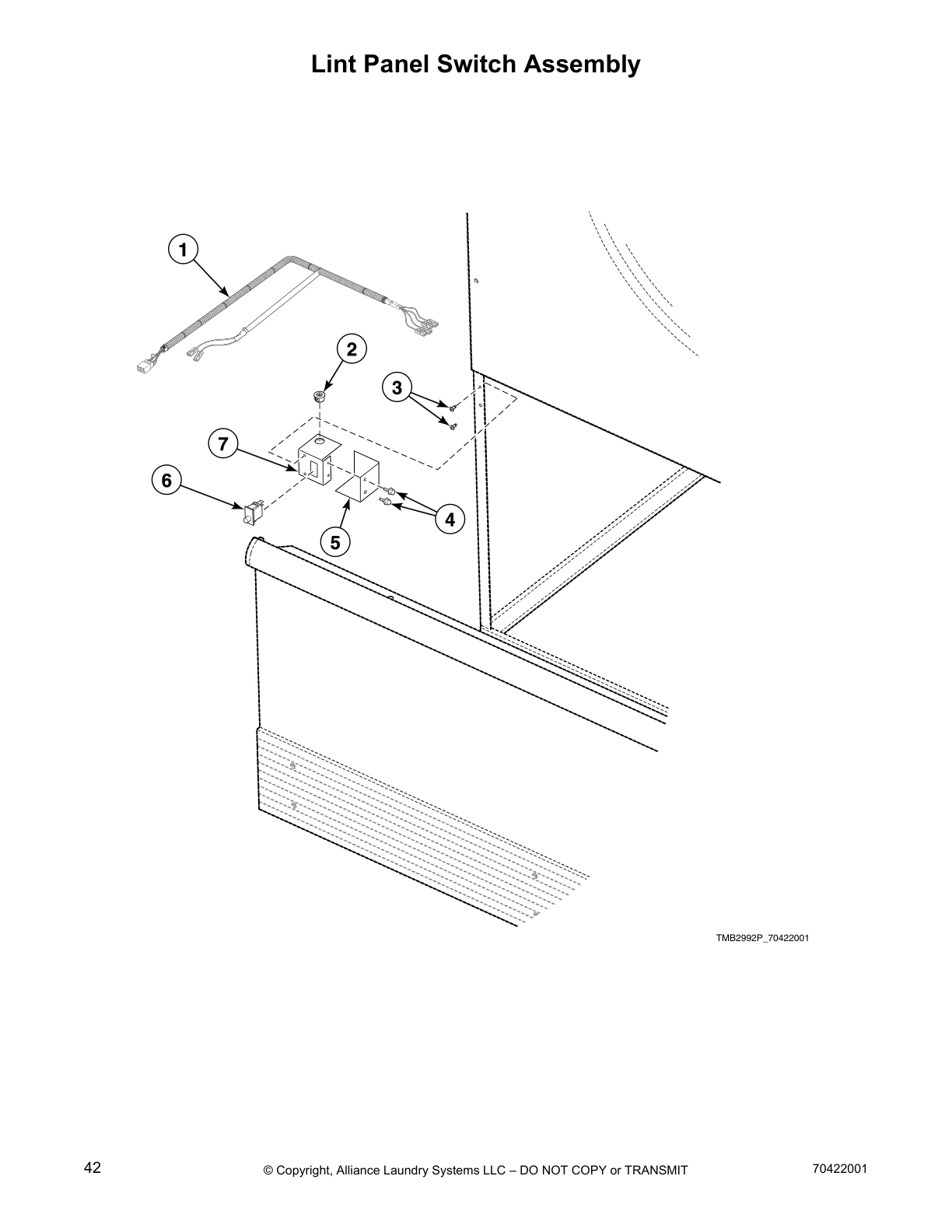

Lint Panel Switch Assembly

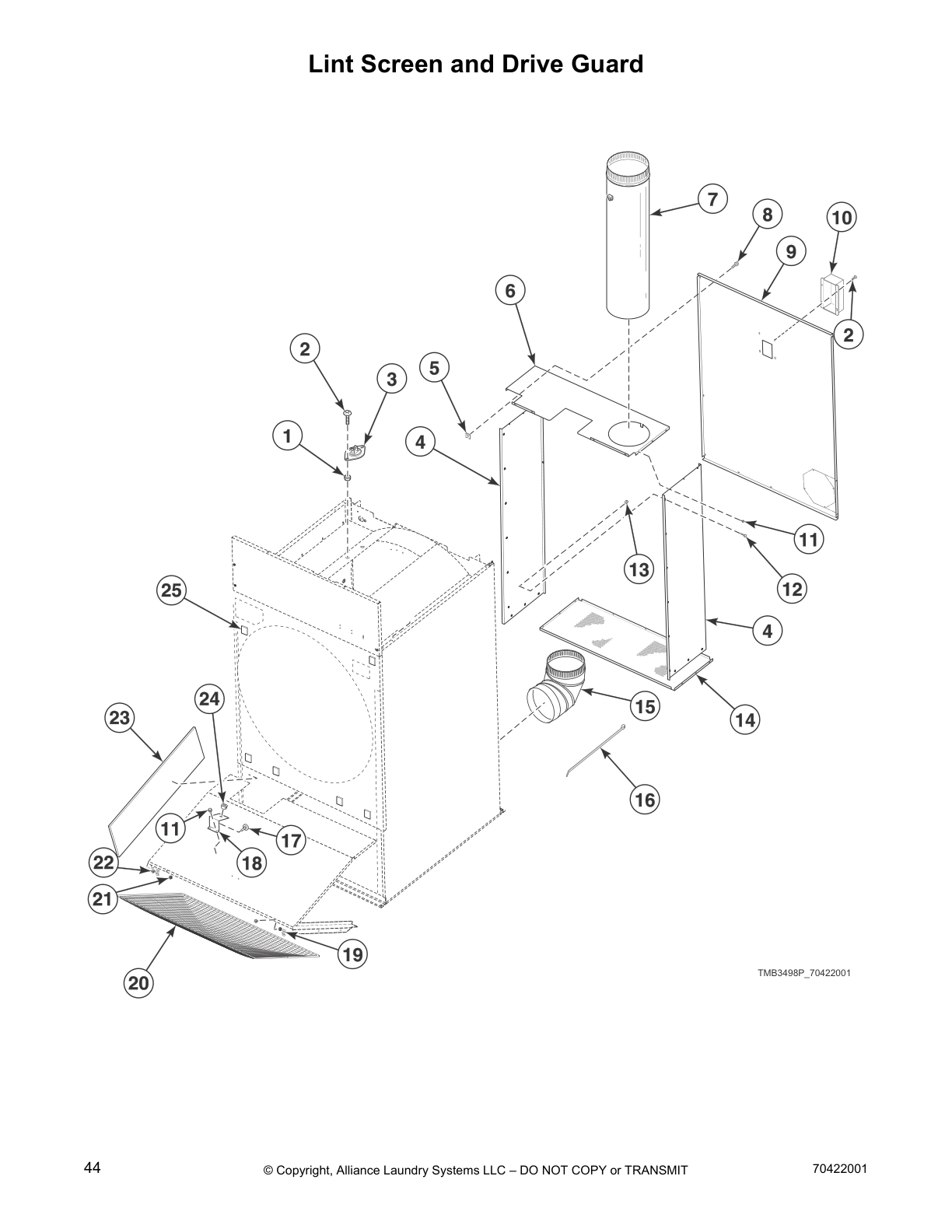

Lint Screen and Drive Guard

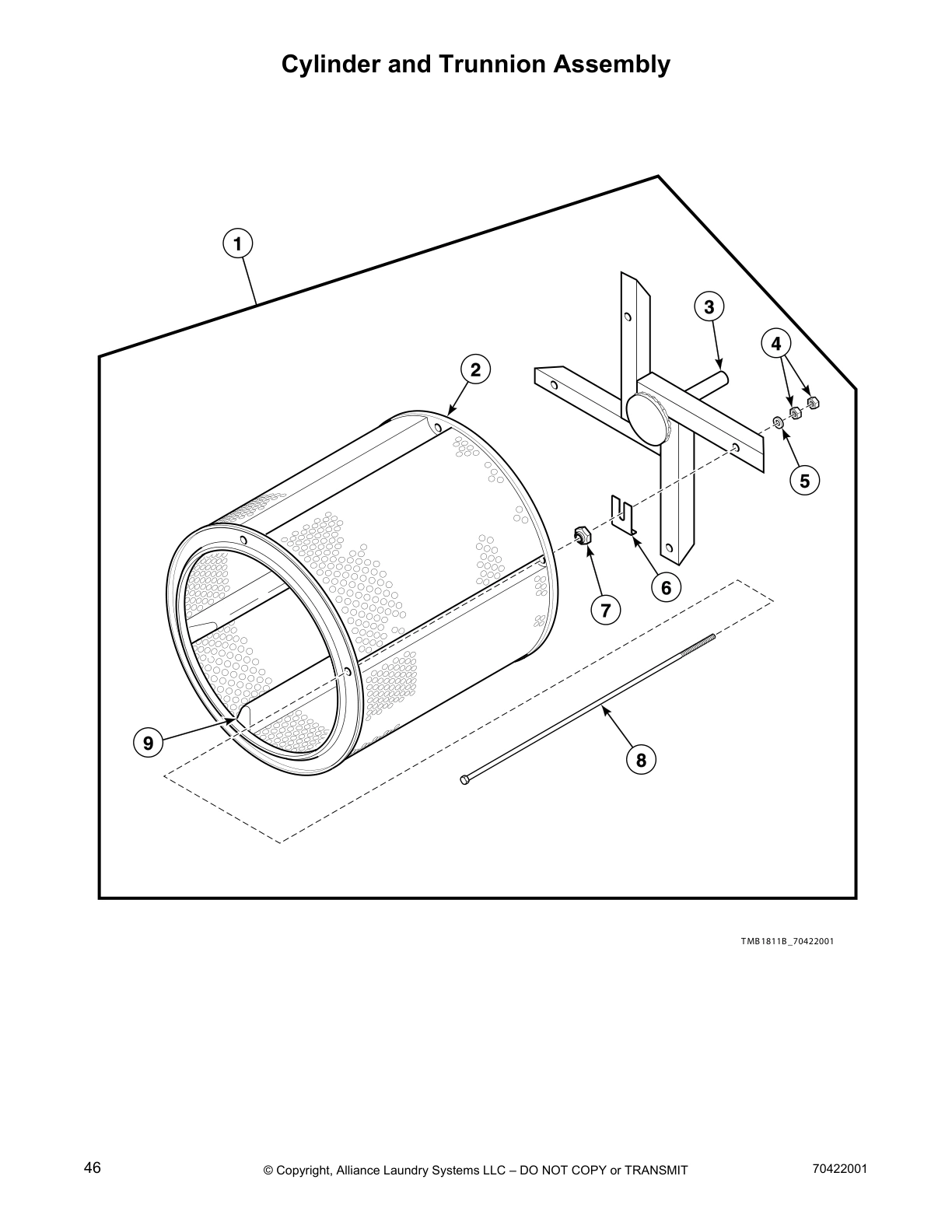

Cylinder and Trunnion Assembly

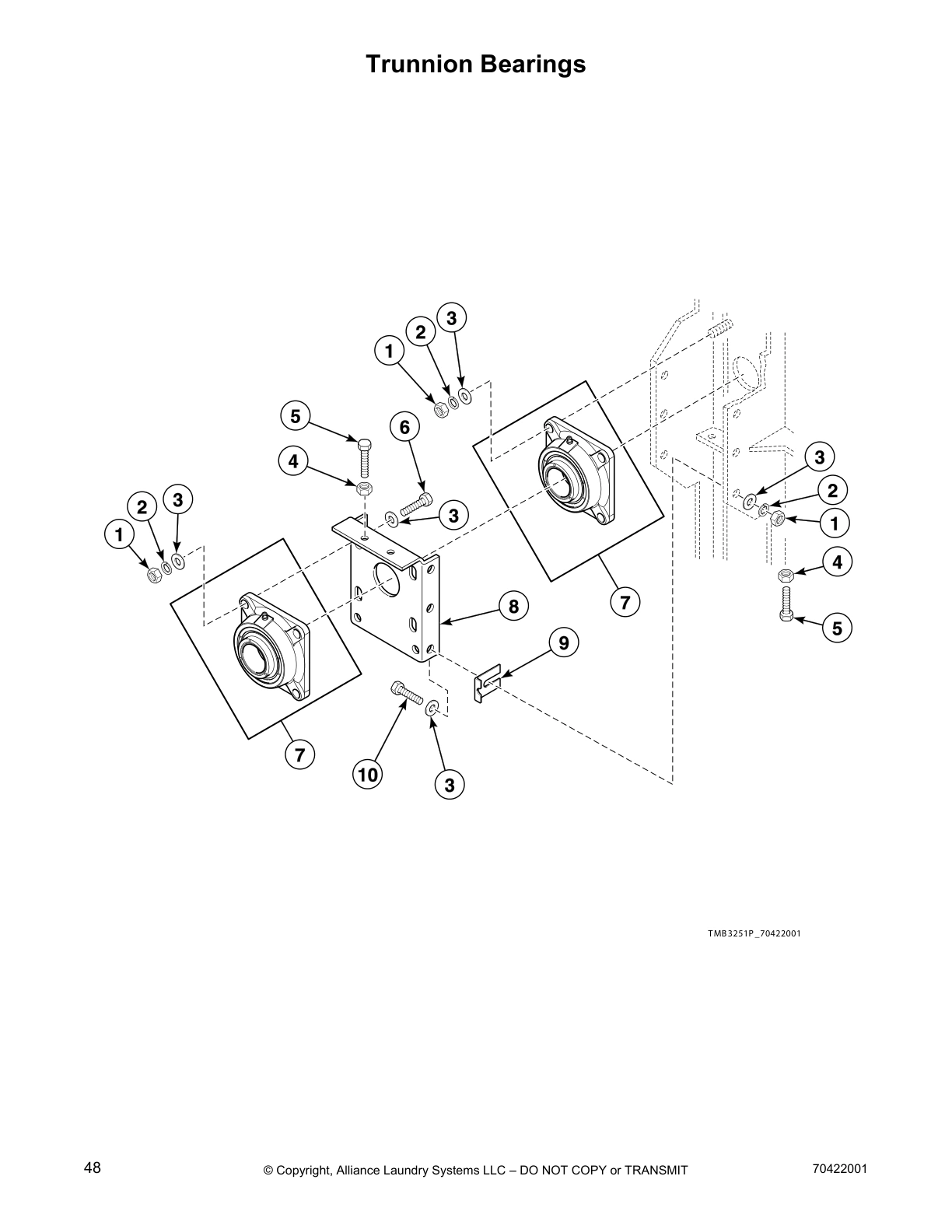

Trunnion Bearings

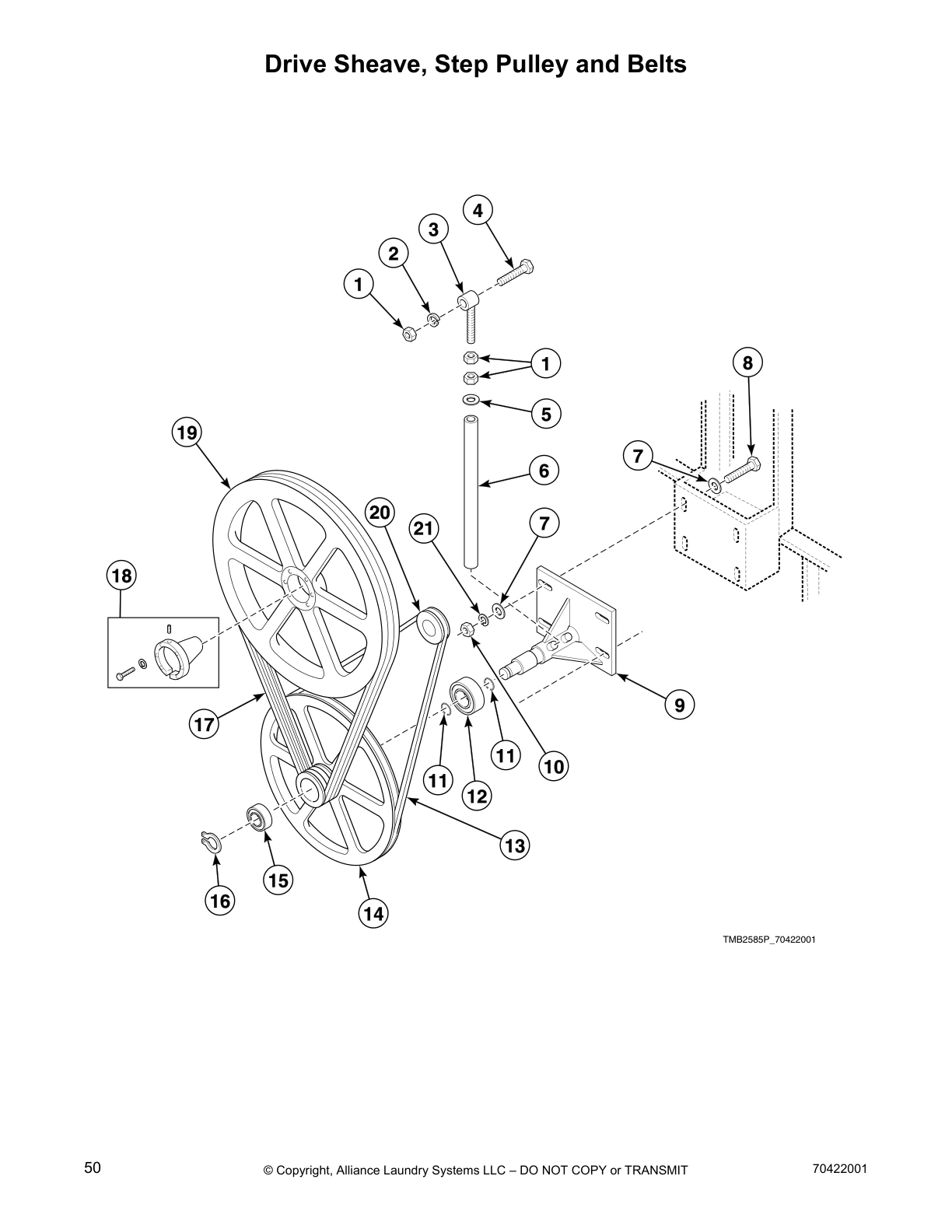

Drive Sheave, Step Pulley and Belts

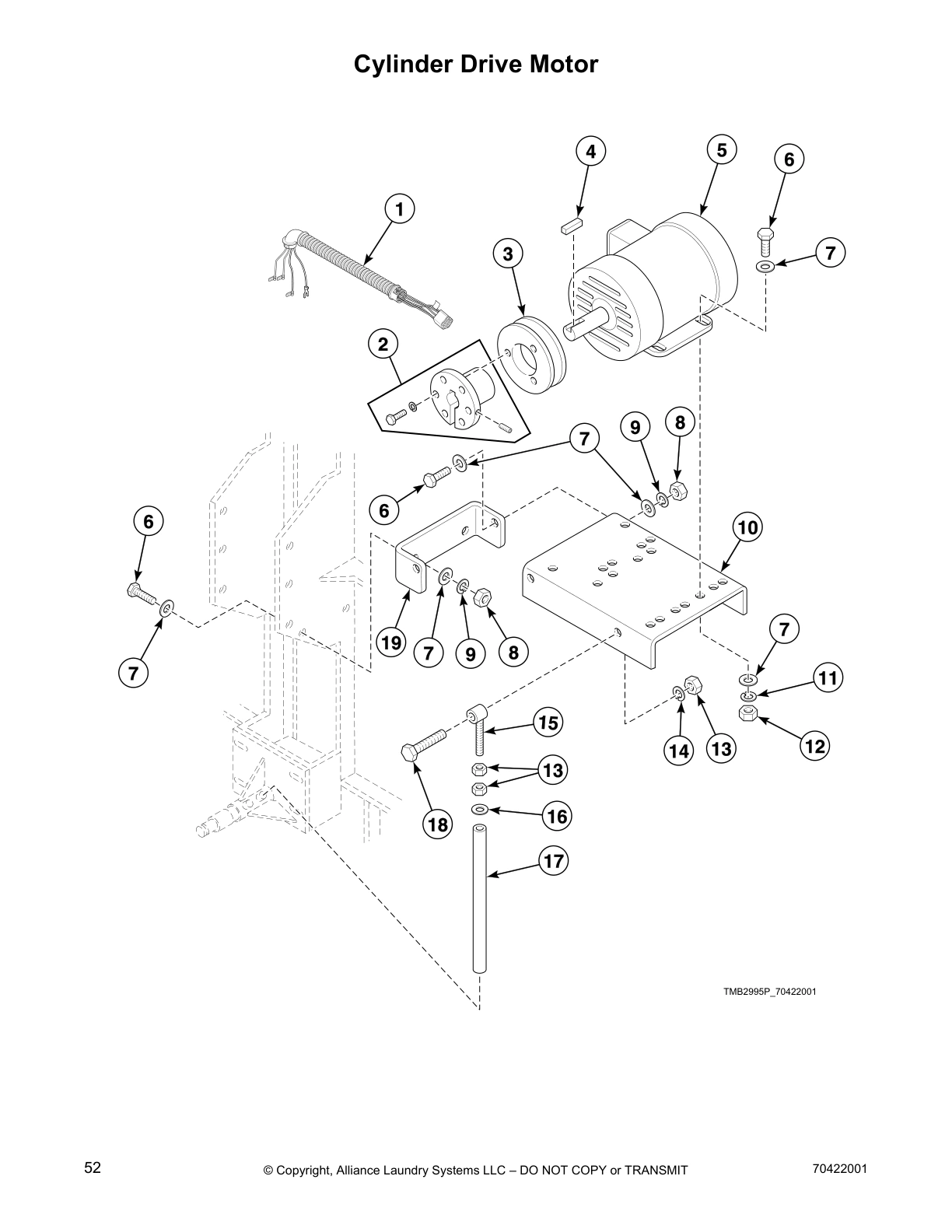

Cylinder Drive Motor

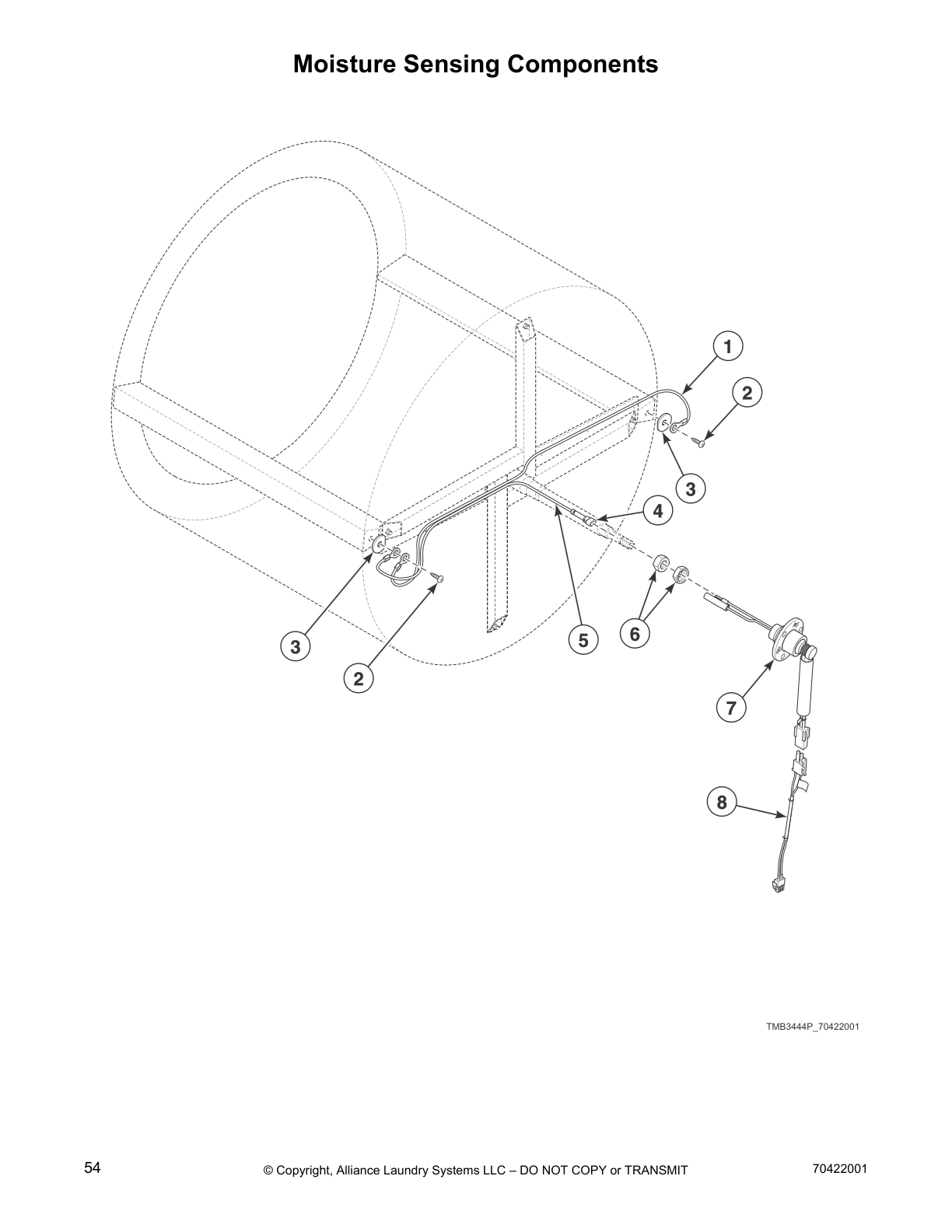

Moisture Sensing Components

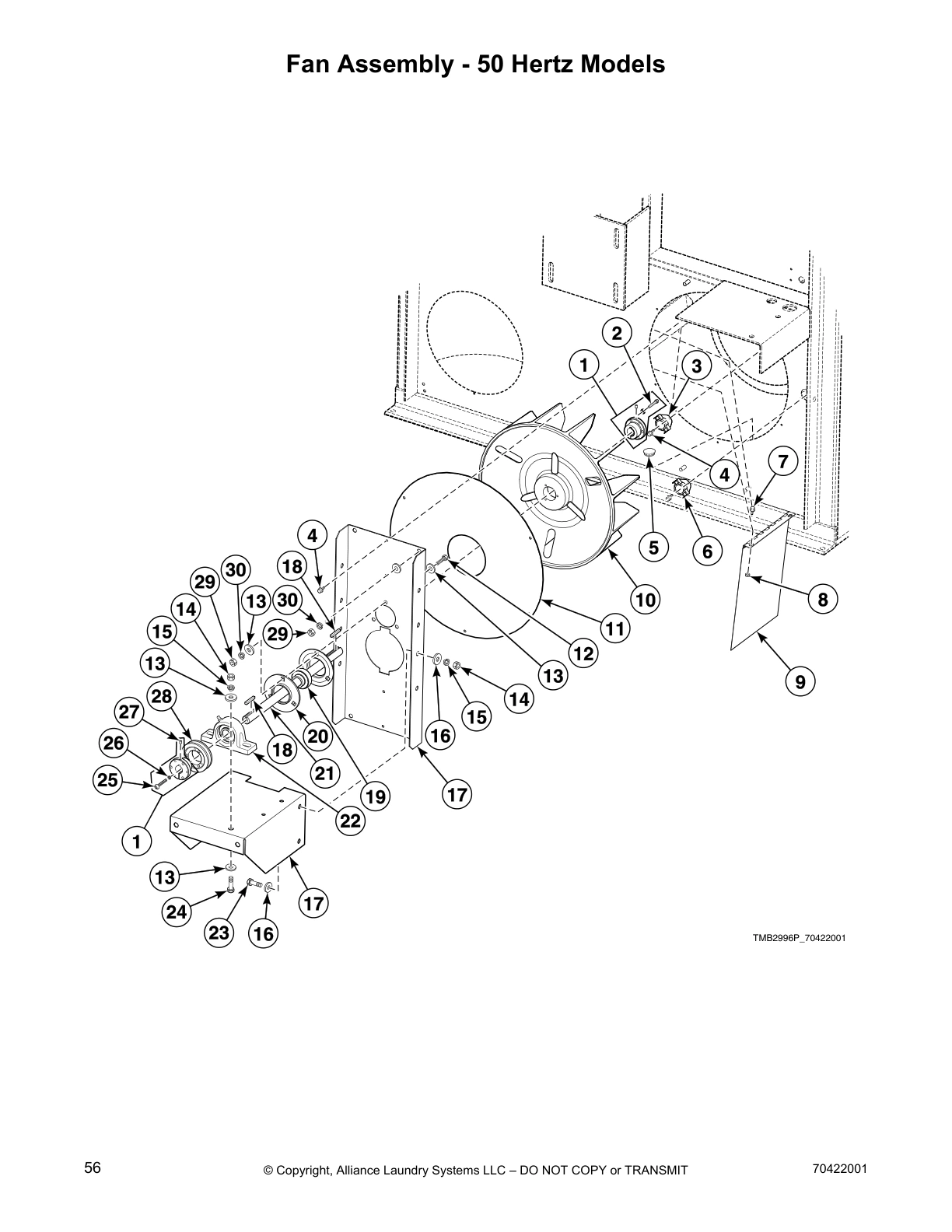

Fan Assembly - 50 Hertz Models

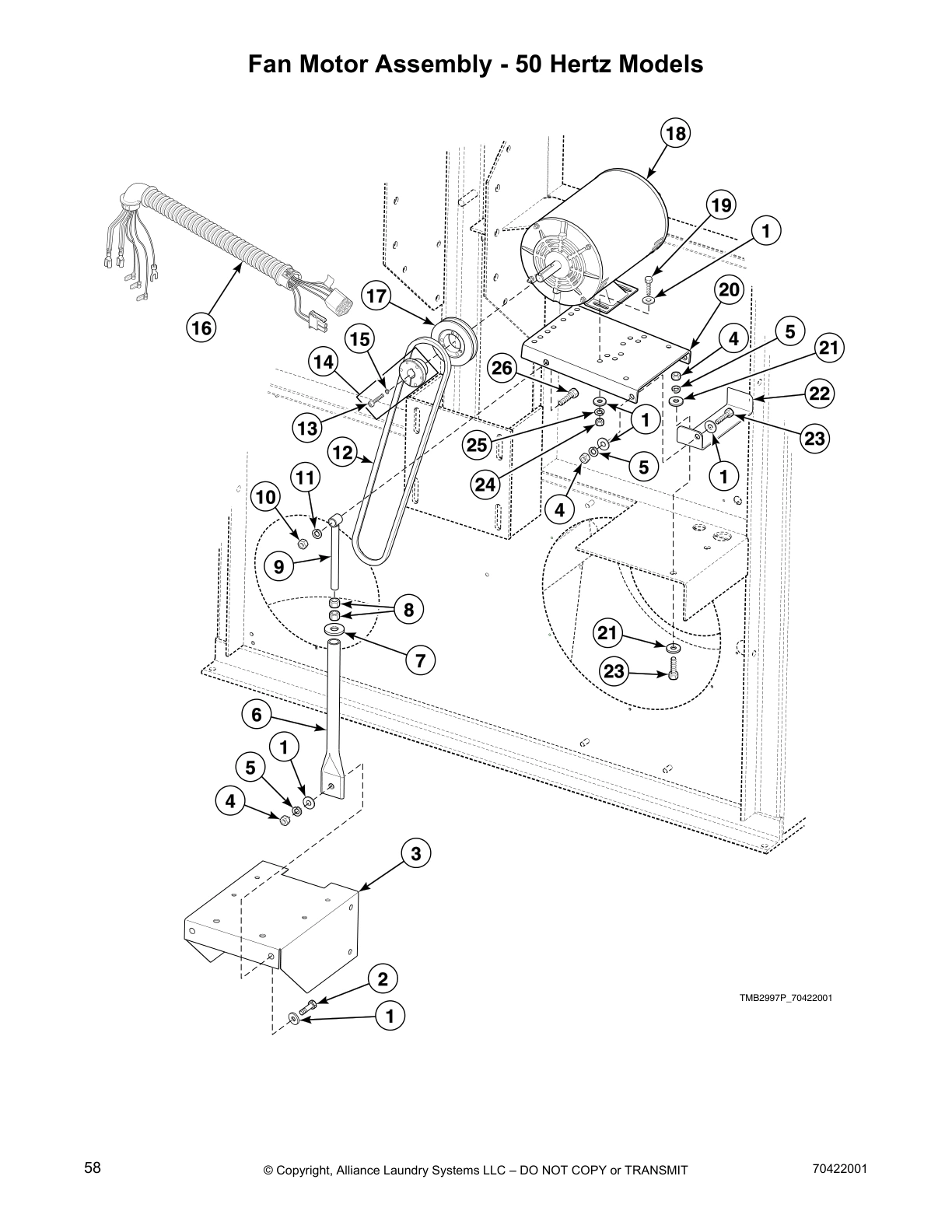

Fan Motor Assembly - 50 Hertz Models

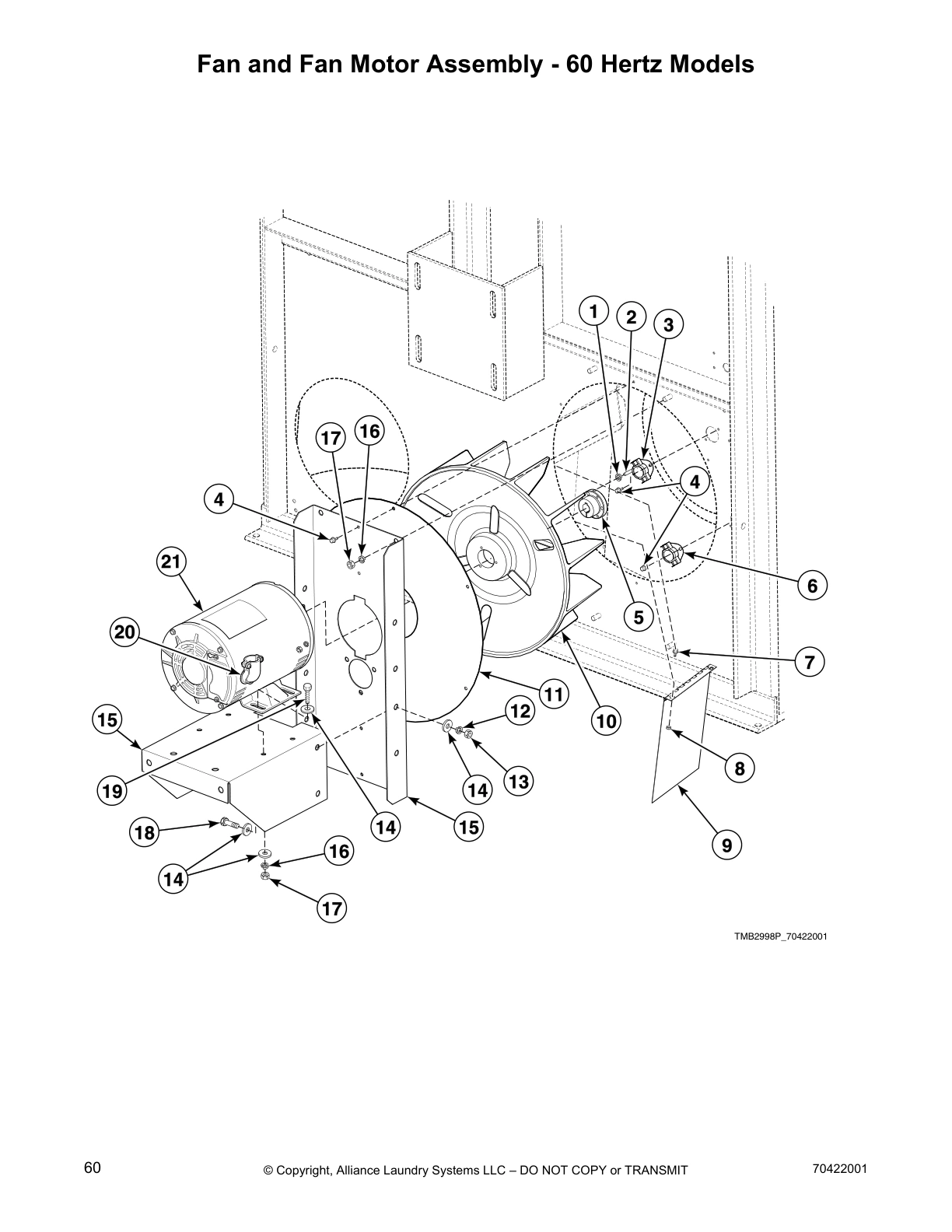

Fan and Fan Motor Assembly - 60 Hertz Models

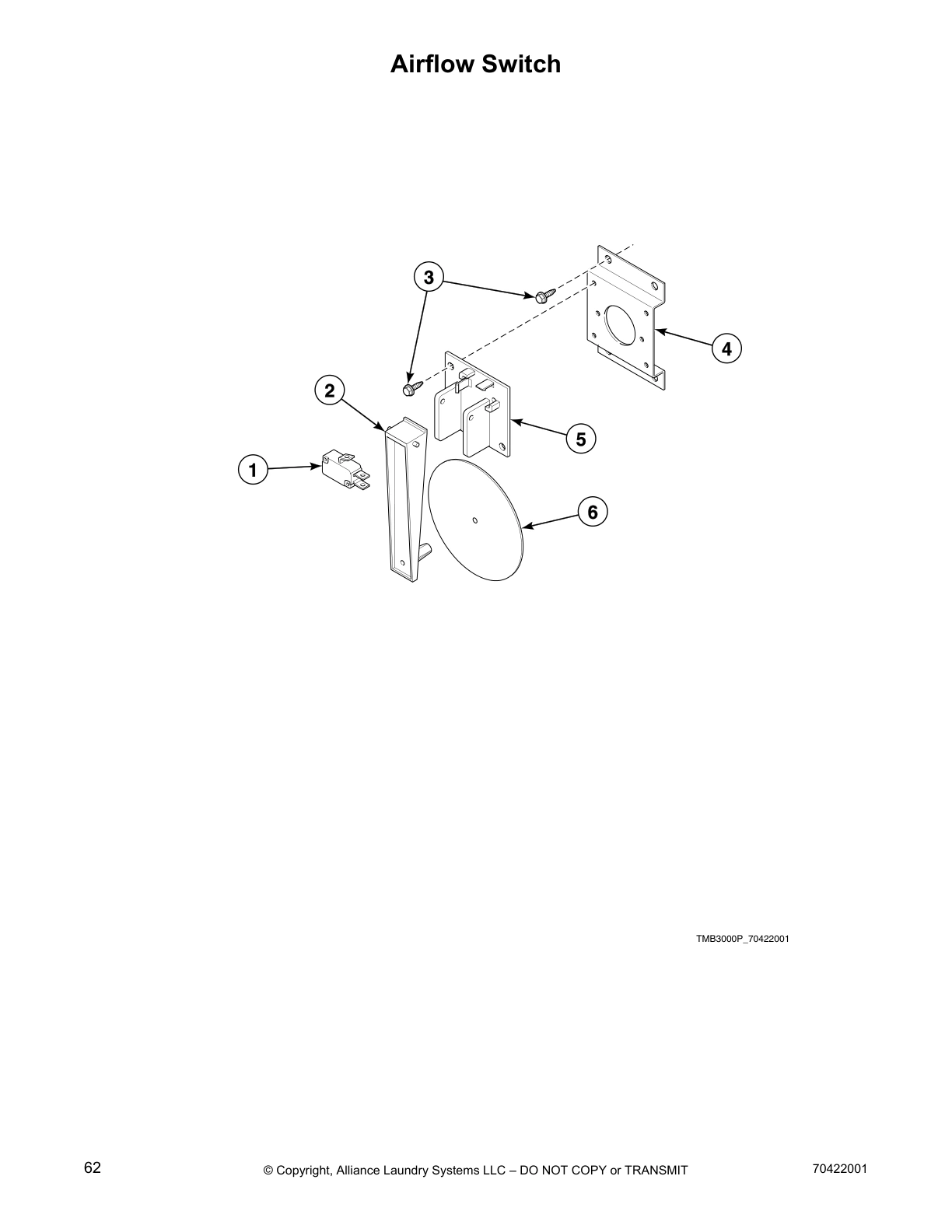

Airflow Switch

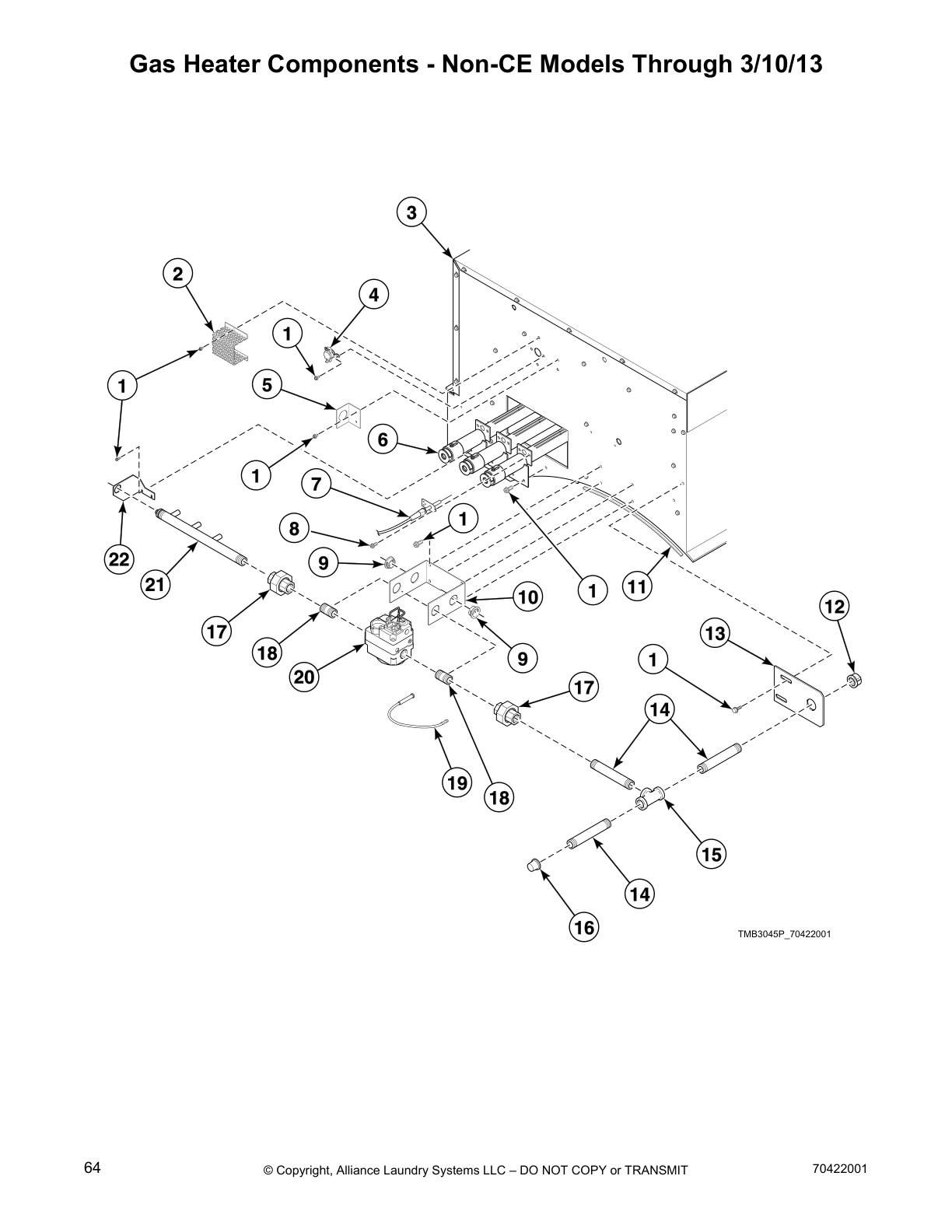

Gas Heater Components - Non-CE Models Through 3/10/13

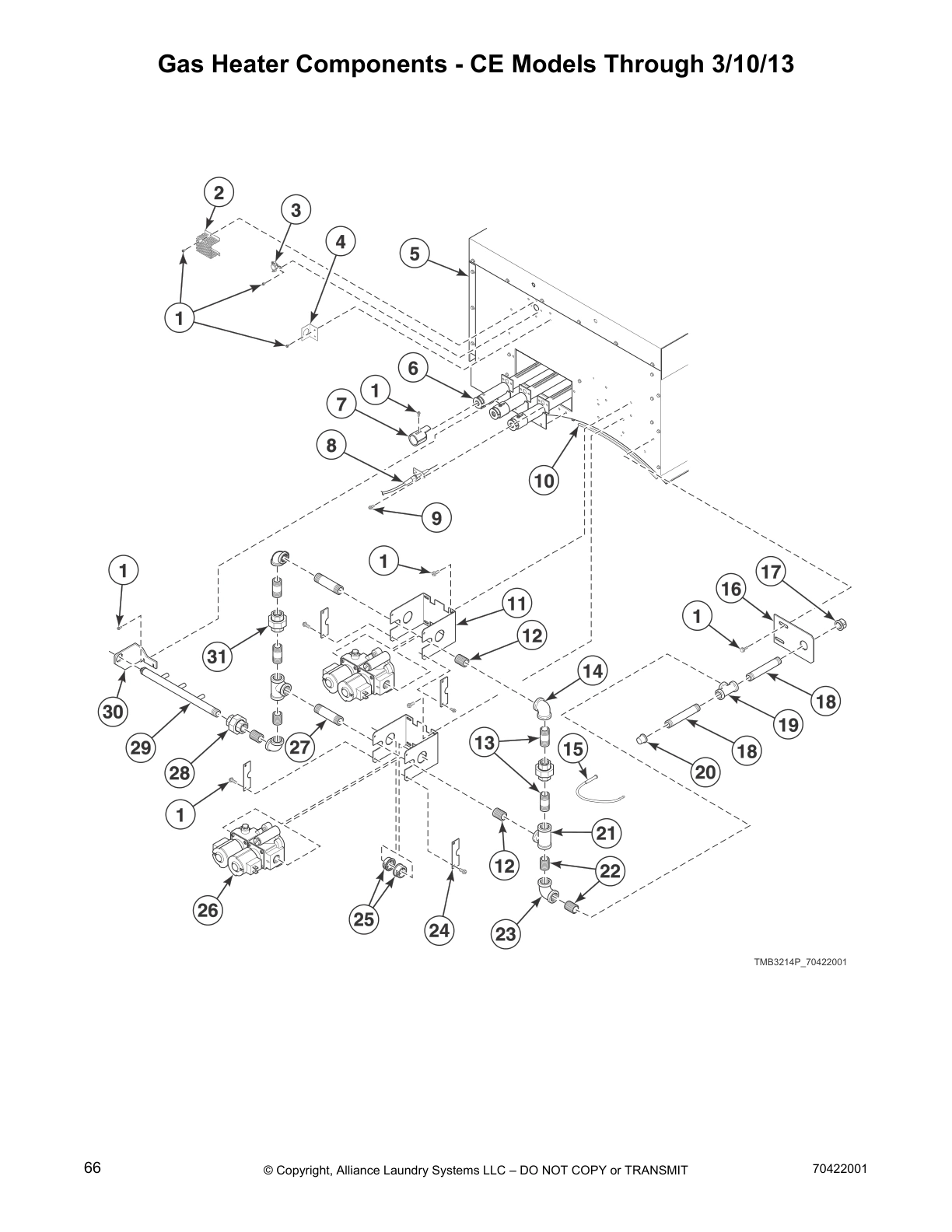

Gas Heater Components - CE Models Through 3/10/13

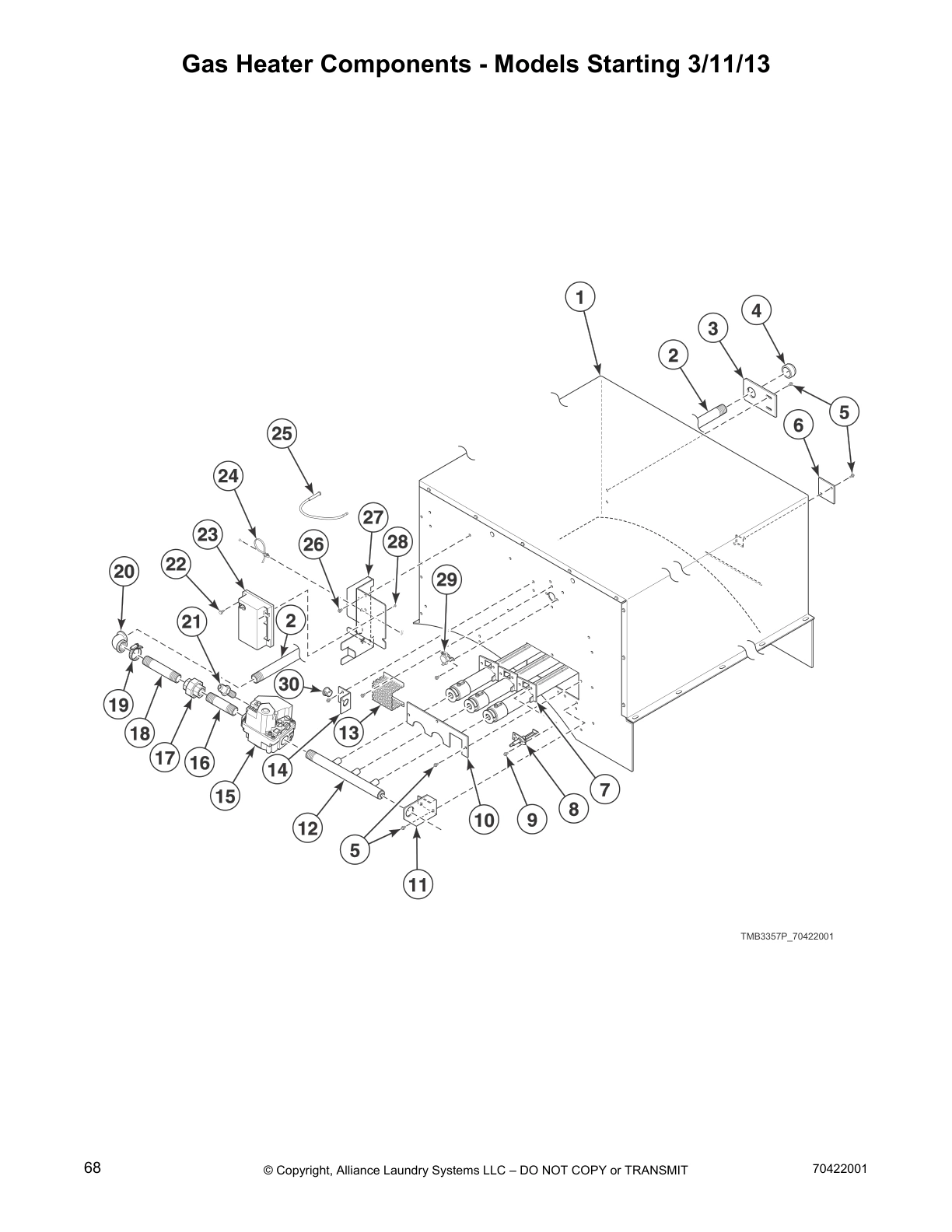

Gas Heater Components - Models Starting 3/11/13

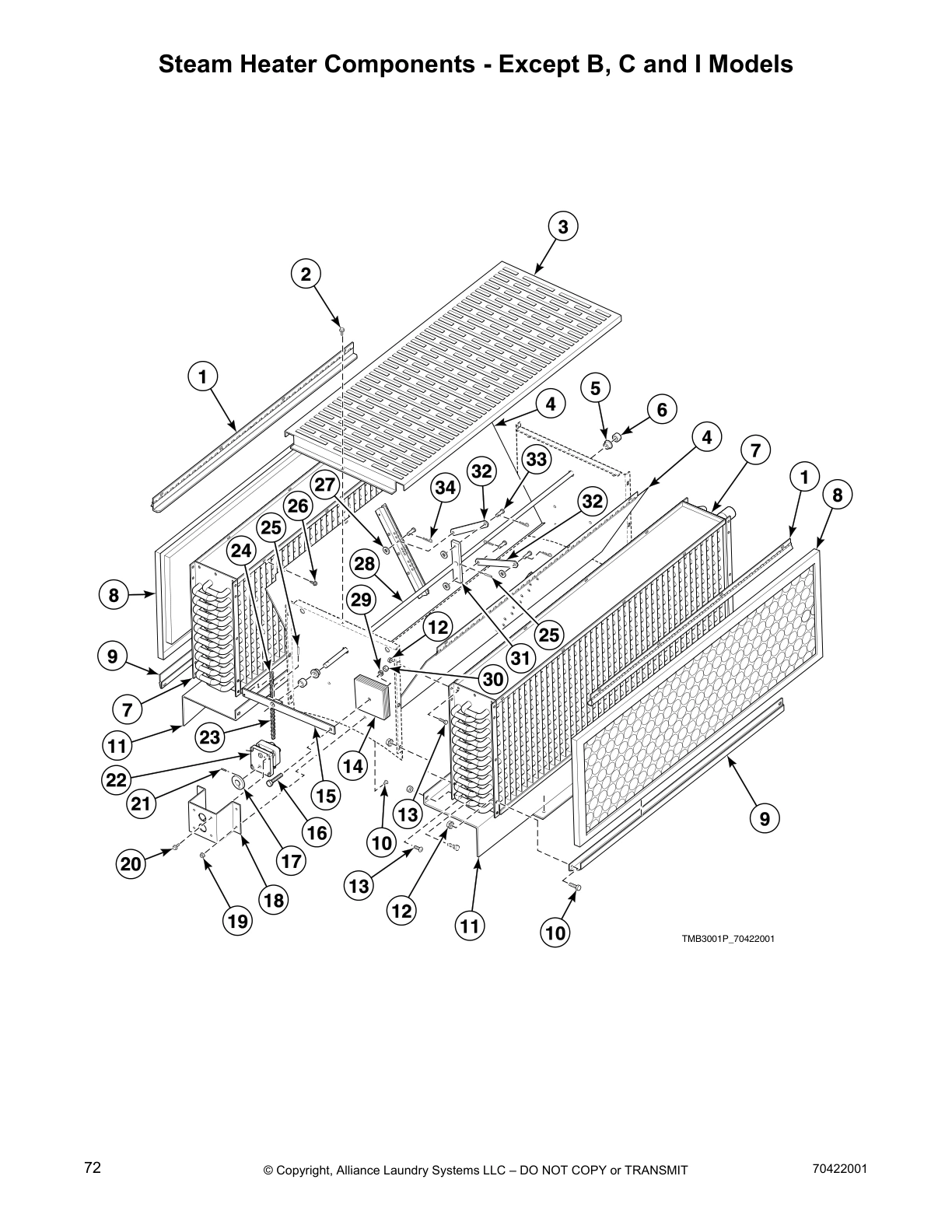

Steam Heater Components - Except B, C and I Models

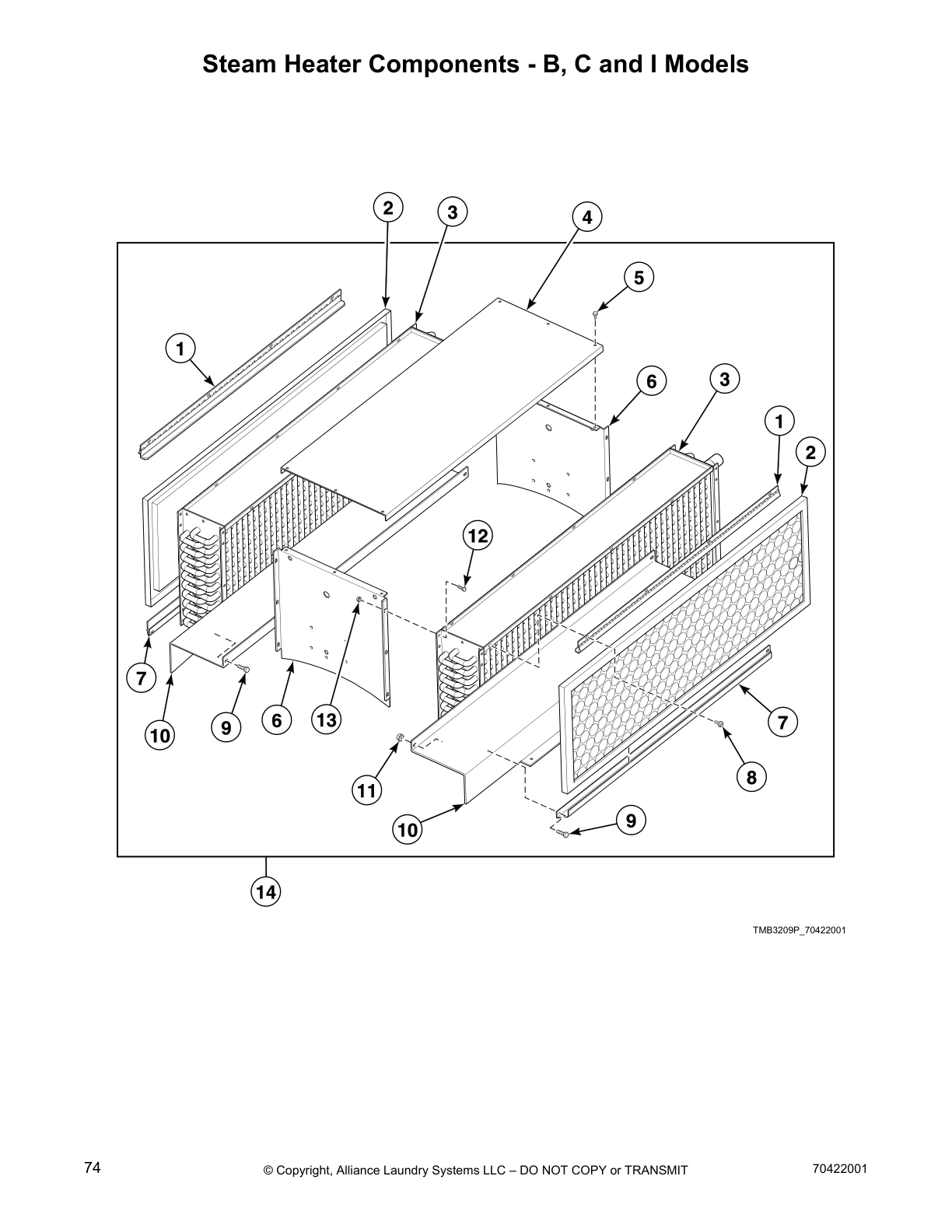

Steam Heater Components - B, C and I Models

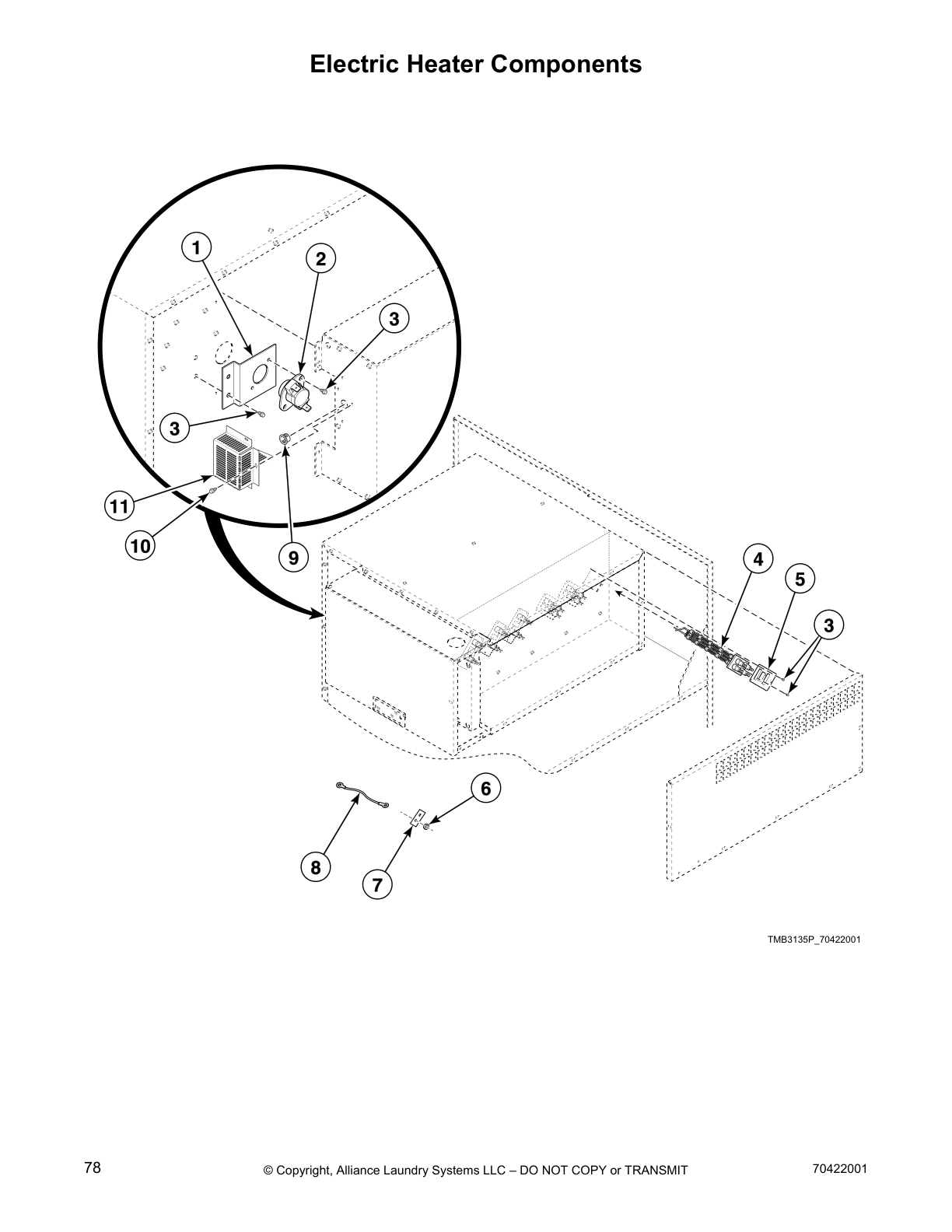

Electric Heater Components

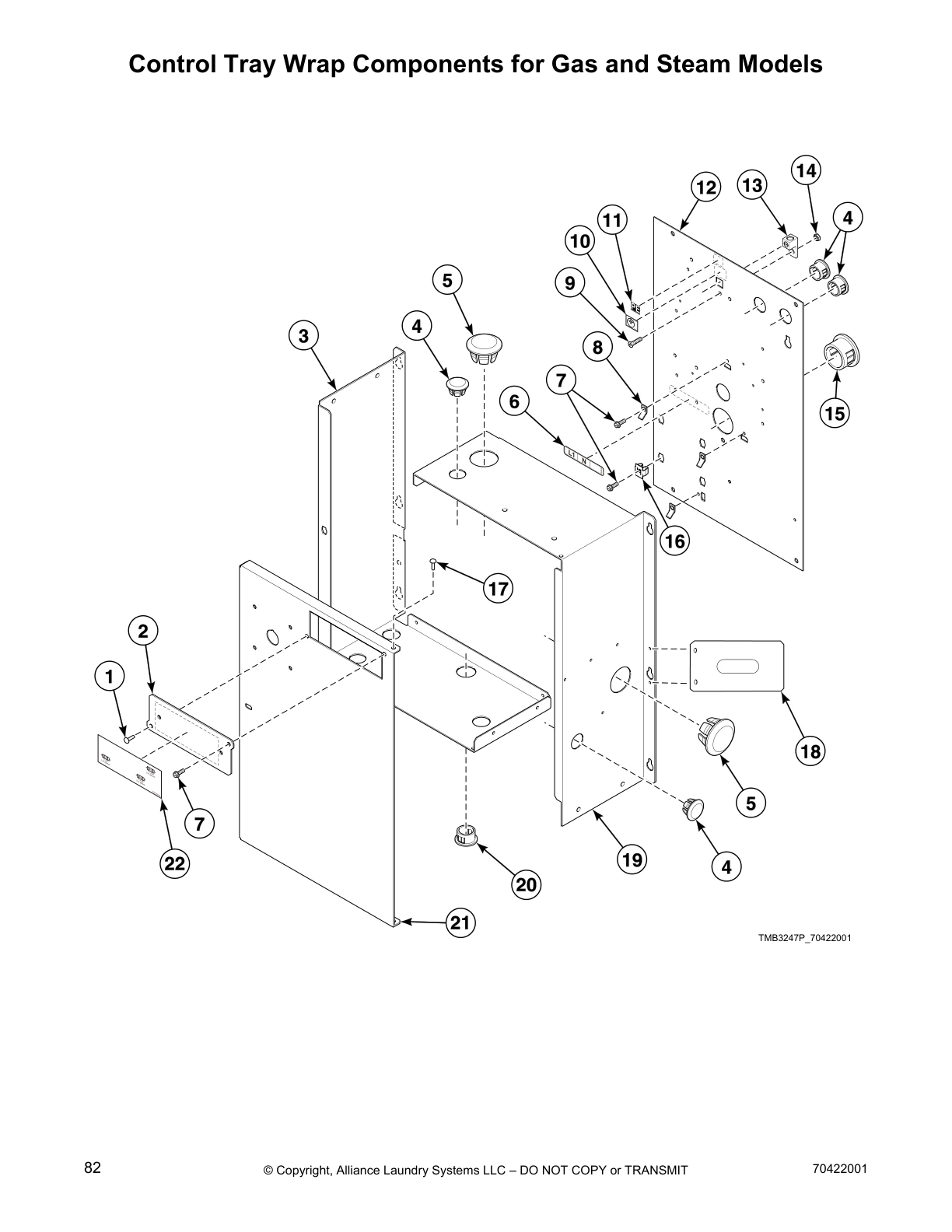

Control Tray Wrap Components for Gas and Steam Models

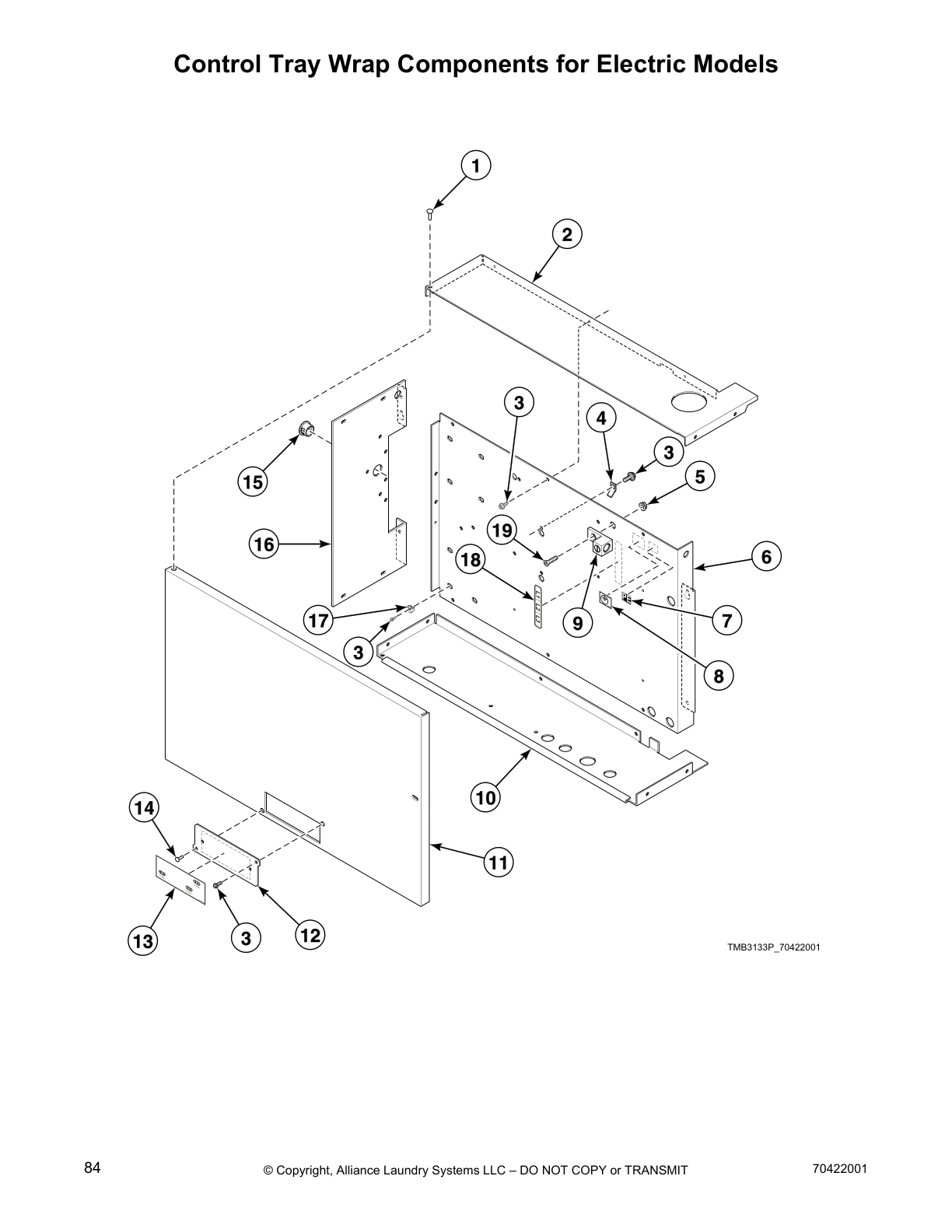

Control Tray Wrap Components for Electric Models

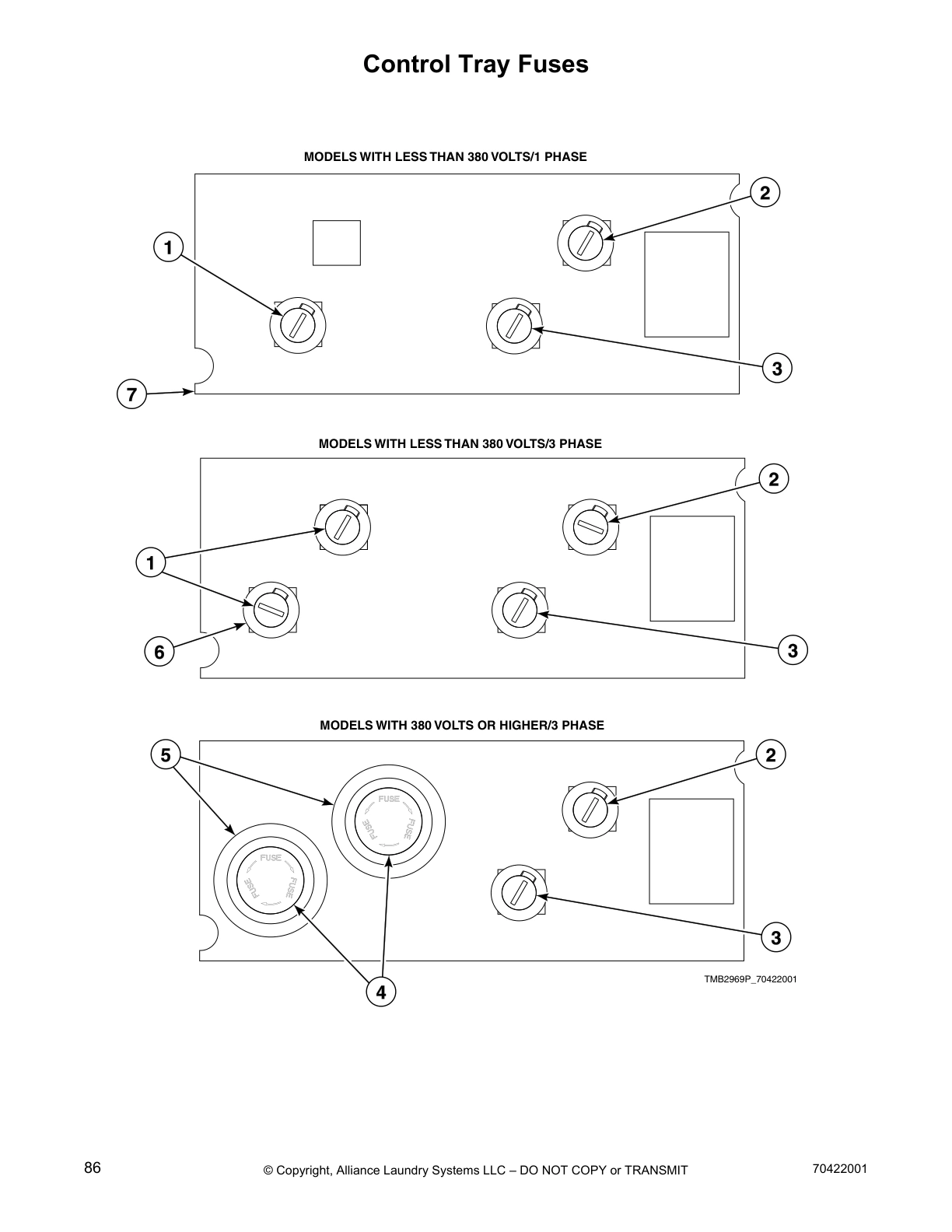

Control Tray Fuses

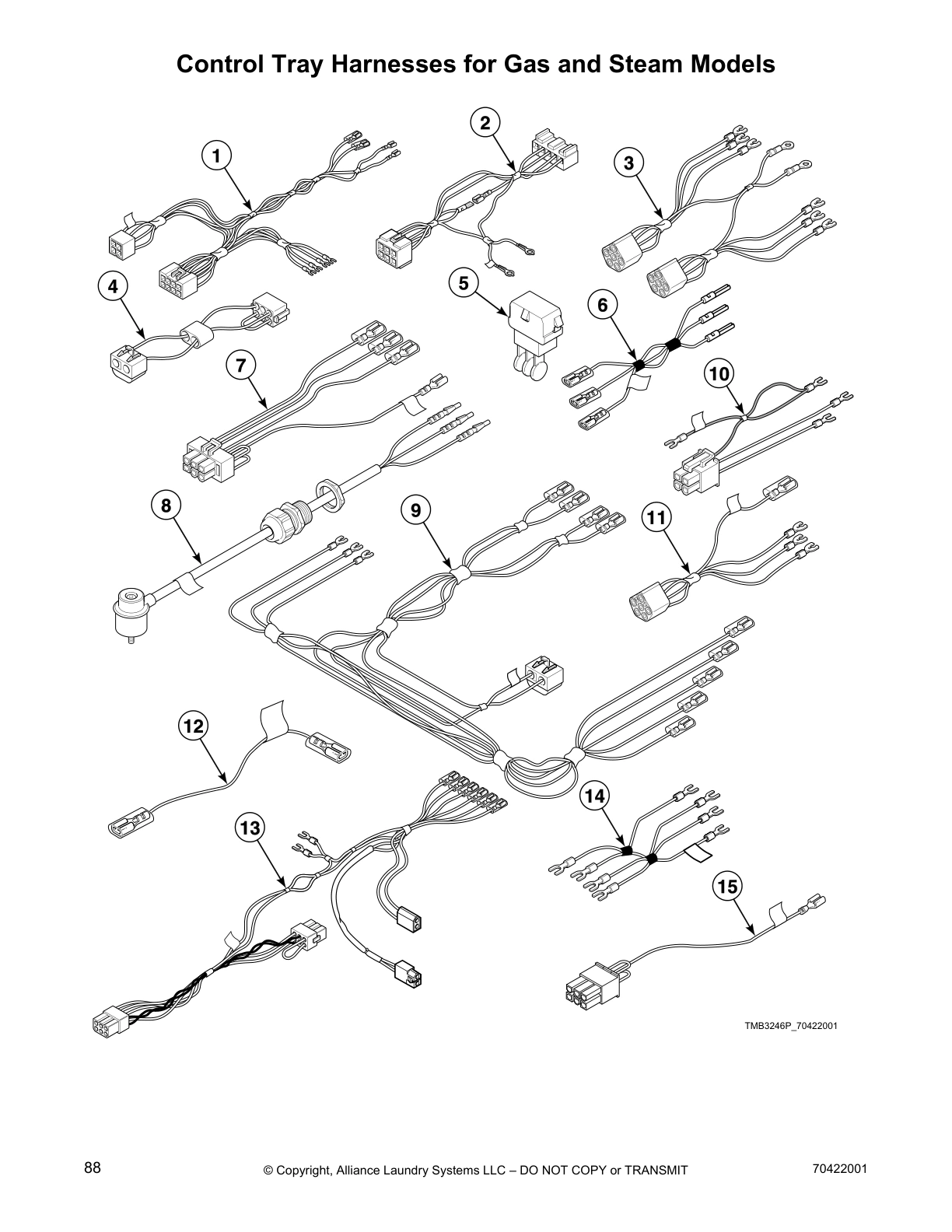

Control Tray Harnesses for Gas and Steam Models

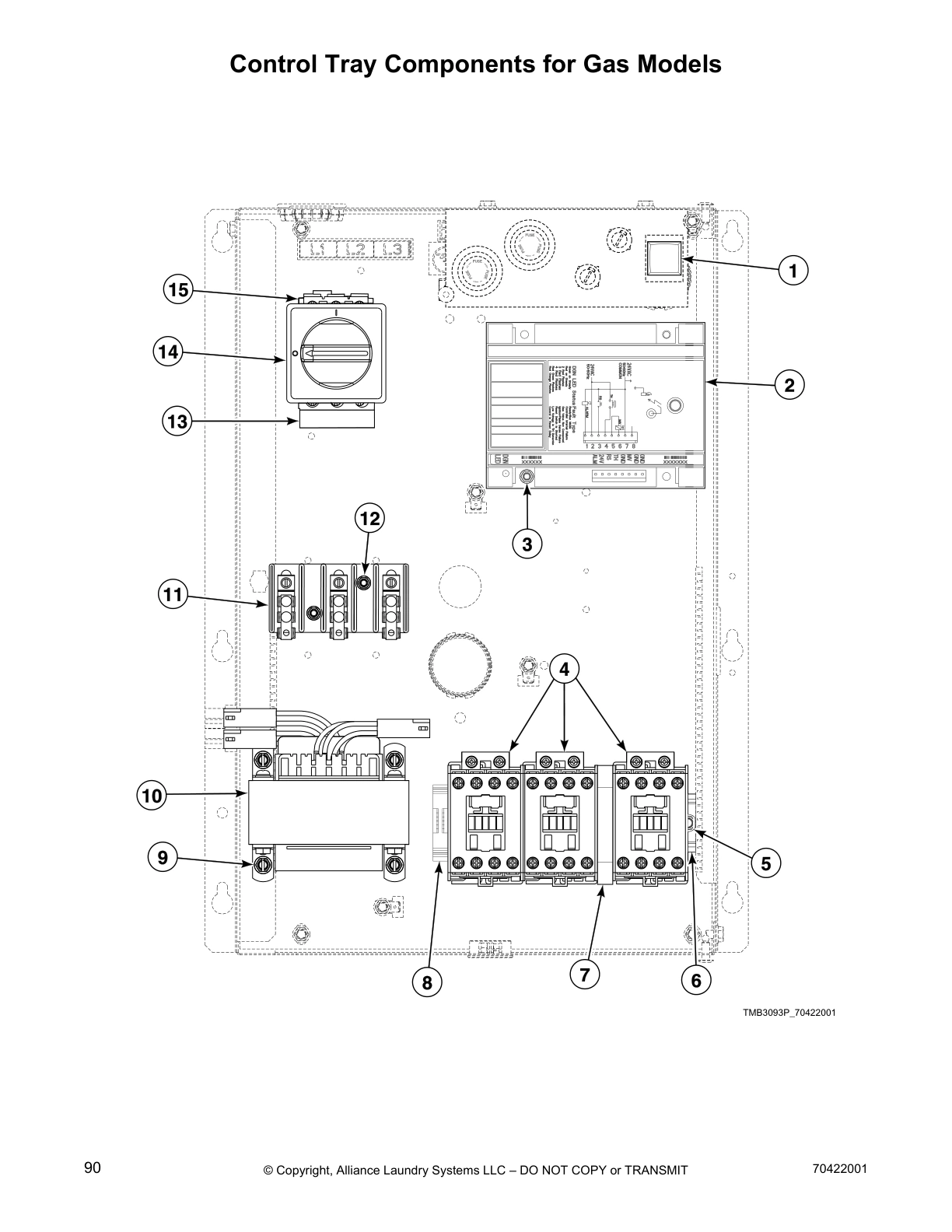

Control Tray Components for Gas Models

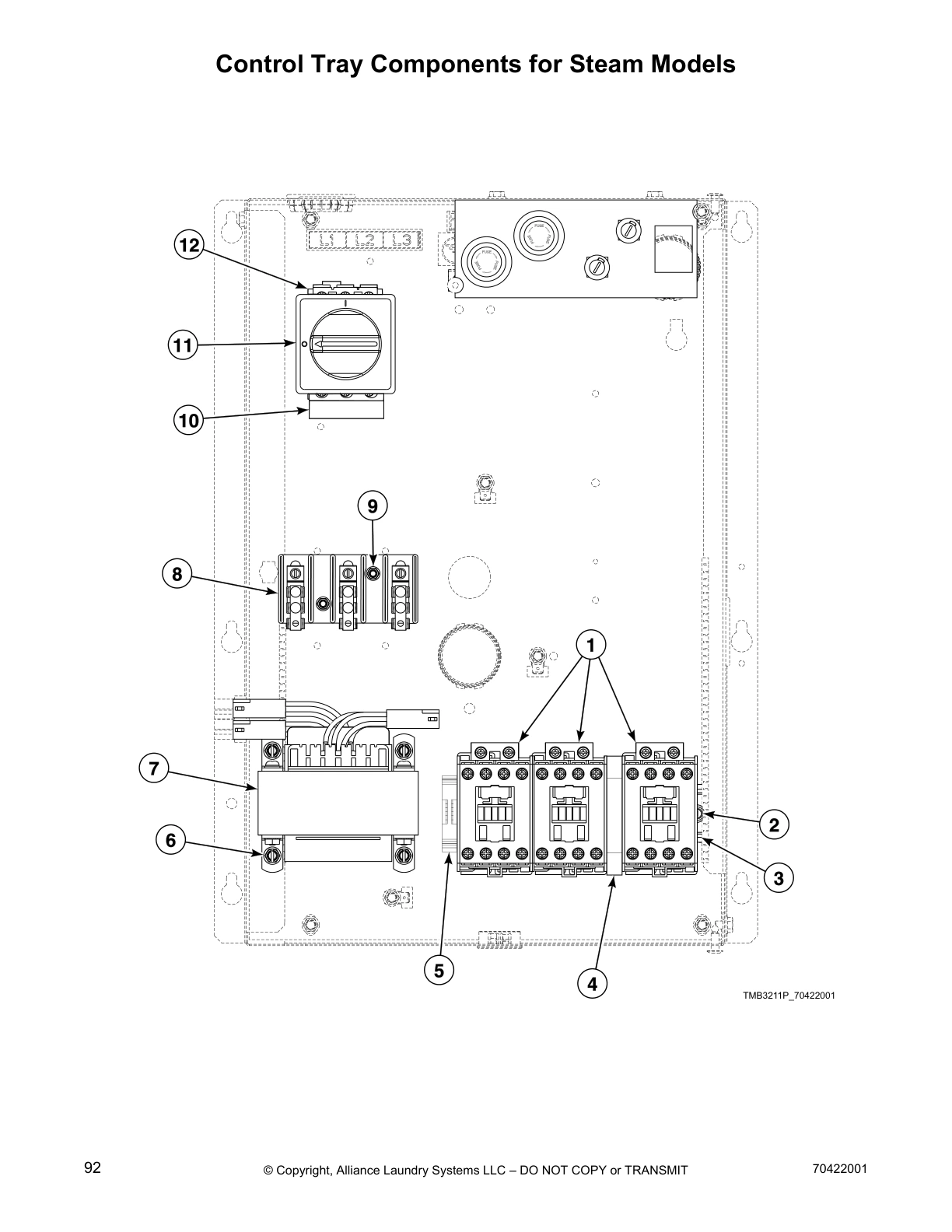

Control Tray Components for Steam Models

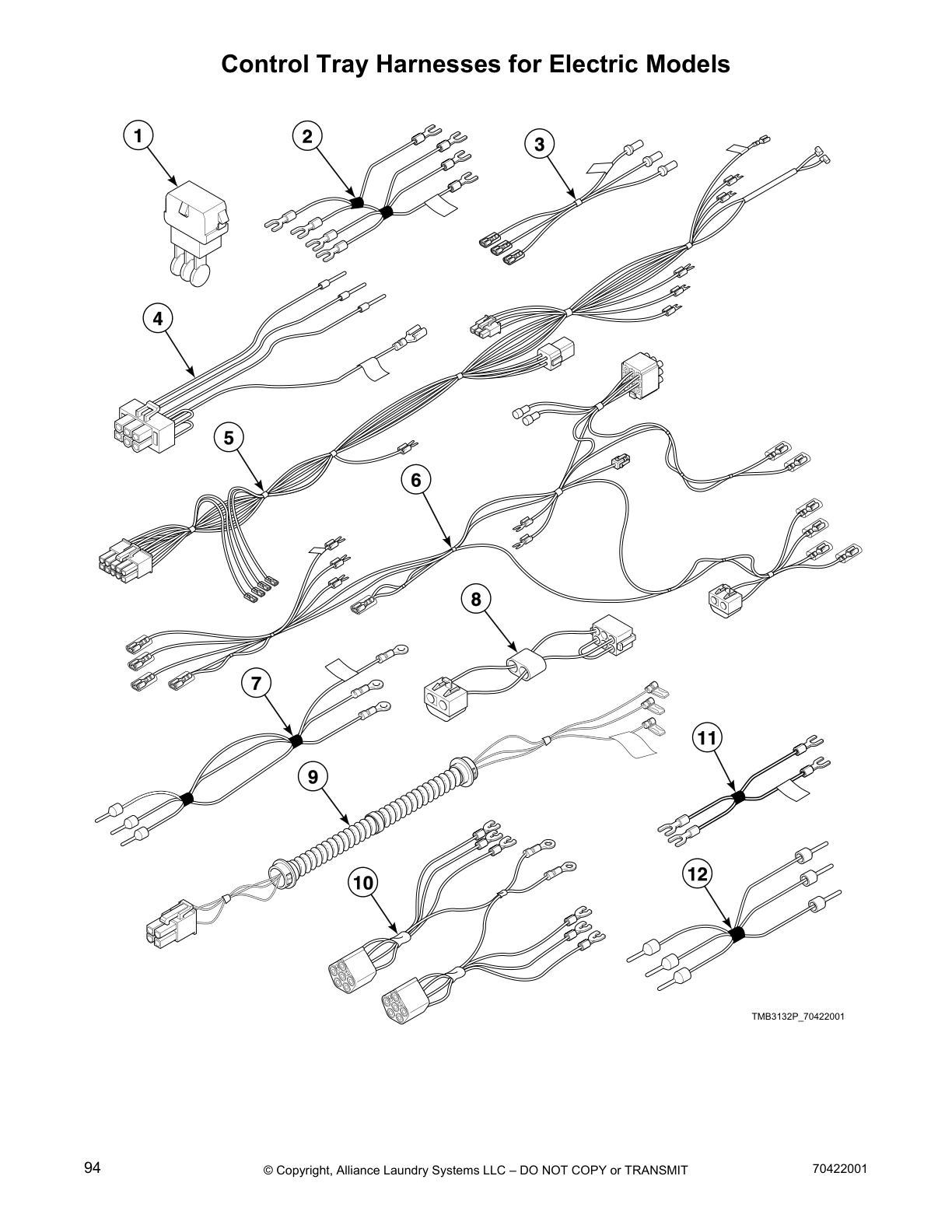

Control Tray Harnesses for Electric Models

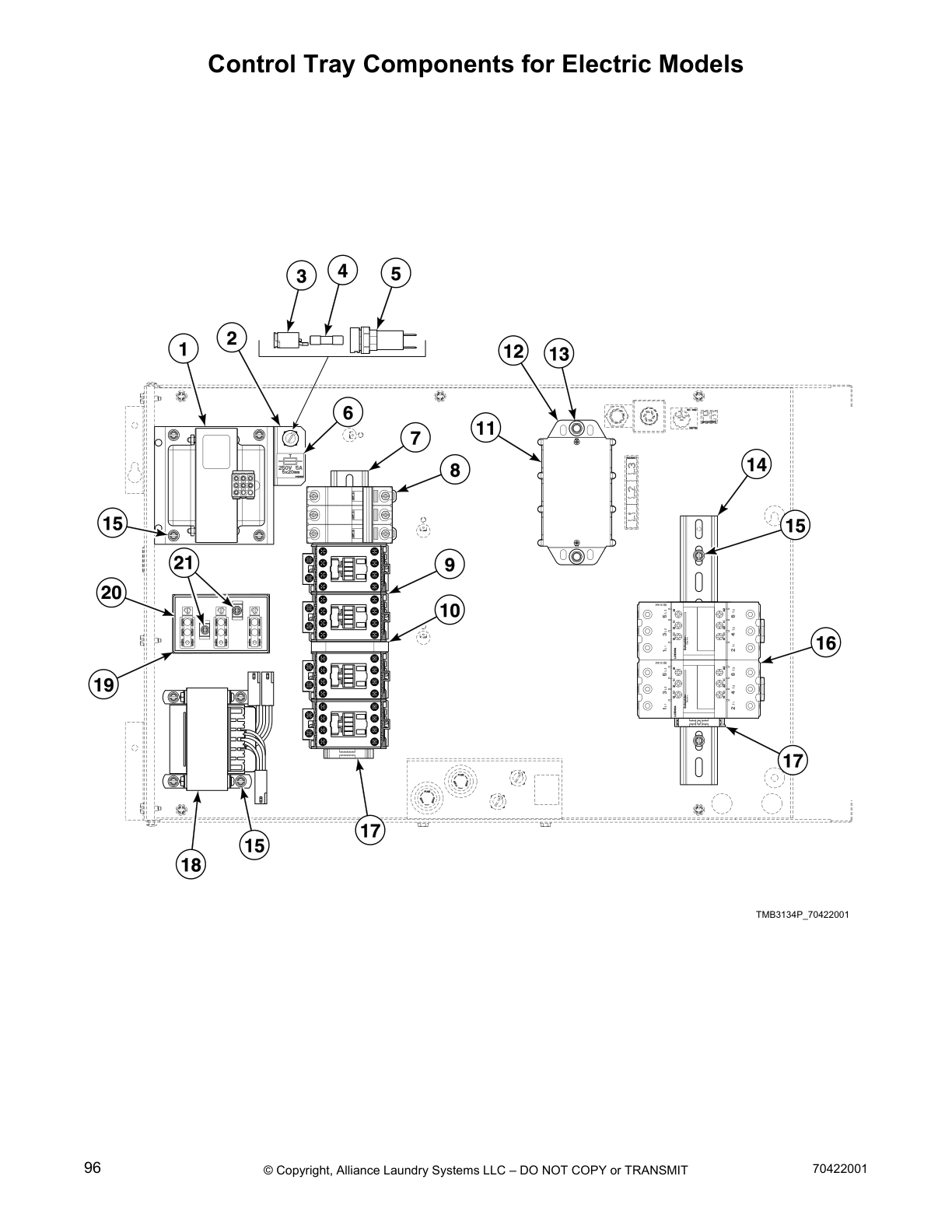

Control Tray Components for Electric Models
Common parts from model Huebsch YU170N Dryer
SPQ 44143401P SPQ 44143401P Contact Us For Availability
SPQ 44136301P SPQ 44136301P Contact Us For Availability
SPQ M413508 SPQ M413508 Contact Us For Availability
SPQ M414230P SPQ M414230P Contact Us For Availability
1
Fuse SPQ 70406701 Contact Us For Availability
1
Door Assembly SPQ 44029101 Contact Us For Availability
1
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
1
Cylinder Motor Harness SPQ 44162901 Contact Us For Availability
1
Rib Wire SPQ 44208101 Contact Us For Availability
1
Bushing SPQ M412917P Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Pop Rivet SPQ 70058502 Contact Us For Availability
1
Network Capacitor Assembly SPQ M413863 Contact Us For Availability
1
Junction Box Harness SPQ 44136701P Contact Us For Availability
2
Door Seal Kit SPQ 44008201P Contact Us For Availability
2
Motor SPQ H87529129P Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Fuse Holder SPQ 70406501 Contact Us For Availability
2
Reversing Contactor Jumper SPQ 44157401 Contact Us For Availability
2
Reversing Contactor Jumper Assembly SPQ 44136901 Contact Us For Availability
3
Fuse Holder Cap SPQ 70406601 Contact Us For Availability
3
Pop Rivet SPQ 430725 Contact Us For Availability
3
Screw SPQ 70442101 Contact Us For Availability
3
Roller Catch Mounting Bracket SPQ 44014001 Contact Us For Availability
3
Fuse Holder Body SPQ 51783 Contact Us For Availability
3
Screw SPQ 44159001 Contact Us For Availability
3
Reversing Contactor Jumper Assembly SPQ 44139501 Contact Us For Availability
4
Nut SPQ M400977 Contact Us For Availability
4
Hinge Cam Kit SPQ M400044 Contact Us For Availability
4
Roller Catch SPQ H87020202 Contact Us For Availability
4
Male Tab Terminal SPQ M400985 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
Gas Valve Harness SPQ H86000031 Contact Us For Availability
4
Burner SPQ 44087801 Contact Us For Availability
4
Ground Decal SPQ 00177 Contact Us For Availability
4
Ferrite Core Assembly SPQ 44136801 Contact Us For Availability
5
Screw SPQ M4772P3 Contact Us For Availability
5
SPQ 70261401 SPQ 70261401 Contact Us For Availability
5
SPQ 44162501 SPQ 44162501 Contact Us For Availability
5
Lint Panel Switch Cover SPQ 44026801 Contact Us For Availability
5
Spacer SPQ H88213996 Contact Us For Availability
5
SPQ 44157601 SPQ 44157601 Contact Us For Availability
5
SPQ H87529111P SPQ H87529111P Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
Mount Bracket SPQ F8223801 Contact Us For Availability
5
Fuse Bracket SPQ 44155601P Contact Us For Availability
5
Contactor SPQ 70329501 Contact Us For Availability
6
Door Glass Installation Tool SPQ 70211902P Contact Us For Availability
6
SPQ M400770 SPQ M400770 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ 70033504 Contact Us For Availability
6
Nut SPQ 70030401 Contact Us For Availability
6
Switch Assembly SPQ 70413401 Contact Us For Availability
6
Transformer SPQ M411072 Contact Us For Availability
6
SPQ M411165 SPQ M411165 Contact Us For Availability
6
SPQ 44053001P SPQ 44053001P Contact Us For Availability
6
Nut SPQ M400035 Contact Us For Availability
6
SPQ H8900530H SPQ H8900530H Contact Us For Availability
6
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
6
Jumper Harness Assembly SPQ 44136601P Contact Us For Availability
7
Pop Rivet SPQ 44035001 Contact Us For Availability
7
Screw SPQ 70182601 Contact Us For Availability
7
Pop Rivet SPQ 44008401P Contact Us For Availability
7
Lint Panel Switch Bracket SPQ 44013401 Contact Us For Availability
7
Bolt SPQ M412334 Contact Us For Availability
7
SPQ 44048301P SPQ 44048301P Contact Us For Availability
7
SPQ 44052901P SPQ 44052901P Contact Us For Availability
7
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
7
Network Capacitor Assembly SPQ 44186901 Contact Us For Availability
8
SPQ 02788 SPQ 02788 Contact Us For Availability
8
Nameplate Overlay SPQ 44104501 Contact Us For Availability
8
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
8
SPQ H88412101 SPQ H88412101 Contact Us For Availability
8
SPQ H88301411 SPQ H88301411 Contact Us For Availability
8
SPQ H96428008 SPQ H96428008 Contact Us For Availability
8
Moisture Sensor Harness Assembl SPQ 44209201 Contact Us For Availability
8
SPQ M413795 SPQ M413795 Contact Us For Availability
8
SPQ F230739 SPQ F230739 Contact Us For Availability
8
Jumper Configuration Assembly SPQ M413930P Contact Us For Availability
9
SPQ M405535 SPQ M405535 Contact Us For Availability
9
SPQ M401402 SPQ M401402 Contact Us For Availability
9
SPQ 44048501 SPQ 44048501 Contact Us For Availability
9
SPQ H96357751 SPQ H96357751 Contact Us For Availability
9
SPQ F430909 SPQ F430909 Contact Us For Availability
9
SPQ 70329401P SPQ 70329401P Contact Us For Availability
9
Gas Disconnect Harness SPQ 44139901P Contact Us For Availability
10
Transformer SPQ M414312P Contact Us For Availability
10
Control Mounting Bracket SPQ 44099501W Contact Us For Availability
10
Door Switch Cover SPQ 44001301 Contact Us For Availability
10
Guard Extension SPQ 44222501 Contact Us For Availability
10
Screw SPQ H88012034 Contact Us For Availability
10
Stove Gasket SPQ M411505 Contact Us For Availability
10
Reversing Contactor Harness SPQ 44139601P Contact Us For Availability
10
Motor Contactor Harness SPQ 44142601P Contact Us For Availability
10
Interlock Contactor SPQ F330186P Contact Us For Availability
10
Finger Guard SPQ M412366 Contact Us For Availability
11
Lint Panel Clip SPQ 44017801 Contact Us For Availability
11
Bushing SPQ M400015 Contact Us For Availability
11
Ball Bearing SPQ H88603477 Contact Us For Availability
11
Manifold End Bracket SPQ 44173801 Contact Us For Availability
11
Gas Valve Bracket SPQ 44117501 Contact Us For Availability
11
Motor Contactor Harness SPQ 44137001P Contact Us For Availability
11
Handle SPQ M412208 Contact Us For Availability
12
Spacer SPQ 431264 Contact Us For Availability
12
Nut SPQ M414215 Contact Us For Availability
12
Bolt SPQ 44017901 Contact Us For Availability
12
Belt SPQ H87672374 Contact Us For Availability
12
Pipe Nipple SPQ 70435601 Contact Us For Availability
12
Fuse Cover SPQ 70313301 Contact Us For Availability
12
Contactor Box Base SPQ 44133701 Contact Us For Availability
12
Mounting Switch Base SPQ M412187P Contact Us For Availability
13
Thermostat Cover SPQ M414477 Contact Us For Availability
13
Nipple SPQ M403934 Contact Us For Availability
13
Ground Lug Connector SPQ M411283 Contact Us For Availability
14
Belt Set SPQ M4696P3 Contact Us For Availability
14
Pop Rivet SPQ 70126301 Contact Us For Availability
14
Elbow SPQ 70079601 Contact Us For Availability
14
Nut SPQ F430232 Contact Us For Availability
14
Reversing Contactor Jumper Wire SPQ 44136401 Contact Us For Availability
15
High Temperature Ignition Lead SPQ 44061602P Contact Us For Availability
15
Washer SPQ 44166601 Contact Us For Availability
15
Screw SPQ M400661 Contact Us For Availability
15
Bushing SPQ M414367 Contact Us For Availability
15
Expansion Clip SPQ 44071501 Contact Us For Availability
15
Screw SPQ F8206901 Contact Us For Availability
15
Snap Bushing SPQ M405340 Contact Us For Availability
16
Emergency Stop Harness SPQ 70324604 Contact Us For Availability
16
Nut SPQ M401223 Contact Us For Availability
16
Sheave SPQ 44242601 Contact Us For Availability
16
Pipe Bracket SPQ M411498 Contact Us For Availability
17
Bushing SPQ H96428487 Contact Us For Availability
17
Screw SPQ H87520334 Contact Us For Availability
17
Pipe Cap SPQ 44165901 Contact Us For Availability
17
Pipe Union SPQ M411419 Contact Us For Availability
17
End Stop SPQ 70121001 Contact Us For Availability
18
Bushing SPQ 44051301 Contact Us For Availability
18
Sheave SPQ M400063 Contact Us For Availability
18
Rod End SPQ H8752985HP Contact Us For Availability
18
Thermostat SPQ H8752006H Contact Us For Availability
18
Thermostat Cover SPQ H85101673 Contact Us For Availability
18
Contactor Box Side SPQ 44175801 Contact Us For Availability
18
Transformer SPQ M414229P Contact Us For Availability
19
Washer SPQ 70364106P Contact Us For Availability
19
Screw SPQ H8752251H Contact Us For Availability
19
Fuse Cover SPQ 44158901 Contact Us For Availability
20
Plug SPQ 70178701 Contact Us For Availability
20
Nut SPQ M413171 Contact Us For Availability
20
Terminal Block SPQ M414228P Contact Us For Availability
21
Fuse Holder Cap SPQ 430642 Contact Us For Availability
21
Emergency Stop Pushbutton SPQ 44012901 Contact Us For Availability
21
Snap Bushing SPQ 44117401 Contact Us For Availability
21
Hole Plug SPQ 44134002 Contact Us For Availability
22
Expansion Clip SPQ F200233500 Contact Us For Availability
22
SPQ M411593 SPQ M411593 Contact Us For Availability
22
SPQ H96428693 SPQ H96428693 Contact Us For Availability
22
Gas Valve SPQ H85101608 Contact Us For Availability
23
SPQ M411537 SPQ M411537 Contact Us For Availability
23
SPQ 22688 SPQ 22688 Contact Us For Availability
23
Pipe Union SPQ F421107 Contact Us For Availability
24
Thermostat SPQ 44117901 Contact Us For Availability
26
Union SPQ 44178302P Contact Us For Availability
27
Stove Limit Harness Bracket SPQ 44178301P Contact Us For Availability
28
Burner SPQ 901403 Contact Us For Availability
29
SPQ M400013 SPQ M400013 Contact Us For Availability
30
SPQ 70142 SPQ 70142 Contact Us For Availability
30
Spark Electrode SPQ M413988 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 370P4P SPQ 370P4P Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
Airflow Switch Kit SPQ 70429601P Contact Us For Availability
NI
SPQ M4904P3 SPQ M4904P3 Contact Us For Availability
NI
SPQ 44199101 SPQ 44199101 Contact Us For Availability
NI
SPQ M414276 SPQ M414276 Contact Us For Availability
NI
SPQ 70313602 SPQ 70313602 Contact Us For Availability
NI
SPQ 70306901 SPQ 70306901 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413510 Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
SPQ 70342101 SPQ 70342101 Contact Us For Availability
NI
SPQ 44139801P SPQ 44139801P Contact Us For Availability
NI
SPQ 44136201P SPQ 44136201P Contact Us For Availability
NI
SPQ 44074401 SPQ 44074401 Contact Us For Availability
× ![]()
