Model Maytag YNED5800DW1 LAUNDRY, ELECTRIC DRYER – Common Parts & Diagrams

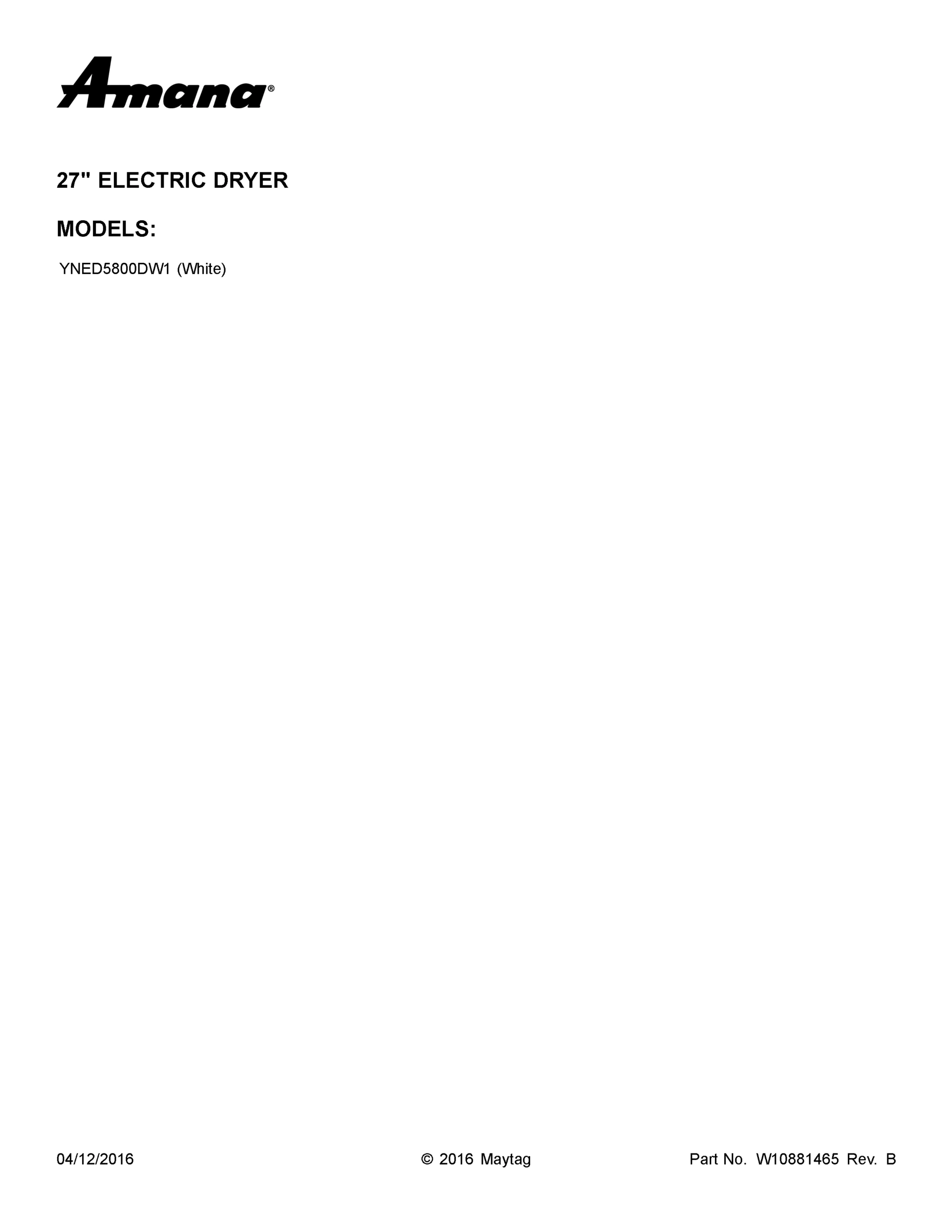

01 - COVER SHEET

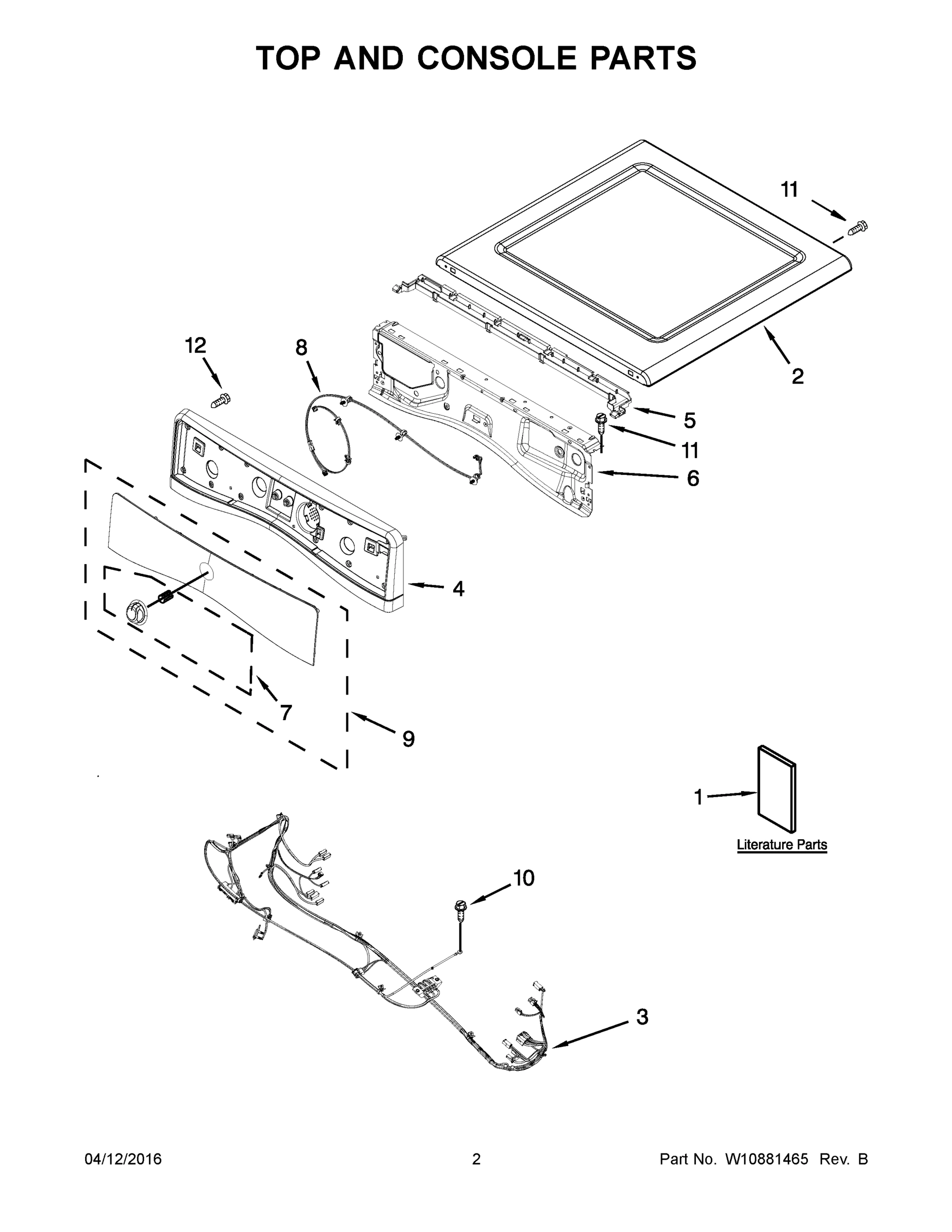

02 - TOP AND CONSOLE PARTS
03 - CABINET PARTS
04 - BULKHEAD PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YNED5800DW1 LAUNDRY, ELECTRIC DRYER
1
MAY W10573715 MAY W10573715 Contact Us For Availability
1
MAY W10316167 MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER - RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
MAY W10811034 MAY W10811034 Contact Us For Availability
1A
MAY W10806847 MAY W10806847 Contact Us For Availability
1B
MAY W10775221 MAY W10775221 Contact Us For Availability
1C
MAY W10804381 MAY W10804381 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
MAY W10504381 MAY W10504381 Contact Us For Availability
2
MAY W10208415 MAY W10208415 Contact Us For Availability
3
MAY W10637539 MAY W10637539 Contact Us For Availability
3
MAY W10672683 MAY W10672683 Contact Us For Availability
3
MAY W10208398 MAY W10208398 Contact Us For Availability
4
MAY W10391519 MAY W10391519 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
SCREW MAY 9742177 Contact Us For Availability
5
MAY W10636058 MAY W10636058 Contact Us For Availability
5
MAY W10259611 MAY W10259611 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY W10208252 MAY W10208252 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
SCREW MAY 3357011 Contact Us For Availability
6
MAY W10211950 MAY W10211950 Contact Us For Availability
6
MAY W10772469 MAY W10772469 Contact Us For Availability
7
MAY W10652617 MAY W10652617 Contact Us For Availability
7
MAY W10468495 MAY W10468495 Contact Us For Availability
7
MAY W10521118 MAY W10521118 Contact Us For Availability
7
MAY W10823368 MAY W10823368 Contact Us For Availability
8
MAY W10540654 MAY W10540654 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10208419 MAY W10208419 Contact Us For Availability
9
IML ASSEMBLY (WHITE) MAY W10750349 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
MAY W10211901 MAY W10211901 Contact Us For Availability
9
MAY W10772482 MAY W10772482 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
MAY W10794806 MAY W10794806 Contact Us For Availability
10
MAY W10267837 MAY W10267837 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY 8544776 MAY 8544776 Contact Us For Availability
12
MAY W10489172 MAY W10489172 Contact Us For Availability
12
PLUG, MULTIVENT (WHITE) MAY W10404617 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
MAY W10208254 MAY W10208254 Contact Us For Availability
13
FRONT PANEL (INCLUDES DOOR HINGE BRACKET) (WH MAY W10363953 Contact Us For Availability
13
MAY W10414388 MAY W10414388 Contact Us For Availability
13
MAY W10329710 MAY W10329710 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY W10836011 MAY W10836011 Contact Us For Availability
14
MAY W10208414 MAY W10208414 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
15
MAY W10208401 MAY W10208401 Contact Us For Availability
16
MAY 8533974 MAY 8533974 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY 3387809 MAY 3387809 Contact Us For Availability
18
MAY W10712173 MAY W10712173 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10350906 MAY W10350906 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY 694415 MAY 694415 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10354249 MAY W10354249 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10208218 MAY W10208218 Contact Us For Availability
22
MAY W10342188 MAY W10342188 Contact Us For Availability
23
MAY W10208250 MAY W10208250 Contact Us For Availability
23
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
24
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
25
MAY 3387242 MAY 3387242 Contact Us For Availability
25
MAY W10508188 MAY W10508188 Contact Us For Availability
26
SCREW MAY 343641 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10806758 MAY W10806758 Contact Us For Availability
27
MAY W10521122 MAY W10521122 Contact Us For Availability
28
MAY 8565046 MAY 8565046 Contact Us For Availability
28
MAY 8066099 MAY 8066099 Contact Us For Availability
29
SCREW MAY 693995 Contact Us For Availability
29
PULLEY, MOTOR MAY 8066184 Contact Us For Availability
30
MAY 3387610 MAY 3387610 Contact Us For Availability
30
MAY 8544770 MAY 8544770 Contact Us For Availability
31
MAY W10487431 MAY W10487431 Contact Us For Availability
31
THERMISTOR MAY 8577274 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY W10693363 MAY W10693363 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
33
MAY 8529007 MAY 8529007 Contact Us For Availability
34
MAY W10416072 MAY W10416072 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10208382 MAY W10208382 Contact Us For Availability
35
MAY W10726027 MAY W10726027 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY W10672680 MAY W10672680 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
37
MAY W10211915 MAY W10211915 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
MAY W10672681 MAY W10672681 Contact Us For Availability
39
ASSEMBLY, IDLER MAY W10547287 Contact Us For Availability
39
MAY W10672682 MAY W10672682 Contact Us For Availability
40
MAY W10654006 MAY W10654006 Contact Us For Availability
40
MAY W10211899 MAY W10211899 Contact Us For Availability
41
MAY W10468057 MAY W10468057 Contact Us For Availability
41
MAY W10416098 MAY W10416098 Contact Us For Availability
42
MAY 8557403 MAY 8557403 Contact Us For Availability
43
MAY W10673493 MAY W10673493 Contact Us For Availability
44
MAY W10211911 MAY W10211911 Contact Us For Availability
45
MAY W10211896 MAY W10211896 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
FOOT, OPTIONAL (EXTENDED LENGTH PACKAGE OF 2) MAY 279810 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DRYER REPAIR MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MAY PT220L MAY PT220L Contact Us For Availability
NI
MAY PT400L MAY PT400L Contact Us For Availability
NI
MAY PT600L MAY PT600L Contact Us For Availability
NI
MAY W10298318 MAY W10298318 Contact Us For Availability
NI
MAY W10322470A MAY W10322470A Contact Us For Availability
NI
MAY W10446202 MAY W10446202 Contact Us For Availability
× ![]()
