Model Maytag YNED5200TQ0 ELECTRIC DRYER – Common Parts & Diagrams

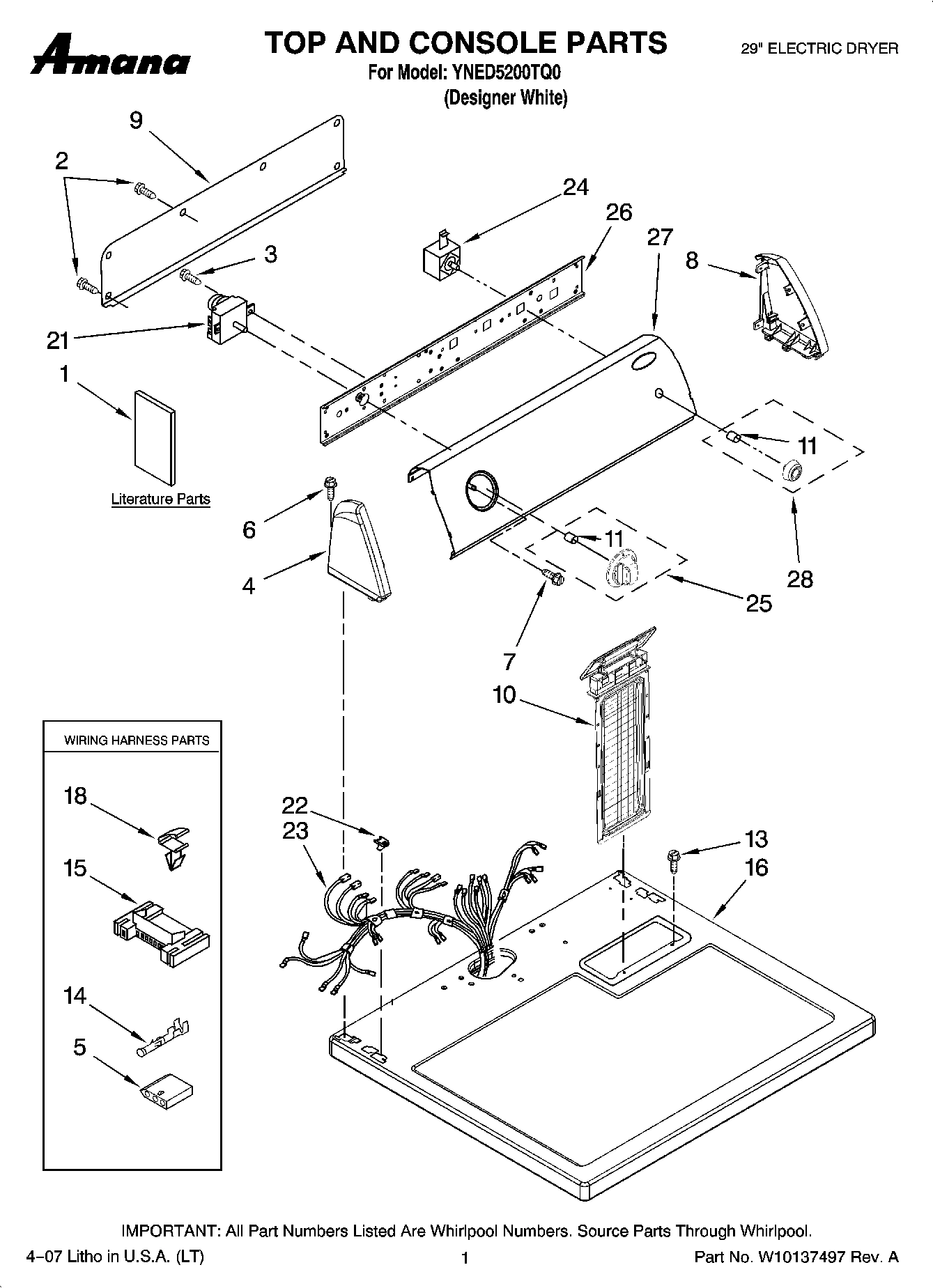

01 - TOP AND CONSOLE PARTS

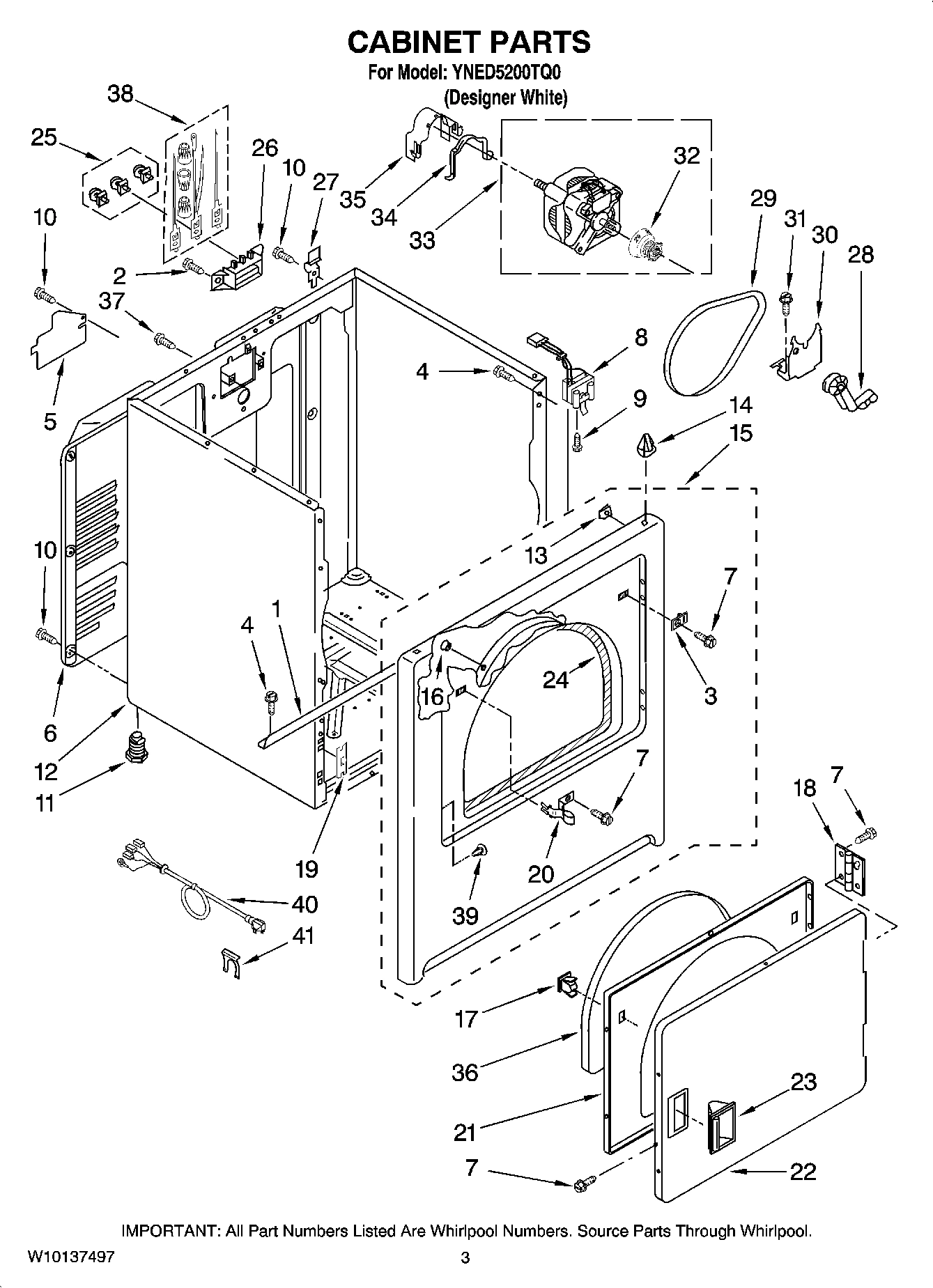

02 - CABINET PARTS
03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YNED5200TQ0 ELECTRIC DRYER
MAY 279948 MAY 279948 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
Dry Rack MAY 689790 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
1
MAY 8528188 MAY 8528188 Contact Us For Availability
1
MAY W10088771 MAY W10088771 Contact Us For Availability
1
Installation Instructions MAY W10088970 Contact Us For Availability
1
MAY W10089173 MAY W10089173 Contact Us For Availability
1
MAY 8541400 MAY 8541400 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
2
MAY 489463 MAY 489463 Contact Us For Availability
3
MAY 8533971 MAY 8533971 Contact Us For Availability
3
PLUG-STRIKE MAY 3403630 Contact Us For Availability
3
MAY 8066086 MAY 8066086 Contact Us For Availability
4
MAY 8271365 MAY 8271365 Contact Us For Availability
4
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
5
MAY 3936144 MAY 3936144 Contact Us For Availability
5
Cover, Terminal Block MAY 3394202 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
Screw, Console MAY 388326 Contact Us For Availability
6
MAY 3396805 MAY 3396805 Contact Us For Availability
6
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
7
MAY 8533951 MAY 8533951 Contact Us For Availability
7
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
7
MAY 347139 MAY 347139 Contact Us For Availability
8
MAY 8271359 MAY 8271359 Contact Us For Availability
8
MAY 3406109 MAY 3406109 Contact Us For Availability
8
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
9
MAY 8274261 MAY 8274261 Contact Us For Availability
9
MAY 697773 MAY 697773 Contact Us For Availability
10
Screw, Hex Washer Head MAY 693995 Contact Us For Availability
10
Screen, Lint MAY 8558463 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
Foot, Dryer (4) MAY 3392100 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
Cabinet (Includes Illus. 1) MAY 8530603 Contact Us For Availability
12
MAY 8066155 MAY 8066155 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
Clip, Ground MAY 98234 Contact Us For Availability
14
Terminal MAY 94614 Contact Us For Availability
14
MAY 690363 MAY 690363 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
MAY 3403444 MAY 3403444 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY 8557930 MAY 8557930 Contact Us For Availability
16
Clip, Felt Pad MAY 685203 Contact Us For Availability
16
MAY 3403636 MAY 3403636 Contact Us For Availability
17
Catch, Door MAY 3389441 Contact Us For Availability
17
MAY 3403590 MAY 3403590 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
Hinge and Pin Assembly (2) MAY 3405514 Contact Us For Availability
18
Wire Kit (For Heater Element Wiring Harness R MAY 279457 Contact Us For Availability
19
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
19
MAY 3392519 MAY 3392519 Contact Us For Availability
20
Strike, Door MAY 3403431 Contact Us For Availability
20
Thermostat, 150 F (66C) MAY 3387134 Contact Us For Availability
21
MAY 8299774 MAY 8299774 Contact Us For Availability
21
Door, Rear MAY 3402341 Contact Us For Availability
21
MAY 690997 MAY 690997 Contact Us For Availability
22
Nut-Push-In (2) MAY 357213 Contact Us For Availability
22
DOOR FRONT MAY 3402335 Contact Us For Availability
22
MAY 3399506 MAY 3399506 Contact Us For Availability
23
MAY 8299868 MAY 8299868 Contact Us For Availability
23
MAY 3405184 MAY 3405184 Contact Us For Availability
23
MAY 3399507 MAY 3399507 Contact Us For Availability
24
MAY 3977456 MAY 3977456 Contact Us For Availability
24
MAY 3406129 MAY 3406129 Contact Us For Availability
24
MAY 3397590 MAY 3397590 Contact Us For Availability
25
Timer Knob Assembly MAY W10110048 Contact Us For Availability
25
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
25
MAY 348197 MAY 348197 Contact Us For Availability
26
MAY 8271418 MAY 8271418 Contact Us For Availability
26
MAY 3397659 MAY 3397659 Contact Us For Availability
26
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
27
MAY W10086674 MAY W10086674 Contact Us For Availability
27
MAY 8066217 MAY 8066217 Contact Us For Availability
27
MAY 3403491 MAY 3403491 Contact Us For Availability
28
MAY W10110049 MAY W10110049 Contact Us For Availability
28
MAY 691366 MAY 691366 Contact Us For Availability
28
MAY 692526 MAY 692526 Contact Us For Availability
29
MAY W10131364 MAY W10131364 Contact Us For Availability
29
MAY W10109200 MAY W10109200 Contact Us For Availability
30
MAY 348780 MAY 348780 Contact Us For Availability
30
MAY 3406130 MAY 3406130 Contact Us For Availability
31
MAY 3400500 MAY 3400500 Contact Us For Availability
31
MAY 695587 MAY 695587 Contact Us For Availability
32
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
32
Baffle, Drum MAY 692490 Contact Us For Availability
33
MAY 8066206 MAY 8066206 Contact Us For Availability
33
MAY 3976434 MAY 3976434 Contact Us For Availability
34
MAY 660658 MAY 660658 Contact Us For Availability
34
MAY 90296 MAY 90296 Contact Us For Availability
35
MAY 3404162 MAY 3404162 Contact Us For Availability
35
MAY 339956 MAY 339956 Contact Us For Availability
36
MAY 3405246 MAY 3405246 Contact Us For Availability
36
MAY 696302 MAY 696302 Contact Us For Availability
37
MAY 697776 MAY 697776 Contact Us For Availability
38
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
39
PLUG, HOLE MAY 3404413 Contact Us For Availability
40
Power Cord MAY 3394208 Contact Us For Availability
41
STRAIN-RELIEF MAY 694415 Contact Us For Availability
× ![]()
