Model Whirlpool YMT4140SKQ0 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams
04 - LATCH BOARD PARTS
06 - BASE PLATE PARTS

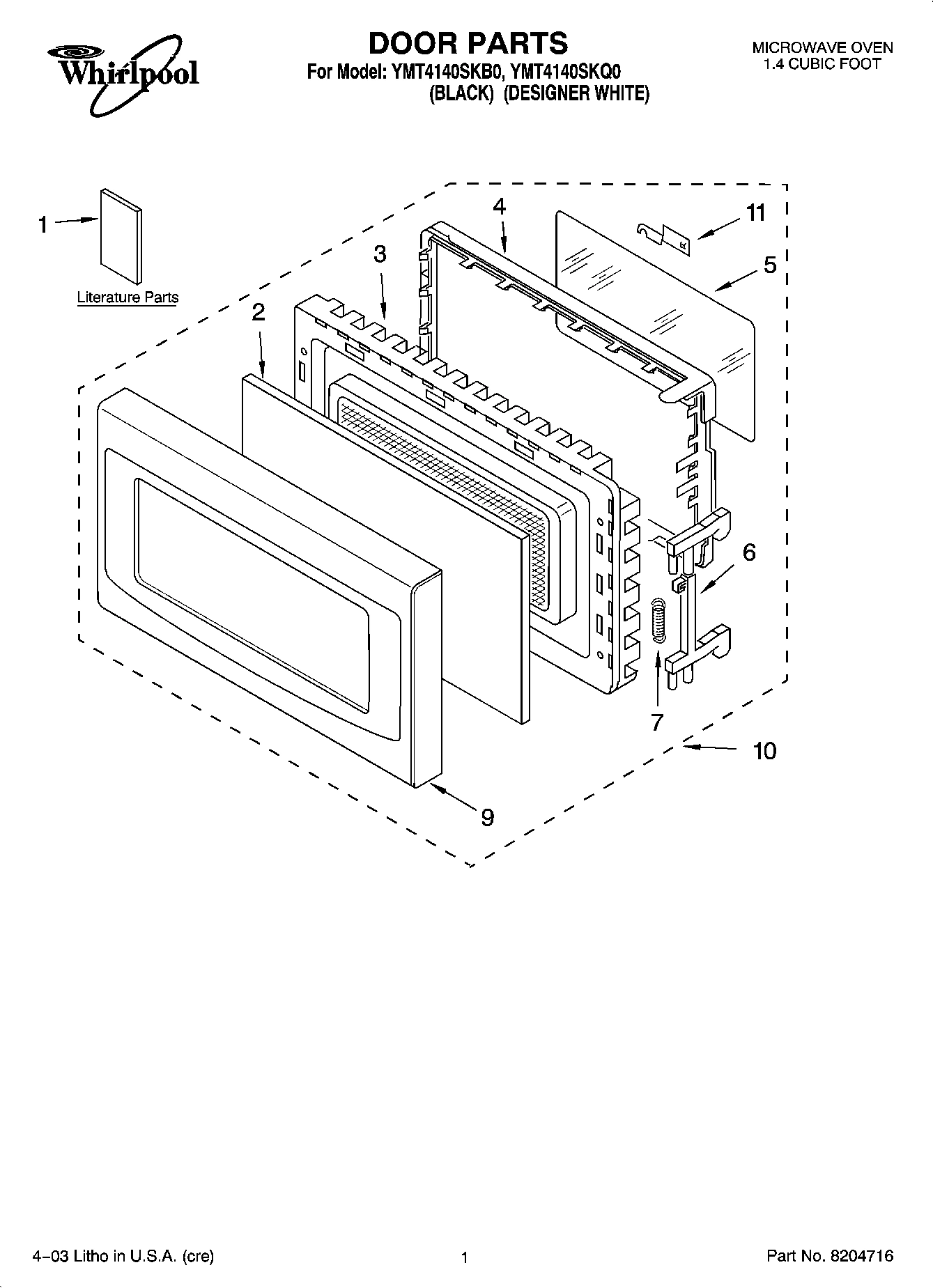

01 - DOOR PARTS

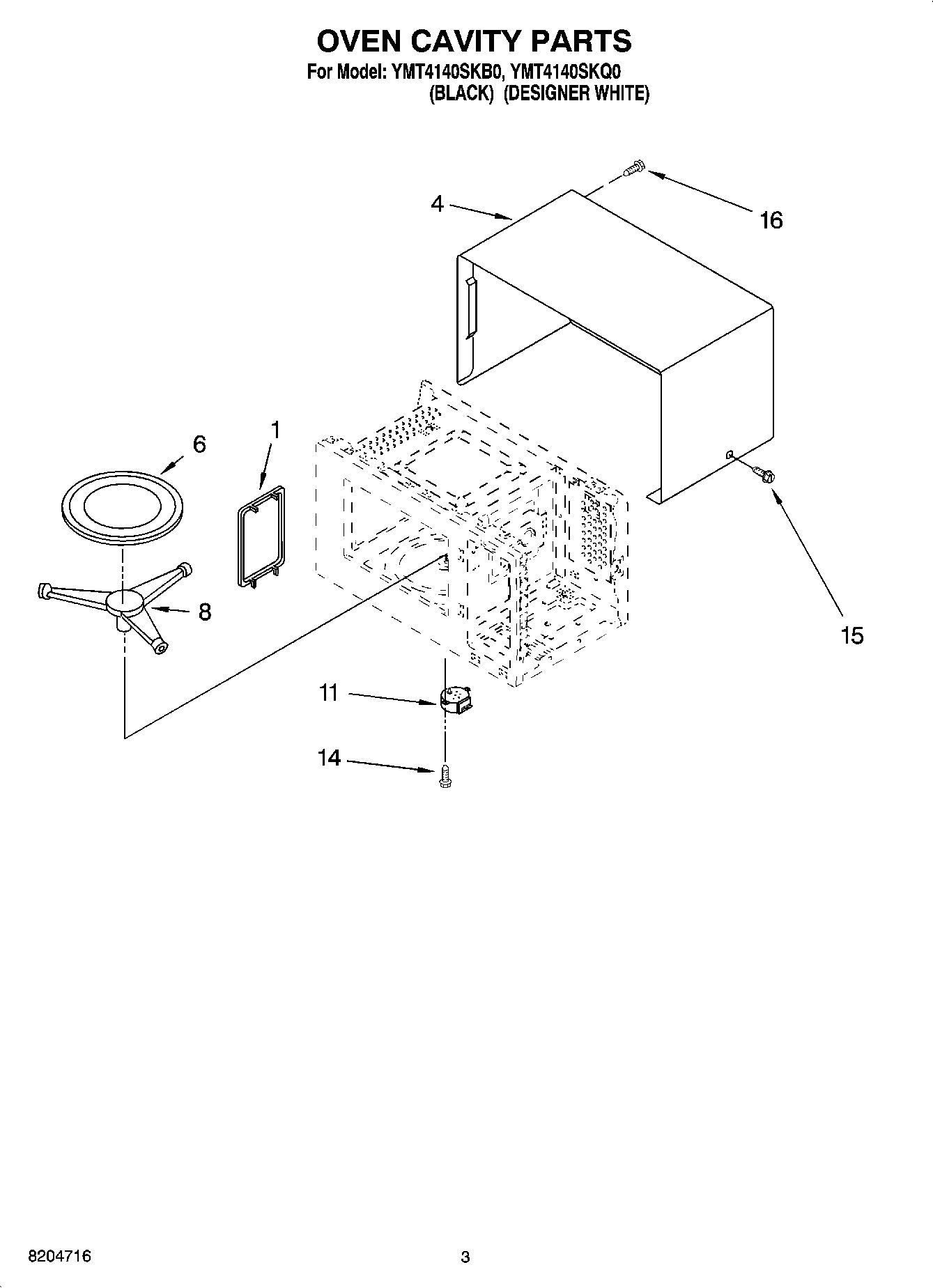

03 - OVEN CAVITY PARTS

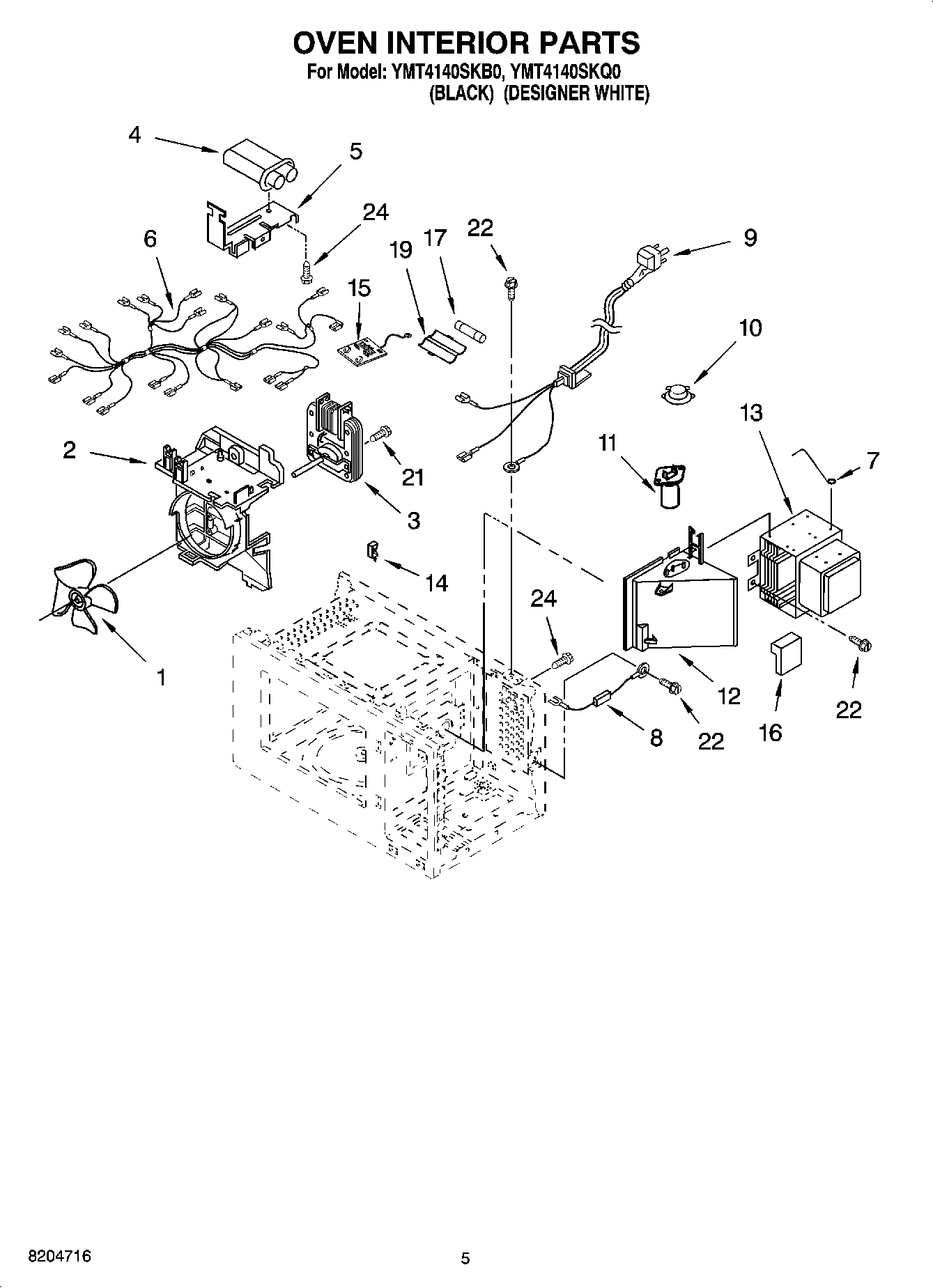

05 - OVEN INTERIOR PARTS

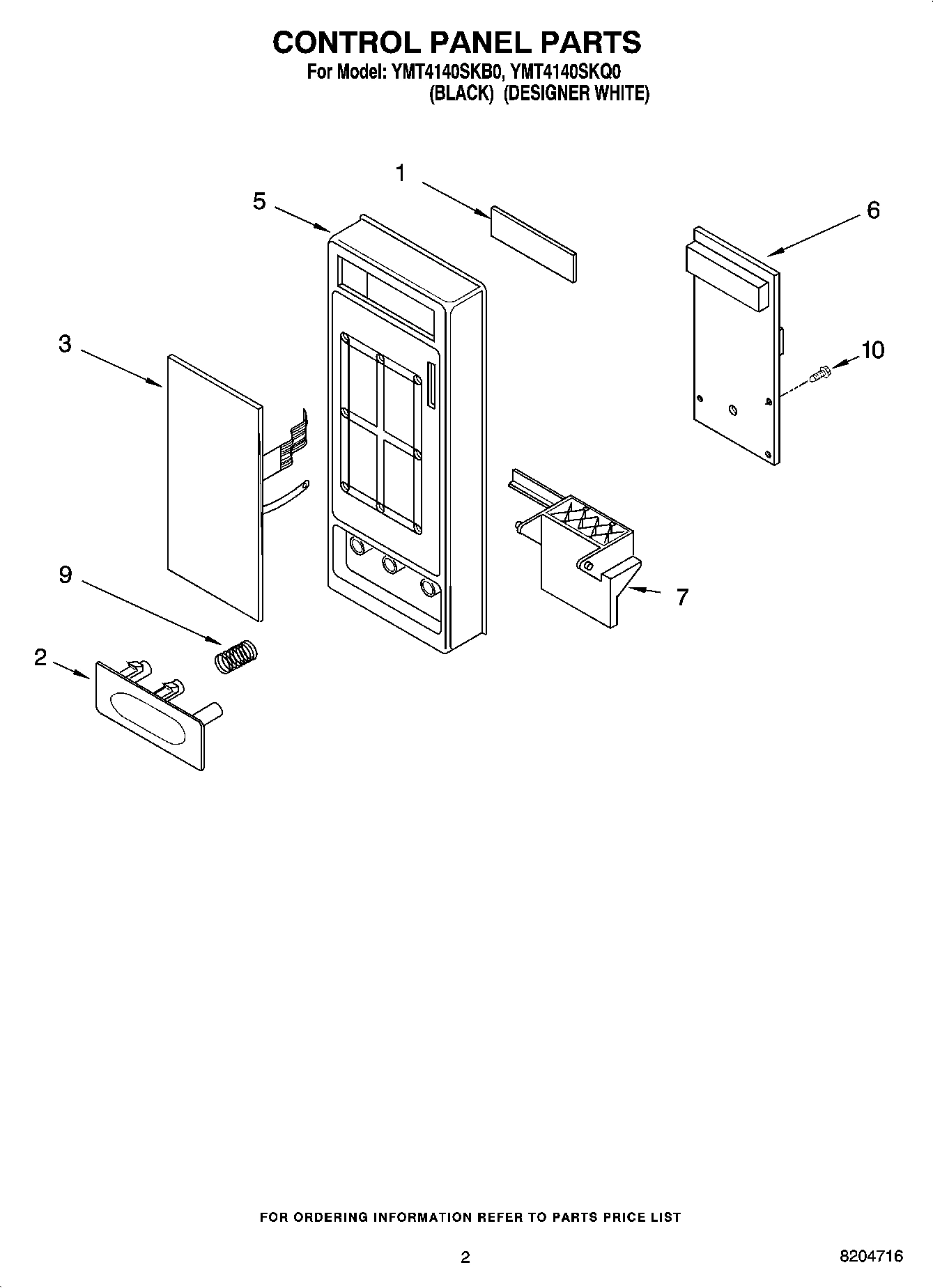

02 - CONTROL PANEL PARTS
Common parts from model Whirlpool YMT4140SKQ0 MICROWAVE OVEN 1.4 CUBIC FOOT
Trim Kits (24`` Black) WPL MK1134XHB Contact Us For Availability
Trim Kits (24`` White) WPL MK1134XHQ Contact Us For Availability
Trim Kits (24`` BISCUIT) WPL MK1134XHT Contact Us For Availability
Trim Kits (27`` Black) WPL MK1137XHB Contact Us For Availability
Trim Kits (27`` White) WPL MK1137XHQ Contact Us For Availability
Trim Kits (27`` BISCUIT) WPL MK1137XHT Contact Us For Availability
1
Base Plate (L) WPL 8172002 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8184560 Contact Us For Availability
1
Literature Parts (Cook Guide Label) WPL LIT8184561 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184576 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
1
Propeller WPL 8184531 Contact Us For Availability
1
Window WPL 4359720 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Base Plate (R) WPL 8172001 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Button (White) WPL 8184336 Contact Us For Availability
2
Button (Black) WPL 8184427 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
3
Switch, Membrane (Black) WPL 8184422 Contact Us For Availability
3
Switch, Membrane (White) WPL 8184424 Contact Us For Availability
4
Transformer WPL 8184338 Contact Us For Availability
4
Choke Cover WPL 8184532 Contact Us For Availability
4
Outer Case (Black) WPL 8183611 Contact Us For Availability
4
Outer Case (White) WPL 8184534 Contact Us For Availability
4
H.V. Capacitor WPL 8184420 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Control Panel (White) WPL 8184533 Contact Us For Availability
5
Control Panel (Black) WPL 8184541 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
6
Leadwire Assembly WPL 8204718 Contact Us For Availability
6
Microcomputer WPL 8184217 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
7
Bracket, Support WPL 8184337 Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Spring WPL 4158178 Contact Us For Availability
9
Panel, Door (Black) WPL 8184530 Contact Us For Availability
9
Panel, Door (White) WPL 8184540 Contact Us For Availability
9
Power Cord WPL 8204717 Contact Us For Availability
10
Door Assembly (Black) WPL 8184419 Contact Us For Availability
10
Door Assembly (White) WPL 8184423 Contact Us For Availability
10
Thermostat WPL 4359163 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Cap WPL 8171798 Contact Us For Availability
12
Duct, Air WPL 8171808 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
15
Filter, Noise WPL 4359200 Contact Us For Availability
16
Filter, Choke WPL 4359624 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Cap WPL 4358659 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
24
Screw WPL 4358381 Contact Us For Availability
× ![]()
