Model Whirlpool YMT3110SHQ0 MICROWAVE OVEN 1.0 CUBIC FOOT – Common Parts & Diagrams
03 - OVEN CAVITY PARTS
05 - OVEN INTERIOR PARTS

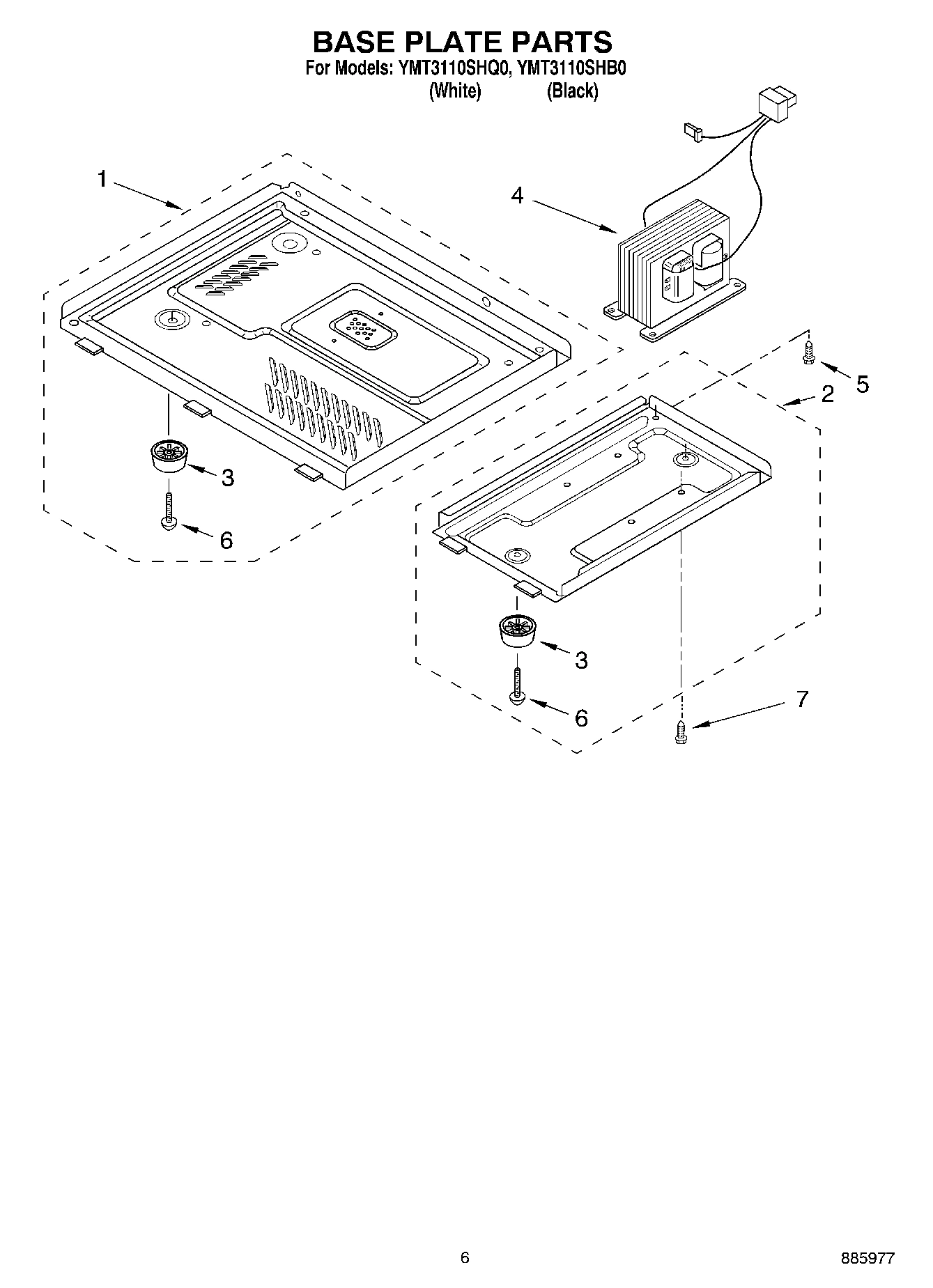

06 - BASE PLATE PARTS

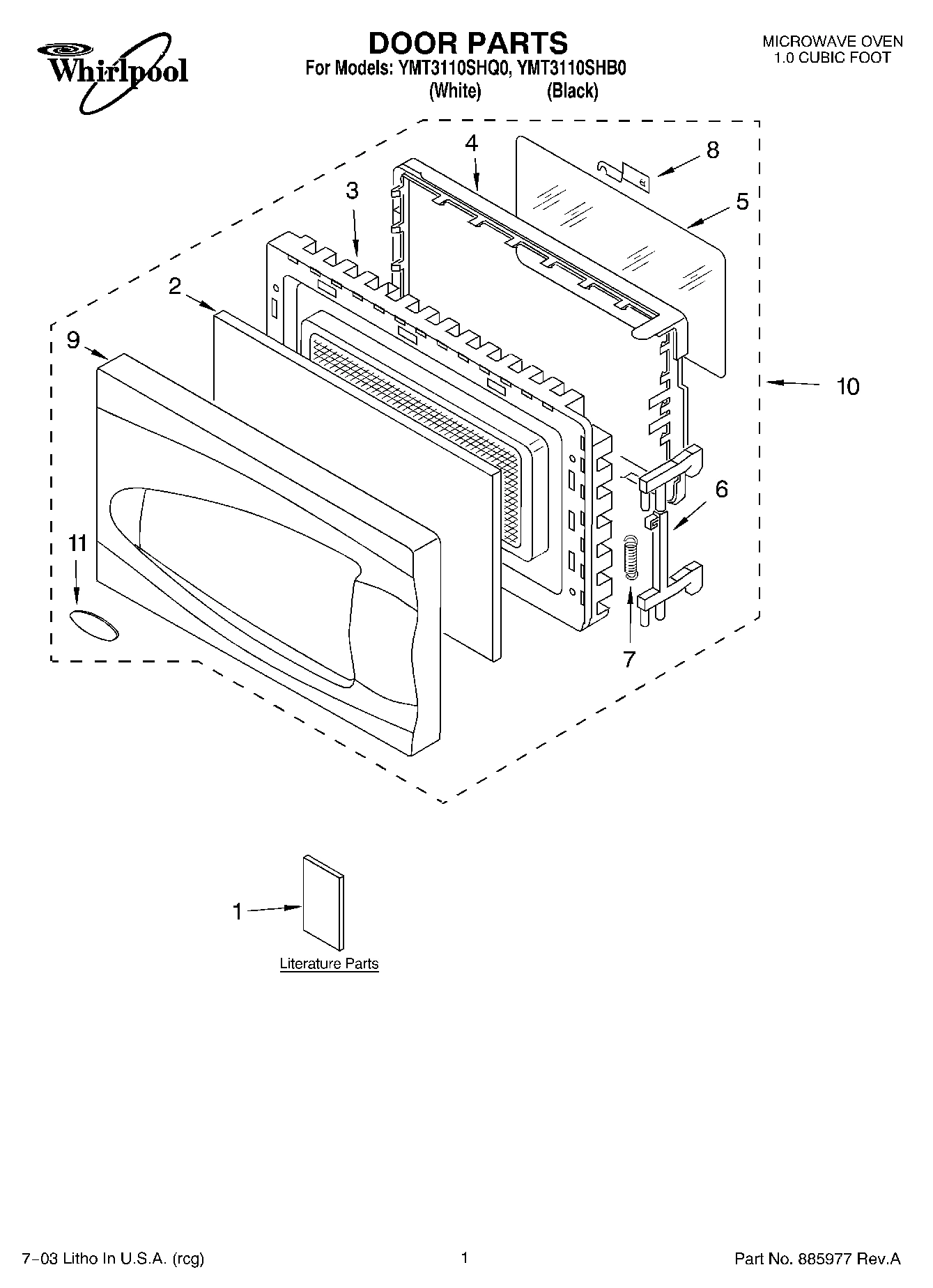

01 - DOOR PARTS

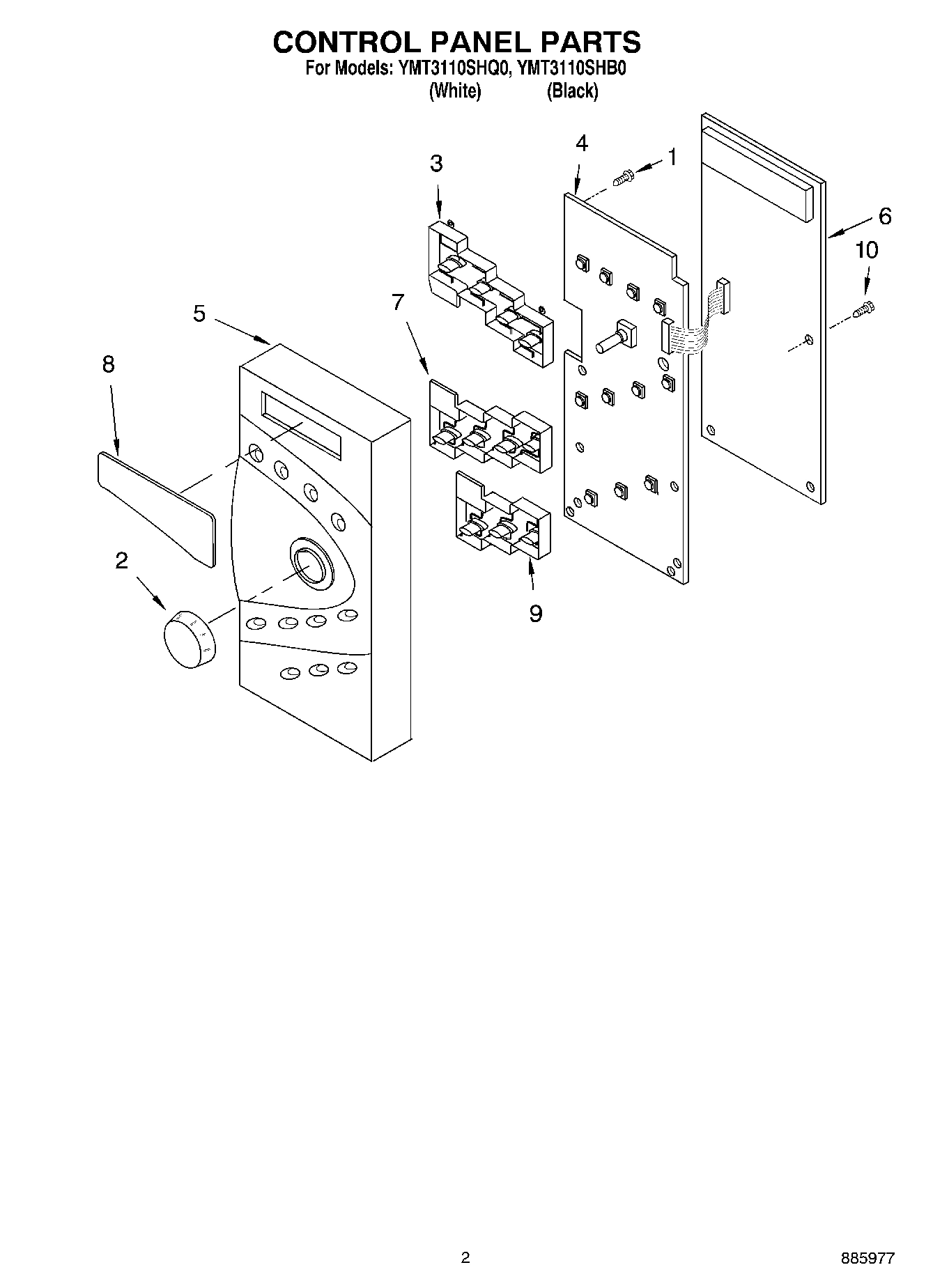

02 - CONTROL PANEL PARTS

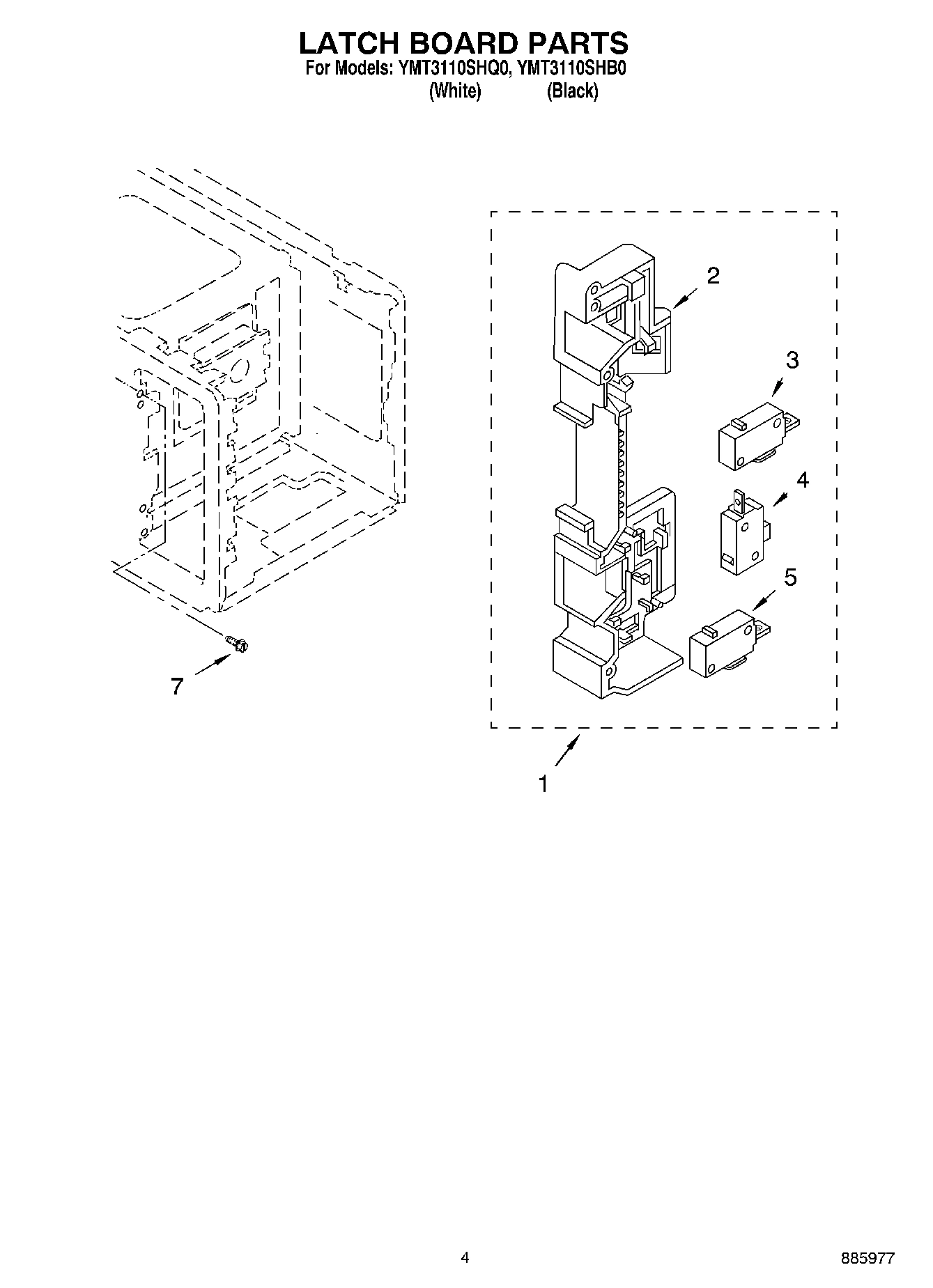

04 - LATCH BOARD PARTS
Common parts from model Whirlpool YMT3110SHQ0 MICROWAVE OVEN 1.0 CUBIC FOOT
1
Base Plate (L) WPL 8171812 Contact Us For Availability
1
Literature Parts (Tech Sheet Cook Guide Label WPL LIT8171814 Contact Us For Availability
1
Literature Parts (Guide, U & C) WPL LIT8171819 Contact Us For Availability
1
Literature Parts (Spanish) WPL LIT8171832 Contact Us For Availability
1
Literature Parts (English) WPL LIT8171944 Contact Us For Availability
1
Screw WPL 4358376 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI138988A Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
Base Plate (R) WPL 8171811 Contact Us For Availability
2
Front Screen WPL 8171969 Contact Us For Availability
2
Knob (White) WPL 8171928 Contact Us For Availability
2
Knob (Black) WPL 8171929 Contact Us For Availability
2
Latch Board WPL 8171866 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Leg WPL 4358487 Contact Us For Availability
3
Door Frame Assembly WPL 8171970 Contact Us For Availability
3
Button, Cook (White) WPL 8171922 Contact Us For Availability
3
Button, Cook (Black) WPL 8171923 Contact Us For Availability
4
H.V. Capacitor WPL 8183764 Contact Us For Availability
4
Transformer WPL 8172170 Contact Us For Availability
4
Choke Cover WPL 8171795 Contact Us For Availability
4
PCB Assy WPL 8171981 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 8171796 Contact Us For Availability
5
Control Panel (White) WPL 8171973 Contact Us For Availability
5
Control Panel (Black) WPL 8171979 Contact Us For Availability
6
Leadwire Assembly WPL 8172094 Contact Us For Availability
6
Screw WPL 4358381 Contact Us For Availability
6
Latch WPL 8171850 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8171980 Contact Us For Availability
7
Spring, Latch WPL 8171918 No Longer Available
7
Screw WPL 4358271 Contact Us For Availability
7
Button, Clock (White) WPL 8171924 Contact Us For Availability
7
Button, Clock (Black) WPL 8171925 Contact Us For Availability
8
Cap WPL 8171798 Contact Us For Availability
8
Window WPL 8171982 Contact Us For Availability
9
Power Cord WPL 8172095 Contact Us For Availability
9
Panel, Door (White) WPL 8171971 Contact Us For Availability
9
Panel, Door (Black) WPL 8171972 Contact Us For Availability
9
Button, Start (White) WPL 8171926 Contact Us For Availability
9
Button, Start (Black) WPL 8171927 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Door Assembly (White) WPL 8171967 Contact Us For Availability
10
Door Assembly (Black) WPL 8171968 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
11
Nameplate WPL 8171921 Contact Us For Availability
12
Duct, Air WPL 8172096 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
15
Screw WPL 8171876 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
19
Filter, Noise WPL 4359200 Contact Us For Availability
20
Filter, Choke WPL 4359624 Contact Us For Availability
21
Screw WPL 4358190 Contact Us For Availability
× ![]()
