Model Maytag YMMV1174FZ3 MICROWAVE HOOD, 1.7 CUBIC FOOT – Common Parts & Diagrams

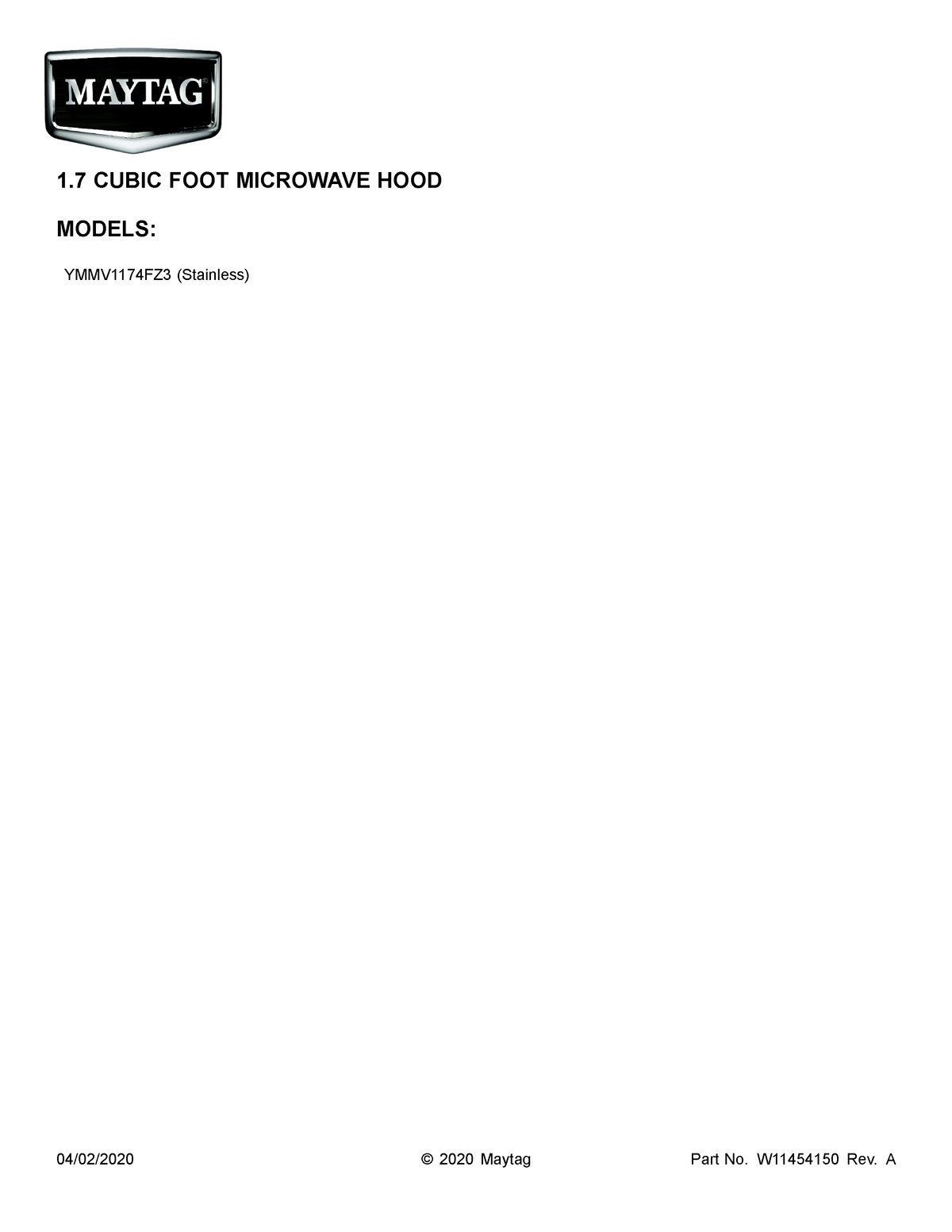

01 - COVER SHEET

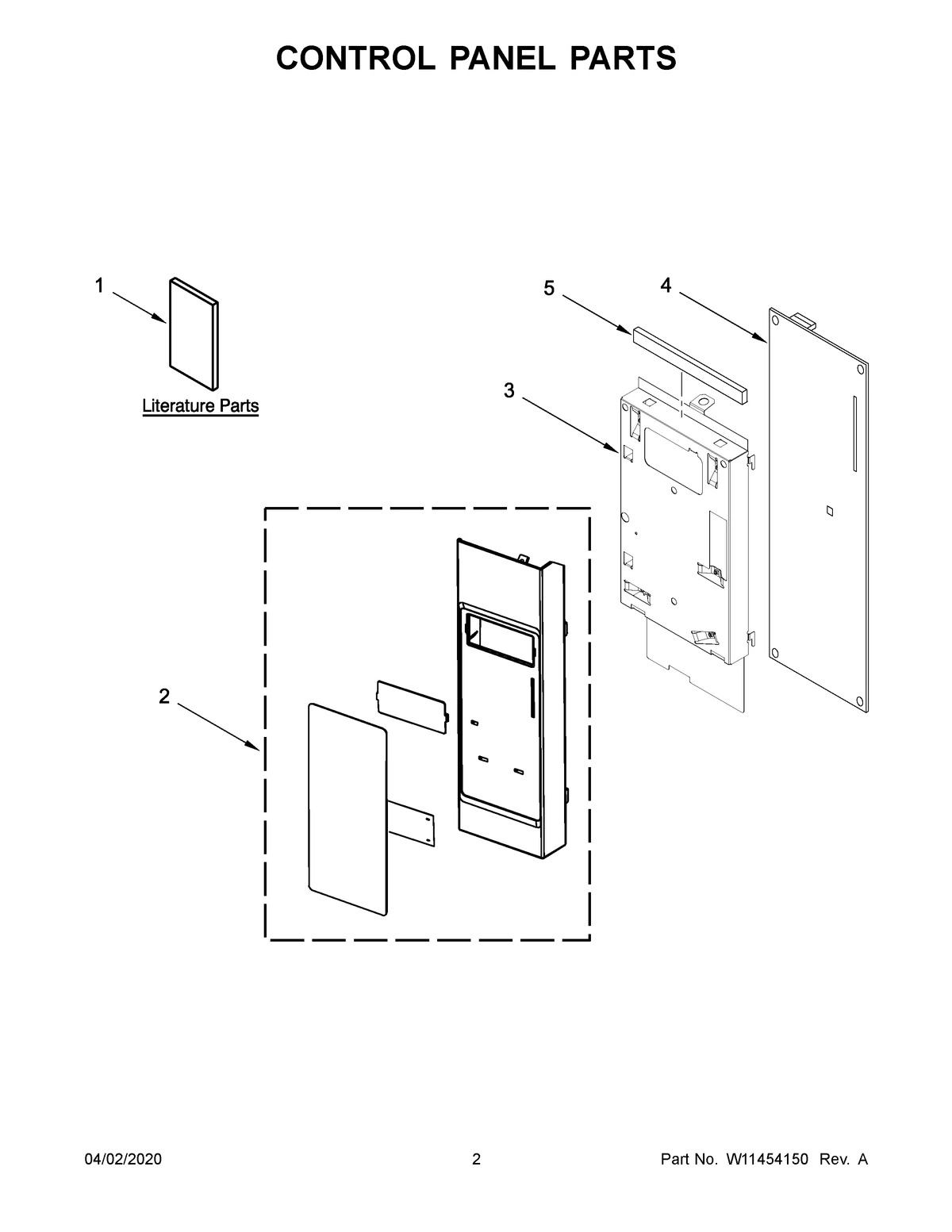

02 - CONTROL PANEL PARTS

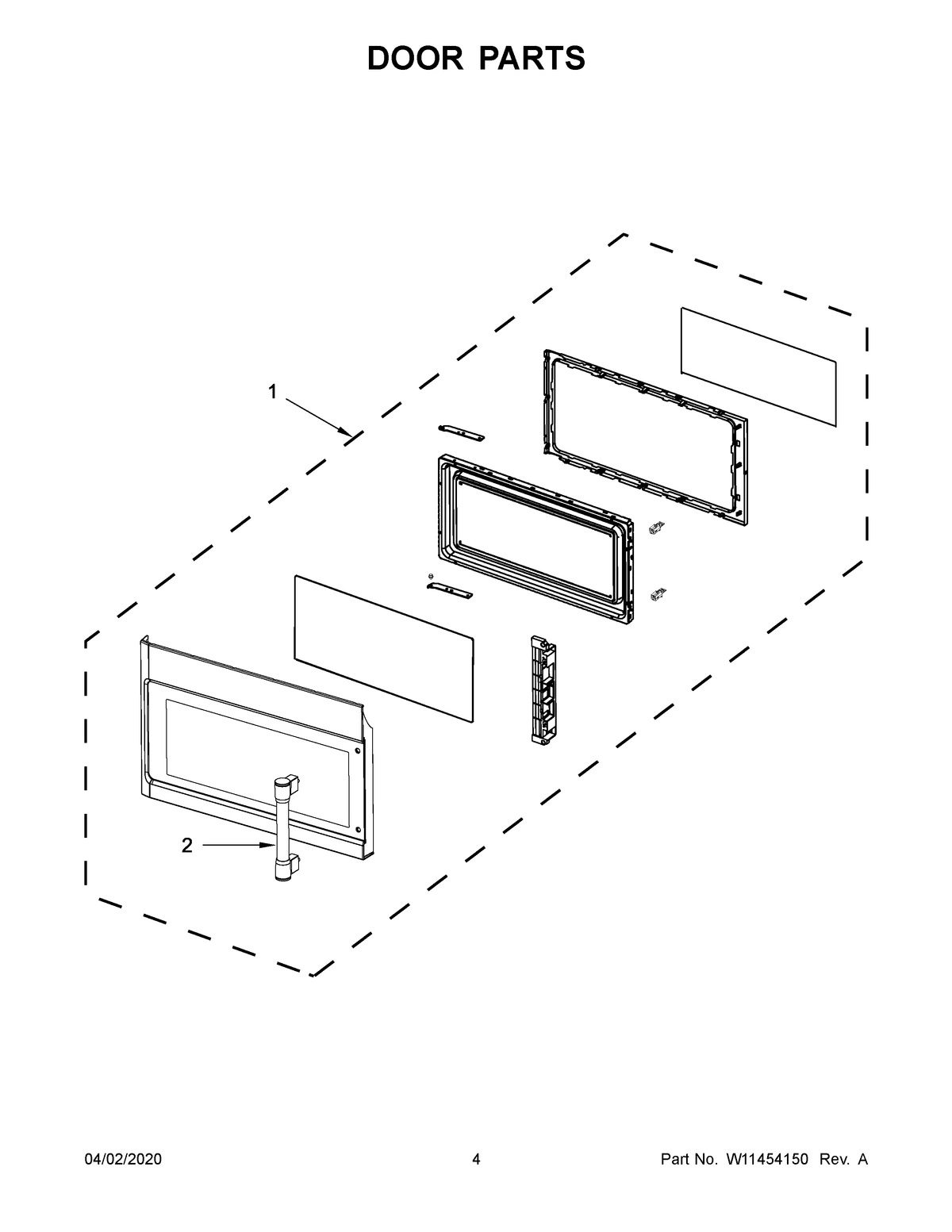

03 - DOOR PARTS

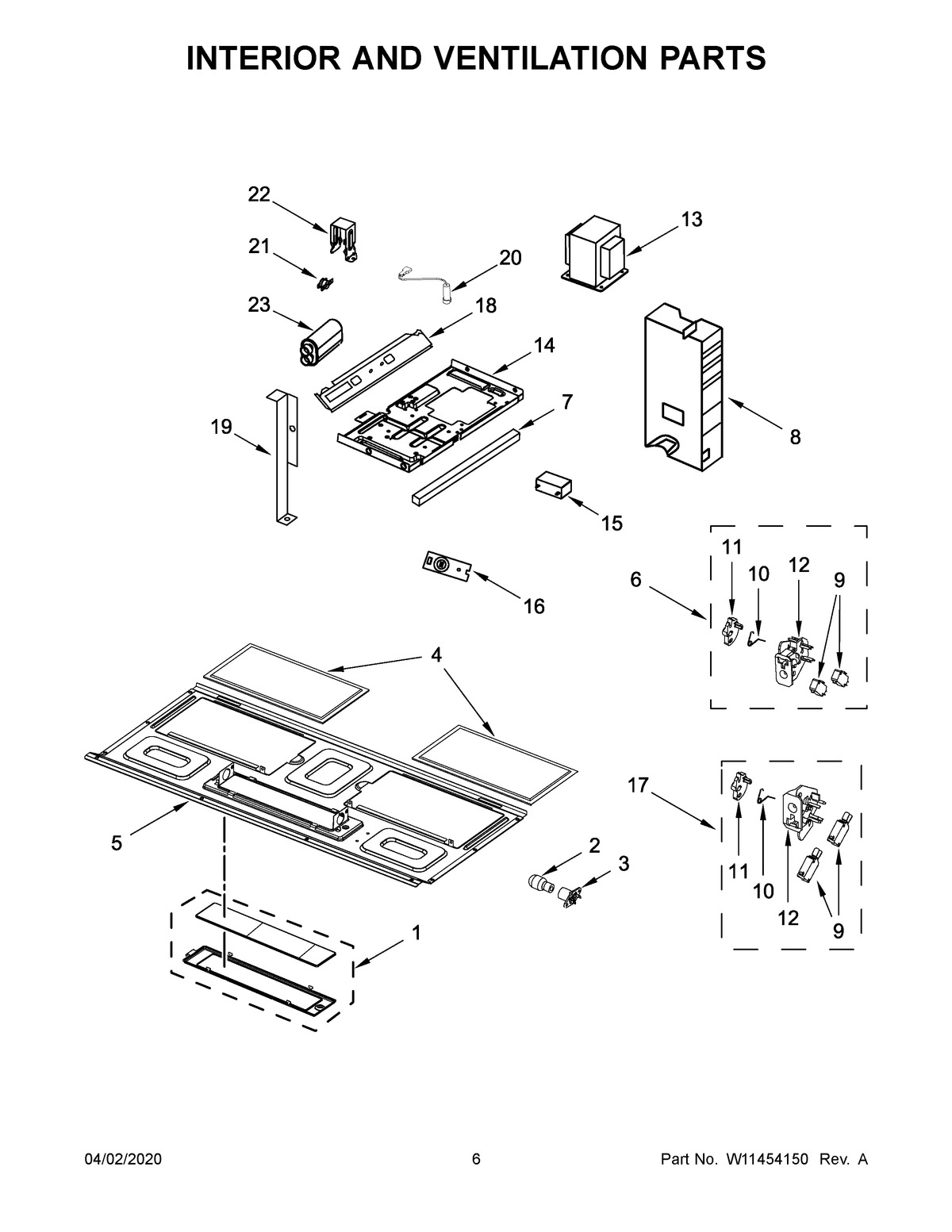

04 - INTERIOR AND VENTILATION PARTS

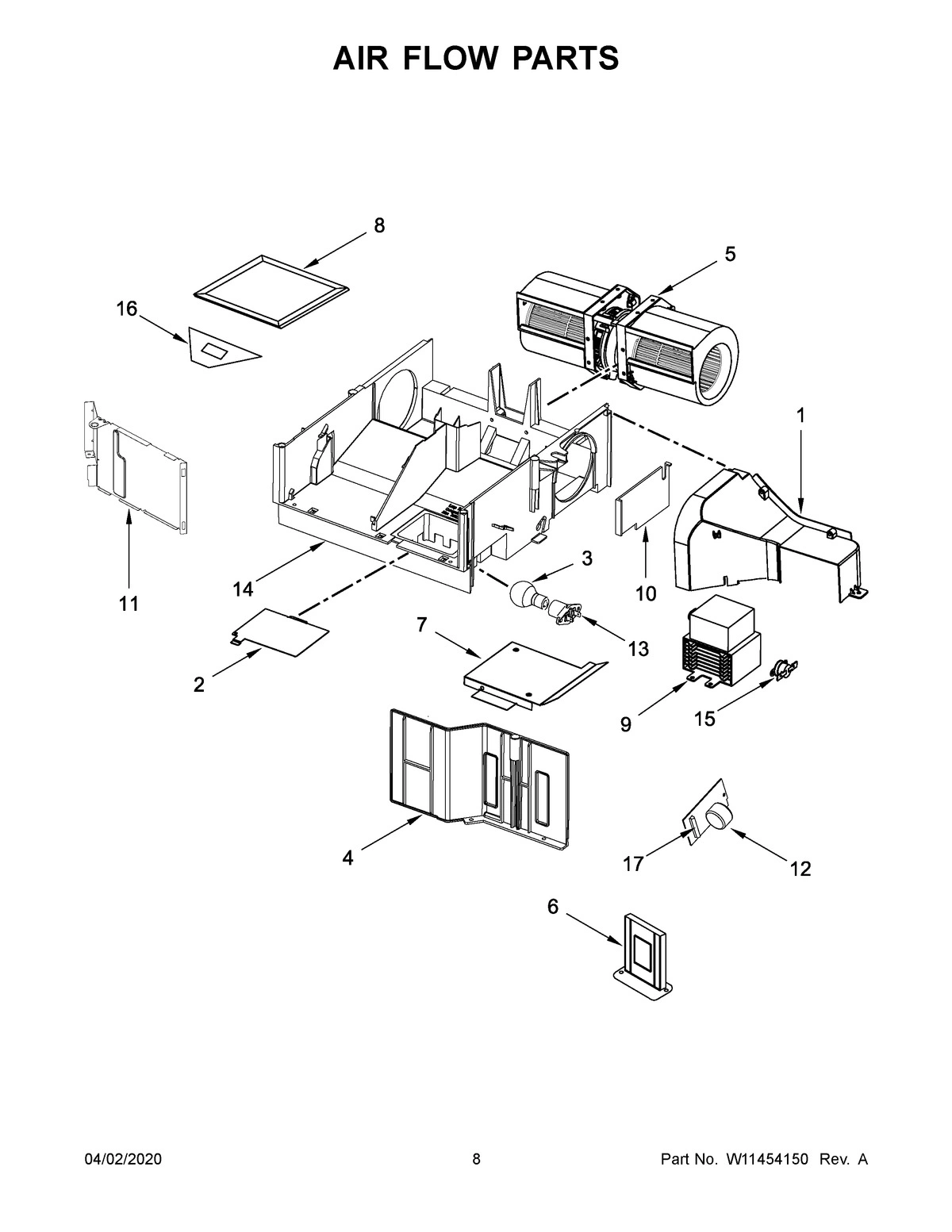

05 - AIR FLOW PARTS

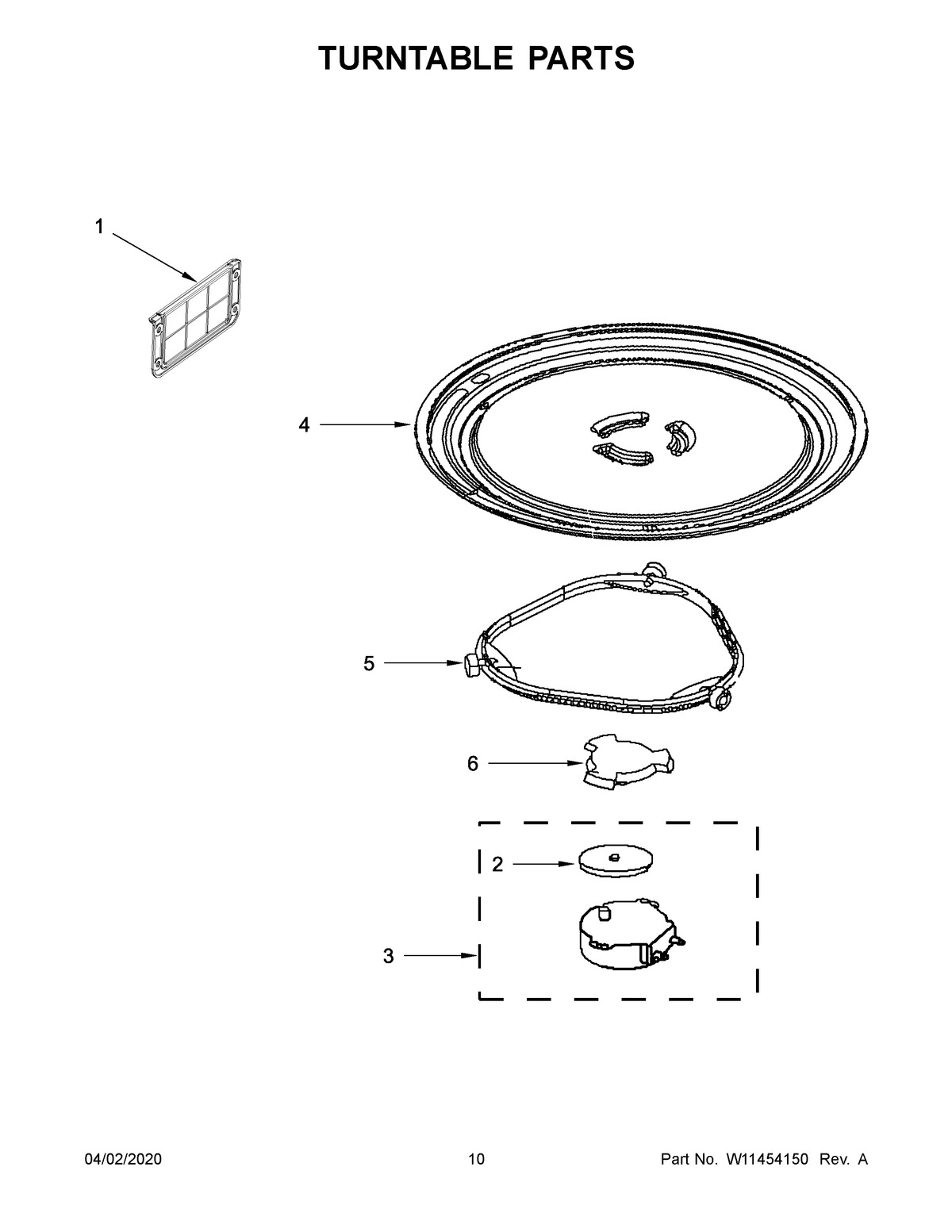

06 - TURNTABLE PARTS

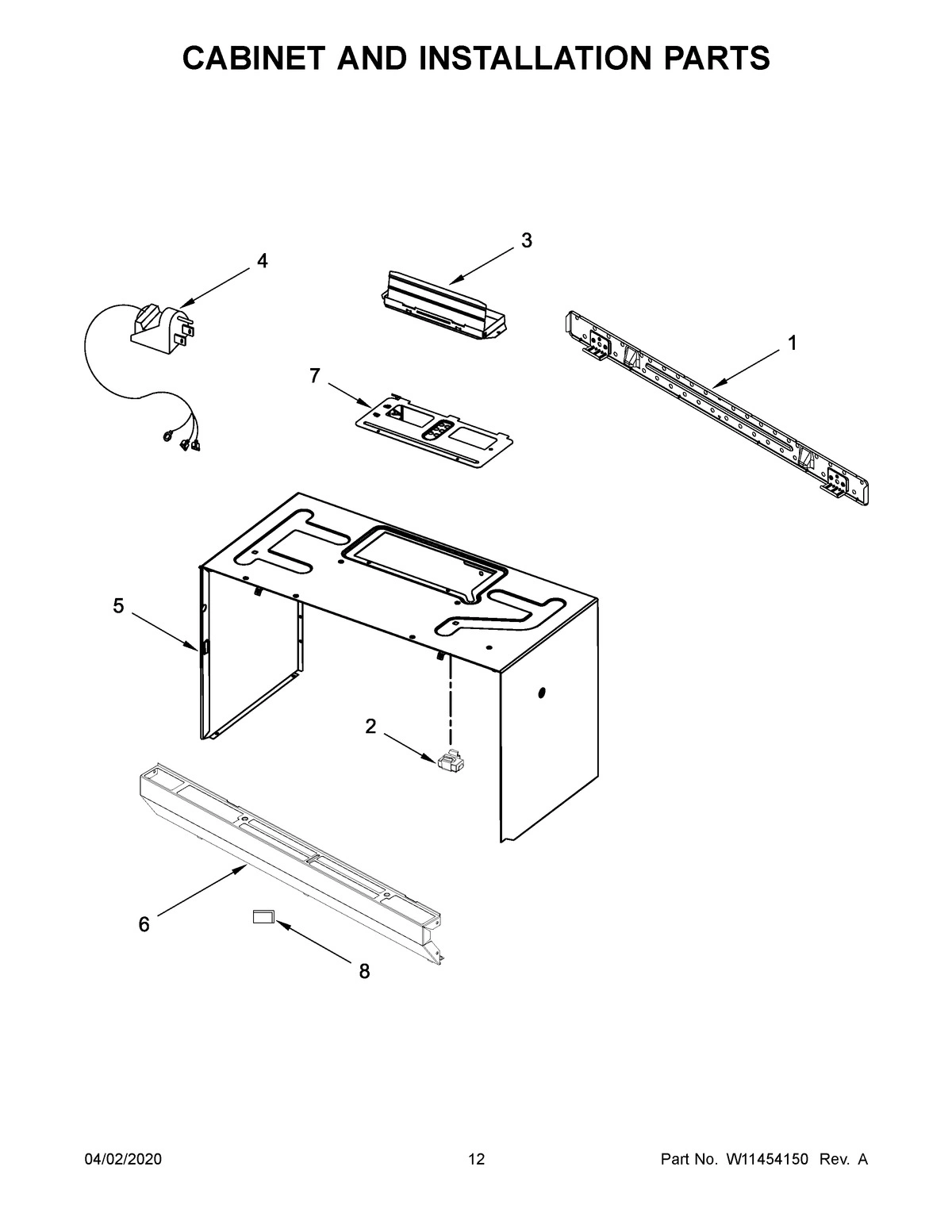

07 - CABINET AND INSTALLATION PARTS
Common parts from model Maytag YMMV1174FZ3 MICROWAVE HOOD, 1.7 CUBIC FOOT
1
INSTALLATION INSTRUCTIONS MAY W10918335 Contact Us For Availability
1
DOOR, COMPLETE (STAINLESS) MAY W11037847 Contact Us For Availability
1
ASSEMBLY, LAMP GLASS AND HOLDER MAY W10240330 Contact Us For Availability
1
DEFLECTOR, AIR MAY W10471570 Contact Us For Availability
1
COVER, WAVEGUIDE MAY W11238817 Contact Us For Availability
1
PLATE, MOUNTING MAY W11025649 Contact Us For Availability
1A
USE AND CARE GUIDE MAY W10918347 Contact Us For Availability
1B
COOKING GUIDE LABEL MAY W10835579 Contact Us For Availability
1C
TECH SHEET MAY W11279373 Contact Us For Availability
2
ASSEMBLY, CONTROL BOX (STAINLESS) MAY W10899481 Contact Us For Availability
2
HANDLE (STAINLESS) MAY W10858177 Contact Us For Availability
2
LAMP, 40 WATT MAY 8206232 Contact Us For Availability
2
COVER, LAMP MAY 8206382 Contact Us For Availability
2
SEAL, WATERPROOF MAY 8184109 Contact Us For Availability
2
ASSEMBLY, MOUNTING NUT MAY W11122643 Contact Us For Availability
3
BACKER, CONTROL MAY W10833365 Contact Us For Availability
3
HOLDER, LAMP MAY W10210871 Contact Us For Availability
3
LAMP, CAVITY 30 WATT MAY 4393681 Contact Us For Availability
3
MOTOR, TURNTABLE MAY W10642989 Contact Us For Availability
3
DAMPER MAY W10748710 Contact Us For Availability
4
MICROCOMPUTER MAY W10899903 Contact Us For Availability
4
FILTER, GREASE MAY W10208631 Contact Us For Availability
4
SHIELD, FINGER MAY W10342991 Contact Us For Availability
4
TURNTABLE MAY W11335034 Contact Us For Availability
4
CORD, POWER MAY W10708076 Contact Us For Availability
5
SEAL, CONTROL MAY W10833531 Contact Us For Availability
5
PLATE, BOTTOM MAY W10245196 Contact Us For Availability
5
MOTOR, HOOD FAN MAY W11409094 Contact Us For Availability
5
RING, TURNTABLE (WITH ROLLERS) MAY W11193600 Contact Us For Availability
5
CASE, OUTER (BLACK) MAY W11207441 Contact Us For Availability
6
ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES) MAY W11433682 Contact Us For Availability
6
PLATE, WATERPROOF MAY W11381953 Contact Us For Availability
6
DRIVER, TURNTABLE MAY W11193599 Contact Us For Availability
6
GRILLE, VENT (BLACK) MAY W10845643 Contact Us For Availability
7
SEAL, COOLING MAY W10571179 Contact Us For Availability
7
GUIDE, AIR MAY W10138797 Contact Us For Availability
7
COVER, FAN MOTOR MAY W10625423 Contact Us For Availability
8
AIR GUIDE, LOWER MAY W11282097 Contact Us For Availability
8
FILTER, CHARCOAL MAY W10845250 Contact Us For Availability
8
BADGE MAY W10685340 Contact Us For Availability
9
SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTE MAY N/P Contact Us For Availability
9
MAGNETRON MAY W10693025 Contact Us For Availability
10
SPRING, INTERLOCK MAY W10156812 Contact Us For Availability
10
COVER, RIGHT DUCT MAY W11293488 Contact Us For Availability
11
PLATE, CAM MAY W10562613 Contact Us For Availability
11
PLATE, AIR GUIDE SEALING MAY W10827148 Contact Us For Availability
12
SUPPORT, INTERLOCK (TOP) MAY 8206419 Contact Us For Availability
12
FILTER, NOISE MAY W10422269 Contact Us For Availability
12A
SUPPORT, INTERLOCK (BOTTOM) MAY W10156813 Contact Us For Availability
13
TRANSFORMER, HIGH VOLTAGE MAY W10754523 Contact Us For Availability
13
SOCKET, CAVITY LAMP MAY W10210878 Contact Us For Availability
14
CHASSIS MAY W10827115 Contact Us For Availability
14
BASEPLATE, AIR GUIDE MAY W10828030 Contact Us For Availability
15
CAPACITOR, HOOD MOTOR MAY W10210855 Contact Us For Availability
15
THERMOSTAT, MAGNETRON MAY W11224803 Contact Us For Availability
16
THERMISTOR MAY W10163422 Contact Us For Availability
16
SOCKET, MOTOR WIRE MAY W10810142 Contact Us For Availability
17
ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES) MAY W11433683 Contact Us For Availability
17
FUSE MAY W10138793 Contact Us For Availability
18
SUPPORT, NTC MAY W10904020 Contact Us For Availability
19
BRACKET, TOP CAVITY MAY W10313275 Contact Us For Availability
20
DIODE, HIGH VOLTAGE MAY W11222648 Contact Us For Availability
21
THERMOSTAT, CAVITY MAY W11224856 Contact Us For Availability
22
BRACKET, CAPACITOR MAY W11265233 Contact Us For Availability
23
CAPACITOR, HIGH VOLTAGE MAY 8206562 Contact Us For Availability
NI
MISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW MAY 8169704 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190018 Contact Us For Availability
NI
MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH MAY W10190020 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR MAY W10539840 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION MAY W10821385 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HI MAY W11301790 Contact Us For Availability
NI
MISCELLANEOUS PARTS, HARNESS, MAIN MAY W11350914 Contact Us For Availability
× ![]()
