Model Whirlpool YMH1150XMS0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

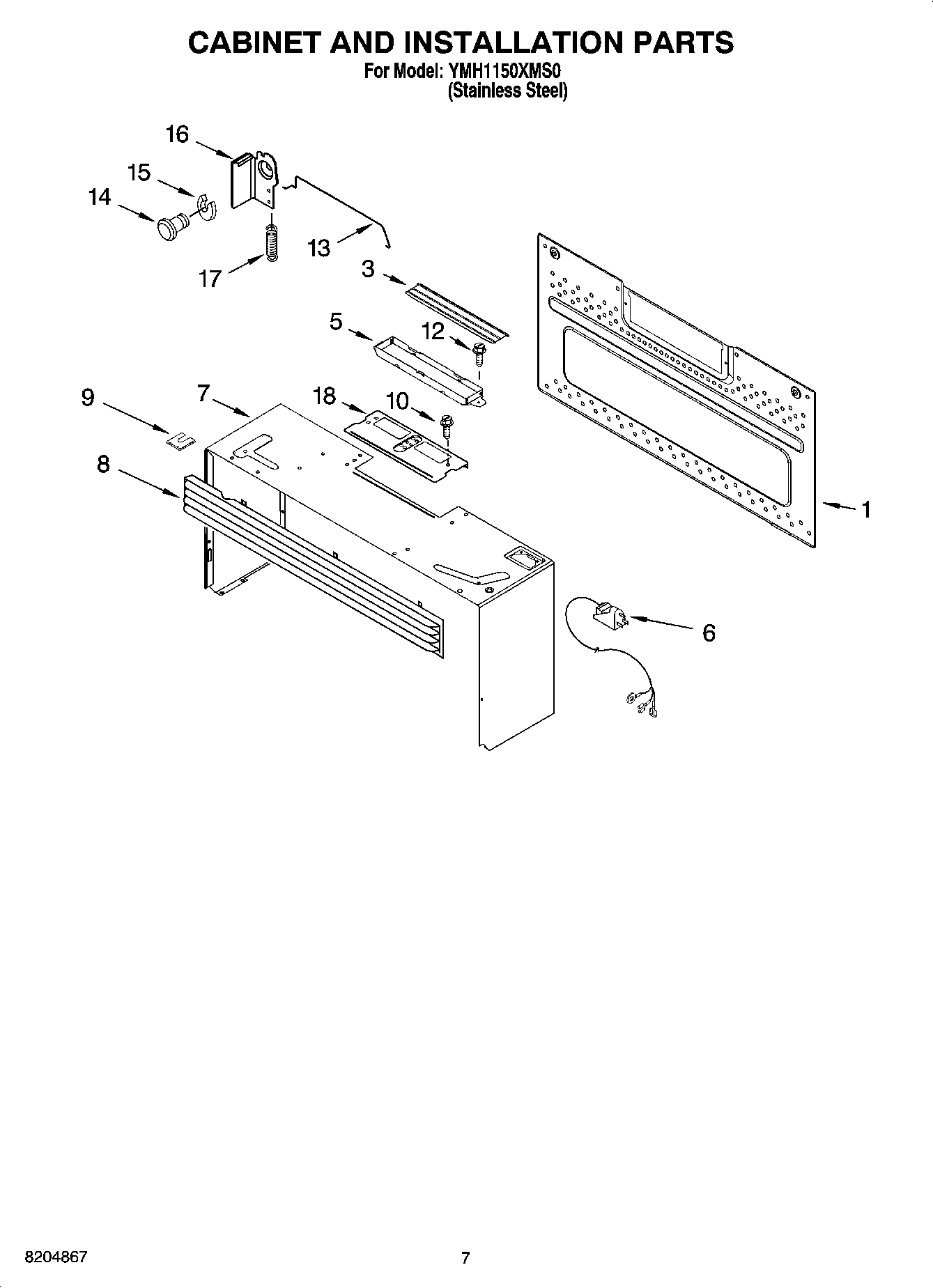

06 - CABINET AND INSTALLATION PARTS

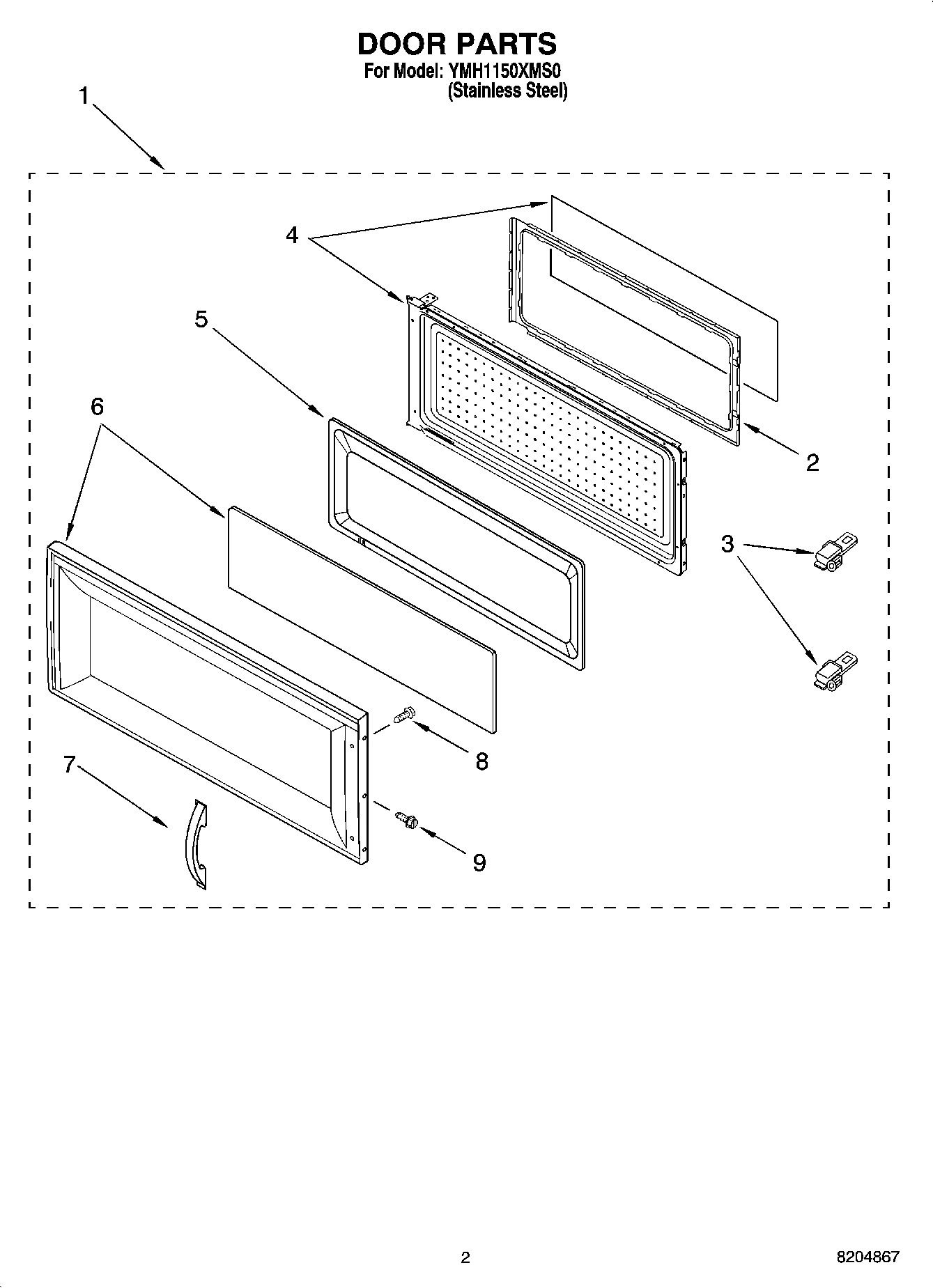

02 - DOOR PARTS

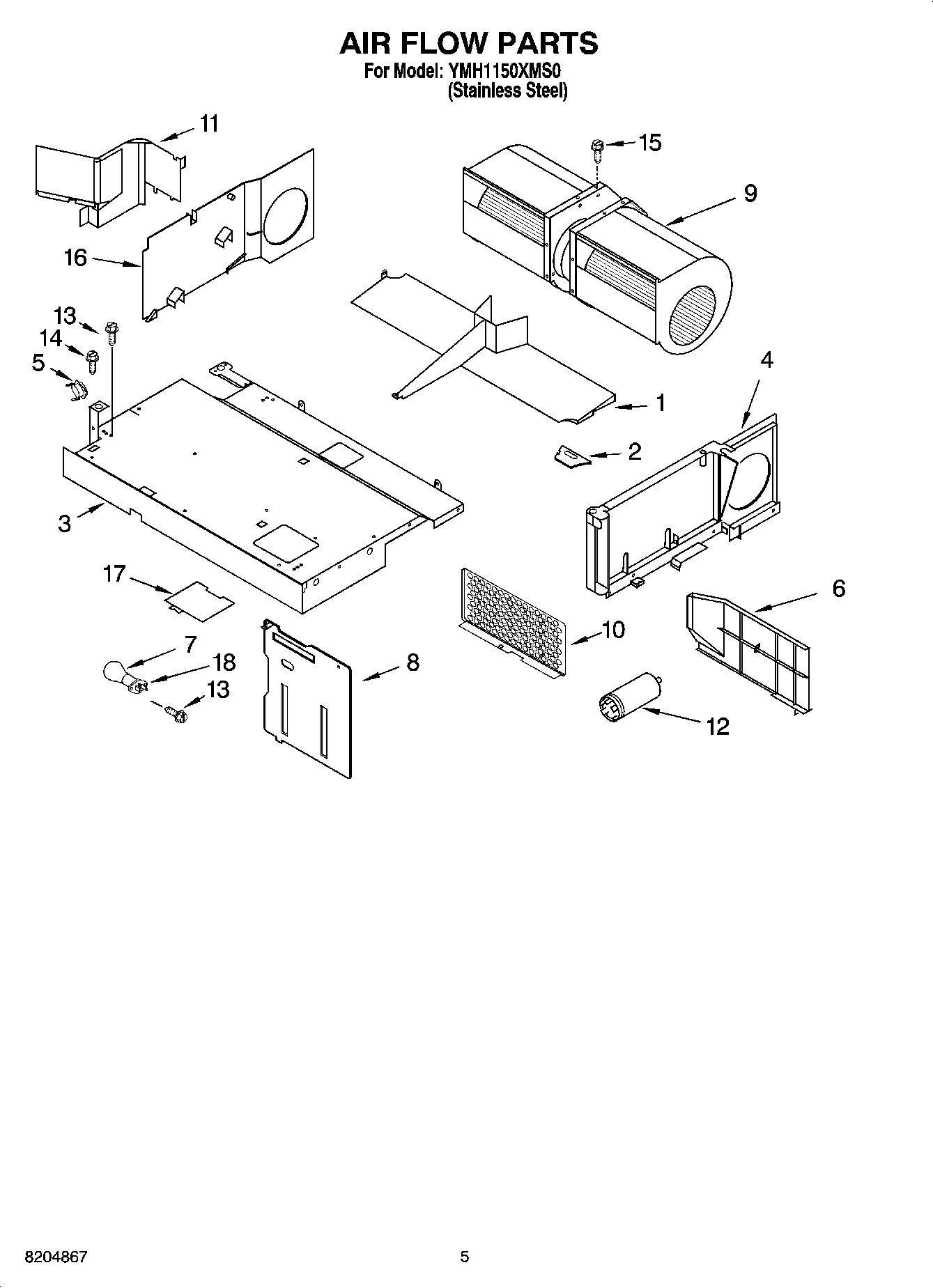

04 - AIR FLOW PARTS

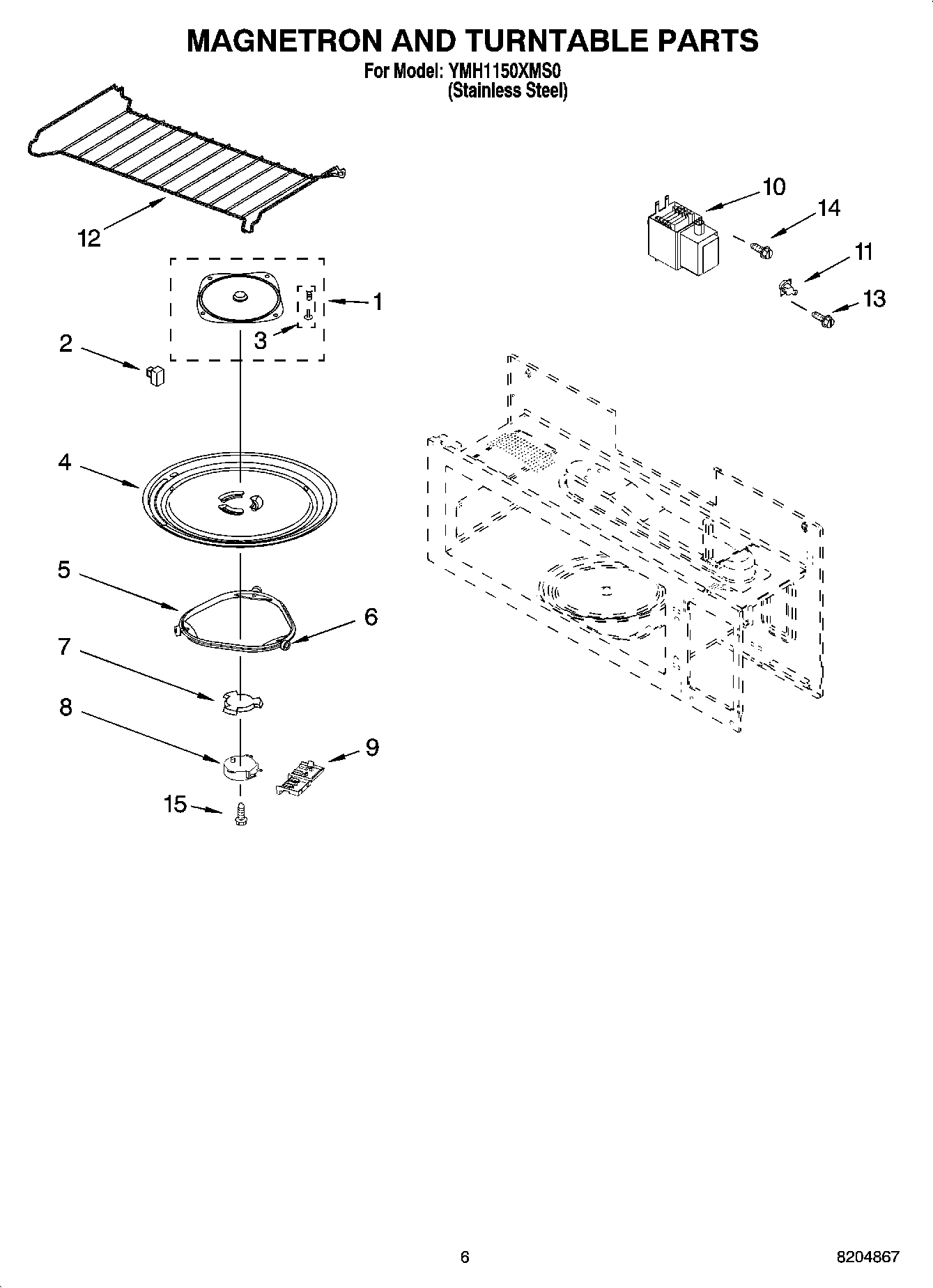

05 - MAGNETRON AND TURNTABLE PARTS
01 - CONTROL PANEL PARTS

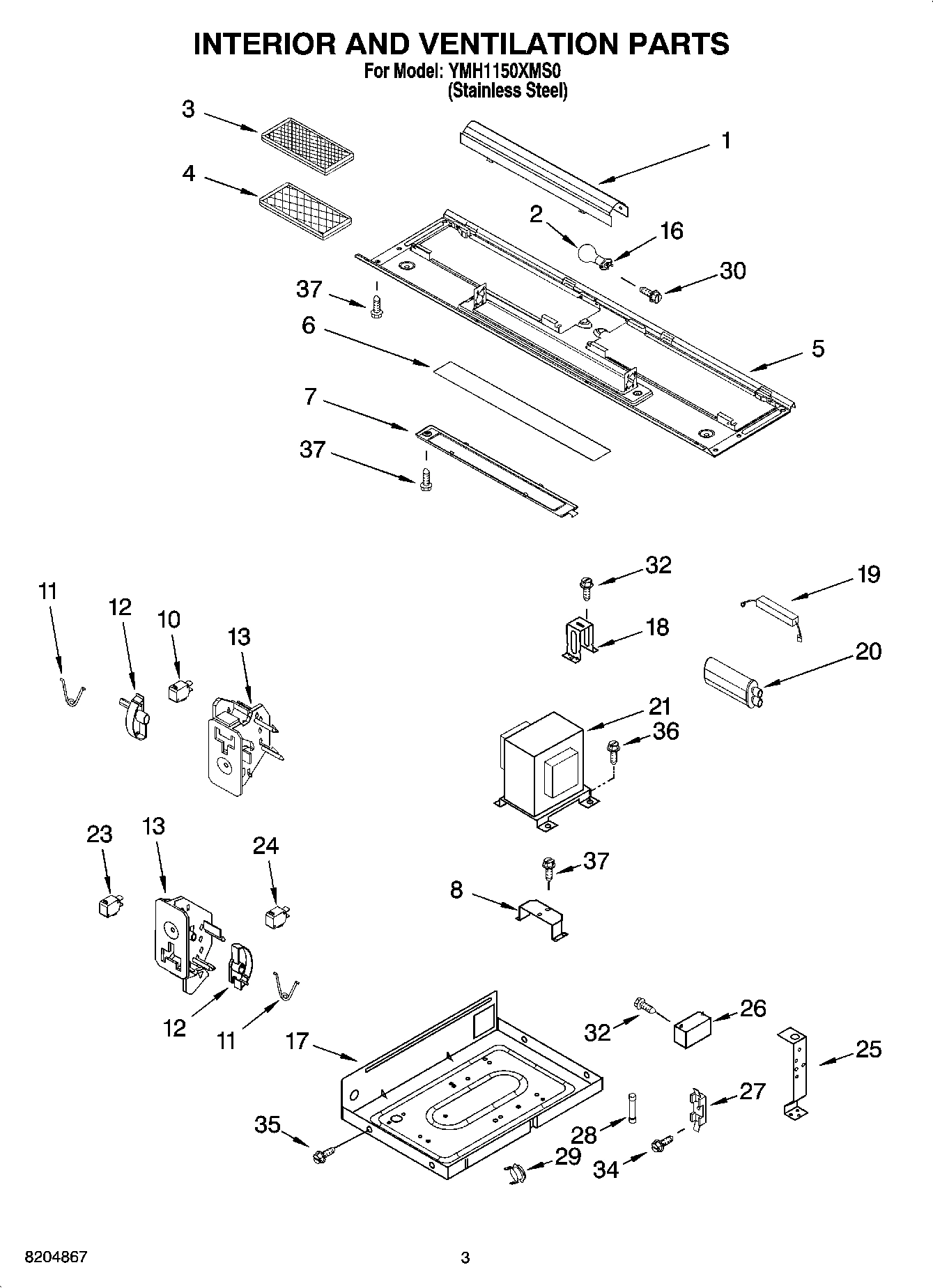

03 - INTERIOR AND VENTILATION PARTS
Common parts from model Whirlpool YMH1150XMS0 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8185096 Contact Us For Availability
1
Cover, Inlet WPL 8185255 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8185477 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8185480 Contact Us For Availability
1
Literature Parts (English) WPL LIT8185481 Contact Us For Availability
1
Literature Parts (French) WPL LIT8204745 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8204985 Contact Us For Availability
1
Reflector, Lamp WPL 4393688 Contact Us For Availability
2
Hook, Rack (4) WPL 8204662 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Socket, Motor Wire WPL 8185097 Contact Us For Availability
2
Lens WPL 4393739 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (Inlcudes 10) WPL 8205031 Contact Us For Availability
3
Base Plate WPL 8185116 Contact Us For Availability
3
Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability
4
Turntable WPL 4393799 No Longer Available
4
Air Guide (Right) WPL 8185098 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Plate, Bottom WPL 8185105 Contact Us For Availability
6
Wheel, Plastic WPL 4393861 Contact Us For Availability
6
Deflector, Cooling Air WPL 8185099 Contact Us For Availability
6
PCB Assembly WPL 8205032 Contact Us For Availability
6
Glass, Lamp WPL 8169564 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Holder, Glass WPL 8184308 Contact Us For Availability
8
Cooling Air Guide WPL 8185215 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
TCO, Bracket Assembly WPL 8184586 Contact Us For Availability
9
Motor, Fan WPL 8184825 Contact Us For Availability
9
Cover, Terminal WPL 4393756 Contact Us For Availability
9
Foil, PCB WPL 8185122 Contact Us For Availability
10
Shield WPL 8204736 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability
11
Thermostat WPL 8184829 Contact Us For Availability
12
Plate, Cam (2) WPL 8183824 Contact Us For Availability
12
Filter WPL 8169561 Contact Us For Availability
12
Rack WPL 8204725 Contact Us For Availability
13
Screw WPL 4393838 Contact Us For Availability
15
Screw WPL 4393833 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
16
Air Guide (Left) WPL 8185115 Contact Us For Availability
17
Cover, Light WPL 8205030 Contact Us For Availability
17
Chassis WPL 8185104 Contact Us For Availability
18
Holder, Capacitor WPL 8185102 Contact Us For Availability
21
Transformer, H.V. WPL 8204988 Contact Us For Availability
25
Bracket, Right WPL 8185100 Contact Us For Availability
26
Capacitor WPL 8184091 Contact Us For Availability
27
Holder, Fuse WPL 8184312 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
30
Screw WPL 8169474 Contact Us For Availability
34
Screw WPL 8169478 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
