Model Maytag YMET8665XW02 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

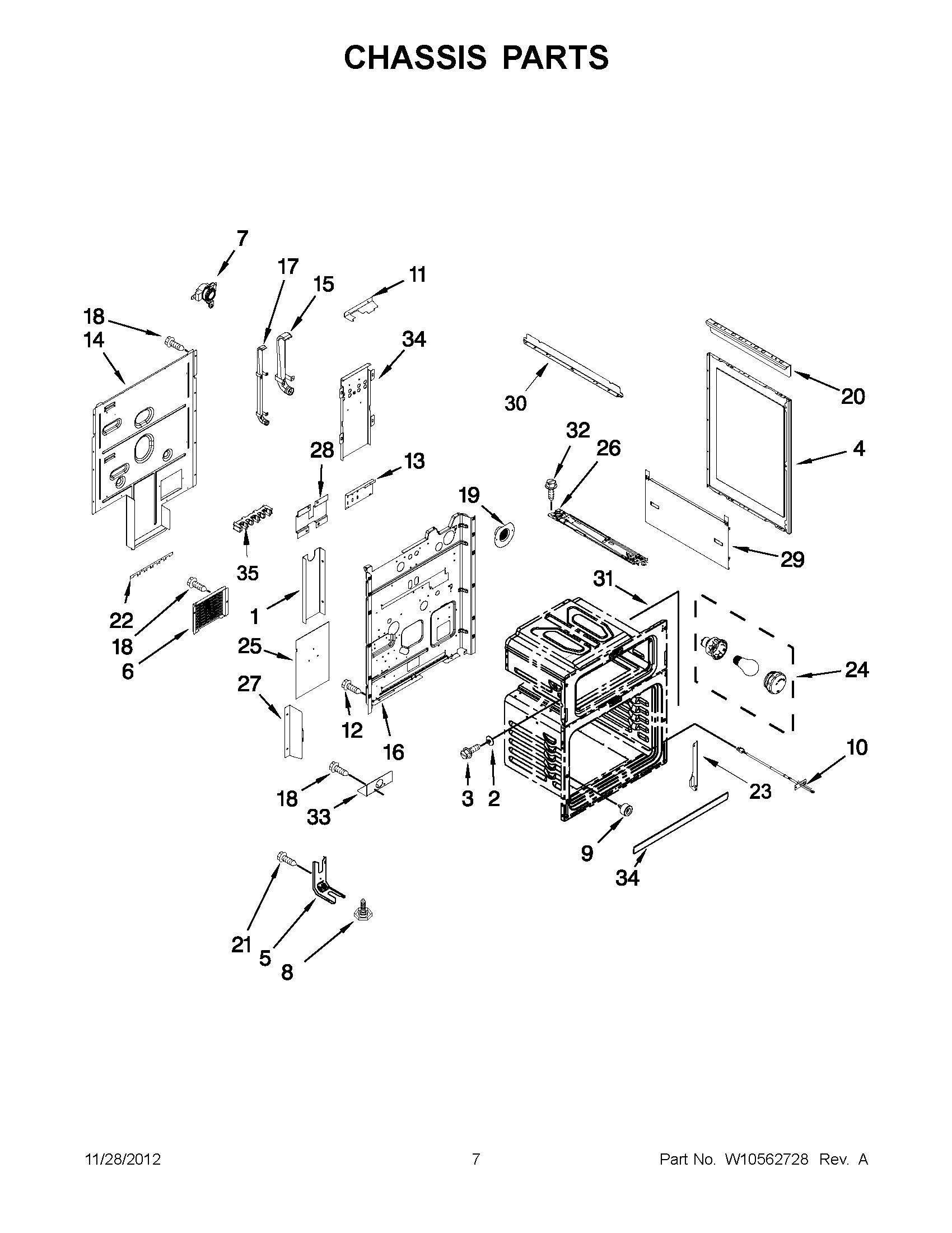

03 - CHASSIS PARTS

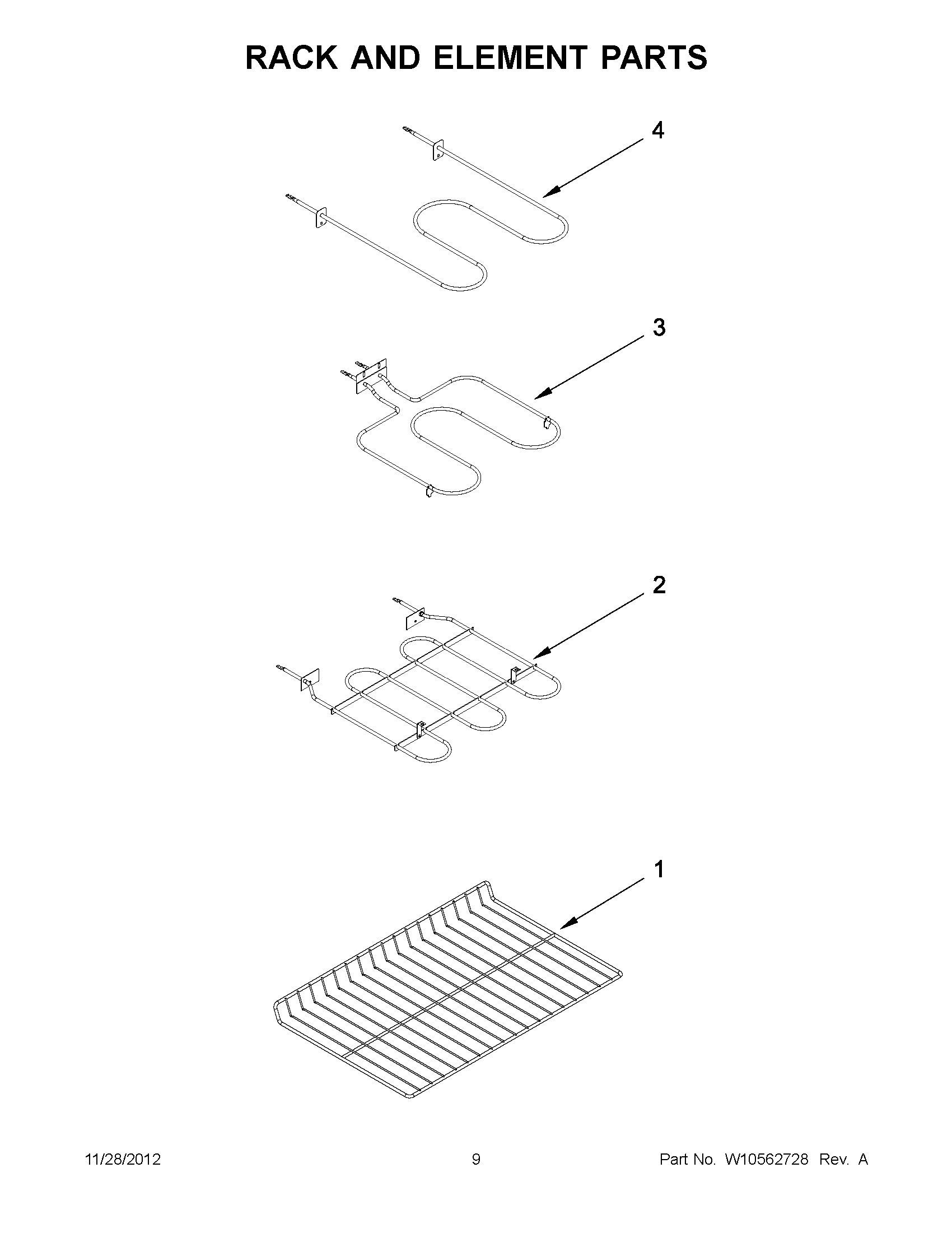

04 - RACK AND ELEMENT PARTS

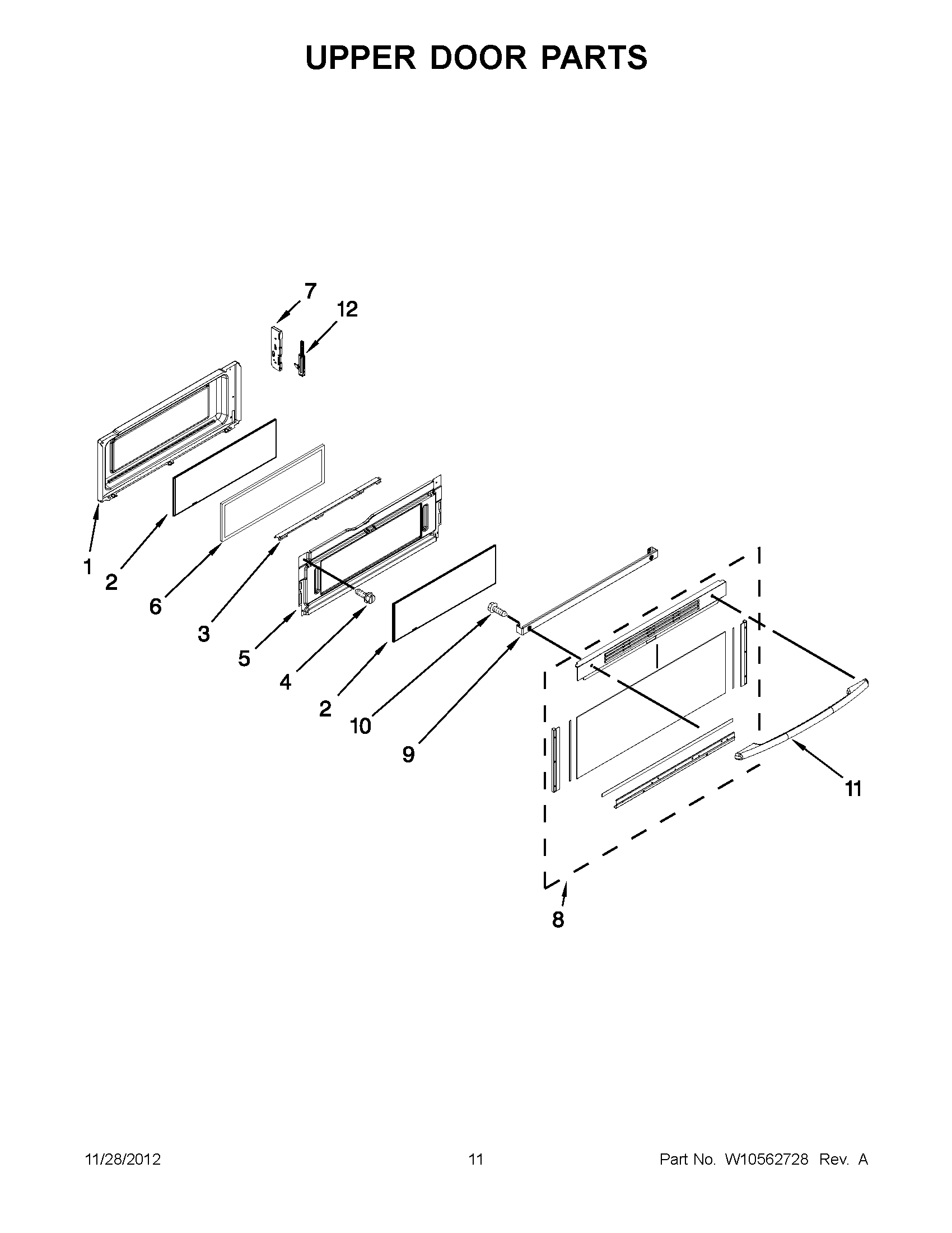

05 - UPPER DOOR PARTS

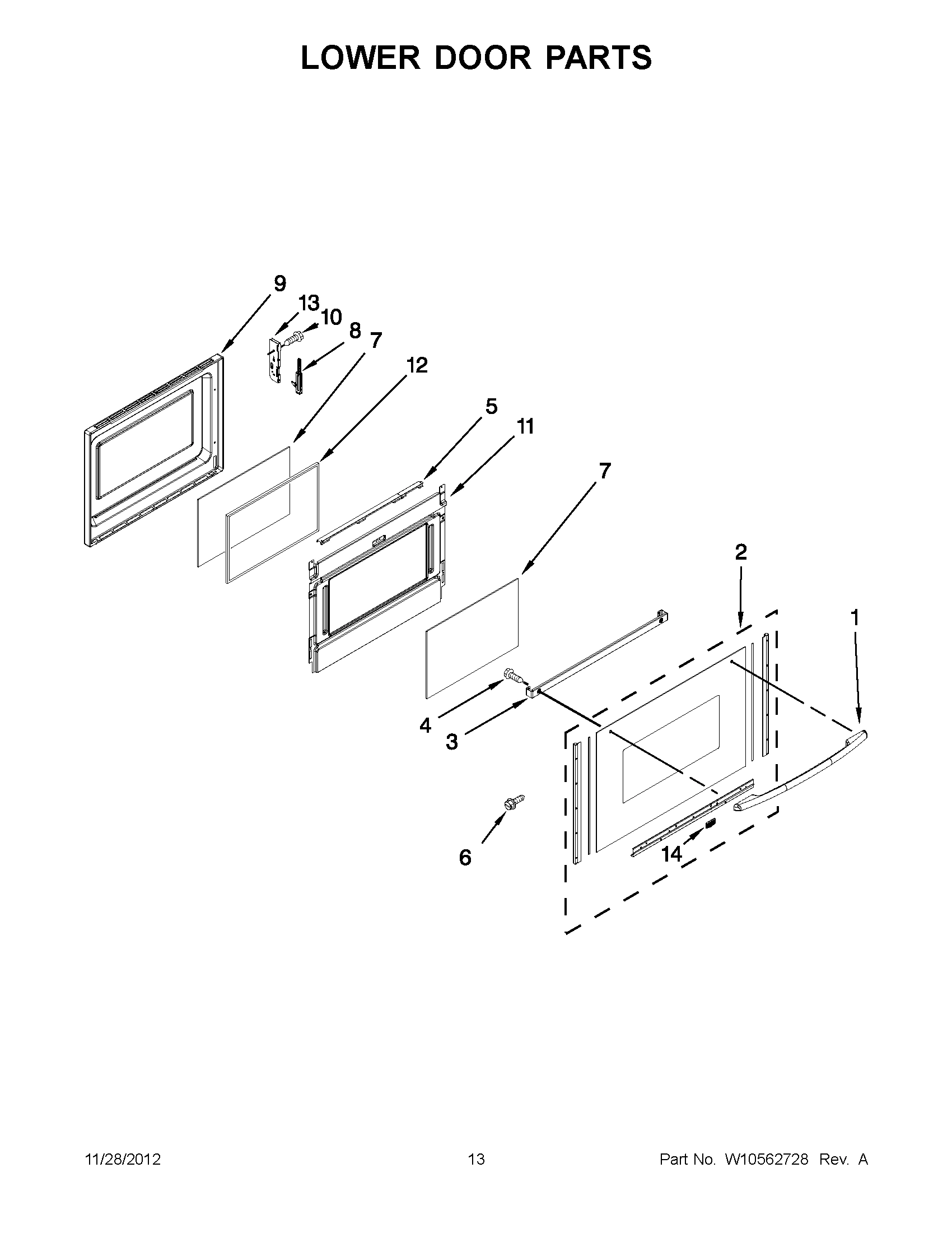

06 - LOWER DOOR PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMET8665XW02 ELECTRIC RANGE
1
TIPS, SAFER COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10311750 MAY W10311750 Contact Us For Availability
1
MAY W10430934 MAY W10430934 Contact Us For Availability
1
MAY W10430958 MAY W10430958 Contact Us For Availability
1
MAY W10319109 MAY W10319109 Contact Us For Availability
1
MAY W10319110 MAY W10319110 Contact Us For Availability
1
MAY W10319111 MAY W10319111 Contact Us For Availability
1
MAY W10319112 MAY W10319112 Contact Us For Availability
1
MAY W10332459 MAY W10332459 Contact Us For Availability
1
MAY W10179152 MAY W10179152 Contact Us For Availability
1
MAY W10485720 MAY W10485720 Contact Us For Availability
1
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
1
MAY W10323581 MAY W10323581 Contact Us For Availability
1
MAY W10323584 MAY W10323584 Contact Us For Availability
2
ELEMENT, RIBBON (1200W) (LEFT REAR) MAY 8273994 Contact Us For Availability
2
MAY 3196068 MAY 3196068 Contact Us For Availability
2
MAY W10237689 MAY W10237689 Contact Us For Availability
2
MAY W10249979 MAY W10249979 Contact Us For Availability
2
GLASS, INNER MAY W10272707 Contact Us For Availability
2
ASSEMBLY, GLASS DOOR (STAINLESS (INCL. DOOR P MAY W10272573 Contact Us For Availability
2
MAY W10324124 MAY W10324124 Contact Us For Availability
2
MAY W10324547 MAY W10324547 Contact Us For Availability
3
ELEMENT, WARM ZONE (120V) MAY 9762851 Contact Us For Availability
3
CONSOLE (WHITE) MAY W10214551 Contact Us For Availability
3
CONSOLE (BLACK) MAY W10225556 Contact Us For Availability
3
CONSOLE (STAINLESS) MAY W10225557 Contact Us For Availability
3
MAY W10267456 MAY W10267456 Contact Us For Availability
3
MAY W10272325 MAY W10272325 Contact Us For Availability
3
MAY W10272708 MAY W10272708 Contact Us For Availability
3
BLACK MAY W10294695 Contact Us For Availability
4
ELEMENT, HYPER (3200W) (RIGHT FRONT) MAY W10251107 Contact Us For Availability
4
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
4
PANEL, SIDE (BLACK) MAY W10260942 Contact Us For Availability
4
PANEL, SIDE (WHITE) MAY W10260943 Contact Us For Availability
4
MAY W10249977 MAY W10249977 Contact Us For Availability
4
SCREW MAY W10317886 Contact Us For Availability
5
MAY W10299101 MAY W10299101 Contact Us For Availability
5
MAY W10299103 MAY W10299103 Contact Us For Availability
5
ELECTRIC, CONTROL MRC2 MAY W10365407 Contact Us For Availability
5
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
5
MAY W10485723 MAY W10485723 Contact Us For Availability
5
FRAME, GLASS MAY W10272594 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
MAY 7407P136-60 MAY 7407P136-60 Contact Us For Availability
6
MAY W10312612 MAY W10312612 Contact Us For Availability
6
MAY W10292297 MAY W10292297 Contact Us For Availability
6
MAY W10321271 MAY W10321271 Contact Us For Availability
7
ELEMENT, RIBBON (300/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
7
KNOB (STAINLESS) MAY W10294791 Contact Us For Availability
7
MAY W10294794 MAY W10294794 Contact Us For Availability
7
MAY W10294796 MAY W10294796 Contact Us For Availability
7
SWITCH, HIGH LIMIT MAY 7403P899-60 Contact Us For Availability
7
MAY W10277006 MAY W10277006 Contact Us For Availability
7
GLASS, INNER MAY 9757706 Contact Us For Availability
8
MAY W10260946 MAY W10260946 Contact Us For Availability
8
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
8
FOOT, LEVELER MAY 7101P507-60 Contact Us For Availability
8
ASSEMBLY, GLASS DOOR (STAINLESS (INCL. DOOR P MAY W10273126 Contact Us For Availability
8
MAY W10322718 MAY W10322718 Contact Us For Availability
8
MAY W10322720 MAY W10322720 Contact Us For Availability
8
HINGE, DOOR (RIGHT) MAY W10335433 Contact Us For Availability
8
HINGE, DOOR (LEFT) MAY W10335434 Contact Us For Availability
9
ELEMENT, SURFACE (700W) (RIGHT REAR) MAY W10270604 Contact Us For Availability
9
SHIELD, WIRE COVER MAY W10299338 Contact Us For Availability
9
BUMPER & SCREW MAY W10105790 Contact Us For Availability
9
MAY W10272698 MAY W10272698 Contact Us For Availability
10
SWITCH, INFINITE (LEFT REAR & RIGHT REAR) MAY 7403P373-60 Contact Us For Availability
10
SWITCH, INFINITE (LEFT FRONT) MAY 7450P011-60 Contact Us For Availability
10
SWITCH, INFINITE (RIGHT FRONT) MAY W10295048 Contact Us For Availability
10
SENSOR, OVEN MAY 7430P044-60 Contact Us For Availability
10
MAY 4449743 MAY 4449743 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCL. BRACKET) (BLACK) MAY W10321787 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCL. BRACKET) (STAINLESS MAY W10321788 Contact Us For Availability
11
ASSEMBLY, MEMBRANE (INCL. BRACKET) (WHITE) MAY W10321789 Contact Us For Availability
11
MAY W10268559 MAY W10268559 Contact Us For Availability
11
MAY W10340464 MAY W10340464 Contact Us For Availability
12
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
12
MAY W10485730 MAY W10485730 Contact Us For Availability
12
MAY W10485731 MAY W10485731 Contact Us For Availability
12
MAY W10321285 MAY W10321285 Contact Us For Availability
13
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
13
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
13
MAY W10332449 MAY W10332449 Contact Us For Availability
13
RECEIVER (RIGHT) MAY W10272328 Contact Us For Availability
13
RECEIVER (LEFT) MAY W10272329 Contact Us For Availability
14
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
14
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
14
MAY W10261386 MAY W10261386 Contact Us For Availability
14
BADGE (BLACK) MAY W10288004 Contact Us For Availability
15
MAY W10278697 MAY W10278697 Contact Us For Availability
15
MAY W10337391 MAY W10337391 Contact Us For Availability
16
COVER, BACKGUARD MAY W10296773 Contact Us For Availability
16
MAY W10260583 MAY W10260583 Contact Us For Availability
17
MAY W10326400 MAY W10326400 Contact Us For Availability
17
MAY W10323793 MAY W10323793 Contact Us For Availability
19
MAY W10322408 MAY W10322408 Contact Us For Availability
20
BRACKET, U CHANNEL MAY W10319087 Contact Us For Availability
21
Screw MAY 7101P485-60 Contact Us For Availability
22
SHIELD, POWER CORD MAY 8036P012-60 Contact Us For Availability
23
MAY W10410461 MAY W10410461 Contact Us For Availability
23
MAY W10410463 MAY W10410463 Contact Us For Availability
24
MAY W10512757 MAY W10512757 Contact Us For Availability
25
SHIELD, CORD RIGHT MAY W10311987 Contact Us For Availability
26
MAY W10471348 MAY W10471348 Contact Us For Availability
27
COVER, WIRE LOWER MAY W10268560 Contact Us For Availability
28
INSULATOR, HEAT SHIELD MAY 7003P104-60 Contact Us For Availability
29
SHIELD, SIDE INSULATION MAY W10253471 Contact Us For Availability
30
MAY W10357697 MAY W10357697 Contact Us For Availability
31
MAY W10269069 MAY W10269069 Contact Us For Availability
31
MAY W10337392 MAY W10337392 Contact Us For Availability
32
MAY 7101P375-60 MAY 7101P375-60 Contact Us For Availability
33
BRACKET, POWER SUPPLY MAY W10190166 Contact Us For Availability
34
MAY W10261388 MAY W10261388 Contact Us For Availability
NI
INSULATION, MIDDLE MAY W10204079 Contact Us For Availability
NI
INSULATION, MAIN FRONT STRIP MAY W10204085 Contact Us For Availability
NI
MAY W10271637 MAY W10271637 Contact Us For Availability
NI
INSULATION, WRAPPER MAY W10308393 Contact Us For Availability
NI
INSULATION, BACK MAY W10322111 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2`` X 24`` X 120``) MAY 261514 Contact Us For Availability
NI
PAINT, SPRAY (BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, SPRAY (GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
PAINT, SPRAY (WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
PAINT, SPRAY (ALMOND) MAY 350956 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, SPRAY (BISCUIT/BISQUE) MAY 4392901 Contact Us For Availability
NI
ACCESSORIES, BROILER PAN & GRID MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
WIRING HARNESS PARTS, SCREW, GROUND MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
WIRING HARNESS PARTS, BLOCK, BARE WIRE ADAPTE MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
WIRING HARNESS PARTS, CLIP, WIRE LOCK MAY 8019P013-60 Contact Us For Availability
NI
ACCESSORIES, PREMIUM BROILER PAN & ROASTING R MAY W10123240 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, SENSOR MAY W10225701 Contact Us For Availability
NI
MAY W10233363 MAY W10233363 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, COOKTOP MAY W10270317 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN MAY W10326396 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER MAY W10355010 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER MAY W10355016 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, INFINITE SWITC MAY W10406501 Contact Us For Availability
NI
MAY W10406511 MAY W10406511 Contact Us For Availability
× ![]()
