Model Maytag YMES8800FZ0 RANGE/OVEN, ELECTRIC, SLIDE-IN – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

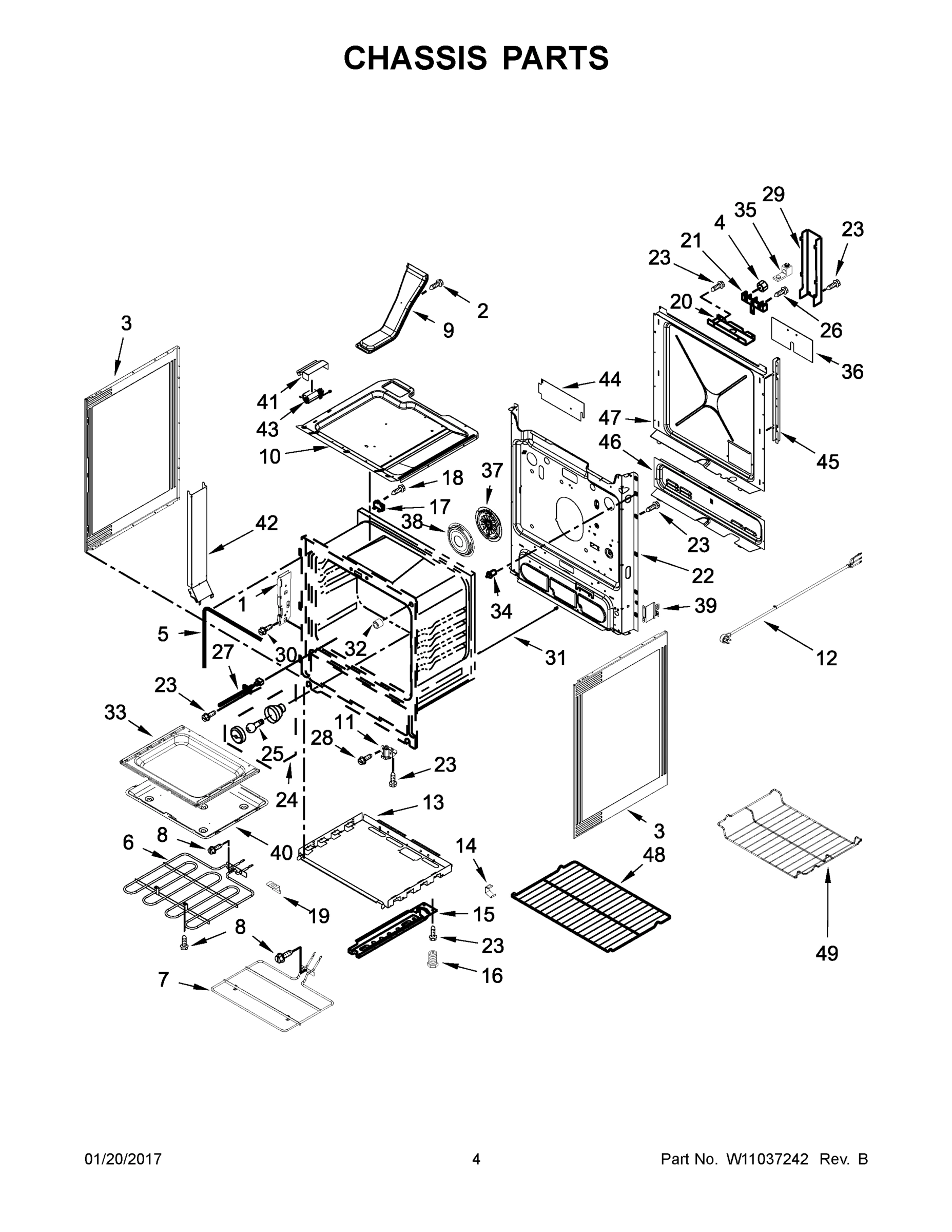

03 - CHASSIS PARTS

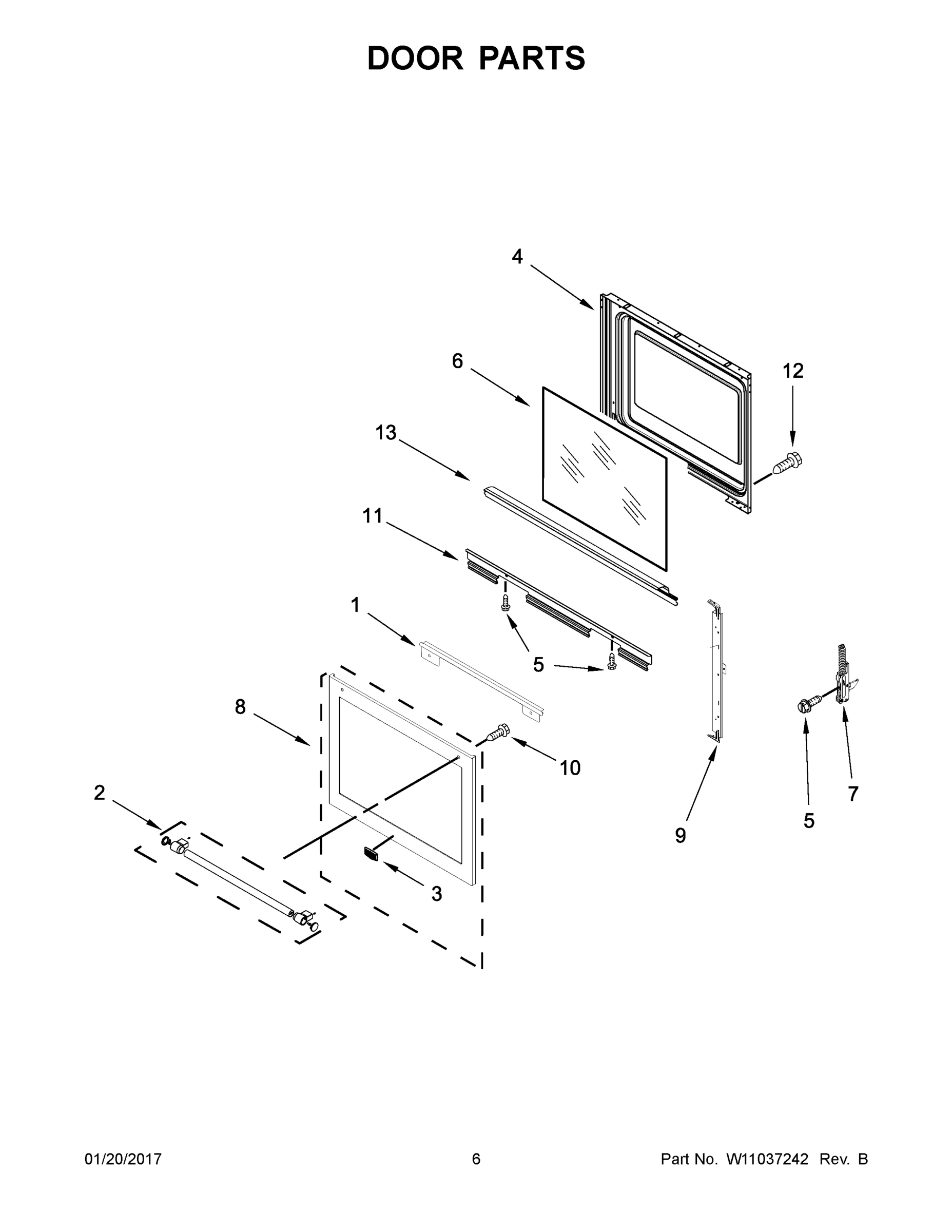

04 - DOOR PARTS

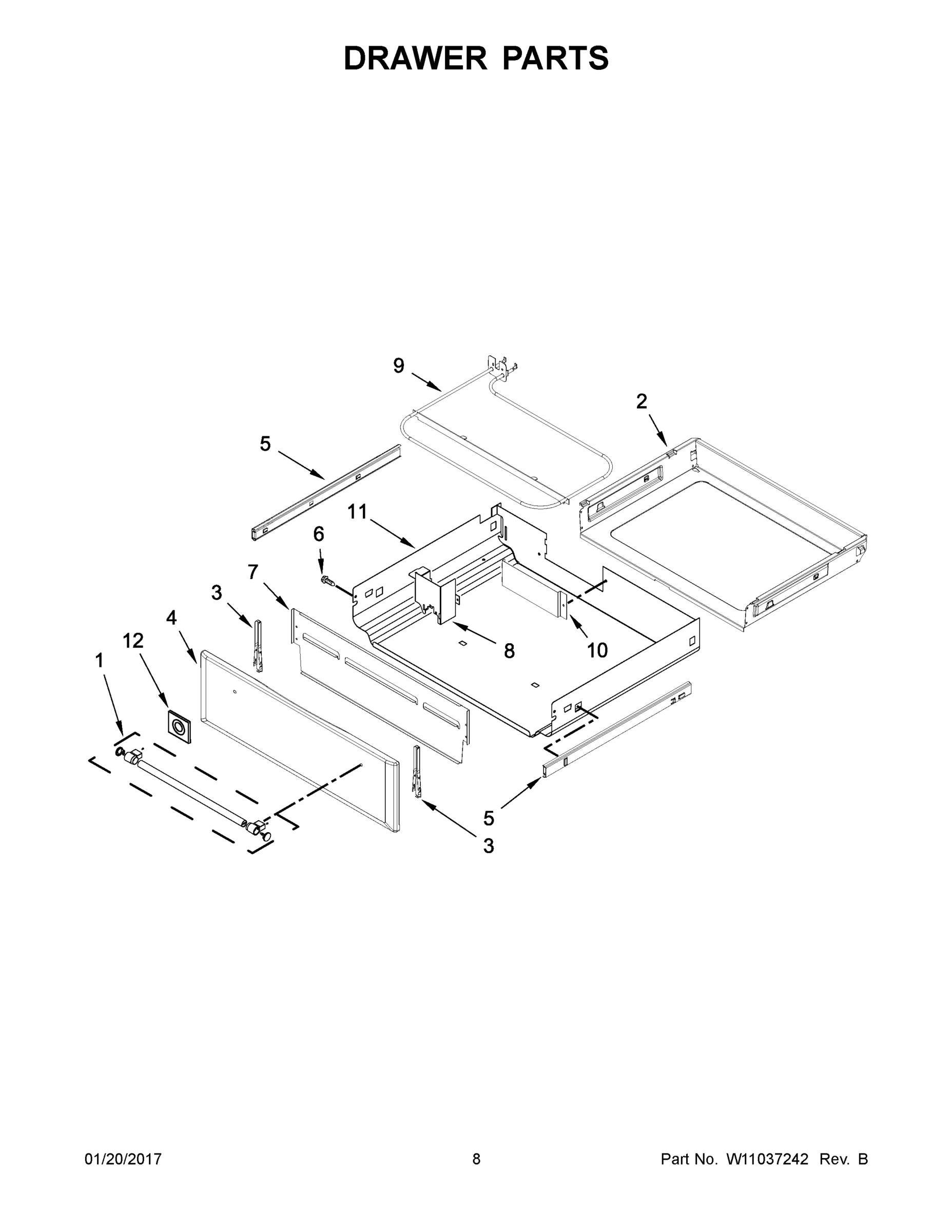

05 - DRAWER PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMES8800FZ0 RANGE/OVEN, ELECTRIC, SLIDE-IN
1
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
1
BRACKET, GLASS UPPER HANDLE MAY W10541911 Contact Us For Availability
1
ASSEMBLY, HANDLE (STAINLESS) MAY W10834521 Contact Us For Availability
1A
GUIDE, USE & CARE MAY W10844284 Contact Us For Availability
1B
SHEET, TECH MAY W10844271 Contact Us For Availability
1C
TIPS, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1D
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1E
GUIDE, QUICK START (ENGLISH) MAY W10400064 Contact Us For Availability
1F
GUIDE, QUICK START (FRENCH) MAY W10400065 Contact Us For Availability
1G
DIAGRAM, WIRING MAY W10844278 Contact Us For Availability
2
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
2
SCREW MAY 3196560 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
BADGE MAY W10612925 Contact Us For Availability
3
BRACKET, MOUNTING MAY W10318026 Contact Us For Availability
4
COOKTOP (BLACK) MAY W10668781 Contact Us For Availability
4
LINER, DOOR MAY W10826568 Contact Us For Availability
4
PANEL, DRAWER FRONT (STAINLESS) MAY W10865703 Contact Us For Availability
5
ELEMENT (2500/1200W) (LEFT FRONT) MAY W10275049 Contact Us For Availability
5
GASKET, DOOR MAY W10162385 Contact Us For Availability
5
SCREW MAY W10327235 Contact Us For Availability
5
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
5A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
6
ELEMENT (1200W) (RIGHT REAR) MAY 8273994 Contact Us For Availability
6
ELEMENT, BROIL MAY W10544952 Contact Us For Availability
6
GLASS, INNER MAY W10813616 Contact Us For Availability
6
SCREW MAY 8533988 Contact Us For Availability
7
ELEMENT (3200W) (RIGHT FRONT) MAY W10251108 Contact Us For Availability
7
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
7
HINGE, DOOR (ACTIVE) MAY W10885519 Contact Us For Availability
7
PANEL, INNER MAY W10748082 Contact Us For Availability
8
ELEMENT (700W) (LEFT REAR) MAY W10270604 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
MAY W10883552 MAY W10883552 Contact Us For Availability
8
COVER, WIRE MAY W10634259 Contact Us For Availability
9
ELEMENT, WARM ZONE (CENTER REAR) MAY W10799048 Contact Us For Availability
9
ASSEMBLY, FLUE MAY W10613792 Contact Us For Availability
9
RAIL, VERTICAL SUPPORT MAY W10813139 Contact Us For Availability
9
ELEMENT, WARM MAY W10323181 Contact Us For Availability
10
BRACKET, RADIANT MAY W10613286 Contact Us For Availability
10
BOX, BURNER SI MAY W10289168 Contact Us For Availability
10
COVER, GAS VALVE MAY W10727084 Contact Us For Availability
11
PAN, RADIANT MAY W10536275 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
11
RAIL, HORIZONTAL SUPPORT MAY W10813140 Contact Us For Availability
11
ENCLOSURE, WARMING MAY W10634260 Contact Us For Availability
12
BRACE, CORNER (LEFT) MAY W10162253 Contact Us For Availability
12
CORD, POWER MAY W10624592 Contact Us For Availability
12
SCREW MAY W10031780 Contact Us For Availability
12
SPACER, HANDLE MAY 3823F017-45 Contact Us For Availability
12A
BRACE, CORNER (RIGHT) MAY W10162252 Contact Us For Availability
13
SUPPORT, COOKTOP (LEFT) MAY W10289170 Contact Us For Availability
13
SHIELD, BAKE MAY W10541959 Contact Us For Availability
13
SCOOP, DOOR (BLACK) MAY W10613791 Contact Us For Availability
13A
SUPPORT, COOKTOP (RIGHT) MAY W10289169 Contact Us For Availability
14
SCREW MAY 3196173 Contact Us For Availability
14
CLIP, PANEL MAY W10137382 Contact Us For Availability
15
BRACKET, CONSOLE (LEFT) MAY W10547960 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15A
BRACKET, CONSOLE (RIGHT) MAY W10547961 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15B
BRACKET, CONSOLE (CENTER) MAY W10598048 Contact Us For Availability
16
ASSEMBLY, CONSOLE (STAINLESS) MAY W10680368 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
17
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10437092 Contact Us For Availability
17
FUSE, THERMAL MAY 3196548 Contact Us For Availability
17A
SWITCH, INFINITE (LEFT REAR) MAY W10295048 Contact Us For Availability
17B
SWITCH, INFINITE (RIGHT FRONT) MAY W10437094 Contact Us For Availability
17C
SWITCH, INFINITE (RIGHT REAR) MAY W10578768 Contact Us For Availability
18
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
19
KNOB (STAINLESS) MAY W10876614 Contact Us For Availability
19
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
20
SCREW MAY 9780274 Contact Us For Availability
20
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
21
CONTROL, ELECTRONIC (MRC2) MAY W10759300 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
22
GASKET, SWITCH STEM MAY W10702912 Contact Us For Availability
22
BACK, MAIN MAY W10289166 Contact Us For Availability
23
SCREW MAY 3196178 Contact Us For Availability
23
ASSEMBLY, OVERLAY (STAINLESS) MAY W10888919 Contact Us For Availability
24
LENS, INDICATOR MAY 3196068 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
25
BRACKET, CONTROL MAY W10558372 Contact Us For Availability
25
BULB, OVEN LIGHT MAY 311255 Contact Us For Availability
26
GASKET, CONSOLE/COOKTOP MAY W10612719 Contact Us For Availability
26
SCREW MAY 3400016 Contact Us For Availability
27
GASKET, CONSOLE MAY W10689101 Contact Us For Availability
27
SENSOR MAY W10586204 Contact Us For Availability
28
GASKET, CONSOLE SHORT MAY W10689102 Contact Us For Availability
28
SCREW MAY 3196169 Contact Us For Availability
29
ASSEMBLY, DISPLAY MAY W10603098 Contact Us For Availability
29
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
30
GASKET, INFINITE SWITCH MAY 7201P077-60 Contact Us For Availability
31
PANEL, LOWER CONSOLE (BLACK) MAY W10570527 Contact Us For Availability
31
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
32
MAY W10636528 MAY W10636528 Contact Us For Availability
32
SPACER, DOOR MAY 9758701 Contact Us For Availability
33
MAY W10664705 MAY W10664705 Contact Us For Availability
33
BOTTOM, OVEN MAY W10774446 Contact Us For Availability
34
MAY W10606241 MAY W10606241 Contact Us For Availability
34
SWITCH, DOOR MAY W10627802 Contact Us For Availability
35
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
36
SHIELD, POWER CORD MAY W10655441 Contact Us For Availability
37
ASSEMBLY, CONVECTION MAY W10874477 Contact Us For Availability
38
COVER, CONVECTION MAY W10346154 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
40
PAN, BAKE MAY W10346147 Contact Us For Availability
41
DUCT, COVER MAY W10162255 Contact Us For Availability
42
DUCT, COOLING MAY W10162254 Contact Us For Availability
43
ASSEMBLY, COOLING FAN MAY W10780482 Contact Us For Availability
44
SHIELD, WIRE MAY W10813366 Contact Us For Availability
45
CHANNEL, REAR MAY W10162241 Contact Us For Availability
46
COVER, WIRE MAY W10162248 Contact Us For Availability
47
COVER, BACK MAY W10289172 Contact Us For Availability
48
RACK, OVEN MAY W10531060 Contact Us For Availability
49
RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
MAY W10575120 MAY W10575120 Contact Us For Availability
NI
MAY W10580243 MAY W10580243 Contact Us For Availability
NI
MAY W10580265 MAY W10580265 Contact Us For Availability
NI
MAY W10580284 MAY W10580284 Contact Us For Availability
NI
MAY W10580298 MAY W10580298 Contact Us For Availability
NI
MAY W10598170 MAY W10598170 Contact Us For Availability
NI
MAY W10664316 MAY W10664316 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
CLAMP, WIRE MAY 7111P017-60 Contact Us For Availability
NI
INSULATION, BACK MAY W10162240 Contact Us For Availability
NI
INSULATION, WRAP MAY W10289173 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10575374 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, CANNING UNIT MAY 242905 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORY PARTS, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORY PARTS, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, OVEN (SPLIT) MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORY PARTS, WIPES, STAINLESS STEEL CLEAN MAY W10355049 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORY PARTS, PAD, COOKTOP CLEANING MAY W10391473 Contact Us For Availability
NI
ACCESSORY PARTS, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
NI
ACCESSORY PARTS, GRIDDLE MAY W10432539 Contact Us For Availability
NI
ASSEMBLY, BACKSPLASH (KIT, GRILL) MAY W10432545 Contact Us For Availability
NI
ASSEMBLY, BACKSPLASH (WHITE) MAY W10655448 Contact Us For Availability
NI
ASSEMBLY, BACKSPLASH (BLA MAY W10655449 Contact Us For Availability
NI
MAY W10655450 MAY W10655450 Contact Us For Availability
NI
MAY W10675026 MAY W10675026 Contact Us For Availability
NI
MAY W10675027 MAY W10675027 Contact Us For Availability
NI
MAY W10675028 MAY W10675028 Contact Us For Availability
NI
MAY WA906B MAY WA906B Contact Us For Availability
× ![]()
