Model Maytag YMER8880BW0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

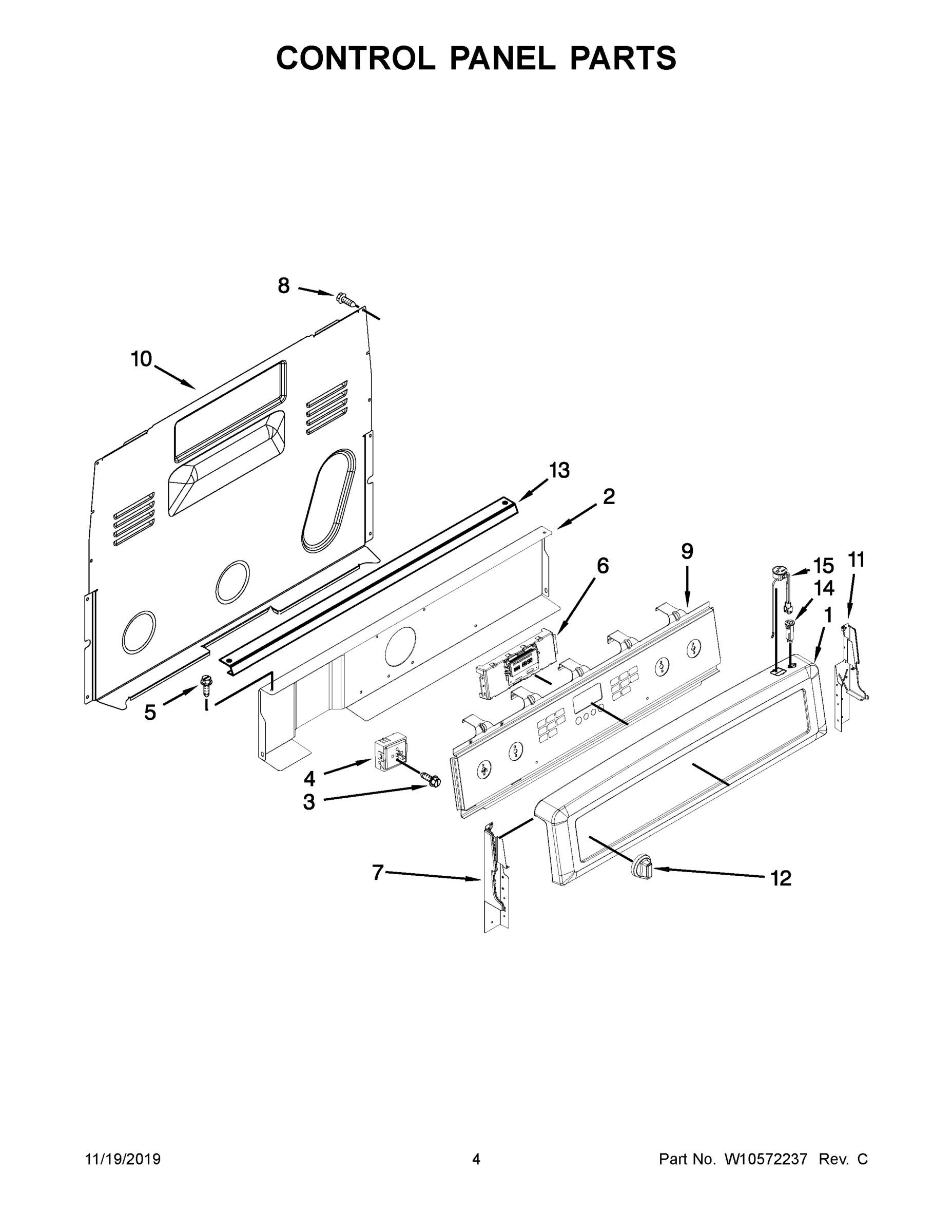

03 - CONTROL PANEL PARTS

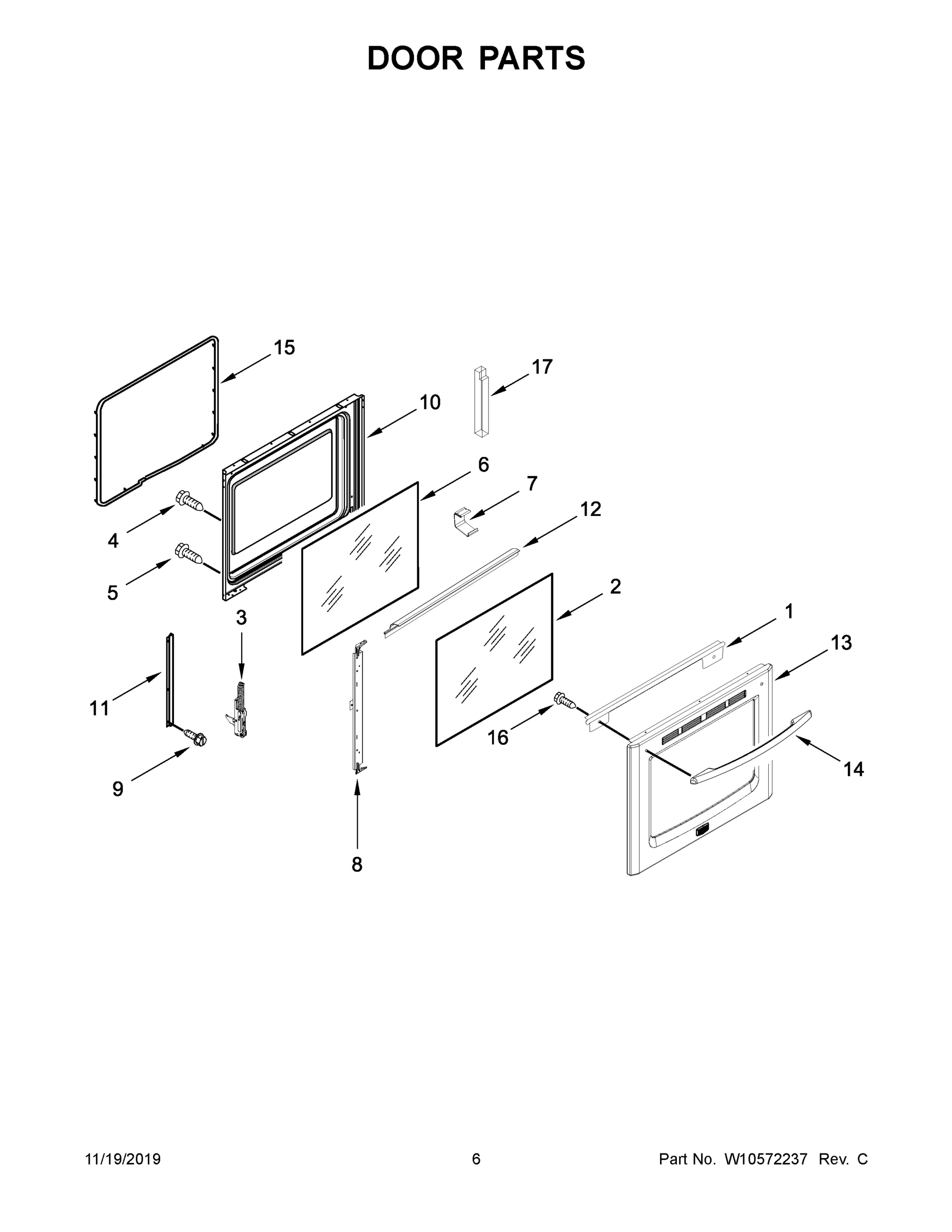

04 - DOOR PARTS

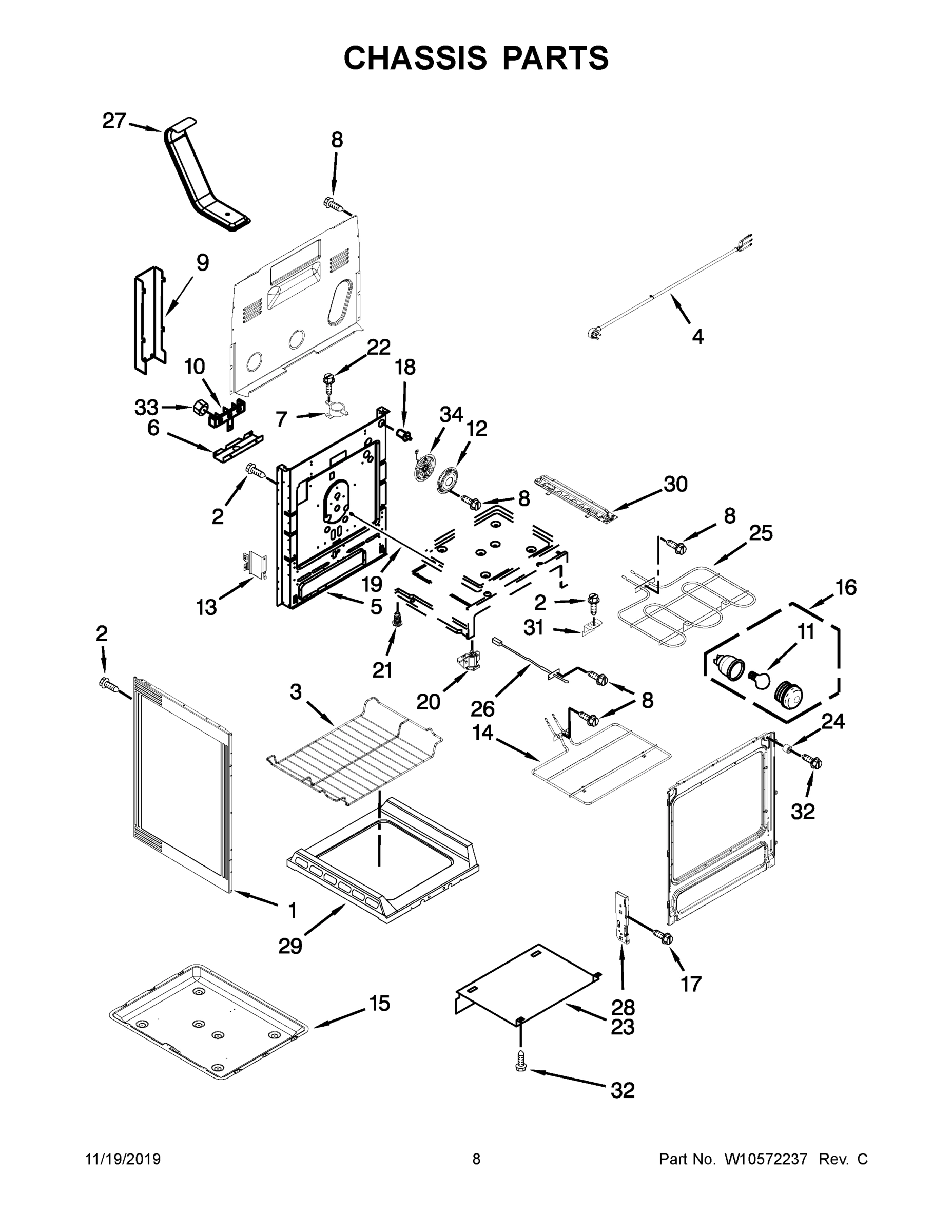

05 - CHASSIS PARTS

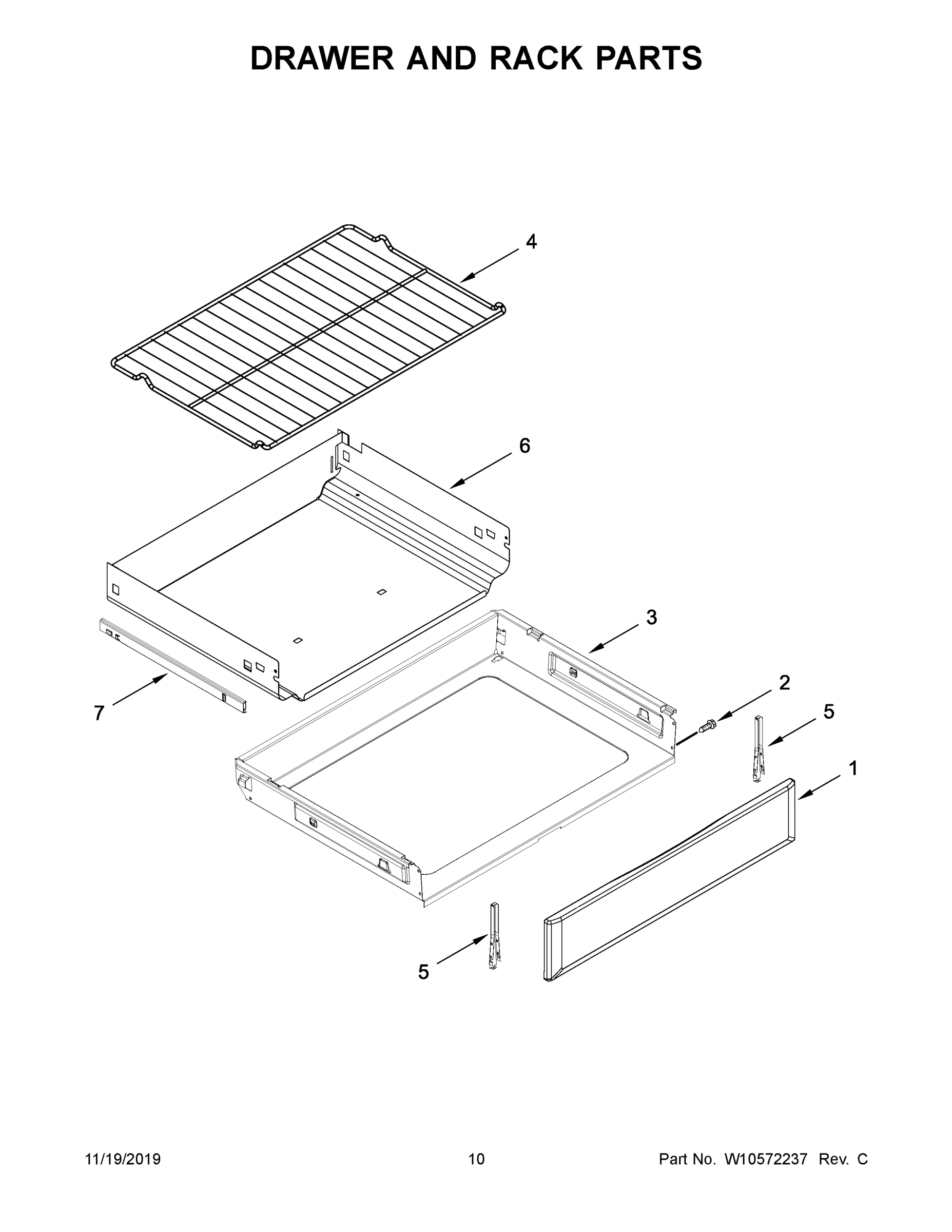

06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER8880BW0 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
PANEL, BACKGUARD (WHITE) MAY W10214551 Contact Us For Availability
1
TRIM, VENT (WHITE) MAY W10330075 Contact Us For Availability
1
PANEL, SIDE (WHITE) MAY W10575396 Contact Us For Availability
1
PANEL, DRAWER (WHITE) MAY W10289102 Contact Us For Availability
1A
TECH SHEET, ENGLISH MAY W10522408 Contact Us For Availability
1A
PANEL, BACKGUARD (BLACK) MAY W10225556 Contact Us For Availability
1A
TRIM, VENT (BLACK) MAY W10339814 Contact Us For Availability
1A
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
1A
PANEL, DRAWER (BLACK) MAY W10289103 Contact Us For Availability
1B
TECH SHEET, FRENCH MAY W10522409 Contact Us For Availability
1B
PANEL, BACKGUARD (STAINLESS) MAY W10225557 Contact Us For Availability
1B
PANEL, DRAWER (STAINLESS) MAY W10289104 Contact Us For Availability
1C
INSTRUCTIONS, INSTALLATION MAY W10403812 Contact Us For Availability
1D
GUIDE, QUICK START (ENGLISH) MAY W10400064 Contact Us For Availability
1E
GUIDE, QUICK START (FRENCH) MAY W10400065 Contact Us For Availability
2
COOKTOP (WHITE) MAY W10380672 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
2
SHIELD, HEAT MAY W10134247 Contact Us For Availability
2
GLASS, OUTER MAY W10615599 Contact Us For Availability
2A
COOKTOP (BLACK) MAY W10380673 Contact Us For Availability
3
HINGE, COOKTOP MAY 3195060 Contact Us For Availability
3
SCREW MAY 3400882 Contact Us For Availability
3
HINGE, DOOR (ACTIVE) MAY W10388635 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
4
ELEMENT (3000/2200/1100W) (LEFT FRONT) MAY W10162041 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT) MAY W10391743 Contact Us For Availability
4
SCREW MAY W10031790 Contact Us For Availability
4
CORD, POWER MAY W10624592 Contact Us For Availability
4
RACK, OVEN MAY W10531060 Contact Us For Availability
4A
SWITCH, INFINITE (GREEN) (RIGHT FRONT) MAY 3148953 Contact Us For Availability
4B
SWITCH, INFINITE (DUAL) (RIGHT REAR) MAY W10434452 Contact Us For Availability
4C
SWITCH, INFINITE (LEFT REAR) MAY W10411934 Contact Us For Availability
5
ELEMENT, BRIDGE (RIGHT FRONT & RIGHT REAR) MAY W10248259 Contact Us For Availability
5
BRACKET, DRAWER MAY W10318027 Contact Us For Availability
6
ELEMENT (1300W) (LEFT REAR) MAY W10342780 Contact Us For Availability
6
CONTROL (MRC) MAY W10340323 Contact Us For Availability
6
GLASS, INNER MAY W10300487 Contact Us For Availability
6
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
6
DRAWER, ENCLOSURE MAY W10545683 Contact Us For Availability
7
ELEMENT, WARM ZONE (CENTER) MAY W10799048 Contact Us For Availability
7
ENDCAP (WHITE (LEFT)) MAY W10184433 Contact Us For Availability
7
CLIP, PANEL MAY W10137382 Contact Us For Availability
7
FUSE, THERMAL MAY 3196548 Contact Us For Availability
7
SLIDE, DRAWER (LEFT) MAY W10441804 Contact Us For Availability
7A
ENDCAP (BLACK (LEFT)) MAY W10184437 Contact Us For Availability
7A
SLIDE, DRAWER (RIGHT) MAY W10441805 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10106409 Contact Us For Availability
8
SCREW MAY W10362924 Contact Us For Availability
8
RAIL, DOOR MAY W10294851 Contact Us For Availability
9
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
9
ASSEMBLY, ACTIVE OVERLAY (WHITE) MAY W10339433 Contact Us For Availability
9
SCREW MAY W10327235 Contact Us For Availability
9
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
9A
ASSEMBLY, ACTIVE OVERLAY (BLACK) MAY W10339434 Contact Us For Availability
9B
ASSEMBLY, ACTIVE OVERLAY (STAINLESS) MAY W10339435 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
LINER, DOOR MAY W10297318 Contact Us For Availability
10
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
11
ENDCAP (WHITE (RIGHT)) MAY W10184434 Contact Us For Availability
11
BRACKET, GLASS MAY W10294852 Contact Us For Availability
11A
ENDCAP (BLACK (RIGHT)) MAY W10184438 Contact Us For Availability
12
BRACKET, L-BRIDGE MAY W10348913 Contact Us For Availability
12
KNOB (WHITE) MAY W10370184 Contact Us For Availability
12
BRACKET, GLASS LINER MAY W10294853 Contact Us For Availability
12
COVER, CONVECTION MAY W10346154 Contact Us For Availability
12A
KNOB (BLACK) MAY W10370185 Contact Us For Availability
12B
KNOB (STAINLESS) MAY W10370186 Contact Us For Availability
13
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
13
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
13
SKIN, DOOR (WHITE) MAY W10325665 Contact Us For Availability
13
BRACKET, OVEN SUPPORT MAY W10273002 Contact Us For Availability
13A
SKIN, DOOR (BLACK) MAY W10325666 Contact Us For Availability
13B
SKIN, DOOR (STAINLESS) MAY W10325668 Contact Us For Availability
14
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
14
CIRCUIT BREAKER (WHITE) MAY 9757601 Contact Us For Availability
14
HANDLE, DOOR (WHITE) MAY W10171747 Contact Us For Availability
14
ELEMENT, BAKE MAY W10774342 Contact Us For Availability
14A
CIRCUIT BREAKER (BLACK) MAY 9757602 Contact Us For Availability
14A
HANDLE, DOOR (BLACK) MAY W10171748 Contact Us For Availability
14B
HANDLE, DOOR (STAINLESS) MAY W10161708 Contact Us For Availability
15
RECEPTACLE (WHITE) MAY W10749727 Contact Us For Availability
15
GASKET, DOOR MAY W10162385 Contact Us For Availability
15
PAN, BAKE MAY W10346147 Contact Us For Availability
15A
RECEPTACLE (BLACK) MAY W10749729 Contact Us For Availability
16
SCREW (BLACK & WHITE MODELS) MAY W10241367 Contact Us For Availability
16
ASSEMBLY, LIGHT MAY W10454648 Contact Us For Availability
16A
SCREW (STAINLESS MODELS) MAY W11091878 Contact Us For Availability
17
SCREW MAY W10031780 Contact Us For Availability
17
INSULATION, DOOR MAY W10772958 Contact Us For Availability
18
SWITCH, DOOR MAY W10627802 Contact Us For Availability
19
ROD, DOOR SWITCH MAY W10273192 Contact Us For Availability
20
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
21
FOOT, LEVELING MAY W10058460 Contact Us For Availability
22
SCREW MAY 3196172 Contact Us For Availability
23
SHIELD, HEAT MAY W10726740 Contact Us For Availability
24
SPACER, DOOR MAY 9758701 Contact Us For Availability
25
MAY W11095929 MAY W11095929 Contact Us For Availability
26
SENSOR MAY W10586204 Contact Us For Availability
27
TUBE, VENT MAY W10134285 Contact Us For Availability
28
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
29
BOTTOM, OVEN MAY W10289079 Contact Us For Availability
30
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
30A
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
31
SUPPORT, OVEN BOTTOM MAY W10035900 Contact Us For Availability
34
MOTOR, FAN (CONVECTION) MAY W10874067 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
HARNESS, WARM ZONE MAY W10174460 Contact Us For Availability
NI
HARNESS, SENSOR MAY W10349640 Contact Us For Availability
NI
HARNESS, WIRE MAIN MAY W10349698 Contact Us For Availability
NI
HARNESS, COOKTOP RIGHT MAY W10349700 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10349735 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
INSULATION, STRAP MAY 4820F015-59 Contact Us For Availability
NI
INSULATION, WRAP MAY W10194393 Contact Us For Availability
NI
INSULATION, BOTTOM MAY W10225523 Contact Us For Availability
NI
INSULATION, BACK MAY W10225524 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
ACCESSORY PARTS, GLASS CLEANER MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, SPLIT OVEN RACK MAY W10205524 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORIES, ALT CLEANING KIT MAY W10432019 Contact Us For Availability
× ![]()
