Model Maytag YMER8875WS0 ELECTRIC RANGE – Common Parts & Diagrams

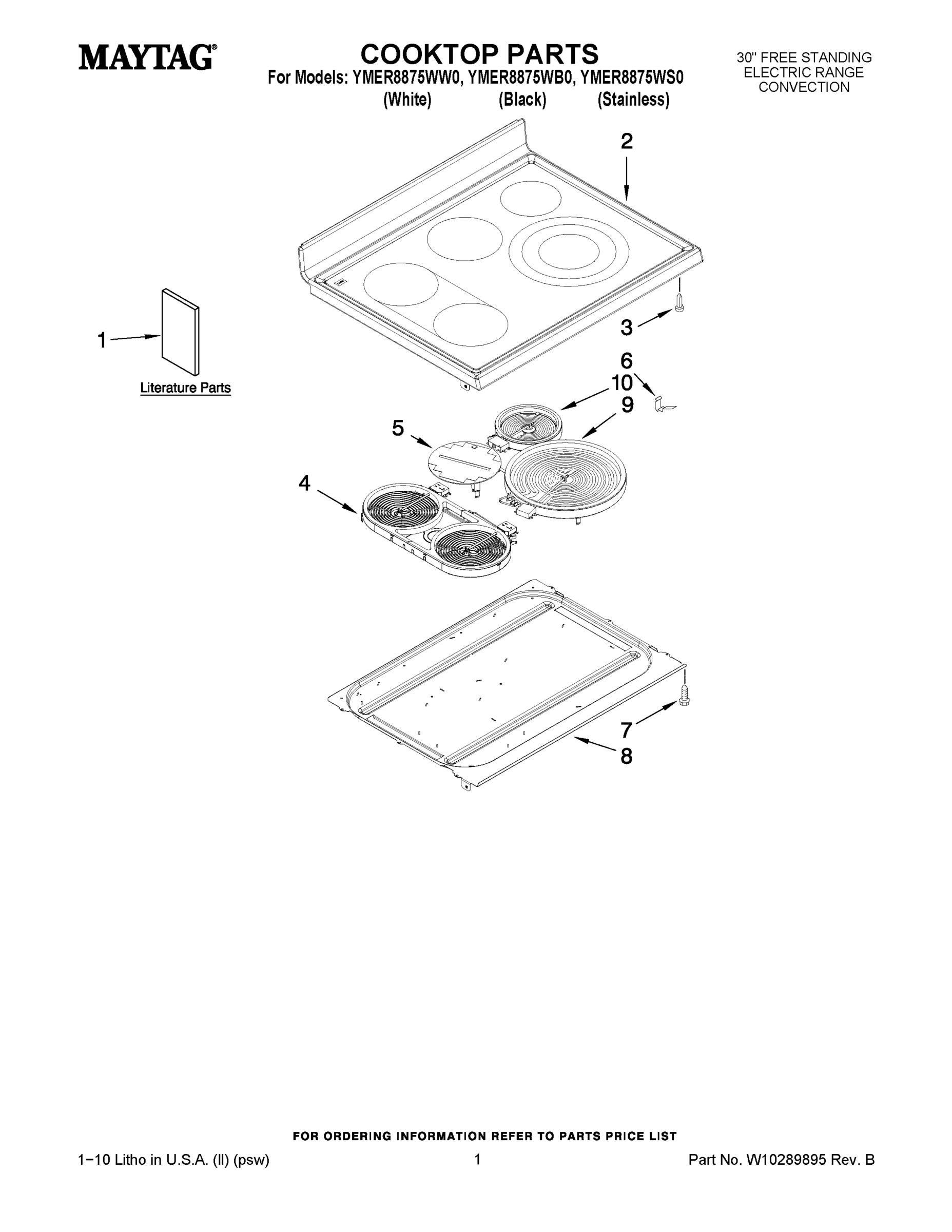

01 - COOKTOP PARTS

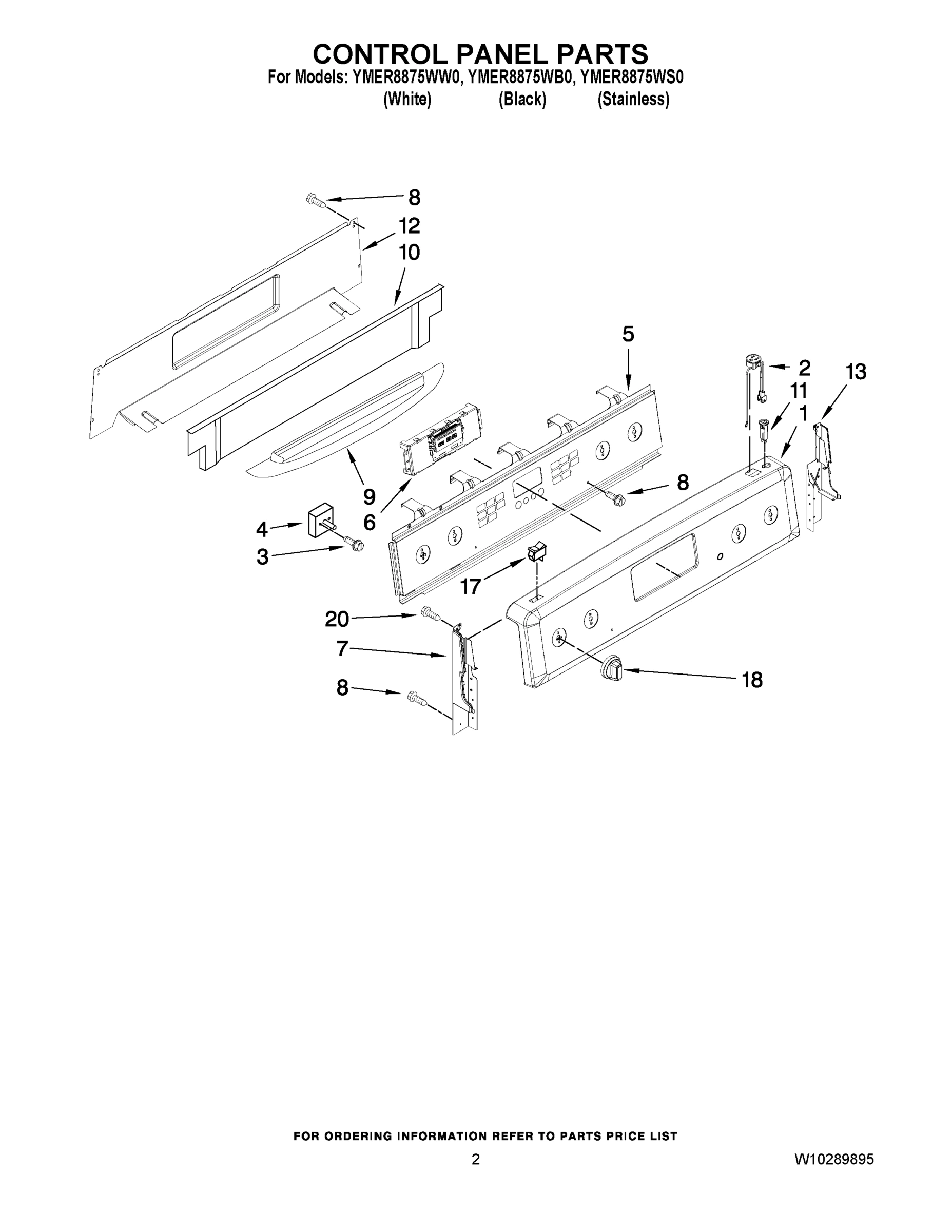

02 - CONTROL PANEL PARTS

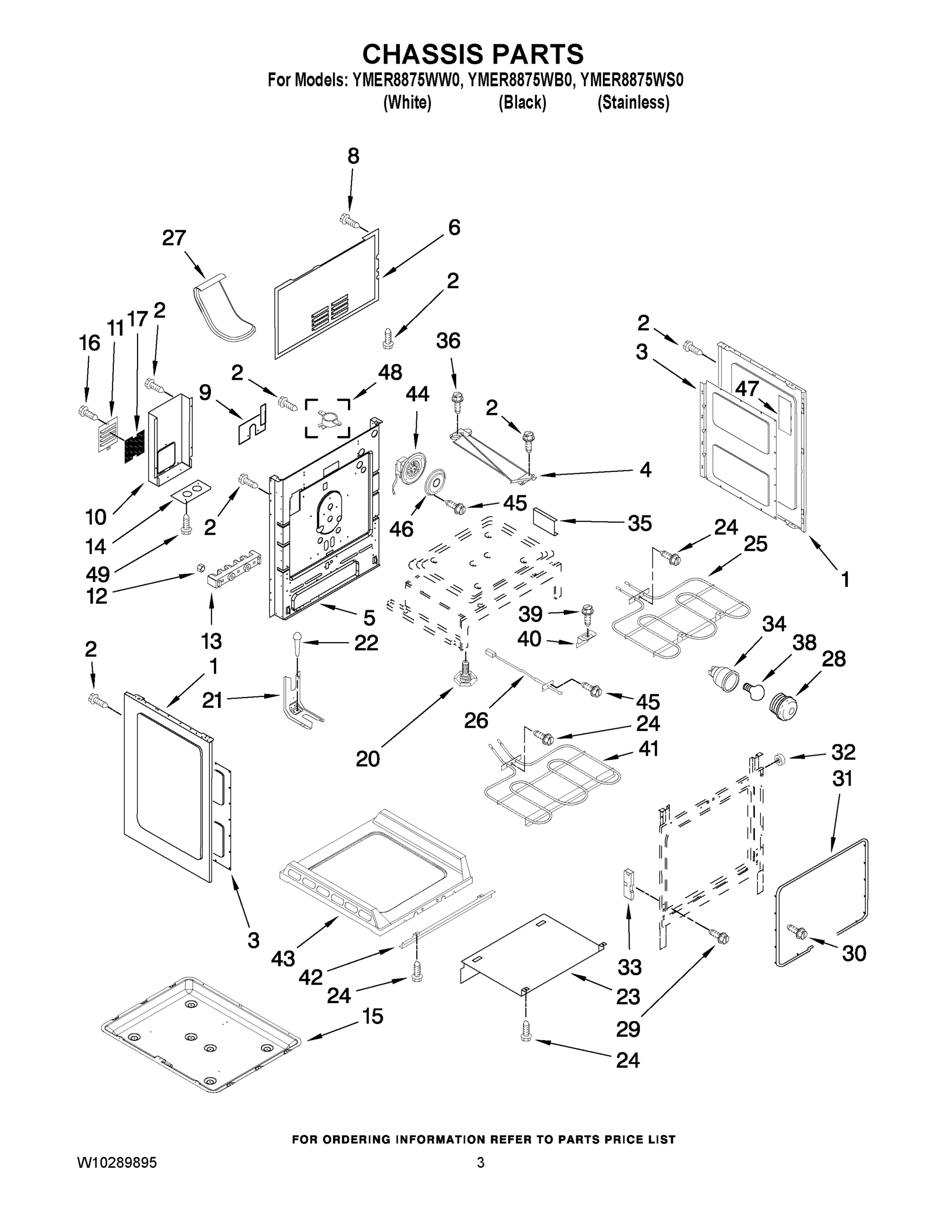

03 - CHASSIS PARTS

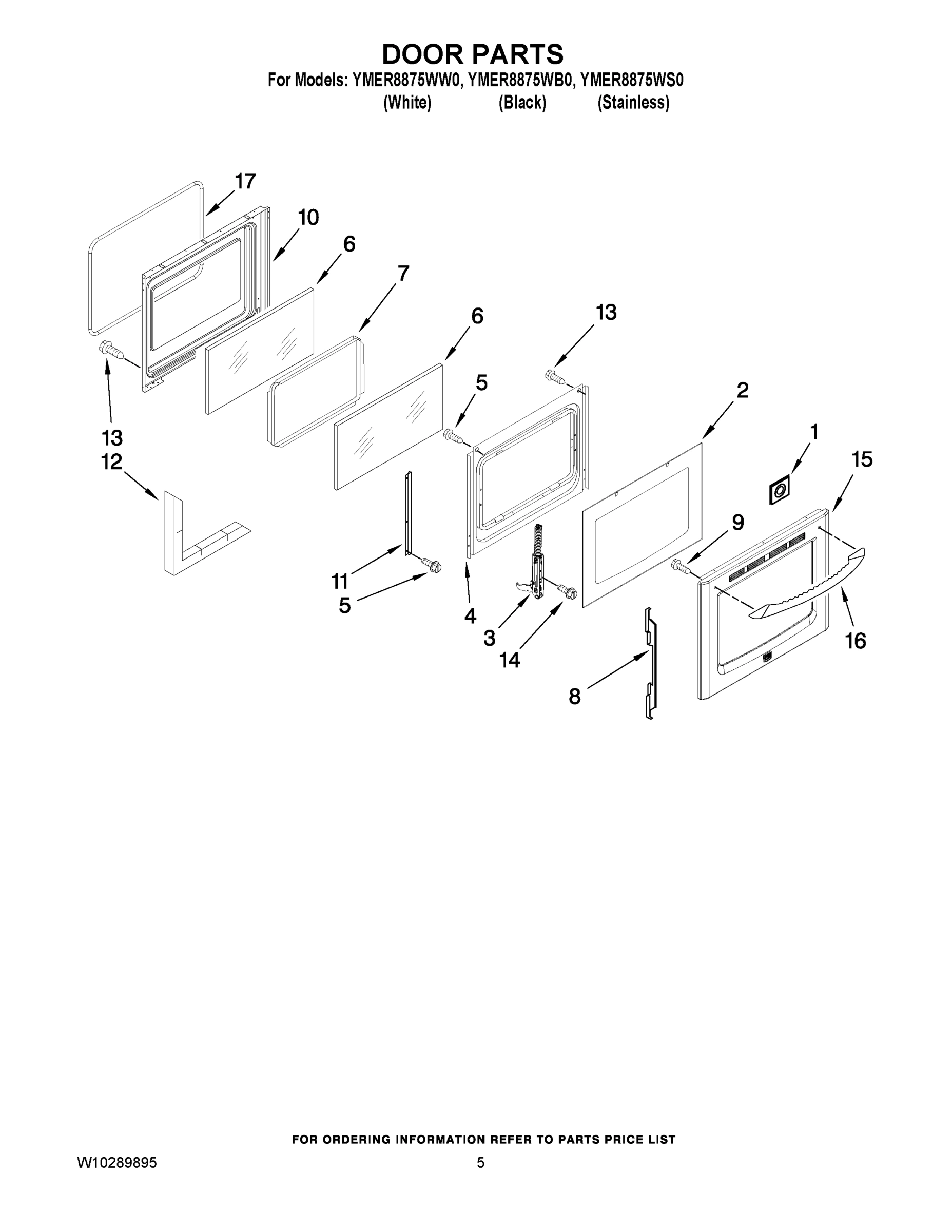

04 - DOOR PARTS

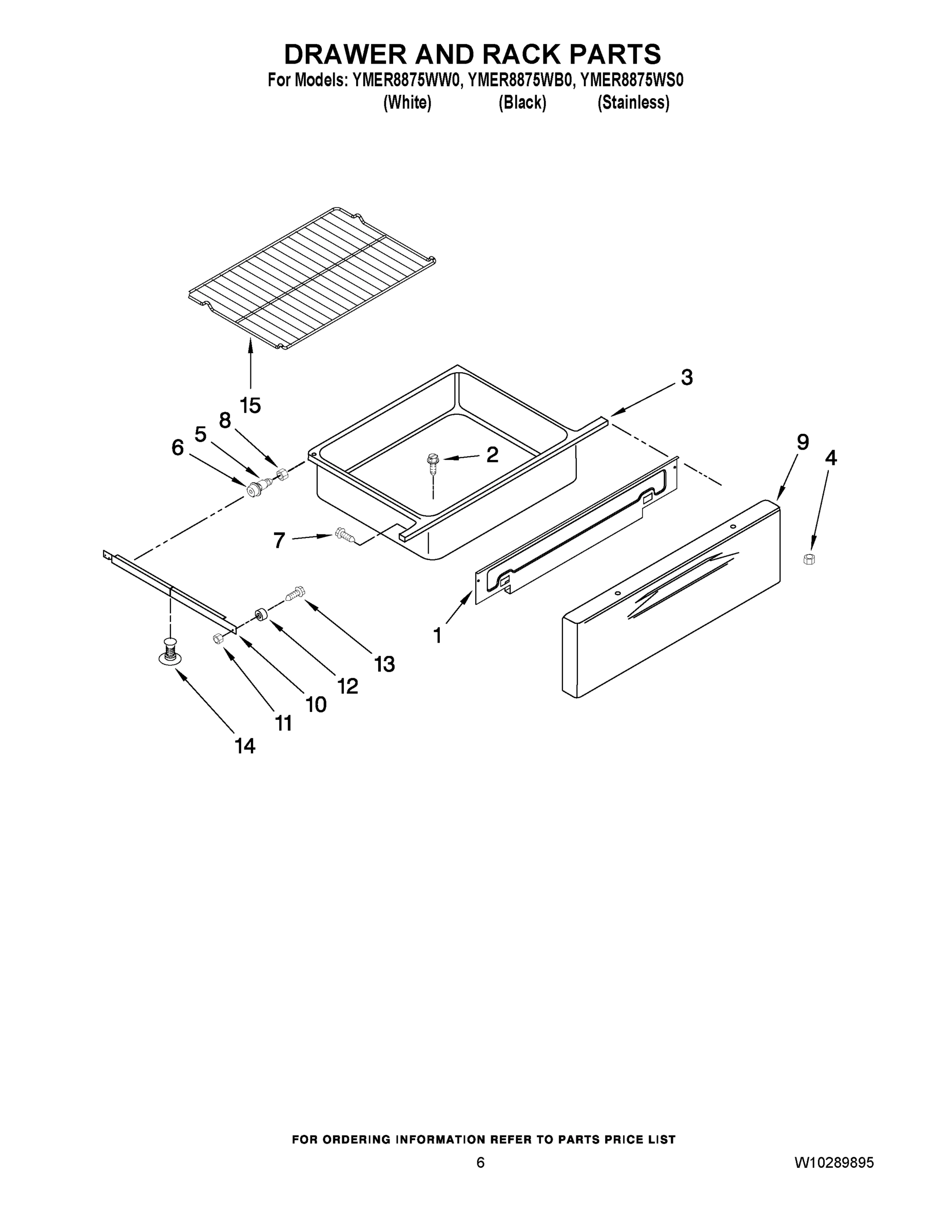

05 - DRAWER AND RACK PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER8875WS0 ELECTRIC RANGE
1
Brochure, Safe Tip (ENGLISH) MAY 9762761 Contact Us For Availability
1
Brochure, Safe Tip (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10239461 MAY W10239461 Contact Us For Availability
1
WIRING DIAGRAM (ENGLISH) MAY W10239465 Contact Us For Availability
1
MAY W10239470 MAY W10239470 Contact Us For Availability
1
MAY W10245713 MAY W10245713 Contact Us For Availability
1
MAY W10214551 MAY W10214551 Contact Us For Availability
1
MAY W10225556 MAY W10225556 Contact Us For Availability
1
MAY W10225557 MAY W10225557 Contact Us For Availability
1
MAY 2618F172-58 MAY 2618F172-58 Contact Us For Availability
1
MAY 2618F172-69 MAY 2618F172-69 Contact Us For Availability
1
MAY 3823F017-45 MAY 3823F017-45 Contact Us For Availability
1
PLATE, PANEL MTG. MAY 3605P337-51 Contact Us For Availability
2
MAY W10106413 MAY W10106413 Contact Us For Availability
2
MAY W10106414 MAY W10106414 Contact Us For Availability
2
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
2
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
2
MAY 3196560 MAY 3196560 Contact Us For Availability
2
MAY W10181725 MAY W10181725 Contact Us For Availability
3
MAY 8010P149-60 MAY 8010P149-60 Contact Us For Availability
3
Screw, Switch (10) MAY 3400882 Contact Us For Availability
3
MAY 7106P124-60 MAY 7106P124-60 Contact Us For Availability
3
MAY 3405F037-80 MAY 3405F037-80 Contact Us For Availability
4
ELEMENT, BRIDGE MAY 8285848 Contact Us For Availability
4
SWITCH, INFINTE ((RR)) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINTE ((LR)) MAY 3148953 Contact Us For Availability
4
SWITCH, INFINTE (DUAL (LF)) MAY W10149355 Contact Us For Availability
4
SWITCH, INFINTE (TRIPLE (RF)) MAY W10169580 Contact Us For Availability
4
MAY 3601F380-51 MAY 3601F380-51 Contact Us For Availability
4
MAY 8002P104-60 MAY 8002P104-60 Contact Us For Availability
5
Element, Warm MAY 9762851 Contact Us For Availability
5
ACTIVE OVERLAY (WHITE) MAY W10207494 Contact Us For Availability
5
MAY W10207495 MAY W10207495 Contact Us For Availability
5
MAY W10214548 MAY W10214548 Contact Us For Availability
5
MAIN BACK MAY W10243046 Contact Us For Availability
5
MAY 8010P130-60 MAY 8010P130-60 Contact Us For Availability
6
MAY 7803P087-60 MAY 7803P087-60 Contact Us For Availability
6
MAY W10157249 MAY W10157249 Contact Us For Availability
6
COVER, MAIN WIRE MAY W10205618 Contact Us For Availability
6
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY W10163967 MAY W10163967 Contact Us For Availability
7
MAY W10163969 MAY W10163969 Contact Us For Availability
8
MAY W10170717 MAY W10170717 Contact Us For Availability
8
Screw MAY 3196168 Contact Us For Availability
8
MAY 3801P918-51 MAY 3801P918-51 Contact Us For Availability
9
TRIPLE (RF) MAY W10162041 Contact Us For Availability
9
MAY 3604F382-09 MAY 3604F382-09 Contact Us For Availability
9
MAY 3604F382-81 MAY 3604F382-81 Contact Us For Availability
9
MAY 7003P145-60 MAY 7003P145-60 Contact Us For Availability
9
SCREW, MOUNTING MAY W10241367 Contact Us For Availability
9
MAY W10181695 MAY W10181695 Contact Us For Availability
9
MAY W10181696 MAY W10181696 Contact Us For Availability
9
MAY W10181698 MAY W10181698 Contact Us For Availability
10
ELEMENT (RR) MAY 8273994 Contact Us For Availability
10
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
10
MAY W10243045 MAY W10243045 Contact Us For Availability
10
MAY 2402W297-19 MAY 2402W297-19 Contact Us For Availability
10
MAY 3406P034-51 MAY 3406P034-51 Contact Us For Availability
11
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
11
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
11
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
11
Bracket, Glass (2) MAY 3801F886-51 Contact Us For Availability
11
MAY 7103P190-60 MAY 7103P190-60 Contact Us For Availability
12
MAY W10243038 MAY W10243038 Contact Us For Availability
12
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
12
MAY W10272883 MAY W10272883 Contact Us For Availability
13
MAY W10163968 MAY W10163968 Contact Us For Availability
13
MAY W10163970 MAY W10163970 Contact Us For Availability
13
Screw (8) MAY 3196178 Contact Us For Availability
13
MAY 7118P032-60 MAY 7118P032-60 Contact Us For Availability
14
MAY 3605P146-51 MAY 3605P146-51 Contact Us For Availability
14
SCREW,(10-24X5/16) MAY 7101P282-60 Contact Us For Availability
14
MAY 8038P037-60 MAY 8038P037-60 Contact Us For Availability
15
PAN, BAKE MAY 3401F084-45 Contact Us For Availability
15
MAY W10097300 MAY W10097300 Contact Us For Availability
15
MAY W10172590 MAY W10172590 Contact Us For Availability
15
MAY W10214541 MAY W10214541 Contact Us For Availability
15
Rack, Oven MAY W10179196 Contact Us For Availability
16
MAY 3196160 MAY 3196160 Contact Us For Availability
16
MAY W10161708 MAY W10161708 Contact Us For Availability
16
MAY W10171747 MAY W10171747 Contact Us For Availability
16
MAY W10171748 MAY W10171748 Contact Us For Availability
17
MAY 3149360 MAY 3149360 Contact Us For Availability
17
MAY W10260573 MAY W10260573 Contact Us For Availability
17
MAY W10211405 MAY W10211405 Contact Us For Availability
18
KNOB (4) (WHITE/CHROME) MAY W10211371 Contact Us For Availability
18
KNOB (4) (BLACK/CHROME) MAY W10211372 Contact Us For Availability
18
MAY W10211374 MAY W10211374 Contact Us For Availability
20
Screw (2) (Black) MAY 7101P633-60 Contact Us For Availability
20
Screw (2) (White) MAY 7101P663-60 Contact Us For Availability
20
Leg, Leveling MAY 7101P507-60 Contact Us For Availability
21
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
23
MAY 3604F371-51 MAY 3604F371-51 Contact Us For Availability
25
MAY 7406P493-60 MAY 7406P493-60 Contact Us For Availability
26
MAY W10181986 MAY W10181986 Contact Us For Availability
27
MAY 8026P081-60 MAY 8026P081-60 Contact Us For Availability
28
Lens, Bulb MAY 3196173 Contact Us For Availability
31
Gasket MAY W10162385 Contact Us For Availability
32
MAY 8010P148-60 MAY 8010P148-60 Contact Us For Availability
33
MAY 7106P125-60 MAY 7106P125-60 Contact Us For Availability
34
LIGHT ASSEMBLY MAY 3196701 Contact Us For Availability
35
MAY 3801P798-51 MAY 3801P798-51 Contact Us For Availability
36
Screw (Black) (2) MAY 7101P375-60 Contact Us For Availability
38
BULB, OVEN MAY 311255 Contact Us For Availability
39
MAY 7101P618-60 MAY 7101P618-60 Contact Us For Availability
40
MAY 3801P822-45 MAY 3801P822-45 Contact Us For Availability
41
MAY 7406P451-60 MAY 7406P451-60 Contact Us For Availability
42
MAY 3807P680-45 MAY 3807P680-45 Contact Us For Availability
43
MAY W10211367 MAY W10211367 Contact Us For Availability
44
MAY 7427P105-60 MAY 7427P105-60 Contact Us For Availability
45
MAY 3196154 MAY 3196154 Contact Us For Availability
46
MAY 3605F305-19 MAY 3605F305-19 Contact Us For Availability
47
INSULATION MAY 3804F300-51 Contact Us For Availability
48
Switch, Thermal MAY 7403P857-60 Contact Us For Availability
49
Screw (2) MAY 7101P336-60 Contact Us For Availability
NI
MAY 3804F316-51 MAY 3804F316-51 Contact Us For Availability
NI
MAY 4820F014-59 MAY 4820F014-59 Contact Us For Availability
NI
MAY 7002P361-60 MAY 7002P361-60 Contact Us For Availability
NI
MAY 7002P362-60 MAY 7002P362-60 Contact Us For Availability
NI
Insulation, Side MAY W10182346 Contact Us For Availability
NI
MAY W10243056 MAY W10243056 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3191048 MAY 3191048 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
BLOCK, WIRE ADAPTER (3) MAY 7401P157-60 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY W10237618 MAY W10237618 Contact Us For Availability
NI
MAY W10237619 MAY W10237619 Contact Us For Availability
NI
MAY W10237622 MAY W10237622 Contact Us For Availability
NI
MAY W10237625 MAY W10237625 Contact Us For Availability
NI
CORD, POWER MAY W10244925 Contact Us For Availability
× ![]()
