Model Maytag YMER7662WB2 ELECTRIC RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS

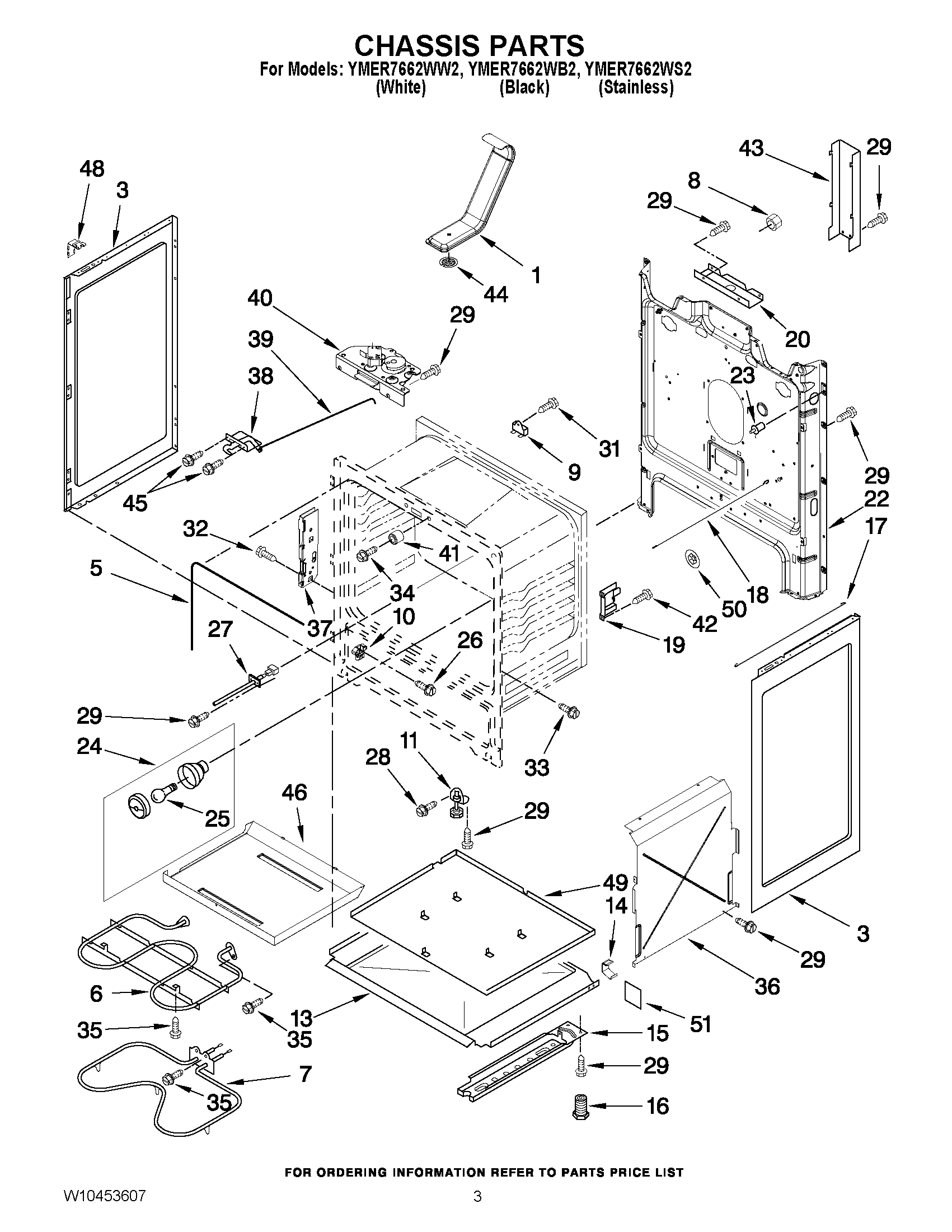

03 - CHASSIS PARTS

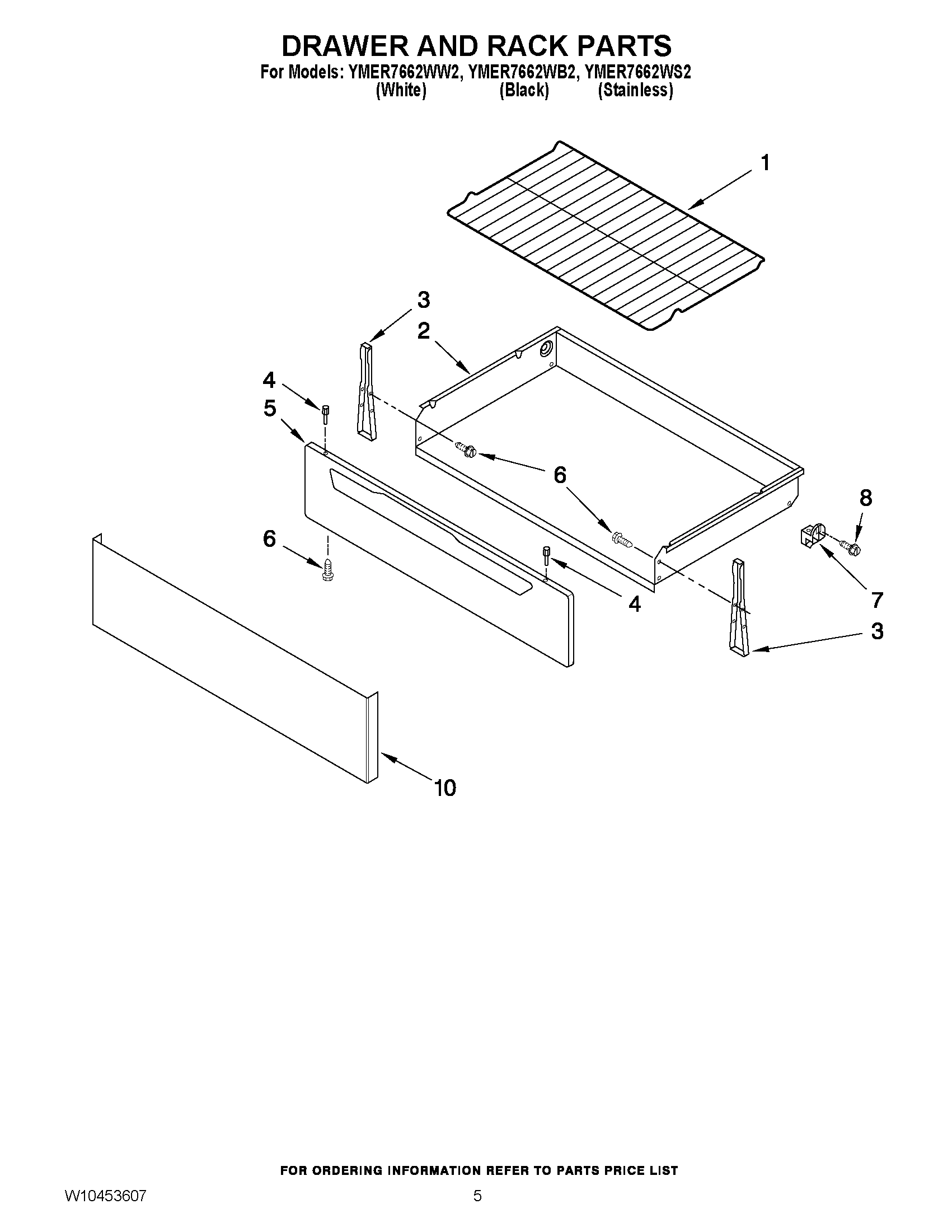

04 - DRAWER AND RACK PARTS

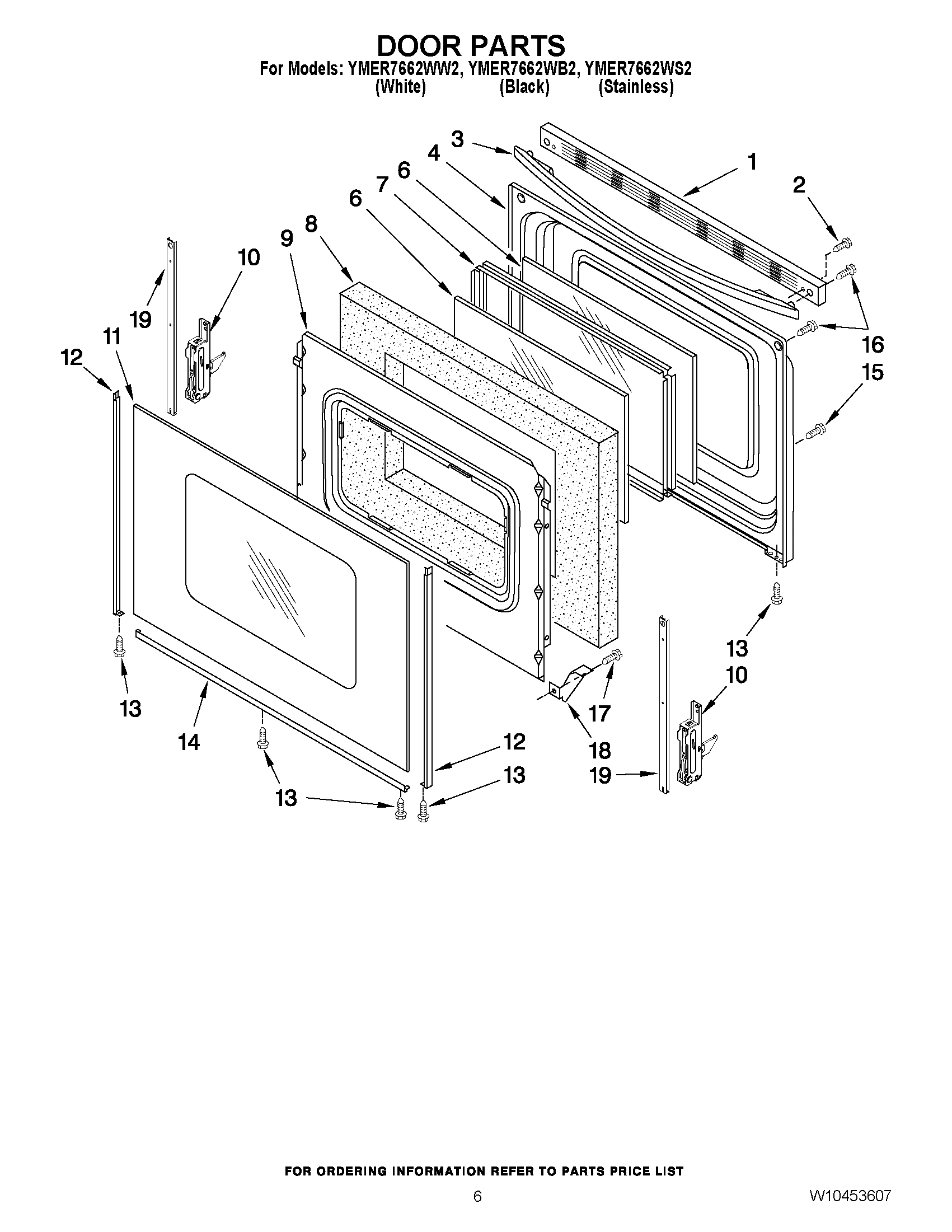

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7662WB2 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10196159 Contact Us For Availability
1
MAY W10234646 MAY W10234646 Contact Us For Availability
1
MAY W10434985 MAY W10434985 Contact Us For Availability
1
MAY W10434986 MAY W10434986 Contact Us For Availability
1
ENDCAP (WHITE LH) MAY W10184433 Contact Us For Availability
1
ENDCAP (WHITE RH) MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK LH) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK RH) MAY W10184438 Contact Us For Availability
1
Vent Tube Asmbly MAY W10134285 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY W10211389 MAY W10211389 Contact Us For Availability
2
MAY W10211390 MAY W10211390 Contact Us For Availability
2
Bracket, Console MAY W10182322 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
Element, Surface (1200 W - LR & RR) MAY 8273994 Contact Us For Availability
3
ELEMENT, SURFACE (3000 W - LF) MAY W10169796 Contact Us For Availability
3
ELEMENT, SURFACE (2500/1200W (RF)) MAY W10275049 Contact Us For Availability
3
MAY W10292023 MAY W10292023 Contact Us For Availability
3
MAY W10292024 MAY W10292024 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W10292025 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRKT-MNTG, DRAWER (STAINLESS) MAY 9758200 Contact Us For Availability
3
BRKT-MNTG, DRAWER (WHITE/BLACK) MAY W10174396 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
MAY W10170526 MAY W10170526 Contact Us For Availability
4
SWITCH, INFINITE (LF) MAY W10167742 Contact Us For Availability
4
SWITCH, INFINITE (LR, RR) MAY W10295576 Contact Us For Availability
4
SWITCH, INFINITE (RF) MAY W10434452 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
6
MAY W10225448 MAY W10225448 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
ELEMENT, BAKE (HIDDEN) MAY W10308474 Contact Us For Availability
7
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
HINGE, PIN MAY 3195060 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
Glide, Drwr Top MAY W10114344 Contact Us For Availability
10
PANEL(STLS. MODEL) MAY W10237657 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10236239 MAY W10236239 Contact Us For Availability
11
MAY W10236240 MAY W10236240 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
12
TRIM, SIDE (BLACK RH) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE RH) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK LH) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE LH) MAY 8523172 Contact Us For Availability
13
MAY W10134121 MAY W10134121 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
Clip, Cover MAY 8273564 Contact Us For Availability
15
RAIL, BASE MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
17
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
17
ROD, INSUL RETAINR MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
BREAKER, CIRCUIT (WHITE) MAY 9757601 Contact Us For Availability
18
BREAKER, CIRCUIT (BLACK) MAY 9757602 Contact Us For Availability
18
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
BRACKET, OVEN SUPPORT MAY W10355173 Contact Us For Availability
19
STRAP, DOOR MAY W10113759 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3196165 MAY 3196165 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
Screw MAY 3196179 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
RETAINER, SIDE MAY 9758238 Contact Us For Availability
37
RECEIVER, DOOR HINGE MAY W10289077 Contact Us For Availability
38
Latch, Door MAY 9761013 Contact Us For Availability
39
MAY W10078380 MAY W10078380 Contact Us For Availability
40
MAY W10107840 MAY W10107840 Contact Us For Availability
41
Spacer, Door MAY 9758701 Contact Us For Availability
42
MAY 3196169 MAY 3196169 Contact Us For Availability
43
COVER, BOX MAY W10326122 Contact Us For Availability
44
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
45
MAY 3196560 MAY 3196560 Contact Us For Availability
46
TRAY-BAKE, HIDDEN MAY W10183712 Contact Us For Availability
48
CLIP, SPRING MAY W10183541 Contact Us For Availability
49
MAY W10134125 MAY W10134125 Contact Us For Availability
50
NUT, PUSH ON MAY 3400968 Contact Us For Availability
NI
MAY 9759689 MAY 9759689 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
MAY W10326347 MAY W10326347 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
Harness, Wire (Bake, Hidden) MAY 9757339 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
CORD, POWER 240V MAY W10244925 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273581 Contact Us For Availability
NI
MAY W10349654 MAY W10349654 Contact Us For Availability
NI
MAY W10434314 MAY W10434314 Contact Us For Availability
× ![]()
