Model Maytag YMER7660WS1 ELECTRIC RANGE – Common Parts & Diagrams

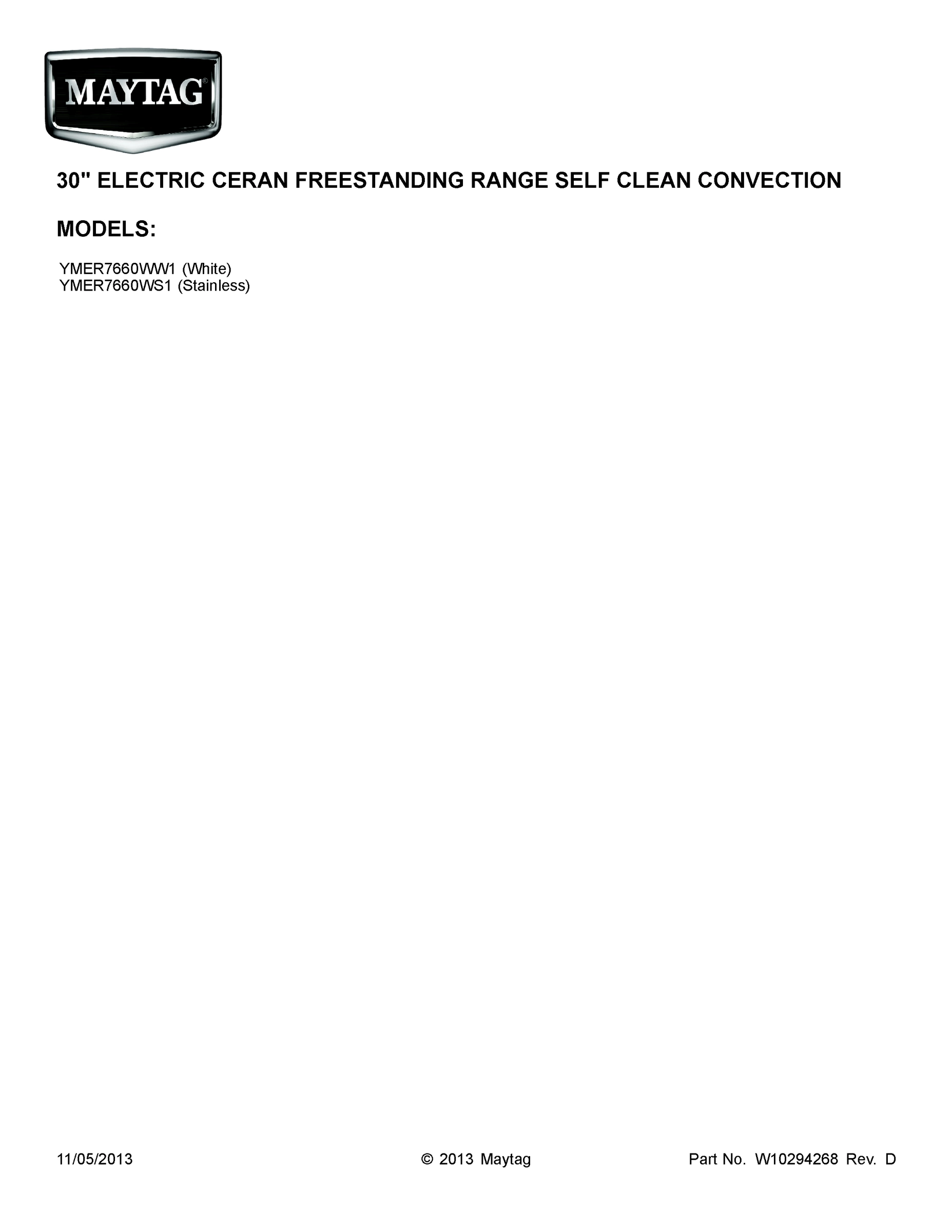

01 - COVER SHEET

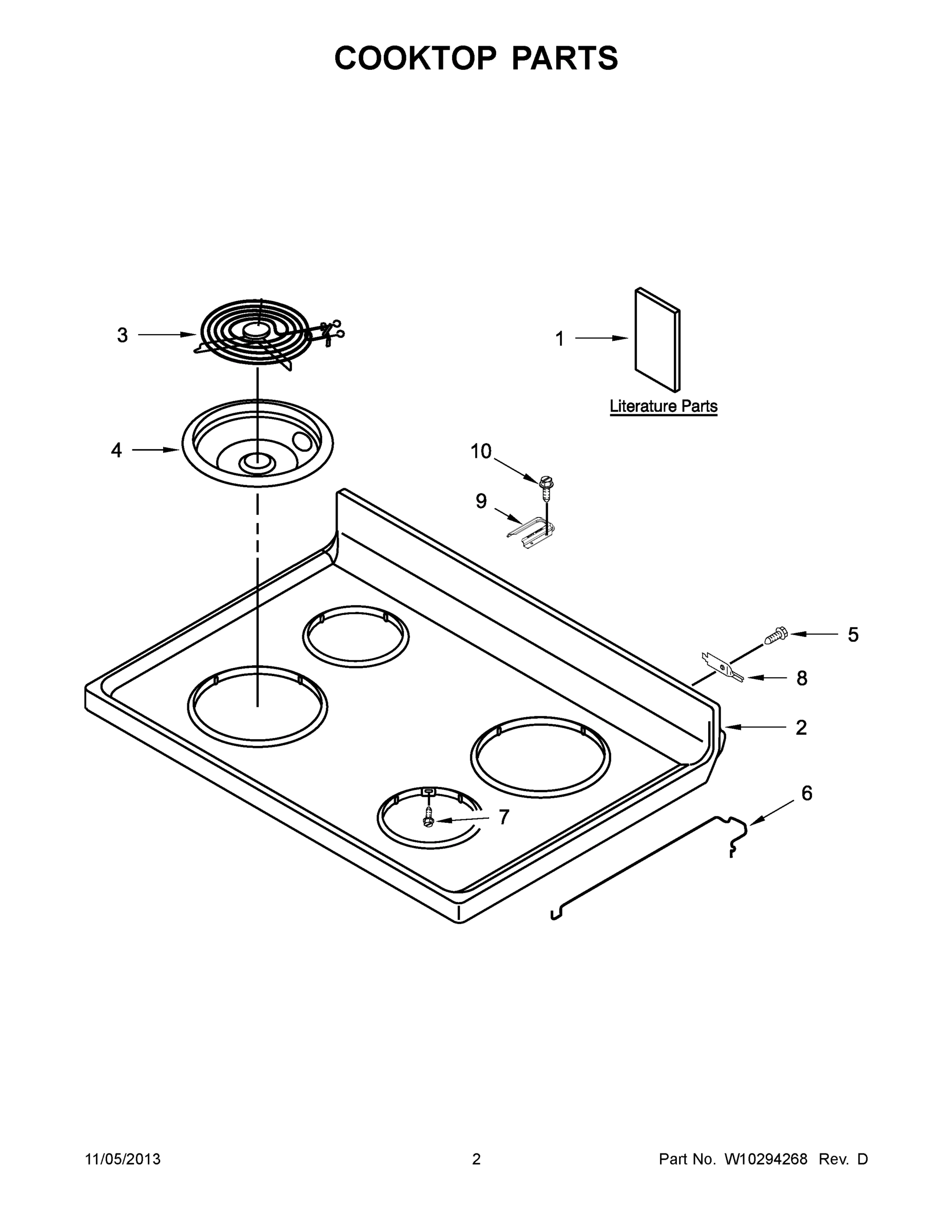

02 - COOKTOP PARTS

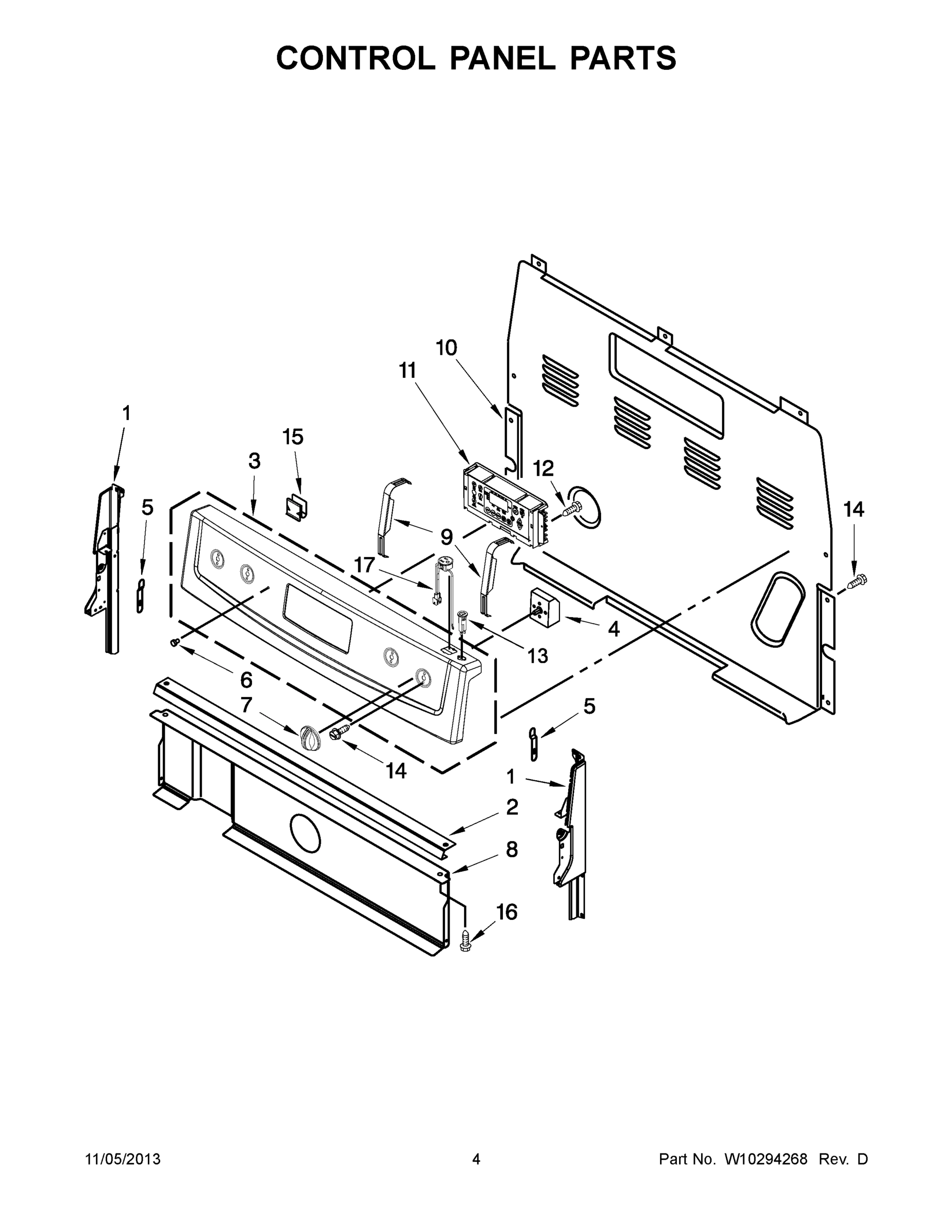

03 - CONTROL PANEL PARTS

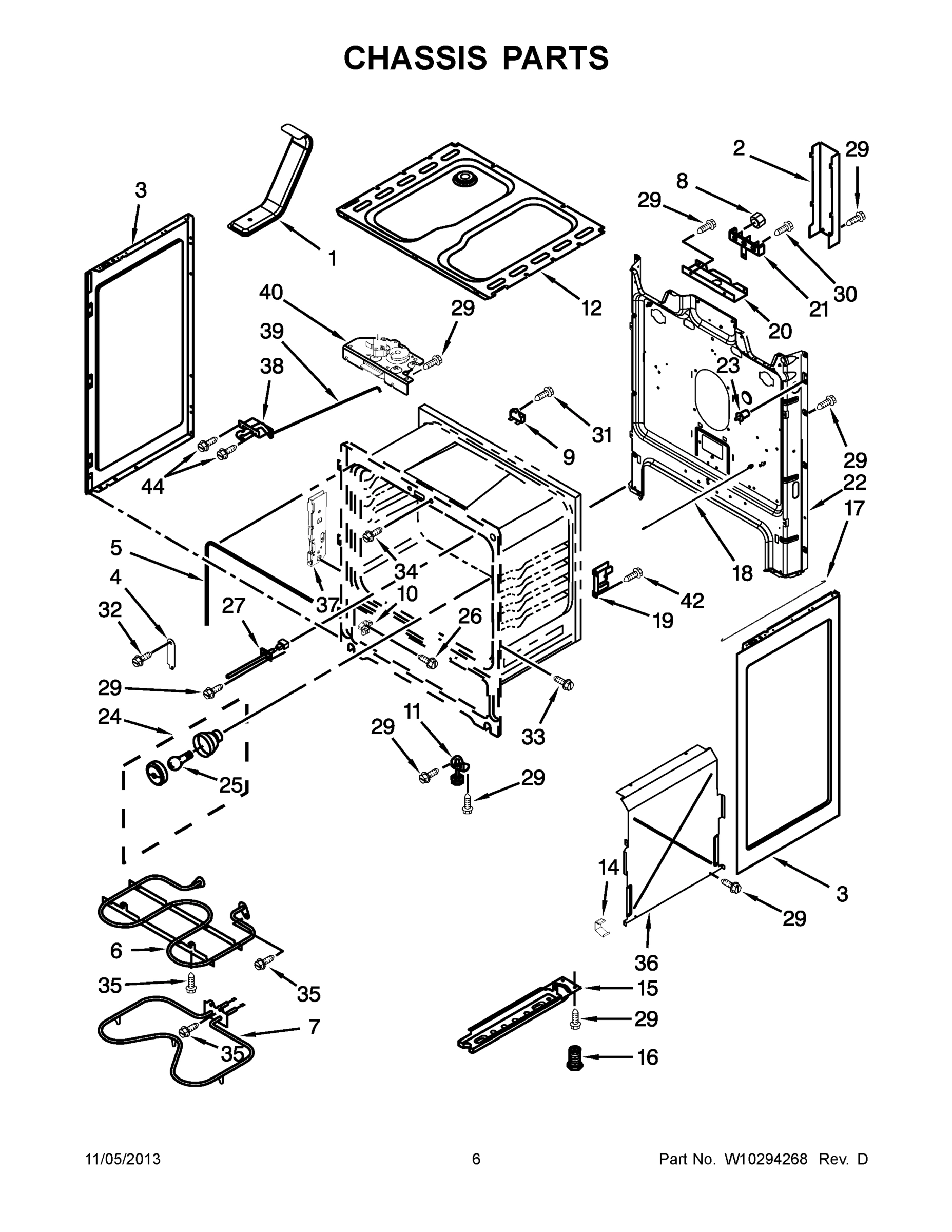

04 - CHASSIS PARTS

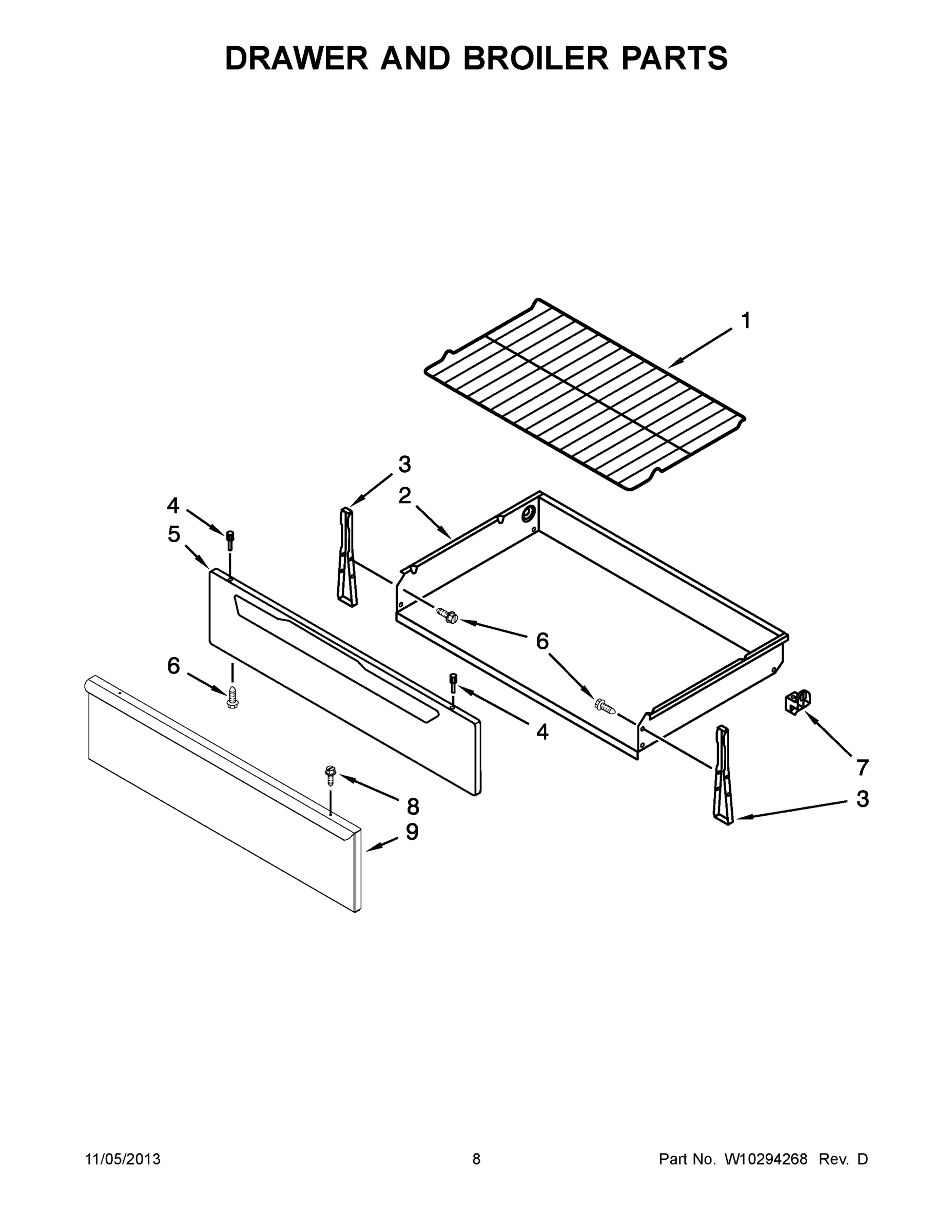

05 - DRAWER AND BROILER PARTS

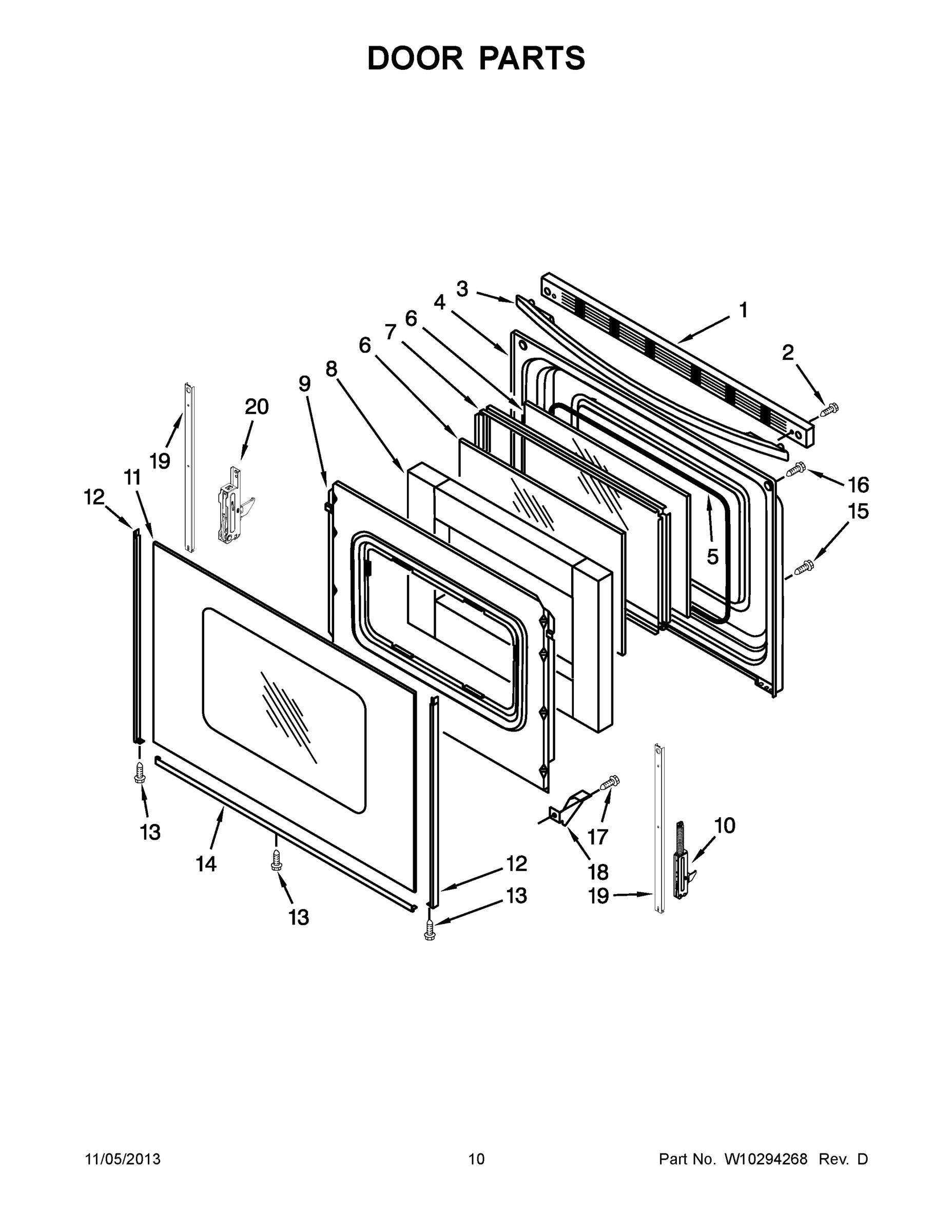

06 - DOOR PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag YMER7660WS1 ELECTRIC RANGE
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10196159 Contact Us For Availability
1
OWNER`S MANUAL TECH SHEET MAY W10234646 Contact Us For Availability
1
SHEET, TECH (ENGLISH) MAY W10361708 Contact Us For Availability
1
SHEET, TECH (FRENCH) MAY W10361709 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube MAY 9755804 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY 3186231 MAY 3186231 Contact Us For Availability
2
MAY 3186233 MAY 3186233 Contact Us For Availability
2
MAY W10525121 MAY W10525121 Contact Us For Availability
2
MAY W10326122 MAY W10326122 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
ELEMENT (8``) (LEFT FRONT & RIGHT REAR) MAY W10259865 Contact Us For Availability
3
ELEMENT (6``) (RIGHT FRONT & LEFT REAR) MAY W10259868 Contact Us For Availability
3
MAY W10292017 MAY W10292017 Contact Us For Availability
3
MAY W10292019 MAY W10292019 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
WHITE MAY W10174396 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
4
BOWL, DRIP (8``) (LEFT FRONT & RIGHT REAR) MAY W10196405 Contact Us For Availability
4
MAY W10196406 MAY W10196406 Contact Us For Availability
4
MAY 3196169 MAY 3196169 Contact Us For Availability
4
SWITCH, INFINITE (YELLOW) (RIGHT FRONT & LEFT MAY 3148952 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT & RIGHT REAR) MAY 3148954 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
MAY 8522416 MAY 8522416 Contact Us For Availability
5
MAY 8053339 MAY 8053339 Contact Us For Availability
5
MAY W10544179 MAY W10544179 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
MAY 3196068 MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
Screw (Black) MAY 3196168 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
MAY 3196154 MAY 3196154 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
MAY 3195060 MAY 3195060 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
MAY W10278991 MAY W10278991 Contact Us For Availability
9
MAY 3192830 MAY 3192830 Contact Us For Availability
9
MAY W10324410 MAY W10324410 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
PANEL, DRAWER (SS MODEL) MAY W10237657 Contact Us For Availability
9
MAY 9761357 MAY 9761357 Contact Us For Availability
10
MAY 3148604 MAY 3148604 Contact Us For Availability
10
MAY 8272473 MAY 8272473 Contact Us For Availability
10
Glide, Drawer MAY W10114344 Contact Us For Availability
10
Hinge, Door MAY 9761493 Contact Us For Availability
11
CONTROL, RANGE (BLACK (LCC 95)) MAY W10271763 Contact Us For Availability
11
MAY W10476675 MAY W10476675 Contact Us For Availability
11
MAY W10341186 MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
12
MAY W10209613 MAY W10209613 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
CIRCUIT BREAKER (WHITE) MAY 9757601 Contact Us For Availability
13
CIRCUIT BREAKER (BLACK) MAY 9757602 Contact Us For Availability
13
MAY W10107820 MAY W10107820 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
MAY 8273564 MAY 8273564 Contact Us For Availability
15
RAIL, BASE MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
Screw (White) MAY 3196166 Contact Us For Availability
16
MAY W10058460 MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
RECEPTACLE (BLACK) MAY W10203475 Contact Us For Availability
17
RECEPTACLE (WHITE) MAY W10203476 Contact Us For Availability
17
ROD, INSULATION RETAINER MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
CLIP, GLASS MAY W10137382 Contact Us For Availability
18
MAY 9757239 MAY 9757239 Contact Us For Availability
19
MAY W10078380 MAY W10078380 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY W10454648 MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3196165 MAY 3196165 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 9761013 MAY 9761013 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
MAY 3196174 MAY 3196174 Contact Us For Availability
36
RETAINER, INSULATION MAY 9758238 Contact Us For Availability
NI
MAY 8054068 MAY 8054068 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2`` X 22`` X 120``) MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
MAY 242756 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 3184478 MAY 3184478 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE PORCELAIN (2 OZ.)) MAY 511873 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
MAY W10084660 MAY W10084660 Contact Us For Availability
NI
TIE, CABLE MAY W10144763 Contact Us For Availability
NI
CORD, POWER MAY W10244925 Contact Us For Availability
NI
HARNESS, ASSEMBLY LCC MAY W10251768 Contact Us For Availability
NI
MAY W10295595 MAY W10295595 Contact Us For Availability
× ![]()
