Model Maytag YMER7660WB1 ELECTRIC RANGE – Common Parts & Diagrams

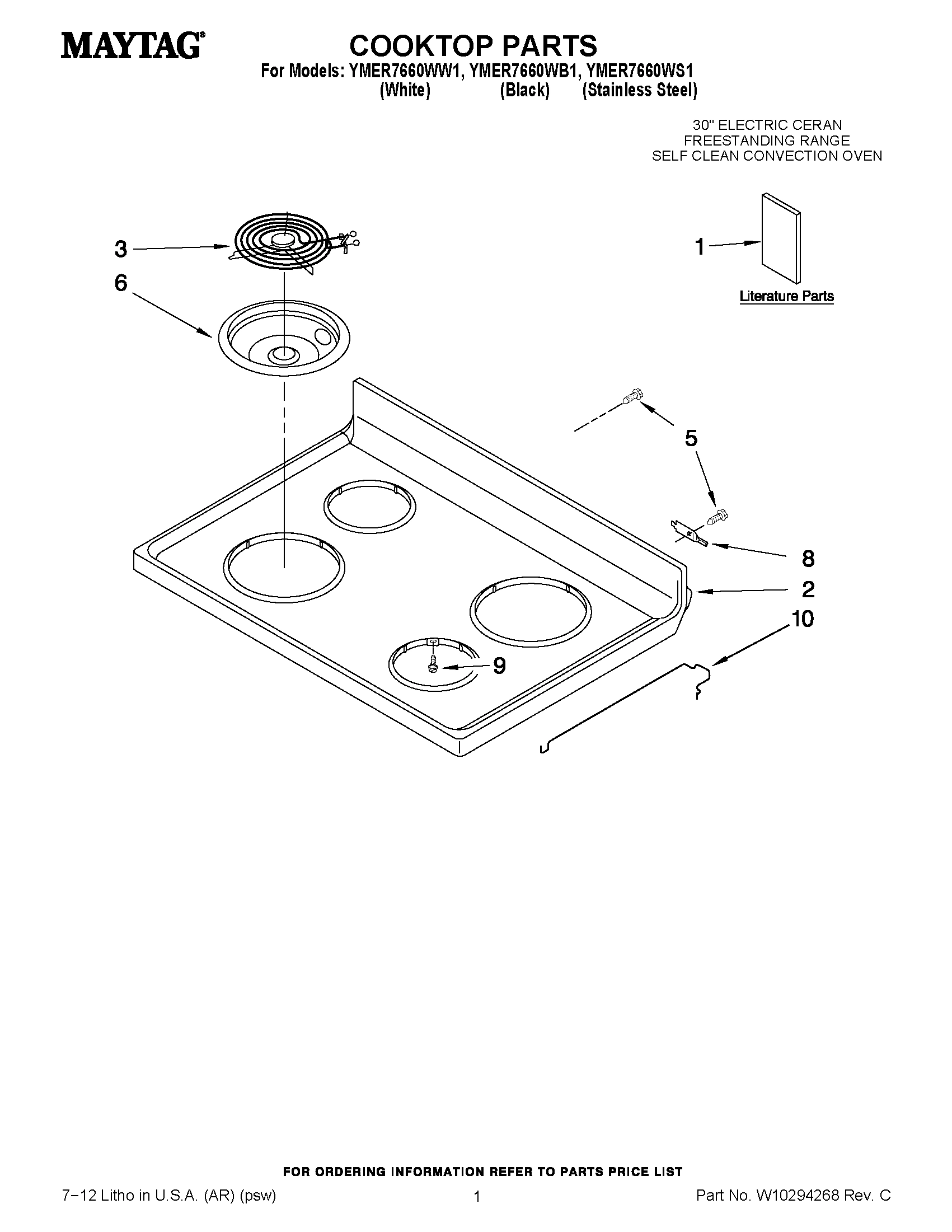

01 - COOKTOP PARTS

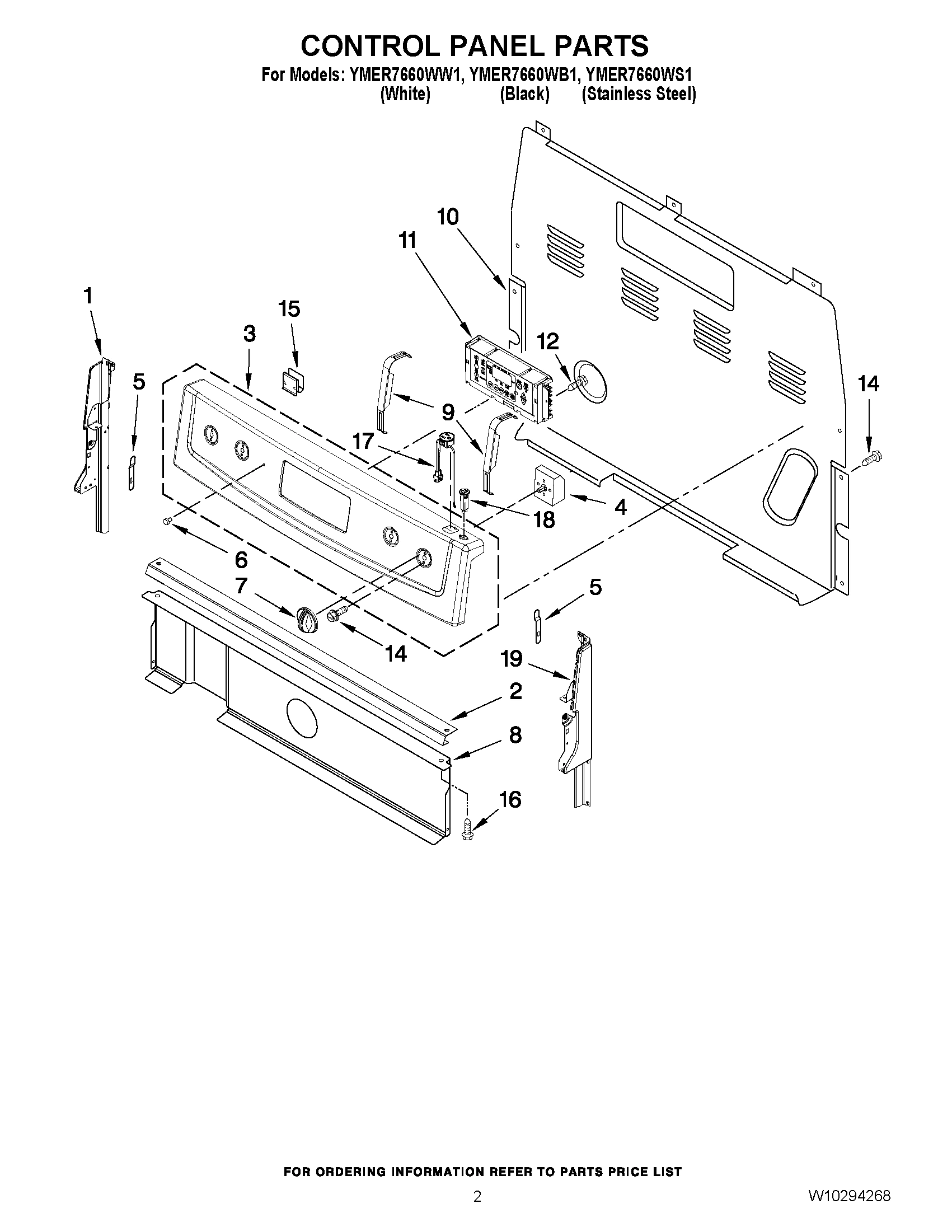

02 - CONTROL PANEL PARTS

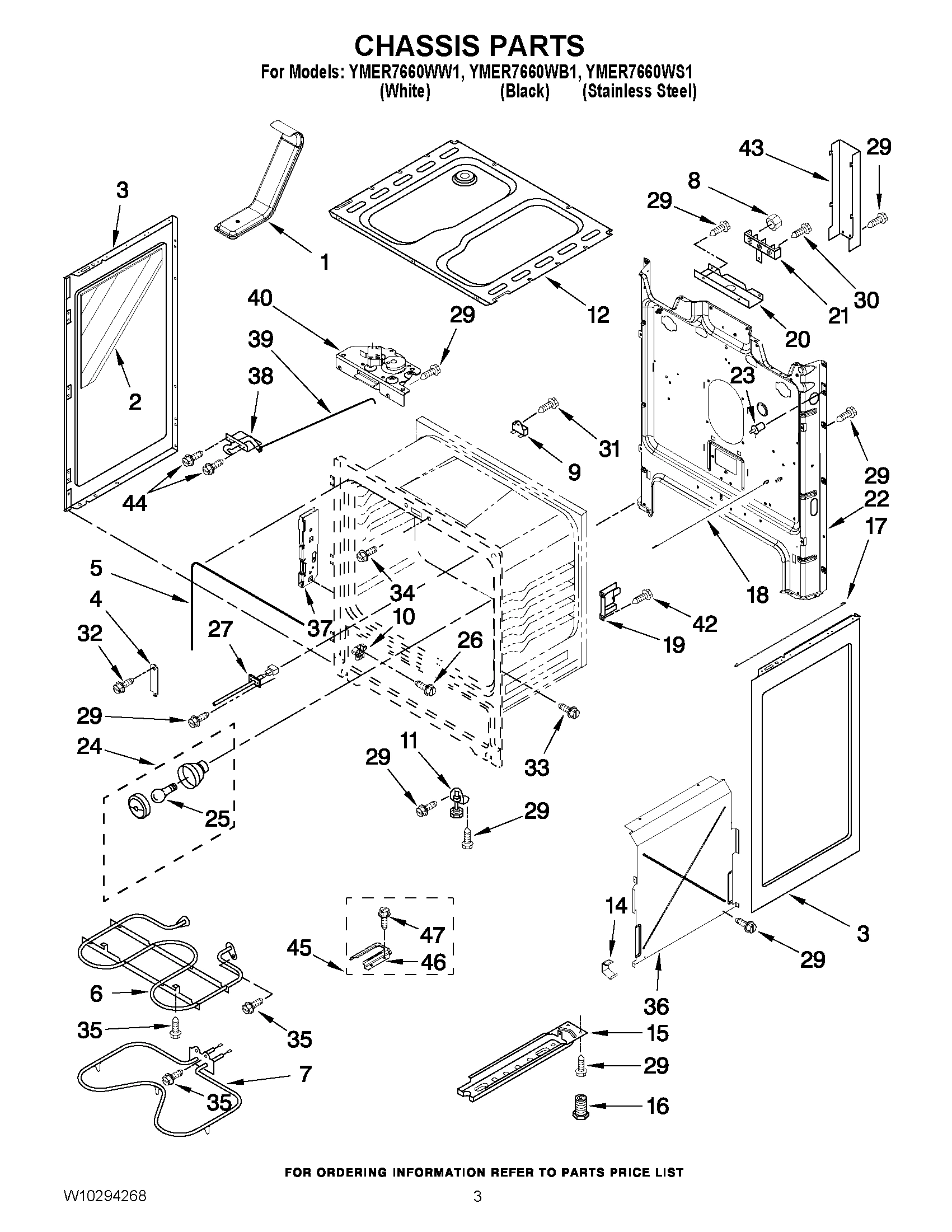

03 - CHASSIS PARTS

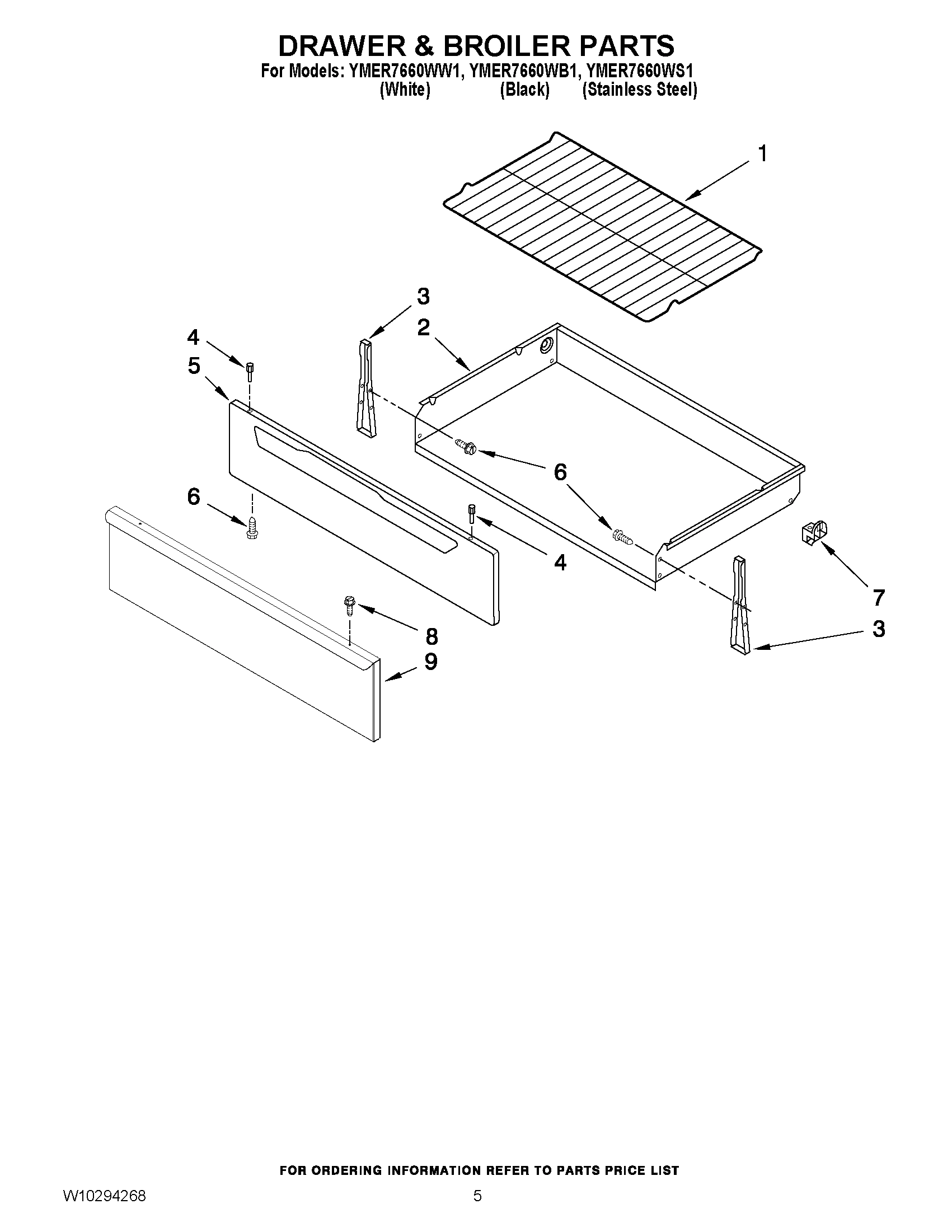

04 - DRAWER & BROILER PARTS

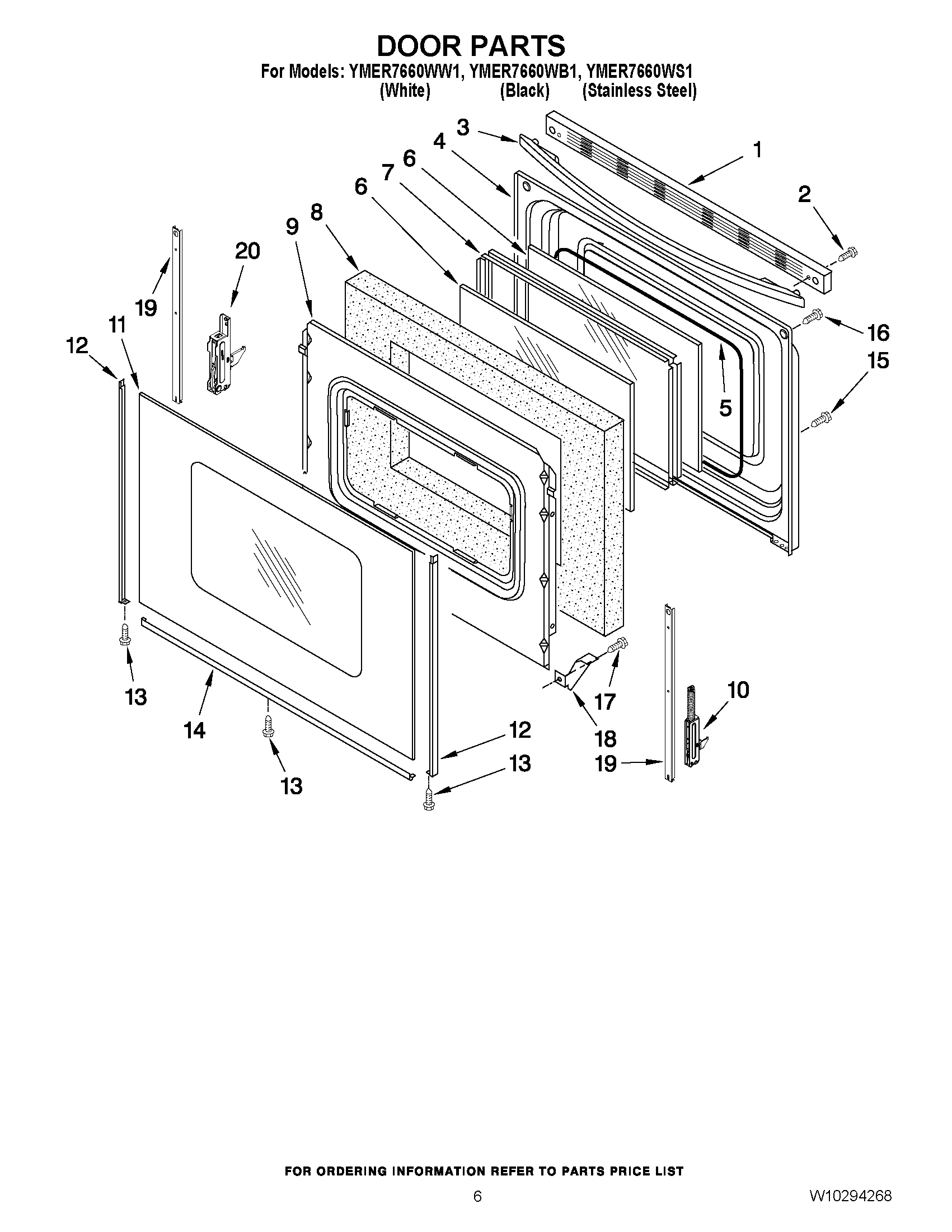

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7660WB1 ELECTRIC RANGE
1
INSTRUCTIONS (ENGLISH/FRENCH) MAY 9757143 Contact Us For Availability
1
MAY 9762761 MAY 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
INSTALLATION MAY W10196159 Contact Us For Availability
1
MAY W10234646 MAY W10234646 Contact Us For Availability
1
MAY W10361708 MAY W10361708 Contact Us For Availability
1
MAY W10361709 MAY W10361709 Contact Us For Availability
1
END CAP, LEFT (WHITE) MAY W10184433 Contact Us For Availability
1
END CAP, LEFT (BLACK) MAY W10184437 Contact Us For Availability
1
VENT TUBE ASMBLY MAY 9755804 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
2
MAY 3186231 MAY 3186231 Contact Us For Availability
2
MAY 3186233 MAY 3186233 Contact Us For Availability
2
BRACKET, CONSOLE MAY W10324410 Contact Us For Availability
2
MAY W10182346 MAY W10182346 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
ELEMENT, SURFACE (8`` ELEMENT) MAY W10259865 Contact Us For Availability
3
ELEMENT, SURFACE (6`` ELEMENT) MAY W10259868 Contact Us For Availability
3
MAY W10292017 MAY W10292017 Contact Us For Availability
3
MAY W10292018 MAY W10292018 Contact Us For Availability
3
MAY W10292019 MAY W10292019 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
Brkt-Mntg, Drawer MAY W10174396 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
SWITCH, INFINITE (RF & LR) MAY 3148952 Contact Us For Availability
4
SWITCH, INFINITE (LF & RR) MAY 3148954 Contact Us For Availability
4
CLIP,DOOR MNTG MAY 9761517 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY W10238912 MAY W10238912 Contact Us For Availability
6
PAN, DRIP 8`` MAY W10196405 Contact Us For Availability
6
PAN, DRIP 6`` MAY W10196406 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
ELEMENT, BAKE (HIDDEN) MAY W10308477 Contact Us For Availability
7
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
HINGE, PIN MAY 3195060 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
PANEL, SS ONLY MAY W10237657 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
ROD, SUPPORT CT MAY 3195812 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
Glide, Drwr Top MAY W10114344 Contact Us For Availability
10
ACTIVE, HINGE MAY W10299224 Contact Us For Availability
11
MAY W10292045 MAY W10292045 Contact Us For Availability
11
MAY W10292046 MAY W10292046 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (STAINLESS STEEL) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
12
BURNER BOX MAY W10209613 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
Clip, Cover MAY 8273564 Contact Us For Availability
15
RIGHT RAIL ASM MAY 9761367 Contact Us For Availability
15
LEFT RAIL ASM MAY 9761368 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
Screw (White) MAY 3196166 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
RECEPTACLE, BLK MAY W10203475 Contact Us For Availability
17
RECEPTACLE, WHT MAY W10203476 Contact Us For Availability
17
ROD, INSUL RETAINR MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
BRKR, CIRCUIT WHT MAY 9757601 Contact Us For Availability
18
BRKR, CIRCUIT BLK MAY 9757602 Contact Us For Availability
18
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
18
Rod - Dr Switch MAY 9757239 Contact Us For Availability
19
END CAP, RIGHT (WHITE) MAY W10184434 Contact Us For Availability
19
END CAP, RIGHT (BLACK) MAY W10184438 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
19
STRAP, DOOR MAY W10113759 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
20
PASSIVE, HINGE MAY W10299227 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
LIGHT SOCKET ASSY MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3196165 MAY 3196165 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
RETAINER, SIDE MAY 9758238 Contact Us For Availability
37
HINGE PASSIVE MAY W10289077 Contact Us For Availability
38
Latch, Door MAY 9761013 Contact Us For Availability
39
MAY W10078380 MAY W10078380 Contact Us For Availability
40
Latch Asy, Rear MAY W10107820 Contact Us For Availability
42
MAY 3196169 MAY 3196169 Contact Us For Availability
43
MAY 9758283 MAY 9758283 Contact Us For Availability
44
MAY 3196560 MAY 3196560 Contact Us For Availability
45
ANTI TIP KIT (INCLUDES ANCHOR) MAY W10017440 Contact Us For Availability
46
ANTI TIP BRACKET MAY 3192830 Contact Us For Availability
47
MAY 3148604 MAY 3148604 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
INSUL., RETAINER MAY 8054068 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25’) MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Ground Wire MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY 9756779 MAY 9756779 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
Tie, Wire MAY W10144763 Contact Us For Availability
NI
CORD, POWER 240V MAY W10244925 Contact Us For Availability
NI
MAY W10251768 MAY W10251768 Contact Us For Availability
NI
HARNESS, WIRE (SURFACE UNITS) MAY W10295595 Contact Us For Availability
× ![]()
