Model Maytag YMER7651WS2 ELECTRIC RANGE – Common Parts & Diagrams

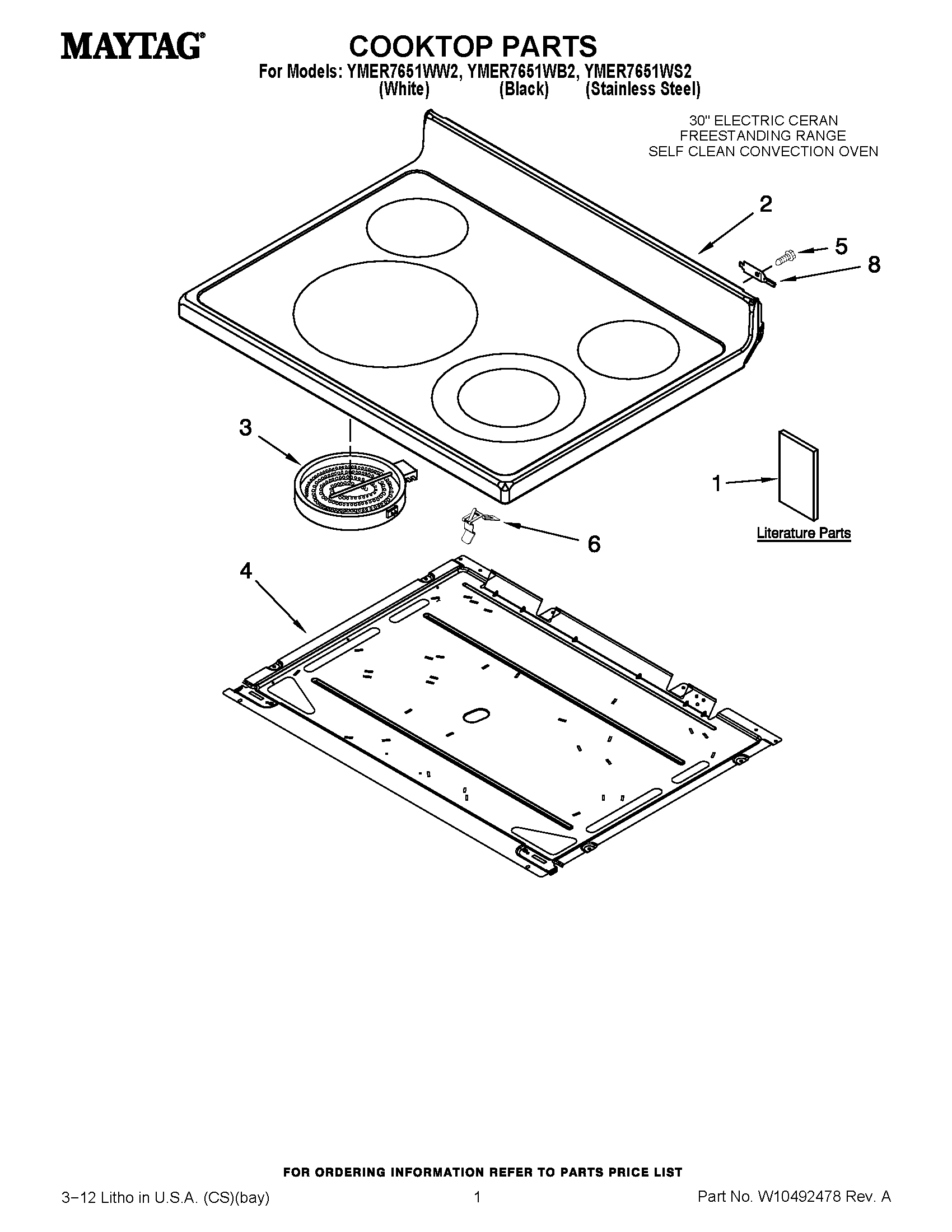

01 - COOKTOP PARTS

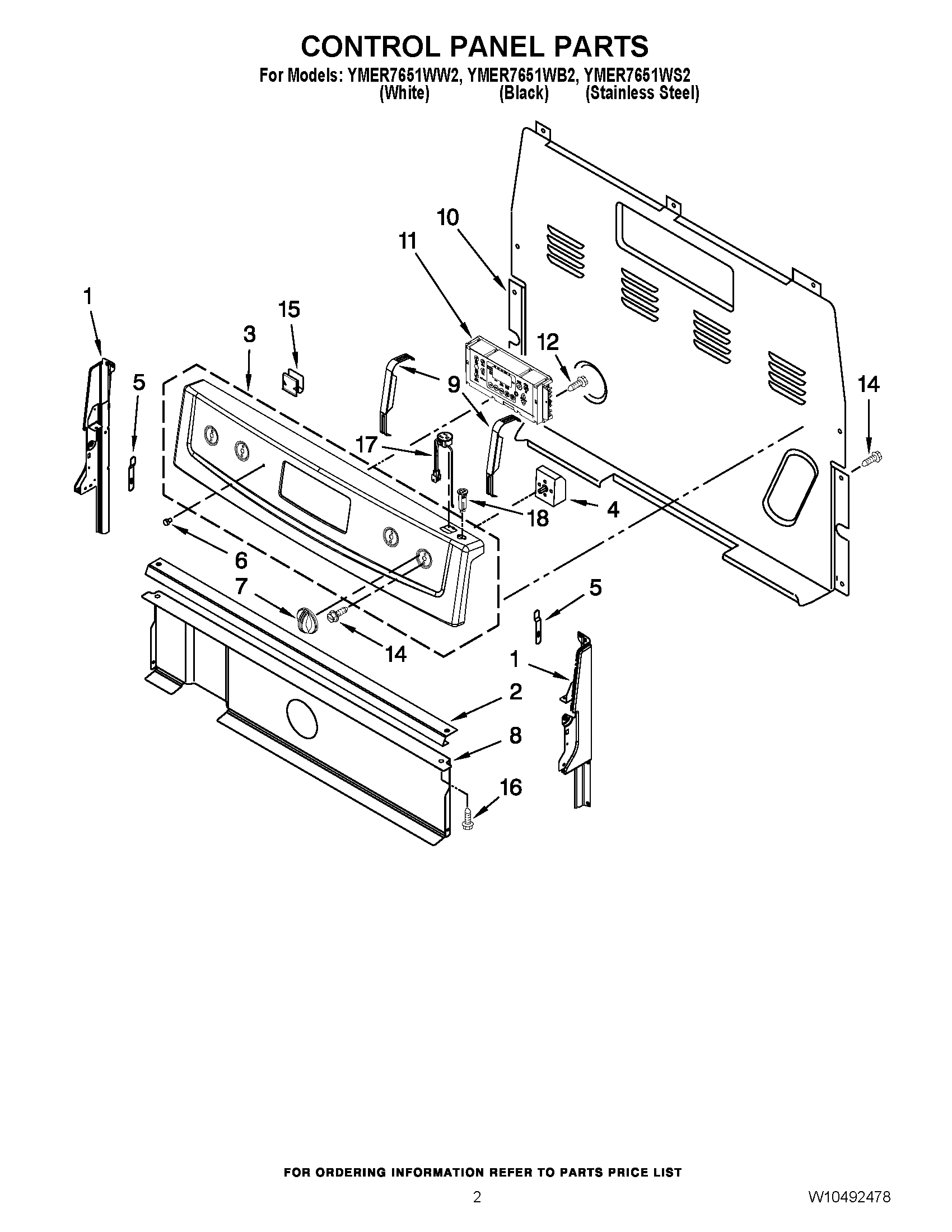

02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - DRAWER & BROILER PARTS
05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7651WS2 ELECTRIC RANGE
1
TIPS, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10384453 MAY W10384453 Contact Us For Availability
1
MAY W10384459 MAY W10384459 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10403812 Contact Us For Availability
1
MAY W10419390 MAY W10419390 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube Asmbly MAY W10134285 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
MAY W10211384 MAY W10211384 Contact Us For Availability
2
MAY W10211385 MAY W10211385 Contact Us For Availability
2
Bracket, Console MAY W10182322 Contact Us For Availability
2
MAY W10300032 MAY W10300032 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
Element, Surface (2500 W - RF) MAY 8273992 Contact Us For Availability
3
ELEMENT, SURFACE (1200 W - LR) MAY 8273994 Contact Us For Availability
3
ELEMENT, SURFACE (3000 W - LF) MAY W10169796 Contact Us For Availability
3
MAY W10292020 MAY W10292020 Contact Us For Availability
3
MAY W10292021 MAY W10292021 Contact Us For Availability
3
MAY W10292022 MAY W10292022 Contact Us For Availability
3
MAY W10322769 MAY W10322769 Contact Us For Availability
3
MAY W10322770 MAY W10322770 Contact Us For Availability
3
BRKT-MNTG, DRAWER MAY W10462912 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
PAN, RADIANT ELMT MAY W10106409 Contact Us For Availability
4
SWITCH, INFINITE (LEFT-RIGHT REAR) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT (DUAL)) MAY 3148954 Contact Us For Availability
4
SWITCH, INFINITE (LEFT-FRONT) MAY W10167742 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
STRAP, DOOR MAY W10113759 Contact Us For Availability
6
SPRING, LOCATOR MAY W10225448 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
MAY 3196165 MAY 3196165 Contact Us For Availability
6
MAY 9758162 MAY 9758162 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
ELEMENT, BAKE (HIDDEN) MAY W10308477 Contact Us For Availability
7
GLIDE, DRAWER MAY W10317899 Contact Us For Availability
7
MAY W10316950 MAY W10316950 Contact Us For Availability
8
HINGE, PIN MAY 3195060 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
PANEL(STLS. MODEL) MAY W10237657 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
GLIDE, DRWR TOP MAY W10317898 Contact Us For Availability
10
HINGE, DOOR ACTIVE MAY W10299224 Contact Us For Availability
10
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
11
MAY W10271762 MAY W10271762 Contact Us For Availability
11
MAY W10271763 MAY W10271763 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
12
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
Clip, Cover MAY 8273564 Contact Us For Availability
15
RAIL, BASE (RIGHT HAND) MAY W10390007 Contact Us For Availability
15
RAIL, BASE (LEFT HAND) MAY W10390008 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
RECEPTACLE, BLK MAY W10203475 Contact Us For Availability
17
RECEPTACLE, WHT MAY W10203476 Contact Us For Availability
17
ROD, INSUL RETAINR MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
BRKR, CIRCUIT WHT MAY 9757601 Contact Us For Availability
18
BRKR, CIRCUIT BLK MAY 9757602 Contact Us For Availability
18
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
18
Rod - Dr Switch MAY 9757239 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY W10289149 MAY W10289149 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
LIGHT SOCKET ASSY MAY W10454648 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
RETAINER, SIDE MAY 9758238 Contact Us For Availability
37
BRKT-MOUNTING MAY W10289077 Contact Us For Availability
38
Latch, Door MAY 9761013 Contact Us For Availability
39
MAY W10078380 MAY W10078380 Contact Us For Availability
40
MAY W10107840 MAY W10107840 Contact Us For Availability
42
MAY 3196169 MAY 3196169 Contact Us For Availability
43
COVER, BOX MAY W10326122 Contact Us For Availability
44
OVEN SEAL, FLANGE MAY W10010350 Contact Us For Availability
45
MAY 3196560 MAY 3196560 Contact Us For Availability
46
MAY W10306542 MAY W10306542 Contact Us For Availability
47
SCREW, ANTI TIP MAY 7101P485-60 Contact Us For Availability
NI
INSUL., RETAINER MAY 8054068 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
INSULATION, VENT MAY W10333344 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
FOIL, ALUMINUM (18`` X 25’) MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
KIT, CANNING ELEMENT MAY 242905 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
Clip, Ground Wire MAY 313660 Contact Us For Availability
NI
PROTECTANT, COOKTOP MAY 31463 Contact Us For Availability
NI
MAY 31605 MAY 31605 Contact Us For Availability
NI
CLEANER, GAS GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE PRIMER) MAY 350942 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MAY 4396096RB MAY 4396096RB Contact Us For Availability
NI
BROILER PAN & GRID (PORCELAIN) MAY 4396923 Contact Us For Availability
NI
MAY 4396927 MAY 4396927 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY 9756779 MAY 9756779 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
BROIL PAN & ROASTING RACK (PREMIUM) MAY W10123240 Contact Us For Availability
NI
CORD, POWER 240V MAY W10244925 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273581 Contact Us For Availability
NI
MAY W10275756 MAY W10275756 Contact Us For Availability
NI
MAY W10295568 MAY W10295568 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP RIGHT) MAY W10322356 Contact Us For Availability
NI
CLEANER, KITCHEN & APPLIANCE MAY W10355010 Contact Us For Availability
NI
CLEANER, STAINLESS MAY W10355016 Contact Us For Availability
NI
WIPES, SS CLEANING MAY W10355049 Contact Us For Availability
NI
MAY W10355051 MAY W10355051 Contact Us For Availability
NI
SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
