Model Maytag YMER7651WS1 ELECTRIC RANGE – Common Parts & Diagrams

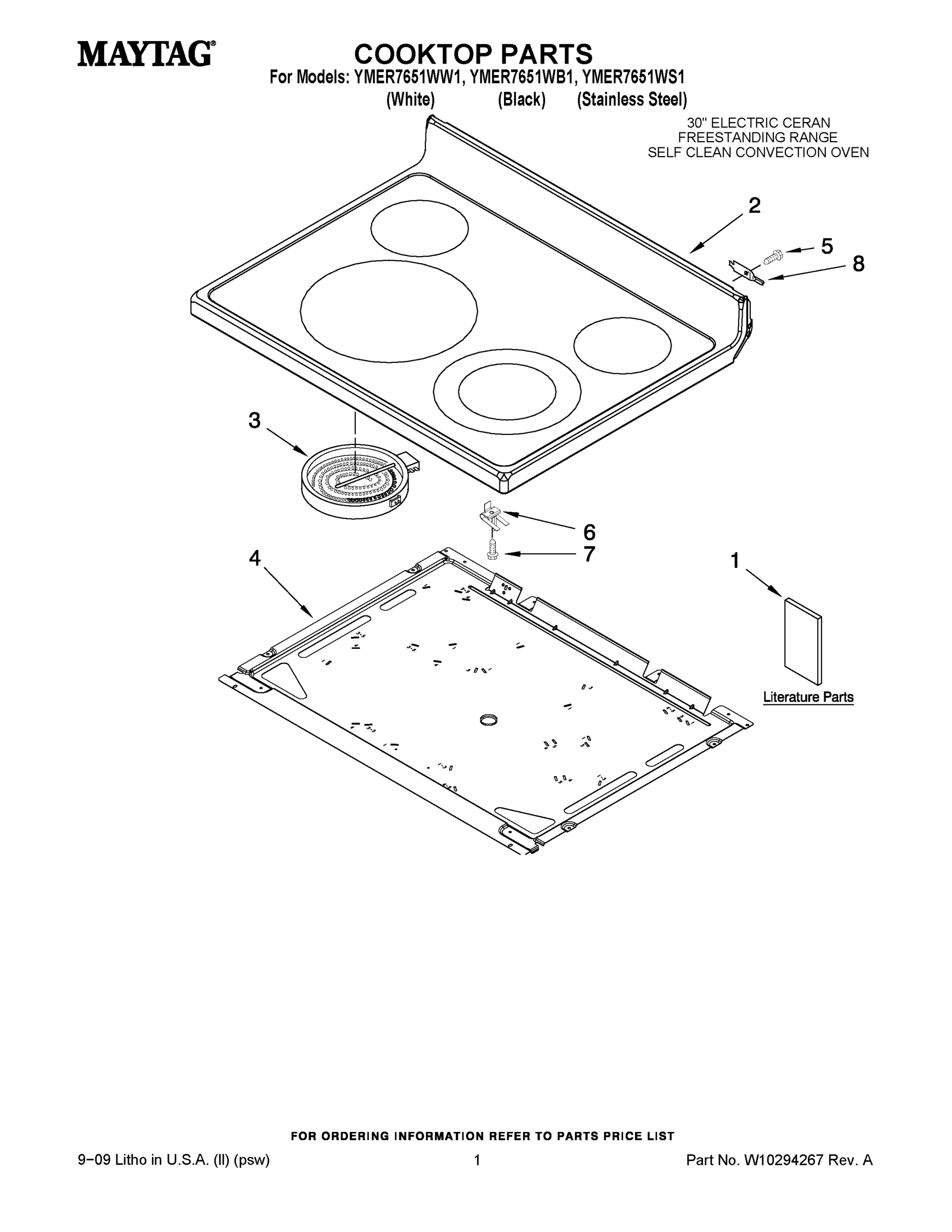

01 - COOKTOP PARTS

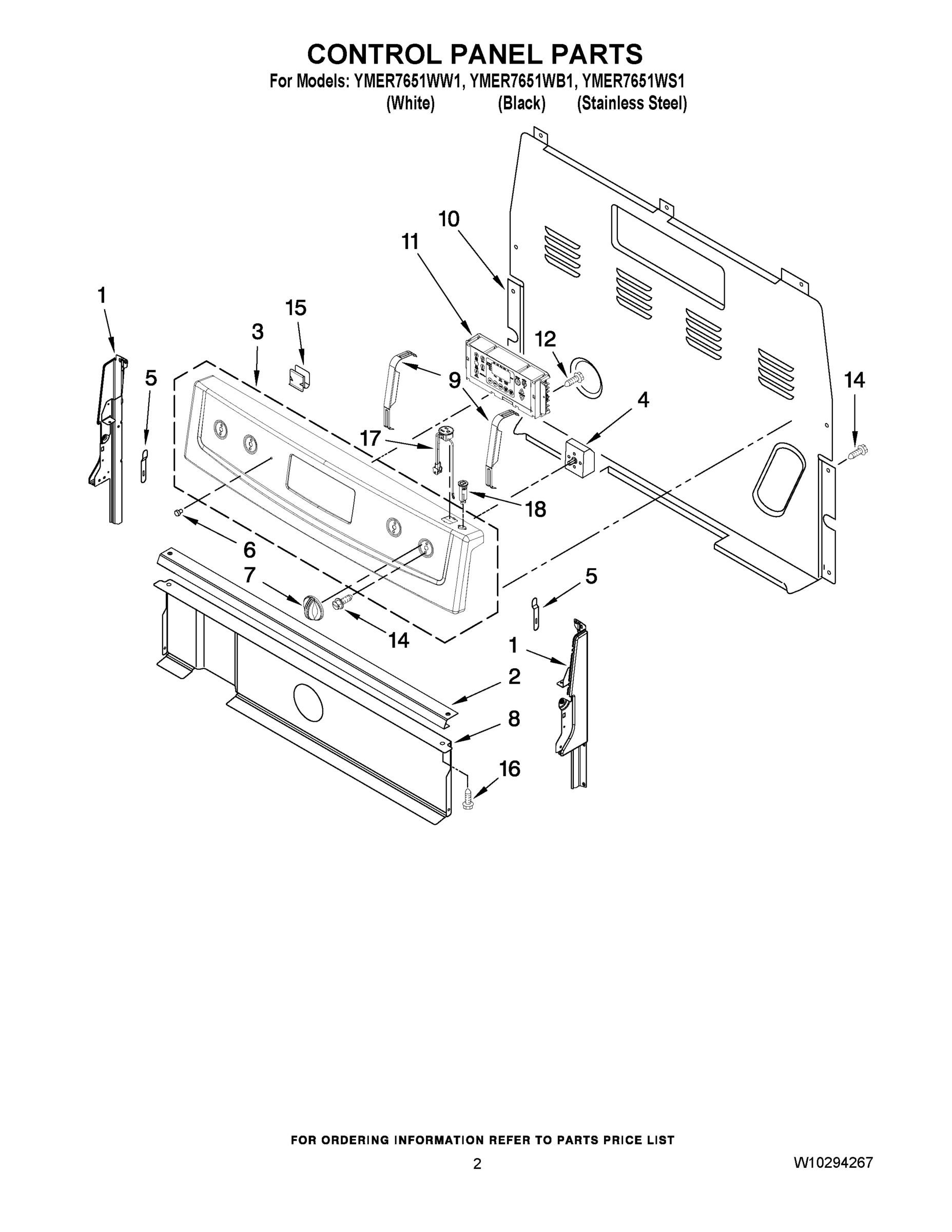

02 - CONTROL PANEL PARTS

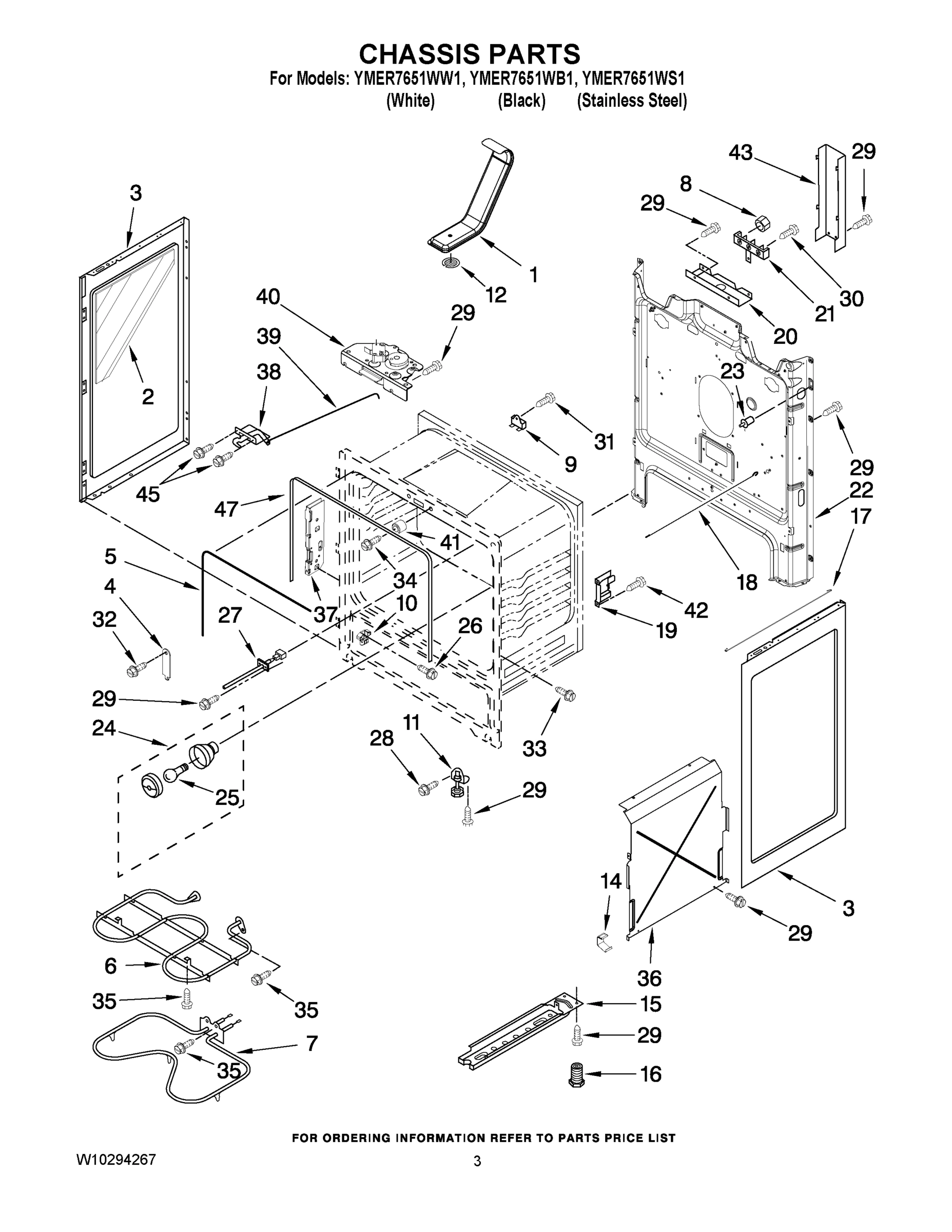

03 - CHASSIS PARTS

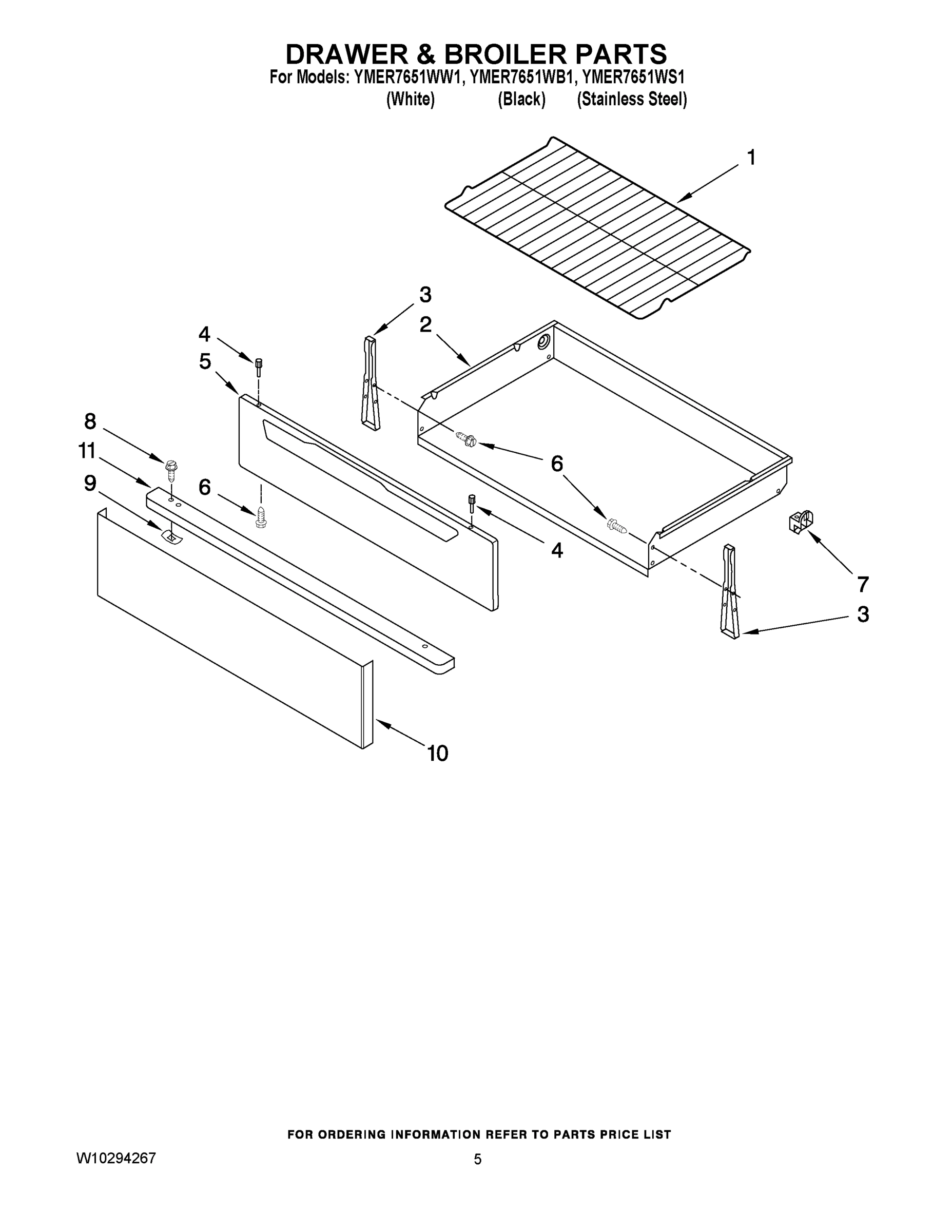

04 - DRAWER & BROILER PARTS

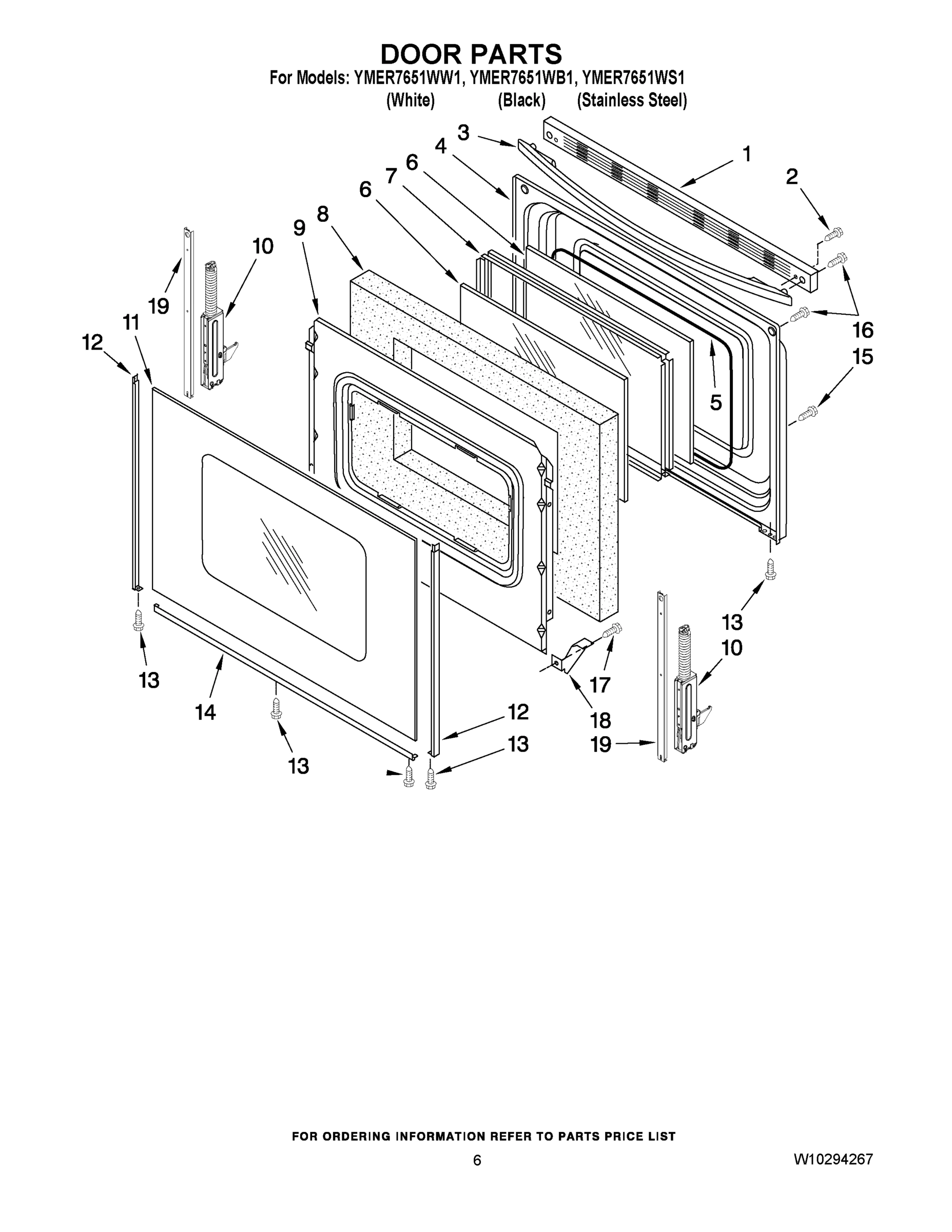

05 - DOOR PARTS
06 - OPTIONAL PARTS
Common parts from model Maytag YMER7651WS1 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safe Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) MAY W10065852 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10196159 Contact Us For Availability
1
MAY W10234646 MAY W10234646 Contact Us For Availability
1
TECH SHEET ENGLISH MAY W10237516 Contact Us For Availability
1
MAY W10237517 MAY W10237517 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
Vent Tube Asmbly MAY W10134285 Contact Us For Availability
1
RACK, OVEN (2) MAY W10268578 Contact Us For Availability
1
MAY W10144869 MAY W10144869 Contact Us For Availability
1
Trim, Top (Black) MAY W10144870 Contact Us For Availability
2
MAY W10211384 MAY W10211384 Contact Us For Availability
2
MAY W10211385 MAY W10211385 Contact Us For Availability
2
Bracket, Console MAY W10182322 Contact Us For Availability
2
MAY W10182346 MAY W10182346 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
Element, Surface (2500 W - RF) MAY 8273992 Contact Us For Availability
3
ELEMENT, SURFACE (1200 W - LR) MAY 8273994 Contact Us For Availability
3
ELEMENT, SURFACE (3000 W - LF) MAY W10178016 Contact Us For Availability
3
MAY W10292020 MAY W10292020 Contact Us For Availability
3
MAY W10292021 MAY W10292021 Contact Us For Availability
3
MAY W10292022 MAY W10292022 Contact Us For Availability
3
Panel, Side (2) (White) MAY 8053830 Contact Us For Availability
3
MAY 8053832 MAY 8053832 Contact Us For Availability
3
Brkt-Mntg, Drawer MAY W10174396 Contact Us For Availability
3
MAY W10111309 MAY W10111309 Contact Us For Availability
3
MAY W10111310 MAY W10111310 Contact Us For Availability
3
MAY W10171750 MAY W10171750 Contact Us For Availability
4
MAY W10170526 MAY W10170526 Contact Us For Availability
4
SWITCH, INFINITE (LEFT-RIGHT REAR) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE (RIGHT FRONT (DUAL)) MAY 3148954 Contact Us For Availability
4
SWITCH, INFINITE (LEFT-FRONT) MAY W10167742 Contact Us For Availability
4
Clip,Door Mntg(2) MAY 9761517 Contact Us For Availability
4
Rivet, Push (2) (Black) MAY 3196813 Contact Us For Availability
4
Rivet, Push (2) (White) MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
MAY 3196200 MAY 3196200 Contact Us For Availability
5
Seal, Oven Door MAY 8522416 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY W10238912 MAY W10238912 Contact Us For Availability
6
MAY W10162042 MAY W10162042 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
Screw MAY 3196168 Contact Us For Availability
6
MAY 9757340 MAY 9757340 Contact Us For Availability
6
Glass, Inner (2) MAY 9758162 Contact Us For Availability
7
Screw MAY 3196170 Contact Us For Availability
7
KNOB, INFINITE (4) (WHITE) MAY W10211371 Contact Us For Availability
7
KNOB, INFINITE (4) (BLACK) MAY W10211372 Contact Us For Availability
7
Element, Bake (Hidden) MAY 9758541 Contact Us For Availability
7
MAY 8053334 MAY 8053334 Contact Us For Availability
7
MAY 3186289 MAY 3186289 Contact Us For Availability
8
HINGE, PIN MAY 3195060 Contact Us For Availability
8
MAY W10134247 MAY W10134247 Contact Us For Availability
8
INSULATION, DOOR MAY W10278991 Contact Us For Availability
9
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
9
MAY 3196548 MAY 3196548 Contact Us For Availability
9
CLIP(STLS.MODEL) MAY 9781235 Contact Us For Availability
9
Retainer, Insul. MAY 9761357 Contact Us For Availability
10
Cover, Rear MAY 8272473 Contact Us For Availability
10
Glide, Drwr Top MAY W10114344 Contact Us For Availability
10
PANEL(STLS.MODEL) MAY W10217860 Contact Us For Availability
10
Hinge, Door (2) MAY 9761493 Contact Us For Availability
11
MAY W10236242 MAY W10236242 Contact Us For Availability
11
MAY W10236244 MAY W10236244 Contact Us For Availability
11
MAY 3196037 MAY 3196037 Contact Us For Availability
11
Handle(Stls.Model) MAY W10197980 Contact Us For Availability
11
GLASS, OUTER (STAINLESS) MAY W10106403 Contact Us For Availability
11
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
11
MAY W10106405 MAY W10106405 Contact Us For Availability
12
SCREEN, CATALYST MAY 9761301 Contact Us For Availability
12
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
12
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
12
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
12
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
13
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 3400882 MAY 3400882 Contact Us For Availability
14
Trim, Lower (White) MAY 8523175 Contact Us For Availability
14
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
15
Clip, Cover MAY 8273564 Contact Us For Availability
15
MAY 9760314 MAY 9760314 Contact Us For Availability
15
MAY W10031790 MAY W10031790 Contact Us For Availability
16
Screw (White) MAY 3196166 Contact Us For Availability
16
Foot, Rear (2) MAY W10058460 Contact Us For Availability
16
MAY W10031780 MAY W10031780 Contact Us For Availability
17
RECEPTACLE, BLK MAY W10203475 Contact Us For Availability
17
RECEPTACLE, WHT MAY W10203476 Contact Us For Availability
17
ROD, INSUL RETAINR MAY W10196451 Contact Us For Availability
17
MAY W10200660 MAY W10200660 Contact Us For Availability
18
BRKR, CIRCUIT WHT MAY 9757601 Contact Us For Availability
18
BRKR, CIRCUIT BLK MAY 9757602 Contact Us For Availability
18
CLIP, PANEL SIDE MAY W10137382 Contact Us For Availability
18
Rod - Dr Switch MAY 9757239 Contact Us For Availability
19
MAY 3186116 MAY 3186116 Contact Us For Availability
19
STRAP, DOOR MAY W10113759 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
26
MAY 3196165 MAY 3196165 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
Screw MAY 3196179 Contact Us For Availability
29
MAY 3196178 MAY 3196178 Contact Us For Availability
30
MAY 3400016 MAY 3400016 Contact Us For Availability
31
MAY 3196172 MAY 3196172 Contact Us For Availability
33
MAY W10067840 MAY W10067840 Contact Us For Availability
35
Screw MAY 3196174 Contact Us For Availability
36
MAY 9758238 MAY 9758238 Contact Us For Availability
37
BRKT - MOUNTING MAY 9760407 Contact Us For Availability
38
Latch, Door MAY 9761013 Contact Us For Availability
39
MAY W10078380 MAY W10078380 Contact Us For Availability
40
MAY W10107840 MAY W10107840 Contact Us For Availability
41
Spacer, Door MAY 9758701 Contact Us For Availability
42
MAY 3196169 MAY 3196169 Contact Us For Availability
43
MAY 9758283 MAY 9758283 Contact Us For Availability
45
Screw (2) MAY 3196560 Contact Us For Availability
47
OVEN SEAL, FLANGE MAY W10010350 Contact Us For Availability
NI
INSUL., RETAINER MAY 8054068 Contact Us For Availability
NI
MAY 8272612 MAY 8272612 Contact Us For Availability
NI
MAY 8272613 MAY 8272613 Contact Us For Availability
NI
MAY W10208653 MAY W10208653 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
Clip, Ground Wire MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
Screw, Grnd Wire MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8523279 MAY 8523279 Contact Us For Availability
NI
MAY 9756779 MAY 9756779 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
Harness, Wire (Sensor/Dr Switch) MAY W10084660 Contact Us For Availability
NI
Tie, Wire MAY W10144763 Contact Us For Availability
NI
MAY W10237611 MAY W10237611 Contact Us For Availability
NI
CORD, POWER 240V MAY W10244925 Contact Us For Availability
NI
MAY W10261085 MAY W10261085 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP LEFT) MAY W10273581 Contact Us For Availability
× ![]()
