Model Maytag YMER6600FZ2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

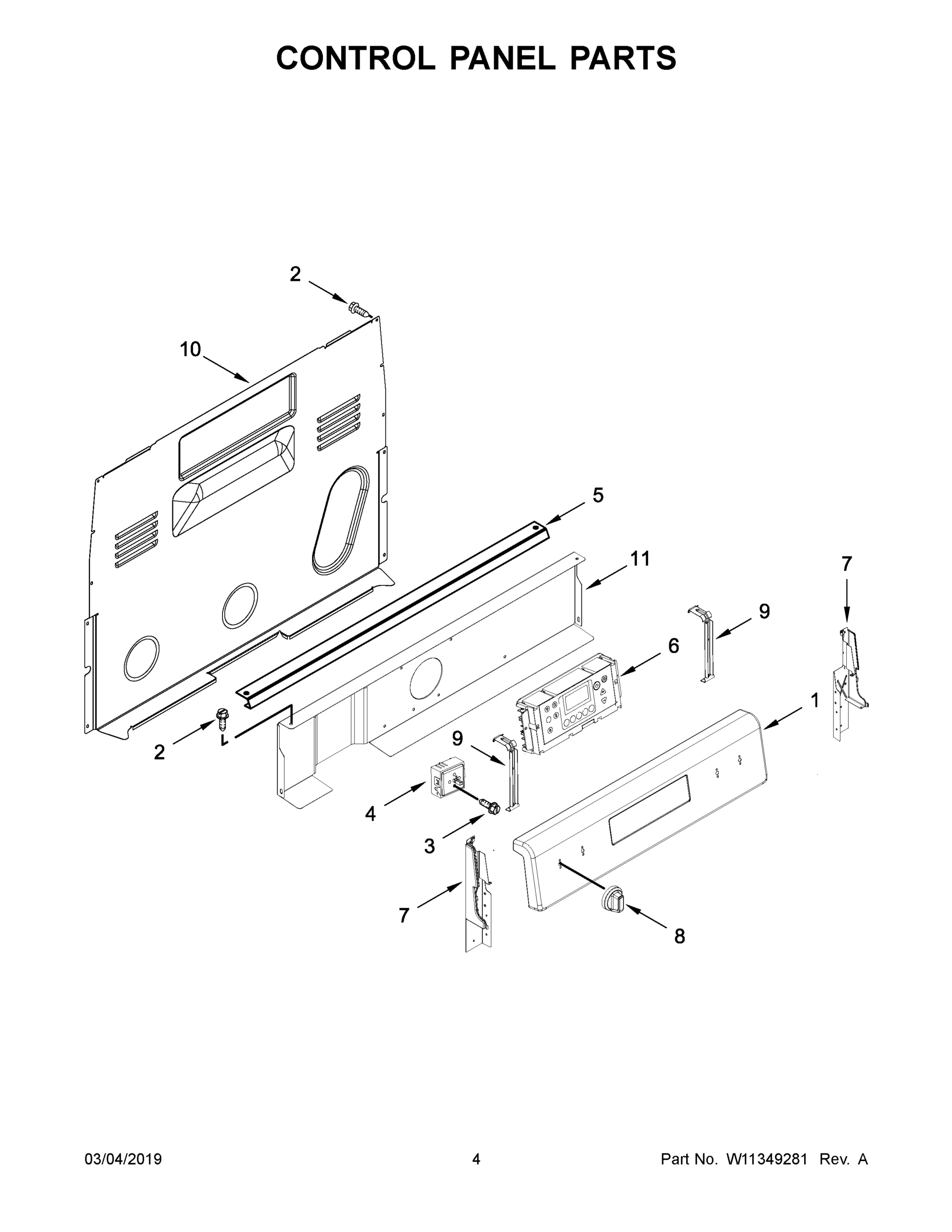

03 - CONTROL PANEL PARTS

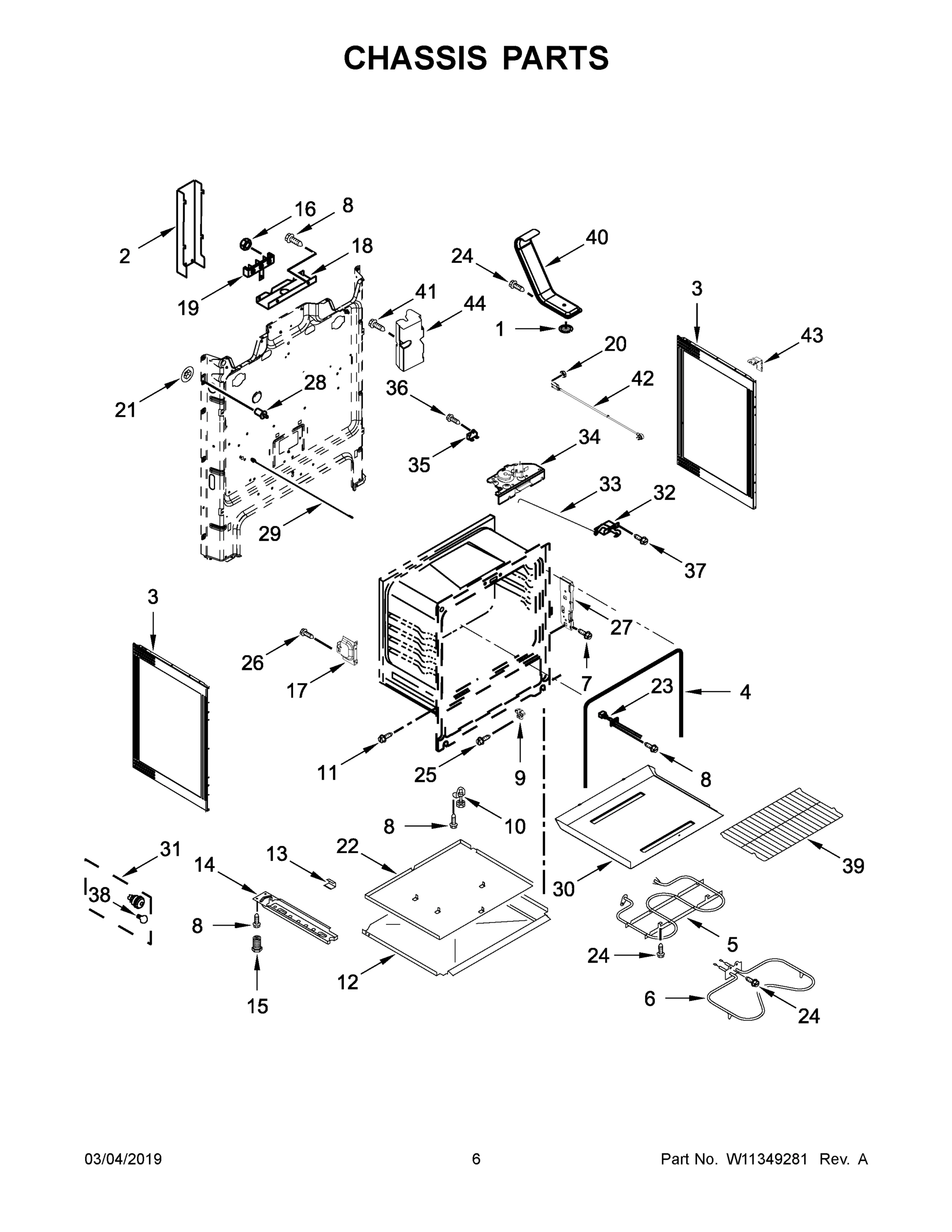

04 - CHASSIS PARTS

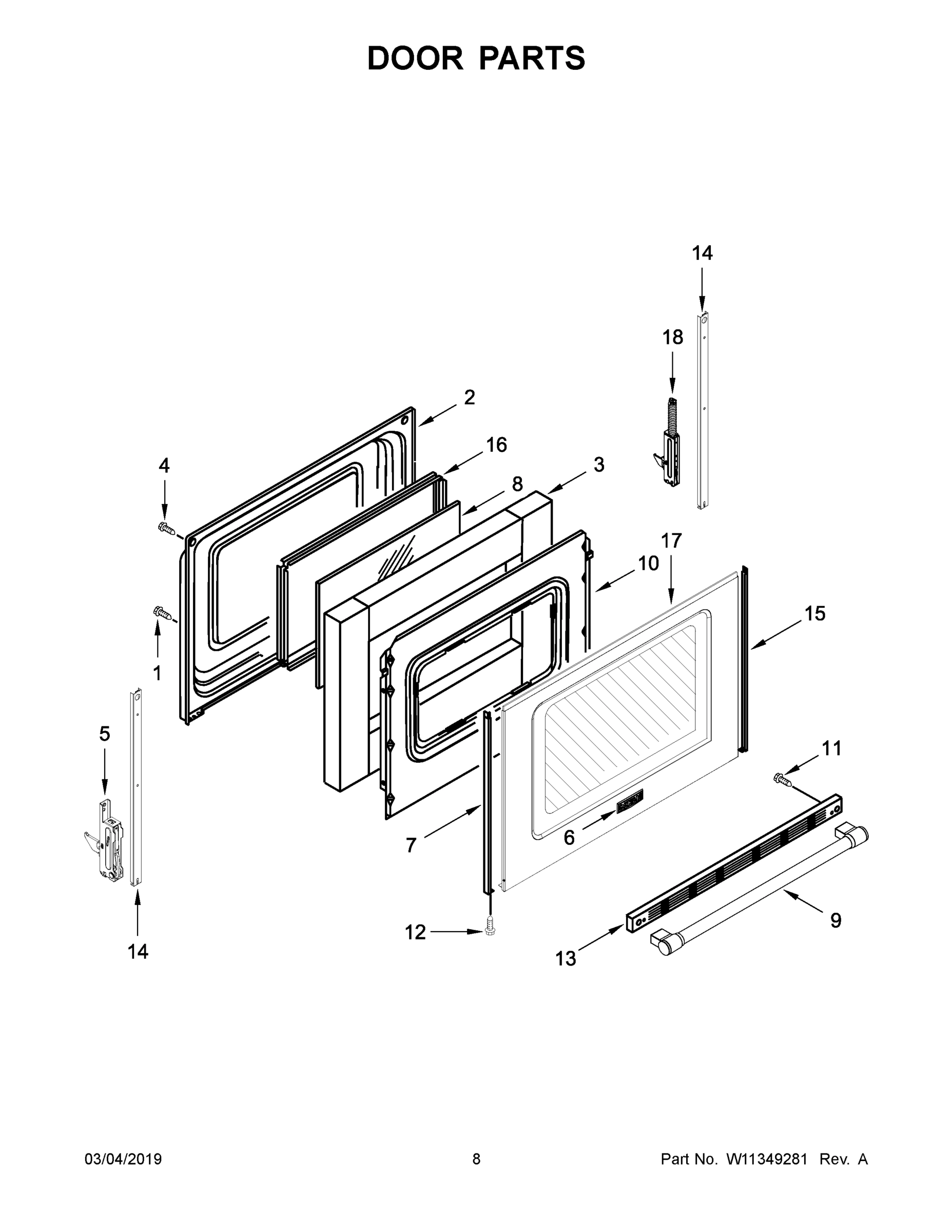

05 - DOOR PARTS

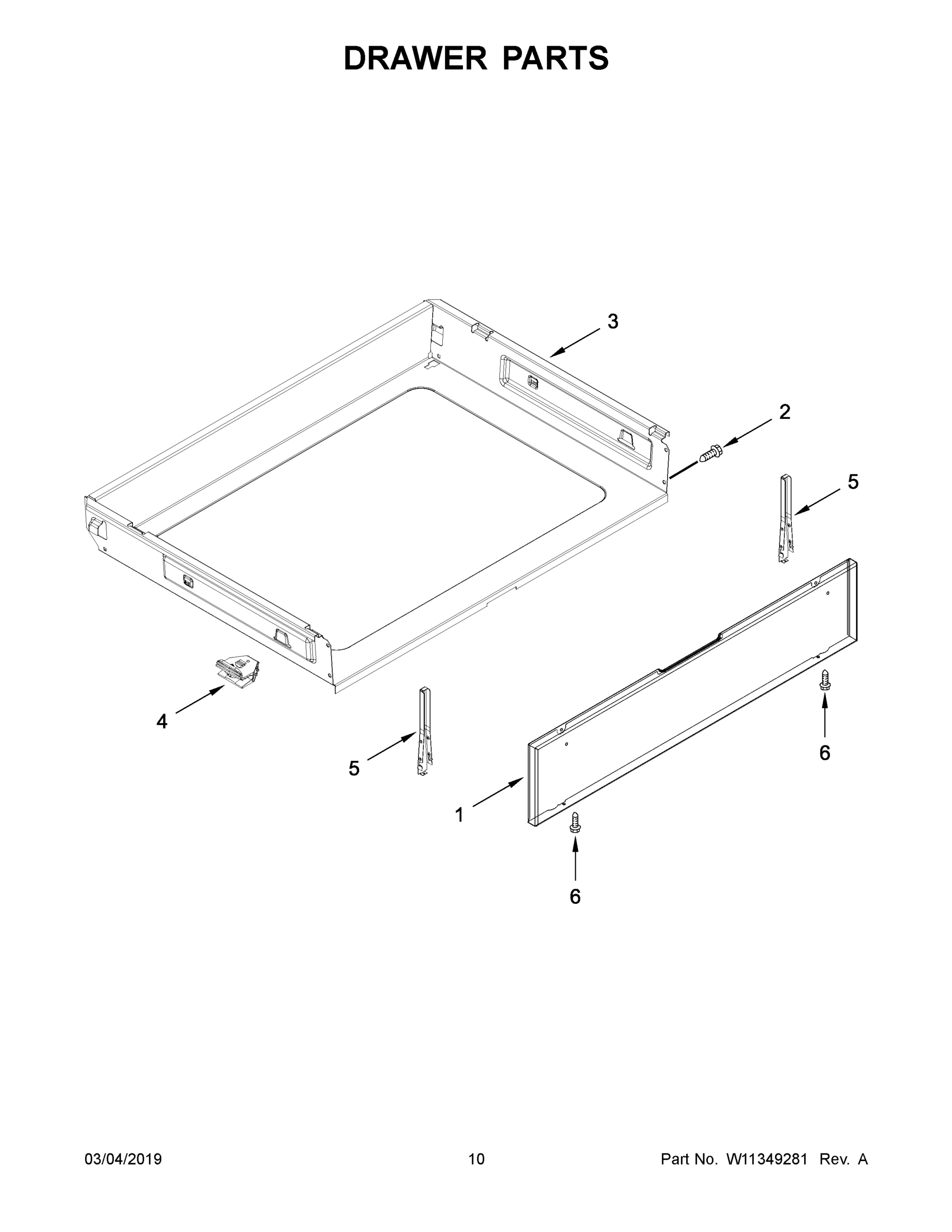

06 - DRAWER PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER6600FZ2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
CONSOLE (STAINLESS) MAY W10885607 Contact Us For Availability
1
SCREEN, VENT MAY W11092984 Contact Us For Availability
1
SCREW MAY W10031790 Contact Us For Availability
1
PANEL, DRAWER FRONT (STAINLESS) MAY W10861542 Contact Us For Availability
1A
GUIDE, USE AND CARE (FRENCH) MAY W11037228 Contact Us For Availability
1B
INSTRUCTIONS, INSTALLATION MAY W10877842 Contact Us For Availability
1C
SHEET, TECH MAY W10842032 Contact Us For Availability
1D
WIRING, DIAGRAM MAY W11032798 Contact Us For Availability
2
COOKTOP (BLACK) MAY W11022824 Contact Us For Availability
2
SCREW MAY 3196165 Contact Us For Availability
2
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
2
LINER, DOOR MAY 9761344 Contact Us For Availability
3
BRACKET, COOKTOP (LEFT) MAY W10607641 Contact Us For Availability
3
SCREW MAY 3400882 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
INSULATION, DOOR STRIP MAY W10278991 Contact Us For Availability
3
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
3A
BRACKET, COOKTOP (RIGHT) MAY W10607642 Contact Us For Availability
4
ELEMENT (3000/1400W) (LEFT FRONT) MAY W10275048 Contact Us For Availability
4
SWITCH, INFINITE (DUAL) (LEFT FRONT) MAY W10434452 Contact Us For Availability
4
SEAL, DOOR MAY W10658354 Contact Us For Availability
4
SCREW MAY W10200660 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SWITCH, INFINITE (LEFT REAR & RIGHT REAR) MAY 3148951 Contact Us For Availability
4B
SWITCH, INFINITE (ORANGE) (RIGHT FRONT) MAY 3148954 Contact Us For Availability
5
ELEMENT (2500W) (RIGHT FRONT) MAY 8273992 Contact Us For Availability
5
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
5
ELEMENT, BROIL MAY 9757340 Contact Us For Availability
5
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
5
BRACKET, MOUNTING DRAWER MAY W10462910 Contact Us For Availability
6
ELEMENT (1200W) (LEFT REAR & RIGHT REAR) MAY W10248261 Contact Us For Availability
6
BOARD, CONTROL (BLACK) MAY W11204510 Contact Us For Availability
6
ELEMENT, BAKE MAY 9755770 Contact Us For Availability
6
SCREW MAY 3196169 Contact Us For Availability
6
BADGE MAY W10612925 Contact Us For Availability
7
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
7
ENDPOST, CONSOLE (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
7
SCREW MAY W10031780 Contact Us For Availability
7
TRIM, DOOR (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
7A
ENDPOST, CONSOLE (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
8
PAN, RADIANT ELEMENT MAY W10691223 Contact Us For Availability
8
SCREW MAY 3196178 Contact Us For Availability
8
KNOB (STAINLESS) MAY W10858250 Contact Us For Availability
8
GLASS, INNER MAY 9758162 Contact Us For Availability
9
SPRING, ELEMENT MAY W10225448 Contact Us For Availability
9
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
9
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
9
HANDLE, OVEN DOOR (STAINLESS) MAY W10834521 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
10
RETAINER, INSULATION MAY 9761357 Contact Us For Availability
11
SHIELD, HEAT MAY W10134247 Contact Us For Availability
11
SCREW MAY W10067840 Contact Us For Availability
11
SCREW MAY W10480830 Contact Us For Availability
12
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
12
TRAY, INSULATION MAY W10134121 Contact Us For Availability
12
SCREW MAY W10327235 Contact Us For Availability
13
ELEMENT, WARM ZONE MAY W10799048 Contact Us For Availability
13
CLIP, PANEL MAY W10137382 Contact Us For Availability
13
TRIM, OVEN DOOR VENT (STAINLESS) MAY W11047800 Contact Us For Availability
14
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
14
STRAP, DOOR MAY W10544179 Contact Us For Availability
14A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
15
FOOT, LEVELING MAY W10058460 Contact Us For Availability
15
TRIM, DOOR (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
16
NUT MAY 3400029 Contact Us For Availability
16
FRAME, GLASS MAY W10316950 Contact Us For Availability
17
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
17
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W11167878 Contact Us For Availability
18
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
18
HINGE, ACTIVE (WITH SPRING) MAY W10299224 Contact Us For Availability
19
BLOCK, TERMINAL MAY W10246624 Contact Us For Availability
21
NUT MAY 3400968 Contact Us For Availability
22
SHIELD, HEAT MAY W10134125 Contact Us For Availability
23
SENSOR, OVEN MAY W10181986 Contact Us For Availability
24
SCREW MAY 3196154 Contact Us For Availability
25
SCREW MAY 3400080 Contact Us For Availability
27
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
28
SWITCH, DOOR MAY W10627802 Contact Us For Availability
29
ROD, DOOR SWITCH MAY 9757239 Contact Us For Availability
30
TRAY, HIDDEN BAKE MAY W10183712 Contact Us For Availability
31
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
32
ASSEMBLY, DOOR LATCH (FRONT) MAY 9761013 Contact Us For Availability
33
ROD, LATCH MAY W10078380 Contact Us For Availability
34
ASSEMBLY, LATCH (REAR) MAY W10107840 Contact Us For Availability
35
FUSE, THERMAL MAY 3196548 Contact Us For Availability
36
SCREW MAY 3196172 Contact Us For Availability
37
SCREW MAY 3196560 Contact Us For Availability
38
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
39
RACK, OVEN MAY W10268578 Contact Us For Availability
40
TUBE, VENT MAY W10134285 Contact Us For Availability
41
SCREW MAY W11034869 Contact Us For Availability
42
CORD, POWER MAY W10624591 Contact Us For Availability
43
CLIP, SPRING STEEL MAY W10183541 Contact Us For Availability
44
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP (RIGHT) MAY W11134551 Contact Us For Availability
NI
HARNESS, WARM ZONE MAY W11134592 Contact Us For Availability
NI
HARNESS, COOKTOP (LEFT) MAY W11134603 Contact Us For Availability
NI
HARNESS, HIDDEN BAKE MAY W11172528 Contact Us For Availability
NI
MAY W11188502 MAY W11188502 Contact Us For Availability
NI
CLIP, WIRE MAY 3196520 Contact Us For Availability
NI
INSULATION, FLUE MAY W10333344 Contact Us For Availability
NI
CARD, INSULATOR MAY W10646923 Contact Us For Availability
NI
INSULATION, WRAP MAY W10774939 Contact Us For Availability
NI
INSULATION, BACK MAY W11127324 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
NI
ACCESSORIES, PROTECTANT, COOKTOP MAY 31463A Contact Us For Availability
NI
ACCESSORIES, KIT, COOKTOP CARE MAY 31605 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRATE & DRIP PAN MAY 31617A Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORIES, GRIDDLE MAY 4396096RB Contact Us For Availability
NI
ACCESSORIES, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
ACCESSORIES, RACK, BROILER PAN & ROASTING MAY W10123240 Contact Us For Availability
NI
ACCESSORIES, CLEANER, GRANITE MAY W10275756 Contact Us For Availability
NI
ACCESSORIES, RACK, OVEN (GULL-WING) MAY W10289145 Contact Us For Availability
NI
ACCESSORIES, CLEANER, STAINLESS STEEL MAY W10355016 Contact Us For Availability
NI
ACCESSORIES, WIPES, STAINLESS STEEL CLEANING MAY W10355049 Contact Us For Availability
NI
ACCESSORIES, CLEANER, COOKTOP MAY W10355051 Contact Us For Availability
NI
ACCESSORIES, KIT, OVEN CLEANING MAY W10423113RP Contact Us For Availability
NI
ACCESSORIES, SCRAPER, COOKTOP MAY WA906B Contact Us For Availability
× ![]()
