Model Maytag YMER5605YB0 ELECTRIC RANGE – Common Parts & Diagrams

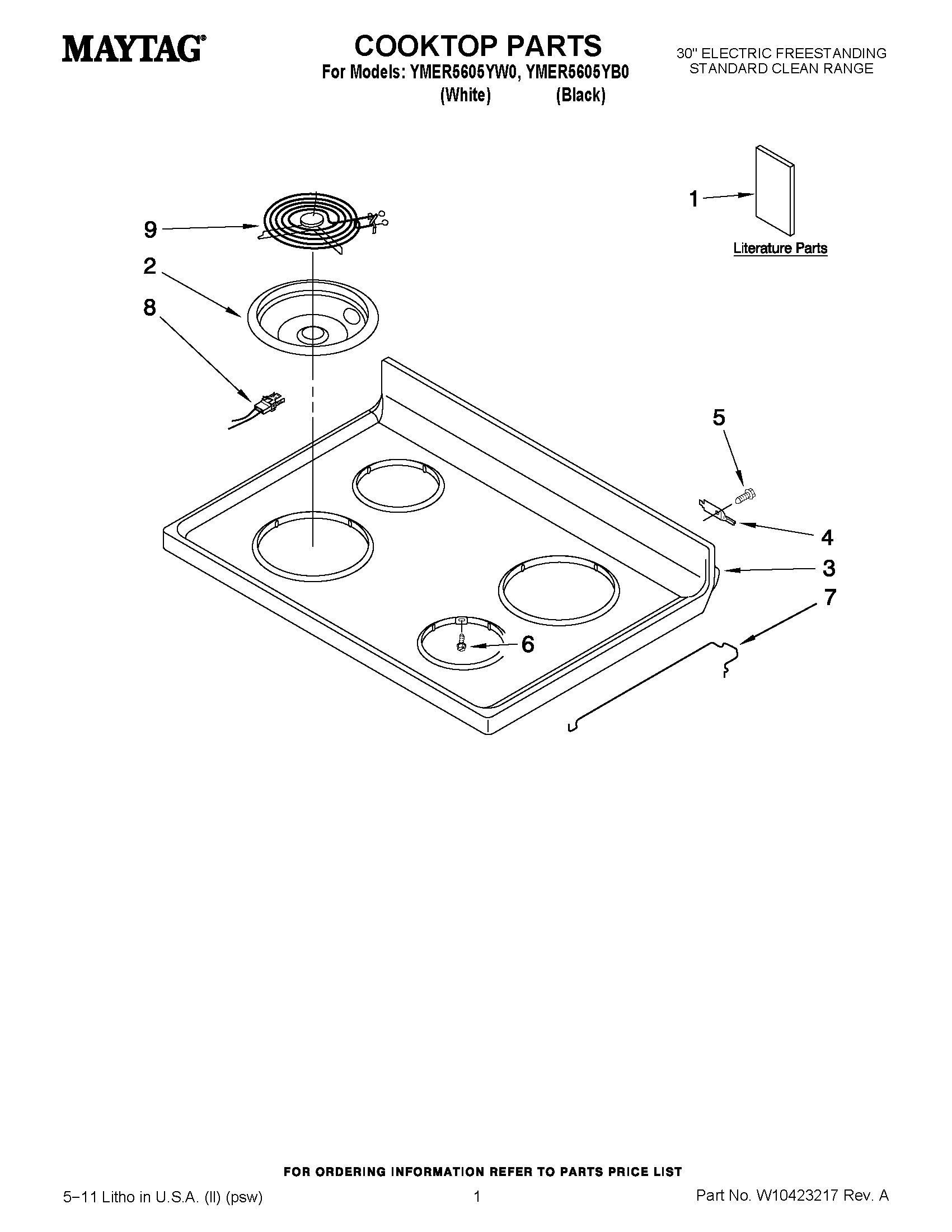

01 - COOKTOP PARTS

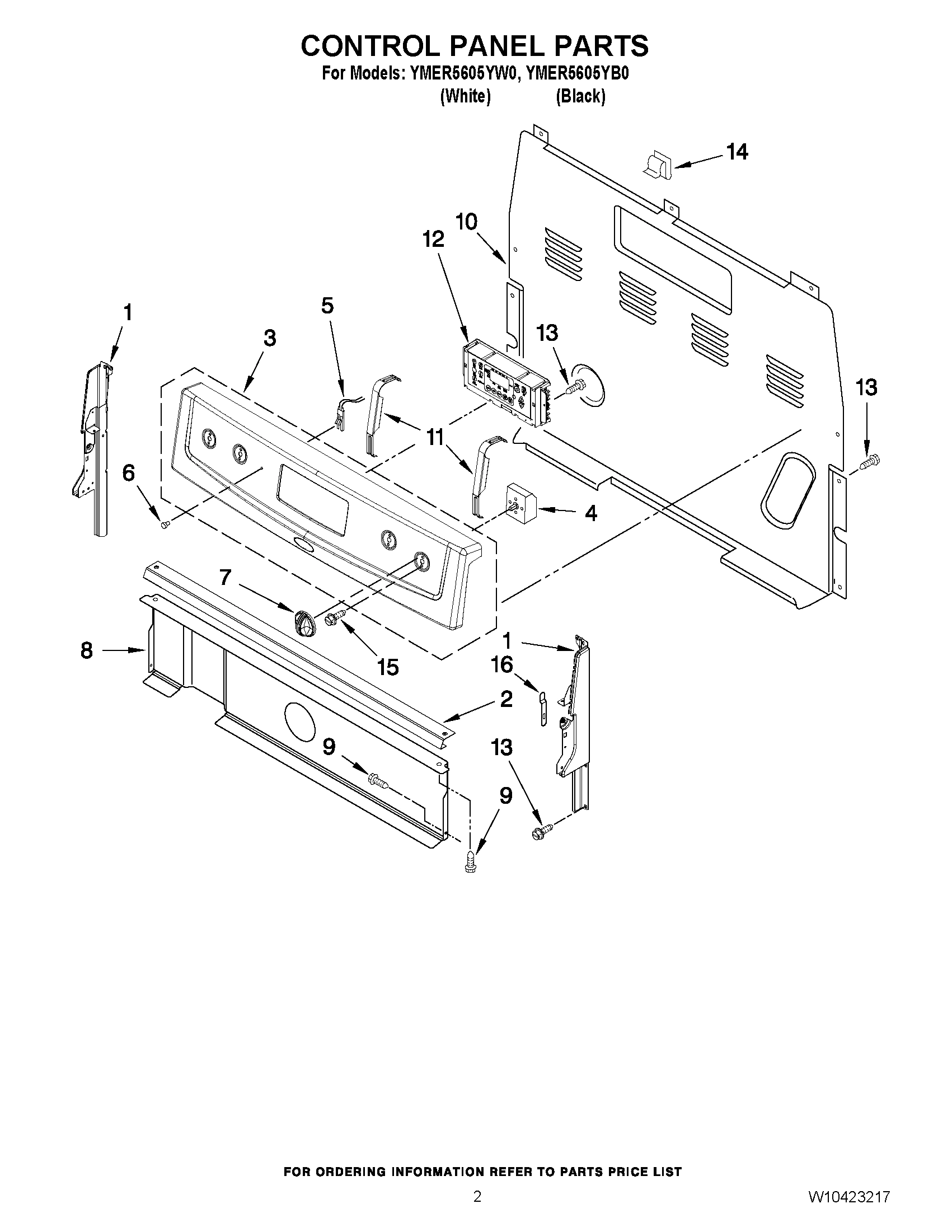

02 - CONTROL PANEL PARTS

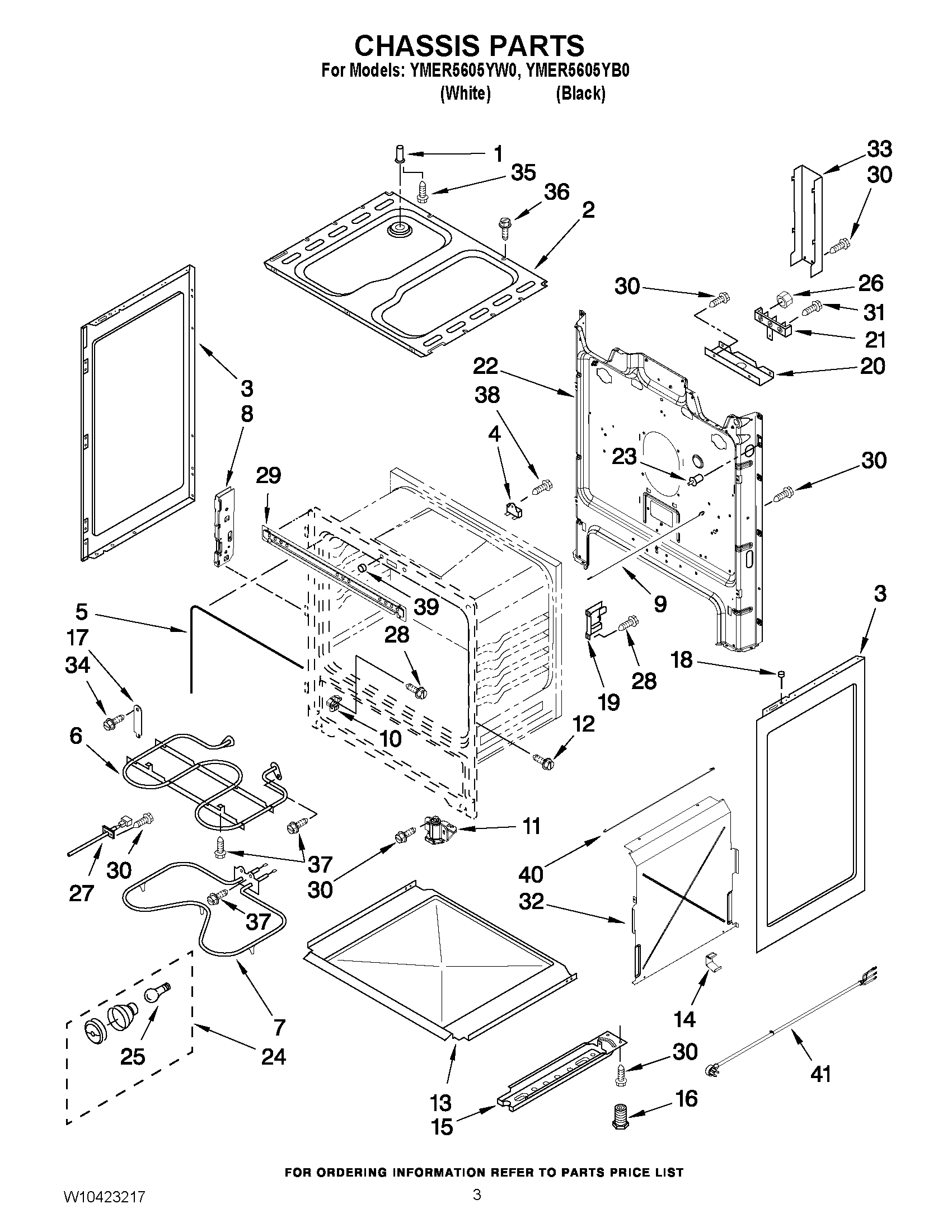

03 - CHASSIS PARTS

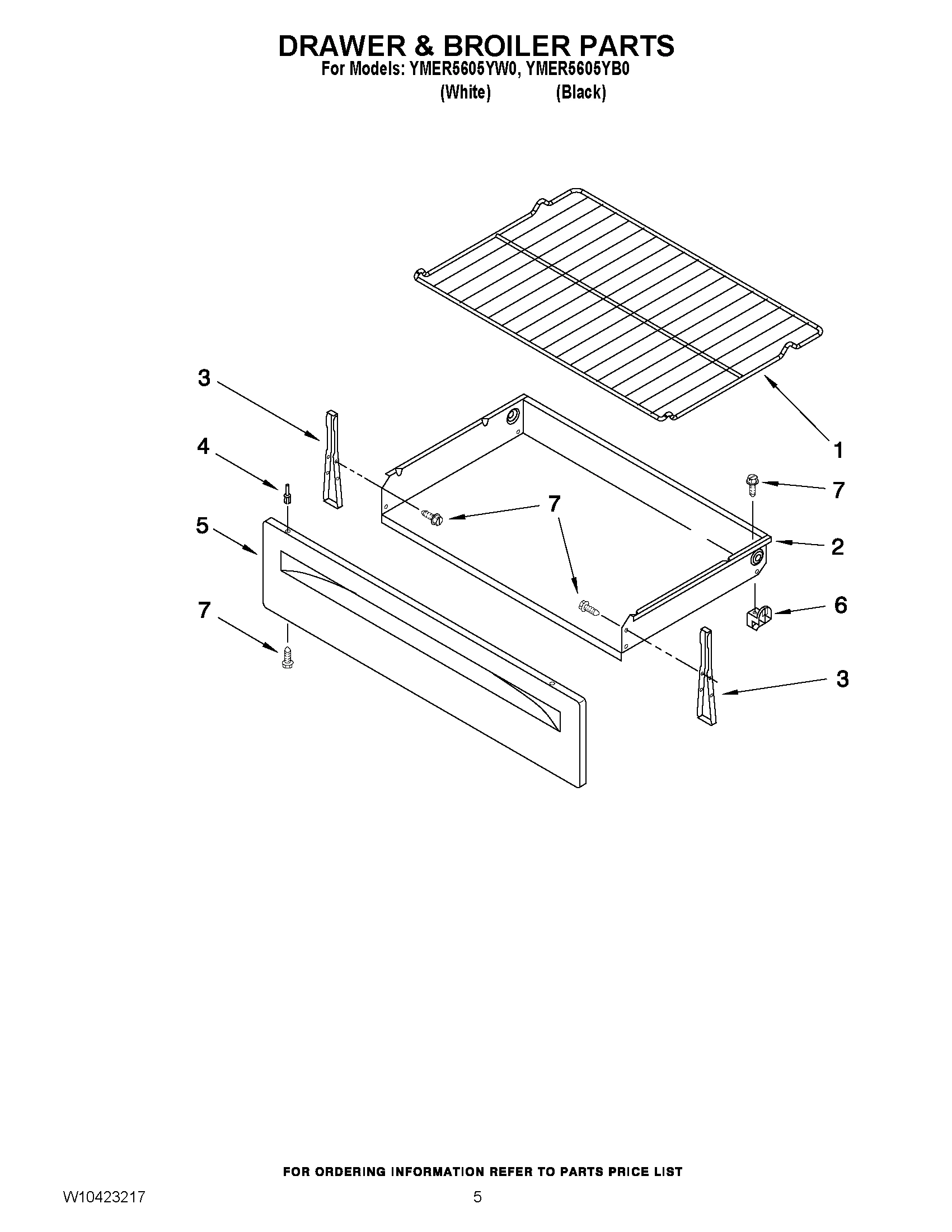

04 - DRAWER & BROILER PARTS

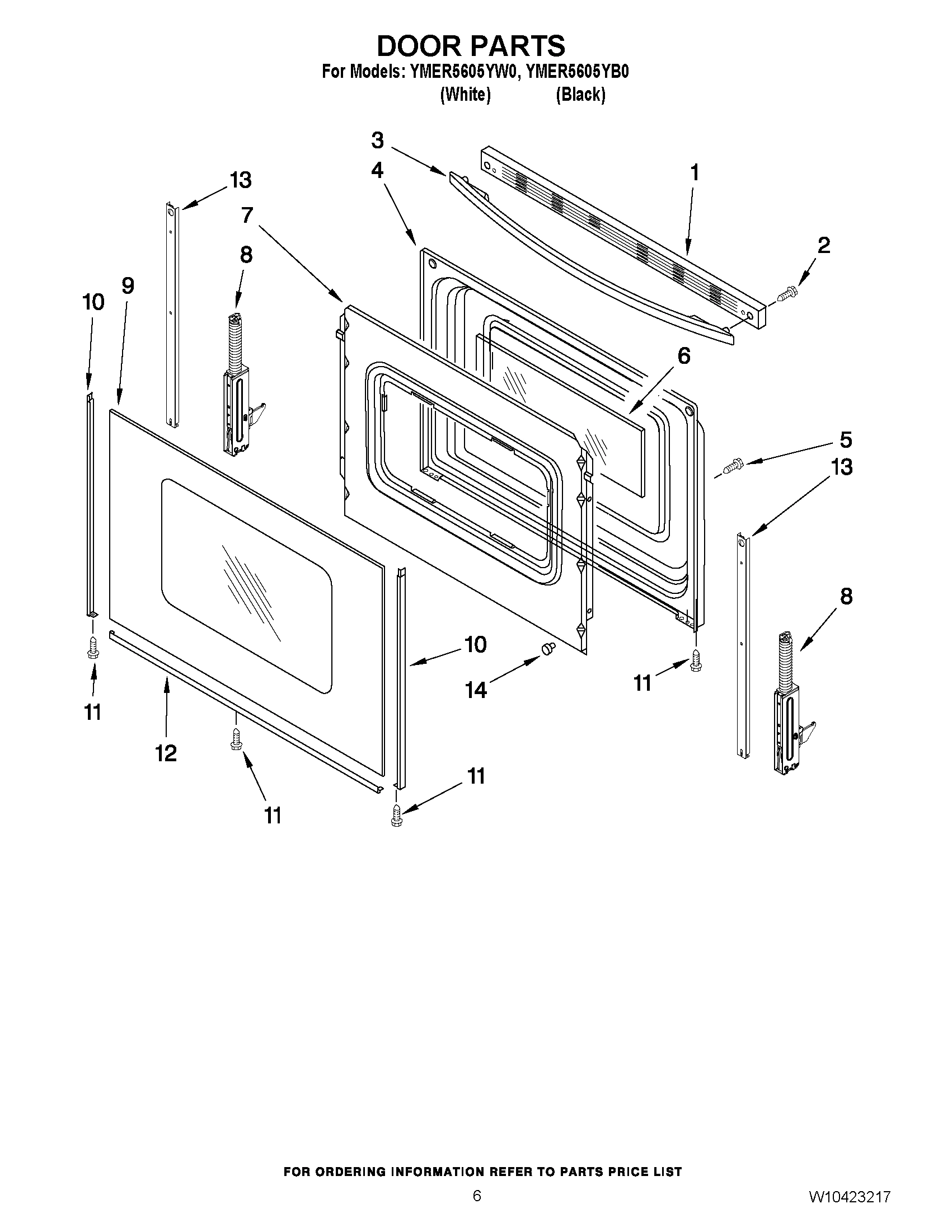

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMER5605YB0 ELECTRIC RANGE
1
Template, Anti-Tip (English/French) MAY 9757143 Contact Us For Availability
1
Safer Cooking Tips (English) MAY 9762761 Contact Us For Availability
1
MAY W10065852 MAY W10065852 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION MAY W10196159 Contact Us For Availability
1
MAY W10361707 MAY W10361707 Contact Us For Availability
1
MAY W10361708 MAY W10361708 Contact Us For Availability
1
MAY W10361709 MAY W10361709 Contact Us For Availability
1
MAY W10184433 MAY W10184433 Contact Us For Availability
1
MAY W10184434 MAY W10184434 Contact Us For Availability
1
ENDCAP (BLACK (LEFT HAND)) MAY W10184437 Contact Us For Availability
1
ENDCAP (BLACK (RIGHT HAND)) MAY W10184438 Contact Us For Availability
1
VENT TUBE MAY 3169143 Contact Us For Availability
1
MAY W10268578 MAY W10268578 Contact Us For Availability
1
TRIM, TOP (WHITE) MAY W10310920 Contact Us For Availability
1
MAY W10310922 MAY W10310922 Contact Us For Availability
2
8`` CHROME MAY W10196405 Contact Us For Availability
2
6`` CHROME MAY W10196406 Contact Us For Availability
2
MAY W10182322 MAY W10182322 Contact Us For Availability
2
MAY W10209613 MAY W10209613 Contact Us For Availability
2
MAY 9761031 MAY 9761031 Contact Us For Availability
2
MAY W10168559 MAY W10168559 Contact Us For Availability
3
MAY 3186231 MAY 3186231 Contact Us For Availability
3
MAY 3186233 MAY 3186233 Contact Us For Availability
3
MAY W10276853 MAY W10276853 Contact Us For Availability
3
MAY W10276854 MAY W10276854 Contact Us For Availability
3
PANEL, SIDE (WHITE-TEXTURED) MAY W10322769 Contact Us For Availability
3
PANEL, SIDE (BLACK-TEXTURED) MAY W10322770 Contact Us For Availability
3
BRACKET, DRAWER MAY W10174396 Contact Us For Availability
3
MAY W10323581 MAY W10323581 Contact Us For Availability
3
MAY W10323584 MAY W10323584 Contact Us For Availability
4
MAY 3195060 MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE ((LR)(RF)) MAY 3148951 Contact Us For Availability
4
SWITCH, INFINITE ((LF)(RR)) MAY 3148953 Contact Us For Availability
4
MAY 3196548 MAY 3196548 Contact Us For Availability
4
MAY 3196813 MAY 3196813 Contact Us For Availability
4
MAY 3196814 MAY 3196814 Contact Us For Availability
4
MAY 9761344 MAY 9761344 Contact Us For Availability
5
Light, Indicator MAY 8523265 Contact Us For Availability
5
Seal, Oven Door MAY W10129032 Contact Us For Availability
5
PANEL DRAWER FRNT ( WHITE) MAY 8053339 Contact Us For Availability
5
PANEL DRAWER FRNT ( BLACK) MAY 8053341 Contact Us For Availability
5
MAY W10031790 MAY W10031790 Contact Us For Availability
6
Lens, Light MAY 3196068 Contact Us For Availability
6
MAY W10308476 MAY W10308476 Contact Us For Availability
6
GLIDE, DRAWER MAY 8053334 Contact Us For Availability
6
Window, Inner MAY 9758162 Contact Us For Availability
7
ROD, SUPPORT MAY 3195812 Contact Us For Availability
7
KNOB, INFINITE (WHITE) MAY W10211371 Contact Us For Availability
7
MAY W10211372 MAY W10211372 Contact Us For Availability
7
MAY W10308477 MAY W10308477 Contact Us For Availability
7
MAY 3196165 MAY 3196165 Contact Us For Availability
7
MAY 9761501 MAY 9761501 Contact Us For Availability
8
MAY W10335181 MAY W10335181 Contact Us For Availability
8
MAY 8053912 MAY 8053912 Contact Us For Availability
8
BRKT-MOUNTING MAY W10289077 Contact Us For Availability
8
HINGE, DOOR (ACTIVE) MAY W10299225 Contact Us For Availability
8
HINGE, DOOR PASSIVE MAY W10299227 Contact Us For Availability
9
ELEMENT, SURFACE (8``) MAY W10259867 Contact Us For Availability
9
ELEMENT, SURFACE (6``) MAY W10259870 Contact Us For Availability
9
MAY 3196166 MAY 3196166 Contact Us For Availability
9
MAY 9757239 MAY 9757239 Contact Us For Availability
9
GLASS, OUTER (WHITE) MAY W10106404 Contact Us For Availability
9
MAY W10106405 MAY W10106405 Contact Us For Availability
10
Cover, Upper MAY 8272473 Contact Us For Availability
10
Glide, Drawer Frnt MAY W10114344 Contact Us For Availability
10
TRIM, SIDE (BLACK, RIGHT HAND) MAY 8523165 Contact Us For Availability
10
TRIM, SIDE (WHITE, RIGHT HAND) MAY 8523166 Contact Us For Availability
10
TRIM, SIDE (BLACK, LEFT HAND) MAY 8523171 Contact Us For Availability
10
TRIM, SIDE (WHITE, LEFT HAND) MAY 8523172 Contact Us For Availability
11
BRKT, MNTG EOC MAY W10138683 Contact Us For Availability
11
FOOT, FRONT MAY W10341186 Contact Us For Availability
11
MAY 3196160 MAY 3196160 Contact Us For Availability
12
CONTROL, RANGE LCC90 (BLACK) MAY W10310971 Contact Us For Availability
12
CONTROL, RANGE LCC90 (WHITE) MAY W10310972 Contact Us For Availability
12
MAY W10067840 MAY W10067840 Contact Us For Availability
12
Trim, Lower (White) MAY 8523175 Contact Us For Availability
12
Trim, Lower (Black) MAY 8523177 Contact Us For Availability
13
Tray, Insulation MAY 8054068 Contact Us For Availability
13
STRAP, DOOR MAY W10113759 Contact Us For Availability
14
Clip MAY 8273564 Contact Us For Availability
14
MAY W10137382 MAY W10137382 Contact Us For Availability
14
BUMPER, DOOR MAY 3195809 Contact Us For Availability
15
MAY 3400882 MAY 3400882 Contact Us For Availability
15
RAIL, BASE MAY 9760314 Contact Us For Availability
16
MAY 3196200 MAY 3196200 Contact Us For Availability
16
FOOT, REAR MAY W10058460 Contact Us For Availability
17
CLIP,DOOR MNTG MAY 9761517 Contact Us For Availability
19
SUPPORT, OVEN MAY W10355173 Contact Us For Availability
20
MAY 3186034 MAY 3186034 Contact Us For Availability
21
MAY W10246624 MAY W10246624 Contact Us For Availability
22
MAY 8274034 MAY 8274034 Contact Us For Availability
23
MAY 9757262 MAY 9757262 Contact Us For Availability
24
MAY 3196701 MAY 3196701 Contact Us For Availability
25
MAY 311255 MAY 311255 Contact Us For Availability
27
MAY W10181986 MAY W10181986 Contact Us For Availability
28
MAY 3196169 MAY 3196169 Contact Us For Availability
29
Guard, Wire MAY 9780585 Contact Us For Availability
30
MAY 3196178 MAY 3196178 Contact Us For Availability
31
MAY 3400016 MAY 3400016 Contact Us For Availability
32
RETAINER, SIDE MAY 9758238 Contact Us For Availability
33
COVER, BOX MAY W10326122 Contact Us For Availability
34
MAY W10031780 MAY W10031780 Contact Us For Availability
35
MAY 3196567 MAY 3196567 Contact Us For Availability
38
MAY 3196172 MAY 3196172 Contact Us For Availability
39
Spacer, Door MAY 9758701 Contact Us For Availability
40
ROD, INSULATION MAY W10196451 Contact Us For Availability
41
CORD, POWER RETAINER MAY W10244925 Contact Us For Availability
NI
MAY 3196154 MAY 3196154 Contact Us For Availability
NI
SCREW (GRND / MAIN BACK) MAY 3196174 Contact Us For Availability
NI
MAY 8272611 MAY 8272611 Contact Us For Availability
NI
MAY 8273263 MAY 8273263 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
MAY 240132 MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
MAY 261514 MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 311227 MAY 311227 Contact Us For Availability
NI
Clip, Wire Ground MAY 313660 Contact Us For Availability
NI
Cleaner, Glass MAY 3184478 Contact Us For Availability
NI
Screw MAY 3196173 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Almond) MAY 350956 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
MAY 72107 MAY 72107 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Almond (Uncut)) MAY 978883 Contact Us For Availability
NI
MAY W10017440 MAY W10017440 Contact Us For Availability
NI
MAY W10083650 MAY W10083650 Contact Us For Availability
NI
BLOCK, BARE WIRE ADAPTER KIT MAY W10281322 Contact Us For Availability
NI
HARNESS, WIRE (COOKTOP) MAY W10295595 Contact Us For Availability
NI
MAY W10361705 MAY W10361705 Contact Us For Availability
× ![]()
