Model Maytag YMEDB850YW0 ELECTRIC DRYER – Common Parts & Diagrams

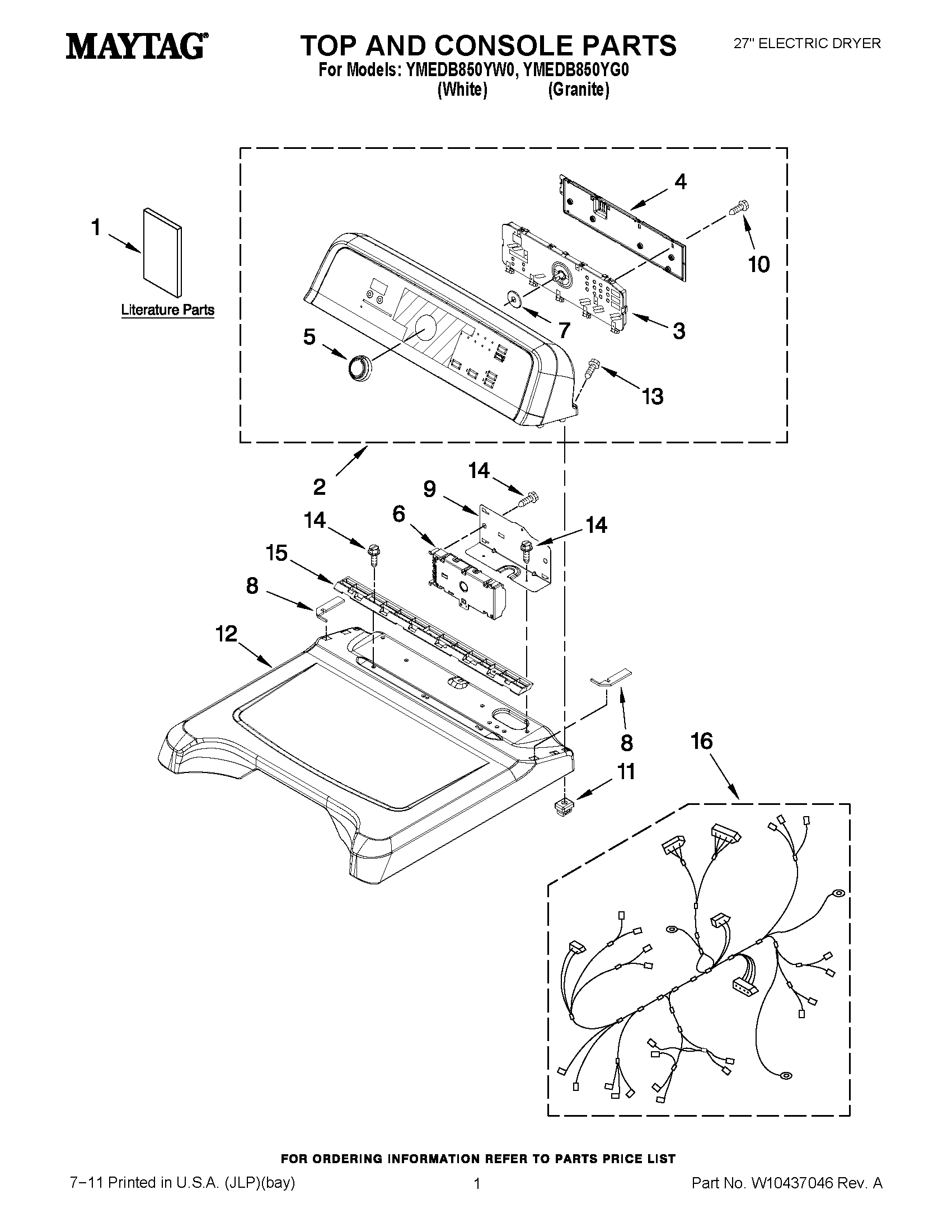

01 - TOP AND CONSOLE PARTS

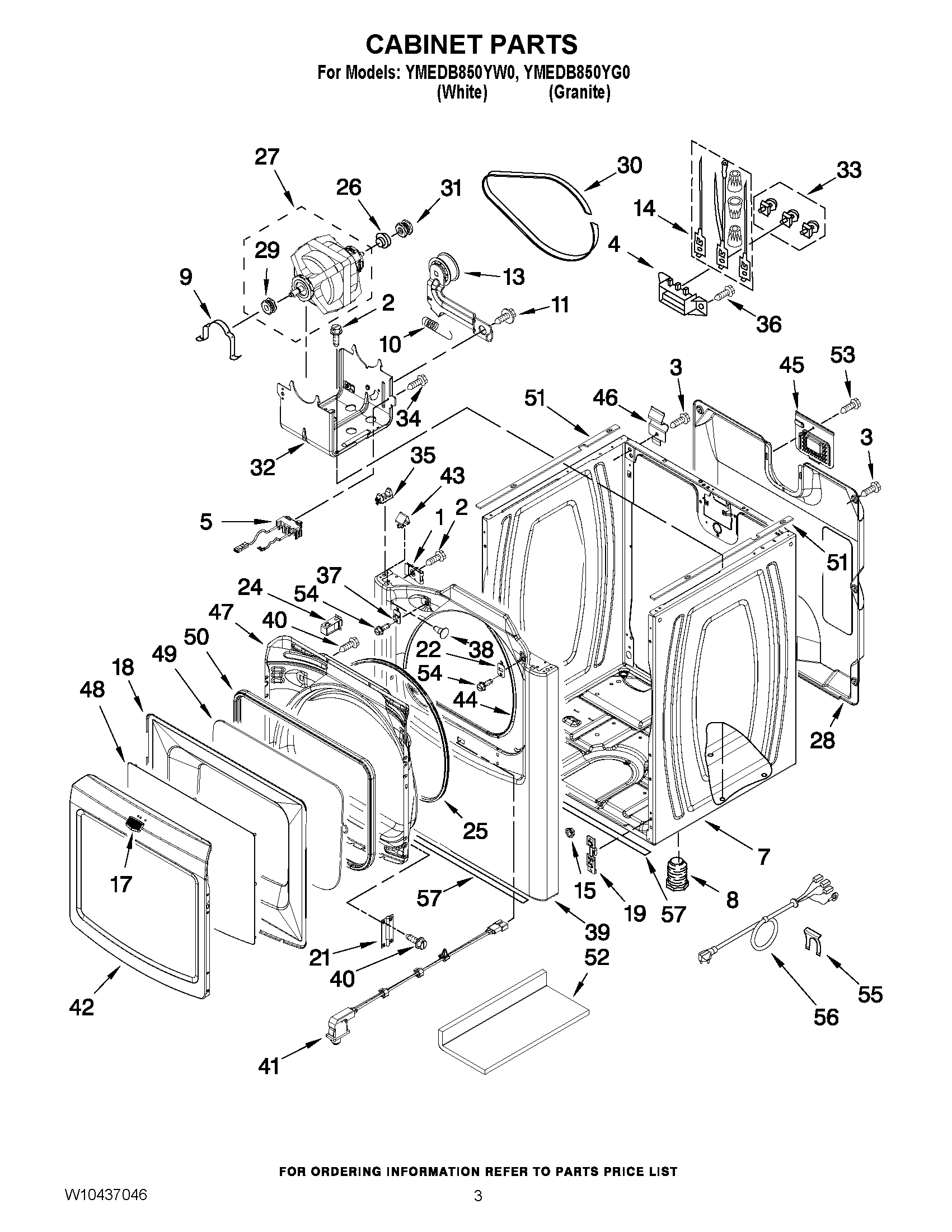

02 - CABINET PARTS
03 - BULKHEAD PARTS
04 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMEDB850YW0 ELECTRIC DRYER
1
MAY W10388780 MAY W10388780 Contact Us For Availability
1
INSTALLATION, DIAGNOSTIC GUIDE MAY W10392126 Contact Us For Availability
1
MAY W10393006 MAY W10393006 Contact Us For Availability
1
MAY W10007520 MAY W10007520 Contact Us For Availability
1
MAY W10359271 MAY W10359271 Contact Us For Availability
2
MAY W10338345 MAY W10338345 Contact Us For Availability
2
MAY W10416110 MAY W10416110 Contact Us For Availability
2
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
3
MAY W10388670 MAY W10388670 Contact Us For Availability
3
MAY 3390631 MAY 3390631 Contact Us For Availability
4
MAY W10051124 MAY W10051124 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY 3394984 MAY 3394984 Contact Us For Availability
5
MAY W10338554 MAY W10338554 Contact Us For Availability
5
MAY W10314253 MAY W10314253 Contact Us For Availability
5
MAY 8544730 MAY 8544730 Contact Us For Availability
6
MAY W10249829 MAY W10249829 Contact Us For Availability
6
MAY 697813 MAY 697813 Contact Us For Availability
7
SEAL, UI MAY 8572039 Contact Us For Availability
7
MAY W10223154 MAY W10223154 Contact Us For Availability
7
MAY W10338830 MAY W10338830 Contact Us For Availability
7
MAY W10049370 MAY W10049370 Contact Us For Availability
8
MAY W10219694 MAY W10219694 Contact Us For Availability
8
MAY W10219695 MAY W10219695 Contact Us For Availability
8
MAY W10363894 MAY W10363894 Contact Us For Availability
8
NUT,3/8 X 16(R.H.) MAY 3934666 Contact Us For Availability
9
MAY 8563853 MAY 8563853 Contact Us For Availability
9
MAY 660658 MAY 660658 Contact Us For Availability
9
MAY 8544721 MAY 8544721 Contact Us For Availability
10
MAY W10003770 MAY W10003770 Contact Us For Availability
10
MAY 3387374 MAY 3387374 Contact Us For Availability
10
MAY 3402841 MAY 3402841 Contact Us For Availability
11
SCREW, GROMMET MAY W10112673 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY 8573068 MAY 8573068 Contact Us For Availability
12
MAY W10223157 MAY W10223157 Contact Us For Availability
12
TOP (GRANITE) MAY W10338836 Contact Us For Availability
12
Screw, 10-16 x 13/16 MAY 3387230 Contact Us For Availability
13
Screw MAY W10131402 Contact Us For Availability
13
MAY 8547160 MAY 8547160 Contact Us For Availability
14
MAY 337686 MAY 337686 Contact Us For Availability
14
TERMINAL, BRASS & TINNED (INCLUDES ILLUS. 33) MAY 279318 Contact Us For Availability
14
MAY W10044440 MAY W10044440 Contact Us For Availability
15
MAY 8558863 MAY 8558863 Contact Us For Availability
15
Plug, Hole (Cabinet Base) MAY 8578560 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY W10319801 MAY W10319801 Contact Us For Availability
16
NUT,3/8 X 16(L.H.) MAY W10001120 Contact Us For Availability
17
MAY W10323735 MAY W10323735 Contact Us For Availability
17
MAY W10139797 MAY W10139797 Contact Us For Availability
18
BEZEL, DOOR MAY W10304170 Contact Us For Availability
18
MAY 3387459 MAY 3387459 Contact Us For Availability
19
CLIP MAY 3394083 Contact Us For Availability
19
MAY W10359272 MAY W10359272 Contact Us For Availability
20
MAY 690997 MAY 690997 Contact Us For Availability
21
HINGE ASSEMBLY (WHITE) MAY W10252472 Contact Us For Availability
21
MAY W10304174 MAY W10304174 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
MAY W10111888 MAY W10111888 Contact Us For Availability
22
MAY 3350424 MAY 3350424 Contact Us For Availability
23
Outlet Housing Assembly MAY 3394985 Contact Us For Availability
24
MAY W10111905 MAY W10111905 Contact Us For Availability
24
Spring, Lint Screen Door MAY 3394986 Contact Us For Availability
25
MAY W10221653 MAY W10221653 Contact Us For Availability
25
MAY 8557269 MAY 8557269 Contact Us For Availability
26
MAY 3393657 MAY 3393657 Contact Us For Availability
26
SCREW, 8-16X 1/2 MAY W10219342 Contact Us For Availability
27
MAY W10136932 MAY W10136932 Contact Us For Availability
27
MAY W10116344 MAY W10116344 Contact Us For Availability
28
MAY W10140148 MAY W10140148 Contact Us For Availability
28
MAY 8573070 MAY 8573070 Contact Us For Availability
29
MAY W10139247 MAY W10139247 Contact Us For Availability
29
MAY 8544742 MAY 8544742 Contact Us For Availability
30
Screw MAY 693995 Contact Us For Availability
30
MAY W10136934 MAY W10136934 Contact Us For Availability
31
MAY W10136930 MAY W10136930 Contact Us For Availability
31
MAY 8544770 MAY 8544770 Contact Us For Availability
32
MAY W10308685 MAY W10308685 Contact Us For Availability
32
MAY 8544755 MAY 8544755 Contact Us For Availability
33
TERMINAL BLOCK SCREW KIT (FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
33
MAY 3406124 MAY 3406124 Contact Us For Availability
34
MAY 3387223 MAY 3387223 Contact Us For Availability
35
LOCATOR, SNAP-DOWN MAY 8568303 Contact Us For Availability
35
MAY 3977373 MAY 3977373 Contact Us For Availability
36
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
36
SOCKET, ASSEMBLY MAY W10214261 Contact Us For Availability
37
Strike, Door MAY W10111906 Contact Us For Availability
37
MAY 8544737 MAY 8544737 Contact Us For Availability
38
MAY W10144494 MAY W10144494 Contact Us For Availability
38
MAY 8544776 MAY 8544776 Contact Us For Availability
39
MAY W10223442 MAY W10223442 Contact Us For Availability
39
MAY W10252456 MAY W10252456 Contact Us For Availability
39
BRACKET, HOUSING BLOWER MAY 8544741 Contact Us For Availability
40
Screw, 8-18 x 1/8 MAY 342055 Contact Us For Availability
40
MAY 97787 MAY 97787 Contact Us For Availability
41
MAY W10201785 MAY W10201785 Contact Us For Availability
41
THERMAL FUSE MAY 3390719 Contact Us For Availability
42
DOOR, OUTER (WHITE) MAY W10252478 Contact Us For Availability
42
DOOR, OUTER (GRANITE) MAY W10344649 Contact Us For Availability
42
Grille, Outlet MAY 8544723 Contact Us For Availability
43
MAY 8576625 MAY 8576625 Contact Us For Availability
43
SCREW, 8-15 X 1/2 MAY 3390647 Contact Us For Availability
44
MAY W10044490 MAY W10044490 Contact Us For Availability
44
MAY W10256512 MAY W10256512 Contact Us For Availability
45
Cover, Terminal Block MAY W10110241 Contact Us For Availability
45
MAY 8544786 MAY 8544786 Contact Us For Availability
46
HINGE, TOP MAY 238088 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY W10111878 MAY W10111878 Contact Us For Availability
47
DOOR, INNER (GRANITE) MAY W10304172 Contact Us For Availability
47
Thermal Cut-Off (Includes Illus. 48) MAY 8318314 Contact Us For Availability
48
WINDOW, OUTER MAY W10394552 Contact Us For Availability
48
THERMISTOR, HI MAY 8557403 Contact Us For Availability
49
MAY W10111857 MAY W10111857 Contact Us For Availability
49
MAY 8544729 MAY 8544729 Contact Us For Availability
50
MAY W10111859 MAY W10111859 Contact Us For Availability
50
Blower, Cover (Includes No.11) MAY 8544719 Contact Us For Availability
51
FOAM SEAL MAY W10316529 Contact Us For Availability
51
THERMISTOR MAY 8577274 Contact Us For Availability
52
MAY W10215725 MAY W10215725 Contact Us For Availability
52
MAY 8544739 MAY 8544739 Contact Us For Availability
53
SCREW,10-32 X 1/16 MAY 8533974 Contact Us For Availability
53
MAY 8563860 MAY 8563860 Contact Us For Availability
54
Screw, 8-18 x 1/2 MAY 3400805 Contact Us For Availability
54
MAY 8557244 MAY 8557244 Contact Us For Availability
55
Power Cord MAY 8529008 Contact Us For Availability
55
MAY 8544718 MAY 8544718 Contact Us For Availability
56
STRAIN-RELIEF CLIP MAY 694415 Contact Us For Availability
56
Valve & Hose (Complete) MAY W10130506 Contact Us For Availability
57
FOAM SEAL MAY W10224768 Contact Us For Availability
57
MAY W10129424 MAY W10129424 Contact Us For Availability
58
NOZZLE & HOSE ASSEMBLY (INCLUDES ITEMS, 59, 6 MAY W10348593 Contact Us For Availability
59
NOZZLE & SCREEN ASSEMBLY MAY W10277503 Contact Us For Availability
60
MAY W10044599 MAY W10044599 Contact Us For Availability
61
HOSE, NYLON (NOT SERVICABLE) (SERVICE WITH IT MAY W10347743 Contact Us For Availability
62
MAY W10044605 MAY W10044605 Contact Us For Availability
63
MAY W10160575 MAY W10160575 Contact Us For Availability
64
MAY W10345257 MAY W10345257 Contact Us For Availability
65
MAY W10044579 MAY W10044579 Contact Us For Availability
66
Nut, 9/16 - 24 x .355 MAY W10044628 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
WASHER, HOSE MAY 3357450 Contact Us For Availability
NI
HOSE, INLET 2 FT. HOSE MAY 350027 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
MAY 49611 MAY 49611 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 80047 MAY 80047 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
NI
MAY 8544761 MAY 8544761 Contact Us For Availability
NI
HOSE, INLET 6 FT. HOSE MAY 89503 Contact Us For Availability
NI
4` 30 AMP 3 WIRE DRYER CORD MAY PT220L Contact Us For Availability
NI
4` 30 AMP 4 WIRE DRYER CORD MAY PT400L Contact Us For Availability
NI
6` 30 AMP 4 WIRE DRYER CORD MAY PT600L Contact Us For Availability
NI
Washer, 1 1/16 x 5/8 MAY W10194033 Contact Us For Availability
NI
BAG ASSEMBLY (CONTAINS THE FOLLOWING) MAY W10206708 Contact Us For Availability
NI
MAY W10269488 MAY W10269488 Contact Us For Availability
× ![]()
