Model Maytag YMED7500YW2 DRYER, ELECTRIC, COMPACT – Common Parts & Diagrams

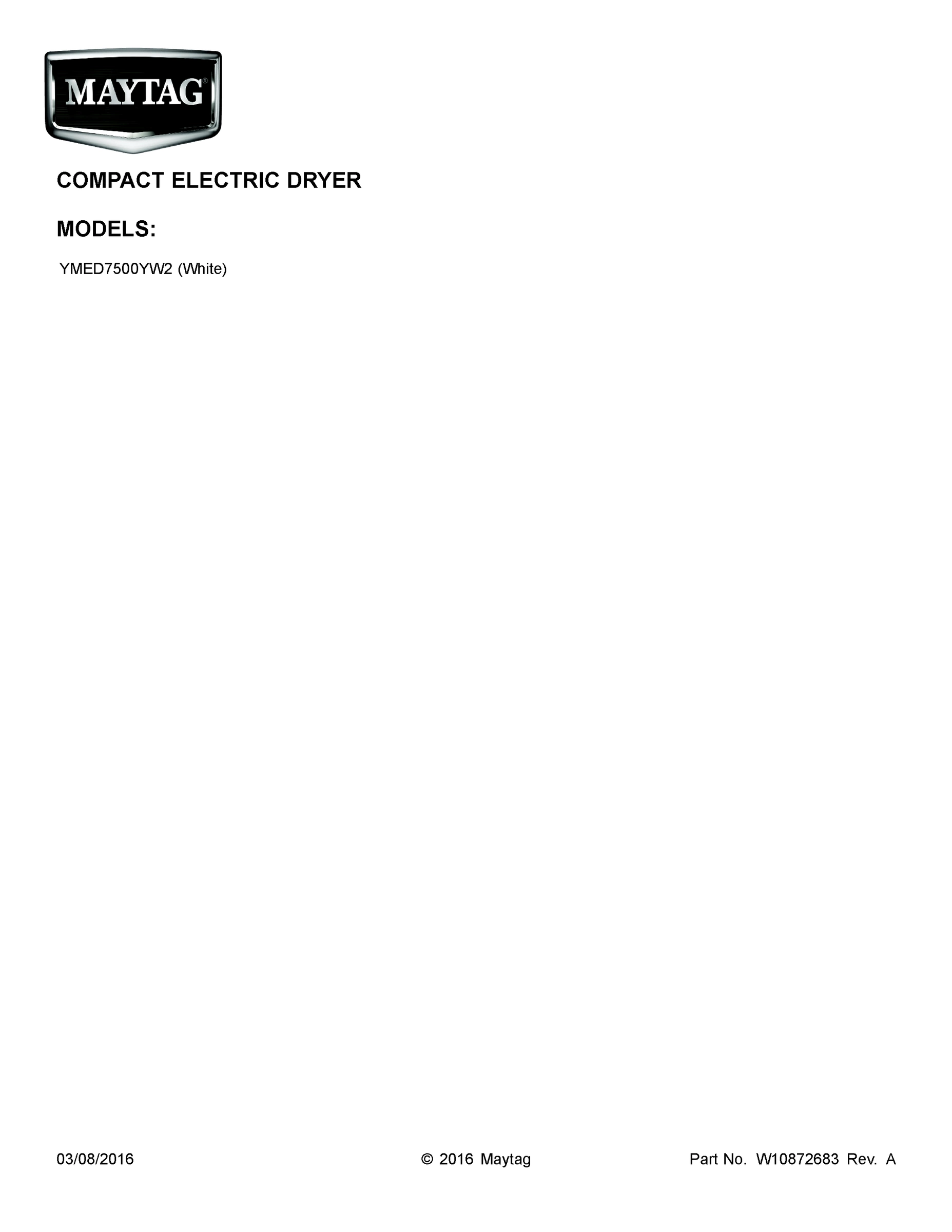

01 - COVER SHEET

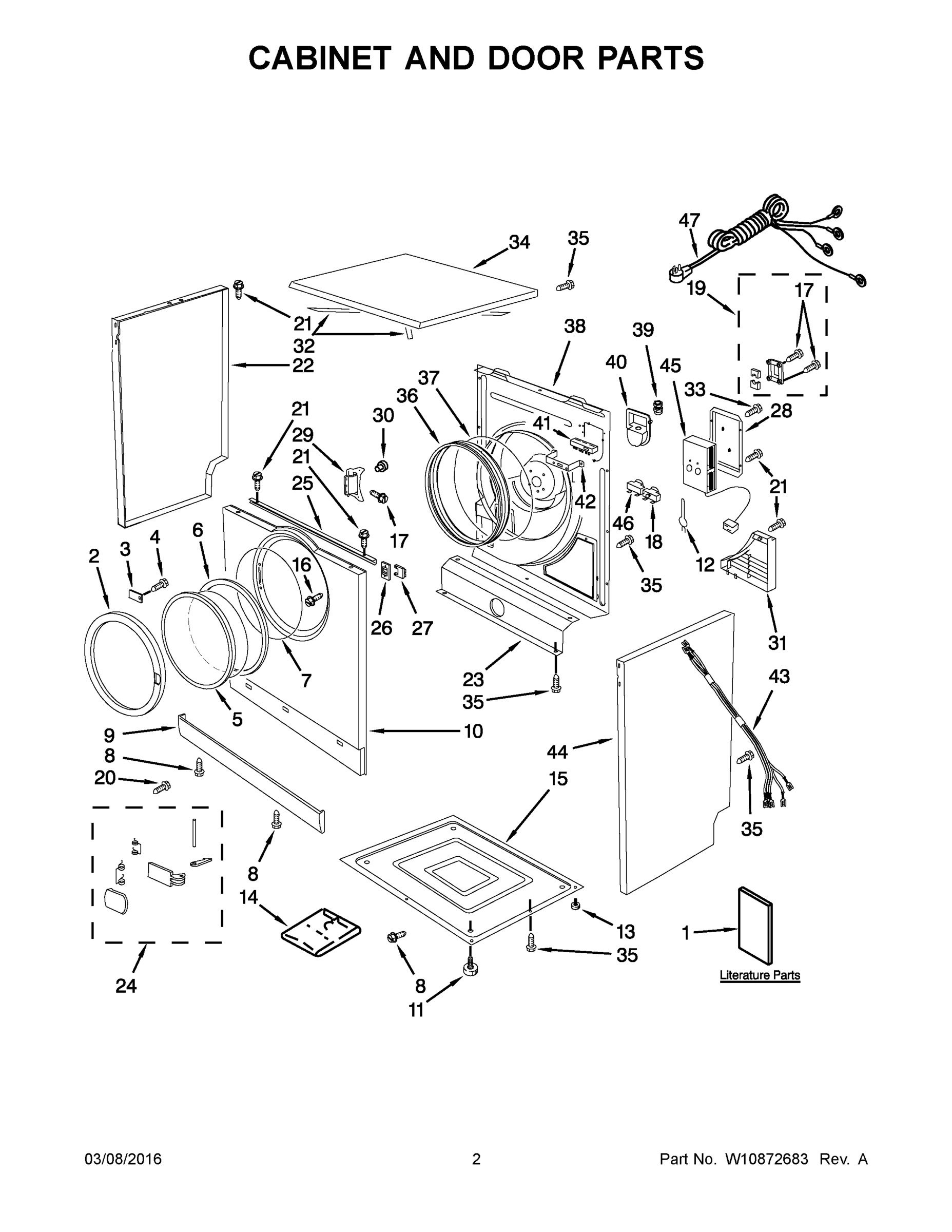

02 - CABINET AND DOOR PARTS
03 - CONTROL PANEL PARTS
04 - DRUM AND MOTOR PARTS
05 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMED7500YW2 DRYER, ELECTRIC, COMPACT
1
MAY W10557651 MAY W10557651 Contact Us For Availability
1
MAY 8182338 MAY 8182338 Contact Us For Availability
1
MAY 8182489 MAY 8182489 Contact Us For Availability
1A
MAY W10876510 MAY W10876510 Contact Us For Availability
2
MAY W10625795 MAY W10625795 Contact Us For Availability
2
MAY W10625692 MAY W10625692 Contact Us For Availability
2
MAY W10870285 MAY W10870285 Contact Us For Availability
3
MAY 8183106 MAY 8183106 Contact Us For Availability
3
SWITCH & BUTTON ASSEMBLY (TEMPERATURE) MAY W10119105 Contact Us For Availability
3
THERMOSTAT, 203F (95C) MAY 8182470 Contact Us For Availability
4
SCREW, RETAINING INSERT MAY 8182333 Contact Us For Availability
4
SWITCH & BUTTON ASSEMBLY (START) MAY 8182576 Contact Us For Availability
4
THERMOSTAT, OPERATING 122F MAY 8182477 Contact Us For Availability
5
MAY 8182516 MAY 8182516 Contact Us For Availability
5
MAY 8182323 MAY 8182323 Contact Us For Availability
5
SWITCH & BUTTON ASSEMBLY (ON/OFF) MAY W10119104 Contact Us For Availability
6
FRAME, INNER DOOR MAY 8182414 Contact Us For Availability
6
MAY W10625442 MAY W10625442 Contact Us For Availability
6
MAY 8182478 MAY 8182478 Contact Us For Availability
7
MAY 8182515 MAY 8182515 Contact Us For Availability
7
MAY 8182575 MAY 8182575 Contact Us For Availability
7
MAY W10238692 MAY W10238692 Contact Us For Availability
8
MAY 8182518 MAY 8182518 Contact Us For Availability
8
MAY W10119103 MAY W10119103 Contact Us For Availability
9
MAY 8182503 MAY 8182503 Contact Us For Availability
9
MAY 8182361 MAY 8182361 Contact Us For Availability
9
MAY 8182692 MAY 8182692 Contact Us For Availability
10
MAY W10205136 MAY W10205136 Contact Us For Availability
10
DRIVE MOTOR MAY 8182471 Contact Us For Availability
11
MAY 8182479 MAY 8182479 Contact Us For Availability
11
CAPACITOR (PART NOT A SERVICEABLE ITEM) MAY N/P Contact Us For Availability
11
MAY 8182532 MAY 8182532 Contact Us For Availability
12
MAY 8183097 MAY 8183097 Contact Us For Availability
12
MAY 8182499 MAY 8182499 Contact Us For Availability
13
SCREW MAY 8182459 Contact Us For Availability
13
MAY 8182494 MAY 8182494 Contact Us For Availability
14
MAY W10178021 MAY W10178021 Contact Us For Availability
14
MAY 8182501 MAY 8182501 Contact Us For Availability
15
MAY 8182480 MAY 8182480 Contact Us For Availability
15
MAY 8182498 MAY 8182498 Contact Us For Availability
16
SCREW, DOOR CATCH MAY 8182401 Contact Us For Availability
16
MAY 8182500 MAY 8182500 Contact Us For Availability
17
MAY 8183089 MAY 8183089 Contact Us For Availability
17
MAY 8182458 MAY 8182458 Contact Us For Availability
18
MAY W10625430 MAY W10625430 Contact Us For Availability
18
NUT, BLOWER WHEEL MAY 8182539 Contact Us For Availability
19
MAY 8182533 MAY 8182533 Contact Us For Availability
19
BLOWER WHEEL MAY 8182538 Contact Us For Availability
20
SCREW, DOOR HANDLE MAY 8182412 Contact Us For Availability
20
MAY W10238691 MAY W10238691 Contact Us For Availability
21
MAY 8182472 MAY 8182472 Contact Us For Availability
22
SIDE PANEL (LEFT HAND) MAY 8182509 Contact Us For Availability
22
MAY 8182473 MAY 8182473 Contact Us For Availability
23
MAY 8182535 MAY 8182535 Contact Us For Availability
23
MAY 8182580 MAY 8182580 Contact Us For Availability
24
MAY W10537934 MAY W10537934 Contact Us For Availability
24
MAY 8182579 MAY 8182579 Contact Us For Availability
25
MAY 8182511 MAY 8182511 Contact Us For Availability
25
SCREW, MOTOR MAY 8182427 Contact Us For Availability
26
MAY 8182531 MAY 8182531 Contact Us For Availability
26
MAY 8182488 MAY 8182488 Contact Us For Availability
27
MAY 8182530 MAY 8182530 Contact Us For Availability
27
BAFFLE (NO STEEL STRIP) MAY 8182483 Contact Us For Availability
28
MAY 8183110 MAY 8183110 Contact Us For Availability
28
BAFFLE (WITH STEEL STRIP) MAY 8183113 Contact Us For Availability
29
MAY W10870283 MAY W10870283 Contact Us For Availability
30
MAY 8183103 MAY 8183103 Contact Us For Availability
31
MAY 8182510 MAY 8182510 Contact Us For Availability
31
MAY 8182497 MAY 8182497 Contact Us For Availability
32
MAY 8183109 MAY 8183109 Contact Us For Availability
32
MAY 8182496 MAY 8182496 Contact Us For Availability
33
MAY 8182526 MAY 8182526 Contact Us For Availability
33
MAY 8182481 MAY 8182481 Contact Us For Availability
34
MAY 8182524 MAY 8182524 Contact Us For Availability
34
MAY W10870284 MAY W10870284 Contact Us For Availability
35
MAY 8182493 MAY 8182493 Contact Us For Availability
36
MAY 8182507 MAY 8182507 Contact Us For Availability
36
DRUM ASSEMBLY MAY 8182482 Contact Us For Availability
37
MAY 8182540 MAY 8182540 Contact Us For Availability
37
MAY W10296394 MAY W10296394 Contact Us For Availability
38
MAY 8182590 MAY 8182590 Contact Us For Availability
39
MAY 8182506 MAY 8182506 Contact Us For Availability
40
MAY 8182514 MAY 8182514 Contact Us For Availability
41
MAY 8182525 MAY 8182525 Contact Us For Availability
42
MAY 8182513 MAY 8182513 Contact Us For Availability
43
MAY W10870280 MAY W10870280 Contact Us For Availability
44
SIDE PANEL (RIGHT HAND) MAY 8182520 Contact Us For Availability
45
MAY 8182528 MAY 8182528 Contact Us For Availability
46
THERMOSTAT, 194F (98C) MAY 8182508 Contact Us For Availability
47
MAY 8183118 MAY 8183118 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. GRAY PRIMER) MAY 350938 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
