Model Maytag YMED7100DC0 ELECTRIC DRYER – Common Parts & Diagrams
01 - COVER SHEET
02 - TOP AND CONSOLE PARTS

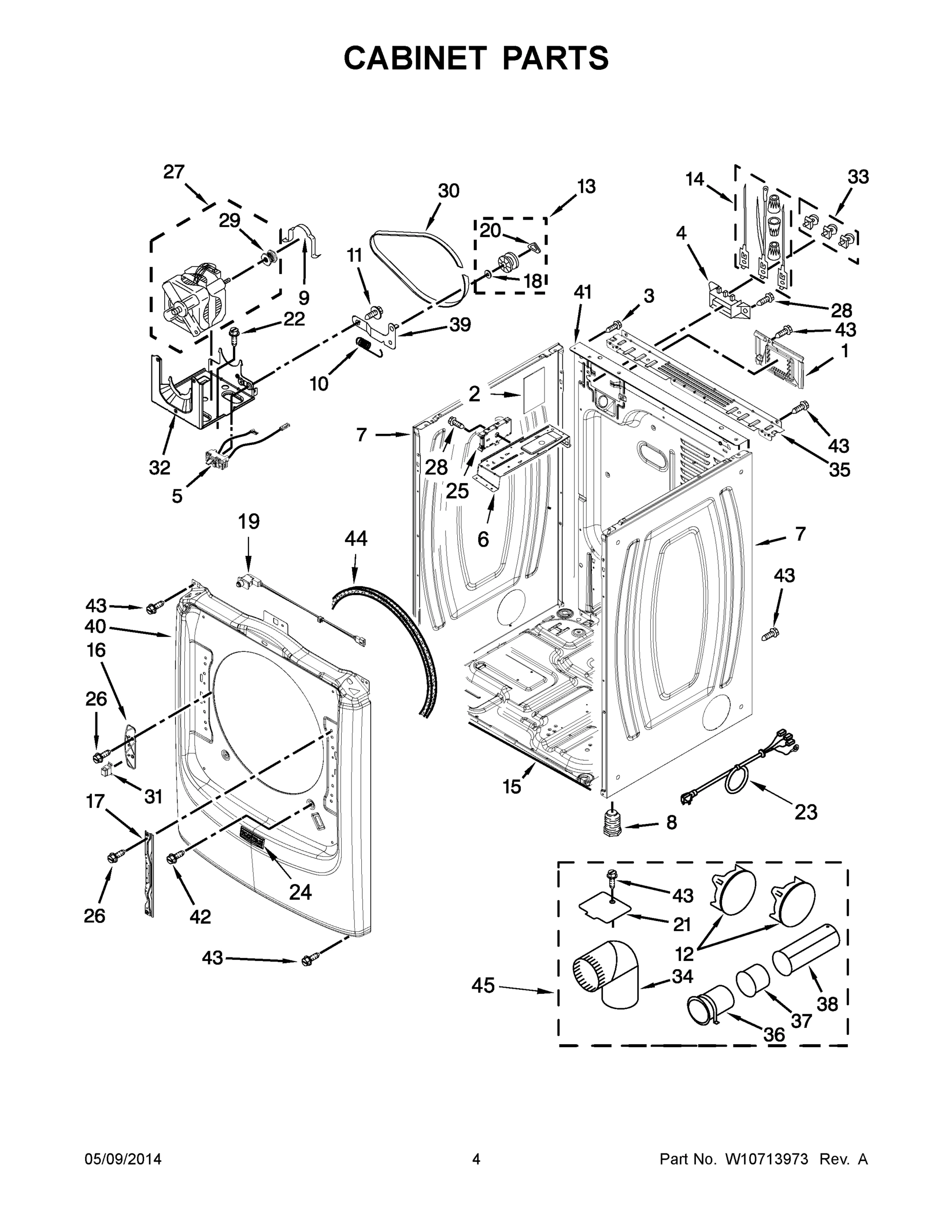

03 - CABINET PARTS

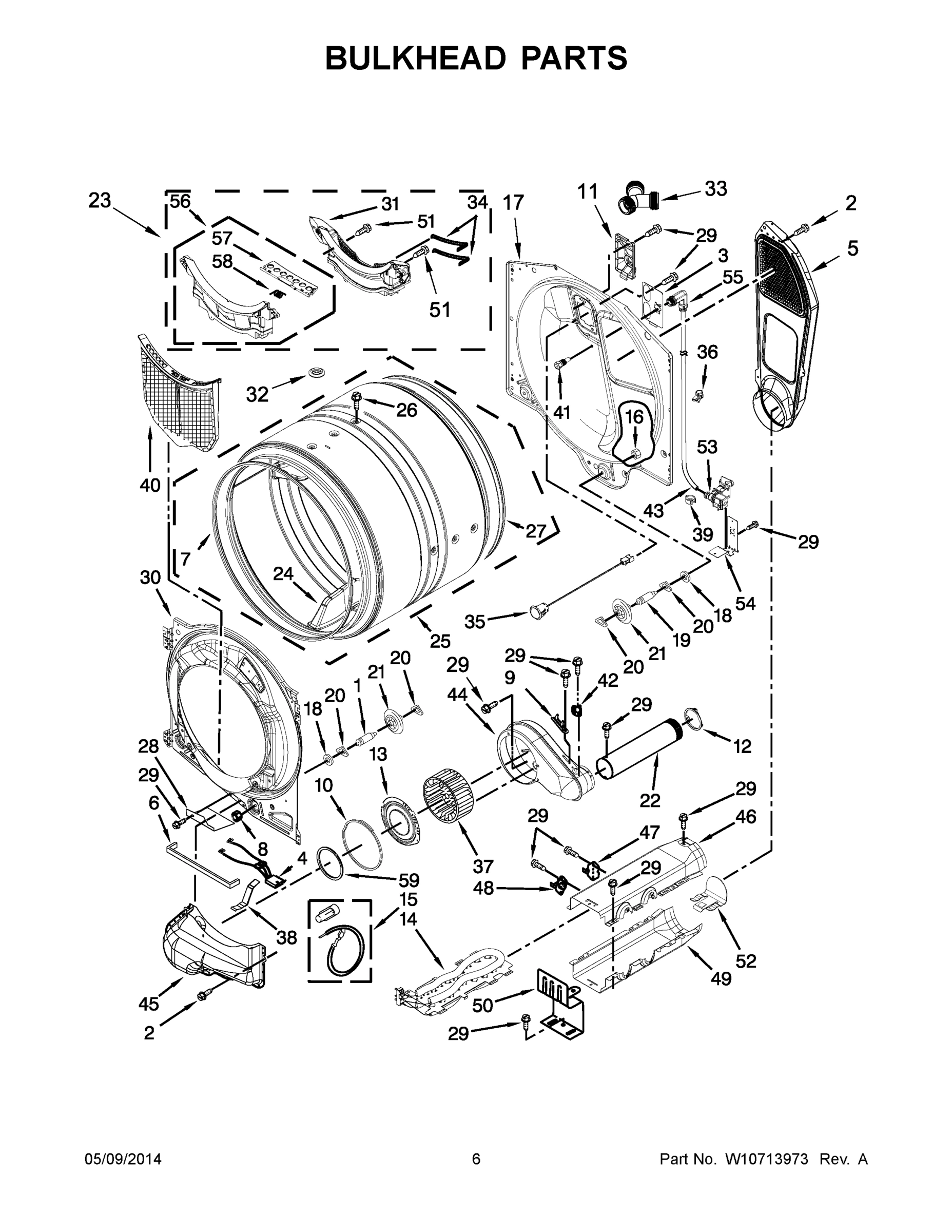

04 - BULKHEAD PARTS

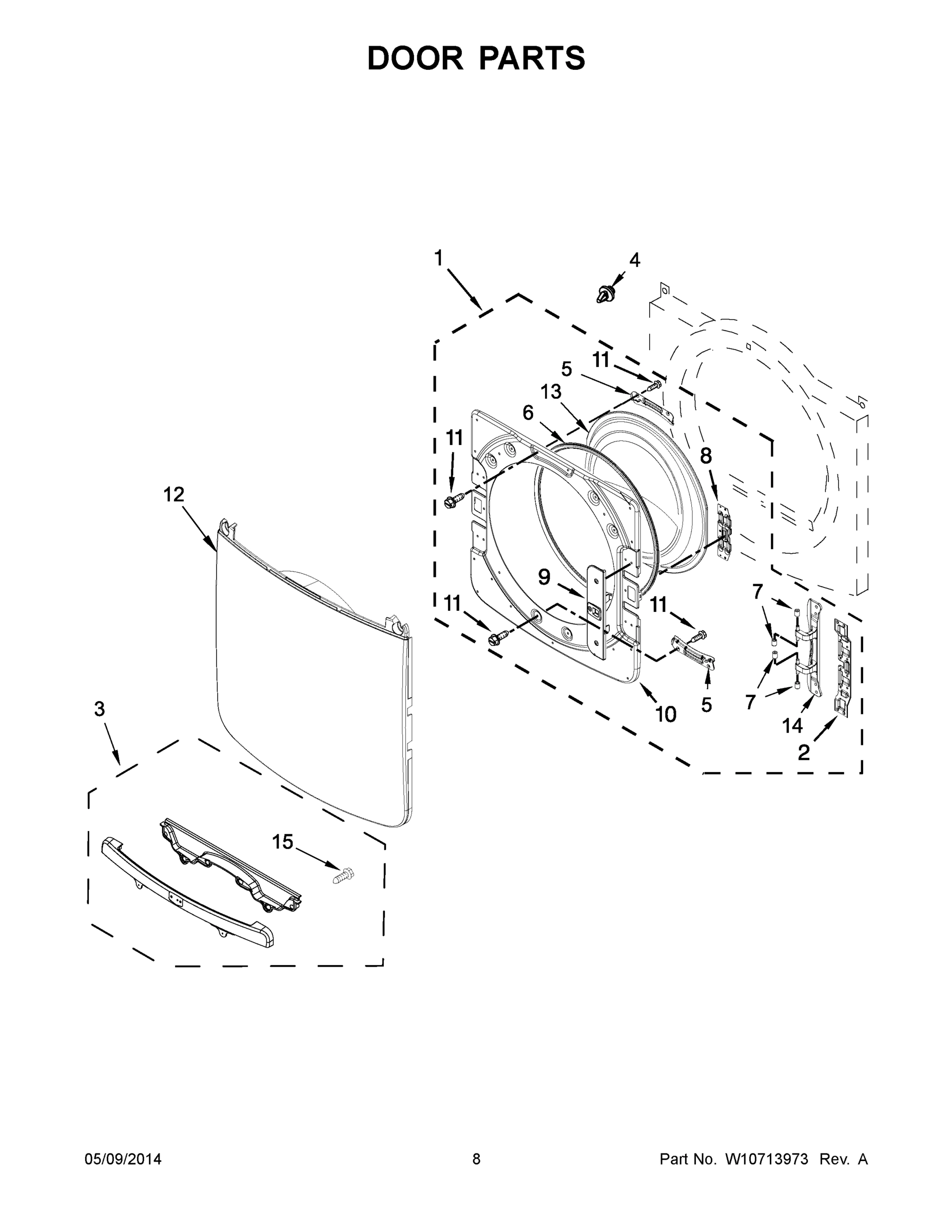

05 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMED7100DC0 ELECTRIC DRYER
1
MAY W10504396 MAY W10504396 Contact Us For Availability
1
MAY W10596022 MAY W10596022 Contact Us For Availability
1
MAY W10606147 MAY W10606147 Contact Us For Availability
1
MAY W10676163 MAY W10676163 Contact Us For Availability
1
MAY W10678962 MAY W10678962 Contact Us For Availability
1
MAY W10316167 MAY W10316167 Contact Us For Availability
1
SHAFT, DRUM ROLLER RIGHT HAND THREAD MAY W10359271 Contact Us For Availability
1
ASSEMBLY, INNER DOOR MAY W10272387 Contact Us For Availability
2
MAY W10208383 MAY W10208383 Contact Us For Availability
2
MAY W10460919 MAY W10460919 Contact Us For Availability
2
SCREW MAY 3390647 Contact Us For Availability
2
MAY W10504381 MAY W10504381 Contact Us For Availability
2
MAY W10208419 MAY W10208419 Contact Us For Availability
3
MAY W10526660 MAY W10526660 Contact Us For Availability
3
MAY 8533974 MAY 8533974 Contact Us For Availability
3
MAY W10656504 MAY W10656504 Contact Us For Availability
3
HANDLE, DOOR MAY W10626038 Contact Us For Availability
4
MAY W10391555 MAY W10391555 Contact Us For Availability
4
CONSOLE ASSEMBLY (CHROME SHADOW) MAY W10433206 Contact Us For Availability
4
MAY 3397659 MAY 3397659 Contact Us For Availability
4
MAY W10298258 MAY W10298258 Contact Us For Availability
4
MAY 8572266 MAY 8572266 Contact Us For Availability
5
MAY W10636058 MAY W10636058 Contact Us For Availability
5
MAY W10411936 MAY W10411936 Contact Us For Availability
5
ASSEMBLY, AIR DUCT MAY 697354 Contact Us For Availability
5
MAY W10208252 MAY W10208252 Contact Us For Availability
6
MAY W10208198 MAY W10208198 Contact Us For Availability
6
MAY W10259611 MAY W10259611 Contact Us For Availability
6
MAY W10211950 MAY W10211950 Contact Us For Availability
6
MAY W10329710 MAY W10329710 Contact Us For Availability
7
MAY W10433019 MAY W10433019 Contact Us For Availability
7
MAY W10433023 MAY W10433023 Contact Us For Availability
7
MAY W10468495 MAY W10468495 Contact Us For Availability
7
PANEL, SIDE (CHROME SHADOW) MAY W10468496 Contact Us For Availability
7
MAY W10521122 MAY W10521122 Contact Us For Availability
7
MAY W10208398 MAY W10208398 Contact Us For Availability
8
MAY W10519048 MAY W10519048 Contact Us For Availability
8
MAY 3392100 MAY 3392100 Contact Us For Availability
8
NUT, HEX MAY 3934666 Contact Us For Availability
8
MAY W10208254 MAY W10208254 Contact Us For Availability
9
MAY W10540653 MAY W10540653 Contact Us For Availability
9
CLAMP, MOTOR MOUNT MAY W10121316 Contact Us For Availability
9
Fuse, Thermal (91 C) MAY 3392519 Contact Us For Availability
9
MAY W10272404 MAY W10272404 Contact Us For Availability
10
MAY W10489172 MAY W10489172 Contact Us For Availability
10
MAY W10446781 MAY W10446781 Contact Us For Availability
10
SEAL, PLATE COVER MAY 697770 Contact Us For Availability
10
DOOR, INNER MAY W10285652 Contact Us For Availability
11
SCREW MAY 3389420 Contact Us For Availability
11
MAY W10288126 MAY W10288126 Contact Us For Availability
11
MAY W10208422 MAY W10208422 Contact Us For Availability
12
PLUG, MULTIVENT (MIDNIGHT GREY) MAY W10404617 Contact Us For Availability
12
MAY W10344699 MAY W10344699 Contact Us For Availability
12
ASSEMBLY, OUTER DOOR MAY W10424248 Contact Us For Availability
13
MAY W10468057 MAY W10468057 Contact Us For Availability
13
MAY W10211901 MAY W10211901 Contact Us For Availability
13
MAY W10208417 MAY W10208417 Contact Us For Availability
14
MAY 279318 MAY 279318 Contact Us For Availability
14
MAY 8544772 MAY 8544772 Contact Us For Availability
14
HINGE BASE MAY W10208415 Contact Us For Availability
15
MAY 8565046 MAY 8565046 Contact Us For Availability
15
Screw MAY 9742177 Contact Us For Availability
15
MAY 279457 MAY 279457 Contact Us For Availability
16
MAY W10208250 MAY W10208250 Contact Us For Availability
16
NUT, HEX (LEFT HAND THREAD) MAY W10001120 Contact Us For Availability
17
MAY W10315109 MAY W10315109 Contact Us For Availability
17
MAY 8520836 MAY 8520836 Contact Us For Availability
18
MAY W10121334 MAY W10121334 Contact Us For Availability
18
WASHER MAY 3387459 Contact Us For Availability
19
MAY W10688148 MAY W10688148 Contact Us For Availability
19
SHAFT, DRUM ROLLER - LEFT HAND THREAD MAY W10359272 Contact Us For Availability
20
MAY W10512946 MAY W10512946 Contact Us For Availability
21
MAY W10354249 MAY W10354249 Contact Us For Availability
21
MAY W10314171 MAY W10314171 Contact Us For Availability
22
SCREW MAY 343641 Contact Us For Availability
22
MAY W10342188 MAY W10342188 Contact Us For Availability
23
MAY 3394208 MAY 3394208 Contact Us For Availability
23
MAY W10672683 MAY W10672683 Contact Us For Availability
24
MAY W10639171 MAY W10639171 Contact Us For Availability
24
MAY W10280771 MAY W10280771 Contact Us For Availability
25
MAY W10654005 MAY W10654005 Contact Us For Availability
25
MAY W10541657 MAY W10541657 Contact Us For Availability
26
MAY W10219342 MAY W10219342 Contact Us For Availability
27
MAY W10620757 MAY W10620757 Contact Us For Availability
27
MAY W10521118 MAY W10521118 Contact Us For Availability
28
MAY W10128629 MAY W10128629 Contact Us For Availability
29
Pulley, Motor MAY 8066184 Contact Us For Availability
29
Screw MAY 693995 Contact Us For Availability
30
MAY W10112954 MAY W10112954 Contact Us For Availability
30
MAY W10211930 MAY W10211930 Contact Us For Availability
31
MAY W10208401 MAY W10208401 Contact Us For Availability
31
MAY W10672682 MAY W10672682 Contact Us For Availability
32
MAY W10242878 MAY W10242878 Contact Us For Availability
32
MAY 8529007 MAY 8529007 Contact Us For Availability
33
MAY 279393 MAY 279393 Contact Us For Availability
34
MAY W10416072 MAY W10416072 Contact Us For Availability
34
SENSOR, ELECTRODE MAY 3387223 Contact Us For Availability
35
MAY W10208382 MAY W10208382 Contact Us For Availability
35
MAY W10460935 MAY W10460935 Contact Us For Availability
36
PIPE, EXHAUST (MEDIUM) MAY 8563747 Contact Us For Availability
36
MAY 3391018 MAY 3391018 Contact Us For Availability
37
PIPE, EXHAUST (SHORT) MAY W10331278 Contact Us For Availability
37
MAY W10211915 MAY W10211915 Contact Us For Availability
38
PIPE, EXHAUST (LONG) MAY 8563749 Contact Us For Availability
38
MAY W10414388 MAY W10414388 Contact Us For Availability
39
MAY 3388674 MAY 3388674 Contact Us For Availability
39
MAY W10044599 MAY W10044599 Contact Us For Availability
40
MAY W10637127 MAY W10637127 Contact Us For Availability
40
MAY W10651060 MAY W10651060 Contact Us For Availability
40
SCREEN, LINT (WHITE) MAY W10516085 Contact Us For Availability
41
MAY W10487430 MAY W10487430 Contact Us For Availability
41
MAY W10277503 MAY W10277503 Contact Us For Availability
42
SCREW MAY 3357011 Contact Us For Availability
42
THERMISTOR MAY 8577274 Contact Us For Availability
43
Screw MAY 489463 Contact Us For Availability
43
MAY W10348621 MAY W10348621 Contact Us For Availability
44
MAY 3387242 MAY 3387242 Contact Us For Availability
44
MAY W10211911 MAY W10211911 Contact Us For Availability
45
MAY W10211896 MAY W10211896 Contact Us For Availability
46
MAY 8544769 MAY 8544769 Contact Us For Availability
47
MAY 8318314 MAY 8318314 Contact Us For Availability
48
MAY 8557403 MAY 8557403 Contact Us For Availability
49
MAY 8544770 MAY 8544770 Contact Us For Availability
50
MAY 8066099 MAY 8066099 Contact Us For Availability
51
SCREW MAY 3387230 Contact Us For Availability
52
MAY 8544776 MAY 8544776 Contact Us For Availability
53
MAY W10505663 MAY W10505663 Contact Us For Availability
54
MAY W10510098 MAY W10510098 Contact Us For Availability
55
MAY W10347739 MAY W10347739 Contact Us For Availability
56
MAY W10672681 MAY W10672681 Contact Us For Availability
57
MAY W10672680 MAY W10672680 Contact Us For Availability
58
MAY W10219015 MAY W10219015 Contact Us For Availability
59
MAY W10211899 MAY W10211899 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, 4-WAY VENT MAY W10323246 Contact Us For Availability
NI
MAY 279810 MAY 279810 Contact Us For Availability
NI
ACCESSORY PARTS, CONNECTOR, HOSE -``Y`` MAY W10336486 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (GRAY PRIME MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (White) MAY 799344 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER REPAIR) MAY 80047 Contact Us For Availability
NI
ACCESSORY PARTS (KIT, DRYER VENT TESTING) MAY 8522199 Contact Us For Availability
NI
ACCESSORY PARTS, KIT, HOLD DOWN MAY 8529894 Contact Us For Availability
NI
MAY W10242307 MAY W10242307 Contact Us For Availability
NI
MAY W10298318RP MAY W10298318RP Contact Us For Availability
NI
ACCESSORY PARTS, KIT, DOOR REVERSING MAY W10315283RP Contact Us For Availability
NI
MAY W10318650 MAY W10318650 Contact Us For Availability
NI
MAY W10322470A MAY W10322470A Contact Us For Availability
NI
ACCESSORY PARTS, HOSE, INLET (2`) MAY W10439655 Contact Us For Availability
NI
ACCESSORY PARTS, BAG ASSEMBLY, INCLUDES THE F MAY W10676169 Contact Us For Availability
× ![]()
