Model Maytag YMED6400TB0 ELECTRIC DRYER – Common Parts & Diagrams

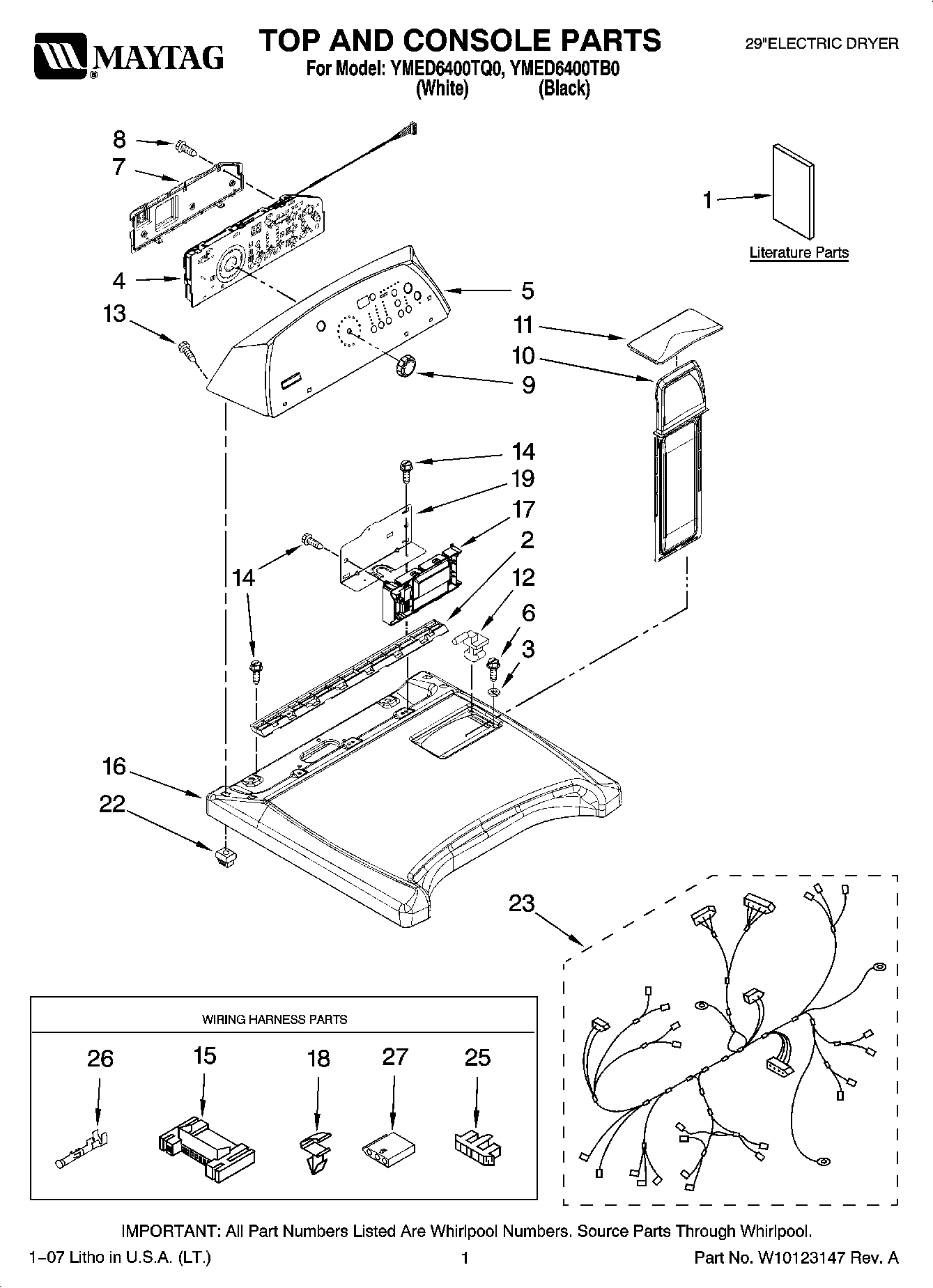

01 - TOP AND CONSOLE PARTS

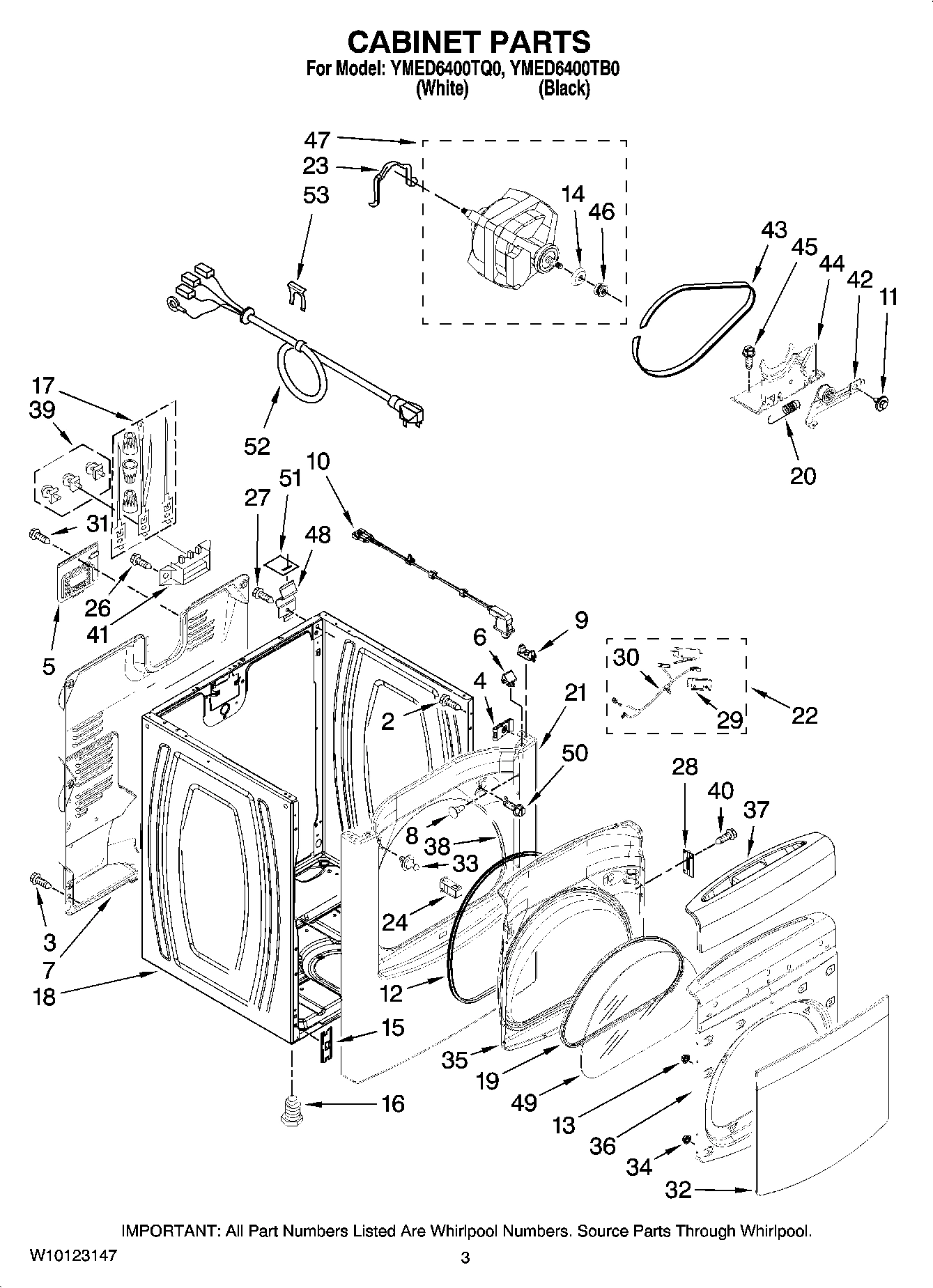

02 - CABINET PARTS

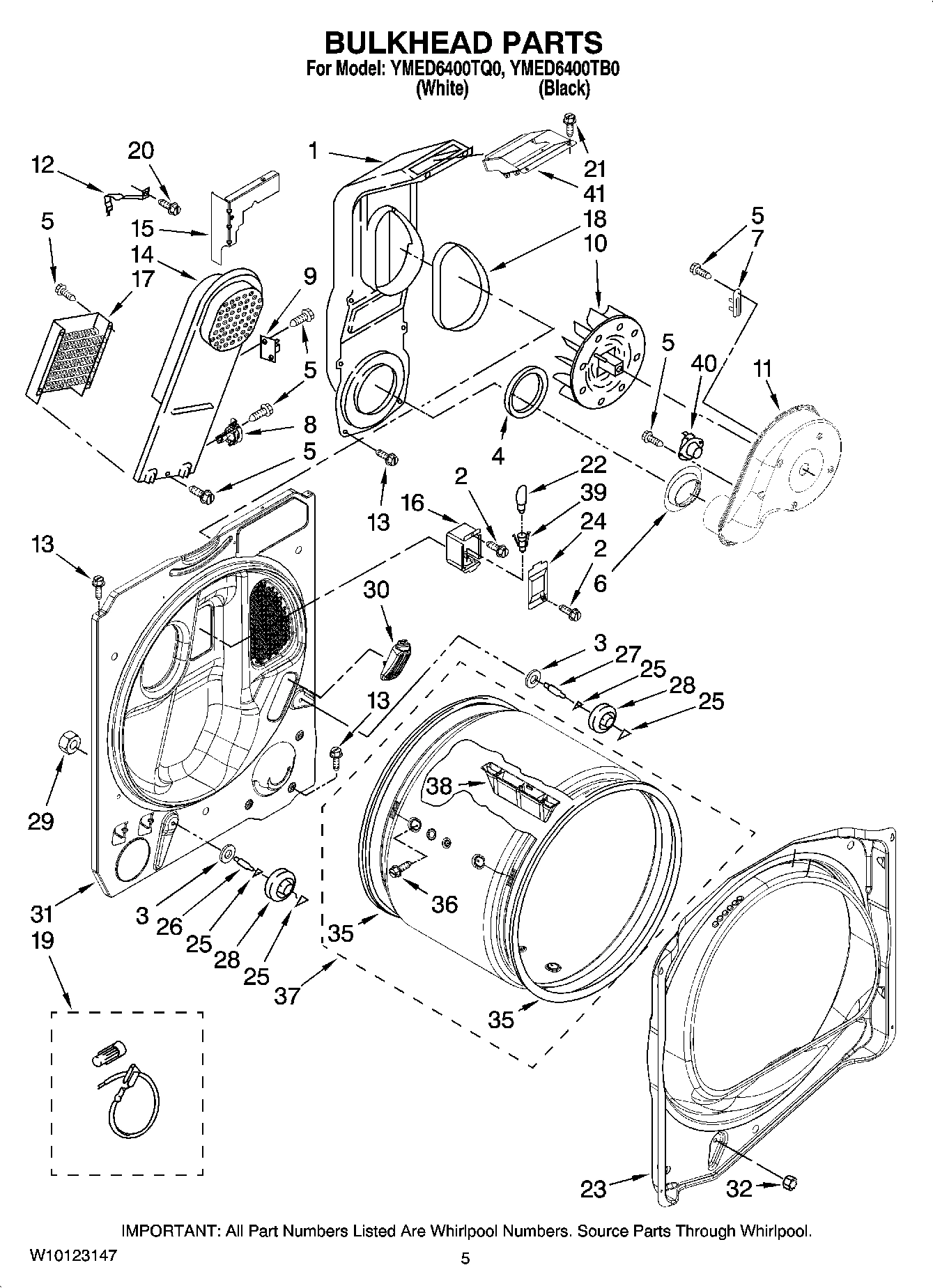

03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMED6400TB0 ELECTRIC DRYER
MAY 279948 MAY 279948 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12OZ. BLACK) MAY 285006 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
MAY 4392899 MAY 4392899 Contact Us For Availability
MAY 4392901 MAY 4392901 Contact Us For Availability
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
MAY 8522199 MAY 8522199 Contact Us For Availability
MAY W10071550 MAY W10071550 Contact Us For Availability
1
Guide, Use & Care MAY W10088777 Contact Us For Availability
1
MAY W10114196 MAY W10114196 Contact Us For Availability
1
MAY W10114206 MAY W10114206 Contact Us For Availability
1
MAY 8544805 MAY 8544805 Contact Us For Availability
2
MAY 8558863 MAY 8558863 Contact Us For Availability
2
MAY 487909 MAY 487909 Contact Us For Availability
3
Washer (Top/Chute) MAY 237446 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
3
MAY 3387459 MAY 3387459 Contact Us For Availability
4
MAY W10051096 MAY W10051096 Contact Us For Availability
4
Clip, Ground (2) MAY W10007520 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
Panel, Console (White) MAY W10120084 Contact Us For Availability
5
MAY W10120085 MAY W10120085 Contact Us For Availability
5
MAY W10110241 MAY W10110241 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
Lock-Top Front (2) MAY 8576625 Contact Us For Availability
6
MAY 8573836 MAY 8573836 Contact Us For Availability
7
Cover, Rear MAY 8564265 Contact Us For Availability
7
MAY 8558830 MAY 8558830 Contact Us For Availability
7
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
8
Screw, 6-19 x 3/64 MAY W10003770 Contact Us For Availability
8
Plug-Hole (White) MAY 3404413 Contact Us For Availability
8
MAY 3404416 MAY 3404416 Contact Us For Availability
8
MAY 8566498 MAY 8566498 Contact Us For Availability
9
MAY W10110196 MAY W10110196 Contact Us For Availability
9
LOCATOR, SNAP-DOWN MAY 8568303 Contact Us For Availability
9
Kit Thermal Cut-Off (Includes Illus. 8) MAY W10169881 Contact Us For Availability
10
MAY 8572270 MAY 8572270 Contact Us For Availability
10
MAY 3978977 MAY 3978977 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
Cover, Lint Screen (White) MAY W10044320 Contact Us For Availability
11
MAY W10044360 MAY W10044360 Contact Us For Availability
11
MAY 3389420 MAY 3389420 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY W10044470 MAY W10044470 Contact Us For Availability
12
MAY W10044480 MAY W10044480 Contact Us For Availability
12
MAY 8575027 MAY 8575027 Contact Us For Availability
12
MAY 8546149 MAY 8546149 Contact Us For Availability
13
MAY W10001580 MAY W10001580 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
14
Screw MAY 337686 Contact Us For Availability
14
MAY 8578538 MAY 8578538 Contact Us For Availability
14
MAY 8544801 MAY 8544801 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
MAY W10053480 MAY W10053480 Contact Us For Availability
16
Top (White) MAY 8565025 Contact Us For Availability
16
MAY 8565028 MAY 8565028 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 3977373 MAY 3977373 Contact Us For Availability
17
MAY W10111609 MAY W10111609 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
SHIM, HINGE CENTER (WHITE) MAY 2166043 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
Cabinet (White) MAY 8557569 Contact Us For Availability
18
MAY W10045390 MAY W10045390 Contact Us For Availability
18
MAY 8544813 MAY 8544813 Contact Us For Availability
19
MAY 8563853 MAY 8563853 Contact Us For Availability
19
MAY W10076060 MAY W10076060 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
MAY 3387374 MAY 3387374 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
Screw MAY 3196537 Contact Us For Availability
21
Panel, Front (White) MAY 8565029 Contact Us For Availability
21
MAY 8565032 MAY 8565032 Contact Us For Availability
22
MAY 8558853 MAY 8558853 Contact Us For Availability
22
MAY 8566208 MAY 8566208 Contact Us For Availability
22
MAY 3406126 MAY 3406126 Contact Us For Availability
23
MAY W10111429 MAY W10111429 Contact Us For Availability
23
MAY 660658 MAY 660658 Contact Us For Availability
23
MAY 8558890 MAY 8558890 Contact Us For Availability
24
Catch, Door Assembly MAY 8572982 Contact Us For Availability
24
MAY 3402841 MAY 3402841 Contact Us For Availability
25
MAY 3936144 MAY 3936144 Contact Us For Availability
25
Sound, Absober MAY 8565184 Contact Us For Availability
25
MAY 690997 MAY 690997 Contact Us For Availability
26
Terminal MAY 94614 Contact Us For Availability
26
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
26
Shaft (L.H.) MAY 8575325 Contact Us For Availability
27
Connector-Timer MAY 3397269 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 3390631 Contact Us For Availability
27
Shaft, (R.H.) MAY 8575324 Contact Us For Availability
28
HINGE ASSEMBLY (WHITE) MAY 8565018 Contact Us For Availability
28
MAY W10050090 MAY W10050090 Contact Us For Availability
28
MAY 8536973 MAY 8536973 Contact Us For Availability
29
MAY 8564011 MAY 8564011 Contact Us For Availability
29
Nut, 3/8-16 MAY W10001120 Contact Us For Availability
30
MAY 8539897 MAY 8539897 Contact Us For Availability
30
MAY 8576468 MAY 8576468 Contact Us For Availability
31
SCREW GROUND MAY 8533974 Contact Us For Availability
31
MAY 8557242 MAY 8557242 Contact Us For Availability
32
MAY 8575049 MAY 8575049 Contact Us For Availability
32
MAY W10116398 MAY W10116398 Contact Us For Availability
32
Nut 3/8-16 (R.H.) MAY 3934666 Contact Us For Availability
33
MAY 8572983 MAY 8572983 Contact Us For Availability
35
MAY 8565037 MAY 8565037 Contact Us For Availability
35
MAY 8575052 MAY 8575052 Contact Us For Availability
35
MAY 8557277 MAY 8557277 Contact Us For Availability
36
MAY W10116925 MAY W10116925 Contact Us For Availability
36
MAY W10116927 MAY W10116927 Contact Us For Availability
36
MAY W10109200 MAY W10109200 Contact Us For Availability
37
MAY W10111248 MAY W10111248 Contact Us For Availability
37
MAY W10111249 MAY W10111249 Contact Us For Availability
37
MAY 8557270 MAY 8557270 Contact Us For Availability
38
MAY W10044490 MAY W10044490 Contact Us For Availability
38
MAY 8565688 MAY 8565688 Contact Us For Availability
39
TERMINAL BLOCK KIT FOR TERMINAL BLOCK MAY 279393 Contact Us For Availability
39
MAY 3403634 MAY 3403634 Contact Us For Availability
40
Screw, 10-32 x 5/8 MAY 342055 Contact Us For Availability
40
THERMISTOR MAY 8577274 Contact Us For Availability
41
MAY 3397659 MAY 3397659 Contact Us For Availability
41
MAY 8544810 MAY 8544810 Contact Us For Availability
42
MAY 8547174 MAY 8547174 Contact Us For Availability
43
MAY 8547168 MAY 8547168 Contact Us For Availability
44
MAY 8547166 MAY 8547166 Contact Us For Availability
45
Bolt, 6-20 x 1 1/4 MAY W10002600 Contact Us For Availability
46
MAY 8578565 MAY 8578565 Contact Us For Availability
47
MAY 8566152 MAY 8566152 Contact Us For Availability
48
MAY 238088 MAY 238088 Contact Us For Availability
49
MAY 8565015 MAY 8565015 Contact Us For Availability
50
MAY W10100830 MAY W10100830 Contact Us For Availability
51
Pad-Top Hinge MAY 18849 Contact Us For Availability
52
Power Cord MAY 8529008 Contact Us For Availability
53
STRAIN-RELIEF MAY 694415 Contact Us For Availability
× ![]()
