Model Maytag YMED5707TQ0 ELECTRIC DRYER – Common Parts & Diagrams
01 - TOP AND CONSOLE PARTS

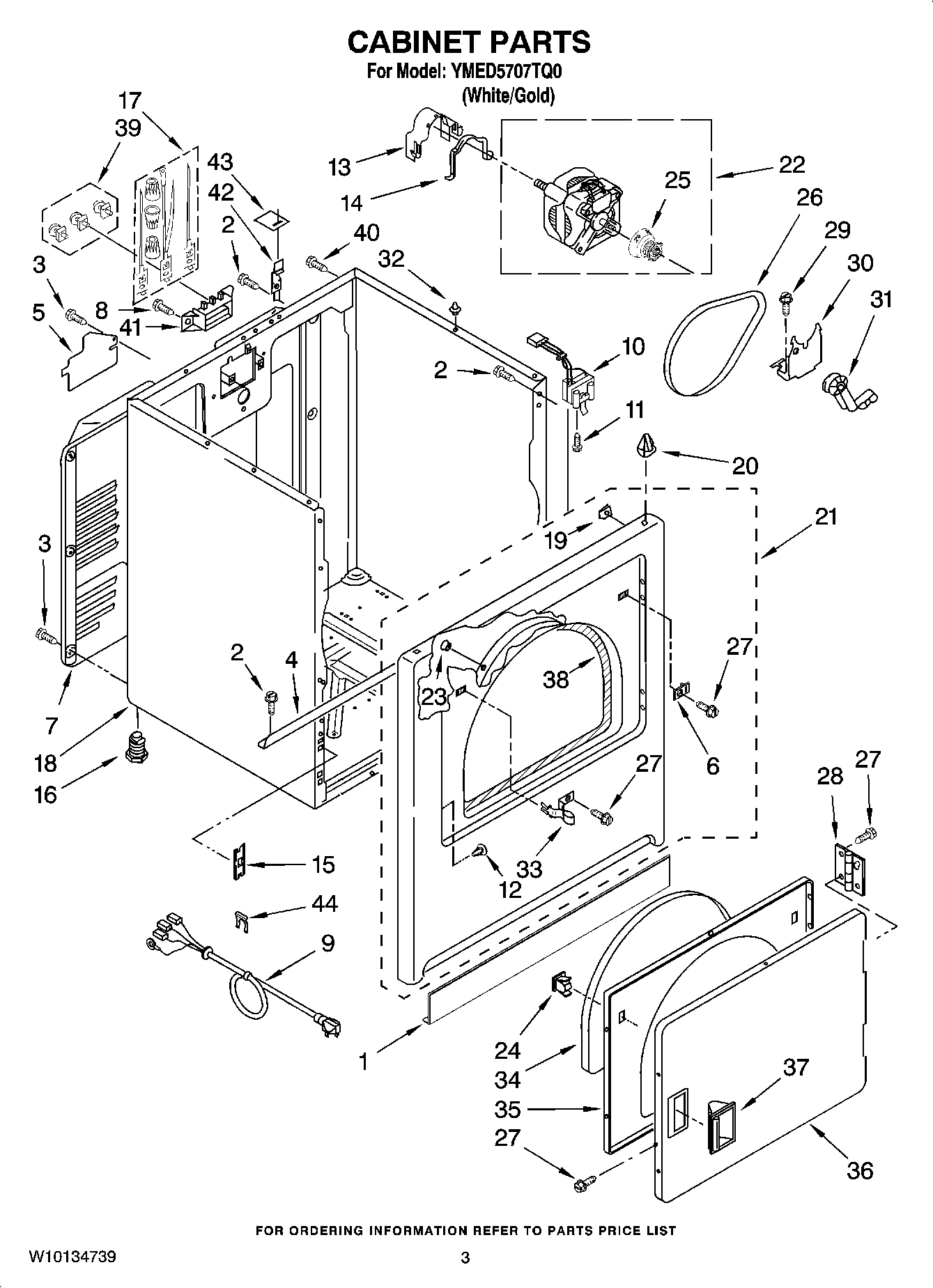

02 - CABINET PARTS
03 - BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag YMED5707TQ0 ELECTRIC DRYER
1
Energy Guide MAY W10036370 Contact Us For Availability
1
MAY W10089177 MAY W10089177 Contact Us For Availability
1
MAY W10124167 MAY W10124167 Contact Us For Availability
1
Use & Care Guide (English) MAY W10150608 Contact Us For Availability
1
MAY W10150609 MAY W10150609 Contact Us For Availability
1
MAY W10112593 MAY W10112593 Contact Us For Availability
1
MAY 348368 MAY 348368 Contact Us For Availability
2
MAY W10124166 MAY W10124166 Contact Us For Availability
2
MAY 487909 MAY 487909 Contact Us For Availability
3
SCREW,8-18 X 3/8 MAY 693995 Contact Us For Availability
3
WASHER-SUPPORT MAY 3388703 Contact Us For Availability
4
MAY 8541400 MAY 8541400 Contact Us For Availability
4
MAY 347139 MAY 347139 Contact Us For Availability
5
MAY 8565981 MAY 8565981 Contact Us For Availability
5
MAY 3394202 MAY 3394202 Contact Us For Availability
5
SCREW,8-18 X 3/8 MAY 90767 Contact Us For Availability
6
Switch, Push-To-Start MAY 3398094 Contact Us For Availability
6
PLUG-STRIKE MAY 3403630 Contact Us For Availability
6
MAY 696302 MAY 696302 Contact Us For Availability
7
MAY 694419 MAY 694419 Contact Us For Availability
7
MAY 3396805 MAY 3396805 Contact Us For Availability
7
THERMAL FUSE (91°C) MAY 3392519 Contact Us For Availability
8
SCREW, 10-16 X 1/2 MAY 3393008 Contact Us For Availability
8
Thermostat, Internal-Bias MAY 8318268 Contact Us For Availability
9
Switch, Temperature MAY 8578354 Contact Us For Availability
9
Power Cord MAY 3394208 Contact Us For Availability
9
Thermal Cut-Off (Includes Illus. 15) MAY 3977393 Contact Us For Availability
10
Screen, Lint MAY 8565972 Contact Us For Availability
10
MAY 3406107 MAY 3406107 Contact Us For Availability
10
Wheel, Blower MAY 694089 Contact Us For Availability
11
CLIP, SPRING MAY 8536939 Contact Us For Availability
11
MAY 697773 MAY 697773 Contact Us For Availability
11
MAY 8577230 MAY 8577230 Contact Us For Availability
12
MAY 8312709 MAY 8312709 Contact Us For Availability
12
PLUG, HOLE MAY 3404413 Contact Us For Availability
12
Clip MAY 3398161 Contact Us For Availability
13
MAY 343641 MAY 343641 Contact Us For Availability
13
MAY 688983 MAY 688983 Contact Us For Availability
13
MAY 3404162 MAY 3404162 Contact Us For Availability
14
Washer (Top/Chute) MAY 237446 Contact Us For Availability
14
MAY 660658 MAY 660658 Contact Us For Availability
14
MAY 8541818 MAY 8541818 Contact Us For Availability
15
CONNECTOR (MOTOR) MAY 3395683 Contact Us For Availability
15
Clip, Front Panel (2) MAY 3394083 Contact Us For Availability
15
MAY 3977767 MAY 3977767 Contact Us For Availability
16
MAY W10112599 MAY W10112599 Contact Us For Availability
16
MAY 279810 MAY 279810 Contact Us For Availability
16
MAY 3392100 MAY 3392100 Contact Us For Availability
16
MAY 3977373 MAY 3977373 Contact Us For Availability
17
Knob, Control (3) MAY W10112582 Contact Us For Availability
17
Terminal, Tinned & Brass (3) (Includes Illus. MAY 279318 Contact Us For Availability
17
MAY 3403590 MAY 3403590 Contact Us For Availability
18
CLIP, HARNESS MAY 3394427 Contact Us For Availability
18
MAY 8530603 MAY 8530603 Contact Us For Availability
18
MAY 8066086 MAY 8066086 Contact Us For Availability
19
Screw, 8-18 x 3/4 MAY 337686 Contact Us For Availability
19
Clip, Ground MAY 98234 Contact Us For Availability
19
Wire Kit, Terminal (For Heater Element Wiring MAY 279457 Contact Us For Availability
20
Connector (PTS) Relay MAY 3401144 Contact Us For Availability
20
Lock, Front Top (2) MAY 98669 Contact Us For Availability
20
MAY 489463 MAY 489463 Contact Us For Availability
21
MAY 8566184 MAY 8566184 Contact Us For Availability
21
Panel, Front MAY 3403444 Contact Us For Availability
21
SCREW,8-18 X 1/2 MAY 3390647 Contact Us For Availability
22
MAY 8558178 MAY 8558178 Contact Us For Availability
22
MAY 8066206 MAY 8066206 Contact Us For Availability
22
MAY 3976479 MAY 3976479 Contact Us For Availability
23
MAY W10112586 MAY W10112586 Contact Us For Availability
23
Clip, Felt Pad (3) MAY 685203 Contact Us For Availability
23
Bulb MAY 3406124 Contact Us For Availability
24
MAY 3391885 MAY 3391885 Contact Us For Availability
24
MAY 3389441 MAY 3389441 Contact Us For Availability
24
MAY 3402841 MAY 3402841 Contact Us For Availability
25
MAY W10112584 MAY W10112584 Contact Us For Availability
25
PULLEY, 60 HZ. MAY 8066184 Contact Us For Availability
25
MAY 690997 MAY 690997 Contact Us For Availability
26
Control & Console Panel Assembly (Includes Il MAY W10086730 Contact Us For Availability
26
MAY W10131364 MAY W10131364 Contact Us For Availability
26
MAY 3399506 MAY 3399506 Contact Us For Availability
27
MAY W10112588 MAY W10112588 Contact Us For Availability
27
Screw, 8-18 x 1/2 MAY 342055 Contact Us For Availability
27
MAY 3399507 MAY 3399507 Contact Us For Availability
28
MAY W10118608 MAY W10118608 Contact Us For Availability
28
MAY W10112600 MAY W10112600 Contact Us For Availability
28
MAY 3397590 MAY 3397590 Contact Us For Availability
29
Screw, Mounting (8-18 x 5/16) MAY 8533971 Contact Us For Availability
29
MAY 3400500 MAY 3400500 Contact Us For Availability
29
MAY 348197 MAY 348197 Contact Us For Availability
30
Switch, End Of Cycle MAY 3405156 Contact Us For Availability
30
MAY 348780 MAY 348780 Contact Us For Availability
30
Nut, 3/8-16 MAY 3359452 Contact Us For Availability
31
MAY W10115064 MAY W10115064 Contact Us For Availability
31
MAY 691366 MAY 691366 Contact Us For Availability
31
MAY 3403414 MAY 3403414 Contact Us For Availability
32
Connector-Timer MAY 3397269 Contact Us For Availability
32
Locator-Top MAY 18776 Contact Us For Availability
32
MAY W10136369 MAY W10136369 Contact Us For Availability
33
Connector 6-Circuit MAY 3347243 Contact Us For Availability
33
Strike, Door MAY 3403431 Contact Us For Availability
33
Ring, Bearing (2) MAY 692526 Contact Us For Availability
34
Terminal MAY 94614 Contact Us For Availability
34
MAY 3405246 MAY 3405246 Contact Us For Availability
34
MAY W10109200 MAY W10109200 Contact Us For Availability
35
MAY 3936144 MAY 3936144 Contact Us For Availability
35
Door, Rear MAY 3402341 Contact Us For Availability
35
MAY 3406130 MAY 3406130 Contact Us For Availability
36
MAY W10112576 MAY W10112576 Contact Us For Availability
36
DOOR FRONT MAY 3402335 Contact Us For Availability
36
MAY 695587 MAY 695587 Contact Us For Availability
37
MAY W10112267 MAY W10112267 Contact Us For Availability
37
Handle, Door MAY 8565970 Contact Us For Availability
37
MAY 692490 MAY 692490 Contact Us For Availability
38
MAY 3406129 MAY 3406129 Contact Us For Availability
38
MAY 3976434 MAY 3976434 Contact Us For Availability
39
Terminal Bl Kit (For Terminal Block) MAY 279393 Contact Us For Availability
39
MAY 90296 MAY 90296 Contact Us For Availability
40
Screw, 10-32 x 5/8 MAY 697776 Contact Us For Availability
40
MAY 3403636 MAY 3403636 Contact Us For Availability
41
MAY 3397659 MAY 3397659 Contact Us For Availability
41
MAY 339956 MAY 339956 Contact Us For Availability
42
MAY 8066217 MAY 8066217 Contact Us For Availability
43
Pad-Top Hinge MAY 18849 Contact Us For Availability
44
STRAIN-RELIEF MAY 694415 Contact Us For Availability
NI
MAY 279948 MAY 279948 Contact Us For Availability
NI
Dry Rack MAY 3406839 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Primer, Gr MAY 350938 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
MAY 8522199 MAY 8522199 Contact Us For Availability
× ![]()
