Model Whirlpool YLEW0050PQ1 COMPACT ELECTRIC DRYER – Common Parts & Diagrams

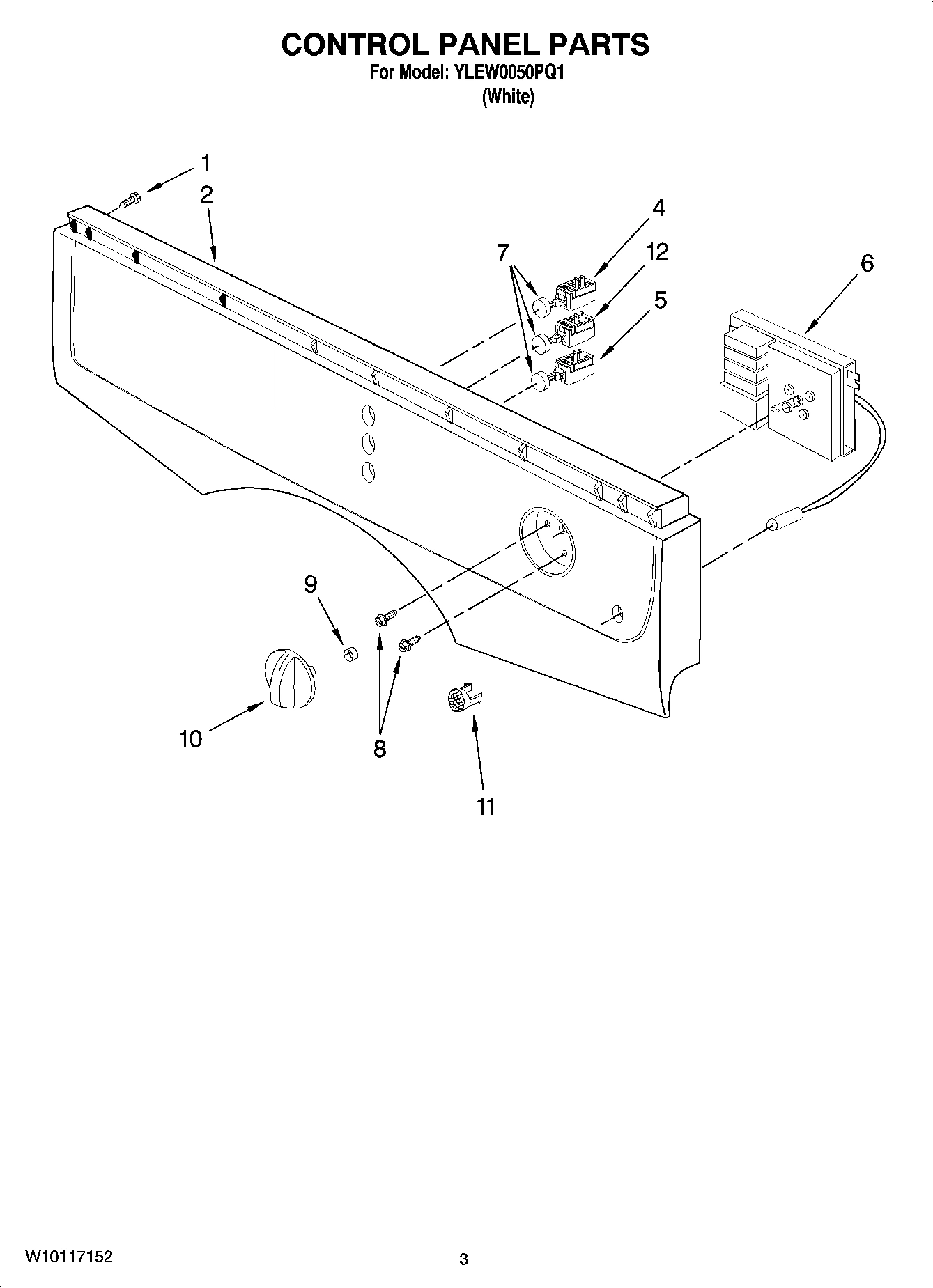

02 - CONTROL PANEL PARTS

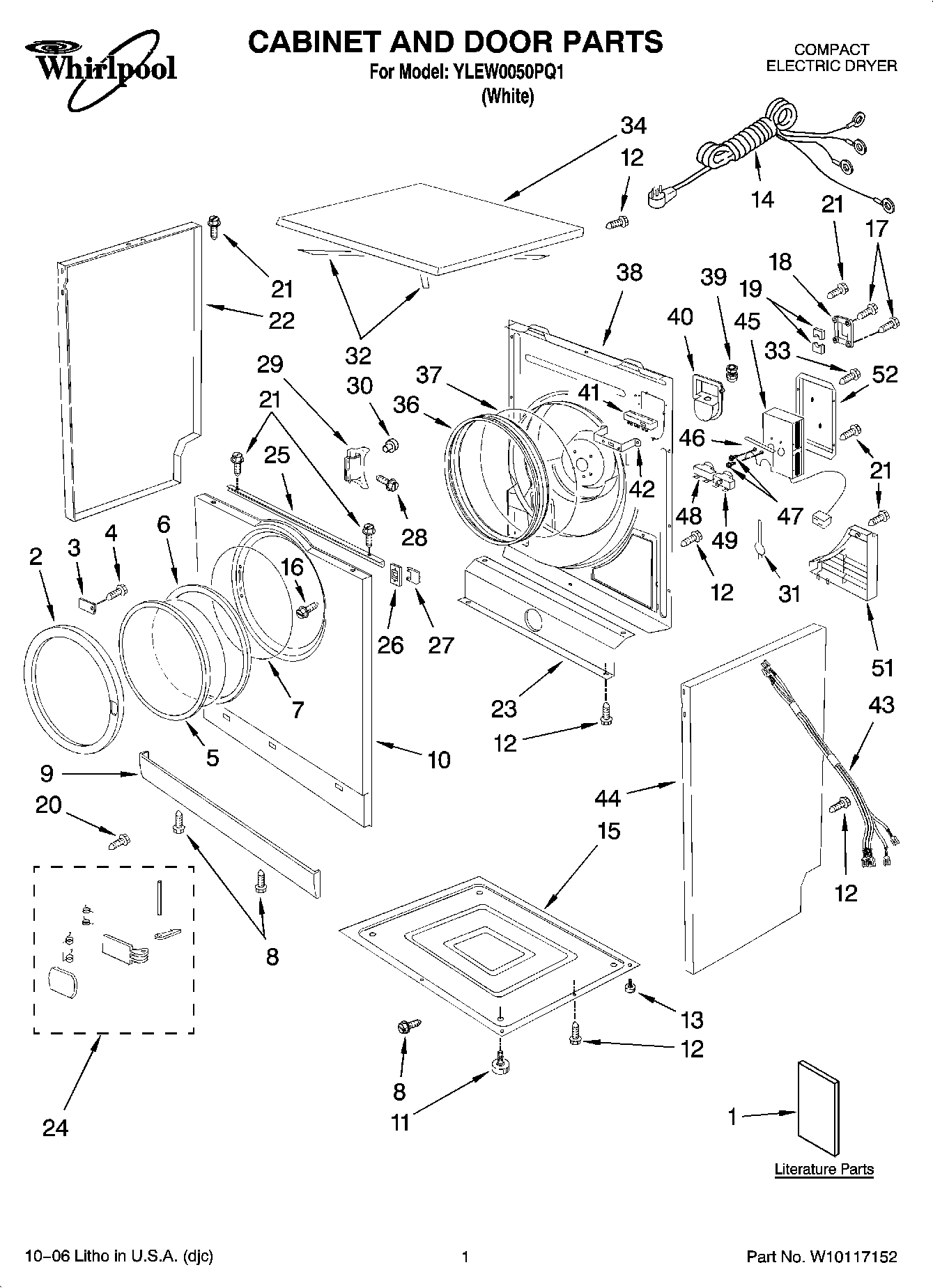

01 - CABINET AND DOOR PARTS
03 - DRUM AND MOTOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool YLEW0050PQ1 COMPACT ELECTRIC DRYER
3
Retainer Insert (Glass Door) WPL 8183106 Contact Us For Availability
6
Timer & Indicator Light Assembly (Indicator L WPL 8182522 Contact Us For Availability
6
Extension, Housing WPL 8182478 Contact Us For Availability
6
Frame, Inner Door WPL 8182414 Contact Us For Availability
7
Gasket, Door WPL 8182515 Contact Us For Availability
7
Button, Push WPL 8182575 Contact Us For Availability
8
SCREW WPL 8182518 Contact Us For Availability
9
Seal, Front Drum WPL 8182692 Contact Us For Availability
9
Toe Panel WPL 8182503 Contact Us For Availability
10
Drive Motor (Includes Bracket & Capacitor) WPL 8182471 Contact Us For Availability
10
KNOB WPL 8182519 Contact Us For Availability
15
Arm, Brush Holder WPL 8182498 Contact Us For Availability
16
Brush, Detector WPL 8182500 Contact Us For Availability
19
Support, Drum Shaft WPL 8182533 Contact Us For Availability
24
Kit, Door Handle WPL 8182574 Contact Us For Availability
26
Plate, Door Switch WPL 8182531 Contact Us For Availability
31
Band, Insulation WPL 8182497 Contact Us For Availability
32
Band, Steel WPL 8182496 Contact Us For Availability
36
Drum Flange with Shaft (Not Serviced) WPL ARI138898A Contact Us For Availability
37
Rivet, Drum Flange (Not Serviced) WPL ARI138899A Contact Us For Availability
39
Shield, Exhaust WPL 8182468 Contact Us For Availability
41
Terminal Block WPL 8182525 Contact Us For Availability
52
Cover, Element WPL 8183110 Contact Us For Availability
× ![]()
