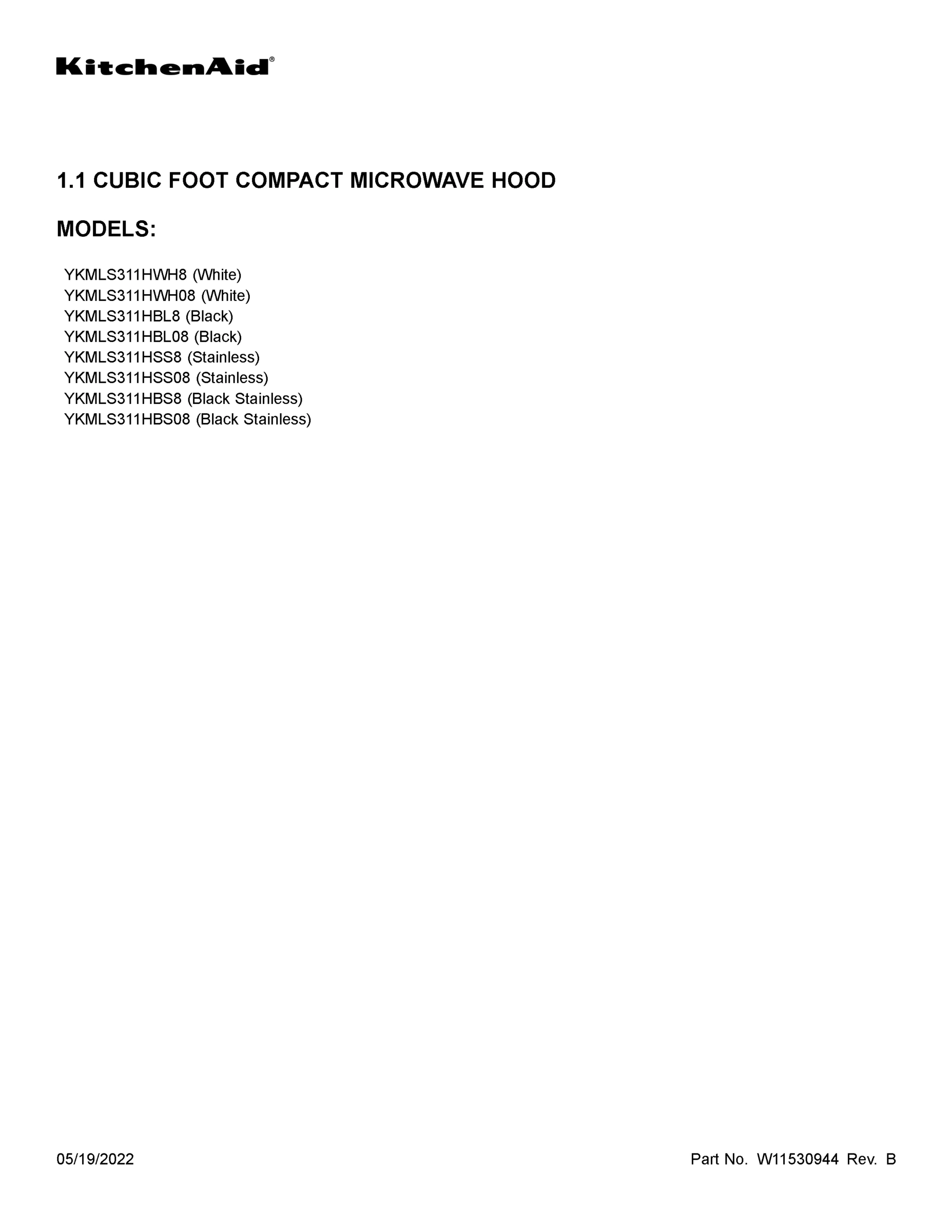

Model Whirlpool YKMLS311HSS08 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT – Common Parts & Diagrams

1
CORD, POWER
CORD, POWER WPL W11187360 Contact Us For Availability
View on Model
2
SEAL, WAVEGUIDE
SEAL, WAVEGUIDE WPL W11126541 Contact Us For Availability
View on Model
2

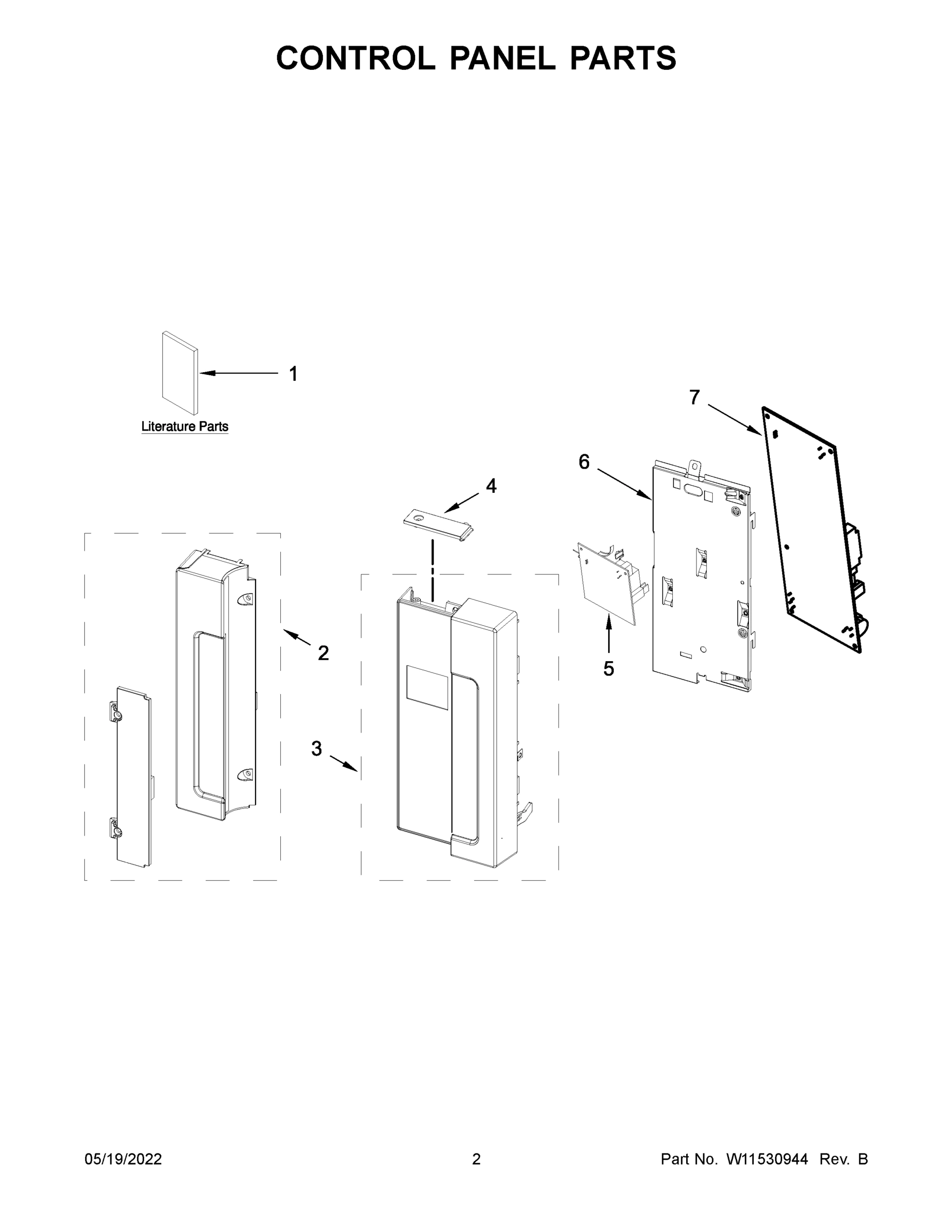

CONTROL PANEL, LEFT (WHITE)
CONTROL PANEL, LEFT (WHITE) WPL W11226999 Contact Us For Availability
View on Model
2B
CONTROL PANEL, LEFT (STAINLESS)
CONTROL PANEL, LEFT (STAINLESS) WPL W11227003 Contact Us For Availability
View on Model
2C
CONTROL PANEL, LEFT (BLACK STAINLESS)
CONTROL PANEL, LEFT (BLACK STAINLESS) WPL W11227004 Contact Us For Availability
View on Model
3
COVER, WAVEGUIDE
COVER, WAVEGUIDE WPL W11193296 Contact Us For Availability
View on Model
3
CONTROL PANEL, RIGHT (WHITE)
CONTROL PANEL, RIGHT (WHITE) WPL W11226994 Contact Us For Availability
View on Model
3B
CONTROL PANEL, RIGHT (STAINLESS)
CONTROL PANEL, RIGHT (STAINLESS) WPL W11226997 Contact Us For Availability
View on Model
3C
CONTROL PANEL, RIGHT (BLACK STAINLESS)
CONTROL PANEL, RIGHT (BLACK STAINLESS) WPL W11226998 Contact Us For Availability
View on Model
4
COVER, EXHAUST (WHITE)
COVER, EXHAUST (WHITE) WPL W11165209 Contact Us For Availability
View on Model
4
COVER, TOP (WHITE)
COVER, TOP (WHITE) WPL W11109987 Contact Us For Availability
View on Model
4A
COVER, TOP (BLACK)
COVER, TOP (BLACK) WPL W11083285 Contact Us For Availability
View on Model
4A
COVER, EXHAUST (BLACK)
COVER, EXHAUST (BLACK) WPL W11127064 Contact Us For Availability
View on Model
4B
COVER, EXHAUST (STAINLESS)
COVER, EXHAUST (STAINLESS) WPL W11165564 Contact Us For Availability
View on Model
5
COVER, COOLING FAN
COVER, COOLING FAN WPL W11088345 Contact Us For Availability
View on Model
5
CAPACITOR, MOTOR
CAPACITOR, MOTOR WPL W11405831 Contact Us For Availability
View on Model
5
CASE, OUTER (WHITE)
CASE, OUTER (WHITE) WPL W11446922 Contact Us For Availability
View on Model
5A
CASE, OUTER (BLACK)
CASE, OUTER (BLACK) WPL W11446923 Contact Us For Availability
View on Model
5C
CASE, OUTER (BLACK STAINLESS)
CASE, OUTER (BLACK STAINLESS) WPL W11446949 Contact Us For Availability
View on Model
6
WHEEL, COOLING FAN
WHEEL, COOLING FAN WPL W11088354 Contact Us For Availability
View on Model
6
SEAL, WATERPROOF
SEAL, WATERPROOF WPL W11096347 Contact Us For Availability
View on Model
6
BACKER, CONTROL
BACKER, CONTROL WPL W11083284 Contact Us For Availability
View on Model
6
BACKPLATE, OVEN
BACKPLATE, OVEN WPL W11360416 Contact Us For Availability
View on Model
7
GRILLE, VENT (LONG) (STAINLESS)
GRILLE, VENT (LONG) (STAINLESS) WPL W11086309 Contact Us For Availability
View on Model
8
GRILLE, VENT (LIGHT ACCESS) (STAINLESS)
GRILLE, VENT (LIGHT ACCESS) (STAINLESS) WPL W11095781 Contact Us For Availability
View on Model
9
GRILLE, VENT (SHORT) (STAINLESS)
GRILLE, VENT (SHORT) (STAINLESS) WPL W11086310 Contact Us For Availability
View on Model
12
BRACKET, NOISE FILTER
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
View on Model
16
HOUSING, CAVITY LIGHTING
HOUSING, CAVITY LIGHTING WPL W11086300 Contact Us For Availability
View on Model
18
PLATE, BOTTOM
PLATE, BOTTOM WPL W11159942 Contact Us For Availability
View on Model
23
REFLECTOR, LAMP
REFLECTOR, LAMP WPL W11086295 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H WPL W11101699 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, KEYPAD TOUCH BO
MISCELLANEOUS PARTS, HARNESS, KEYPAD TOUCH BO WPL W11104639 Contact Us For Availability
View on Model
NI
HARNESS, PCBA GROUND WIRE
HARNESS, PCBA GROUND WIRE WPL W11187937 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, GROUND WIRE, CHROME CHAM
MISCELLANEOUS PARTS, GROUND WIRE, CHROME CHAM WPL W11205696 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, DOOR EJECT MOTO
MISCELLANEOUS PARTS, HARNESS, DOOR EJECT MOTO WPL W11216908 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, USER INTERFACE
MISCELLANEOUS PARTS, HARNESS, USER INTERFACE WPL W11266688 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, MAIN
MISCELLANEOUS PARTS, HARNESS, MAIN WPL W11421370 Contact Us For Availability
View on Model
