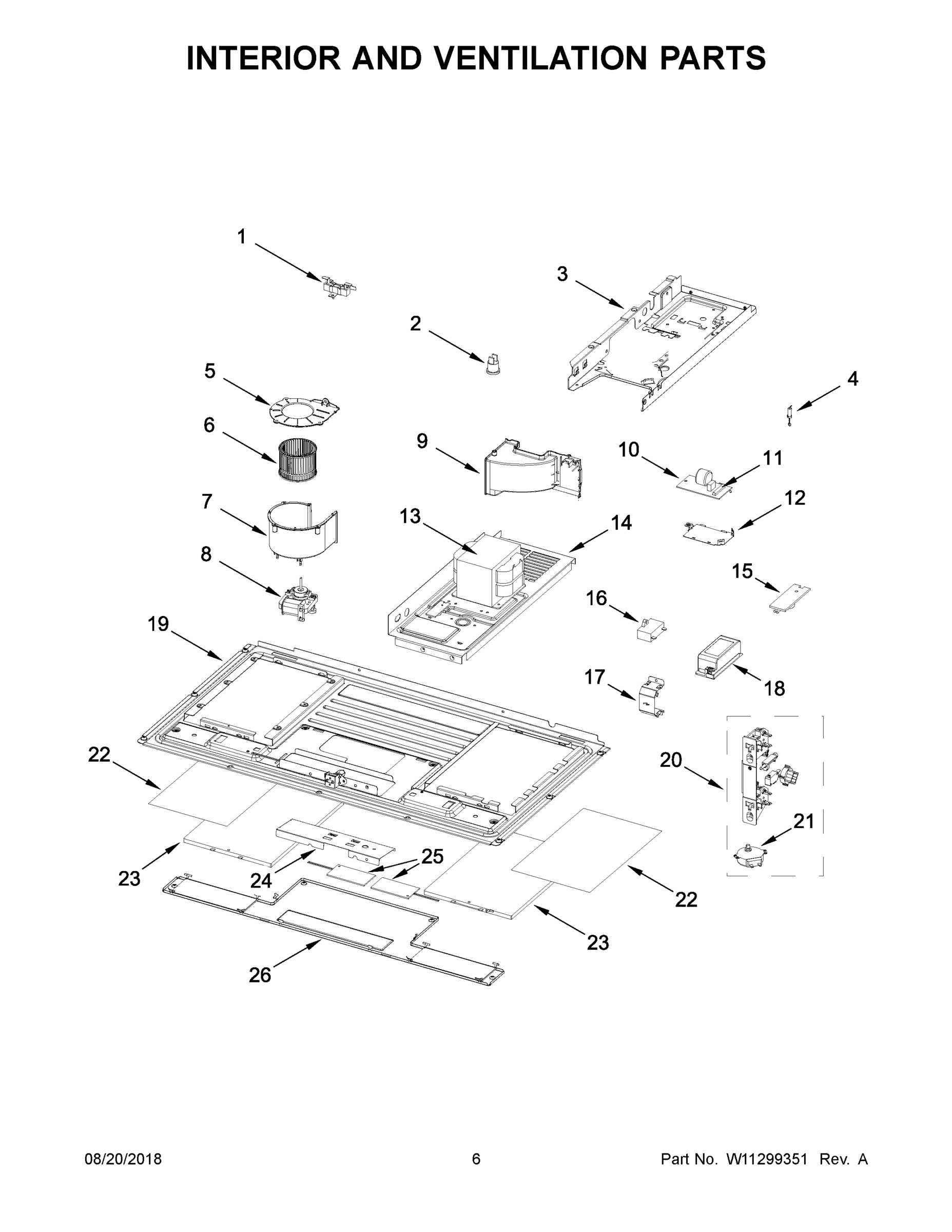

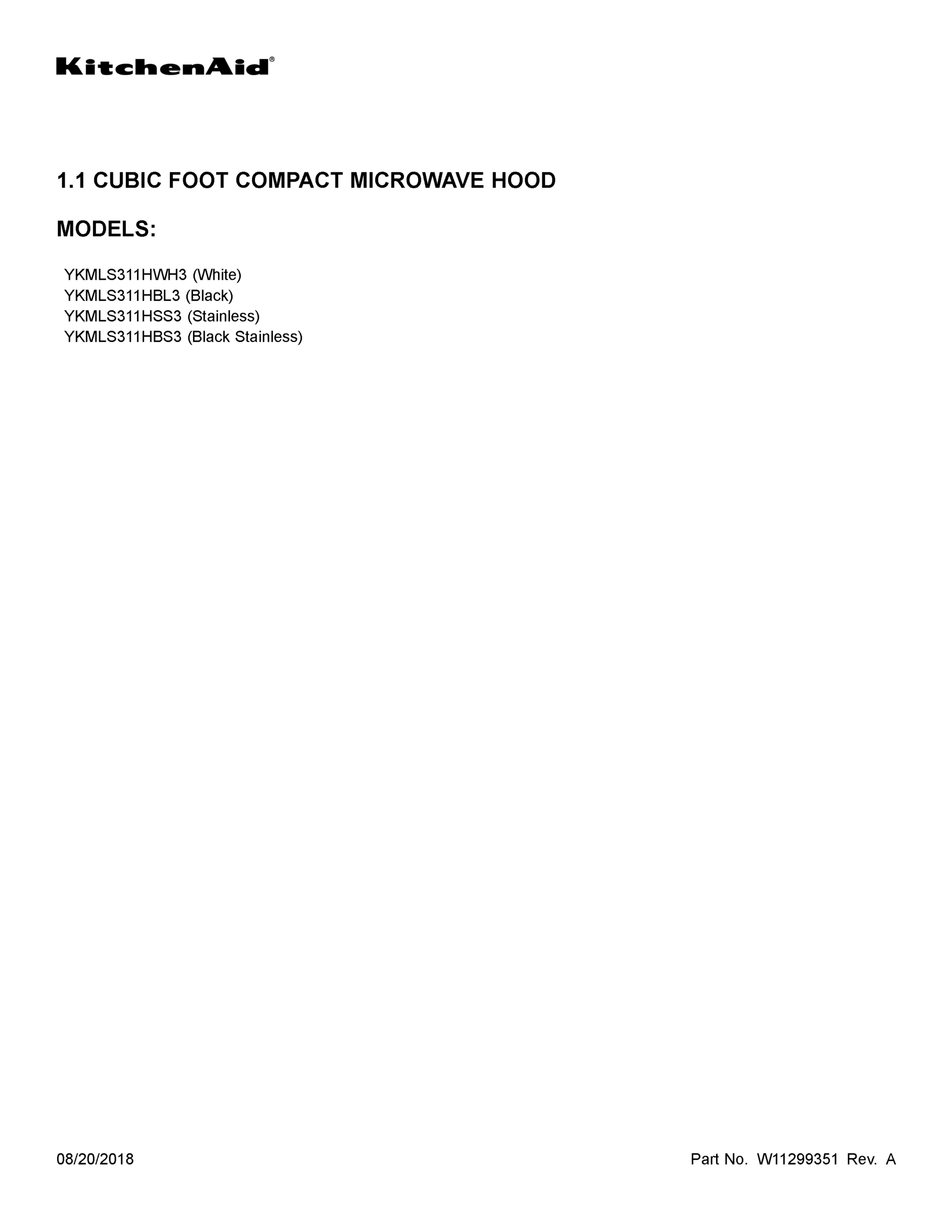

Model Whirlpool YKMLS311HBS3 MICROWAVE HOOD, COMPACT, 1.1 CUBIC FOOT – Common Parts & Diagrams

1
RESISTOR, CEMENT
RESISTOR, CEMENT WPL W11122225 Contact Us For Availability
View on Model
2
SEAL, WAVEGUIDE
SEAL, WAVEGUIDE WPL W11126541 Contact Us For Availability
View on Model
2
CONTROL PANEL, LEFT (WHITE)
CONTROL PANEL, LEFT (WHITE) WPL W11226999 Contact Us For Availability
View on Model
2B
CONTROL PANEL, LEFT (STAINLESS)
CONTROL PANEL, LEFT (STAINLESS) WPL W11227003 Contact Us For Availability
View on Model
2C
CONTROL PANEL, LEFT (BLACK STAINLESS)
CONTROL PANEL, LEFT (BLACK STAINLESS) WPL W11227004 Contact Us For Availability
View on Model
3
PCBA, HOOD CONTROL
PCBA, HOOD CONTROL WPL W11133802 Contact Us For Availability
View on Model
3
COVER, WAVEGUIDE
COVER, WAVEGUIDE WPL W11193296 Contact Us For Availability
View on Model
3
CONTROL PANEL, RIGHT (WHITE)
CONTROL PANEL, RIGHT (WHITE) WPL W11226994 Contact Us For Availability
View on Model
3B
CONTROL PANEL, RIGHT (STAINLESS)
CONTROL PANEL, RIGHT (STAINLESS) WPL W11226997 Contact Us For Availability
View on Model
3C
CONTROL PANEL, RIGHT (BLACK STAINLESS)
CONTROL PANEL, RIGHT (BLACK STAINLESS) WPL W11226998 Contact Us For Availability
View on Model
4
COVER, EXHAUST (WHITE)
COVER, EXHAUST (WHITE) WPL W11165209 Contact Us For Availability
View on Model
4
COVER, TOP (WHITE)
COVER, TOP (WHITE) WPL W11109987 Contact Us For Availability
View on Model
4A
COVER, TOP (BLACK)
COVER, TOP (BLACK) WPL W11083285 Contact Us For Availability
View on Model
4A
COVER, EXHAUST (BLACK)
COVER, EXHAUST (BLACK) WPL W11127064 Contact Us For Availability
View on Model
4B
COVER, EXHAUST (STAINLESS)
COVER, EXHAUST (STAINLESS) WPL W11165564 Contact Us For Availability
View on Model
5
DRIVER, TURNTABLE
DRIVER, TURNTABLE WPL W11096343 Contact Us For Availability
View on Model
5
COVER, COOLING FAN
COVER, COOLING FAN WPL W11088345 Contact Us For Availability
View on Model
6
ASSEMBLY, MOUNTING NUT
ASSEMBLY, MOUNTING NUT WPL W11122643 Contact Us For Availability
View on Model
6
WHEEL, COOLING FAN
WHEEL, COOLING FAN WPL W11088354 Contact Us For Availability
View on Model
6
SEAL, WATERPROOF
SEAL, WATERPROOF WPL W11096347 Contact Us For Availability
View on Model
6
BACKER, CONTROL
BACKER, CONTROL WPL W11083284 Contact Us For Availability
View on Model
7
BACKPLATE, OVEN
BACKPLATE, OVEN WPL W11086259 Contact Us For Availability
View on Model
8B
GRILLE, VENT (LONG) (STAINLESS)
GRILLE, VENT (LONG) (STAINLESS) WPL W11086309 Contact Us For Availability
View on Model
9
SENSOR, HUMIDITY
SENSOR, HUMIDITY WPL W10557536 Contact Us For Availability
View on Model
9
GRILLE, VENT (LIGHT ACCESS) (WHITE)
GRILLE, VENT (LIGHT ACCESS) (WHITE) WPL W11164786 Contact Us For Availability
View on Model
9B
GRILLE, VENT (LIGHT ACCESS) (STAINLESS)
GRILLE, VENT (LIGHT ACCESS) (STAINLESS) WPL W11095781 Contact Us For Availability
View on Model
10
GRILLE, VENT (SHORT) (WHITE)
GRILLE, VENT (SHORT) (WHITE) WPL W11164816 Contact Us For Availability
View on Model
10B
GRILLE, VENT (SHORT) (STAINLESS)
GRILLE, VENT (SHORT) (STAINLESS) WPL W11086310 Contact Us For Availability
View on Model
11
DRIVER, LED LAMP
DRIVER, LED LAMP WPL W11117964 Contact Us For Availability
View on Model
12
BRACKET, NOISE FILTER
BRACKET, NOISE FILTER WPL W10313274 Contact Us For Availability
View on Model
13
TRANSFORMER, HIGH VOLTAGE
TRANSFORMER, HIGH VOLTAGE WPL W11024976 Contact Us For Availability
View on Model
15
THERMISTOR, PCBA
THERMISTOR, PCBA WPL W10536989 Contact Us For Availability
View on Model
16
CAPACITOR, HIGH VOLTAGE
CAPACITOR, HIGH VOLTAGE WPL 8206562 Contact Us For Availability
View on Model
17
HOUSING, CAVITY LIGHTING
HOUSING, CAVITY LIGHTING WPL W11086300 Contact Us For Availability
View on Model
18
BOARD, LED LAMP
BOARD, LED LAMP WPL W11048293 Contact Us For Availability
View on Model
19
PLATE, BOTTOM
PLATE, BOTTOM WPL W11159942 Contact Us For Availability
View on Model
22
HOUSING, TRANSFORMER
HOUSING, TRANSFORMER WPL W11127425 Contact Us For Availability
View on Model
24
REFLECTOR, LAMP
REFLECTOR, LAMP WPL W11086295 Contact Us For Availability
View on Model
24
SEAL, RUBBER
SEAL, RUBBER WPL W11126543 Contact Us For Availability
View on Model
25
THERMOSTAT, MAGNETRON
THERMOSTAT, MAGNETRON WPL W11125676 Contact Us For Availability
View on Model
25
BOARD, LED LAMP
BOARD, LED LAMP WPL W11048310 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION
MISCELLANEOUS PARTS, HARDWARE, INSTALLATION WPL W10821385 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR
MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIR WPL W10539840 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H
MISCELLANEOUS PARTS, HARNESS, TURNTABLE AND H WPL W11101699 Contact Us For Availability
View on Model
NI
MISCELLANEOUS PARTS, HARNESS, USER INTERFACE
MISCELLANEOUS PARTS, HARNESS, USER INTERFACE WPL W10916212 Contact Us For Availability
View on Model
