Model Whirlpool YKHMS2050SW0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
06 - CABINET AND INSTALLATION PARTS
01 - CONTROL BOARD PARTS

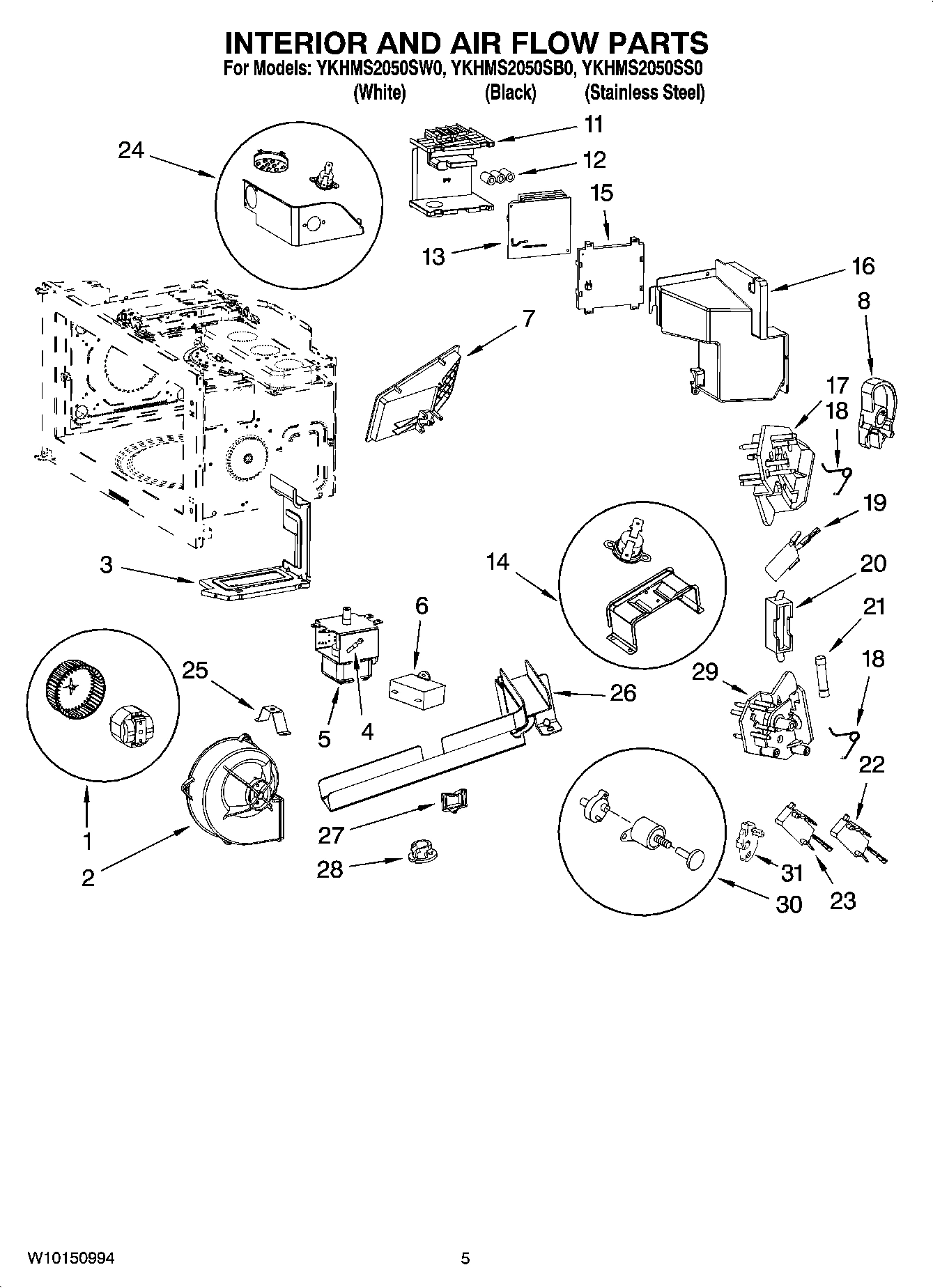

04 - INTERIOR AND AIR FLOW PARTS

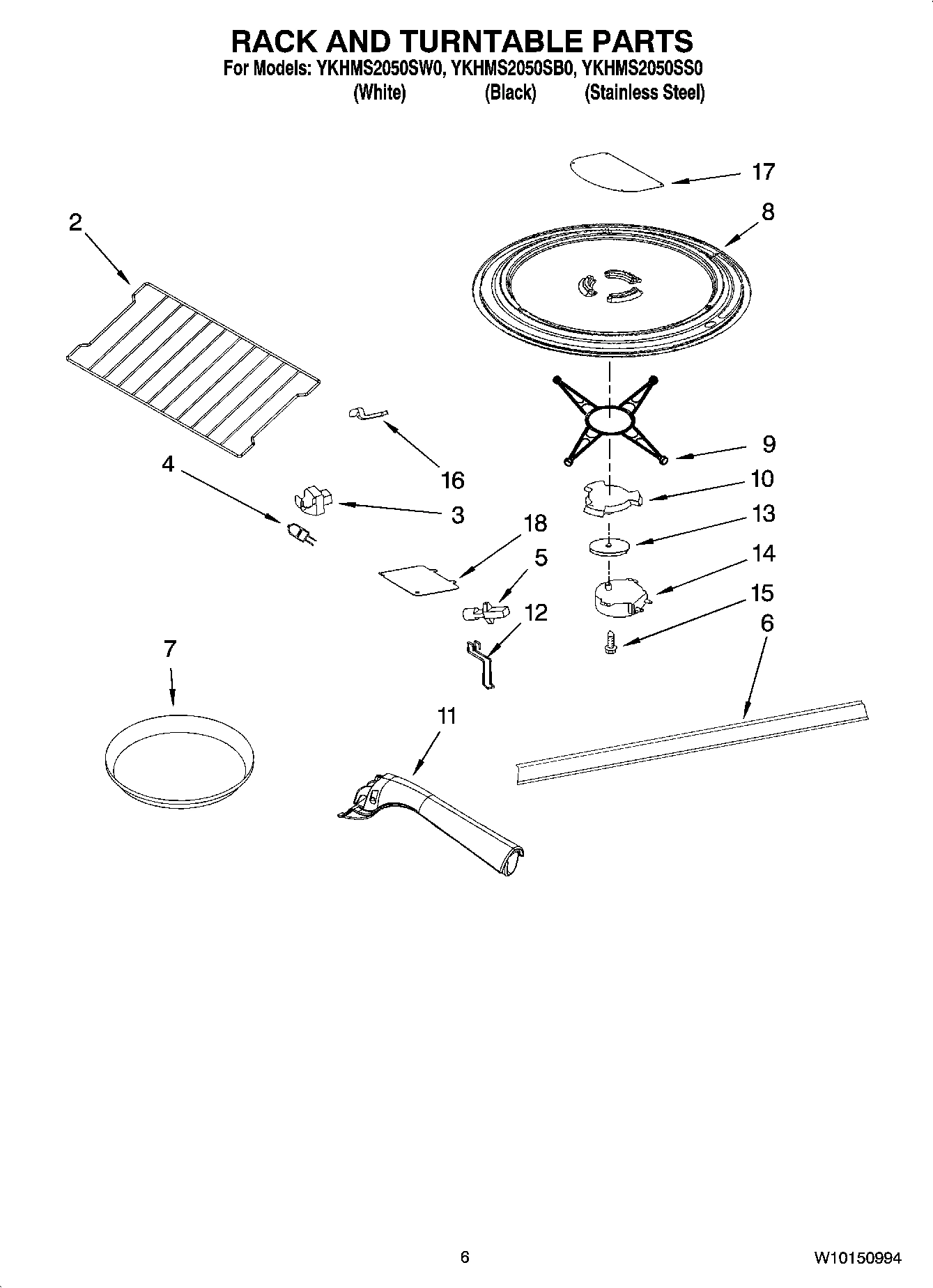

05 - RACK AND TURNTABLE PARTS

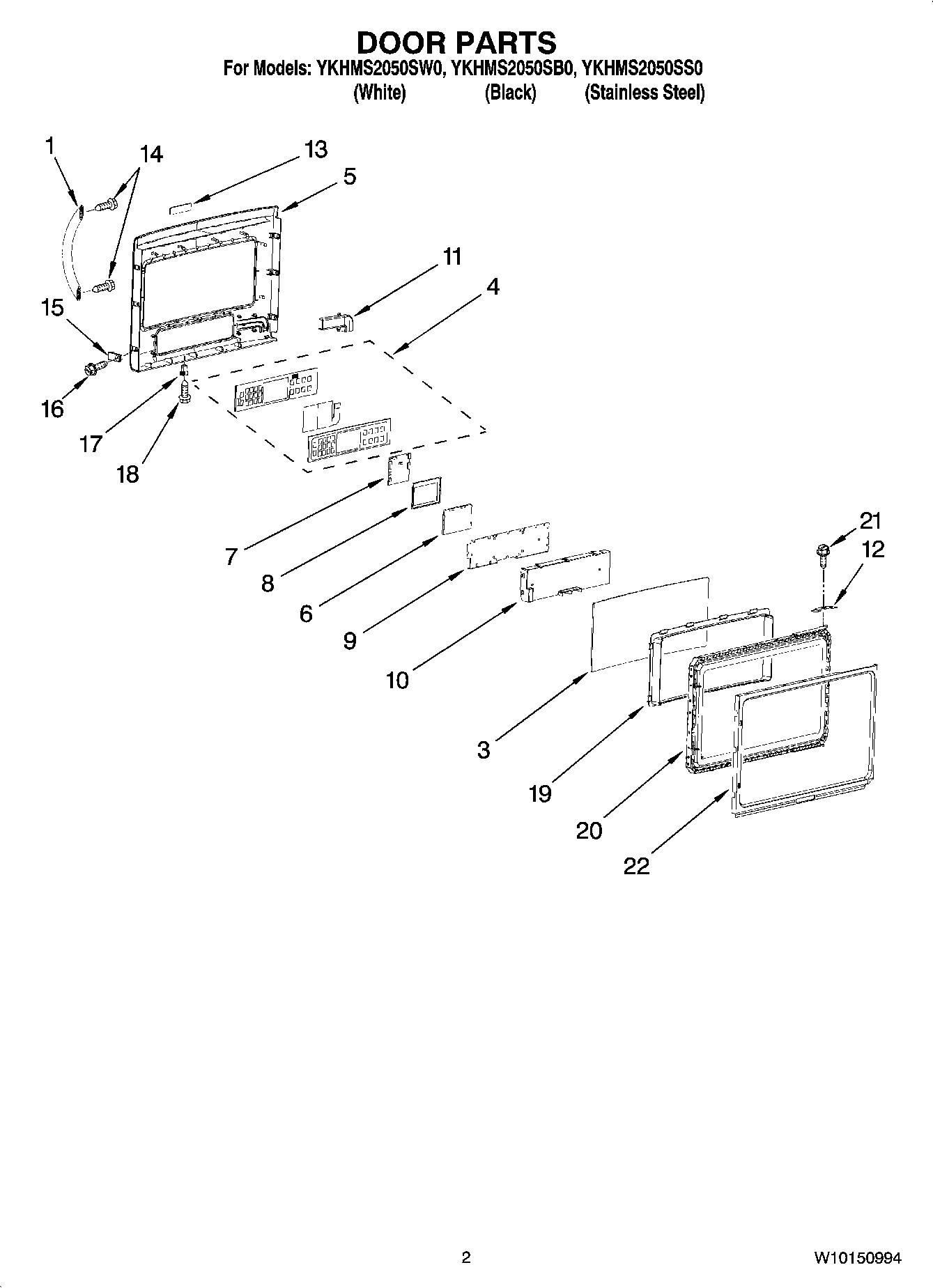

02 - DOOR PARTS

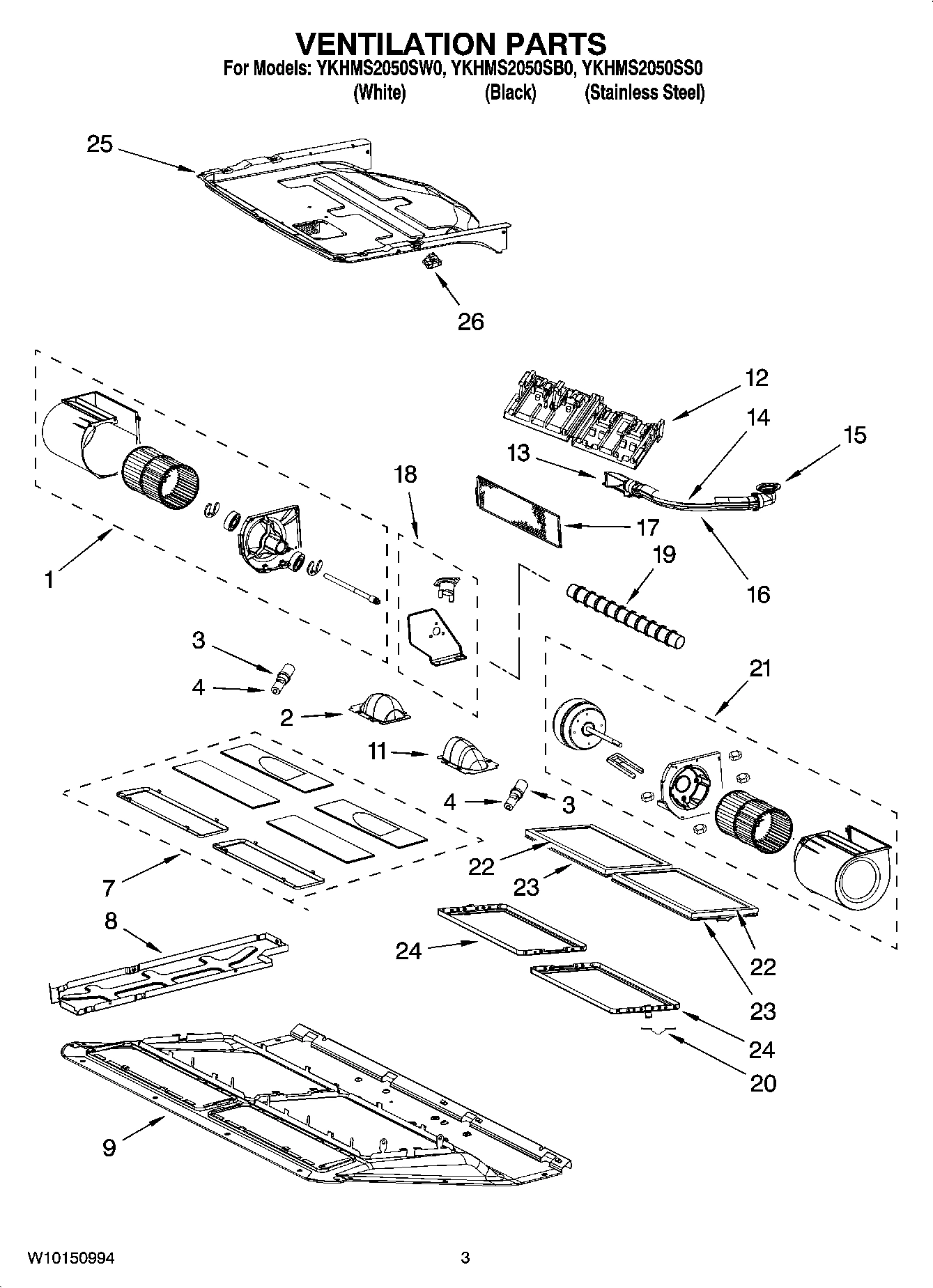

03 - VENTILATION PARTS
Common parts from model Whirlpool YKHMS2050SW0 MICROWAVE HOOD COMBINATION
Hardware, Install. WPL 8205979 Contact Us For Availability
1
Handle (Stainless Steel) WPL 8206504 Contact Us For Availability
1
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
1
Handle (White) WPL 8206501 Contact Us For Availability
2
Rack WPL 8206117 Contact Us For Availability
2
Reflector, Lamp WPL W10143957 Contact Us For Availability
4
Control Panel WPL 8206635 Contact Us For Availability
5
Button (Stainless Steel) WPL 8206485 Contact Us For Availability
5
Outer Door Frame (White) WPL 8206518 Contact Us For Availability
5
Holder, Lamp WPL W10113781 Contact Us For Availability
5
Outer Door Frame (Black) WPL 8206519 Contact Us For Availability
5
Outer Door Frame (Stainless Steel) WPL 8206521 Contact Us For Availability
6
Motor, Capacitor WPL 8206080 Contact Us For Availability
6
Deflector, Air WPL 8205980 Contact Us For Availability
6
Support, Vent Screen (White) WPL 8206011 Contact Us For Availability
6
LCD Frame WPL W10116269 Contact Us For Availability
6
Support, Vent Screen (Universal Silver) WPL W10116263 Contact Us For Availability
7
Vent Screen (Left) WPL 8206207 Contact Us For Availability
7
Board, User (Interface) WPL W10174527 Contact Us For Availability
7
Frame, Glass (Left) WPL W10113788 Contact Us For Availability
7
Frame, Glass (Right) WPL W10113789 Contact Us For Availability
8
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
8
LCD Module WPL W10143962 Contact Us For Availability
8
Plate, Separator (Left) WPL 8206097 Contact Us For Availability
9
Ring, Turntable WPL 8206222 Contact Us For Availability
9
Cntrl Panel Plate WPL 8206511 Contact Us For Availability
9
Plate, Bottom WPL 8206497 Contact Us For Availability
10
Cntrl Panel Cover WPL 8206512 Contact Us For Availability
11
Cable Cover, Door WPL 8206527 Contact Us For Availability
11
Reflector, Lamp WPL W10143960 Contact Us For Availability
12
Vent Screen (Right) WPL 8206206 Contact Us For Availability
12
CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability
12
Clip, Cavity Lamp WPL 8206034 Contact Us For Availability
12
Cover, Terminal WPL 8206103 Contact Us For Availability
13
Logo (Stainless Steel) WPL 8206517 Contact Us For Availability
13
Diffuser WPL 8206104 Contact Us For Availability
14
Motor, Turntable WPL W10143959 Contact Us For Availability
14
Cover, Duct WPL 8206105 Contact Us For Availability
15
Spacer, Side (6) (White) WPL 8206522 Contact Us For Availability
15
Holder, Inverter WPL 8206089 Contact Us For Availability
15
Holder, Filter WPL 8206060 Contact Us For Availability
15
Spacer, Side (6) (Black) WPL 8206523 Contact Us For Availability
15
Connector, Duct WPL 8206106 Contact Us For Availability
16
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
16
Resistor (50W) WPL W10113782 Contact Us For Availability
16
Spacer WPL 8206116 Contact Us For Availability
16
Holder, Duct WPL 8206107 Contact Us For Availability
17
Spacer, Bottom (2) WPL 8206178 Contact Us For Availability
17
Cover, Inlet WPL 8206066 Contact Us For Availability
17
SHIELD WPL 8206498 Contact Us For Availability
18
Spring, Interlock WPL 8206091 Contact Us For Availability
18
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
18
Lid, Lamp WPL 8206476 Contact Us For Availability
18
Screw (2) WPL 8206179 Contact Us For Availability
19
Connector Shaft WPL 8206263 Contact Us For Availability
19
Cover, Choke WPL 8206529 Contact Us For Availability
20
Door Plate Assy WPL W10112215 Contact Us For Availability
20
SPRING WPL 8206499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
20
Holder, Fuse WPL 8184312 Contact Us For Availability
21
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
22
Dr Innr Frm Assy WPL W10143964 Contact Us For Availability
24
Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available
24
Spring, Hook WPL W10113792 Contact Us For Availability
25
Support, Air Guide WPL 8206031 Contact Us For Availability
25
Air Guide, Center Hood WPL W10143951 Contact Us For Availability
26
Protector, Wire WPL 8206477 Contact Us For Availability
27
Clip, Saddle WPL 8206037 Contact Us For Availability
28
Clip, Round WPL 8206038 Contact Us For Availability
30
Piston Assembly WPL 8206210 Contact Us For Availability
31
Cam Plate (Lower) WPL W10113787 Contact Us For Availability
× ![]()
