Model Whirlpool YKHMS2050SS4 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

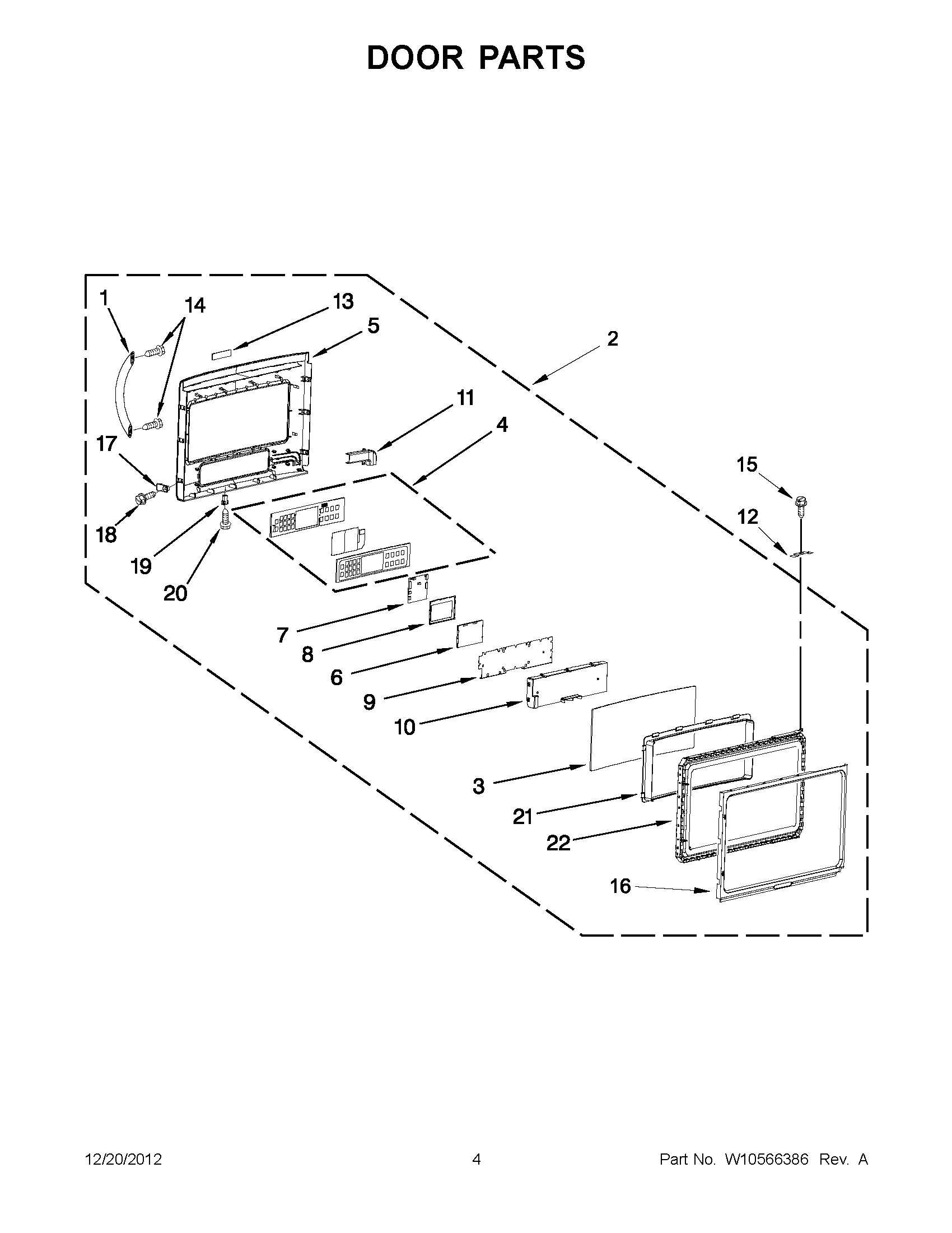

02 - DOOR PARTS

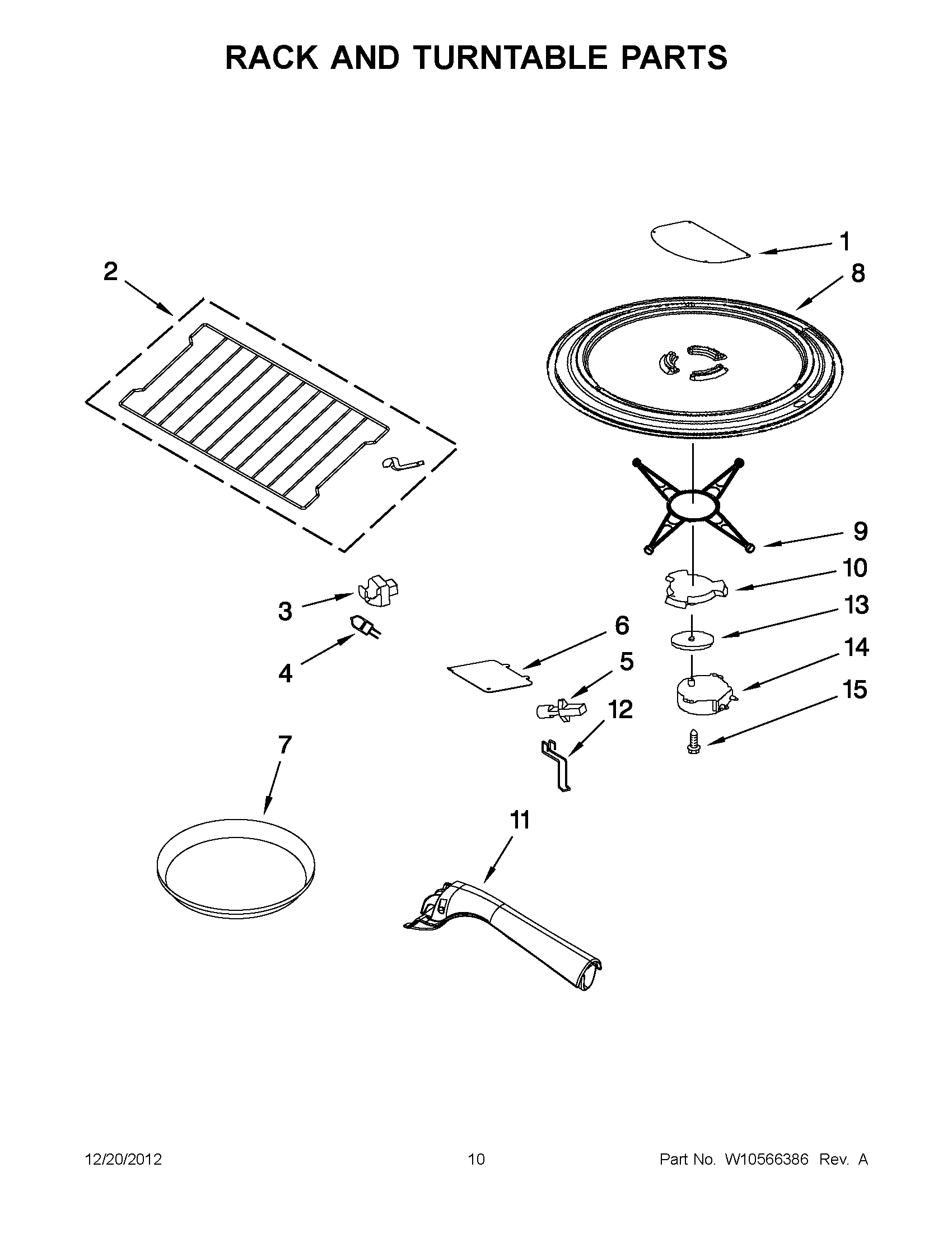

05 - RACK AND TURNTABLE PARTS
03 - VENTILATION PARTS
01 - CONTROL BOARD PARTS
04 - INTERIOR & AIRFLOW PARTS
06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool YKHMS2050SS4 MICROWAVE HOOD COMBINATION
1
HANDLE (STAINLESS) WPL 8206504 Contact Us For Availability
1
HOUSING, BLOWER LEFT SIDE WPL 8206092 Contact Us For Availability
1
PLATE, MICA WPL W10282660 Contact Us For Availability
2
DOOR, COMPLETE (STAINLESS) WPL W10282802 Contact Us For Availability
4
Control Panel WPL 8206635 Contact Us For Availability
4
SIDE PANEL, LEFT (STAINLESS) WPL W10245709 Contact Us For Availability
5
BUTTON (STAINLESS) WPL 8206485 Contact Us For Availability
5
OUTER DOOR FRAME (STAINLESS) WPL W10245711 Contact Us For Availability
5
HOLDER, LAMP GRILL WPL W10113781 Contact Us For Availability
6
LCD Frame WPL W10116269 Contact Us For Availability
6
Lid, Lamp WPL 8206476 Contact Us For Availability
6
Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability
7
VENT SCREEN LEFT SIDE WPL 8206207 Contact Us For Availability
8
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
8
LCD Module WPL W10143962 Contact Us For Availability
9
RING, TURNTABLE SOFTSTART WPL 8206222 Contact Us For Availability
9
Plate, Bottom WPL W10222517 Contact Us For Availability
9
PLATE, CONTROL PANEL WPL 8206511 Contact Us For Availability
10
FRAME, FILTERS WPL W10113792 Contact Us For Availability
10
COVER, CONTROL PANEL WPL 8206512 Contact Us For Availability
12
VENT SCREEN RIGHT SIDE WPL 8206206 Contact Us For Availability
12
CLIP, HINGE SCREW ( NOT INCLUDED WITH DOOR AS WPL W10143965 Contact Us For Availability
13
HOLDER, MICROCOMPUTER WPL W10282647 Contact Us For Availability
14
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
15
Holder, Filter WPL 8206060 Contact Us For Availability
16
Spring, Interlock WPL 8206091 Contact Us For Availability
16
FRAME, INNER DOOR WPL W10143964 Contact Us For Availability
18
SUPPORT & BASE THERMOSTAT ASSEMBLY WPL 8206212 Contact Us For Availability
18
Holder, Fuse WPL W10117908 Contact Us For Availability
19
Connector Shaft WPL 8206263 Contact Us For Availability
19
SPACER, BOTTOM WPL 8206178 Contact Us For Availability
20
SPRING, FILTER FRAME WPL 8206499 Contact Us For Availability
20
Frame, Glass WPL 8169646 Contact Us For Availability
21
HOUSING, BLOWER RIGHT SIDE WPL 8206112 Contact Us For Availability
21
COVER, CHOKE WPL W10282799 Contact Us For Availability
22
DOOR, PLATE ASSEMBLY WPL W10112215 Contact Us For Availability
22
HUMIDITY SENSOR & THERMOSTAT ASSEMBLY WPL 8206026 Contact Us For Availability
25
CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
28
PISTON ASSEMBLY TEMPERATURE WPL 8206210 Contact Us For Availability
NI
MISCELLANEOUS, TEMPLATE, BACK WALL WPL W10517169 Contact Us For Availability
NI
MISCELLANEOUS, TEMPLATE, UPPER WPL 8191157 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, COMMUNICATION PCBA WPL W10112290 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, INVERTER WPL W10113777 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, USER INTERFACE RIBBON WPL W10113779 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, USER INTERFACE RIBBON WPL W10113780 Contact Us For Availability
NI
MISCELLANEOUS, HARNESS, GRILL ELEMENT AND HEA WPL W10244770 Contact Us For Availability
NI
MISCELLANEOUS, MAIN HARNESS WPL W10253657 Contact Us For Availability
× ![]()
