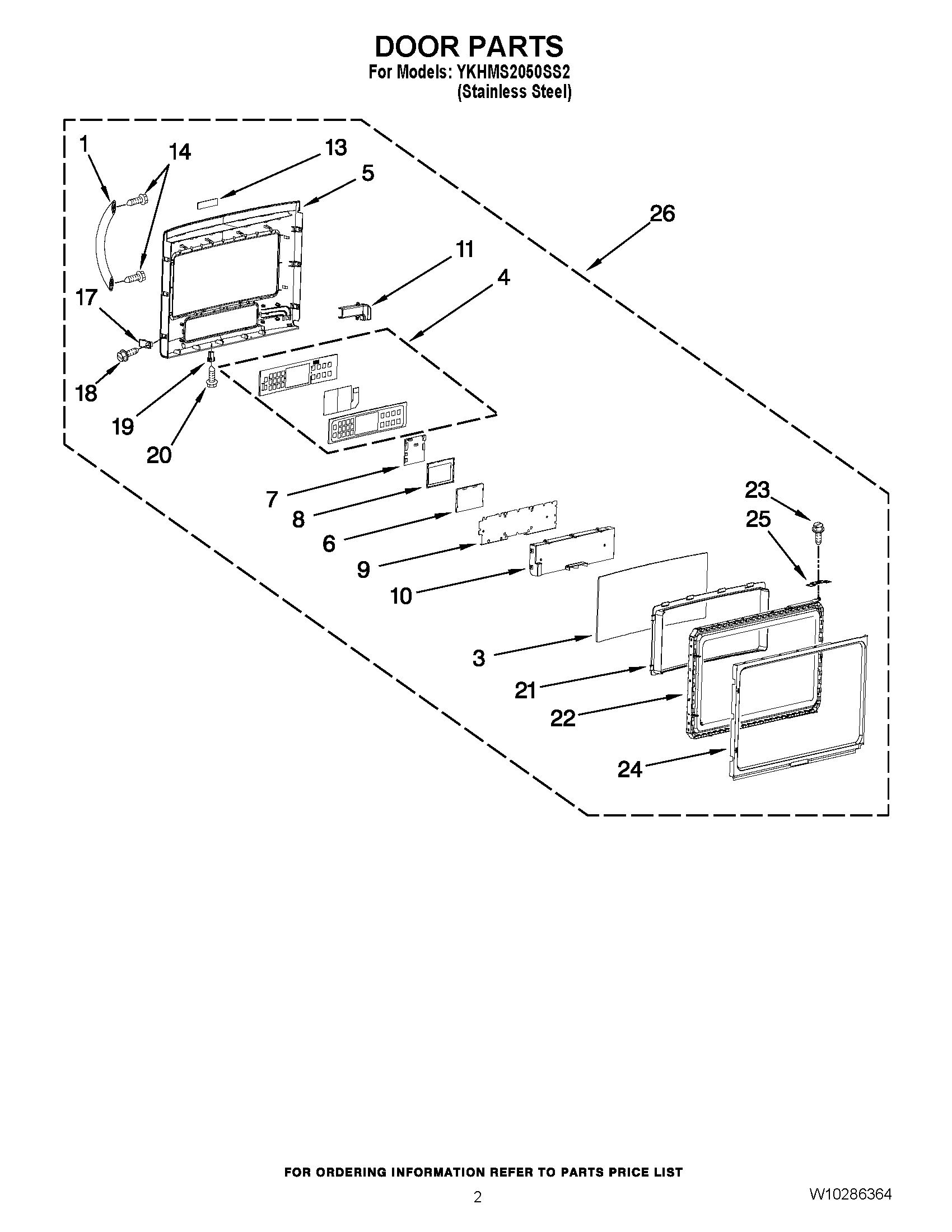

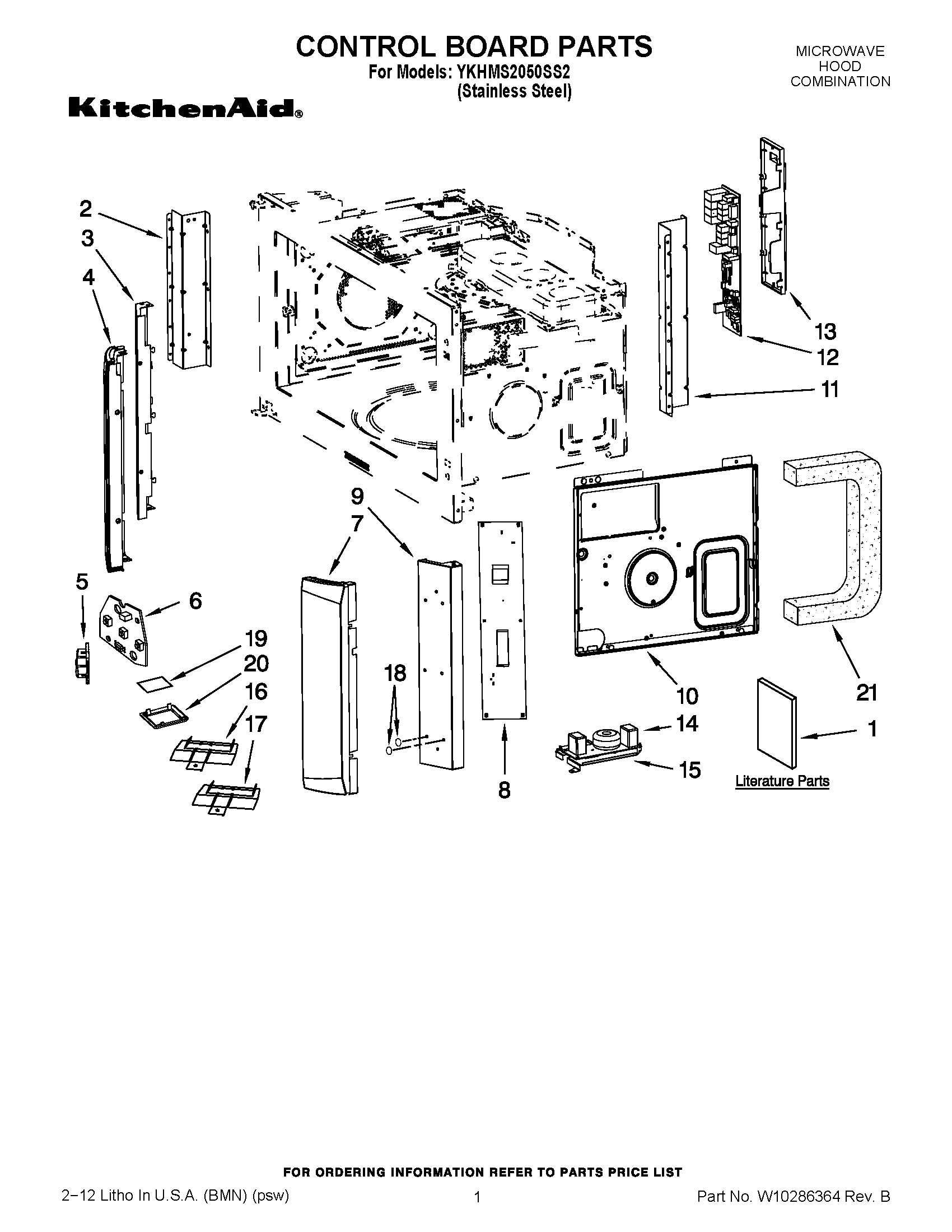

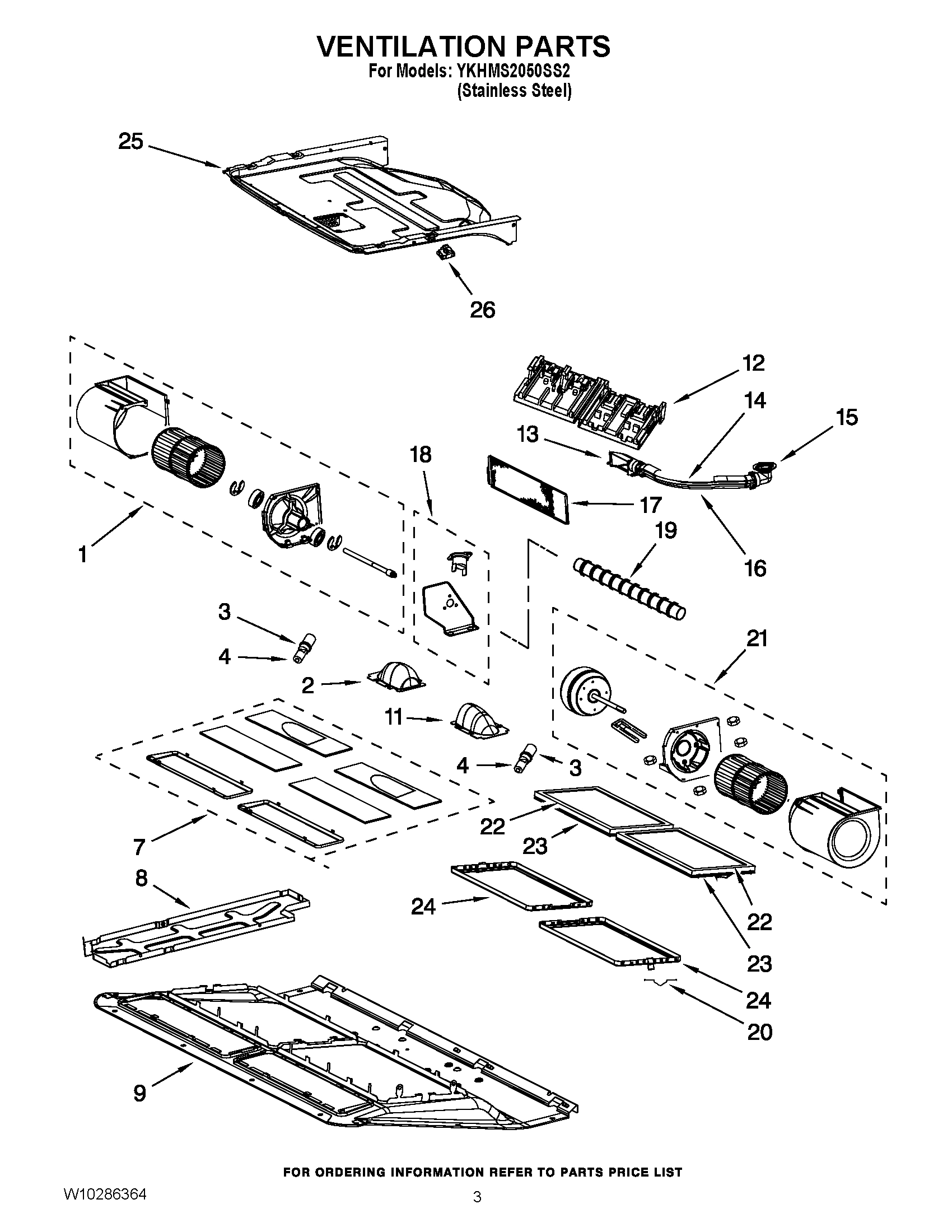

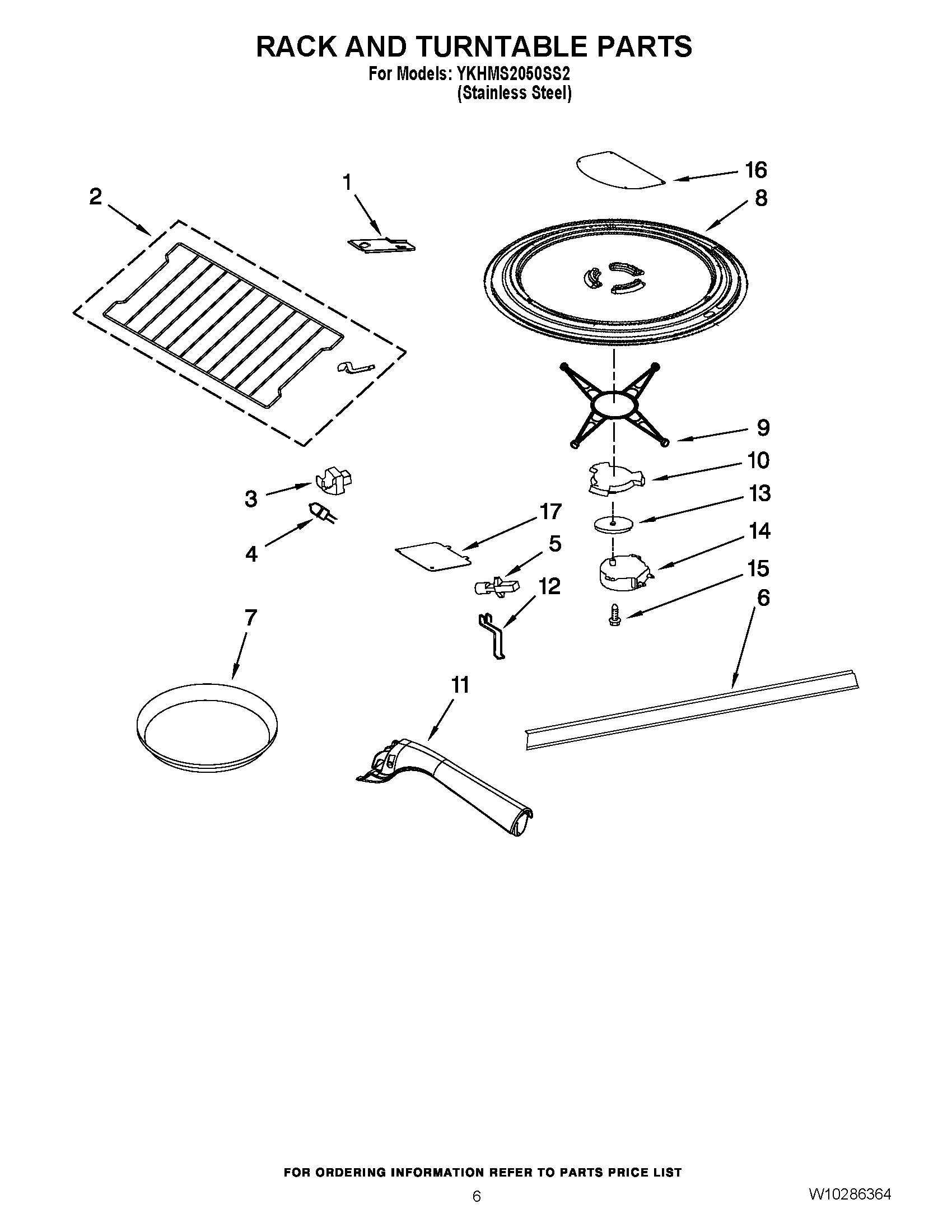

Model Whirlpool YKHMS2050SS2 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

1
Handle (Stainless Steel)
Handle (Stainless Steel) WPL 8206504 Contact Us For Availability
View on Model
1
Housing, Blower (Left)
Housing, Blower (Left) WPL 8206092 Contact Us For Availability
View on Model
2
Reflector, Lamp
Reflector, Lamp WPL W10143957 Contact Us For Availability
View on Model
4
Control Panel
Control Panel WPL 8206635 Contact Us For Availability
View on Model
4
SIDE PANEL, LEFT (STAINLESS STEEL)
SIDE PANEL, LEFT (STAINLESS STEEL) WPL W10245709 Contact Us For Availability
View on Model
5
Button (Stainless Steel)
Button (Stainless Steel) WPL 8206485 Contact Us For Availability
View on Model
5
OUTER DOOR FRAME (STAINLESS STEEL)
OUTER DOOR FRAME (STAINLESS STEEL) WPL W10245711 Contact Us For Availability
View on Model
5
Holder, Lamp
Holder, Lamp WPL W10113781 Contact Us For Availability
View on Model
6
Motor, Capacitor
Motor, Capacitor WPL 8206080 Contact Us For Availability
View on Model
6
Deflector, Air
Deflector, Air WPL 8205980 Contact Us For Availability
View on Model
6
LCD Frame
LCD Frame WPL W10116269 Contact Us For Availability
View on Model
6
Support, Vent Screen (Stainless)
Support, Vent Screen (Stainless) WPL W10116263 Contact Us For Availability
View on Model
7
Vent Screen (Left)
Vent Screen (Left) WPL 8206207 Contact Us For Availability
View on Model
7
Frame, Glass (Left)
Frame, Glass (Left) WPL W10113788 Contact Us For Availability
View on Model
7
Frame, Glass (Right)
Frame, Glass (Right) WPL W10113789 Contact Us For Availability
View on Model
8
CAM PLATE, UPPER
CAM PLATE, UPPER WPL W10113786 Contact Us For Availability
View on Model
8
LCD Module
LCD Module WPL W10143962 Contact Us For Availability
View on Model
8
Plate, Separator (Left)
Plate, Separator (Left) WPL 8206097 Contact Us For Availability
View on Model
9
Ring, Turntable
Ring, Turntable WPL 8206222 Contact Us For Availability
View on Model
9
Plate, Bottom
Plate, Bottom WPL W10222517 Contact Us For Availability
View on Model
9
Cntrl Panel Plate
Cntrl Panel Plate WPL 8206511 Contact Us For Availability
View on Model
10
Cntrl Panel Cover
Cntrl Panel Cover WPL 8206512 Contact Us For Availability
View on Model
11
Reflector, Lamp
Reflector, Lamp WPL W10143960 Contact Us For Availability
View on Model
12
Vent Screen (Right)
Vent Screen (Right) WPL 8206206 Contact Us For Availability
View on Model
12
Cover, Terminal
Cover, Terminal WPL W10253653 Contact Us For Availability
View on Model
13
HOLDER, MICROCOMPUTER
HOLDER, MICROCOMPUTER WPL W10282647 Contact Us For Availability
View on Model
13
Diffuser
Diffuser WPL W10244735 Contact Us For Availability
View on Model
14
Motor, Turntable
Motor, Turntable WPL W10143959 Contact Us For Availability
View on Model
14
Air Guide, Magnetron
Air Guide, Magnetron WPL 8206494 Contact Us For Availability
View on Model
14
Cover, Duct
Cover, Duct WPL 8206105 Contact Us For Availability
View on Model
15
Holder, Filter
Holder, Filter WPL 8206060 Contact Us For Availability
View on Model
15
Connector, Duct
Connector, Duct WPL 8206106 Contact Us For Availability
View on Model
16
PLATE, MICA
PLATE, MICA WPL W10282660 Contact Us For Availability
View on Model
16
Spring, Interlock
Spring, Interlock WPL 8206091 Contact Us For Availability
View on Model
16
Resistor (50W)
Resistor (50W) WPL W10113782 Contact Us For Availability
View on Model
16
Holder, Duct
Holder, Duct WPL 8206107 Contact Us For Availability
View on Model
17
Lid, Lamp
Lid, Lamp WPL 8206476 Contact Us For Availability
View on Model
17
SHIELD
SHIELD WPL 8206498 Contact Us For Availability
View on Model
18
Support & Base Thermostat Assy
Support & Base Thermostat Assy WPL 8206212 Contact Us For Availability
View on Model
18
Holder, Fuse
Holder, Fuse WPL W10117908 Contact Us For Availability
View on Model
19
Connector Shaft
Connector Shaft WPL 8206263 Contact Us For Availability
View on Model
19
SPACER, BOTTOM
SPACER, BOTTOM WPL 8206178 Contact Us For Availability
View on Model
20
SPRING
SPRING WPL 8206499 Contact Us For Availability
View on Model
20
Frame, Glass
Frame, Glass WPL 8169646 Contact Us For Availability
View on Model
21
VALENCE, DOOR
VALENCE, DOOR WPL W10282799 No Longer Available
View on Model
21
Housing, Blower (Right)
Housing, Blower (Right) WPL 8206112 Contact Us For Availability
View on Model
22
Humidity Sensor & Thermostat Assy
Humidity Sensor & Thermostat Assy WPL 8206026 No Longer Available
View on Model
22
Door Plate Assy
Door Plate Assy WPL W10112215 Contact Us For Availability
View on Model
24
Spring, Hook
Spring, Hook WPL W10113792 Contact Us For Availability
View on Model
24
Dr Innr Frm Assy
Dr Innr Frm Assy WPL W10143964 Contact Us For Availability
View on Model
25
CLIP,HINGE SCREW
CLIP,HINGE SCREW WPL W10143965 Contact Us For Availability
View on Model
25
Air Guide, Center Hood
Air Guide, Center Hood WPL W10143951 Contact Us For Availability
View on Model
26
DOOR, COMPLETE (STAINLESS)
DOOR, COMPLETE (STAINLESS) WPL W10282802 Contact Us For Availability
View on Model
28
Piston Assembly
Piston Assembly WPL 8206210 Contact Us For Availability
View on Model
29
CAM PLATE, LOWER
CAM PLATE, LOWER WPL W10244759 Contact Us For Availability
View on Model
