Model Whirlpool YKHMS155LBT0 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams

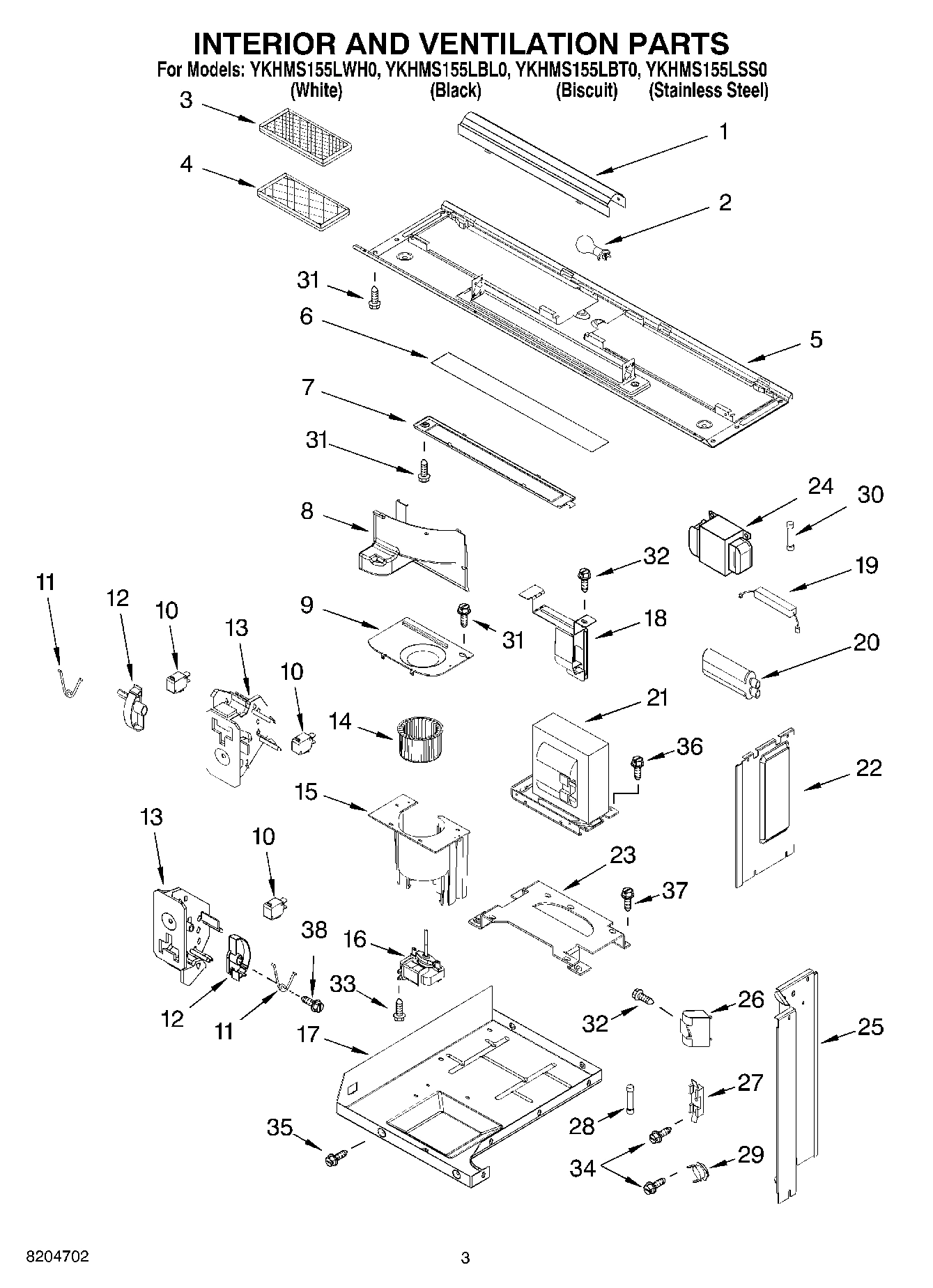

03 - INTERIOR AND VENTILATION PARTS

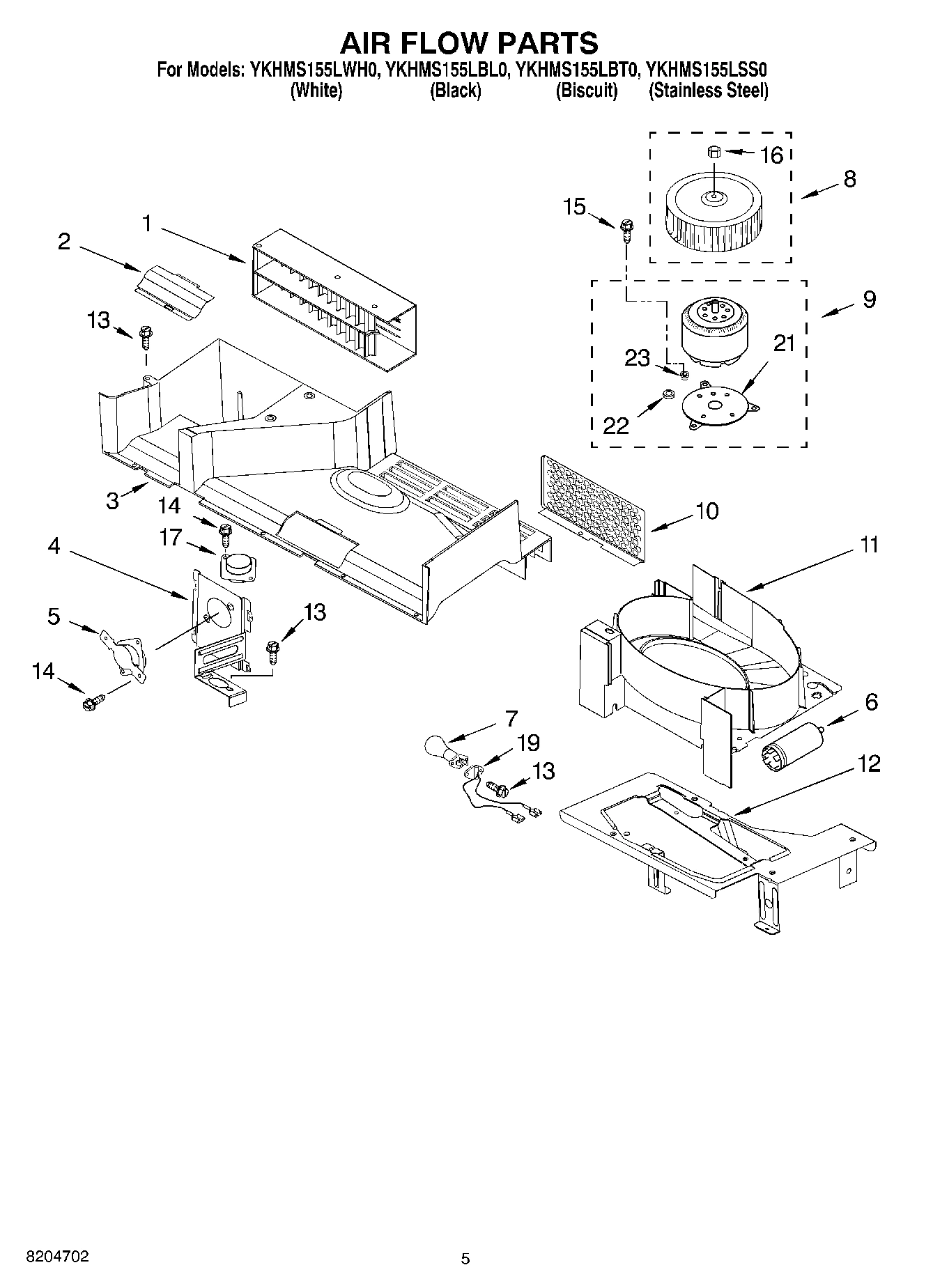

04 - AIR FLOW PARTS

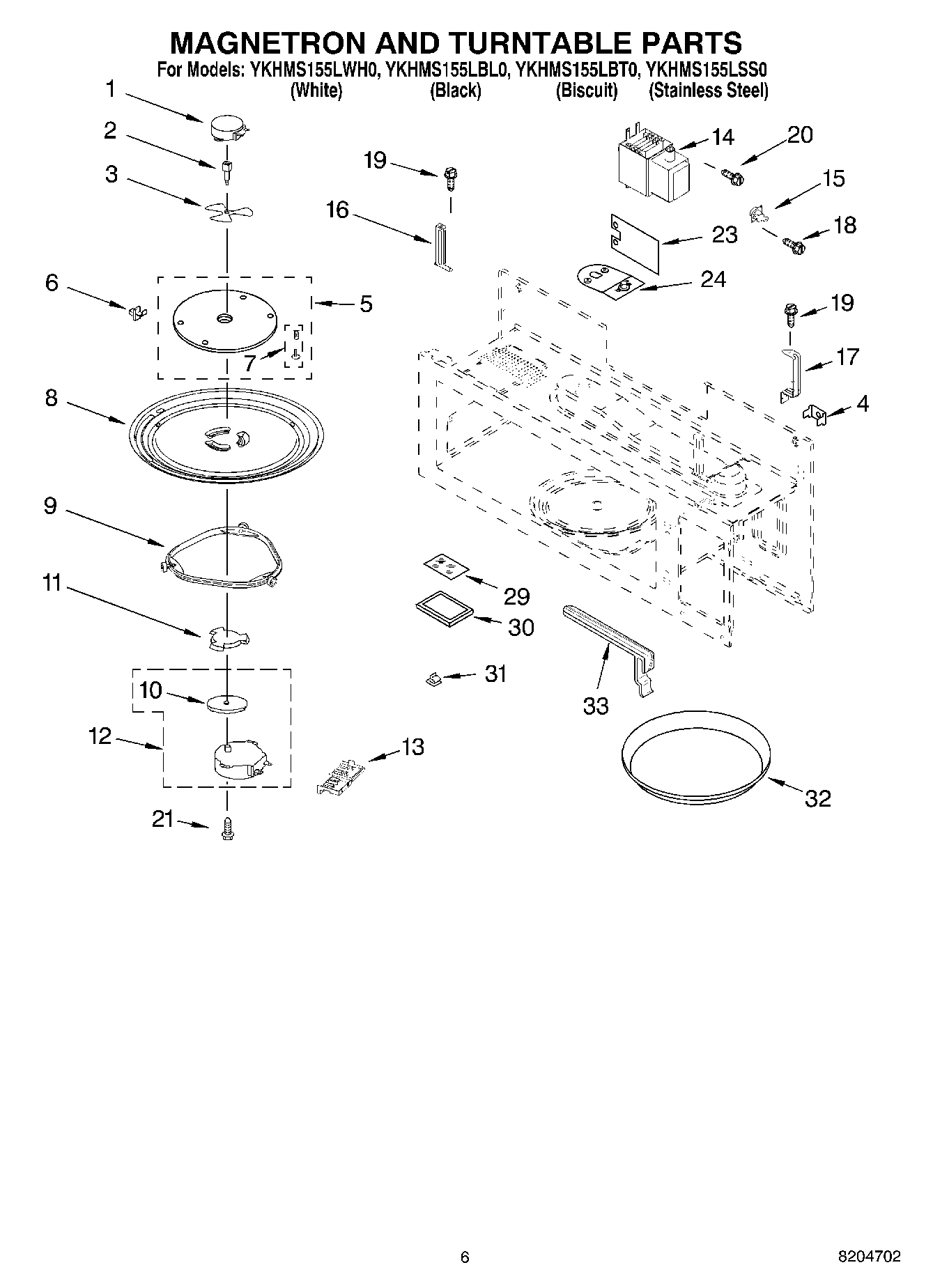

05 - MAGNETRON AND TURNTABLE PARTS

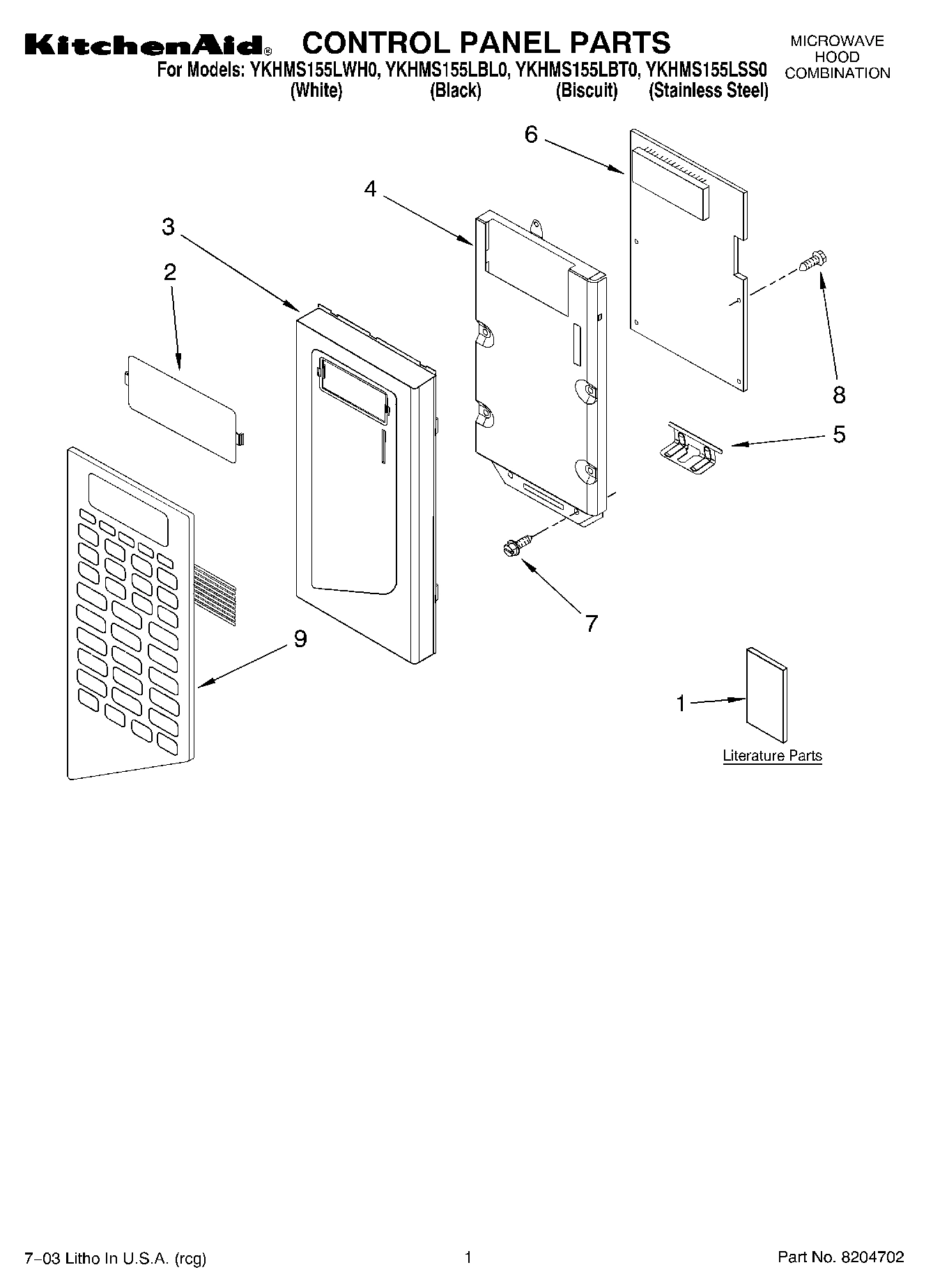

01 - CONTROL PANEL PARTS

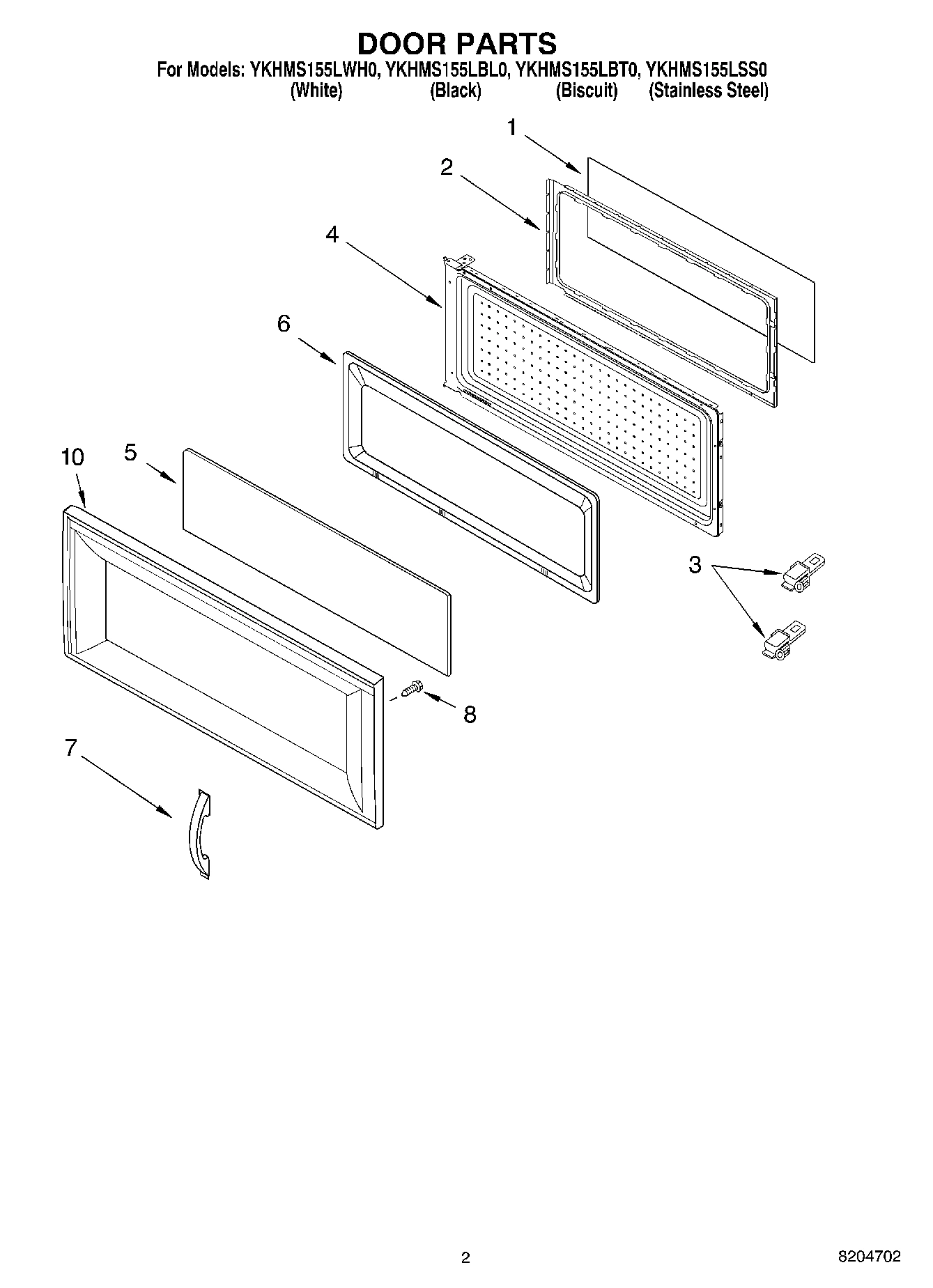

02 - DOOR PARTS

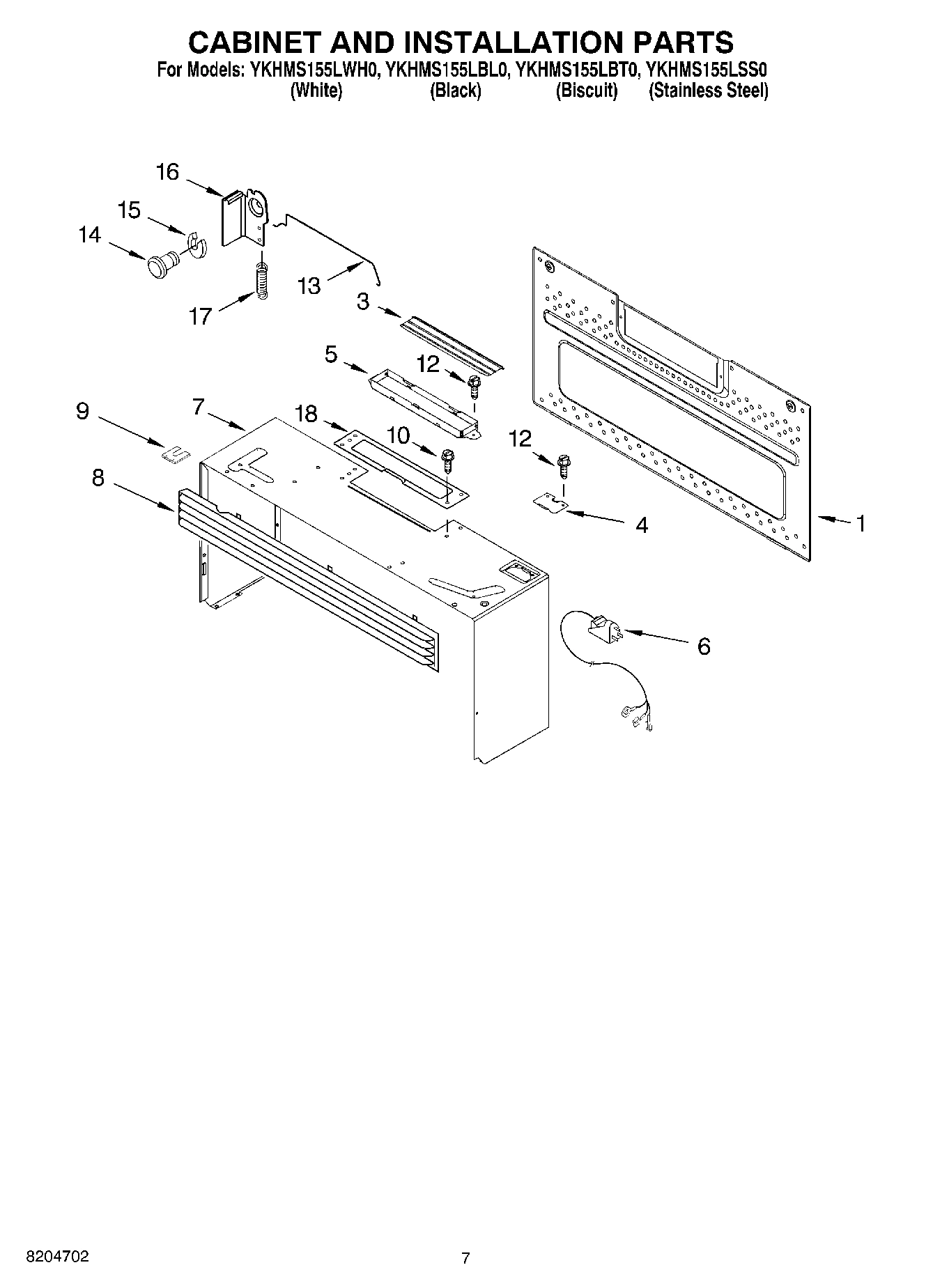

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool YKHMS155LBT0 MICROWAVE HOOD COMBINATION
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8183732 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8185495 Contact Us For Availability
1
Literature Parts (Cooking Guide Label (Englis WPL LIT8185496 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8185497 Contact Us For Availability
1
Literature Parts (Cooking Guide Label (French WPL LIT8204749 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Lens WPL 4393905 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
3
Stirrer WPL 8184633 Contact Us For Availability
3
Panel, Control (White) WPL 8169729 Contact Us For Availability
3
Panel, Control (Black) WPL 8169730 Contact Us For Availability
3
Panel, Control (Stainless) WPL 8169731 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8169732 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Bracket, Support WPL 8183832 Contact Us For Availability
4
Bracket, Control WPL 8183821 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169546 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Glass, Outer (Clear) WPL 8183704 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Filter WPL 8169561 Contact Us For Availability
6
PCB Assembly WPL 8183822 Contact Us For Availability
6
Panel, Door (Black) WPL 8185349 Contact Us For Availability
6
Panel, Door (White) WPL 8204715 Contact Us For Availability
6
Panel, Door (Biscuit) WPL 8204775 Contact Us For Availability
7
Nail, Plastic WPL 8184549 Contact Us For Availability
7
Screw WPL 4393828 Contact Us For Availability
7
Handle, Door (White) WPL 8169737 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169739 Contact Us For Availability
7
Handle, Door (Black) WPL 8184320 Contact Us For Availability
7
Case, Outer (White) WPL 8169660 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8169664 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Grille, Vent (White) WPL 8184148 Contact Us For Availability
8
Screw WPL 4393833 Contact Us For Availability
8
Grille, Vent (Biscuit) WPL 8184146 Contact Us For Availability
8
Wheel, Fan WPL 8204694 Contact Us For Availability
8
Screw WPL 4393346 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8184317 Contact Us For Availability
9
Motor, Fan WPL 8169632 Contact Us For Availability
9
Switch, Membrane (White) WPL 8169726 Contact Us For Availability
9
Switch, Membrane (Black) WPL 8169727 Contact Us For Availability
9
Switch, Membrane (Biscuit) WPL 8169728 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184592 Contact Us For Availability
10
Frame, Outer (White) WPL 8184149 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8184744 Contact Us For Availability
10
Shield WPL 8204754 Contact Us For Availability
10
Frame, Outer (Stainless) WPL 8184319 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138789A Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
14
Screw WPL 4393316 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Nut WPL 8184404 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Catch WPL 8185033 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Installation, Hardware WPL 8169659 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Wall Template WPL 8169765 Contact Us For Availability
18
Upper Cab Template WPL 8183734 Contact Us For Availability
18
Rack WPL 8204725 Contact Us For Availability
18
Miscellaneous WPL ARI138790A Contact Us For Availability
19
Holder, Lamp WPL 8185084 Contact Us For Availability
21
Adapter, Motor WPL 8184000 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
24
Thermostat/Bracket WPL 8184585 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
31
Clip WPL 8169647 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
× ![]()
