Model Whirlpool YKHMS147HWH2 MICROWAVE OVEN 1.4 CU. FT. – Common Parts & Diagrams
03 - INTERIOR AND VENTILATION PARTS

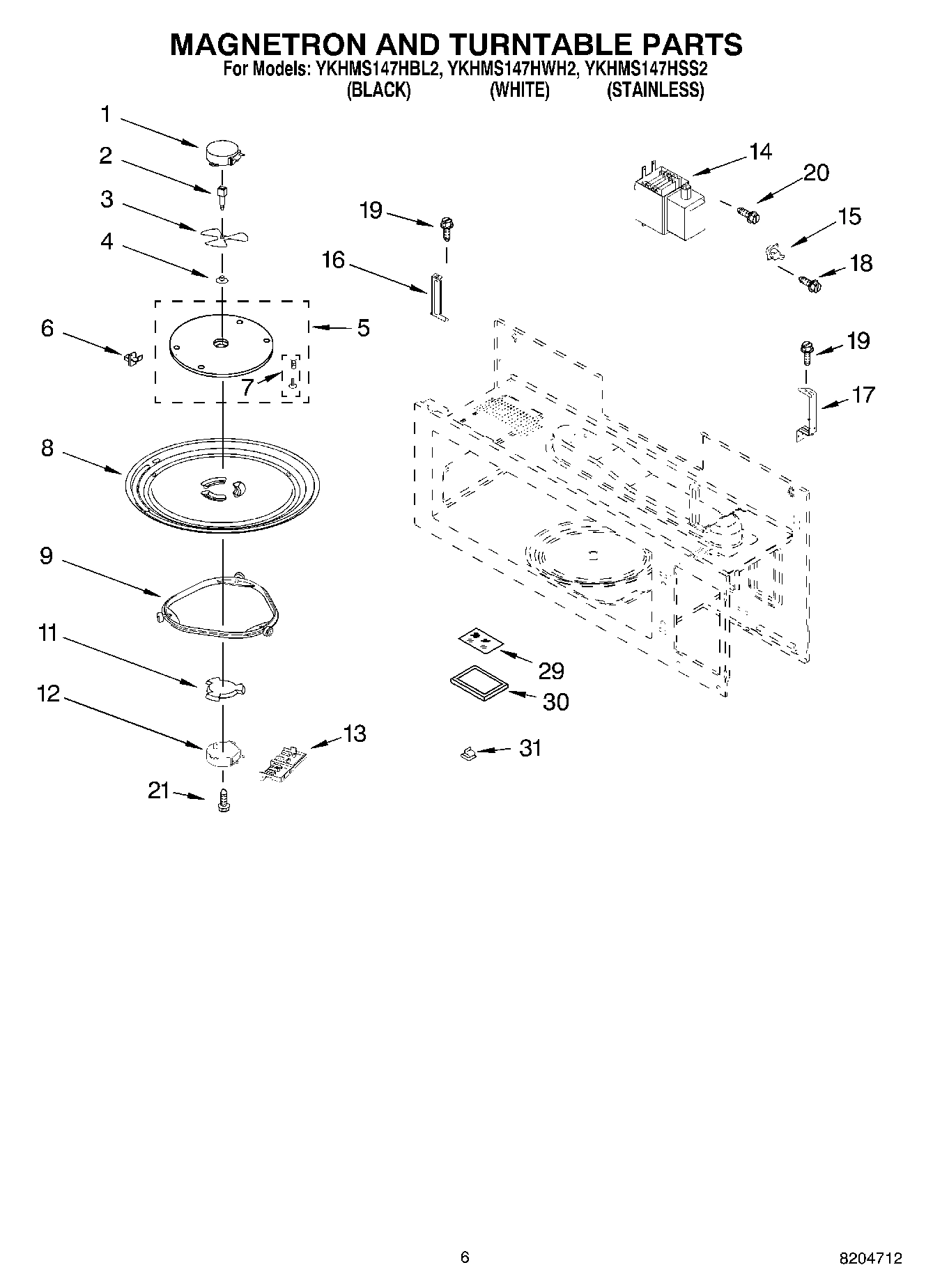

05 - MAGNETRON AND TURNTABLE PARTS

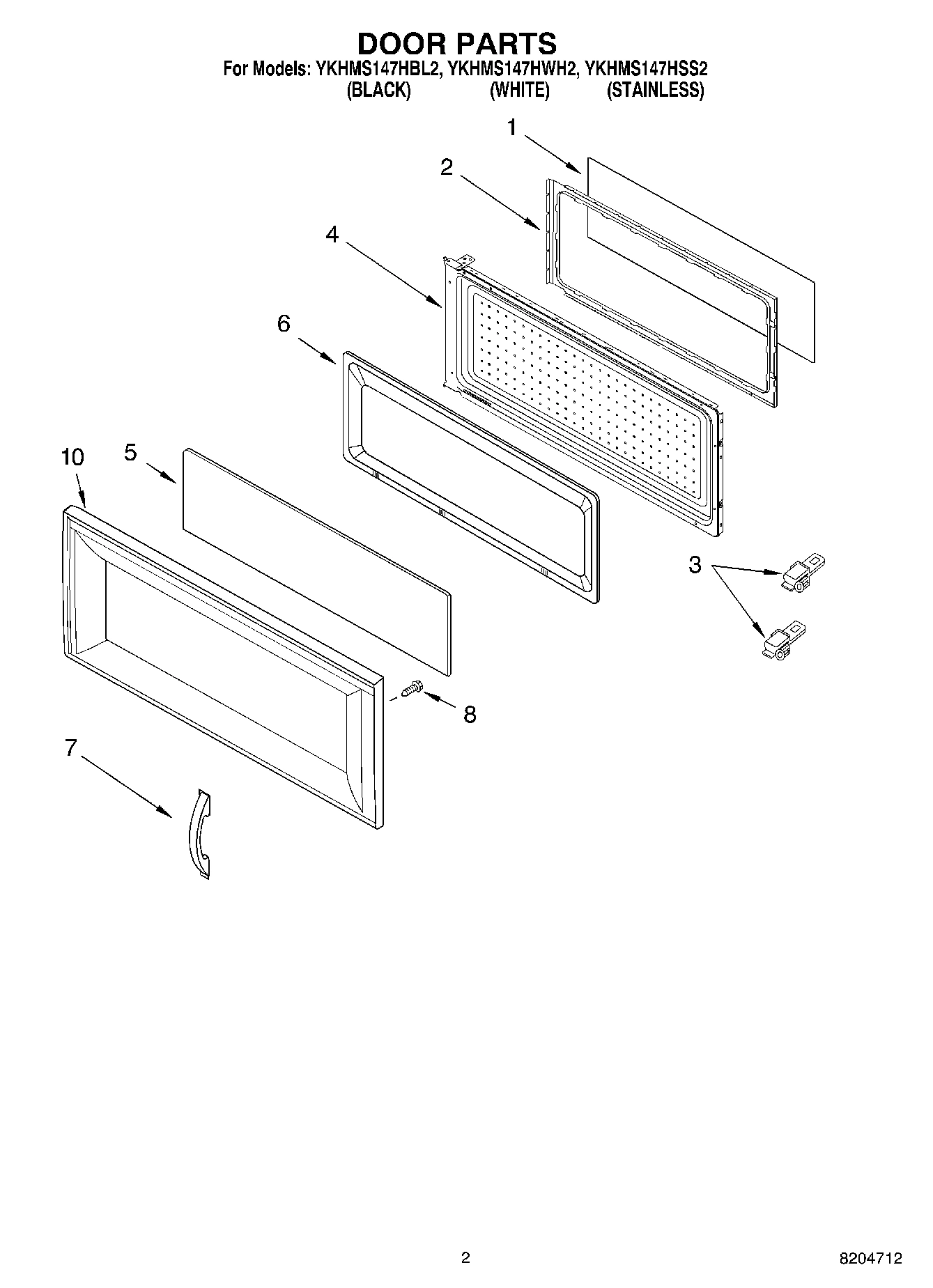

02 - DOOR PARTS

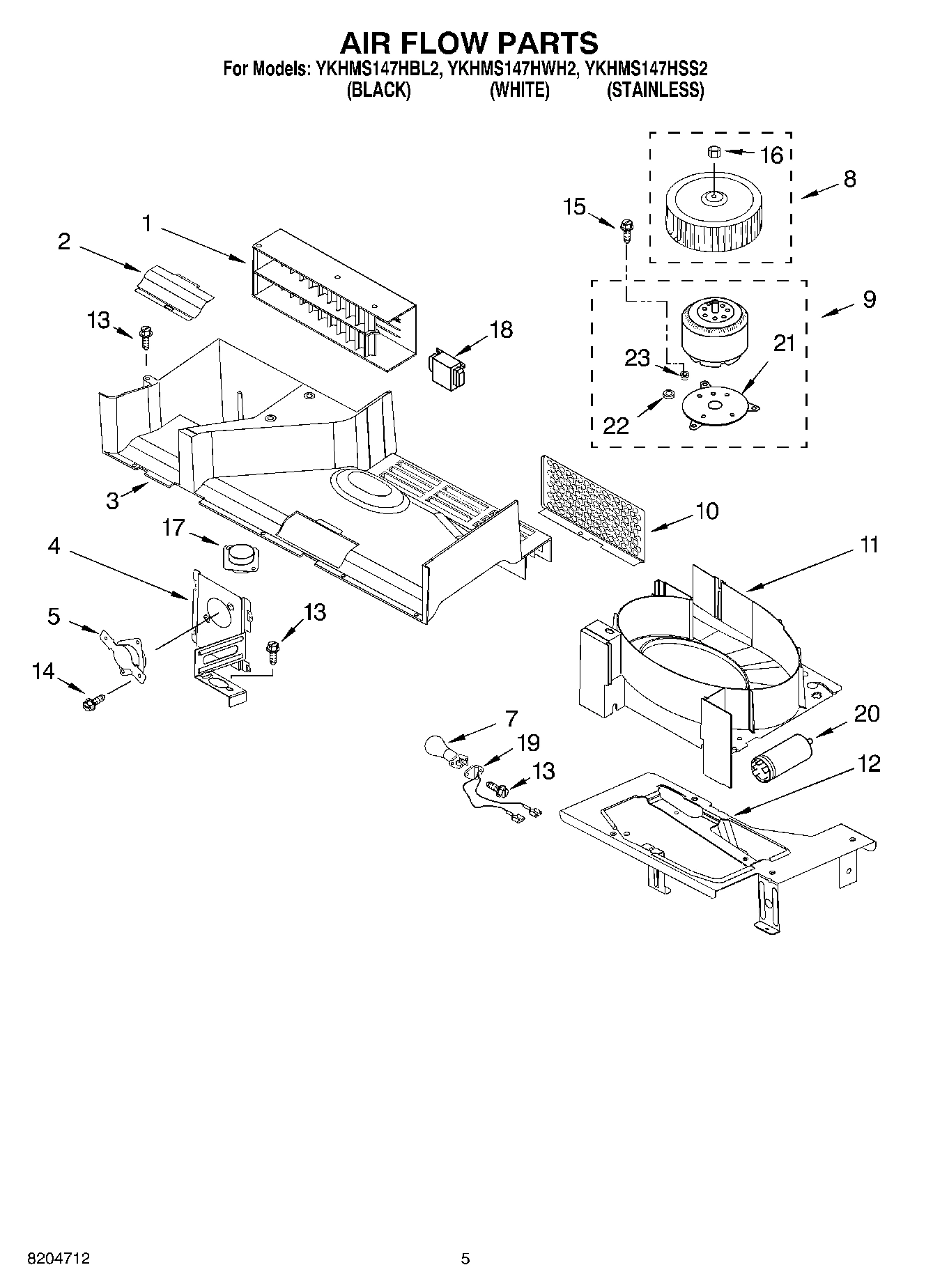

04 - AIR FLOW PARTS

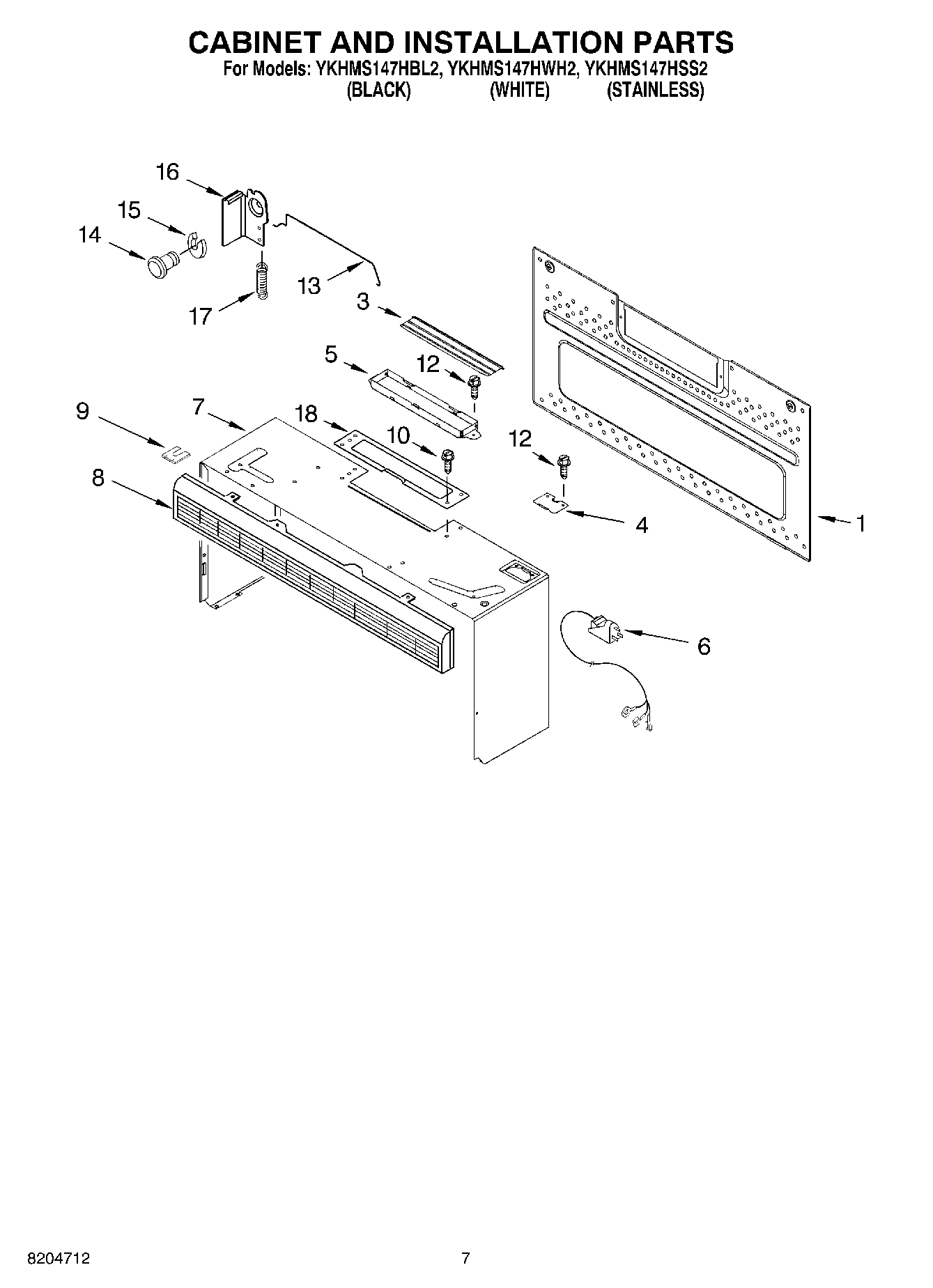

06 - CABINET AND INSTALLATION PARTS

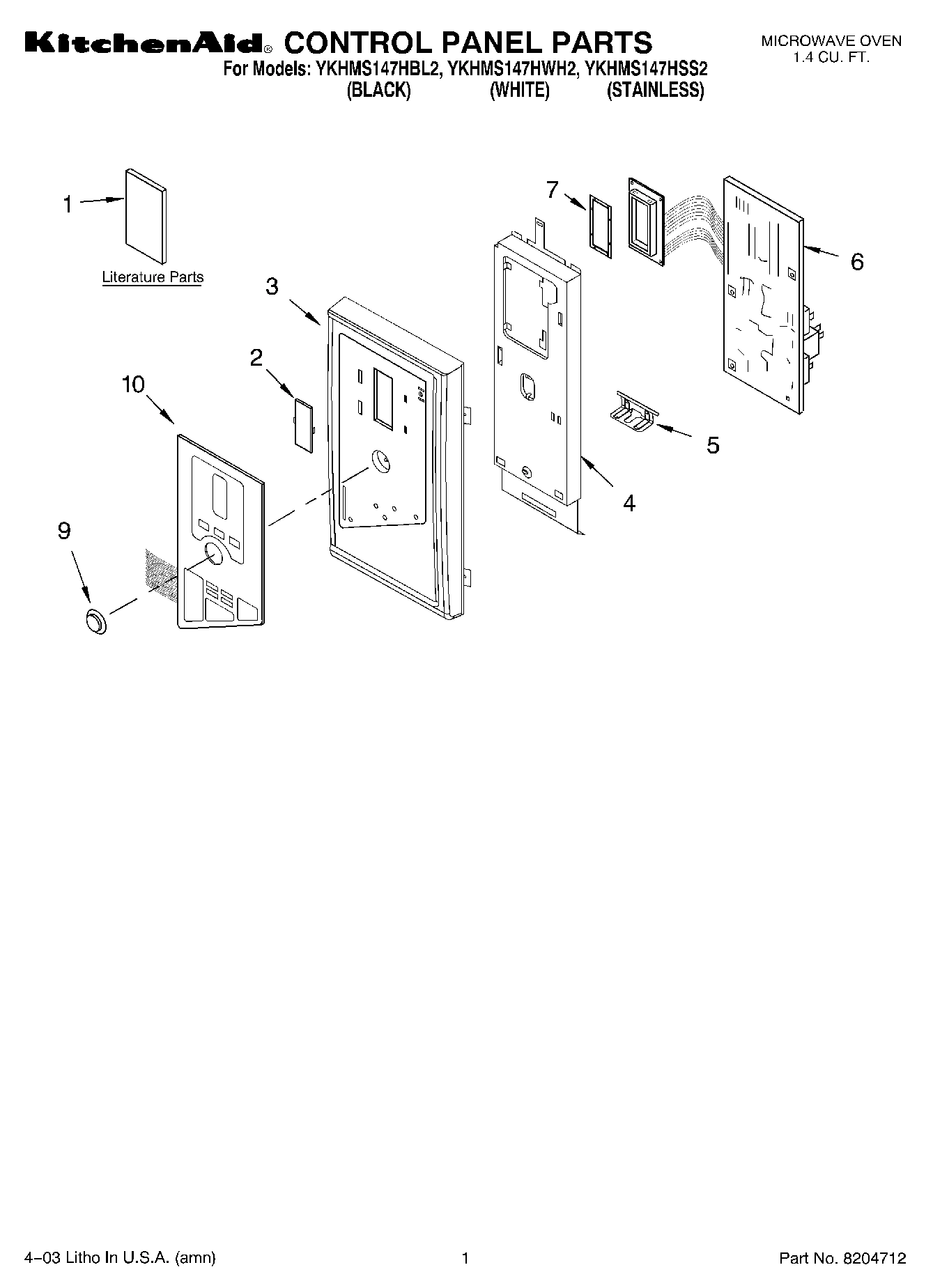

01 - CONTROL PANEL PARTS
Common parts from model Whirlpool YKHMS147HWH2 MICROWAVE OVEN 1.4 CU. FT.
1
Motor, Stirrer WPL 4393746 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 8184638 Contact Us For Availability
1
Literature Parts (LIT8169442 (English)) WPL LIT8169442 Contact Us For Availability
1
Literature Parts (Cook Guide Label (French)) WPL LIT8169649 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8169723 Contact Us For Availability
1
Literature Parts (U & C Guide) WPL LIT8183730 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8184430 Contact Us For Availability
2
Frame, Inner WPL 8169545 Contact Us For Availability
2
Shaft, Stirrer WPL 4393794 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
2
Lens WPL 8169521 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Stirrer WPL 4393748 Contact Us For Availability
3
Duct, Air WPL 8185083 Contact Us For Availability
3
Panel, Control (Stainless) WPL 8184325 Contact Us For Availability
3
Panel, Control (White) WPL 8204713 Contact Us For Availability
3
Panel, Control (Black) WPL 8204714 Contact Us For Availability
4
Body, Door (White) WPL 8169653 Contact Us For Availability
4
Guide, Stirrer WPL 4393749 Contact Us For Availability
4
Body, Door (Black) WPL 8169460 Contact Us For Availability
4
Bracket, Thermostat WPL 8204653 Contact Us For Availability
4
Lid, Power Cord WPL 8184313 Contact Us For Availability
4
Bracket, Control WPL 8169525 Contact Us For Availability
5
Glass, Outer (Black) WPL 4393725 Contact Us For Availability
5
Thermostat WPL 8183697 Contact Us For Availability
5
Cover, Inlet WPL 8184476 Contact Us For Availability
5
Glass, Outer (White) WPL 8183704 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
6
Hook, Rack (4) WPL 8204662 Contact Us For Availability
6
Panel, Door (Black) WPL 8185349 Contact Us For Availability
6
Panel, Door (White) WPL 8204715 Contact Us For Availability
6
PCB Assembly WPL 8169526 Contact Us For Availability
7
Nail, Plastic WPL 4393291 Contact Us For Availability
7
Handle, Door (White) WPL 8169737 Contact Us For Availability
7
Case, Outer (White) WPL 8169502 Contact Us For Availability
7
Case, Outer (Black) WPL 8169661 Contact Us For Availability
7
Gasket, Silicone WPL 8169555 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Grille, Vent (White) WPL 8184148 Contact Us For Availability
8
Wheel, Fan WPL 4393960 Contact Us For Availability
8
Grille, Vent (Stainless) WPL 8184641 Contact Us For Availability
9
Motor, Fan WPL 8169632 Contact Us For Availability
9
Knob (White) WPL 8169747 Contact Us For Availability
9
Knob (Black) WPL 8183950 Contact Us For Availability
10
Frame, Outer (Black) WPL 8184592 Contact Us For Availability
10
Frame, Outer (White) WPL 8184149 Contact Us For Availability
10
Frame, Outer (Stainless) WPL 8184319 Contact Us For Availability
10
Shield WPL 8184130 Contact Us For Availability
10
Switch, Membrane (Black) WPL 8183874 Contact Us For Availability
10
Switch, Membrane (White) WPL 8184324 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8185085 Contact Us For Availability
12
Plate, Cam WPL 8183824 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
12
Bracket, Fan (Not Serviced) WPL ARI138781A Contact Us For Availability
13
Screw WPL 8169474 Contact Us For Availability
13
Cover, Terminal WPL 4393756 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
14
Screw WPL 4393316 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 8183698 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Holder, Connector (L) WPL 8169540 Contact Us For Availability
16
Nut WPL 8184404 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Holder, Connector (R) WPL 8169705 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
18
Screw WPL 4393838 Contact Us For Availability
18
Transformer, L.V. WPL 8169496 Contact Us For Availability
18
Rack WPL 4393826 Contact Us For Availability
18
Wall Template (En & Fr) WPL 8169293 Contact Us For Availability
18
Upper Cab Template (En & Fr) WPL 8169294 Contact Us For Availability
18
Plate, Damper WPL 8169697 Contact Us For Availability
18
Hardware, Installation WPL 8169768 Contact Us For Availability
18
Miscellaneous WPL ARI138782A Contact Us For Availability
19
Holder, Lamp WPL 8185084 Contact Us For Availability
20
Filter WPL 8169561 Contact Us For Availability
21
Adapter, Motor WPL 8184000 Contact Us For Availability
22
Plate, Damper WPL 4393874 Contact Us For Availability
23
Cushion, Mtr WPL 8169635 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
29
Glass, Lamp WPL 8169499 Contact Us For Availability
30
Frame, Glass WPL 8169646 Contact Us For Availability
31
Clip WPL 8169647 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
35
Screw WPL 8169475 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
