Model Whirlpool YKESC300HW5 30`` Slide-In Electronic Range DESIGNER STYLE – Common Parts & Diagrams
02 - CONTROL PANEL PARTS
05 - OVEN PARTS

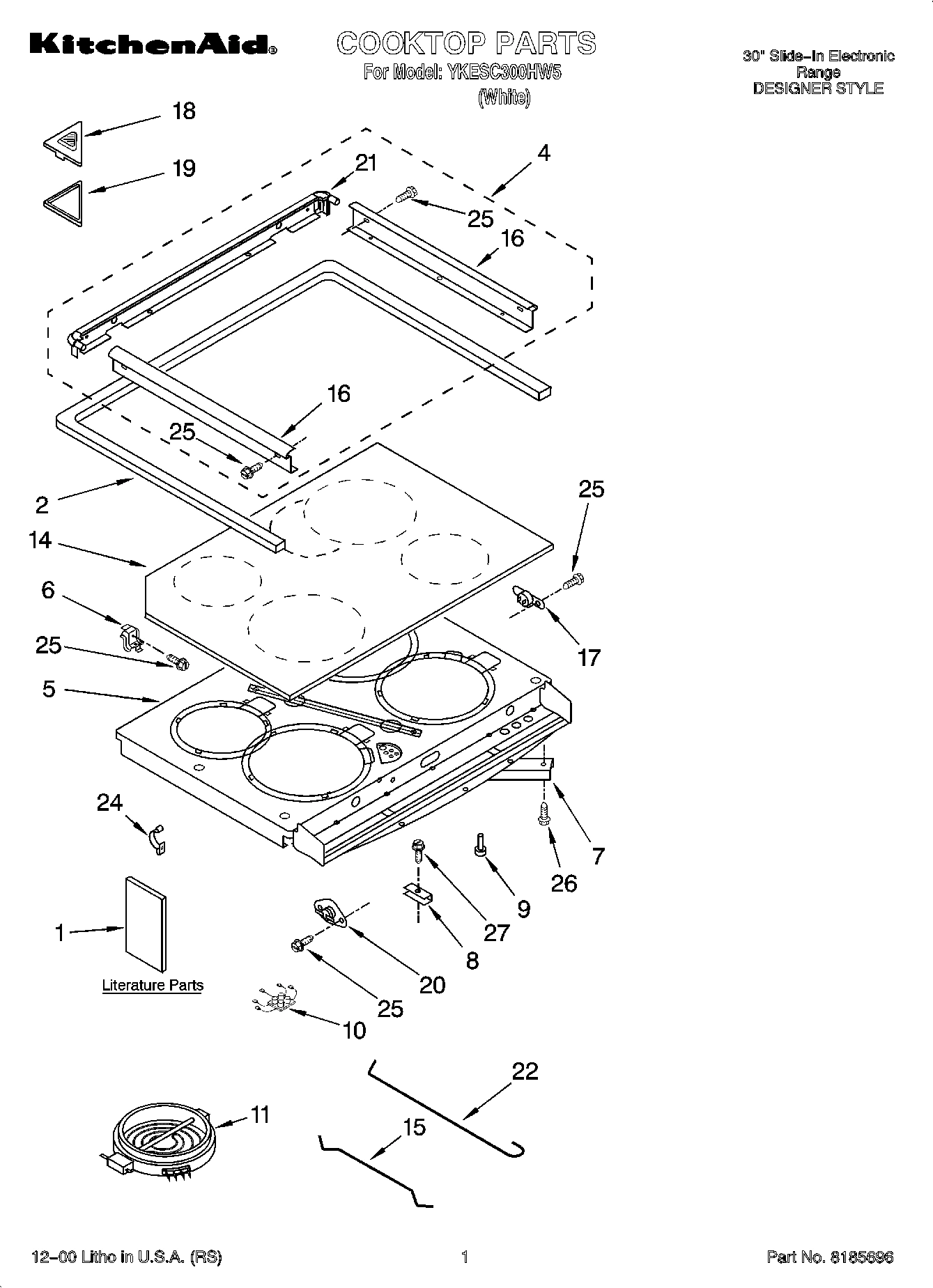

01 - COOKTOP PARTS

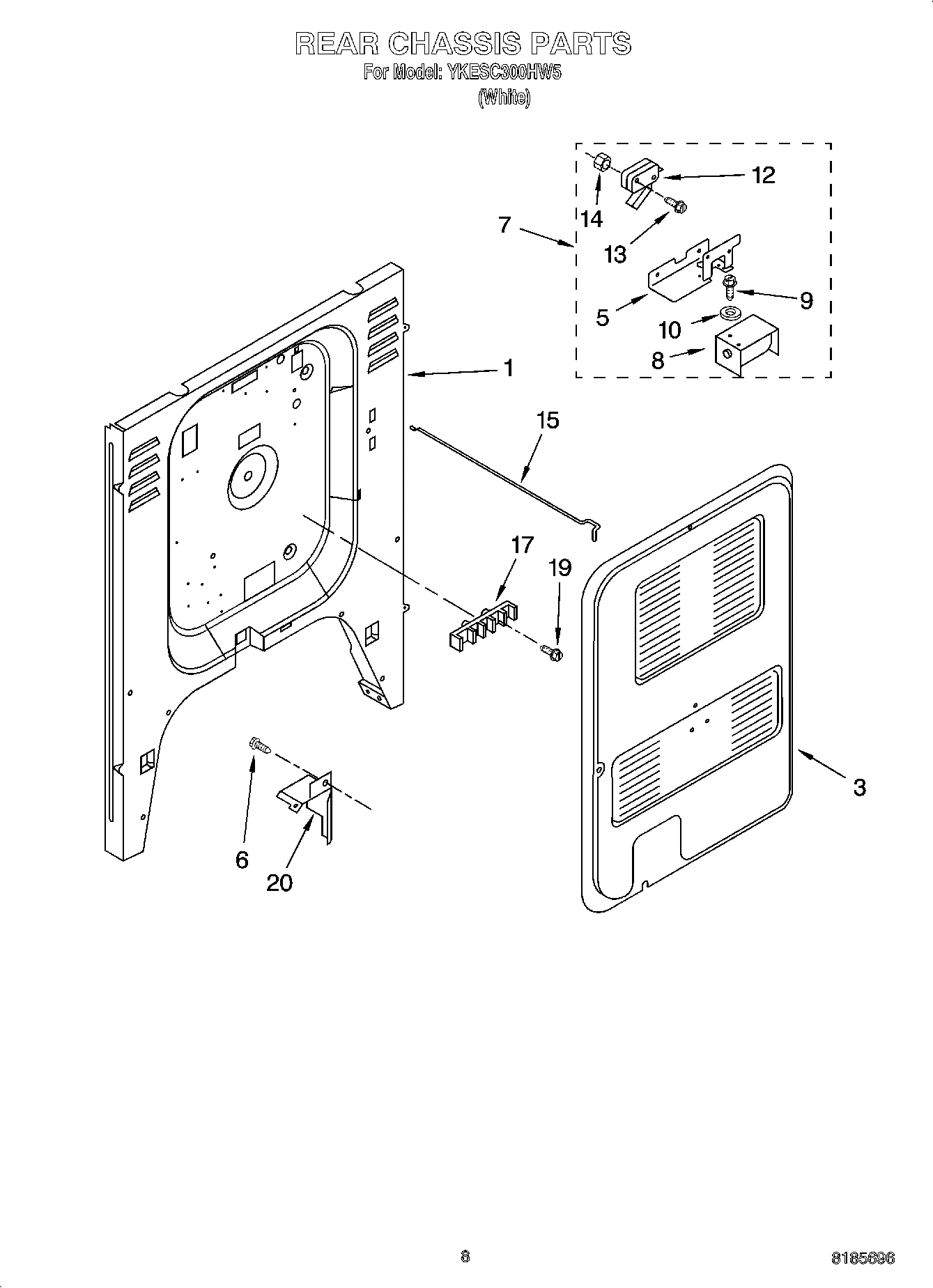

06 - REAR CHASSIS PARTS, MISCELLANEOUS PARTS

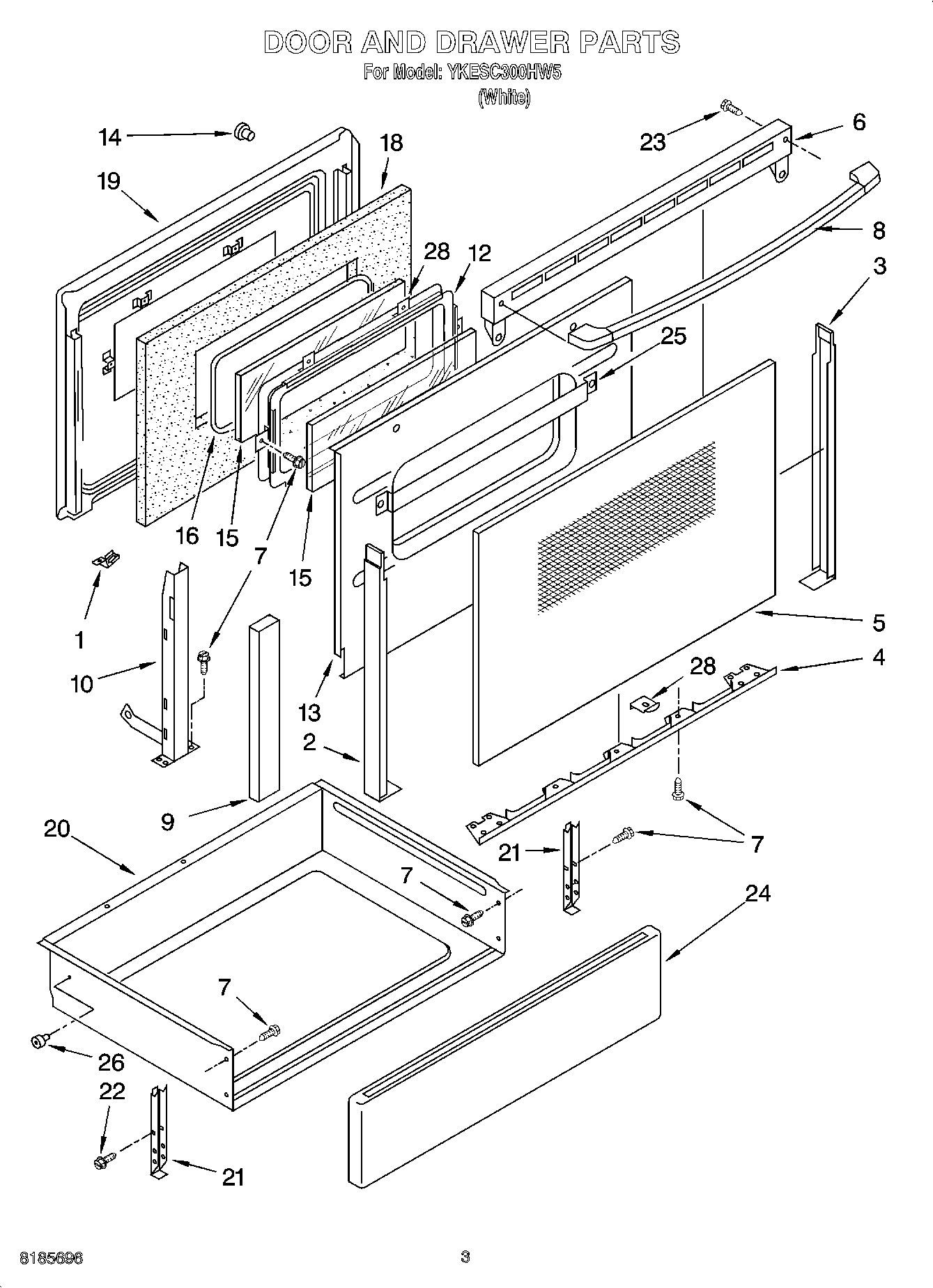

03 - DOOR AND DRAWER PARTS

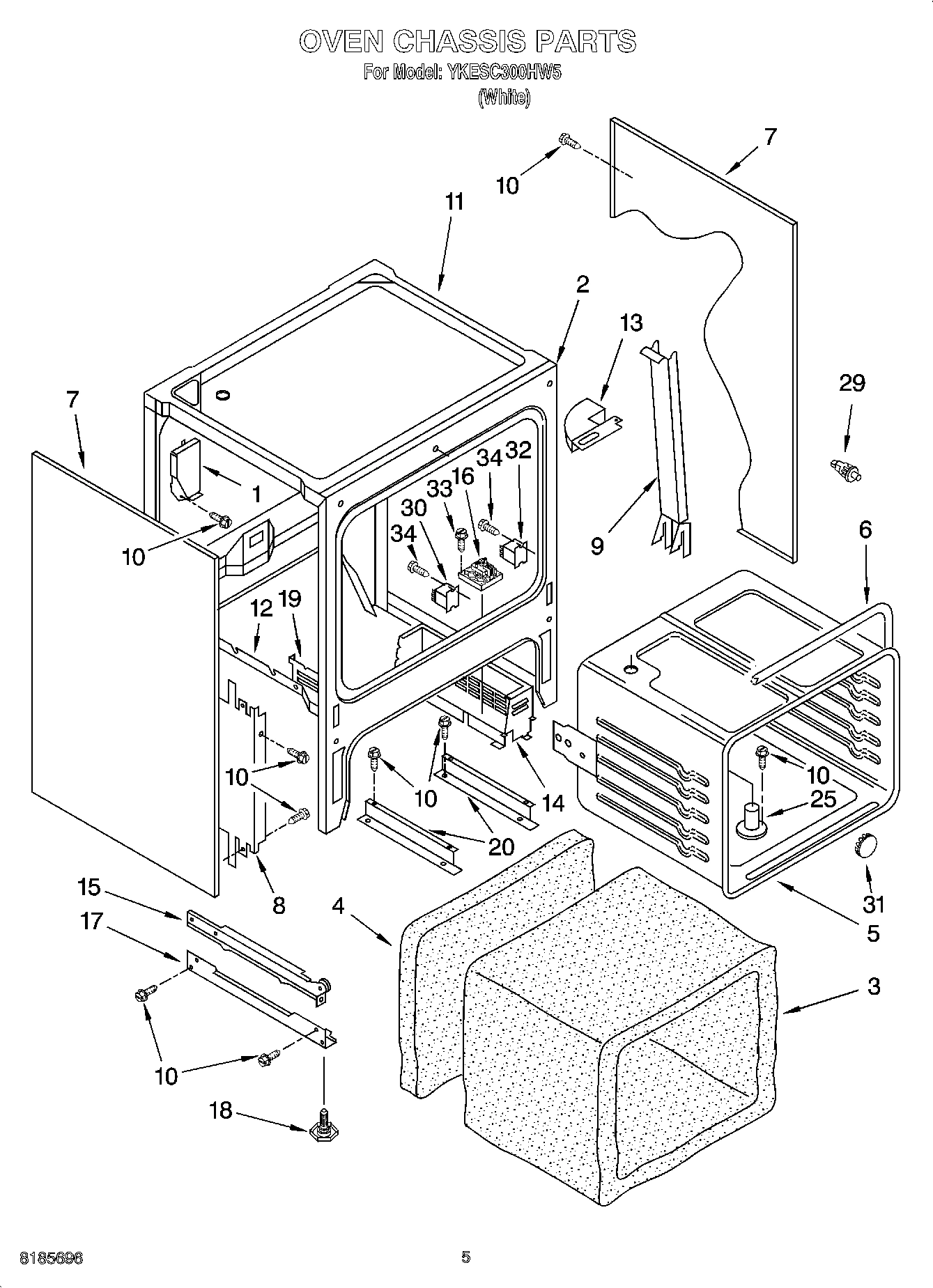

04 - OVEN CHASSIS PARTS
Common parts from model Whirlpool YKESC300HW5 30`` Slide-In Electronic Range DESIGNER STYLE
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
WPL 9751745 WPL 9751745 Contact Us For Availability
WPL 9781769 WPL 9781769 Contact Us For Availability
Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability
Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability
Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability
Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability
Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability
Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability
Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability
Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability
Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
Grease WPL 261582 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Coffee) WPL 261886 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (New Avocad WPL 261888 Contact Us For Availability
PAINT, PRESSURIZED SPRAY (12 oz.) (Harvest Go WPL 261890 Contact Us For Availability
PAINT, BULK (1 qt.) (Harvest Gold (Uncut)) WPL 261891 Contact Us For Availability
Clip, Ground Wire WPL 313660 Contact Us For Availability
WPL 72108 WPL 72108 Contact Us For Availability
WPL 799832 WPL 799832 Contact Us For Availability
WPL 9750376 WPL 9750376 Contact Us For Availability
WPL 9750984 WPL 9750984 Contact Us For Availability
WPL 9751868 WPL 9751868 Contact Us For Availability
WPL 9752954 WPL 9752954 Contact Us For Availability
WPL 9781655 WPL 9781655 Contact Us For Availability
WPL 9781932 WPL 9781932 Contact Us For Availability
WPL 9782141 WPL 9782141 Contact Us For Availability
WPL 9782142 WPL 9782142 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL ARI138193A WPL ARI138193A Contact Us For Availability
WPL ARI138194A WPL ARI138194A Contact Us For Availability
WPL ARI138195A WPL ARI138195A Contact Us For Availability
WPL ARI138196A WPL ARI138196A Contact Us For Availability
WPL ARI138197A WPL ARI138197A Contact Us For Availability
WPL ARI138198A WPL ARI138198A Contact Us For Availability
WPL ARI138199A WPL ARI138199A Contact Us For Availability
WPL ARI138200A WPL ARI138200A Contact Us For Availability
1
Element, Broil WPL 9750967 Contact Us For Availability
1
Rear, Chassis WPL 9751051 Contact Us For Availability
1
Retainer, Panel WPL 9750676 Contact Us For Availability
1
Vent Box, Oven WPL 9751350 Contact Us For Availability
2
ELMNT-BAKE WPL 9750213 Contact Us For Availability
2
Gasket, Cooktop (Front & Sides) WPL 9754103 Contact Us For Availability
2
Trim, Door-Left WPL 9782003PW Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
3
Trim, Door-Right WPL 9782004PW Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
4
Trim, Door Bottom WPL 9781209PW Contact Us For Availability
5
Bracket, Lock WPL 9751418 Contact Us For Availability
5
Glass, Door WPL 9781627PW Contact Us For Availability
5
Oven Liner WPL 9781293GM Contact Us For Availability
6
Vent, Door WPL 9753498GW Contact Us For Availability
6
Gasket, Oven WPL 3191649 Contact Us For Availability
7
Oven Lock Assembly WPL 9782104 Contact Us For Availability
7
Gasket, Vent WPL 9781659 Contact Us For Availability
7
Oven, Side WPL 9781907PW Contact Us For Availability
8
Solenoid WPL 9751590 Contact Us For Availability
8
Handle, Door WPL 9780523PW Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Screw,10-32 x 5/16 WPL 422222 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
10
Washer, Lock 10 WPL 424238 Contact Us For Availability
11
Burner Box WPL 9752637 Contact Us For Availability
12
Switch, Interloc WPL 9782106 Contact Us For Availability
12
Frame, Glass WPL 9781602 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Screw, 4-40 x 1 WPL 9750887 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
14
Cooktop, Ceran WPL 9753711CW Contact Us For Availability
14
Nut WPL 9750888 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Rod, Small Ceran Element WPL 9781460 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Trim, Side WPL 9781828PW Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Thermo-Disc WPL 341196 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Vent, Cover WPL 9751800 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Gasket, Vent WPL 9751841 Contact Us For Availability
19
Screw, 10-16 x 1 WPL 98884 Contact Us For Availability
19
Hinge, Receiver WPL 9782005 Contact Us For Availability
20
Vent, Back WPL 9751798 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
21
Switch, Infinite (1800W, RF) WPL 9751363 Contact Us For Availability
21
Switch, Infinite (2200W, RR) WPL 9751362 Contact Us For Availability
21
Switch, Infinite (1500W, LR) WPL 9751364 Contact Us For Availability
21
Rack, Standard WPL 9750498 Contact Us For Availability
21
Trim, Back (Includes End Caps) WPL 9781831PW Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
22
Sensor WPL 8053344 Contact Us For Availability
22
Nut, Mounting (Single Element) WPL 422617 Contact Us For Availability
22
Rod, Large Ceran Element WPL 9781459 Contact Us For Availability
22
Screw, 10-16 x 1/2 WPL 9780272 Contact Us For Availability
24
Front, Drawer WPL 9782108PW Contact Us For Availability
25
Channel, Heat WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
27
Screw, 10-16 x 1 WPL 9751871 Contact Us For Availability
28
Spacer, Door (8) WPL 9781502 Contact Us For Availability
29
Door Switch WPL 9781581 Contact Us For Availability
30
Relay, Dbl. WPL 9751948 Contact Us For Availability
31
Button, Plug WPL 9780578 Contact Us For Availability
32
Relay, Cooktop (2) WPL 9752149 Contact Us For Availability
33
Screw, 8-18 x 1 WPL 9751808 Contact Us For Availability
34
Screw, 8-32 x 3/8 WPL 9781509 Contact Us For Availability
× ![]()
