Model Whirlpool YKERS308XS0 30`` FREE STANDING ELECTRIC RANGE – Common Parts & Diagrams
04 - DOOR PARTS
02 - CONTROL PANEL PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

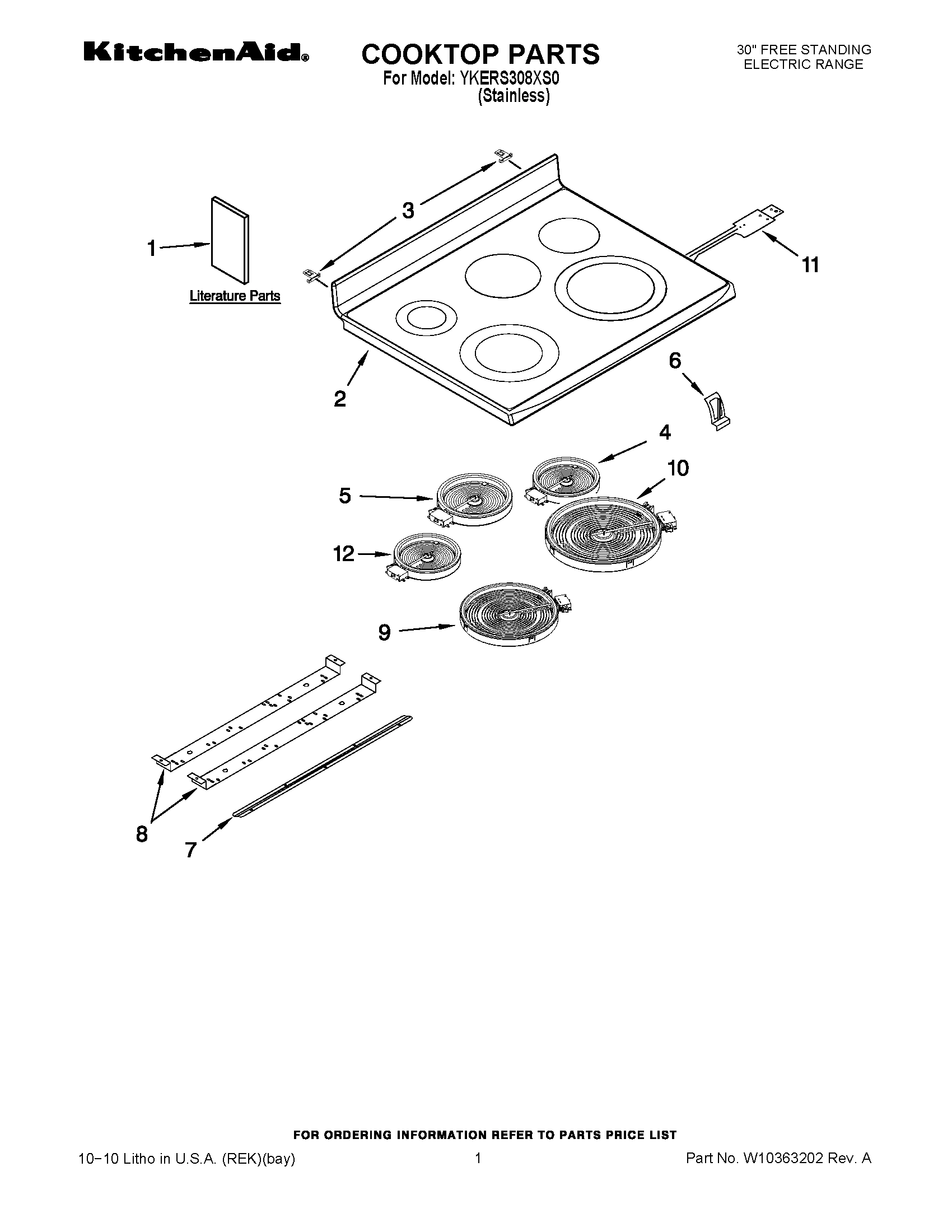

01 - COOKTOP PARTS

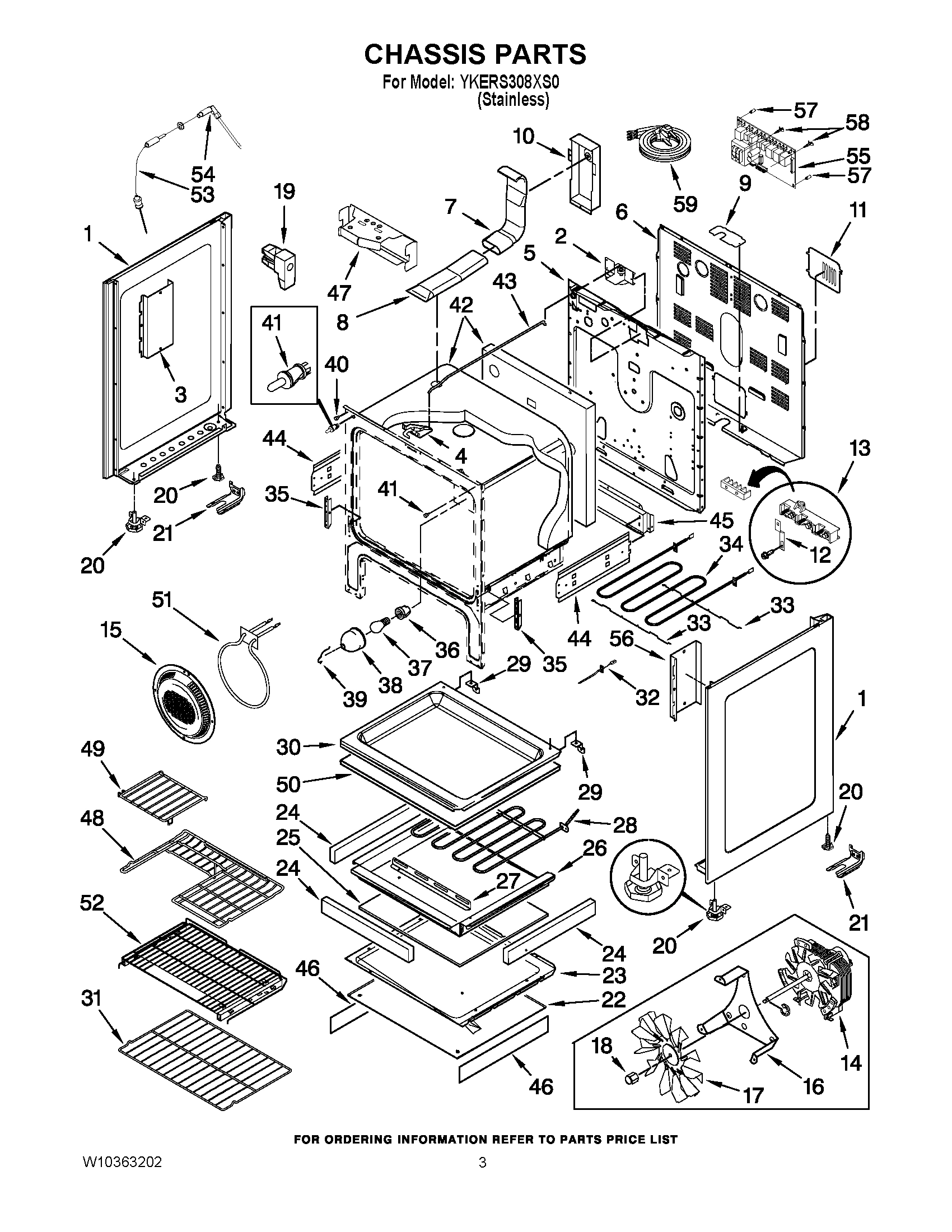

03 - CHASSIS PARTS

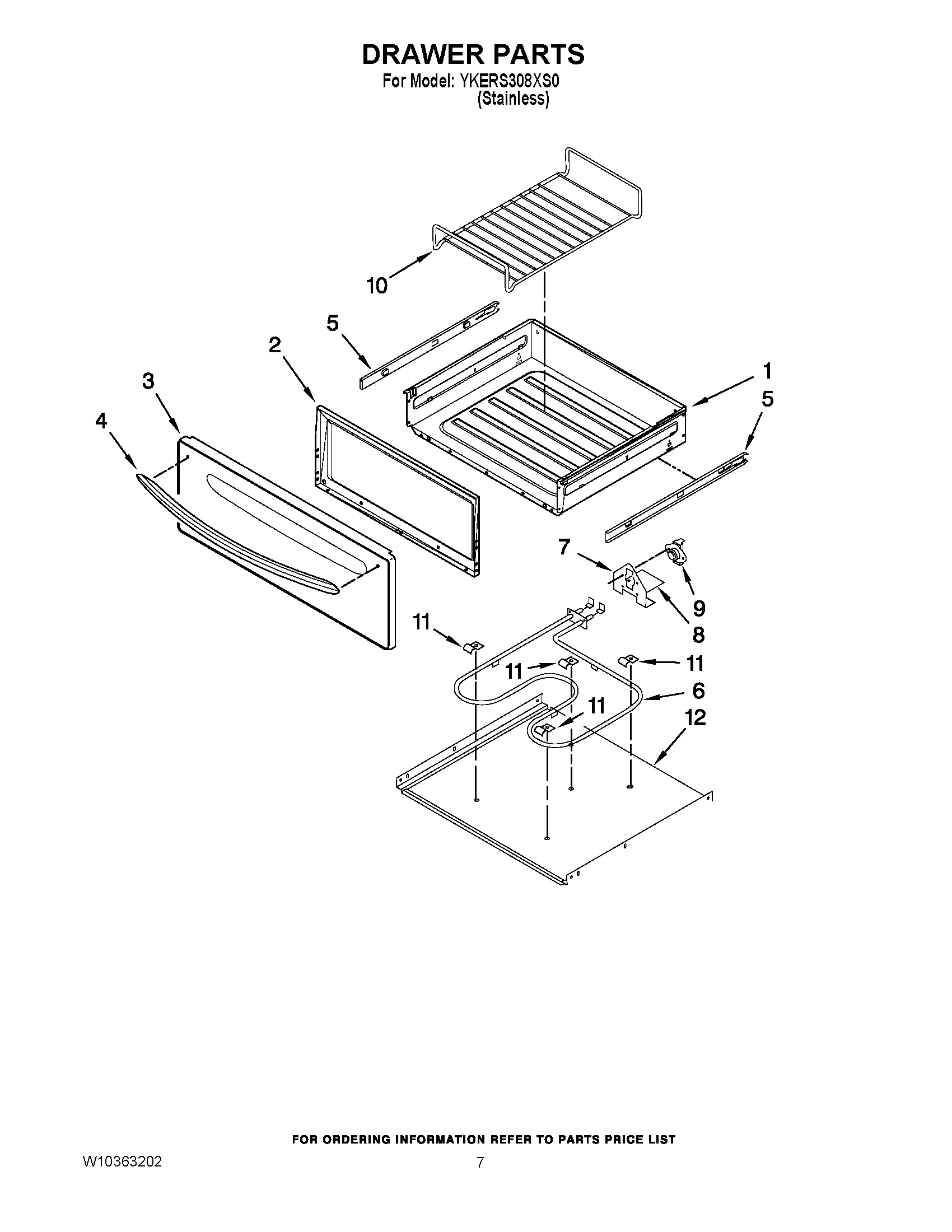

05 - DRAWER PARTS
Common parts from model Whirlpool YKERS308XS0 30`` FREE STANDING ELECTRIC RANGE
1
SUPPORT, CONTROL WPL W10356231 Contact Us For Availability
1
USE & CARE GUIDE WPL W10336758 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10344642 Contact Us For Availability
1
TECH SHEET WPL W10346741 Contact Us For Availability
1
PANEL, SIDE (BLACK-RH) WPL W10346237 Contact Us For Availability
1
PANEL, SIDE (BLACK-LH) WPL W10346238 Contact Us For Availability
1
DRAWER, UTILITY WPL W10354973 Contact Us For Availability
2
PANEL & MEMBRANE SWITCH (STAINLESS) WPL W10355131 Contact Us For Availability
2
COOKTOP (STAINLESS) WPL W10355280 Contact Us For Availability
2
LINER, DRAWER FRONT FRAME WPL W10350476 Contact Us For Availability
3
END CAP, RIGHT (BLACK) WPL W10340735 Contact Us For Availability
3
HINGE BRACKET COOKTOP WPL W10354984 Contact Us For Availability
3
SIDE SHIELD WPL W10347457 Contact Us For Availability
3
PANEL, DRAWER (STAINLESS) WPL W10350604 Contact Us For Availability
4
PANEL, TOUCHSCREEN WPL W10361427 Contact Us For Availability
4
ELEMENT, RR WPL W10350483 Contact Us For Availability
4
DOOR LATCH WPL W10346955 Contact Us For Availability
4
HANDLE, DRAWER (STAINLESS) WPL W10350605 Contact Us For Availability
5
ELEMENT, WARM WPL W10350493 Contact Us For Availability
5
COVER, INNER REAR WPL W10350105 Contact Us For Availability
5
GLIDE, DRAWER (LH) WPL W10347664 Contact Us For Availability
5
GLIDE, DRAWER (RH) WPL W10347665 Contact Us For Availability
6
CLIP, ELEMENT WPL W10350545 Contact Us For Availability
6
MAIN BACK WPL W10350451 Contact Us For Availability
6
ELEMENT-BAKE WARMING DRAWER WPL W10354990 Contact Us For Availability
7
BRACKET, SUPPORT COOKTOP, FRONT WPL W10350543 Contact Us For Availability
7
TUBE, VENT UPPER OVEN WPL W10350438 Contact Us For Availability
7
BRACKET, ELEMENT WPL W10355009 Contact Us For Availability
8
CHANNEL, ELEMENT SUPPORT WPL W10350542 Contact Us For Availability
8
TUBE, VENT WITH CATALYST WPL W10350337 Contact Us For Availability
8
SHIELD-TERMINAL WARMING DRAWER WPL W10355011 Contact Us For Availability
9
BRACKET, CORD WPL W10350461 Contact Us For Availability
9
THERMO DISC WPL W10355012 Contact Us For Availability
10
SHIELD, WIRE VENT TUBE WPL W10350117 Contact Us For Availability
10
RACK, WARMING DRAWER WPL W10355017 Contact Us For Availability
11
BRACKET, GLASS WPL W10350589 Contact Us For Availability
11
COVER, HOLE WPL W10355132 Contact Us For Availability
11
BRACKET, SUPPORT ELEMENT WPL W10347003 Contact Us For Availability
11
PANEL, ACCESS WPL W10350126 Contact Us For Availability
11
CLIP, HOLD DOWN WPL W10355014 Contact Us For Availability
12
ELEMENT, LR WPL W10354974 Contact Us For Availability
12
INSULATION, DOOR WPL W10350552 Contact Us For Availability
12
BRACKET, MOUNT WPL W10340740 Contact Us For Availability
12
GROUND STRAP WPL W10350442 Contact Us For Availability
12
BASE, WARMING DRAWER WPL W10355039 Contact Us For Availability
13
SEAL, DOOR WPL W10350574 Contact Us For Availability
13
BRACKET, MOUNT WPL W10315160 Contact Us For Availability
13
TERMINAL-BLOCK KIT WPL W10362700 Contact Us For Availability
14
CLIP, DOOR GLASS WPL W10350585 Contact Us For Availability
15
COVER, FAN WPL W10347448 Contact Us For Availability
16
BRACKET, MOTOR WPL W10347442 Contact Us For Availability
17
SPACER, DOOR HANDLE STAINLESS MODEL ONLY) WPL W10350610 Contact Us For Availability
18
GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS M WPL W10357230 Contact Us For Availability
18
NUT, FAN BLADE WPL W10347453 Contact Us For Availability
19
CLIP-OVEN BODY WPL W10346958 Contact Us For Availability
20
PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL WPL W10357232 Contact Us For Availability
20
LEG, LEVELING (REAR PLASTIC) WPL W10346263 Contact Us For Availability
20
LEG, LEVELING (FRONT METAL) WPL W10346264 Contact Us For Availability
22
SHIELD, HEAT OVEN LOWER WPL W10355048 Contact Us For Availability
23
SHIELD, HEAT WOOL LOWER WPL W10355055 Contact Us For Availability
24
INSULATION, OVEN BOTTOM WPL W10350135 Contact Us For Availability
25
INSULATION, LOWER SHIELD WPL W10350133 Contact Us For Availability
26
TRAY, BAKE ELEMENT WPL W10350109 Contact Us For Availability
27
BRACKET, SUPPORT BAKE ELEMENT WPL W10350112 Contact Us For Availability
28
BAKE ELEMENT, 3000 W WPL W10350448 Contact Us For Availability
29
BRACKET, SUPPORT OVEN BOTTOM WPL W10350111 Contact Us For Availability
30
OVEN BOTTOM WPL W10350107 Contact Us For Availability
31
OVEN RACK WPL W10346265 Contact Us For Availability
32
OVEN SENSOR WPL W10347247 Contact Us For Availability
33
SUPPORT, BROIL ELEMENT WPL W10350450 Contact Us For Availability
34
BROIL ELEMENT WPL W10350447 Contact Us For Availability
35
BRACKET, HINGE OVEN DOOR WPL W10350458 Contact Us For Availability
36
SOCKET, LIGHT WPL W10346268 Contact Us For Availability
38
LENS-LIGHT WPL W10346874 Contact Us For Availability
39
RETAINER, OVEN LIGHT LENS WPL W10346877 Contact Us For Availability
40
SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability
41
SWITCH, OVEN LIGHT WPL W10346267 Contact Us For Availability
42
INSULATION (OVEN WRAPPER) WPL W10350131 Contact Us For Availability
42
INSULATION (OVEN BACK) WPL W10350132 Contact Us For Availability
43
ROD, AUTO LATCH WPL W10350462 Contact Us For Availability
44
SHIELD-SIDE WPL W10355047 Contact Us For Availability
45
SHIELD, REAR WPL W10355050 Contact Us For Availability
46
GLIDE-OUTER WPL W10355274 Contact Us For Availability
47
BRACKET-PANEL WPL W10357267 Contact Us For Availability
48
HALF RACK WPL W10355045 Contact Us For Availability
49
HALF RACK-INSERT WPL W10355043 Contact Us For Availability
50
INSULATION, BAKE ELEMENT WPL W10355234 Contact Us For Availability
51
ELEMENT, CONVECT 350W WPL W10354972 Contact Us For Availability
52
RACK, SLIDING WPL W10355218 Contact Us For Availability
53
PROBE, MEAT WPL W10355210 Contact Us For Availability
54
RECEPTAC WPL W10355238 Contact Us For Availability
56
WPL W10356912 WPL W10356912 Contact Us For Availability
57
WPL W10361465 WPL W10361465 Contact Us For Availability
58
WPL W10361466 WPL W10361466 Contact Us For Availability
59
WPL W10358960 WPL W10358960 Contact Us For Availability
NI
HARNESS, WIRE UIB WPL W10355203 Contact Us For Availability
NI
HARNESS, WIRE POWER TO UIB WPL W10355209 Contact Us For Availability
NI
HARNESS, WIRE (MAIN) WPL W10355277 Contact Us For Availability
NI
HARNESS, WIRE (SURFACE) WPL W10355282 Contact Us For Availability
NI
HARNESS, WIRE WARM BASE WPL W10355283 Contact Us For Availability
× ![]()
