Model Whirlpool YKERS206XSS0 30`` FREE STANDING ELECTRIC RANGE – Common Parts & Diagrams

1

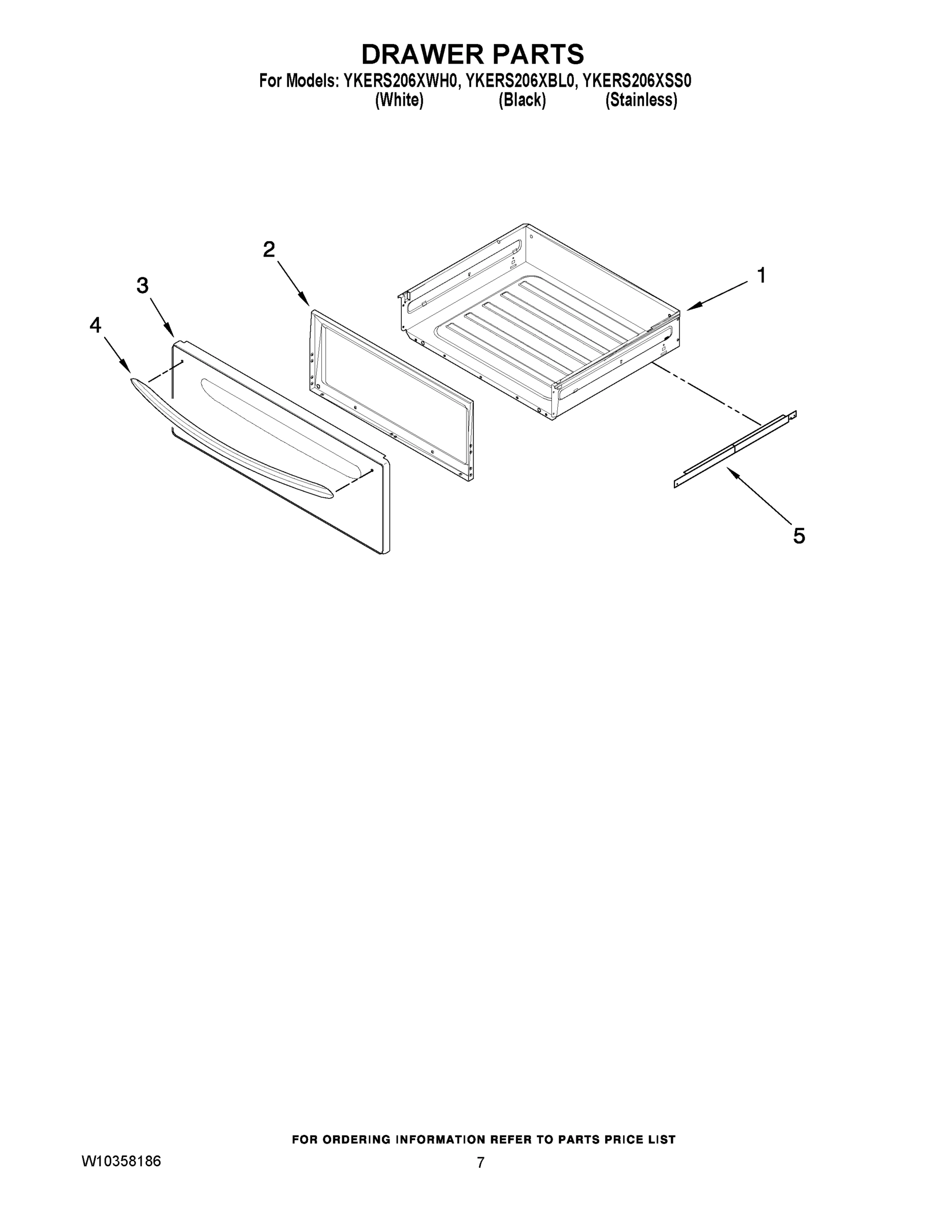

DRAWER, UTILITY
DRAWER, UTILITY WPL W10347679 Contact Us For Availability
View on Model
1
PANEL, SIDE (BLACK-RH)
PANEL, SIDE (BLACK-RH) WPL W10346237 Contact Us For Availability
View on Model
1
PANEL, SIDE (BLACK-LH)
PANEL, SIDE (BLACK-LH) WPL W10346238 Contact Us For Availability
View on Model
1
PANEL, SIDE (WHITE-RH)
PANEL, SIDE (WHITE-RH) WPL W10346239 Contact Us For Availability
View on Model
1
PANEL, SIDE (WHITE-LH)
PANEL, SIDE (WHITE-LH) WPL W10346240 Contact Us For Availability
View on Model
1
LENS
LENS WPL W10350097 Contact Us For Availability
View on Model
1
TRIM, DOOR TOP (WHITE)
TRIM, DOOR TOP (WHITE) WPL W10348025 Contact Us For Availability
View on Model
2
COOKTOP (BLACK)
COOKTOP (BLACK) WPL W10350539 Contact Us For Availability
View on Model
2
LINER, DRAWER
LINER, DRAWER WPL W10350476 Contact Us For Availability
View on Model
2

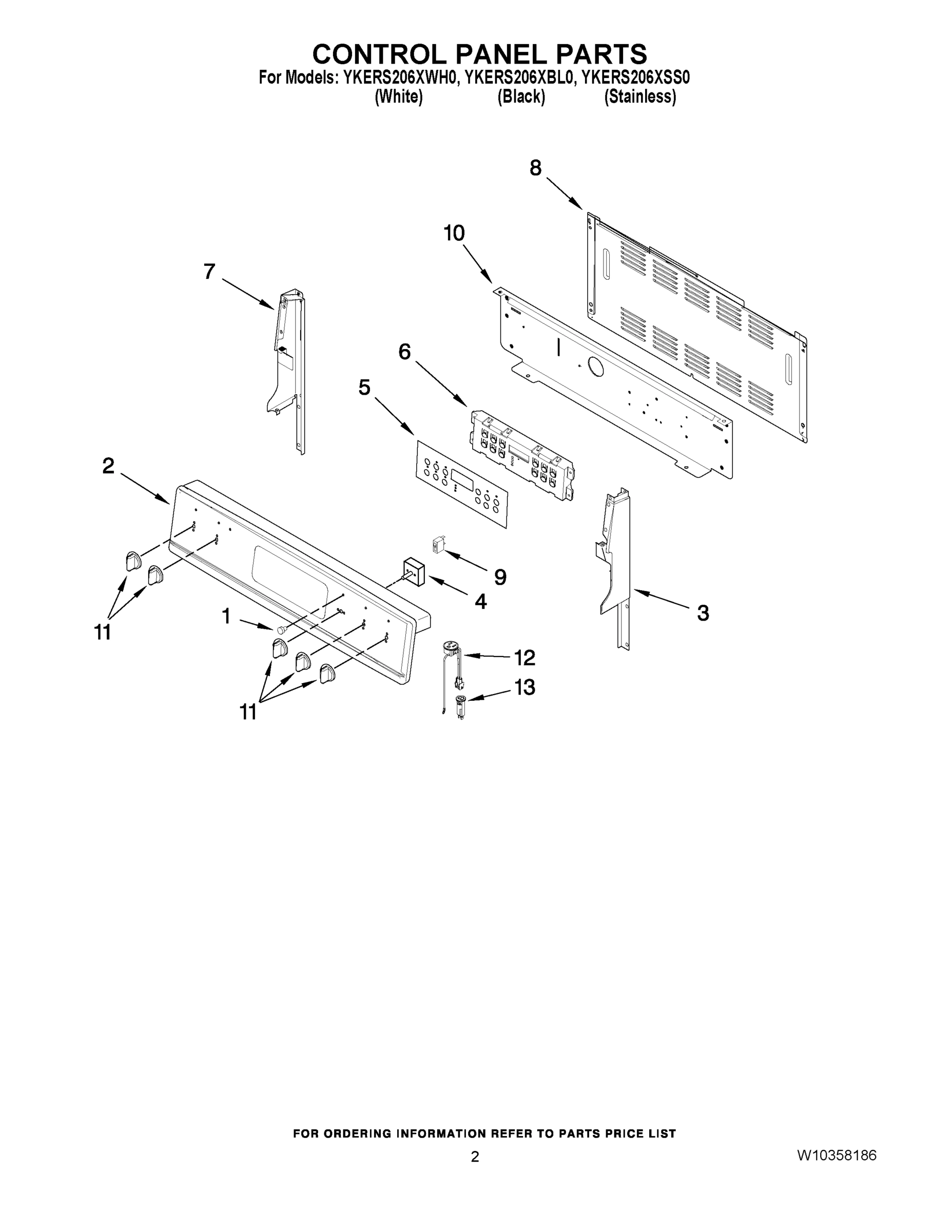

PANEL & MEMBRANE SWITCH (STAINLESS)
PANEL & MEMBRANE SWITCH (STAINLESS) WPL W10358956 Contact Us For Availability
View on Model
2
PANEL & MEMBRANE SWITCH (WHITE)
PANEL & MEMBRANE SWITCH (WHITE) WPL W10358957 Contact Us For Availability
View on Model
2
GLASS, INNER
GLASS, INNER WPL W10350569 Contact Us For Availability
View on Model
2
GLASS, INNER
GLASS, INNER WPL W10350571 Contact Us For Availability
View on Model
3
FRONT FRAME PANEL, DRAWER (WHITE)
FRONT FRAME PANEL, DRAWER (WHITE) WPL W10350478 Contact Us For Availability
View on Model
3
FRONT FRAME PANEL, DRAWER (STAINLESS)
FRONT FRAME PANEL, DRAWER (STAINLESS) WPL W10350604 Contact Us For Availability
View on Model
3

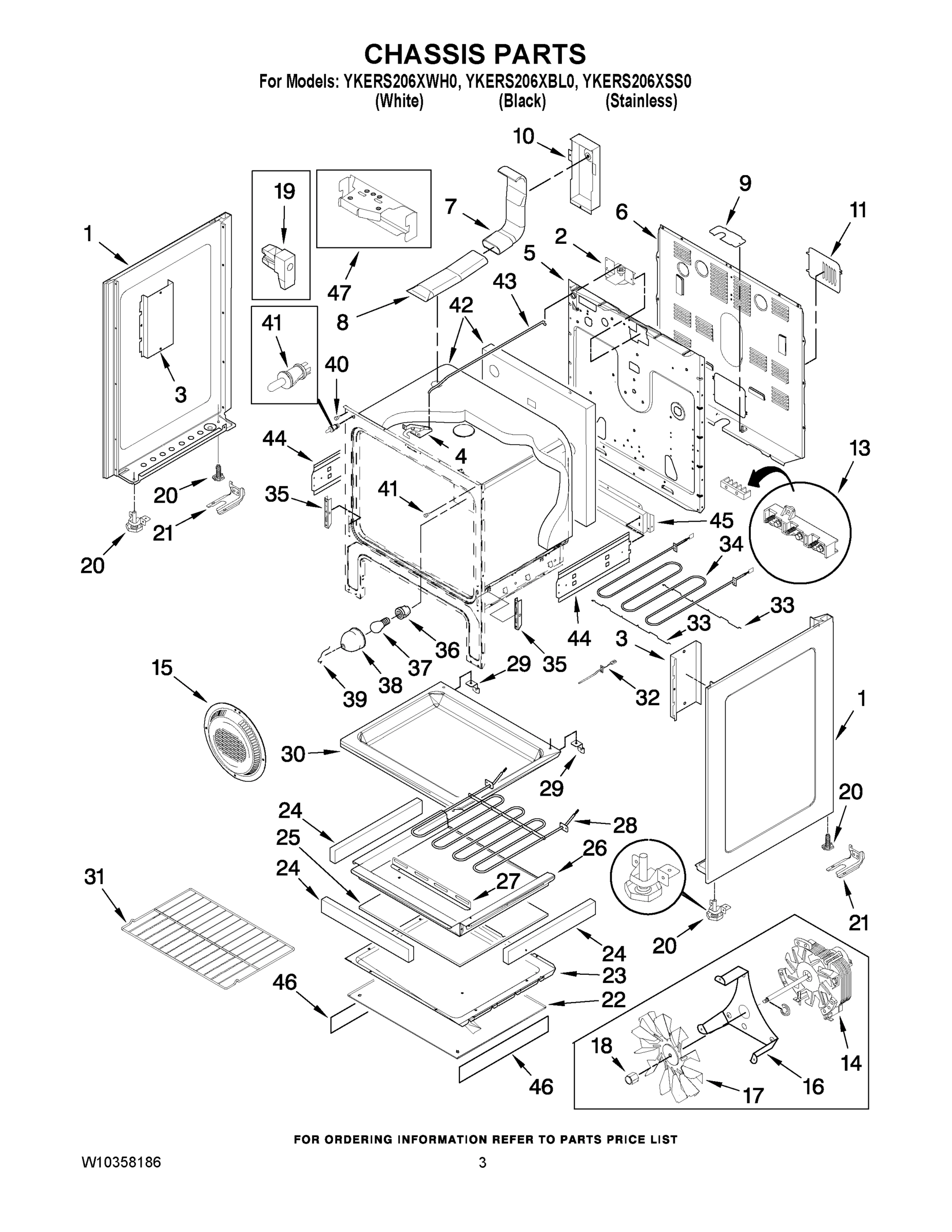

SIDE SHIELD
SIDE SHIELD WPL W10347457 Contact Us For Availability
View on Model
3
END CAP, RIGHT (BLACK)
END CAP, RIGHT (BLACK) WPL W10340735 Contact Us For Availability
View on Model
3
END CAP, RIGHT (WHITE)
END CAP, RIGHT (WHITE) WPL W10340736 Contact Us For Availability
View on Model
3

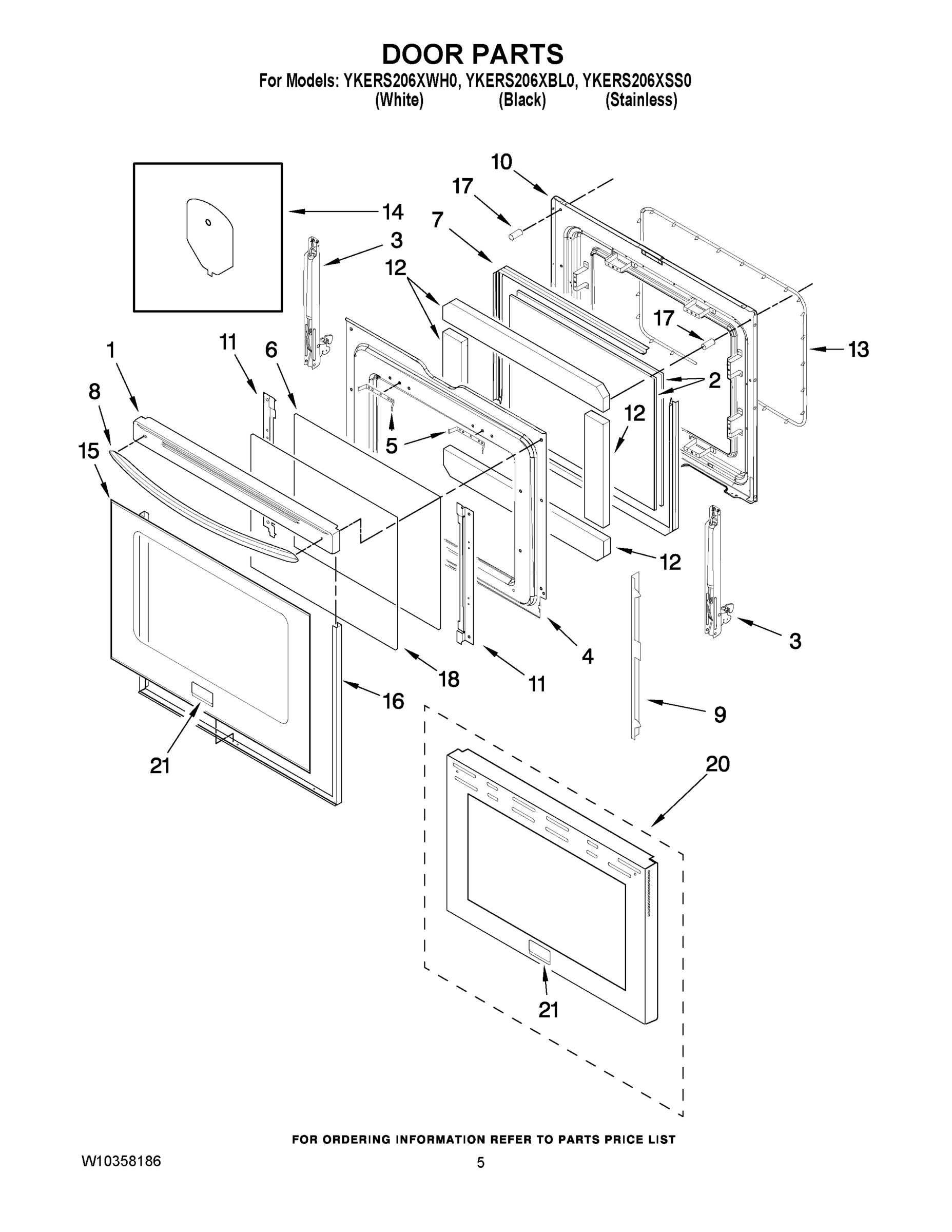

HINGE-DOOR
HINGE-DOOR WPL W10350586 Contact Us For Availability
View on Model
4
DOOR LATCH
DOOR LATCH WPL W10346955 Contact Us For Availability
View on Model
4
SWITCH, INFINTE (WARMER)
SWITCH, INFINTE (WARMER) WPL W10349884 Contact Us For Availability
View on Model
4
SWITCH, INFINTE (RADIAN DUAL RF/LF)
SWITCH, INFINTE (RADIAN DUAL RF/LF) WPL W10350101 Contact Us For Availability
View on Model
4
RETAINER, DOOR INSULATION
RETAINER, DOOR INSULATION WPL W10350551 Contact Us For Availability
View on Model
5
OVERLAY, CONTROL
OVERLAY, CONTROL WPL W10349893 Contact Us For Availability
View on Model
5
ELEMENT, WARM
ELEMENT, WARM WPL W10350493 Contact Us For Availability
View on Model
5
GLIDE, DRAWER (LH)
GLIDE, DRAWER (LH) WPL W10347664 Contact Us For Availability
View on Model
5
GLIDE, DRAWER (RH)
GLIDE, DRAWER (RH) WPL W10347665 Contact Us For Availability
View on Model
5
COVER, INNER REAR
COVER, INNER REAR WPL W10350105 Contact Us For Availability
View on Model
5
BRACKET, GLASS SPACER (STAINLESS MODEL ONLY)
BRACKET, GLASS SPACER (STAINLESS MODEL ONLY) WPL W10350617 Contact Us For Availability
View on Model
6
CONTROL
CONTROL WPL W10349892 Contact Us For Availability
View on Model
6
MAIN BACK
MAIN BACK WPL W10350451 Contact Us For Availability
View on Model
6
GLASS, AIRWASH (BLACK)
GLASS, AIRWASH (BLACK) WPL W10350579 Contact Us For Availability
View on Model
6
GLASS, AIRWASH (STAINLESS)
GLASS, AIRWASH (STAINLESS) WPL W10350606 Contact Us For Availability
View on Model
7
TUBE, VENT UPPER OVEN
TUBE, VENT UPPER OVEN WPL W10350438 Contact Us For Availability
View on Model
7
END CAP, LEFT (BLACK)
END CAP, LEFT (BLACK) WPL W10340740 Contact Us For Availability
View on Model
7
END CAP, LEFT (WHITE)
END CAP, LEFT (WHITE) WPL W10340744 Contact Us For Availability
View on Model
7
FRAME, GLASS INNER
FRAME, GLASS INNER WPL W10350584 Contact Us For Availability
View on Model
8
HANDLE, DOOR (WHITE)
HANDLE, DOOR (WHITE) WPL W10347824 Contact Us For Availability
View on Model
8
HANDLE, DOOR (STAINLESS)
HANDLE, DOOR (STAINLESS) WPL W10350605 Contact Us For Availability
View on Model
8
TUBE, VENT WITH CATALYST
TUBE, VENT WITH CATALYST WPL W10350337 Contact Us For Availability
View on Model
8
COVER, REAR WIRE
COVER, REAR WIRE WPL W10315160 Contact Us For Availability
View on Model
9
BRACKET, CORD
BRACKET, CORD WPL W10358961 Contact Us For Availability
View on Model
9
LIGHT/LAMP, INDICATOR, 125V
LIGHT/LAMP, INDICATOR, 125V WPL W10349885 Contact Us For Availability
View on Model
9
BRACKET, GLASS DOOR (STAINLESS MODEL ONLY)
BRACKET, GLASS DOOR (STAINLESS MODEL ONLY) WPL W10350616 Contact Us For Availability
View on Model
10
SHIELD, WIRE VENT TUBE
SHIELD, WIRE VENT TUBE WPL W10350117 Contact Us For Availability
View on Model
10
SHIELD, HEAT (BLACK)
SHIELD, HEAT (BLACK) WPL W10350103 Contact Us For Availability
View on Model
10
SHIELD, HEAT (WHITE)
SHIELD, HEAT (WHITE) WPL W10350104 Contact Us For Availability
View on Model
10
LINING, DOOR
LINING, DOOR WPL W10350572 Contact Us For Availability
View on Model
11
KNOB (WHITE)
KNOB (WHITE) WPL W10350096 Contact Us For Availability
View on Model
11
PANEL, ACCESS
PANEL, ACCESS WPL W10350126 Contact Us For Availability
View on Model
11
BRACKET, GLASS
BRACKET, GLASS WPL W10350589 Contact Us For Availability
View on Model
12
OUTLET-ELECTRICAL (BLACK)
OUTLET-ELECTRICAL (BLACK) WPL W10358954 Contact Us For Availability
View on Model
12
OUTLET-ELECTRICAL (WHITE)
OUTLET-ELECTRICAL (WHITE) WPL W10358955 Contact Us For Availability
View on Model
12
INSULATION, DOOR
INSULATION, DOOR WPL W10350552 Contact Us For Availability
View on Model
13
TERMINAL-BLOCK KIT
TERMINAL-BLOCK KIT WPL W10358958 Contact Us For Availability
View on Model
13
BREAKER, CIRCUIT (BLACK)
BREAKER, CIRCUIT (BLACK) WPL W10358952 Contact Us For Availability
View on Model
13
BREAKER, CIRCUIT (WHITE)
BREAKER, CIRCUIT (WHITE) WPL W10358953 Contact Us For Availability
View on Model
13
SEAL, DOOR
SEAL, DOOR WPL W10350574 Contact Us For Availability
View on Model
14
CLIP, DOOR GLASS
CLIP, DOOR GLASS WPL W10350585 Contact Us For Availability
View on Model
15
COVER, FAN
COVER, FAN WPL W10347448 Contact Us For Availability
View on Model
15
GLASS, DOOR WITH BADGE (WHITE)
GLASS, DOOR WITH BADGE (WHITE) WPL W10357227 Contact Us For Availability
View on Model
16
BRACKET, MOTOR
BRACKET, MOTOR WPL W10347442 Contact Us For Availability
View on Model
16
TRIM, DOOR (WHITE)
TRIM, DOOR (WHITE) WPL W10350550 Contact Us For Availability
View on Model
17
SPACER, DOOR HANDLE STAINLESS MODEL ONLY)
SPACER, DOOR HANDLE STAINLESS MODEL ONLY) WPL W10350610 Contact Us For Availability
View on Model
18
NUT, FAN BLADE
NUT, FAN BLADE WPL W10347453 Contact Us For Availability
View on Model
18
GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS M
GLASS, OVEN DOOR BLACK WITH FOIL (STAINLESS M WPL W10357230 Contact Us For Availability
View on Model
19
CLIP-OVEN BODY
CLIP-OVEN BODY WPL W10346958 Contact Us For Availability
View on Model
20
LEG, LEVELING (REAR PLASTIC)
LEG, LEVELING (REAR PLASTIC) WPL W10346263 Contact Us For Availability
View on Model
20
LEG, LEVELING (FRONT METAL)
LEG, LEVELING (FRONT METAL) WPL W10346264 Contact Us For Availability
View on Model
20
PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL
PANEL, DOOR-OUTER WITH BADGE (STAINLESS MODEL WPL W10357232 Contact Us For Availability
View on Model
21
Nameplate (White)
Nameplate (White) WPL 3191516 Contact Us For Availability
View on Model
22
SHIELD, HEAT OVEN LOWER
SHIELD, HEAT OVEN LOWER WPL W10350115 Contact Us For Availability
View on Model
23
SHIELD, HEAT WOOL LOWER
SHIELD, HEAT WOOL LOWER WPL W10350116 Contact Us For Availability
View on Model
24
INSULATION, OVEN BOTTOM
INSULATION, OVEN BOTTOM WPL W10350135 Contact Us For Availability
View on Model
25
INSULATION, LOWER SHIELD
INSULATION, LOWER SHIELD WPL W10350133 Contact Us For Availability
View on Model
26
TRAY, BAKE ELEMENT
TRAY, BAKE ELEMENT WPL W10350109 Contact Us For Availability
View on Model
27
BRACKET, SUPPORT BAKE ELEMENT
BRACKET, SUPPORT BAKE ELEMENT WPL W10350112 Contact Us For Availability
View on Model
28
BAKE ELEMENT, 3000 W
BAKE ELEMENT, 3000 W WPL W10350448 Contact Us For Availability
View on Model
29
BRACKET, SUPPORT OVEN BOTTOM
BRACKET, SUPPORT OVEN BOTTOM WPL W10350111 Contact Us For Availability
View on Model
30
OVEN BOTTOM
OVEN BOTTOM WPL W10350107 Contact Us For Availability
View on Model
31
OVEN RACK
OVEN RACK WPL W10346265 Contact Us For Availability
View on Model
32
OVEN SENSOR
OVEN SENSOR WPL W10347247 Contact Us For Availability
View on Model
33
SUPPORT, BROIL ELEMENT
SUPPORT, BROIL ELEMENT WPL W10350450 Contact Us For Availability
View on Model
34
BROIL ELEMENT
BROIL ELEMENT WPL W10350447 Contact Us For Availability
View on Model
35
BRACKET, HINGE OVEN DOOR
BRACKET, HINGE OVEN DOOR WPL W10350458 Contact Us For Availability
View on Model
36
SOCKET, LIGHT
SOCKET, LIGHT WPL W10346268 Contact Us For Availability
View on Model
38
LENS-LIGHT
LENS-LIGHT WPL W10346874 Contact Us For Availability
View on Model
39
RETAINER, OVEN LIGHT LENS
RETAINER, OVEN LIGHT LENS WPL W10346877 Contact Us For Availability
View on Model
40
SPACER, OVEN DOOR
SPACER, OVEN DOOR WPL W10347277 Contact Us For Availability
View on Model
41
SWITCH, OVEN LIGHT
SWITCH, OVEN LIGHT WPL W10346267 Contact Us For Availability
View on Model
42
INSULATION (OVEN WRAPPER)
INSULATION (OVEN WRAPPER) WPL W10350131 Contact Us For Availability
View on Model
42
INSULATION (OVEN BACK)
INSULATION (OVEN BACK) WPL W10350132 Contact Us For Availability
View on Model
43
ROD, AUTO LATCH
ROD, AUTO LATCH WPL W10350462 Contact Us For Availability
View on Model
44
SHIELD-SIDE
SHIELD-SIDE WPL W10355047 Contact Us For Availability
View on Model
45
SHIELD, REAR
SHIELD, REAR WPL W10355050 Contact Us For Availability
View on Model
46
GLIDE-OUTER
GLIDE-OUTER WPL W10355274 Contact Us For Availability
View on Model
47
BRACKET-PANEL
BRACKET-PANEL WPL W10357267 Contact Us For Availability
View on Model
NI
Cleaner, Glass
Cleaner, Glass WPL W10355051 No Longer Available
View on Model
NI
HARNESS, WIRE (MAIN)
HARNESS, WIRE (MAIN) WPL W10358962 Contact Us For Availability
View on Model
NI
HARNESS, WIRE (SURFACE)
HARNESS, WIRE (SURFACE) WPL W10358963 Contact Us For Availability
View on Model
NI
COVER, ELEMENT
COVER, ELEMENT WPL W10358959 Contact Us For Availability
View on Model
NI
POWER CORD
POWER CORD WPL W10358960 Contact Us For Availability
View on Model
