Model Whirlpool YKERC507HW2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

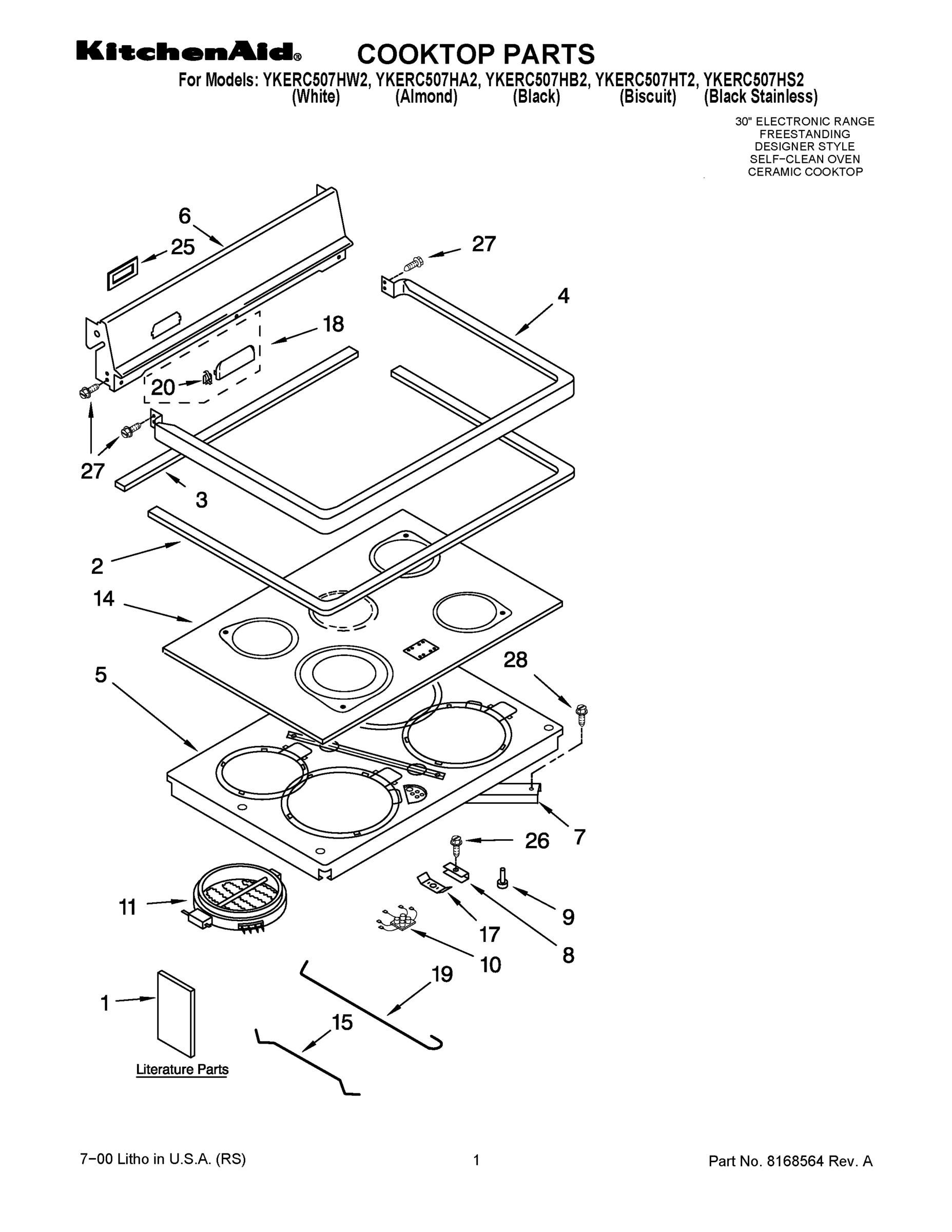

02 - COOKTOP PARTS

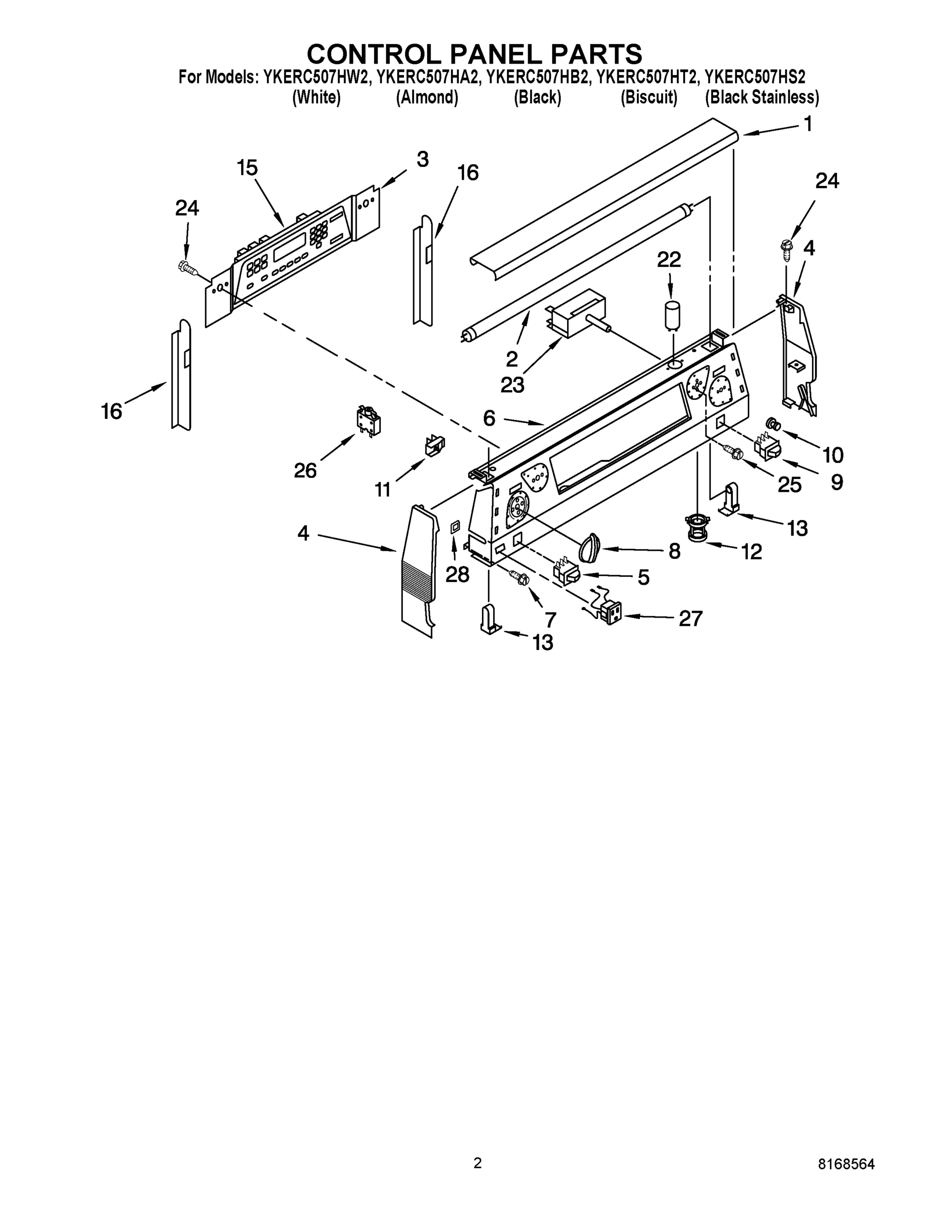

03 - CONTROL PANEL PARTS

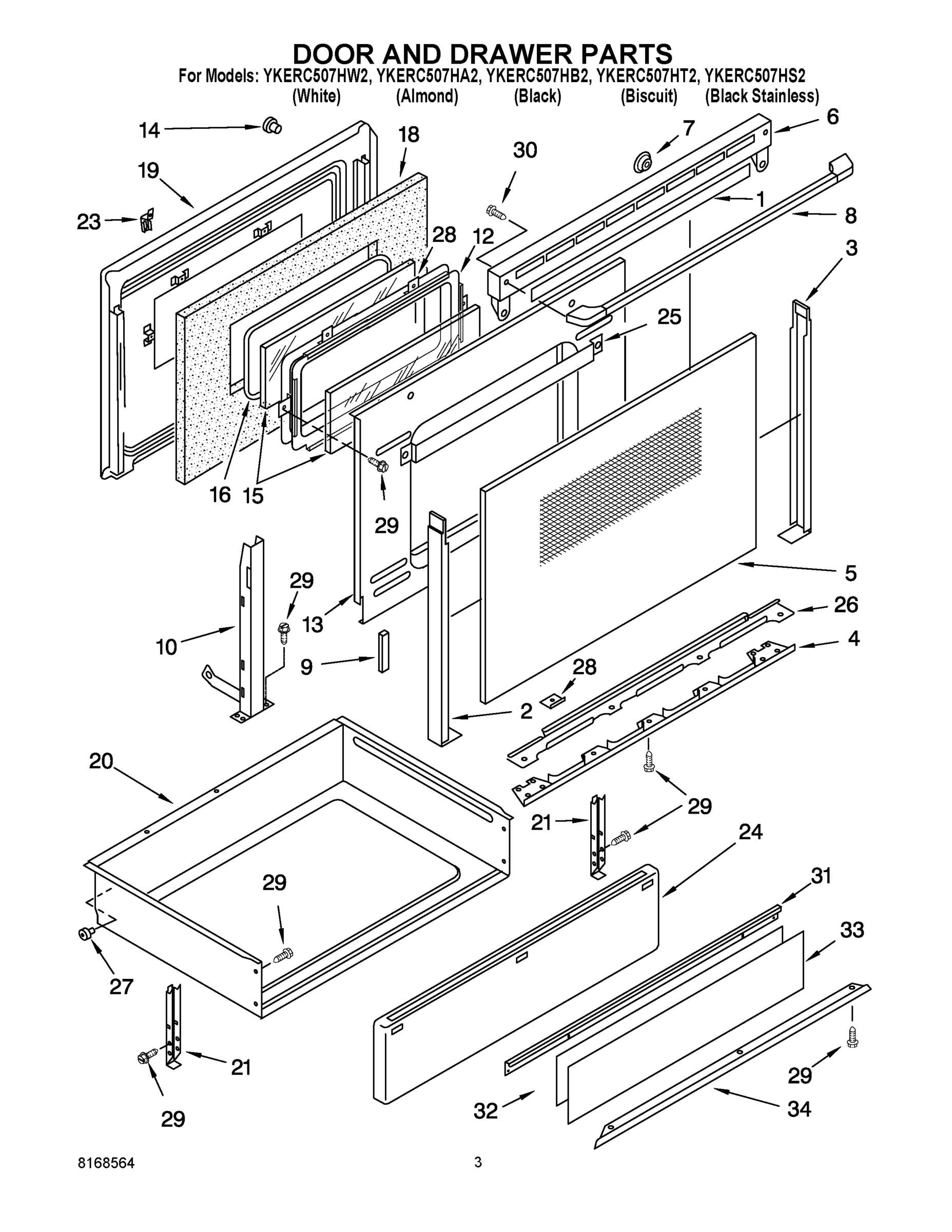

04 - DOOR AND DRAWER PARTS

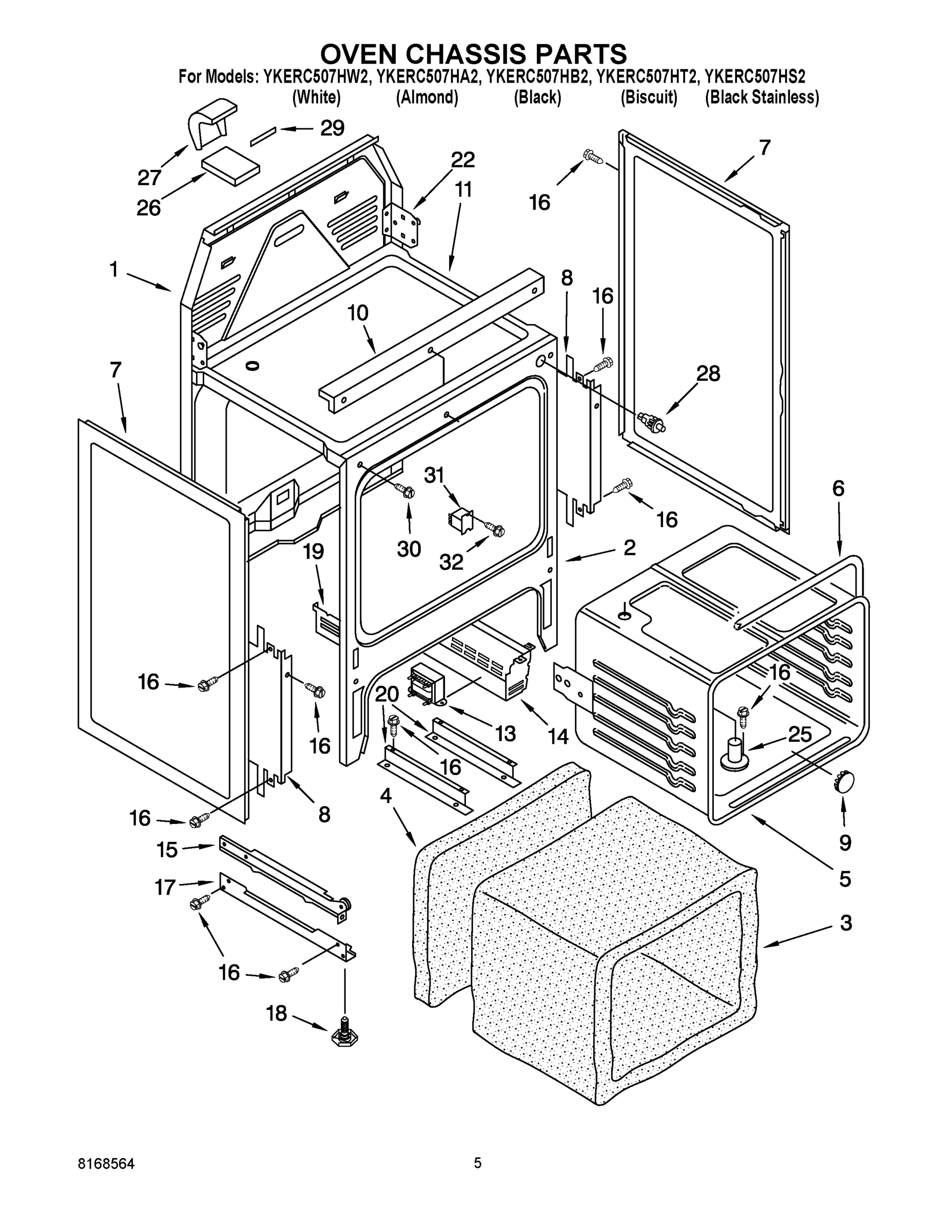

05 - OVEN CHASSIS PARTS

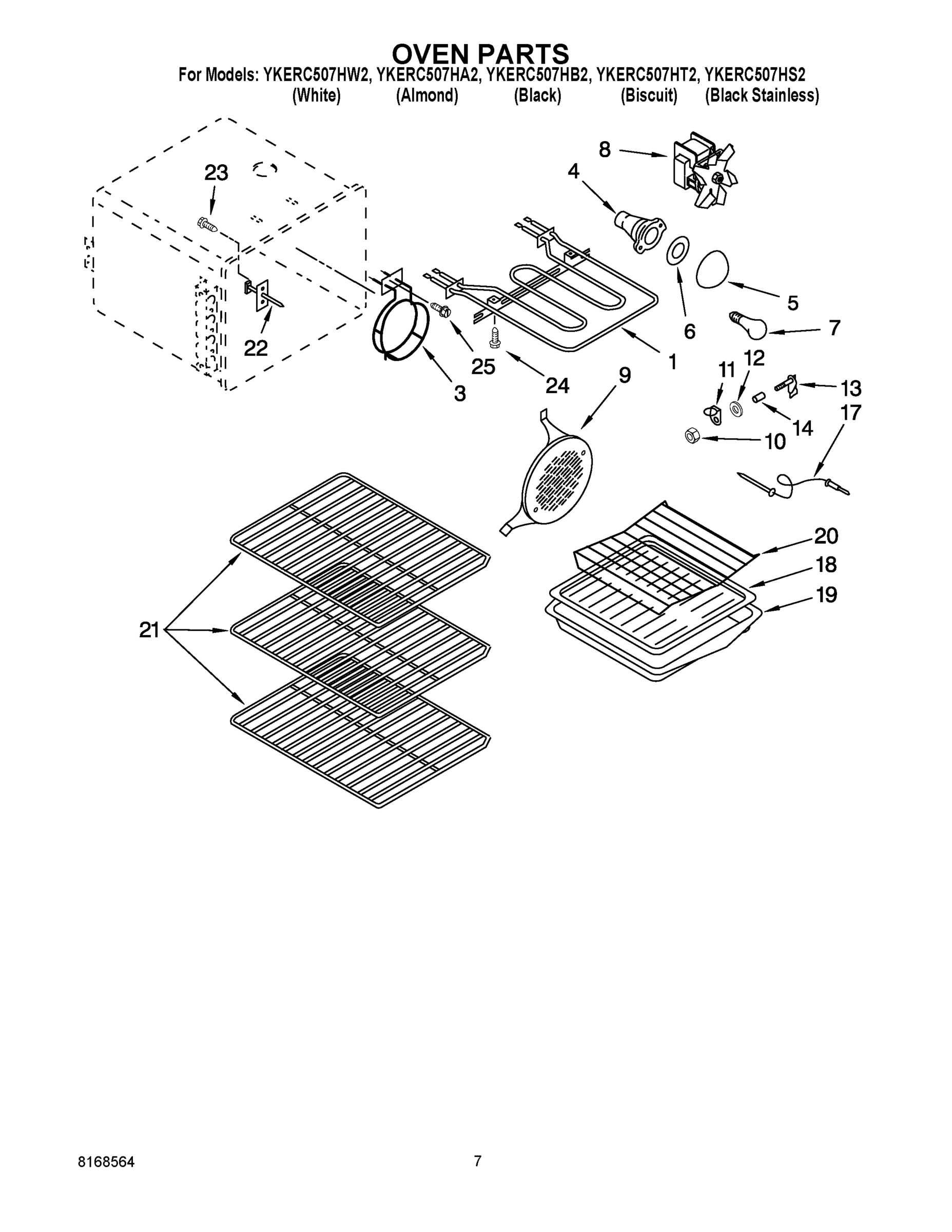

06 - OVEN PARTS

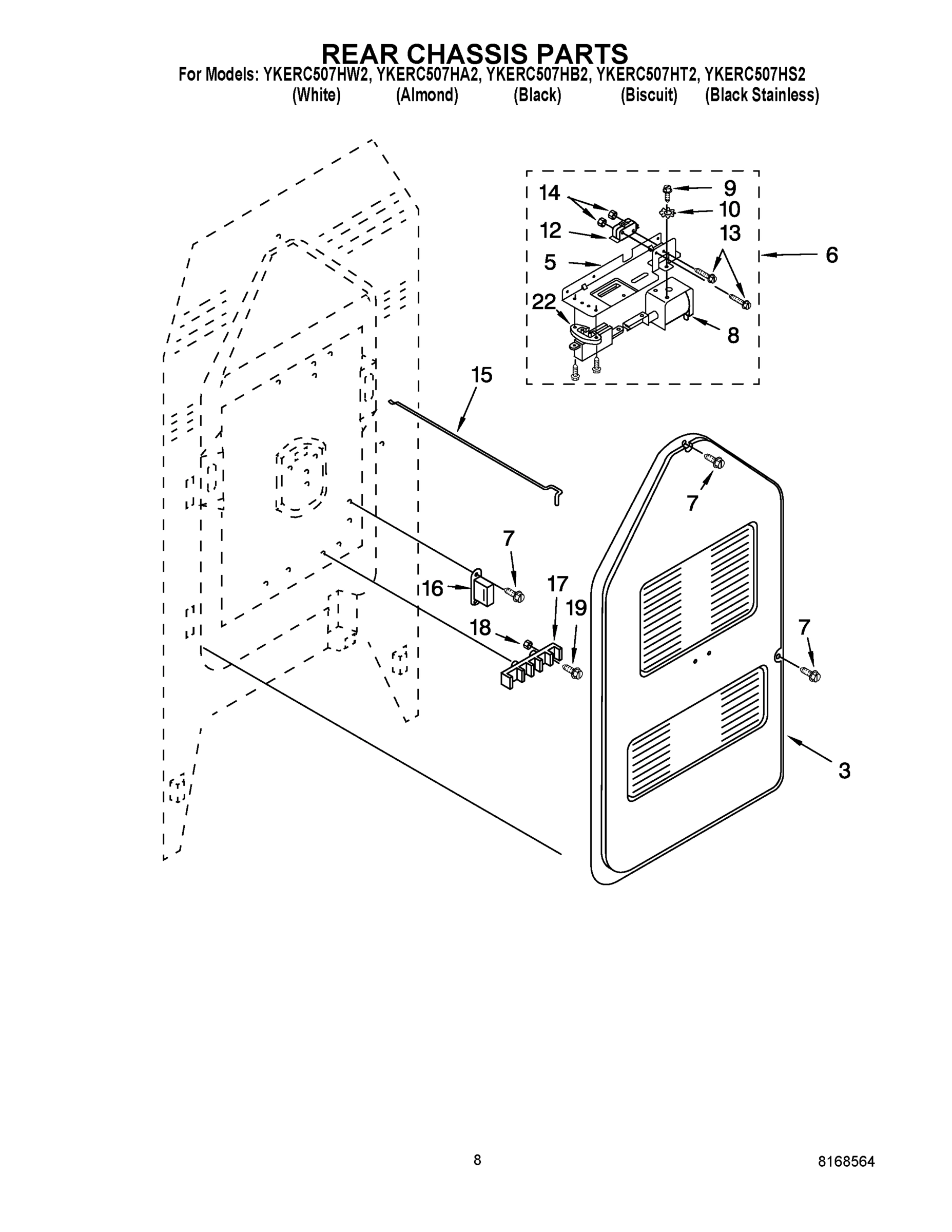

07 - REAR CHASSIS PARTS

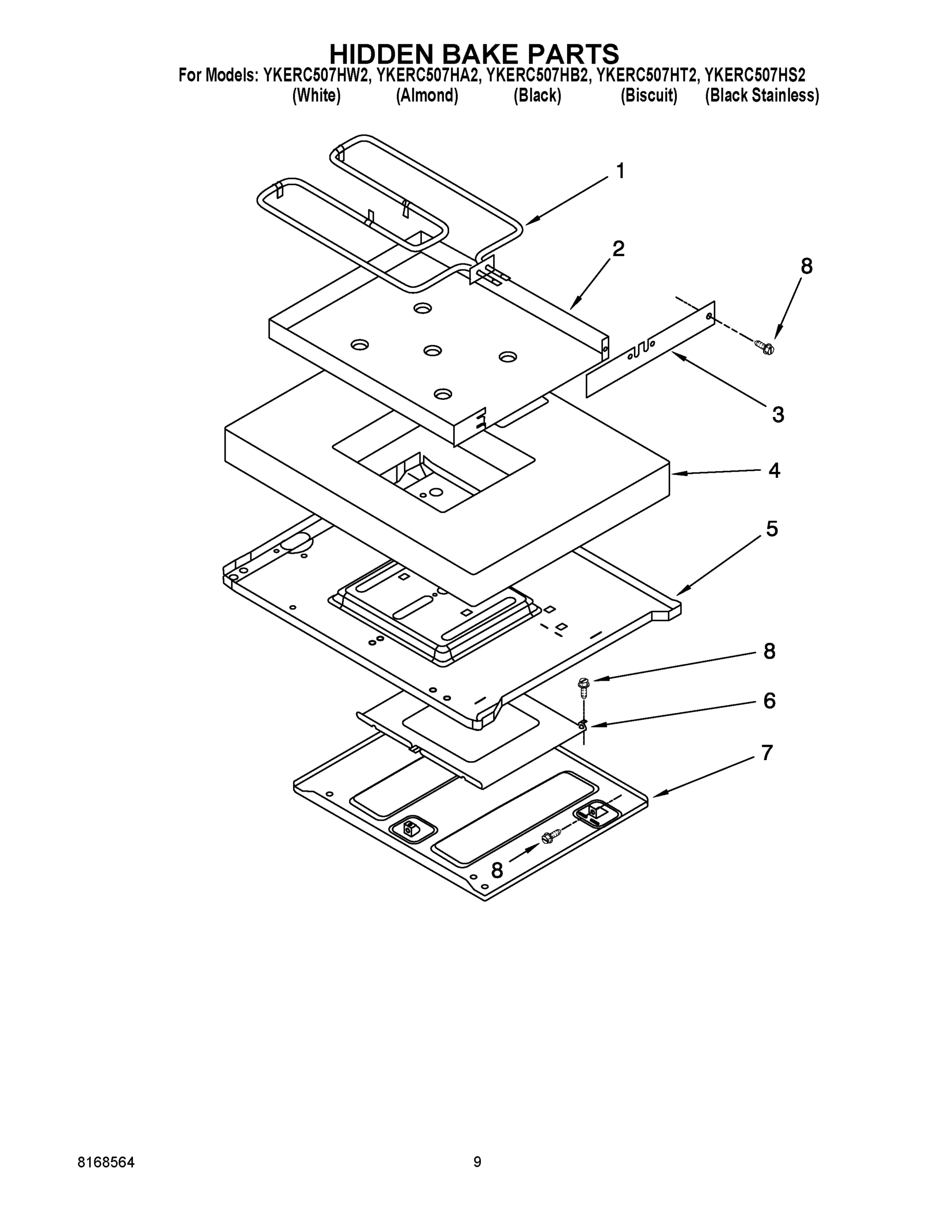

08 - HIDDEN BAKE PARTS
09 - MISCELLANEOUS PARTS
Common parts from model Whirlpool YKERC507HW2 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
ELEMENT, BAKE WPL 9752294 Contact Us For Availability
1
ELEMENT, BROIL WPL 9750967 Contact Us For Availability
1
LAMP COVER (WHITE) WPL 9753156PW Contact Us For Availability
1
GASKET, GLASS WPL 9781659 Contact Us For Availability
1
MAIN CHASSIS, BACK WPL 9750146 Contact Us For Availability
1A
LAMP COVER (ALMOND) WPL 9753156PT Contact Us For Availability
1B
LAMP COVER (BLACK) WPL 9753156PB Contact Us For Availability
1C
LAMP COVER (BISCUIT) WPL 9753156PC Contact Us For Availability
1D
LAMP COVER (INSULATION, CONTROL) WPL 9750995 Contact Us For Availability
2
TRIM, DOOR-LEFT (WHITE) WPL 9782003PW Contact Us For Availability
2
CHASSIS, FRONT WPL 9750514GM Contact Us For Availability
2
PAN, HIDDEN BAKE WPL 9782048 Contact Us For Availability
2A
TRIM, DOOR-LEFT (ALMOND) WPL 9782003PT Contact Us For Availability
2B
TRIM, DOOR-LEFT (BLACK) WPL 9782003PB Contact Us For Availability
2C
TRIM, DOOR-LEFT (BISCUIT) WPL 9782003PC Contact Us For Availability
3
TRIM, DOOR-RIGHT (WHITE) WPL 9782004PW Contact Us For Availability
3
INSULATION, WRAP WPL 9754003 Contact Us For Availability
3
REAR PANEL WPL 9750150 Contact Us For Availability
3
COVER, HIDDEN BAKE WPL 9782049 Contact Us For Availability
3A
TRIM, DOOR-RIGHT (ALMOND) WPL 9752004PT Contact Us For Availability
3B
TRIM, DOOR-RIGHT (BLACK) WPL 9782004PB Contact Us For Availability
3C
TRIM, DOOR-RIGHT (BISCUIT) WPL 9782004PC Contact Us For Availability
4
END CAP (RIGHT HAND) (WHITE) WPL 9750367FW Contact Us For Availability
4
TRIM, DOOR BOTTOM (WHITE) WPL 9781209PW Contact Us For Availability
4
INSULATION, REAR WPL 9754011 Contact Us For Availability
4
INSULATION WPL 9754005 Contact Us For Availability
4A
END CAP (RIGHT HAND) (ALMOND) WPL 9750367FT Contact Us For Availability
4A
TRIM, DOOR BOTTOM (ALMOND) WPL 9781209PT Contact Us For Availability
4B
END CAP (RIGHT HAND) (BLACK) WPL 9750367FG Contact Us For Availability
4B
TRIM, DOOR BOTTOM (BLACK) WPL 9781209PB Contact Us For Availability
4C
END CAP (RIGHT HAND) (BISCUIT) WPL 9750367FC Contact Us For Availability
4C
TRIM, DOOR BOTTOM (BISCUIT) WPL 9781209PC Contact Us For Availability
4D
END CAP (LEFT HAND) (WHITE) WPL 9750366FW Contact Us For Availability
4E
END CAP (LEFT HAND) (ALMOND) WPL 9750366FT Contact Us For Availability
4F
END CAP (LEFT HAND) (BLACK) WPL 9750366FG Contact Us For Availability
4G
END CAP (LEFT HAND) (BISCUIT) WPL 9750366FC Contact Us For Availability
5
SWITCH, ROCKER (WARM ZONE) (WHITE) WPL 9753692FW Contact Us For Availability
5
GLASS, DOOR (WHITE) WPL 9781627PW Contact Us For Availability
5
OVEN LINER WPL 9753744GM Contact Us For Availability
5
BRACKET, LOCK WPL 9750526 Contact Us For Availability
5
REATINER, INSULATION WPL 9752735 Contact Us For Availability
5A
SWITCH, ROCKER (WARM ZONE) (ALMOND) WPL 9753692FT Contact Us For Availability
5A
GLASS, DOOR (ALMOND) WPL 9781627PT Contact Us For Availability
5B
GLASS, DOOR (BLACK) WPL 9781627PB Contact Us For Availability
5B
SWITCH, ROCKER (WARM ZONE) (BLACK) WPL 9753692FB Contact Us For Availability
5C
SWITCH, ROCKER (WARM ZONE) (BISCUIT) WPL 9753692FC Contact Us For Availability
5C
GLASS, DOOR (WHITE) WPL 9781627PC Contact Us For Availability
5D
GLASS, DOOR (BLACK STAINLESS) WPL 9754041 Contact Us For Availability
6
PANEL, CONTROL (WHITE) WPL 9753730PW Contact Us For Availability
6
VENT, DOOR (WHITE) WPL 9753498GW Contact Us For Availability
6
GASKET OVEN WPL 3191649 Contact Us For Availability
6
OVEN LOCK ASSEMBLY WPL 9752404 Contact Us For Availability
6
PLATE, REFLECTOR WPL 9782050 Contact Us For Availability
6A
PANEL, CONTROL (ALMOND) WPL 9753730PT Contact Us For Availability
6A
VENT, DOOR (ALMOND) WPL 9753498GT Contact Us For Availability
6B
PANEL, CONTROL (BLACK) WPL 9753730PB Contact Us For Availability
6B
VENT, DOOR (BLACK) WPL 9753498GB Contact Us For Availability
6C
PANEL, CONTROL (BISCUIT) WPL 9753730PC Contact Us For Availability
6C
VENT, DOOR (BISCUIT) WPL 9753498GC Contact Us For Availability
6D
PANEL, CONTROL (BLACK STAINLESS) WPL 9753730PS Contact Us For Availability
7
SCREW, 8-18 X 3/8 WPL 9780852 Contact Us For Availability
7
OVEN, SIDE L OR R (WHITE) WPL 9781907PW Contact Us For Availability
7
SHIELD WPL 9782051 Contact Us For Availability
7A
OVEN, SIDE L OR R (ALMOND) WPL 9781907PT Contact Us For Availability
7B
OVEN, SIDE L OR R (BLACK) WPL 9781907PB Contact Us For Availability
7C
OVEN, SIDE L OR R (BISCUIT) WPL 9781907PC Contact Us For Availability
8
ASSEMBLY, FAN WPL 9781543 Contact Us For Availability
8
SOLENOID WPL 9752409 Contact Us For Availability
8
HANDLE, DOOR (WHITE) WPL 9780523PW Contact Us For Availability
8
SHIELD, INSULATION WPL 9780664 Contact Us For Availability
8A
HANDLE, DOOR (ALMOND) WPL 9780523PT Contact Us For Availability
8B
KNOBS, CONTROL (4) (ALMOND) WPL 9750372FT Contact Us For Availability
8B
HANDLE, DOOR (BLACK) WPL 9780523PB Contact Us For Availability
8C
HANDLE, DOOR (BISCUIT) WPL 9780523PC Contact Us For Availability
9
SWITCH, ROCKER (WHITE) WPL 9753261FW Contact Us For Availability
9
GASKET, DOOR GLASS WPL 9781449 Contact Us For Availability
9
BUTTON, PLUG WPL 9780578 Contact Us For Availability
9
BAFFLE, CONVECTION WPL 9751904GM Contact Us For Availability
9
SCREW, 10-32 X .31 WPL 422222 Contact Us For Availability
10
WIRE GUARD WPL 9780585 Contact Us For Availability
10
LOCK-NUT, CVR.JACK WPL 4167277 Contact Us For Availability
10
WASHER WPL 424238 Contact Us For Availability
11
LIGHT, INDICATOR WPL 9753422 Contact Us For Availability
11
BURNER BOX WPL 9750478 Contact Us For Availability
11
JACK COVER WPL 4167266 Contact Us For Availability
12
STARTER HOLDER WPL 9750866 Contact Us For Availability
12
FRAME, WINDOW WPL 9781602 Contact Us For Availability
12
GASKET WPL 305289 Contact Us For Availability
12
SWITCH, INTERLOCK WPL 9750965 Contact Us For Availability
13
RECEPTACLE, LIGHT WPL 9752760 Contact Us For Availability
13
SHIELD DOOR WPL 9781586 Contact Us For Availability
13
TRANSFORMER, LIGHT WPL 4451891 Contact Us For Availability
13
RECEPTACLE, PROBE WPL 4173575 Contact Us For Availability
13
SCREW, 4-40 X 1 WPL 9750887 Contact Us For Availability
14
SUPPORT, FAN WPL 9751060 Contact Us For Availability
14
SPACER, TUBING WPL 3179672 Contact Us For Availability
14
NUT (2) WPL 9750888 Contact Us For Availability
15
OVEN CONTROL ASSEMBLY (WHITE) WPL 9753667CW Contact Us For Availability
15
DRAWER RAIL, LEFT WPL 9750223 Contact Us For Availability
15
ROD, LOCK WPL 9750523 Contact Us For Availability
15A
DRAWER RAIL, RIGHT WPL 9750224 Contact Us For Availability
15A
OVEN CONTROL ASSEMBLY (ALMOND) WPL 9753667CT Contact Us For Availability
15B
OVEN CONTROL ASSEMBLY ( WPL 9753667CB Contact Us For Availability
15C
WPL 9753667CC WPL 9753667CC Contact Us For Availability
16
WPL 9780655 WPL 9780655 Contact Us For Availability
16
BALLAST, LAMP WPL 9780881 Contact Us For Availability
17
PROBE WPL 3150144 Contact Us For Availability
17
BOTTOM RAIL (2) WPL 9750147 Contact Us For Availability
18
INSULATION WPL 9754006 Contact Us For Availability
19
LINER, DOOR WPL 9781600GM Contact Us For Availability
19
HINGE, BASE L OR R WPL 9782005 Contact Us For Availability
19
SCREW, 10-16 X 1 WPL 98884 Contact Us For Availability
20
CLIP, MOUNTING WPL 3149190 Contact Us For Availability
20
DRAWER & ROLLER (WHITE, ALMOND, BLACK & BISCU WPL 9780583 Contact Us For Availability
20
SUPPORT RAIL, PAN WPL 9781904 Contact Us For Availability
20
RACK, ROASTING WPL 9750827 Contact Us For Availability
20A
DRAWER & ROLLER (BLACK STAINLESS MODEL) WPL 9750257 Contact Us For Availability
21
BRACKET, DRAWER WPL 9750169 Contact Us For Availability
21
RACK, STANDARD WPL 9750823 Contact Us For Availability
22
SENSOR WPL 8053344 Contact Us For Availability
22
WPL 9781118 WPL 9781118 Contact Us For Availability
22
HINGE, CKTP.-LEFT WPL 9750258 Contact Us For Availability
22
SINGLE POSITION DEVICE (NOT SERVICED) WPL 9752462 Contact Us For Availability
22A
HINGE, CKTP.-RIGHT WPL 9750416 Contact Us For Availability
23
RETAINER,DOOR WPL 9750676 Contact Us For Availability
23
SCREW, 8-32 X 3/8 WPL 9780269 Contact Us For Availability
23C
WPL 9754008 WPL 9754008 Contact Us For Availability
24
FRONT, DRAWER (WHITE) WPL 9750168PW Contact Us For Availability
24A
FRONT, DRAWER (ALMOND) WPL 9750168PT Contact Us For Availability
24B
FRONT, DRAWER (BLACK) WPL 9750168PB Contact Us For Availability
24C
FRONT, DRAWER (BISCUIT) WPL 9750168PC Contact Us For Availability
24D
FRONT, DRAWER (BLACK STAINLESS) WPL 9750569PB Contact Us For Availability
25
CHANNEL, HEAT WPL 9750693 Contact Us For Availability
25
VENT TUBE WPL 9753091 Contact Us For Availability
25
SCREW, 8-32 X 3/8 WPL 9781509 Contact Us For Availability
26
WPL 3191072 WPL 3191072 Contact Us For Availability
26
STEA WPL 9781771 Contact Us For Availability
26
COVER, VENT WPL 9750393 Contact Us For Availability
27
WPL 3149333 WPL 3149333 Contact Us For Availability
27
WPL 9751480FW WPL 9751480FW Contact Us For Availability
27
BACK, VENT WPL 9750394 Contact Us For Availability
27A
WPL 9751480FB WPL 9751480FB Contact Us For Availability
27B
WPL 9751480FT WPL 9751480FT Contact Us For Availability
27C
WPL 9751480FC WPL 9751480FC Contact Us For Availability
28
SWITCH, DOOR-LIGHT WPL 9781581 Contact Us For Availability
28
WPL 9780272 WPL 9780272 Contact Us For Availability
28
WPL 9751046 WPL 9751046 Contact Us For Availability
28
WPL 9781502 WPL 9781502 Contact Us For Availability
28A
WPL 9753677 WPL 9753677 Contact Us For Availability
29
GASKET WPL 9750767 Contact Us For Availability
30
SCREW, 8-18 X 3/8 WPL 9780275 Contact Us For Availability
31
WPL 9750614PB WPL 9750614PB Contact Us For Availability
31
RELAY, COOKTOP WPL 9752149 Contact Us For Availability
32
WPL 9753329 WPL 9753329 Contact Us For Availability
33
WPL 9753293 WPL 9753293 Contact Us For Availability
34
WPL 9750613PB WPL 9750613PB Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
WPL 9751745 WPL 9751745 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, BLACK 14 WPL 242820 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, BLUE 14 G WPL 242821 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, BROWN 14 WPL 242822 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, GREEN 14 WPL 242823 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, ORANGE 14 WPL 242824 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, RED 14 GA WPL 242825 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, WHITE 14 WPL 242826 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, YELLOW 14 WPL 242827 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, BLACK 12 WPL 242828 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, RED 12 GA WPL 242829 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, BROWN 14 WPL 242830 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH, WIRE, YELLOW 14 WPL 242832 Contact Us For Availability
NI
REFINISHING MATERIAL, GREASE WPL 261582 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. COFFEE) WPL 261886 Contact Us For Availability
NI
PAINT, PRESSURIZED WPL 261888 Contact Us For Availability
NI
WPL 261890 WPL 261890 Contact Us For Availability
NI
WPL 261891 WPL 261891 Contact Us For Availability
NI
WPL 4392900 WPL 4392900 Contact Us For Availability
NI
WPL 72108 WPL 72108 Contact Us For Availability
NI
WPL 799832 WPL 799832 Contact Us For Availability
NI
WPL 9750376 WPL 9750376 Contact Us For Availability
NI
WPL 9750984 WPL 9750984 Contact Us For Availability
NI
WPL 9751139 WPL 9751139 Contact Us For Availability
NI
WPL 9752365 WPL 9752365 Contact Us For Availability
NI
WPL 9752772 WPL 9752772 Contact Us For Availability
NI
WPL 9753678 WPL 9753678 Contact Us For Availability
NI
WPL 9753680 WPL 9753680 Contact Us For Availability
NI
WPL 9753682 WPL 9753682 Contact Us For Availability
NI
WPL 9753683 WPL 9753683 Contact Us For Availability
NI
WPL 9753687 WPL 9753687 Contact Us For Availability
NI
WPL 9753921 WPL 9753921 Contact Us For Availability
NI
WPL 9753991 WPL 9753991 Contact Us For Availability
NI
WPL 9753992 WPL 9753992 Contact Us For Availability
NI
WPL 9781291 WPL 9781291 Contact Us For Availability
NI
WPL 9781930 WPL 9781930 Contact Us For Availability
NI
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
