Model Whirlpool YKCMS1555SS1 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams
01 - DOOR PARTS
03 - OVEN CAVITY PARTS

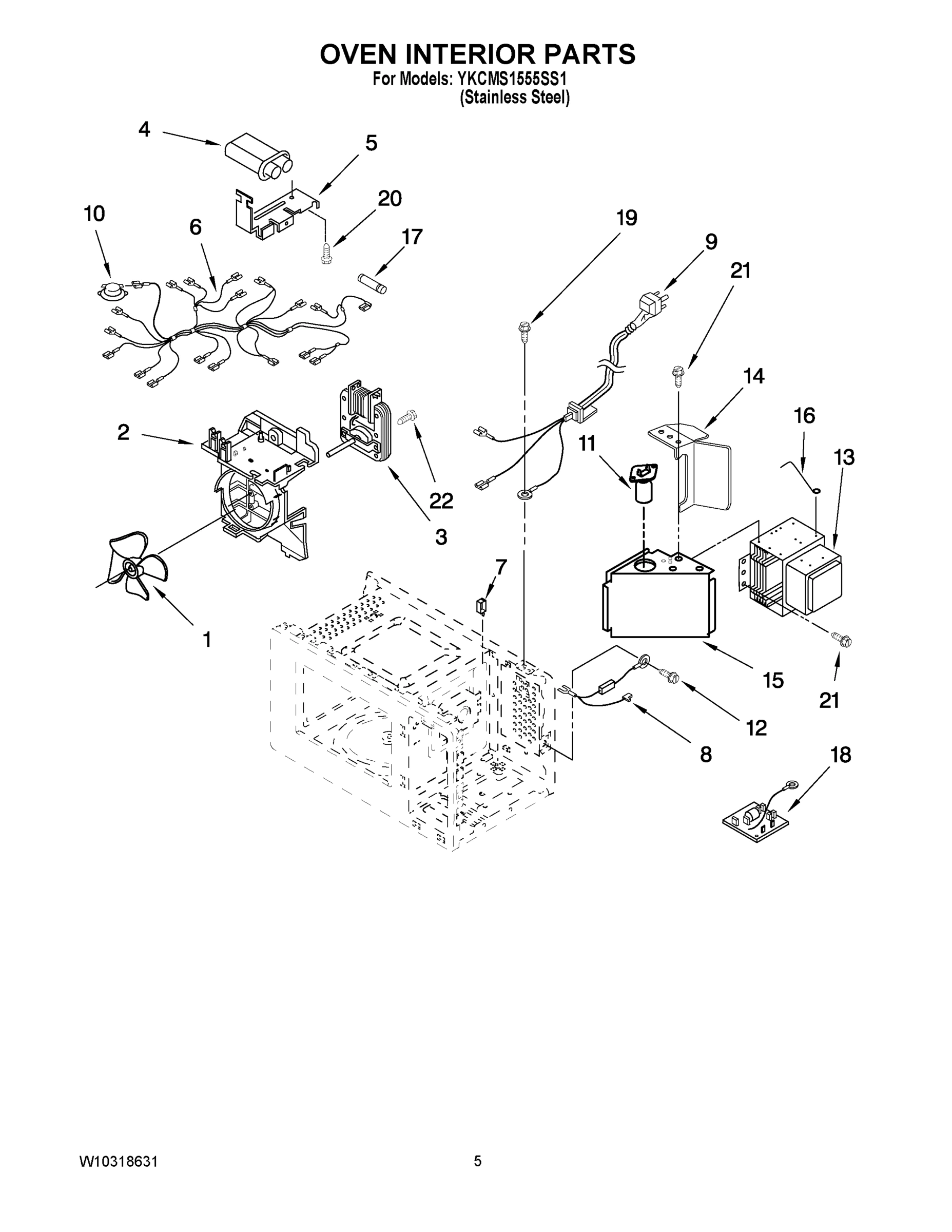

05 - OVEN INTERIOR PARTS

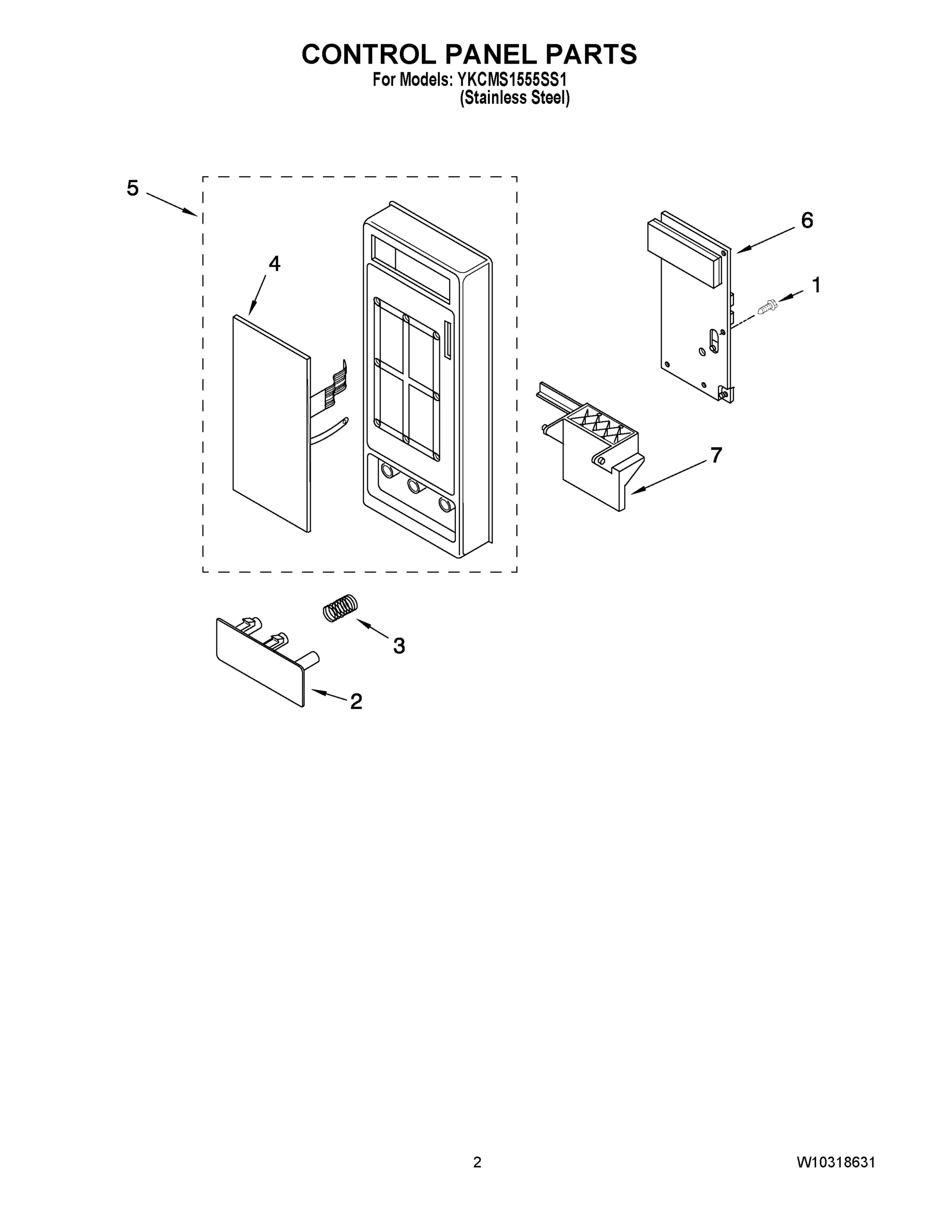

02 - CONTROL PANEL PARTS

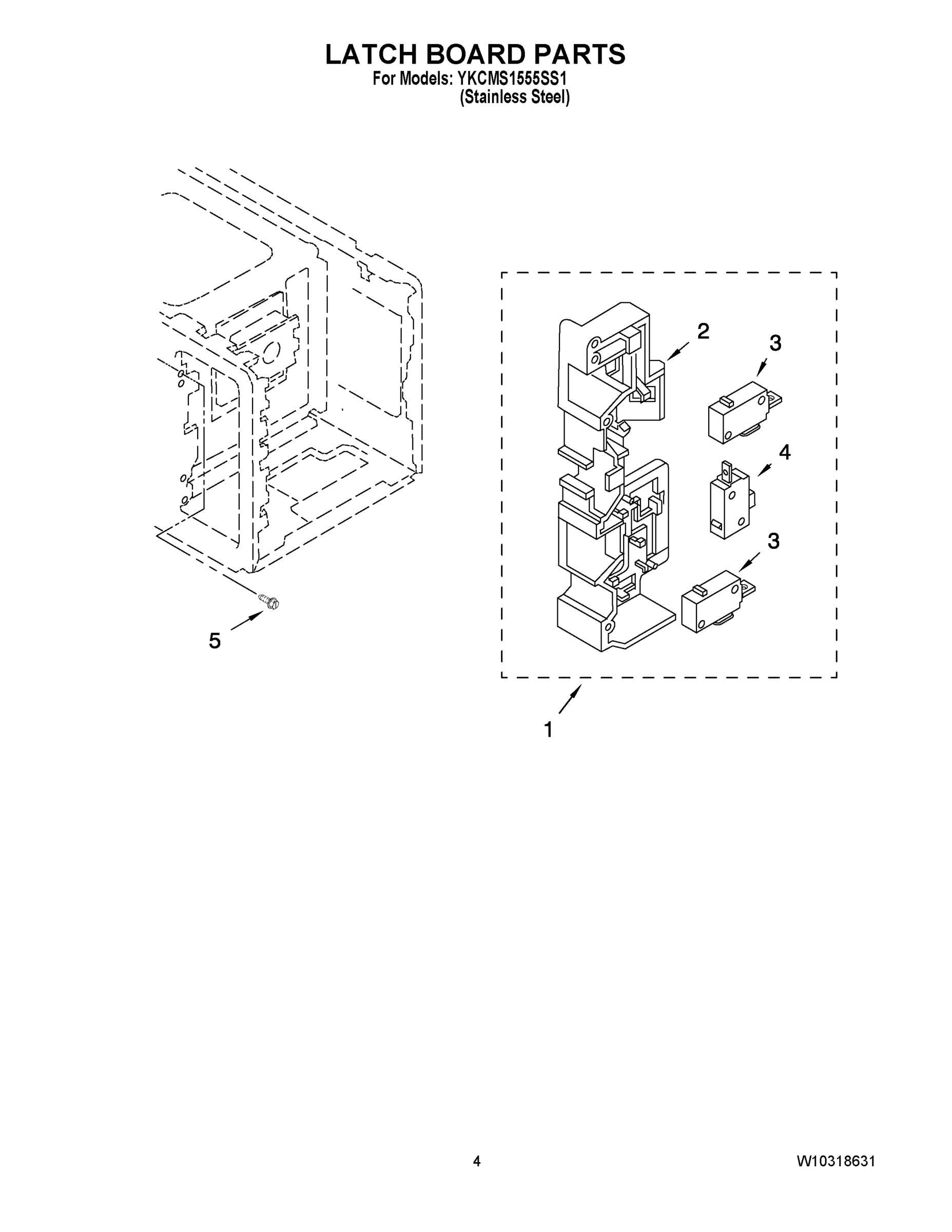

04 - LATCH BOARD PARTS

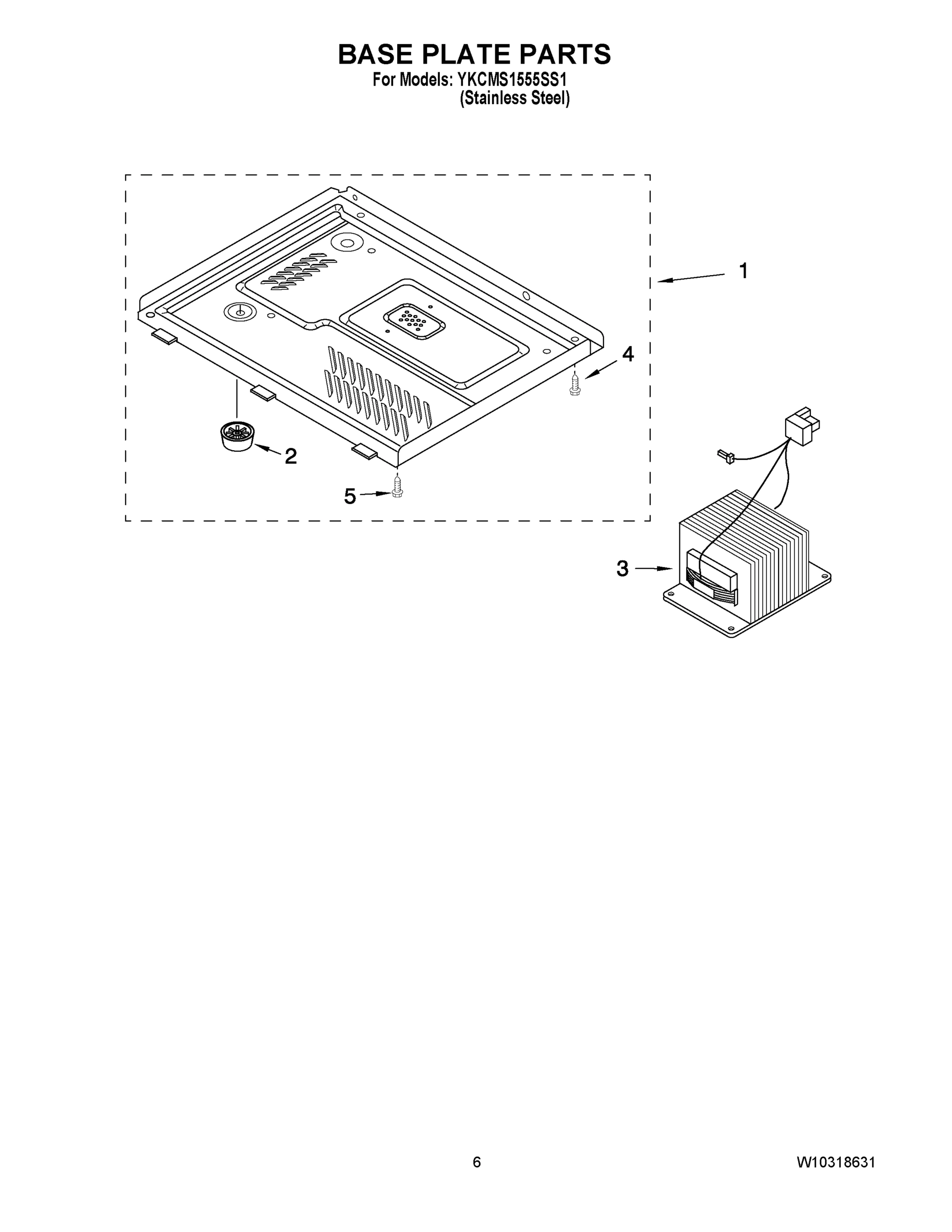

06 - BASE PLATE PARTS
Common parts from model Whirlpool YKCMS1555SS1 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
1
Base Plate WPL 8205464 Contact Us For Availability
2
Guide, Suction WPL W10169274 Contact Us For Availability
2
Leg WPL 8184385 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Spring, Button WPL 8184272 Contact Us For Availability
3
Transformer WPL W10169275 Contact Us For Availability
4
Shaft, Turntable WPL W10143947 Contact Us For Availability
4
MEMBRANE WPL W10169302 Contact Us For Availability
4
H.V. Capacitor WPL 8205822 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Microcomputer WPL W10171942 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
8
PANEL, DOOR WPL W10169314 Contact Us For Availability
9
Cap, Choke Cover WPL 8184265 Contact Us For Availability
9
Power Cord WPL 8206281 Contact Us For Availability
10
Thermostat WPL W10169277 Contact Us For Availability
10
DOOR ASSEMBLY WPL W10169312 Contact Us For Availability
10
Sensor, Humidity WPL 8183514 Contact Us For Availability
11
Guide, Sensor WPL 8205457 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Screw WPL W10160553 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
16
Bracket, Support WPL 8184290 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 8204902 Contact Us For Availability
22
Screw WPL 4358190 Contact Us For Availability
NI
Hardware Pack (Incl in Trim Kit) WPL 8172131 Contact Us For Availability
NI
Trim Kits (30`` Black) WPL MK1150XPB Contact Us For Availability
NI
Trim Kits (30`` White) WPL MK1150XPQ Contact Us For Availability
NI
Trim Kits (30`` Stainless) WPL MK1150XPS Contact Us For Availability
NI
Trim Kits (24`` Black) WPL MK1154XPB Contact Us For Availability
NI
Trim Kits (24`` White) WPL MK1154XPQ Contact Us For Availability
NI
Trim Kits (24`` Stainless) WPL MK1154XPS Contact Us For Availability
NI
Trim Kits (27`` Black) WPL MK1157XPB Contact Us For Availability
NI
Trim Kits (27`` White) WPL MK1157XPQ Contact Us For Availability
NI
Trim Kits (27`` Stainless) WPL MK1157XPS Contact Us For Availability
× ![]()
