Model Whirlpool YKCMS1555SB0 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams

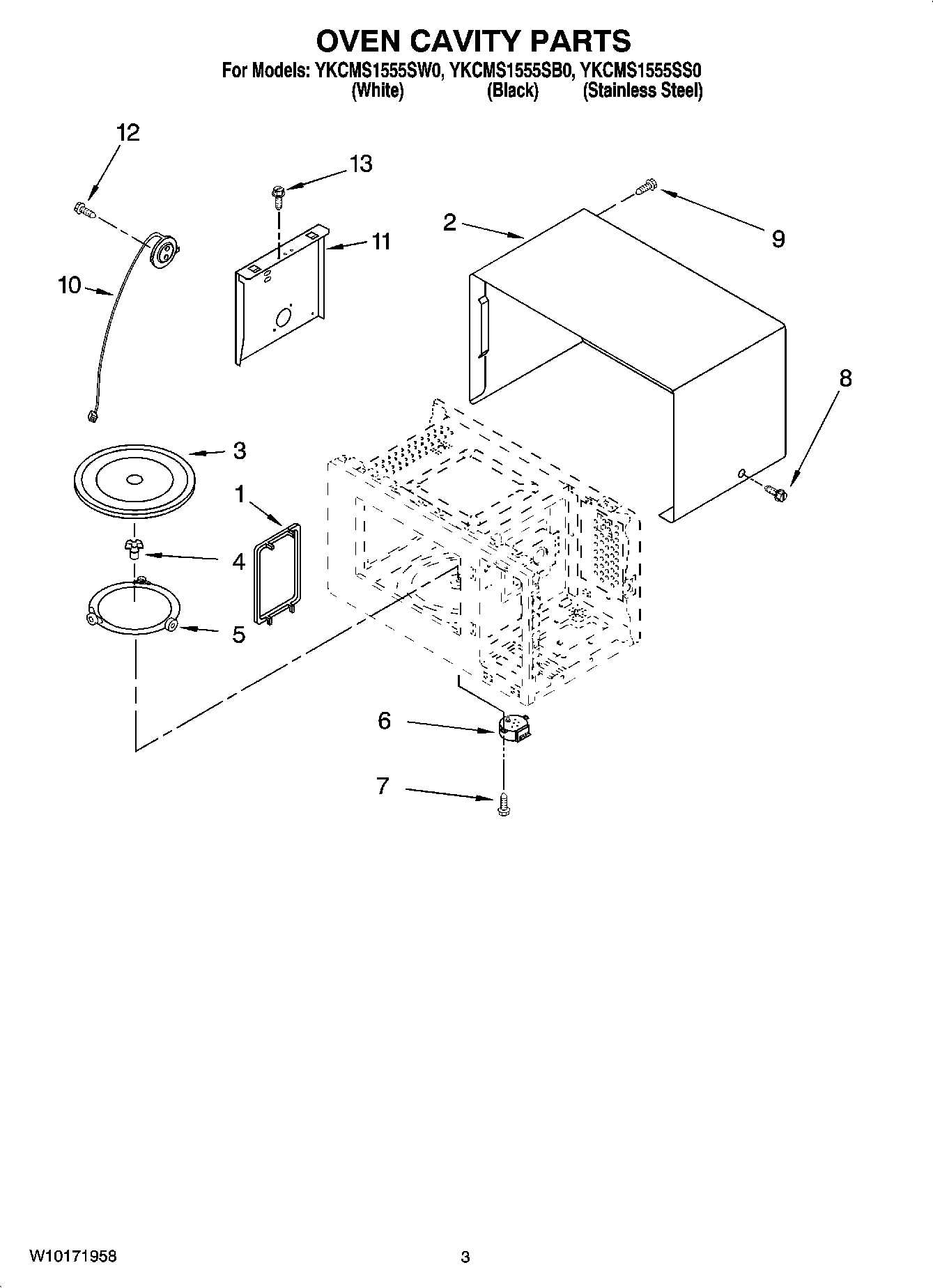

03 - OVEN CAVITY PARTS

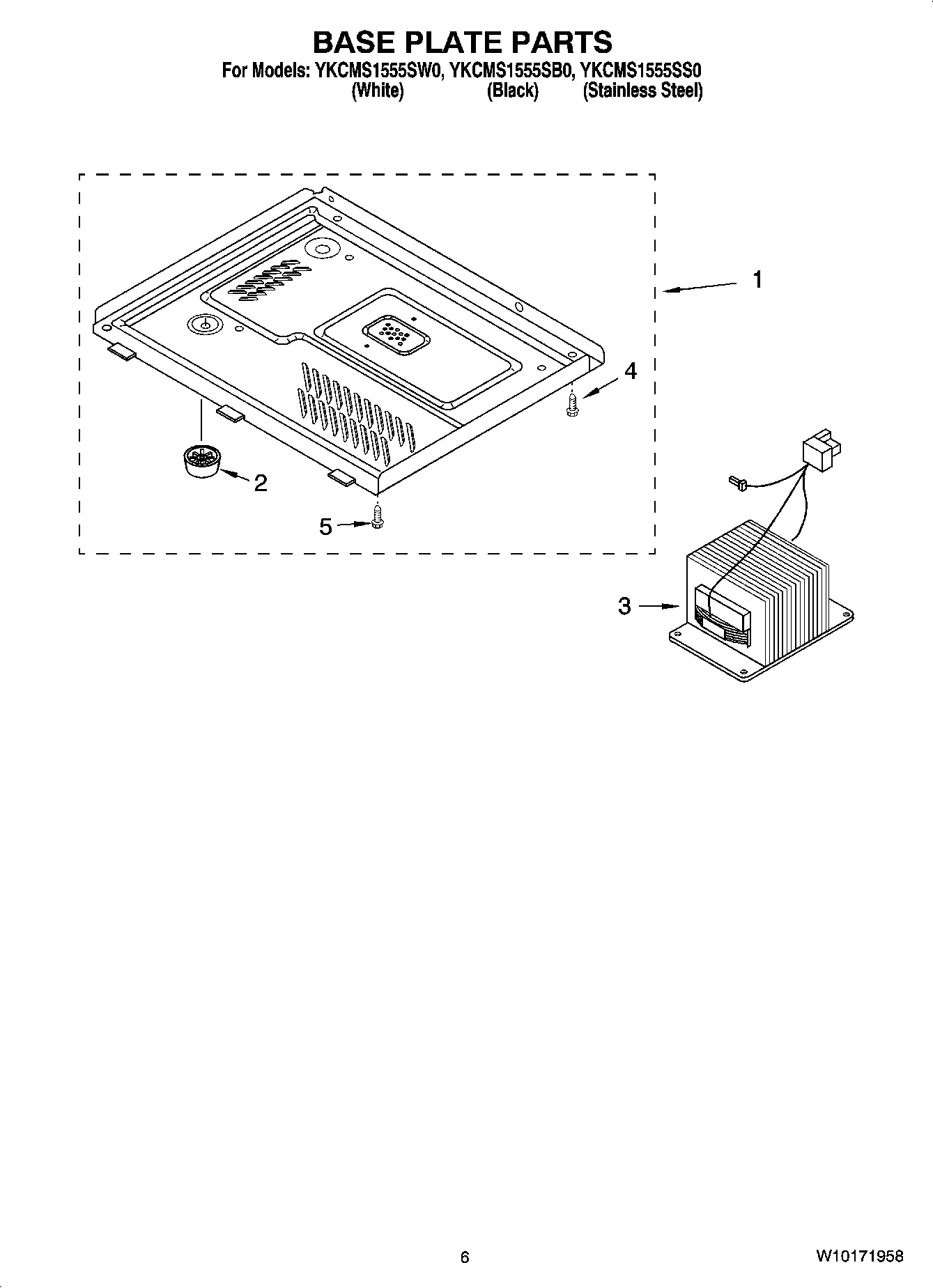

06 - BASE PLATE PARTS

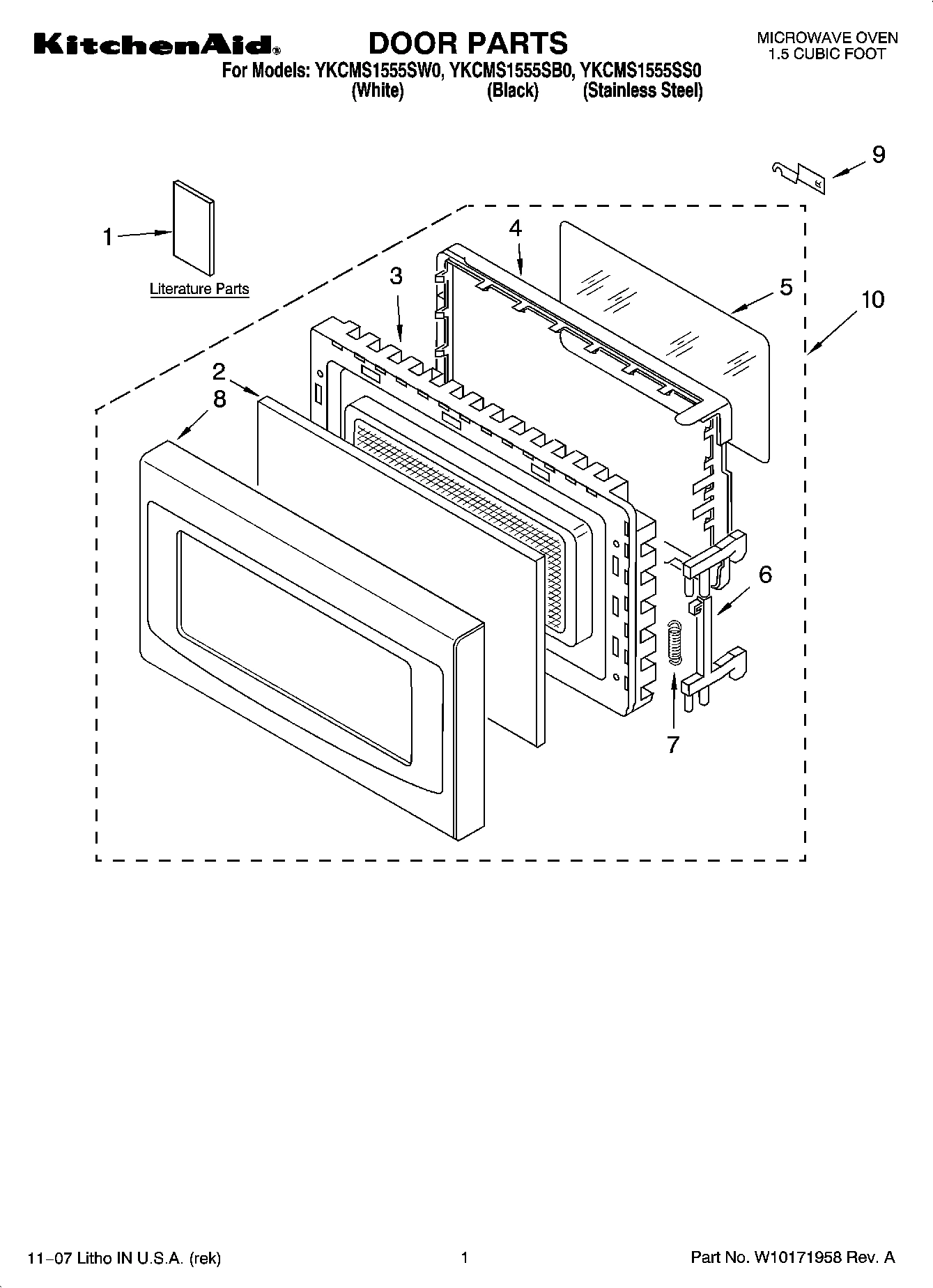

01 - DOOR PARTS

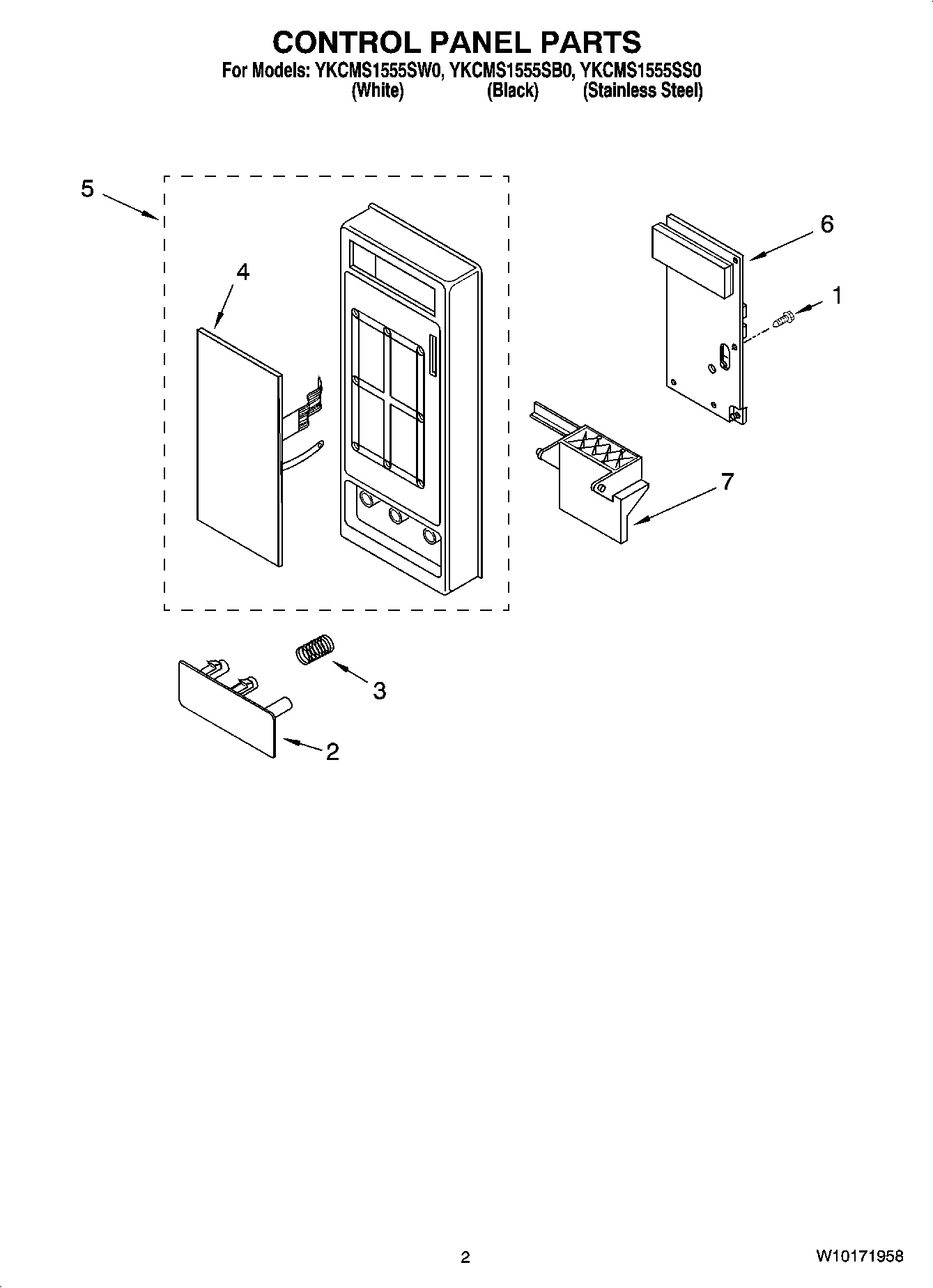

02 - CONTROL PANEL PARTS

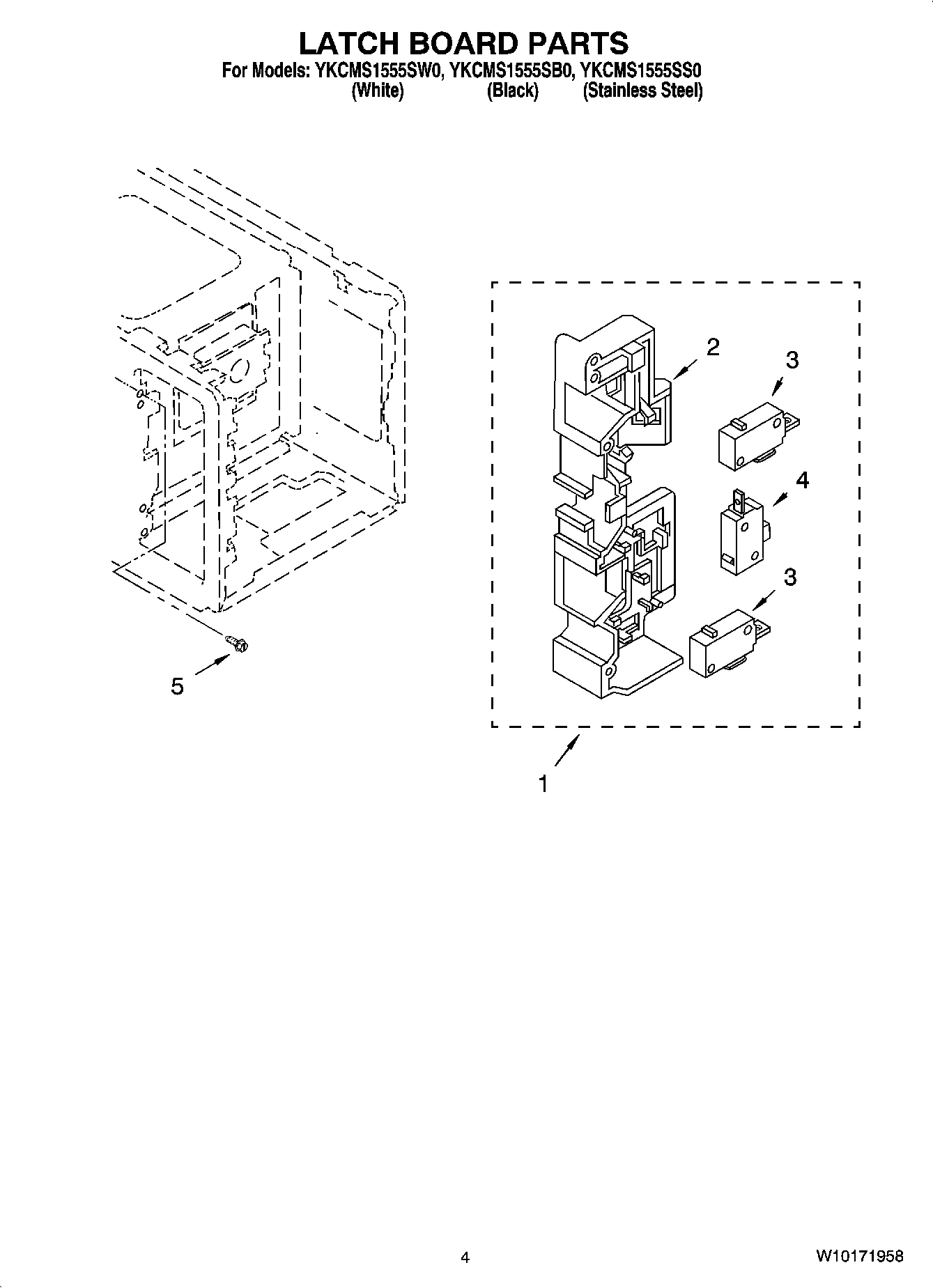

04 - LATCH BOARD PARTS

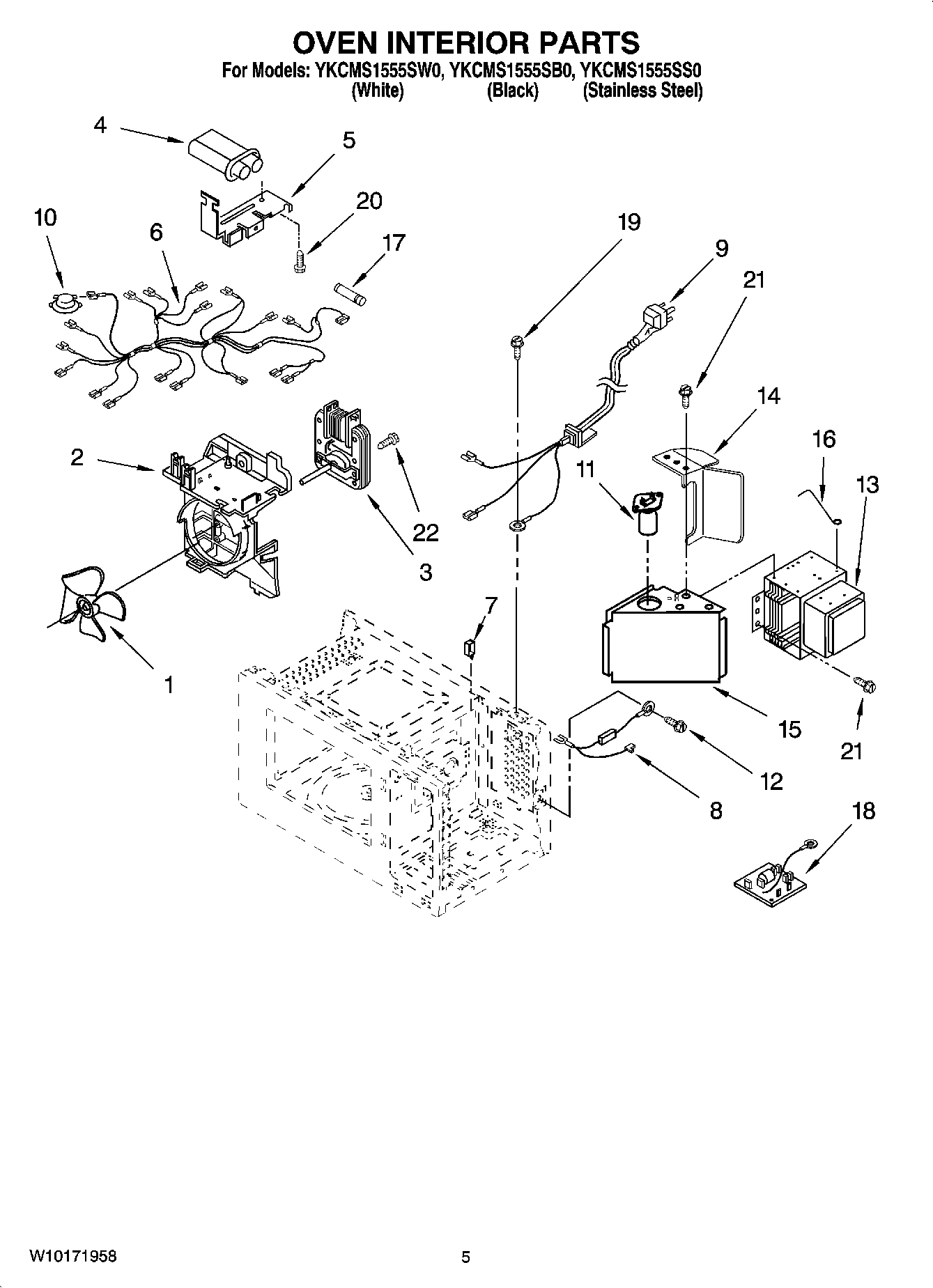

05 - OVEN INTERIOR PARTS
Common parts from model Whirlpool YKCMS1555SB0 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Instructions, Installation (For Trim Kit) WPL 8205554 Contact Us For Availability
1
Cook Guide Label (English) WPL W10157920 Contact Us For Availability
1
Cook Guide Label (French) WPL W10157921 Contact Us For Availability
1
Literature (Use & Care Guide) WPL W10165702 Contact Us For Availability
1
Tech Sheet WPL W10171957 Contact Us For Availability
1
Latch Board Assembly (Non-Serviceable) WPL ARI136970A Contact Us For Availability
2
Release Button (Black) WPL W10169304 Contact Us For Availability
2
Release Button (White) WPL W10169271 Contact Us For Availability
2
Leg WPL 8184385 Contact Us For Availability
2
Front Screen WPL W10169263 Contact Us For Availability
2
Guide, Suction WPL W10169274 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
3
Transformer WPL W10169275 Contact Us For Availability
3
Frame Assembly (Non-Serviceable) WPL ARI136969A Contact Us For Availability
4
Shaft, Turntable WPL W10143947 Contact Us For Availability
4
Membrane (Black) WPL W10169302 Contact Us For Availability
4
Membrane (White) WPL W10169269 Contact Us For Availability
4
Choke Cover WPL W10169266 Contact Us For Availability
4
H.V. Capacitor WPL 8205822 Contact Us For Availability
5
Control Panel (Black) WPL W10169303 Contact Us For Availability
5
Screw WPL 4358271 Contact Us For Availability
5
TAPE,SEAL WPL W10169264 Contact Us For Availability
5
Control Panel (White) WPL W10169270 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Microcomputer WPL W10171942 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
8
Panel, Door (Black) WPL W10169301 Contact Us For Availability
8
Panel, Door (Stainless) WPL W10169314 Contact Us For Availability
8
Panel, Door (White) WPL W10169268 Contact Us For Availability
9
Cap, Choke Cover WPL 8184265 Contact Us For Availability
9
Power Cord WPL 8206281 Contact Us For Availability
10
Thermostat WPL W10169277 Contact Us For Availability
10
Door Assembly (Stainless) WPL W10169312 Contact Us For Availability
10
Sensor, Humidity WPL 8183514 Contact Us For Availability
10
Door Assembly (Black) WPL W10169300 Contact Us For Availability
10
Door Assembly (White) WPL W10169267 Contact Us For Availability
11
Guide, Sensor WPL 8205457 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Screw WPL W10160553 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
16
Bracket, Support WPL 8184290 Contact Us For Availability
18
Filter, Noise WPL 8206270 Contact Us For Availability
19
Screw WPL 8204902 Contact Us For Availability
20
Screw WPL 4358381 Contact Us For Availability
22
Screw WPL 4358190 Contact Us For Availability
× ![]()
