Model Whirlpool YKCMS1555RBL0 MICROWAVE OVEN 1.5 CUBIC FOOT – Common Parts & Diagrams
06 - BASE PLATE PARTS
05 - OVEN INTERIOR PARTS

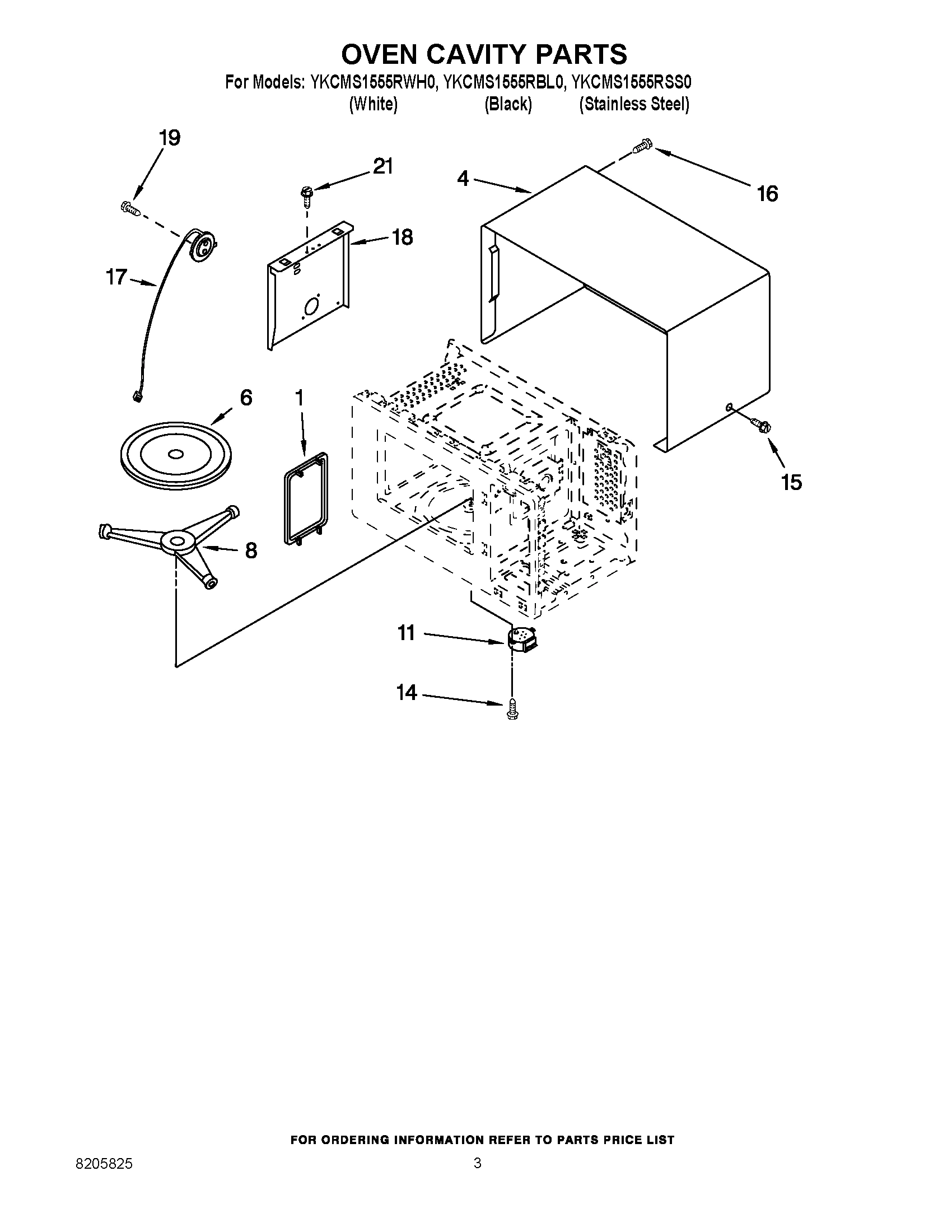

03 - OVEN CAVITY PARTS

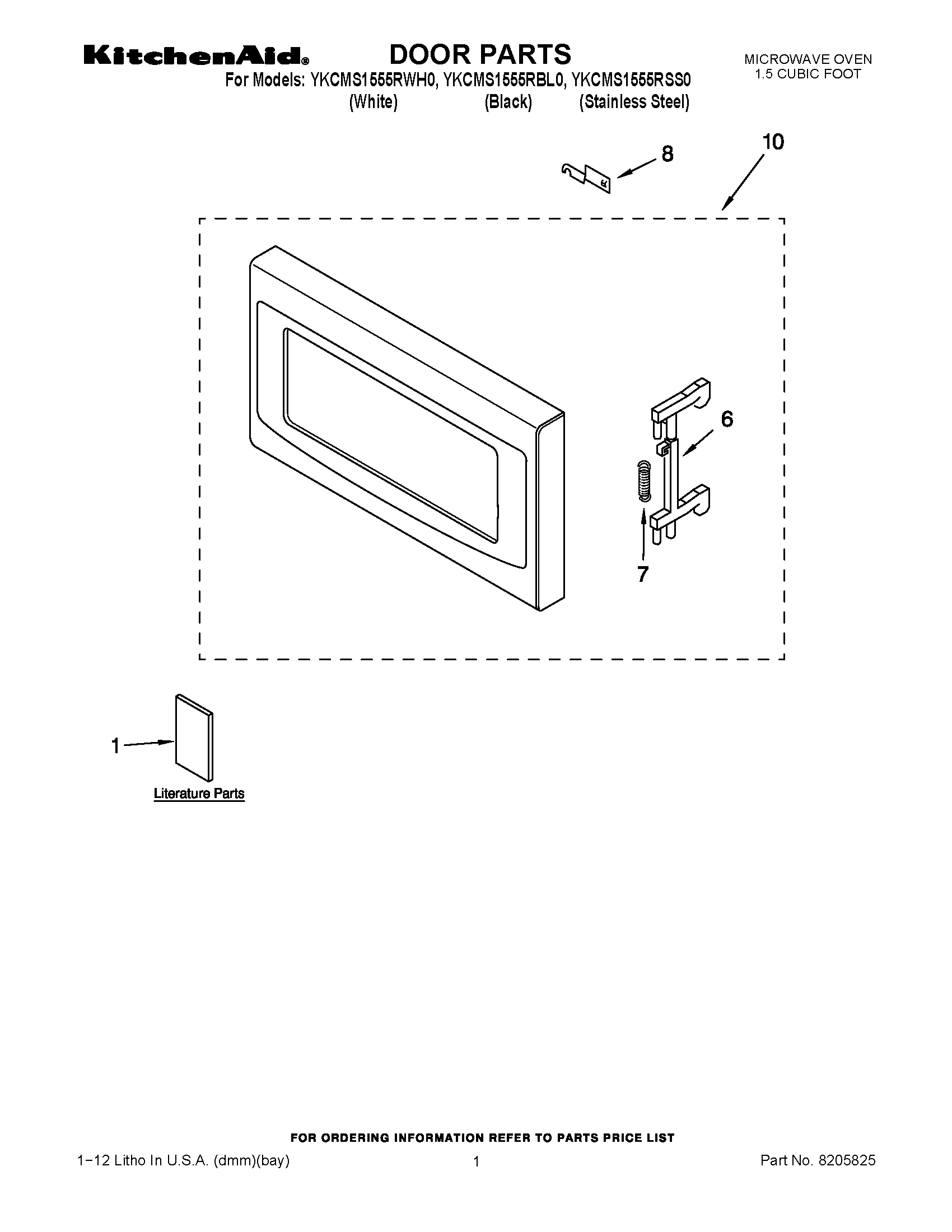

01 - DOOR PARTS

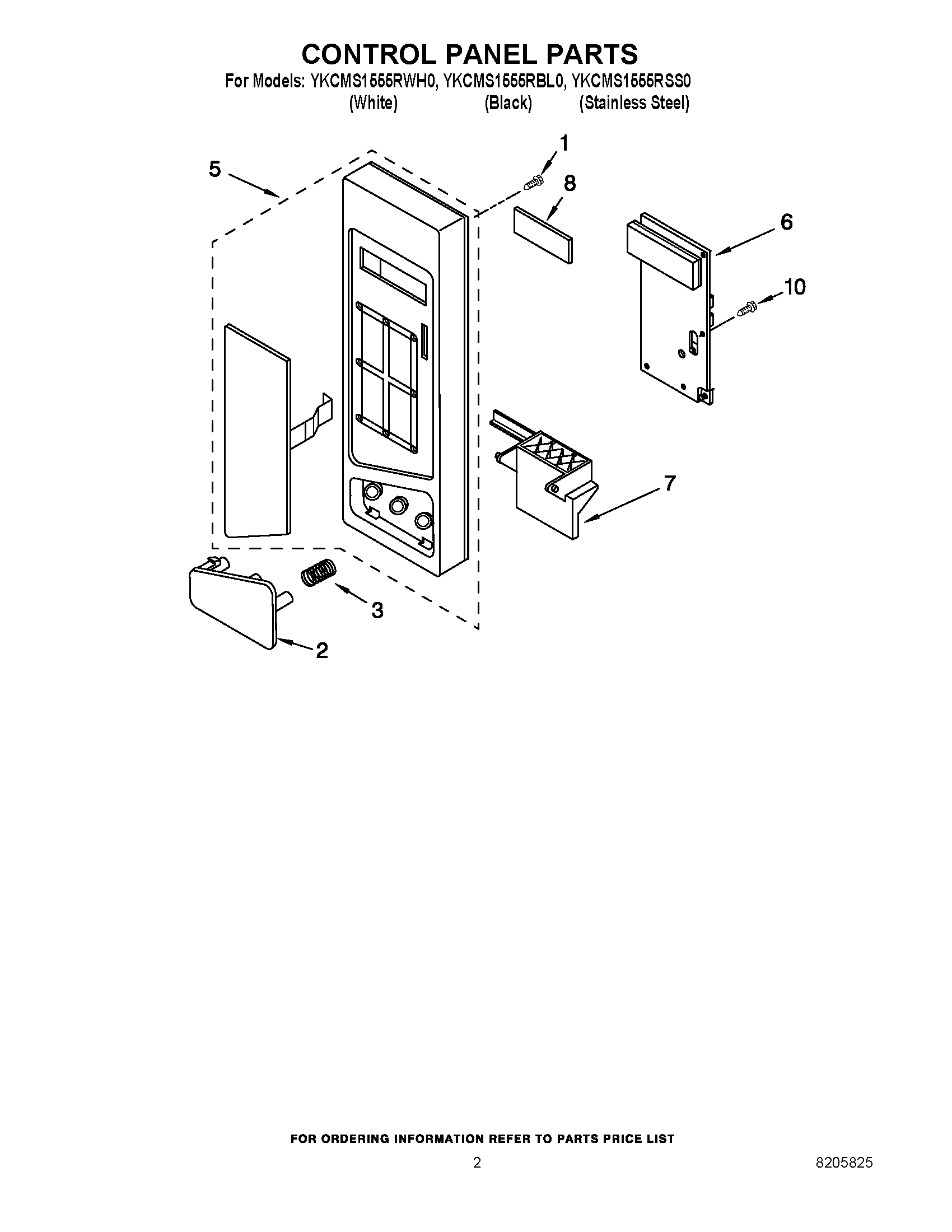

02 - CONTROL PANEL PARTS

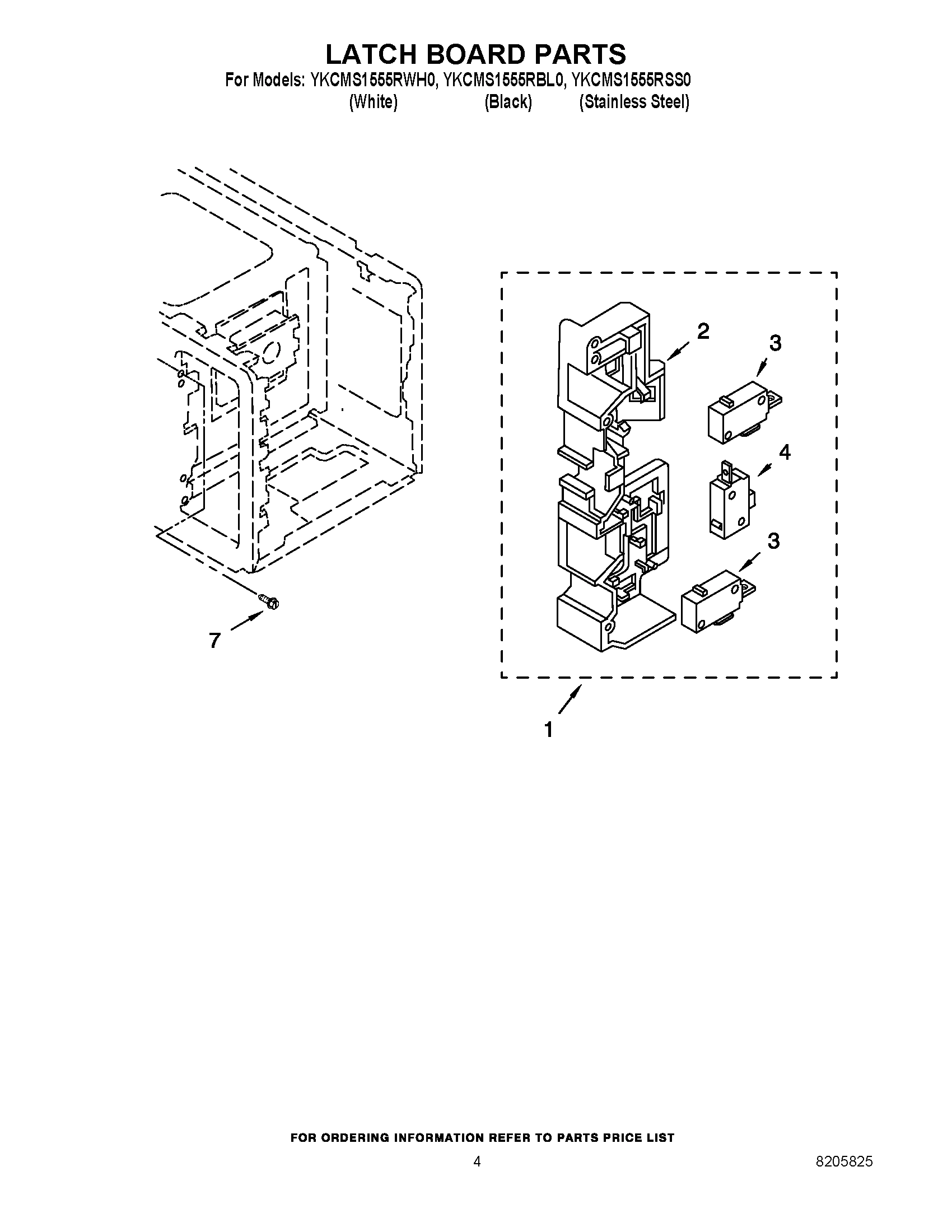

04 - LATCH BOARD PARTS
Common parts from model Whirlpool YKCMS1555RBL0 MICROWAVE OVEN 1.5 CUBIC FOOT
1
Canopy WPL 8184278 Contact Us For Availability
1
Blade, Fan WPL 8205458 Contact Us For Availability
1
Screw WPL 4358381 Contact Us For Availability
1
Use & Care Guide WPL 8205543 Contact Us For Availability
1
Tech Sheet WPL 8205544 Contact Us For Availability
1
Cook Guide Label (English) WPL 8205551 Contact Us For Availability
1
Cook Guide Label (French) WPL 8205552 Contact Us For Availability
1
Instructions, Installation (For Trim Kit) WPL 8205554 Contact Us For Availability
1
LATCH BOARD ASSEMBLY (NON-SERVICEABLE) WPL NP Contact Us For Availability
2
Release Button (Black) WPL 8205799 Contact Us For Availability
2
Release Button (White) WPL 8205806 Contact Us For Availability
2
Release Button (Stainless) WPL 8205817 Contact Us For Availability
3
Motor, Fan WPL 8205462 Contact Us For Availability
4
Outer Case (White) WPL 8205453 Contact Us For Availability
4
Outer Case (Black) WPL 8205801 Contact Us For Availability
4
Outer Case (Stainless) WPL 8205818 Contact Us For Availability
5
H.V.C Bracket WPL 8184288 Contact Us For Availability
5
Control Panel (Black) WPL 8205798 Contact Us For Availability
5
Control Panel (White) WPL 8205805 Contact Us For Availability
5
Control Panel (Stainless) WPL 8205816 Contact Us For Availability
6
Latch WPL 8184263 Contact Us For Availability
6
Leadwire Assembly WPL 8205824 Contact Us For Availability
6
P.C.B Sub Assembly WPL 8205821 Contact Us For Availability
7
Spring, Latch WPL 8171918 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
Holder, Wire WPL 4359794 Contact Us For Availability
8
Cap WPL 8184265 Contact Us For Availability
8
Lens WPL 8204891 Contact Us For Availability
9
Power Cord WPL 8205823 Contact Us For Availability
10
Thermostat WPL 4359164 Contact Us For Availability
10
Door Assembly (Black) WPL 8205797 Contact Us For Availability
10
Door Assembly (White) WPL 8205804 Contact Us For Availability
10
Door Assembly (Stainless) WPL 8205815 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
11
Lamp, Baseless WPL 8171810 Contact Us For Availability
12
Cap, Fuse WPL 8205483 Contact Us For Availability
14
Bracket WPL 8205509 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Duct, Air WPL 8204900 Contact Us For Availability
15
Screw (Black Model) WPL 4358829 Contact Us For Availability
16
Bracket, Support WPL 8184290 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Guide, Sensor WPL 8205457 Contact Us For Availability
19
Screw WPL 4358376 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
