Model Whirlpool YKCMS145JWH0 MICROWAVE OVEN 1.4 CUBIC FOOT – Common Parts & Diagrams
04 - LATCH BOARD PARTS
06 - BASE PLATE PARTS

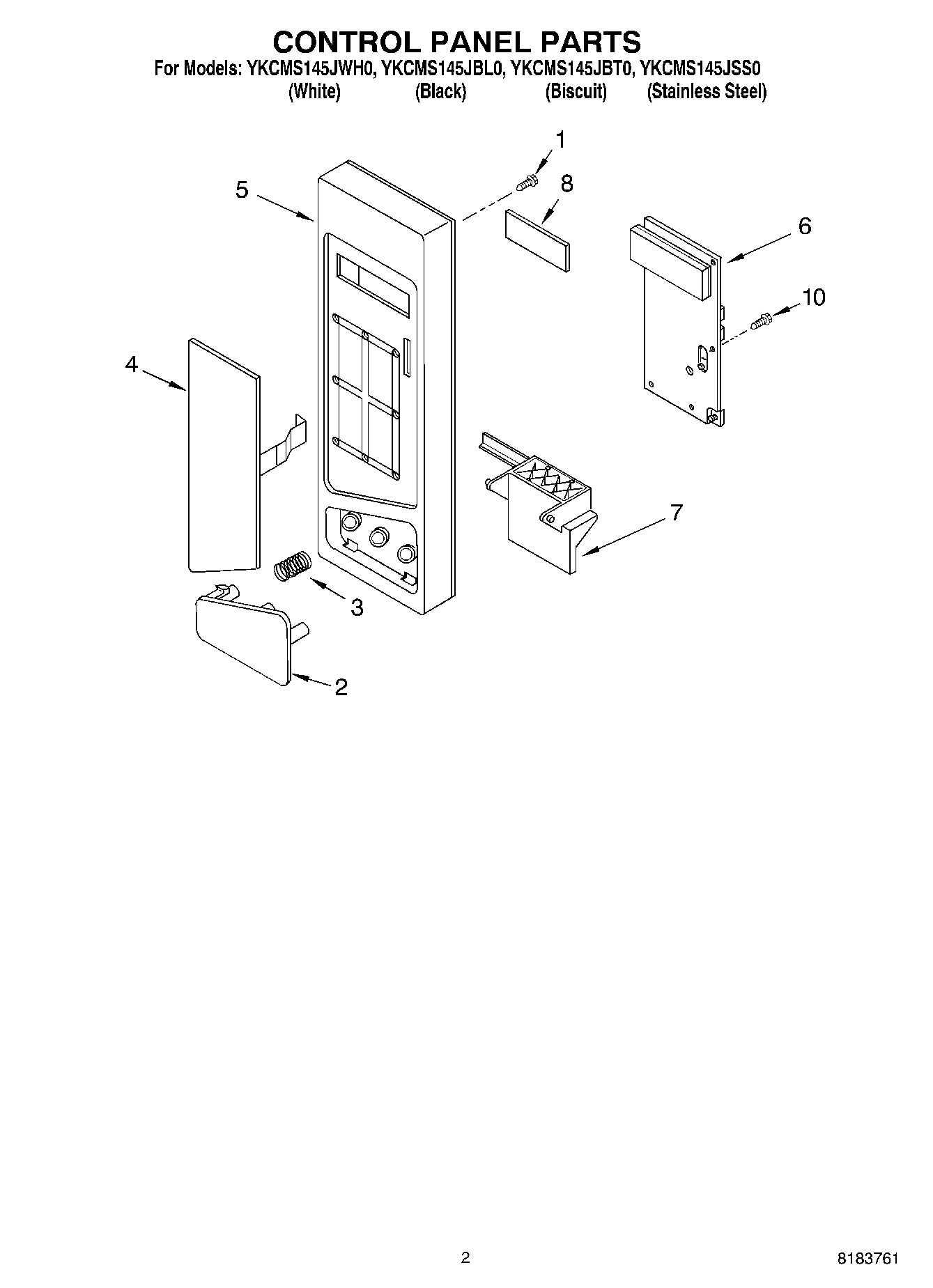

02 - CONTROL PANEL PARTS

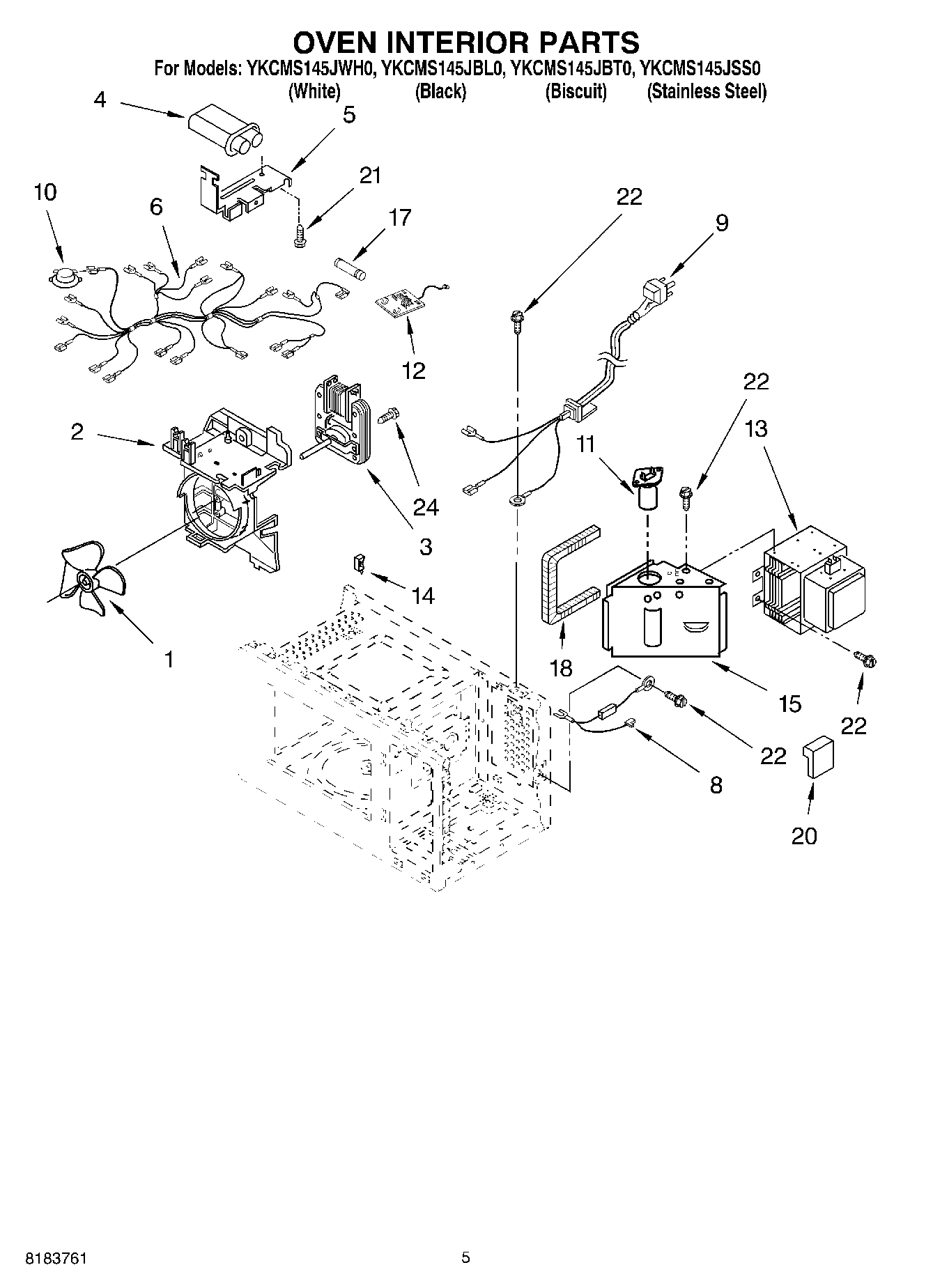

05 - OVEN INTERIOR PARTS

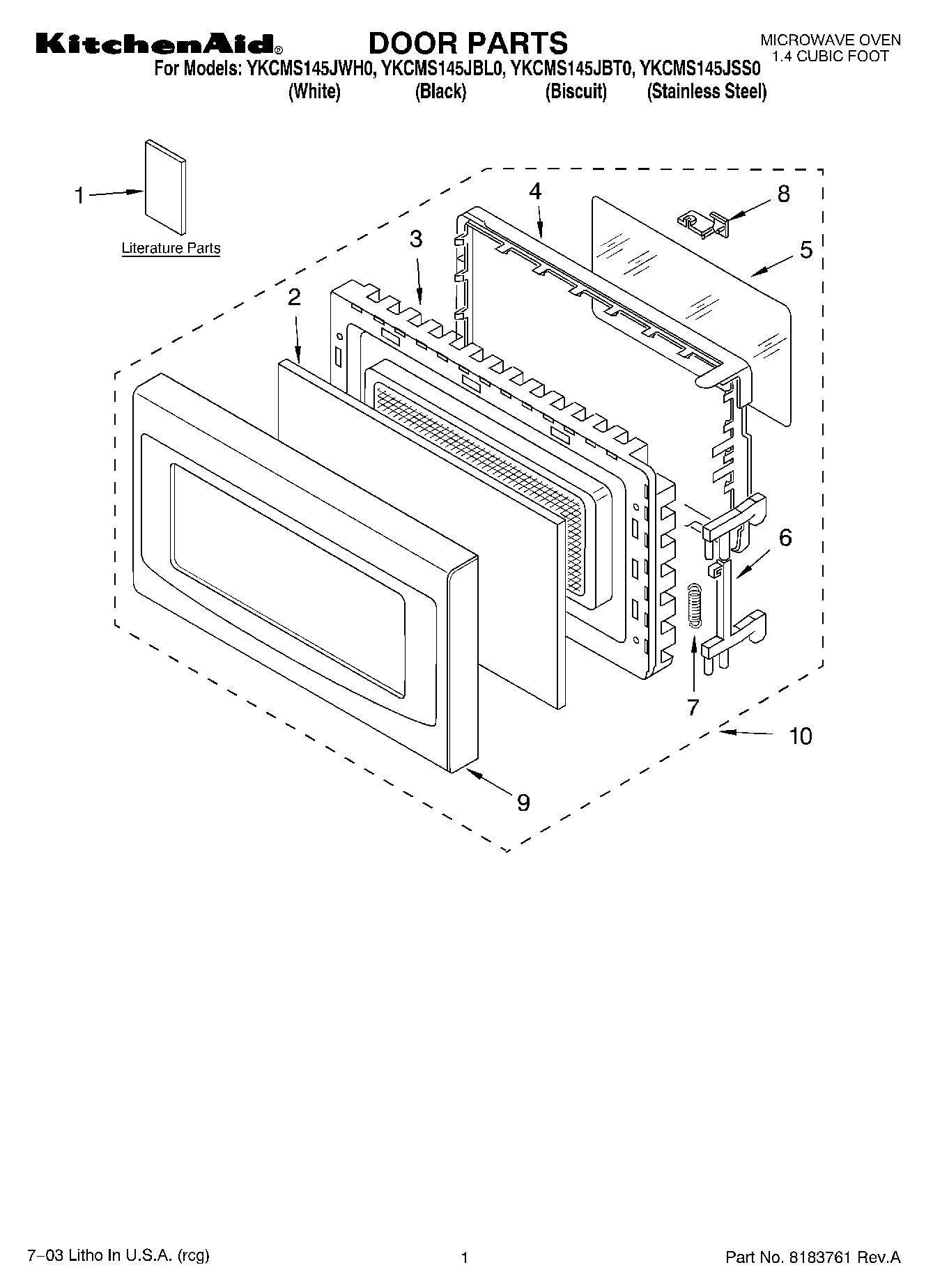

01 - DOOR PARTS

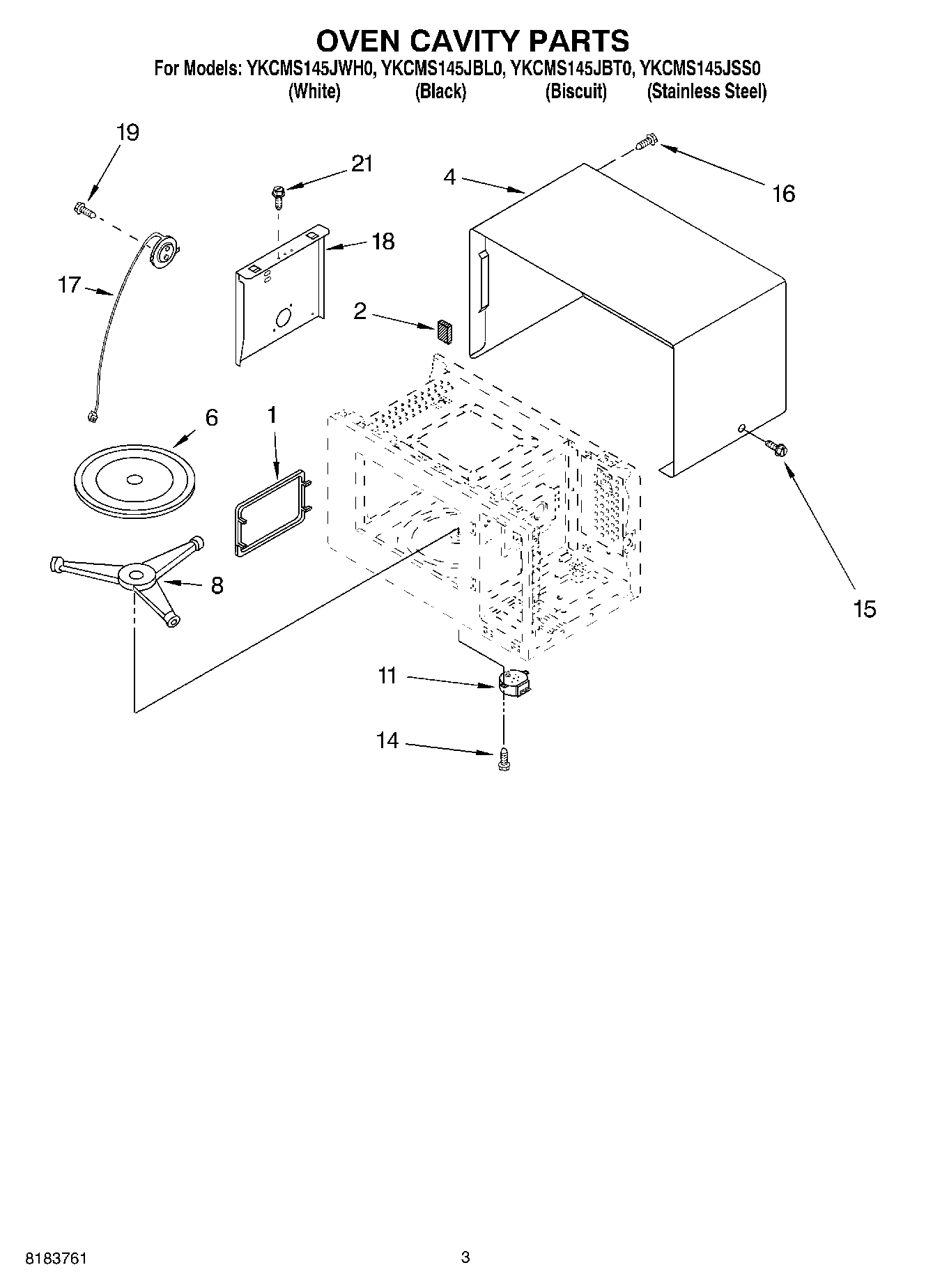

03 - OVEN CAVITY PARTS
Common parts from model Whirlpool YKCMS145JWH0 MICROWAVE OVEN 1.4 CUBIC FOOT
1
Literature Parts (Use & Care Guide Cook Guide WPL LIT8172188 Contact Us For Availability
1
Literature Parts (English) WPL LIT8172202 Contact Us For Availability
1
Literature Parts (French) WPL LIT8172203 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8172211 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8172217 Contact Us For Availability
1
Literature Parts (Template, B/I Kit) WPL LIT8172220 Contact Us For Availability
1
Canopy WPL 8171935 Contact Us For Availability
2
Release Button (Stainless) WPL 8172029 Contact Us For Availability
2
Front Screen WPL 4359934 Contact Us For Availability
2
Release Button (Biscuit) WPL 4359937 Contact Us For Availability
2
Release Button (White) WPL 8172028 Contact Us For Availability
2
Release Button (Black) WPL 8172030 Contact Us For Availability
2
Guide, Suction WPL 4359158 Contact Us For Availability
2
CUSHION WPL 8183766 Contact Us For Availability
3
Spring, Button WPL 4158178 Contact Us For Availability
3
Motor, Fan WPL 8183767 Contact Us For Availability
3
Door Frame Assembly (Black) WPL 4359761 Contact Us For Availability
3
Door Frame Assembly (White) WPL 8172024 Contact Us For Availability
3
Door Frame Assembly (Biscuit) WPL 8172025 Contact Us For Availability
4
Key Membrane (Stainless) WPL 8183627 Contact Us For Availability
4
Key Membrane (Biscuit) WPL 8183628 Contact Us For Availability
4
Key Membrane (Black) WPL 8183625 Contact Us For Availability
4
Key Membrane (White) WPL 8183626 Contact Us For Availability
4
H.V. Capacitor WPL 8183764 Contact Us For Availability
4
Choke Cover WPL 4359763 Contact Us For Availability
4
Outer Case (White) WPL 4359779 Contact Us For Availability
4
Outer Case (Black) WPL 4359804 Contact Us For Availability
4
Outer Case (Stainless) WPL 4359853 Contact Us For Availability
4
Outer Case (Biscuit) WPL 4359941 Contact Us For Availability
5
Control Panel (White) WPL 4359850 Contact Us For Availability
5
Control Panel (Black) WPL 4359851 Contact Us For Availability
5
Control Panel (Biscuit) WPL 4359939 Contact Us For Availability
5
Control Panel (Stainless) WPL 8205816 Contact Us For Availability
5
H.V.C. Bracket WPL 4359161 Contact Us For Availability
5
Tape, Seal WPL 4359764 Contact Us For Availability
6
Microcomputer WPL 8183861 Contact Us For Availability
6
Leadwire Assembly WPL 8172080 Contact Us For Availability
6
Latch WPL 4359765 Contact Us For Availability
7
Screw WPL 4358271 Contact Us For Availability
7
30`` Stainless WPL MK1130XHS Contact Us For Availability
7
30`` Biscuit WPL MK1130XHT Contact Us For Availability
7
24`` Black WPL MK1134XHB Contact Us For Availability
7
24`` White WPL MK1134XHQ Contact Us For Availability
7
24`` Stainless WPL MK1134XHS Contact Us For Availability
7
24`` Biscuit WPL MK1134XHT Contact Us For Availability
7
27`` Black WPL MK1137XHB Contact Us For Availability
7
27`` White WPL MK1137XHQ Contact Us For Availability
7
27`` Stainless WPL MK1137XHS Contact Us For Availability
7
27`` Biscuit WPL MK1137XHT Contact Us For Availability
7
Lever, Release WPL 4359718 Contact Us For Availability
7
Spring, Latch WPL 4359707 Contact Us For Availability
8
Lens WPL 4359720 Contact Us For Availability
8
Cap WPL 4359710 Contact Us For Availability
8
Turntable Support WPL 4359884 Contact Us For Availability
9
Power Cord WPL 8172081 Contact Us For Availability
9
Panel, Door (White) WPL 4359843 Contact Us For Availability
9
Panel, Door (Black Stainless (Not Serviced)) WPL 4359844 Contact Us For Availability
9
Panel, Door (Biscuit) WPL 4359936 Contact Us For Availability
10
Screw WPL 4358883 Contact Us For Availability
10
Thermostat WPL 8183524 Contact Us For Availability
10
Door Assembly (Stainless) WPL 4359839 Contact Us For Availability
10
Door Assembly (White) WPL 4359840 Contact Us For Availability
10
Door Assembly (Black) WPL 4359841 Contact Us For Availability
10
Door Assembly (Biscuit) WPL 4359933 Contact Us For Availability
11
Lamp, Baseless WPL 4359741 Contact Us For Availability
12
Filter, Noise WPL 4359200 Contact Us For Availability
14
Holder WPL 4359794 Contact Us For Availability
14
Screw WPL 4358188 Contact Us For Availability
15
Duct, Air WPL 8171998 Contact Us For Availability
15
Screw (Black) WPL 4358829 Contact Us For Availability
16
Screw WPL 8171862 Contact Us For Availability
17
Sensor, Humidity WPL 8183514 Contact Us For Availability
18
Cushion (Not Serviced) WPL ARI136966A Contact Us For Availability
18
Guide, Sensor WPL 8183515 Contact Us For Availability
19
Screw WPL 4358450 Contact Us For Availability
20
Filter, Choke WPL 4359624 Contact Us For Availability
21
Screw WPL 4358381 Contact Us For Availability
24
Screw WPL 4358190 Contact Us For Availability
× ![]()
